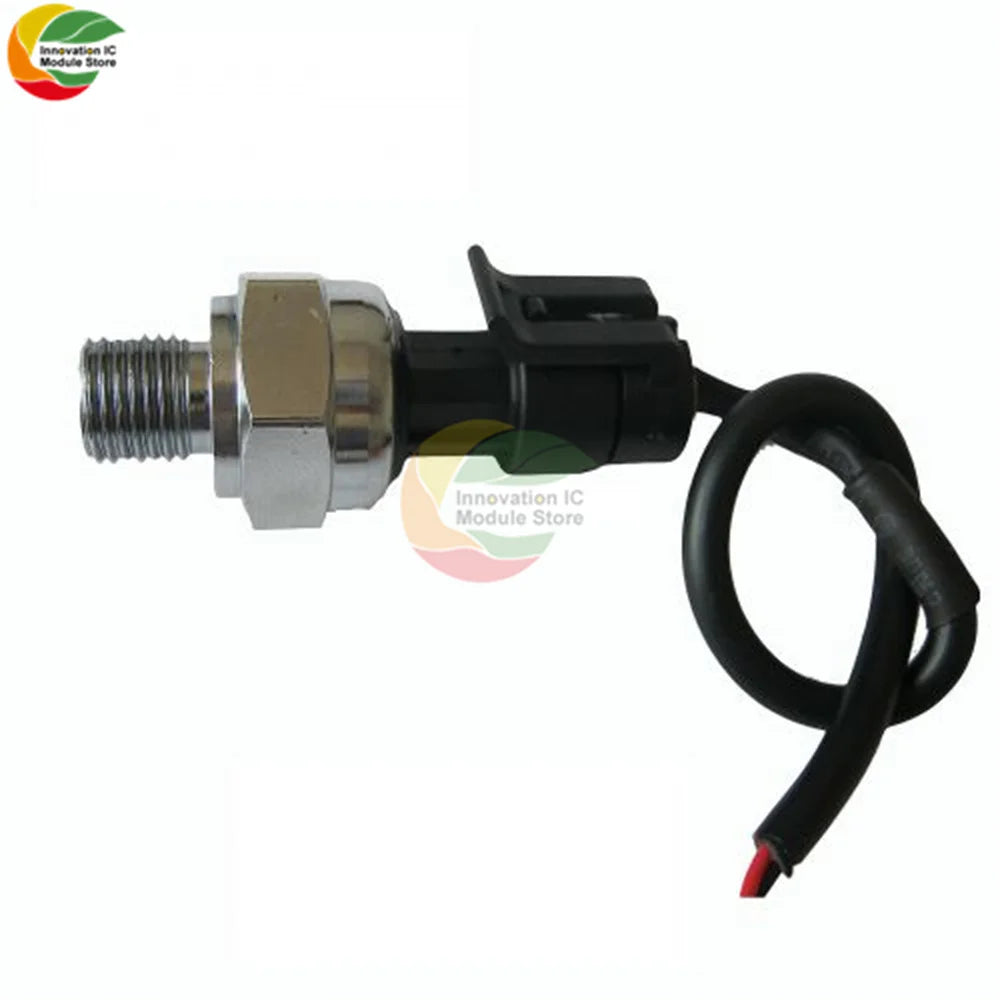

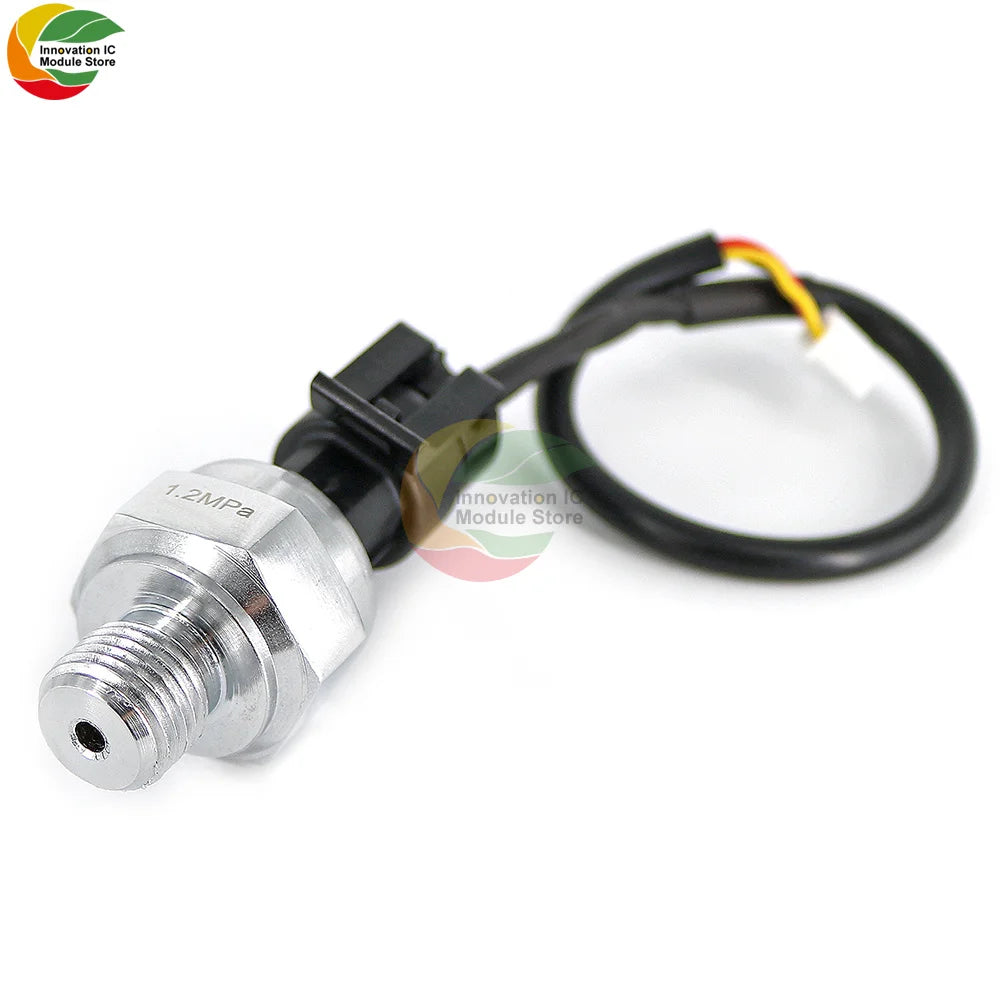

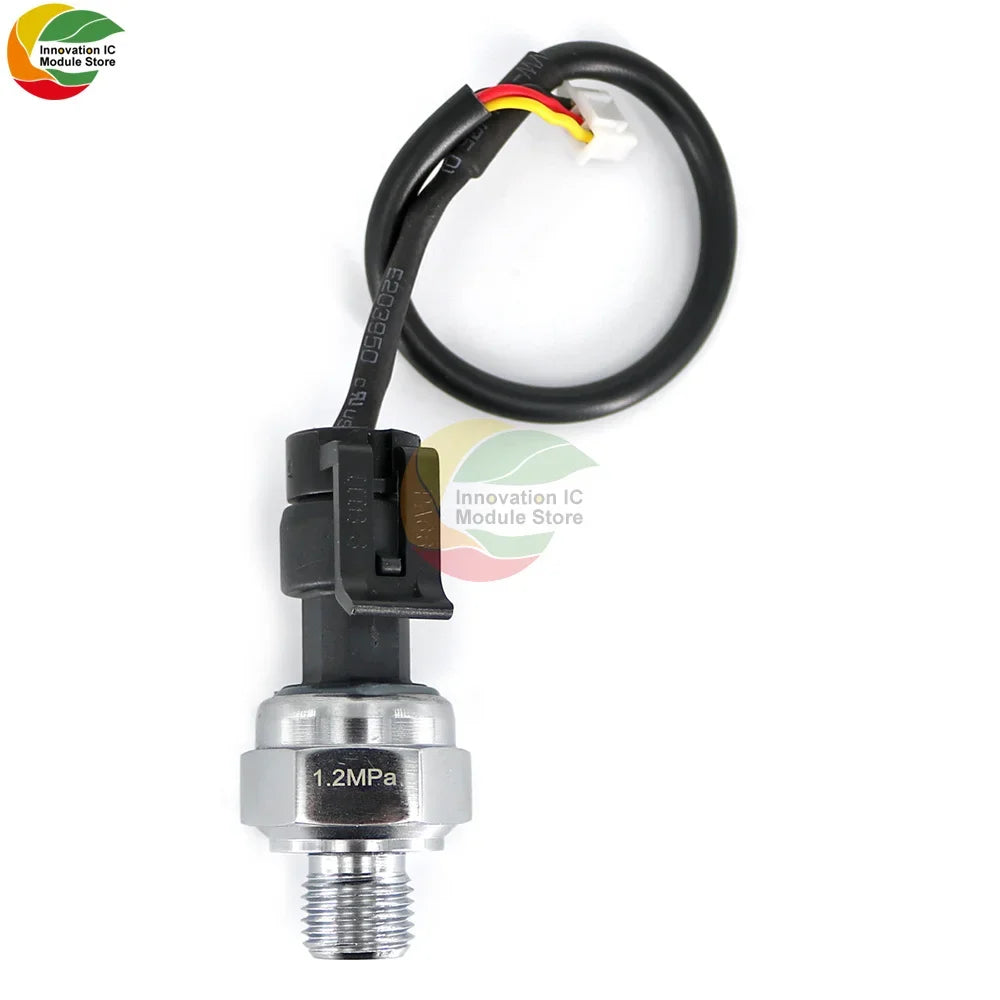

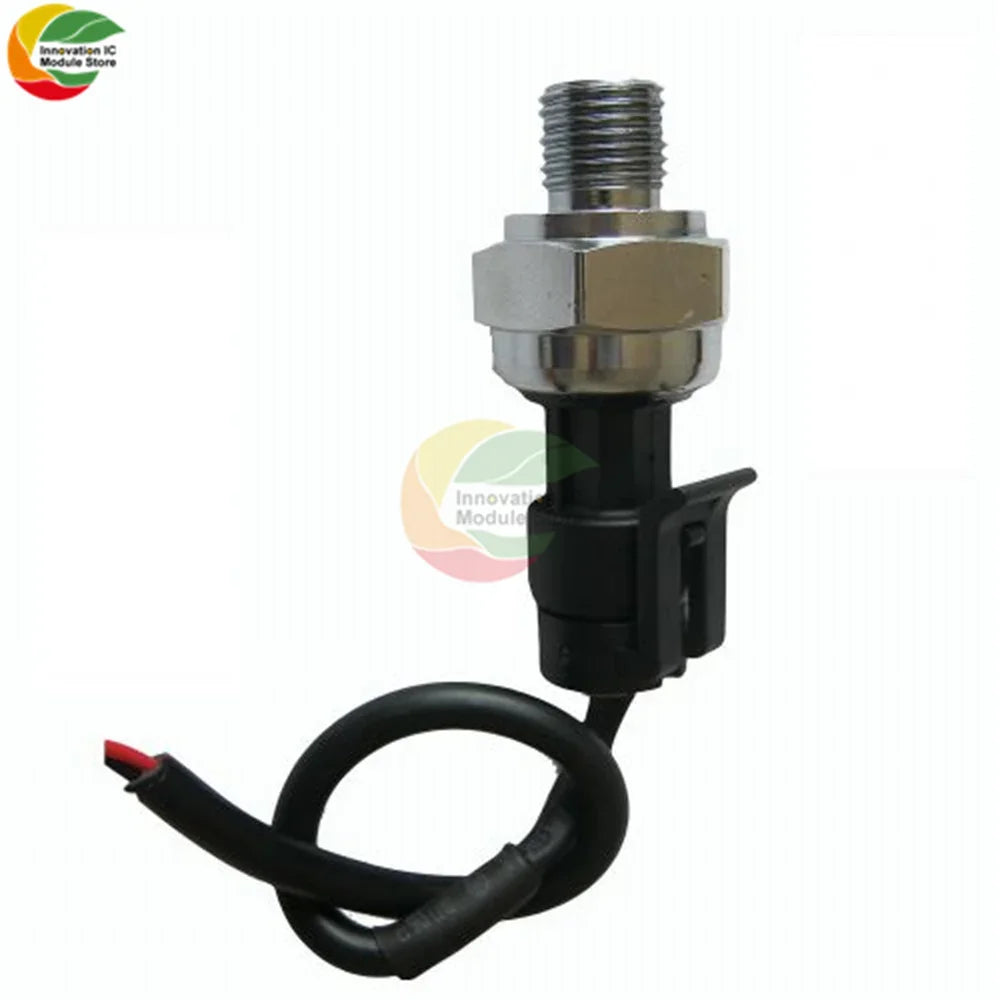

5V G1/4 0-1.2 MPa Pressure Sensor Transmitter for Non-Corrosive Water/Oil/Gas Pressure Sensor Module 1/4" Diameter for Arduino
Default Title
$78.35
Sale price
$78.35
Regular price
$0.00
Skip to product information
Features:
5V G1/4 0-1.2 MPa Pressure Sensor Transmitter for Non-Corrosive Water/Oil/Gas Pressure Sensor Module 1/4" Diameter for Arduino
$78.35
Sale price
$78.35
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: Ziqqucu
Choice: yes
Destroy Pressure: 3.0MPa
High-concerned chemical: none
Lead length: 20cm
Material: Mixture
Measuring Error: ±1.5 %FSO
Origin: Mainland China
Output: Analog Sensor
Output Voltage: 0.5-4.5V DC, Vout = VCC*(0.75*Pressure + 0.1)
Output connector: XH2.54MM-3P
Output leads: yellow (DATA), red (VCC), black (GND)
Pressure Scale: 0-1.2MPa
Response Time: <=2.0ms
Temperature Range Error: ±3.5 %FSO
The Biggest Pressure: 2.4MPa
Theory: Resistance Sensor
Type: vibration sensor
Use: Pressure Sensor

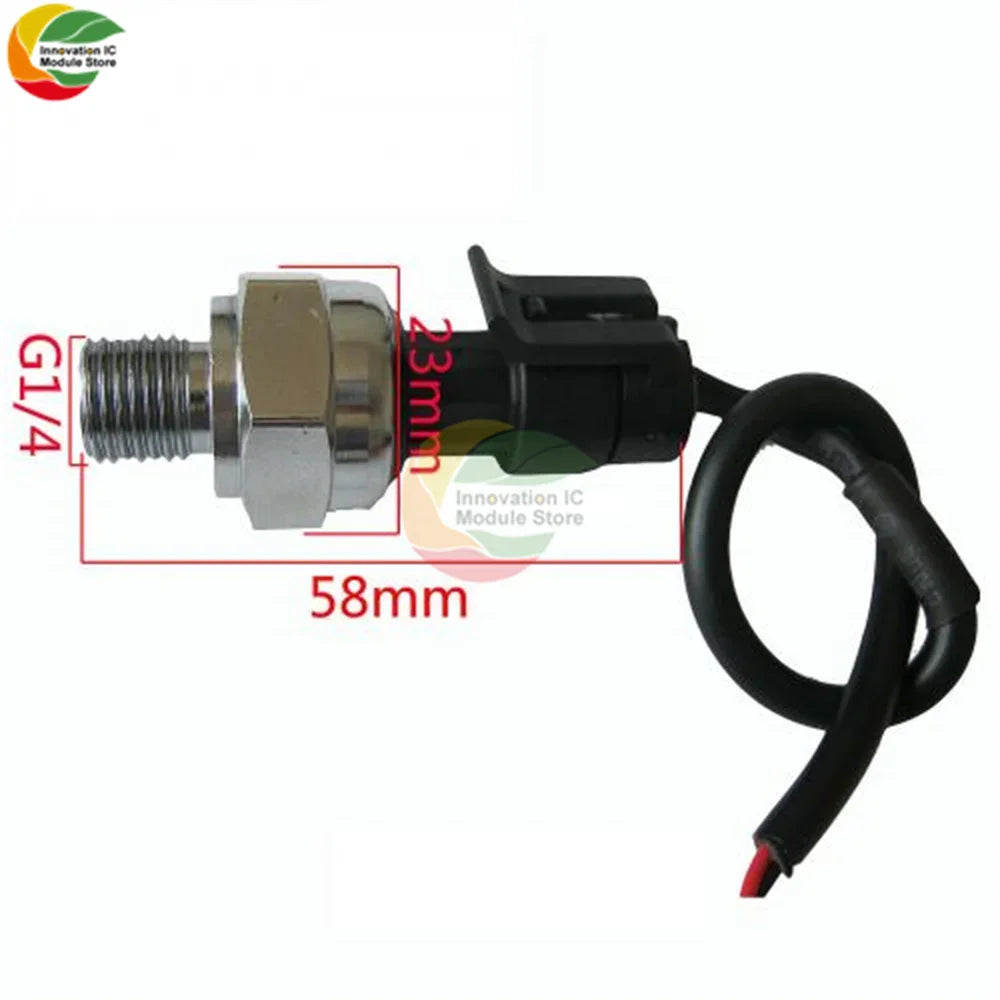

Variable-speed pump interface: G1/4 (1/4 inch)
Working Current: <=10mA
Working Voltage VCC: DC 5.0 V
Working temperature range: 0-85 Celsius Degree
is_customized: Yes
semi_Choice: yes
It can measure the pressure of non-corrosiveness liquid / Gas and output linear analog voltage.
Features:
- Working Voltage VCC: 5.0 V DC
- Output Voltage: 0.5-4.5V DC, Vout = VCC*(0.75*Pressure + 0.1)
- Working Current: <=10mA
- Pressure Scale: 0-1.2MPa
- The Biggest Pressure: 2.4MPa
- Destroy Pressure: 3.0MPa
- Working temperature range: 0-85 Celsius Degree
- Measuring Error:±1.5 %FSO
- Temperature Range Error: ±3.5 %FSO
- Response Time: <=2.0ms
- Variable-speed pump interface: G1/4 (1/4 inch)
- Output connector: XH2.54MM-3P

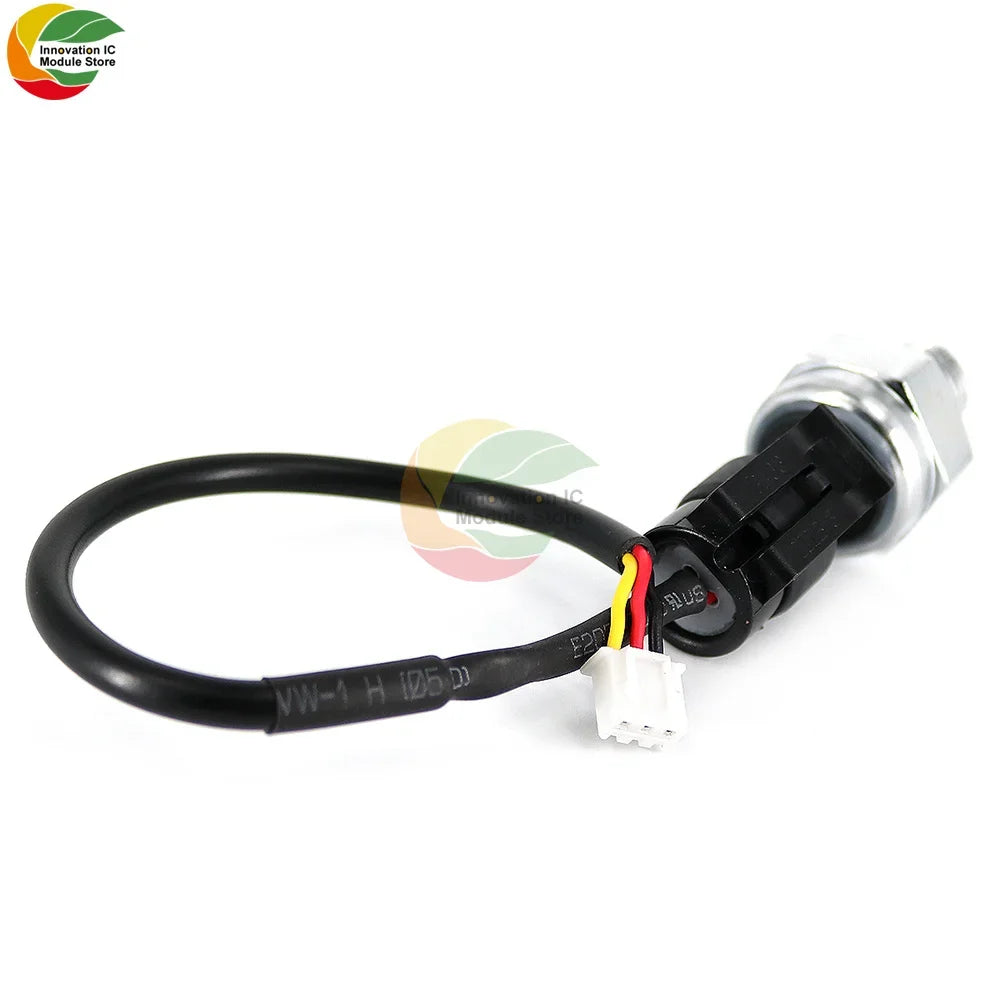

- Output leads: yellow (DATA), red (VCC), black (GND)
- Lead length: 20cm
