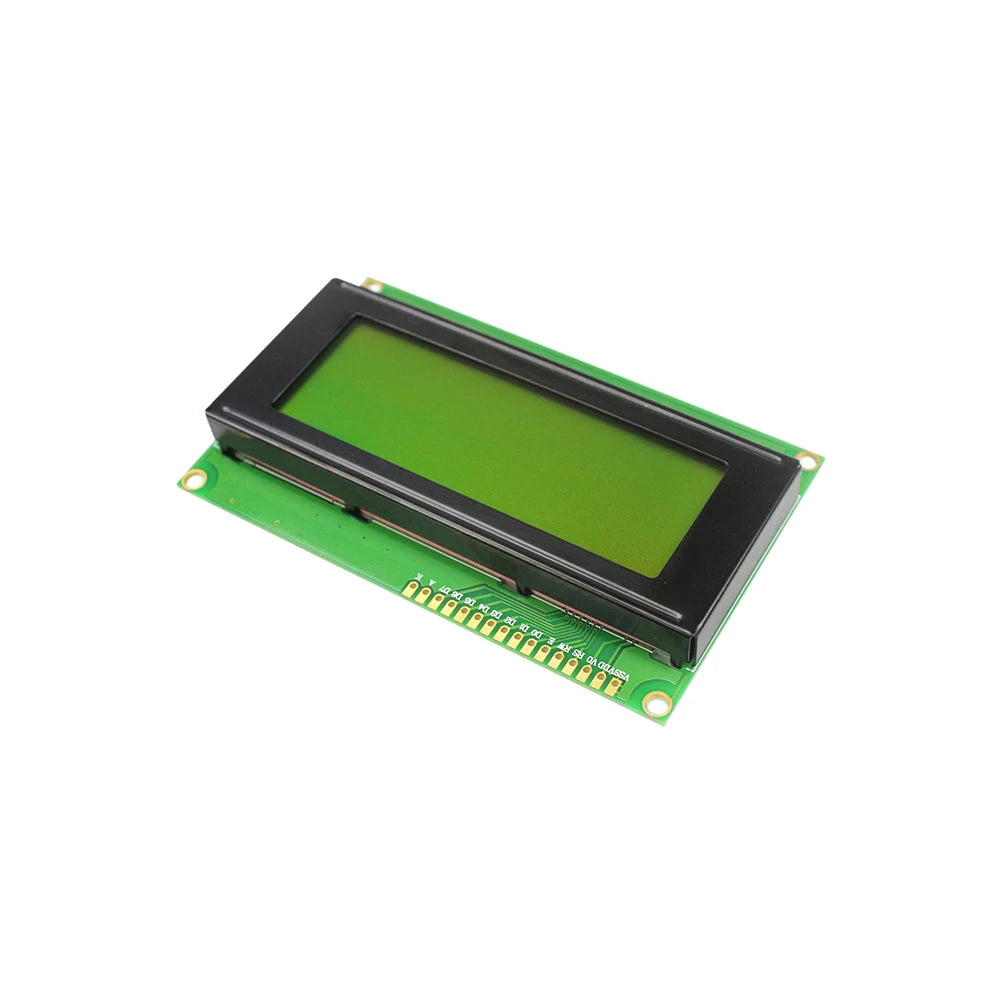

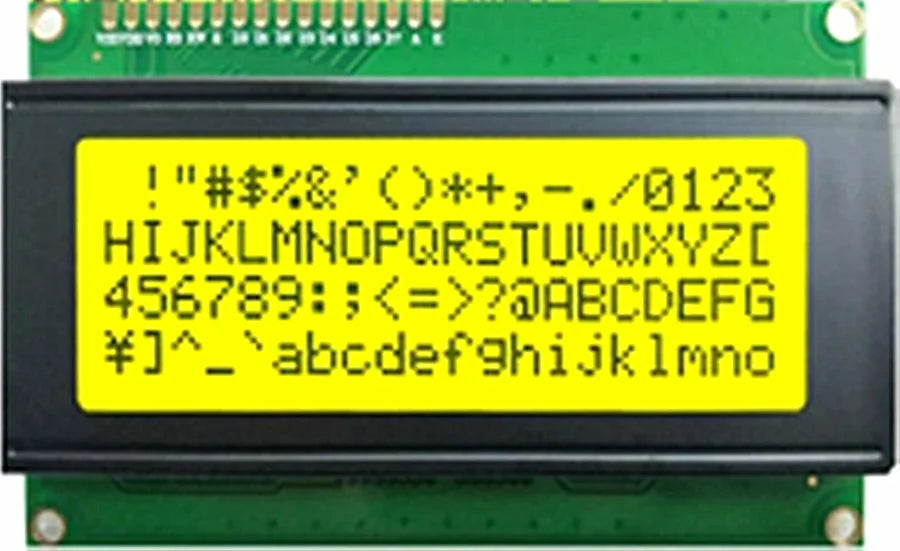

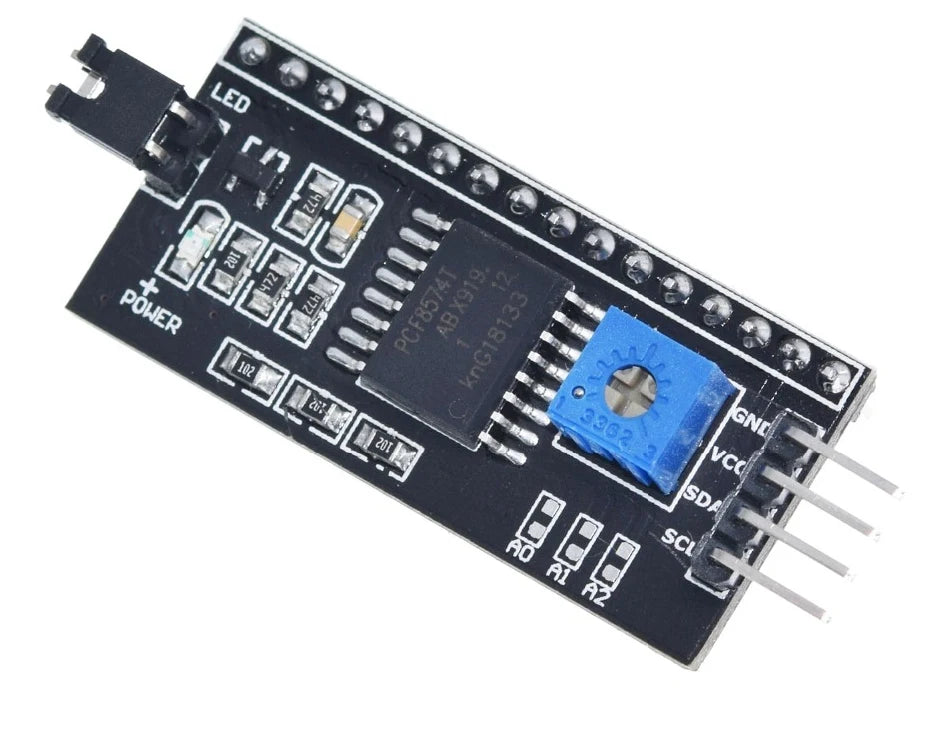

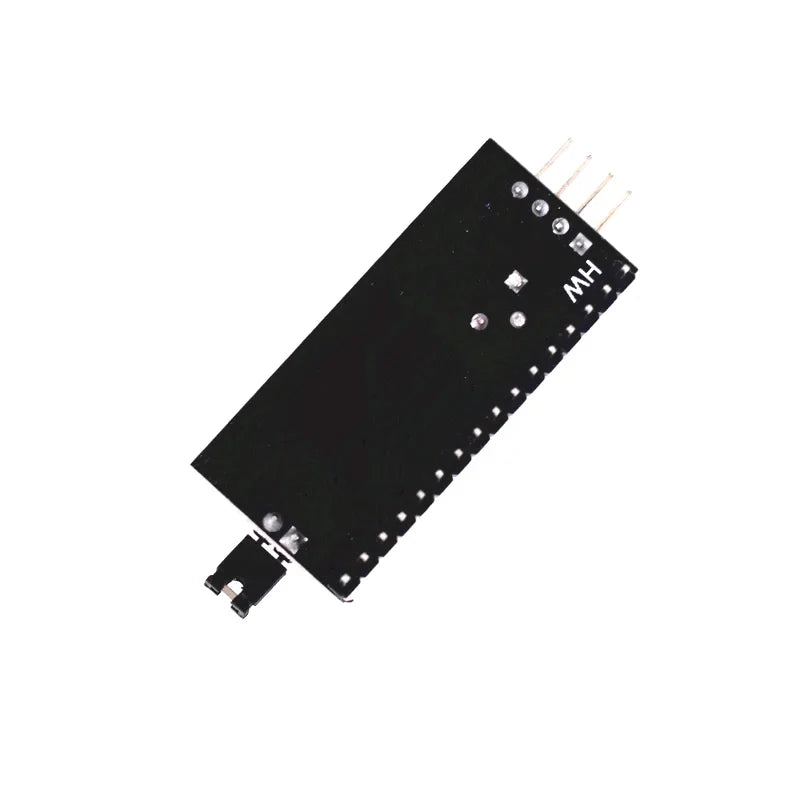

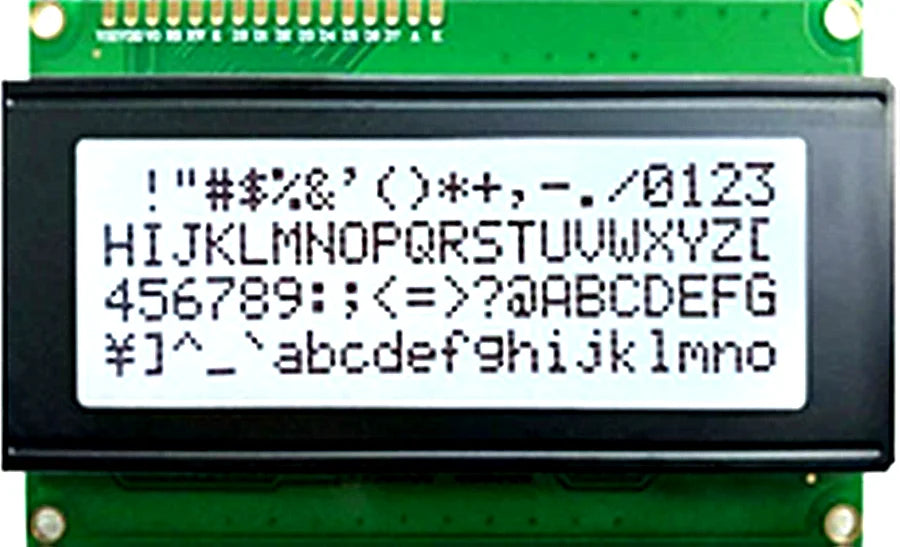

5V LCD Board 2004 20X4 2004A 20X4 Blue Or Yellow Screen LCD2004 Display LCM Module For 3D Printer IIC I2C Adpater
IIC Adapter
$11.12
Sale price
$11.12
Regular price
$0.00
Skip to product information
5V LCD Board 2004 20X4 2004A 20X4 Blue Or Yellow Screen LCD2004 Display LCM Module For 3D Printer IIC I2C Adpater
$11.12
Sale price
$11.12
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Controller IC: KS0066 or SPLC780 or compatible
Dimensions: 98x60x13.5(MAX)
Display Mode: 204
Dot Pitch: 0.6mmX0.6mm
Dot Size: 0.55mmX0.55mm
Glass Color: Blue
High-concerned chemical: none
Model Number: 2004A
Module Size(WXHXT): 98.0mmX60.0mmX14.0mm
Operating voltage: 5V
Origin: Mainland China
Resolution: 20*4
Type: Character
View Aera(WXH): 76.0mmX26.0mm
backlight: White
1PCS 5V LCD Board 2004 20X4 2004A 20X4 Blue Or Yellow Screen LCD2004 Display LCM Module For 3D Printer IIC I2C Adpater
Resolution: 20x4 dots

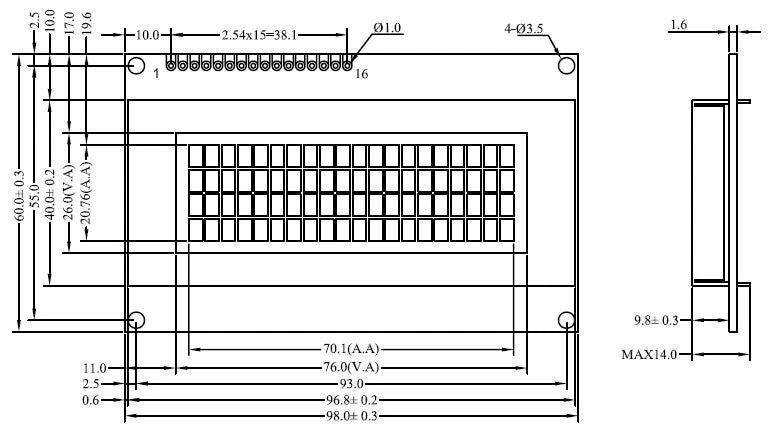

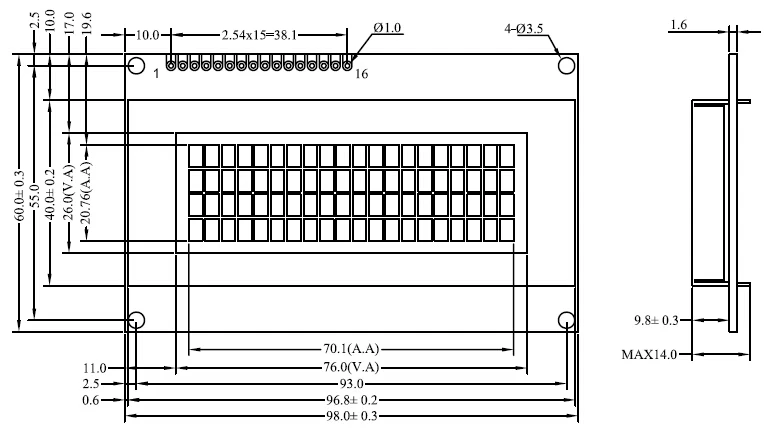

Dimensions: 98(W)x60(H)x14(T)mm
Viewing window: 76×26mm
Display area: 70.1 (W) x 20.76 (H) mm
Character size: 2.94x4.74mm
Display Inch: 3.16"
Dot (pixel) size: 0.54X0.0.54mm

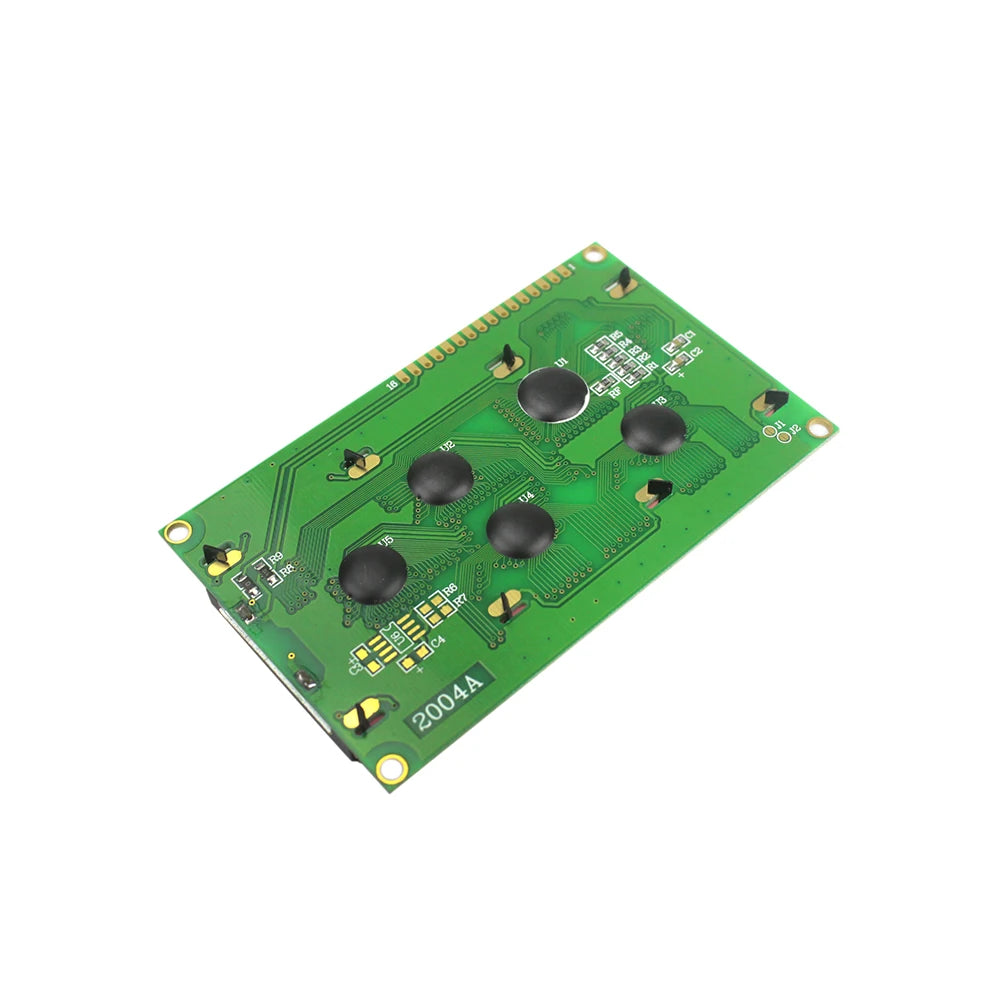

Product process: COB

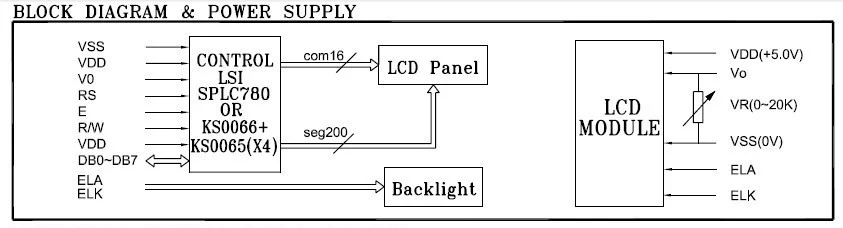

Control chip: SPLC780C/HS44780/KS0066 or Equivalent

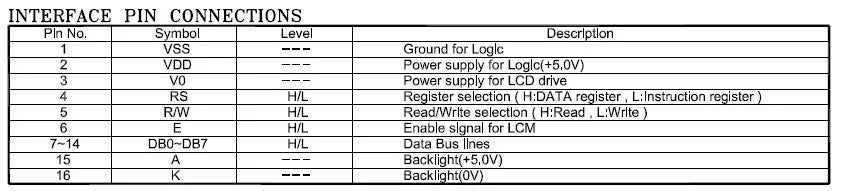

Communication: 6800 8-bit/4-bit Parallel
Interface Type: parallel
Display mode: STN/FSTN
Sunlight Visible: Yes
Optional touch screen: No
Contrast Yes
Best Viewing Direction: 6:00

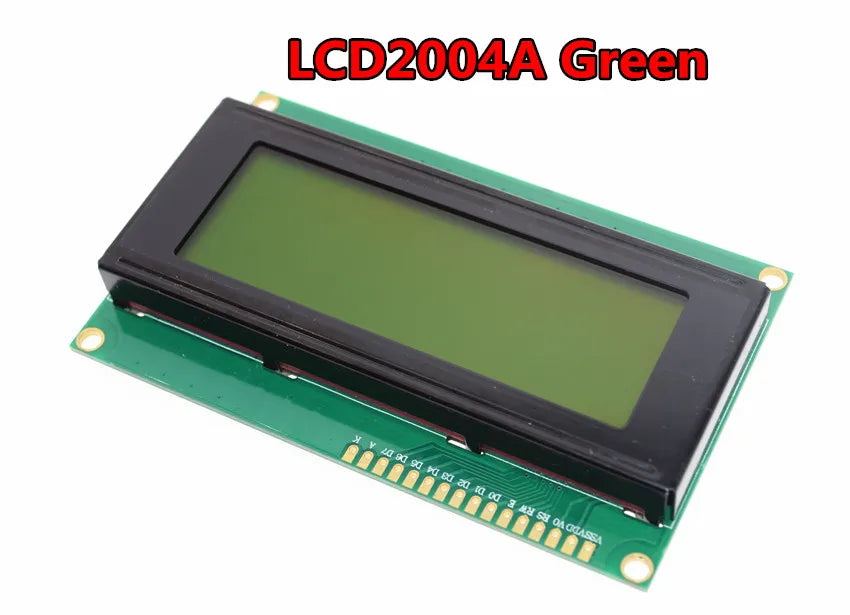

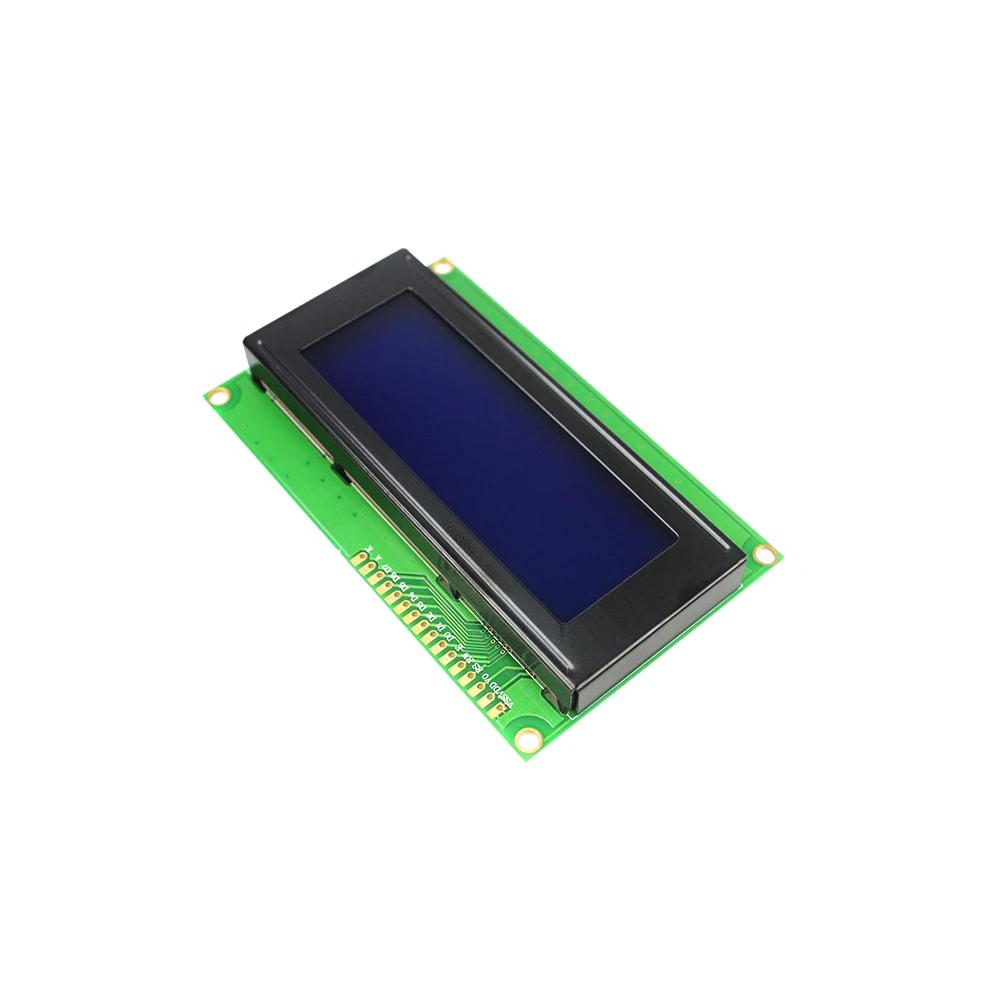

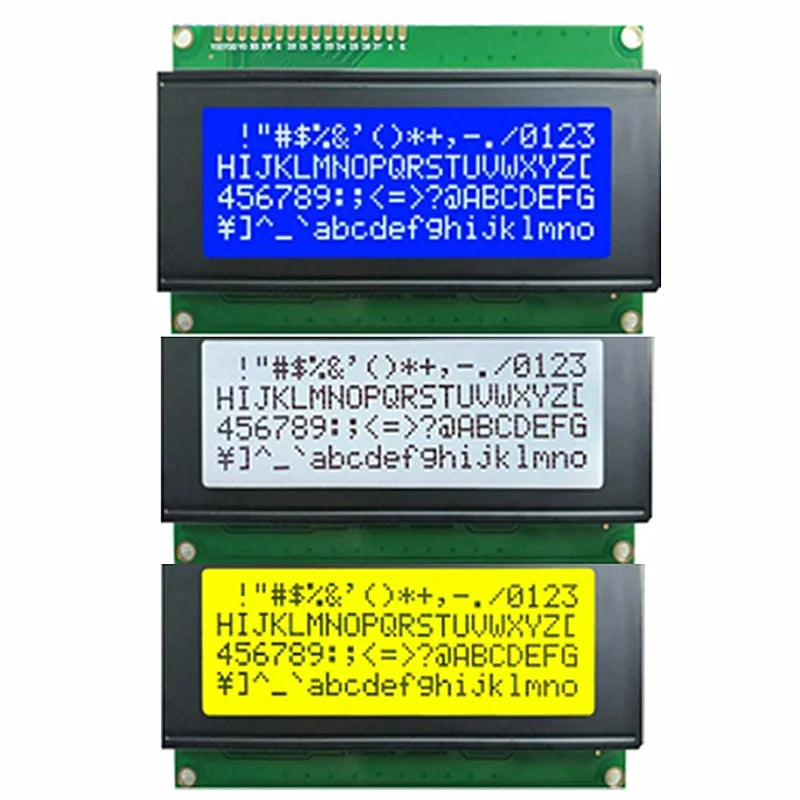

LED backlight color: Blue /Yellow Green /Gray

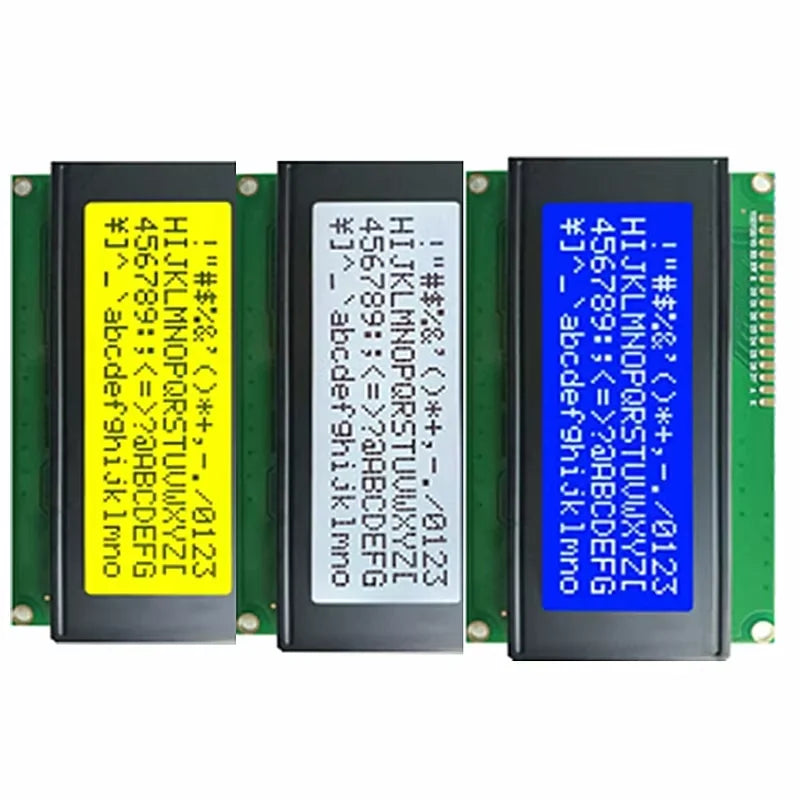

Display Effect: White on Blue/Black on Yellow Green/White on Gray
Operating voltage: 5V/3.3V
Product power consumption: 40mA
Operating temperature: -20°C~70°C
Storage temperature: -30°C~80°C
