SPECIFICATIONS

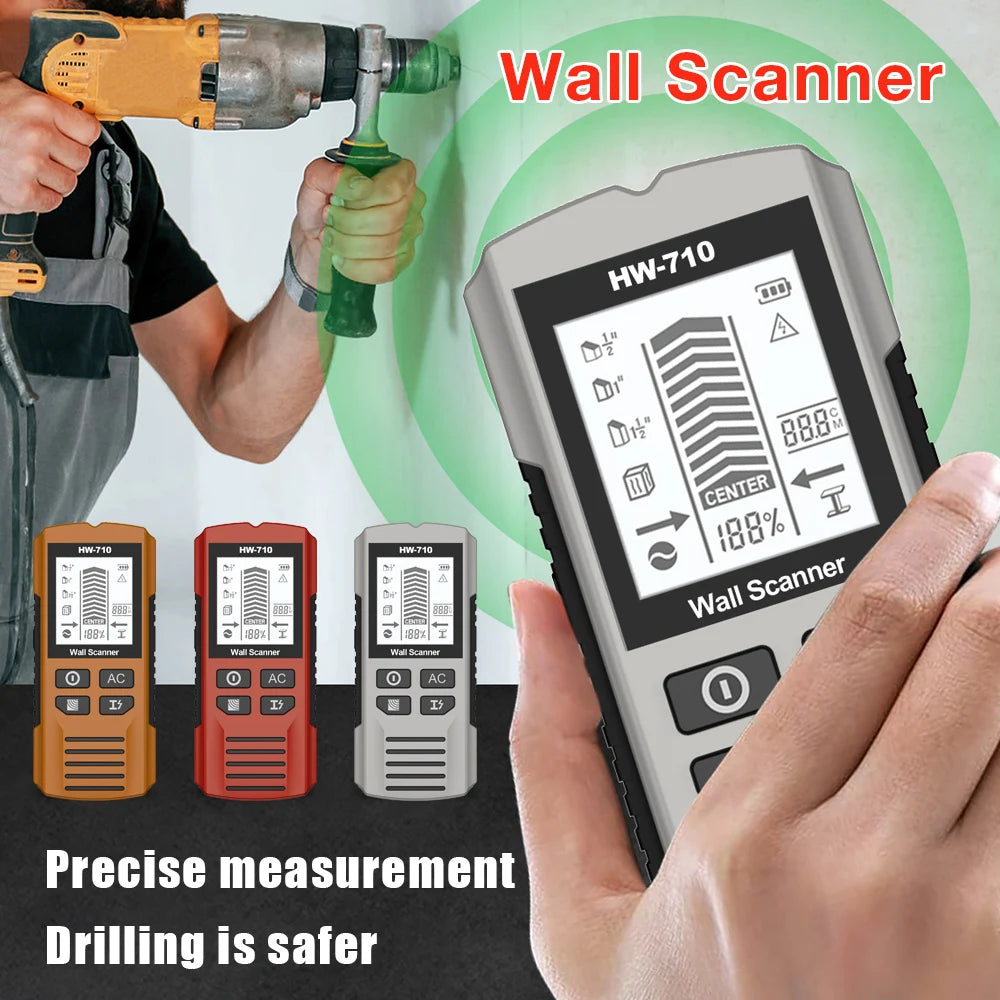

6 in 1 Wall Metal Detector Depth Wall Stud Finder Metal Wood Studs AC Voltage Live Wire Detect Wall Scanner Electric Box Finder

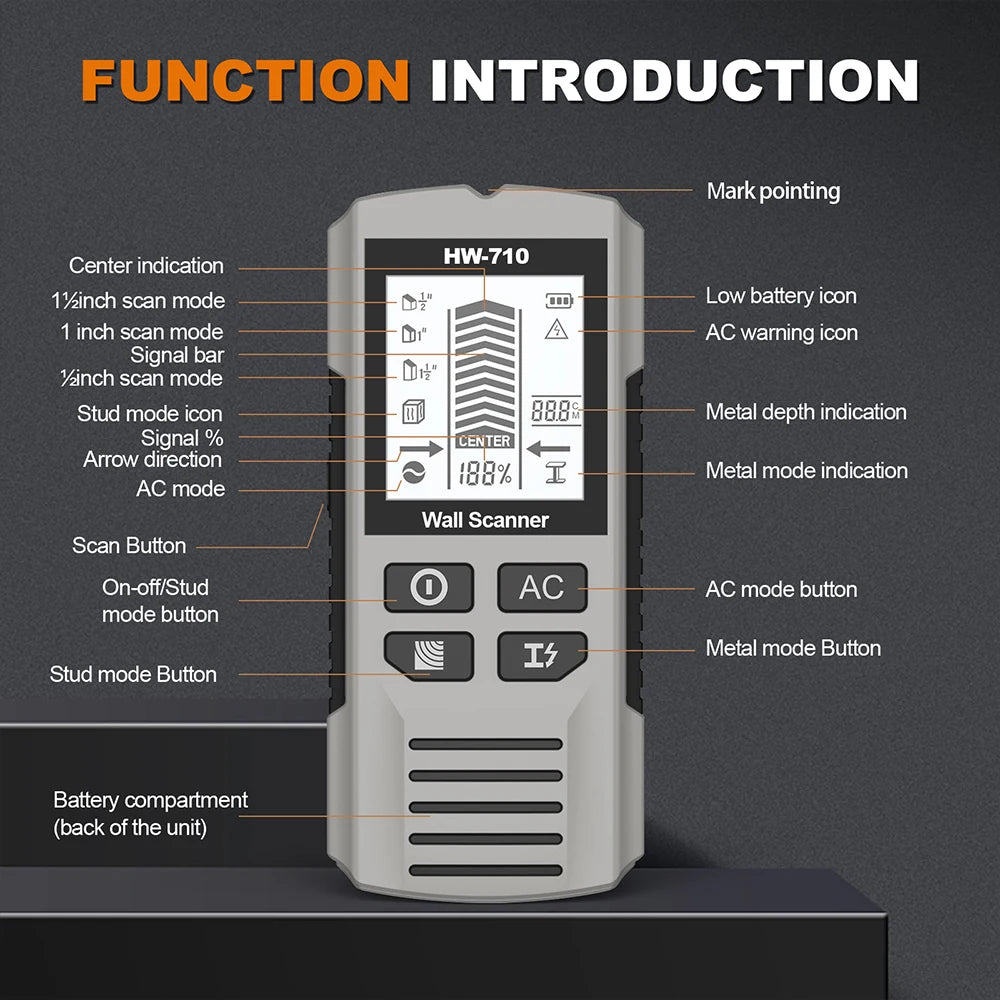

Product Features:

·1/2"Stud Scan Mode:Detects wood or metal studs up to 13mm deep
·1"Stud Scan Mode:Detects wood or metal studs up to 25mm deep
·1 1/2"Stud Scan Mode:Detects wood or metal studs up to 38mm deep
·Metal Mode:Detects metal up to 80mm for magnetic(60mm for non-magnetic)
deep
·AC Mode:Detects live unshielded AC wires up to 51mm deep
·Metal Depth Indicator
·Green Backlight
.Low Voltage Indicator
·Battery Type:9V battery(6F22)
·Operating Current:<50ma
·Shutdown Current:<10UA
·Automatic Shutdown Time:3 minutes

Specifications:

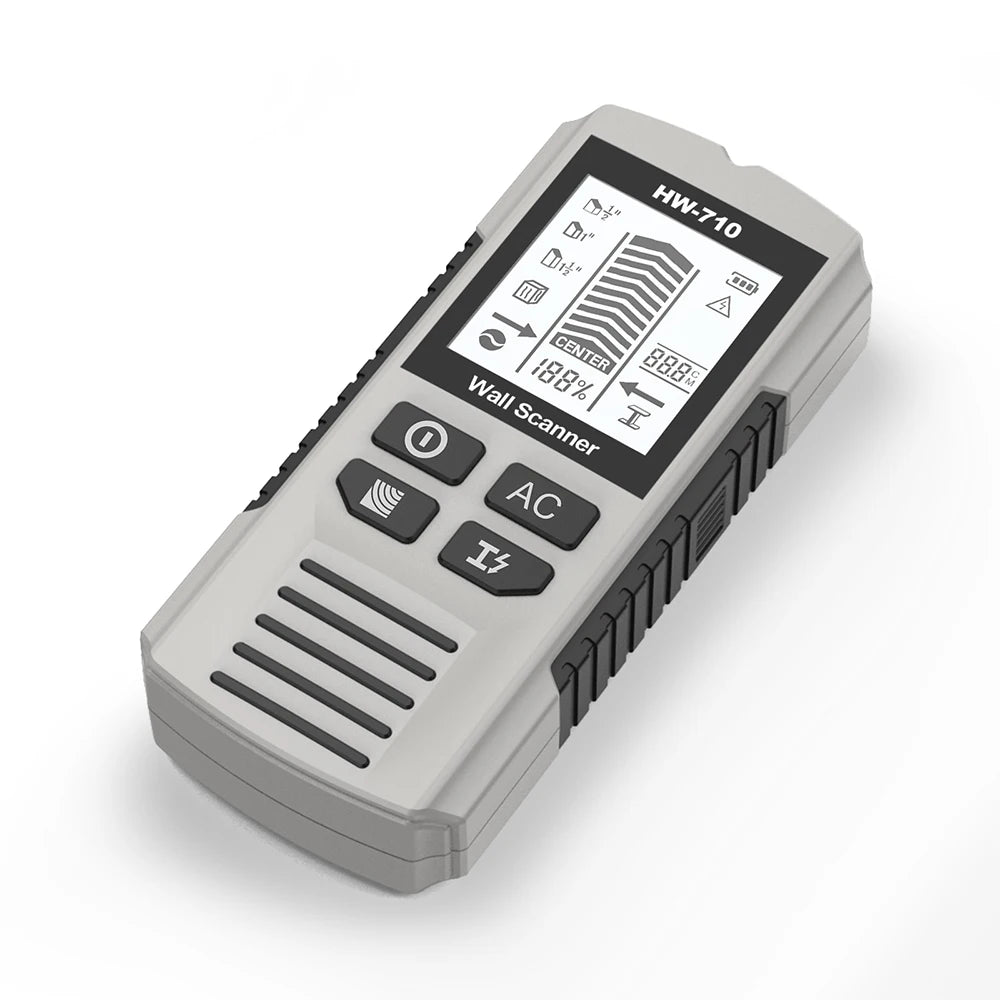

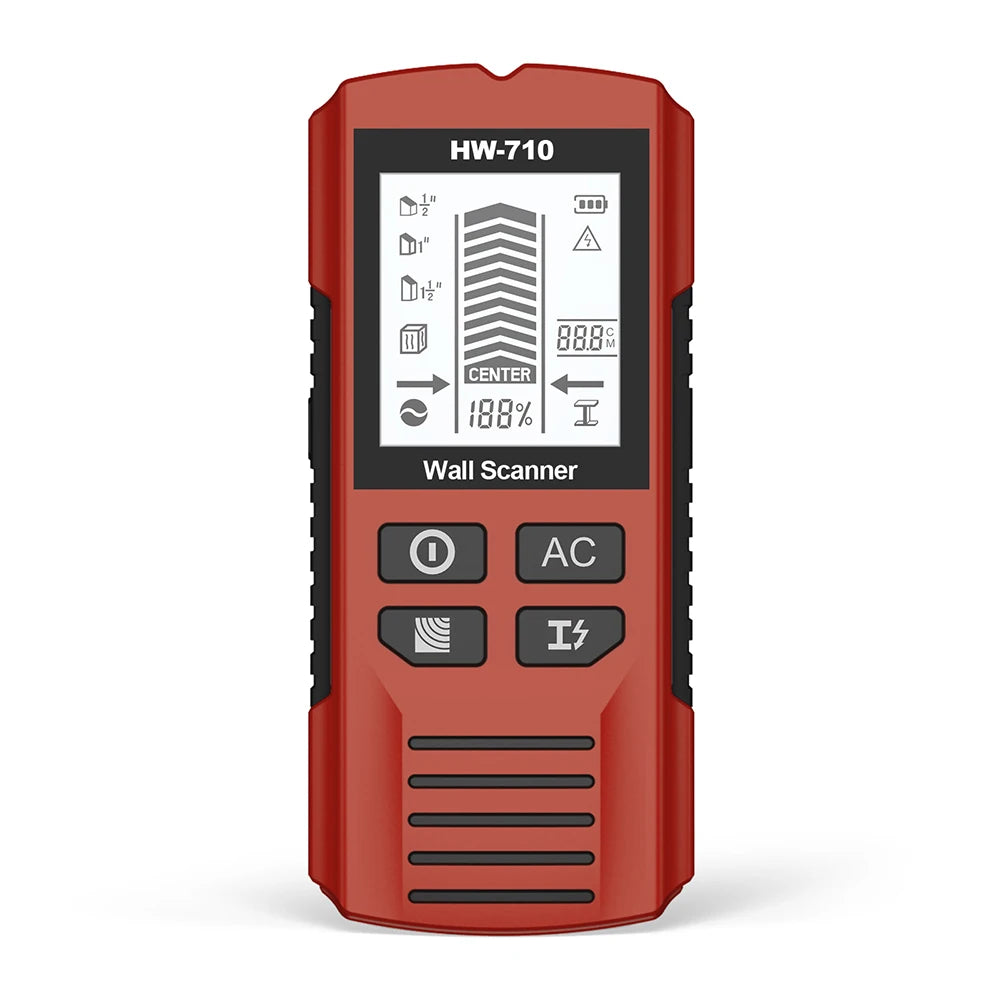

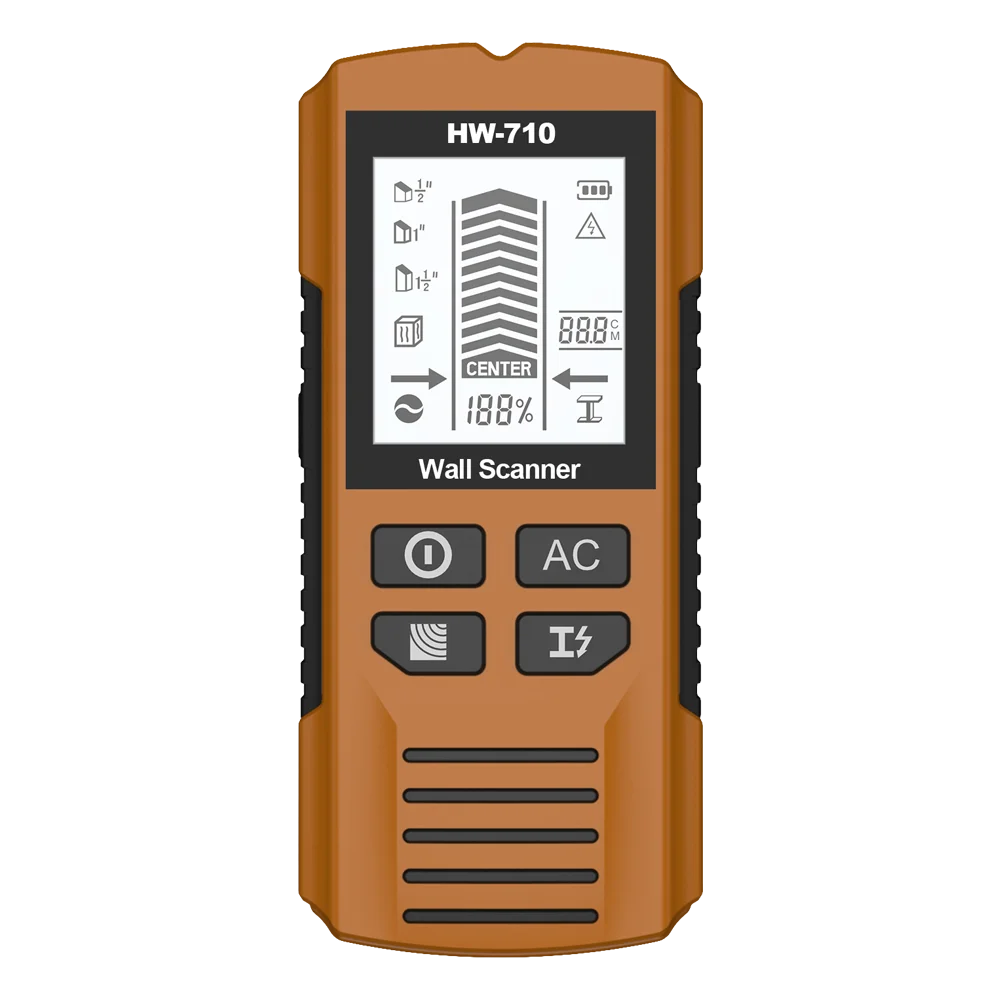

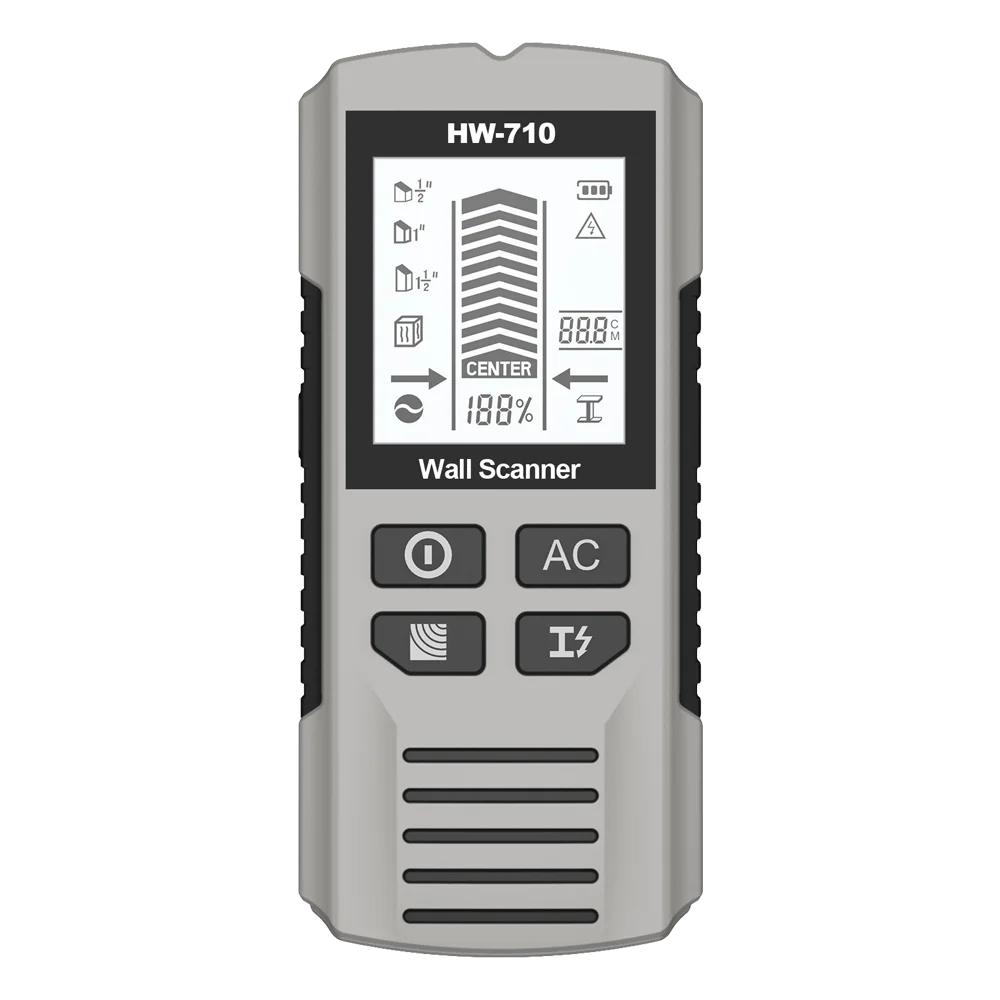

Model: HW-710
Authentication: CE FCC RHOS

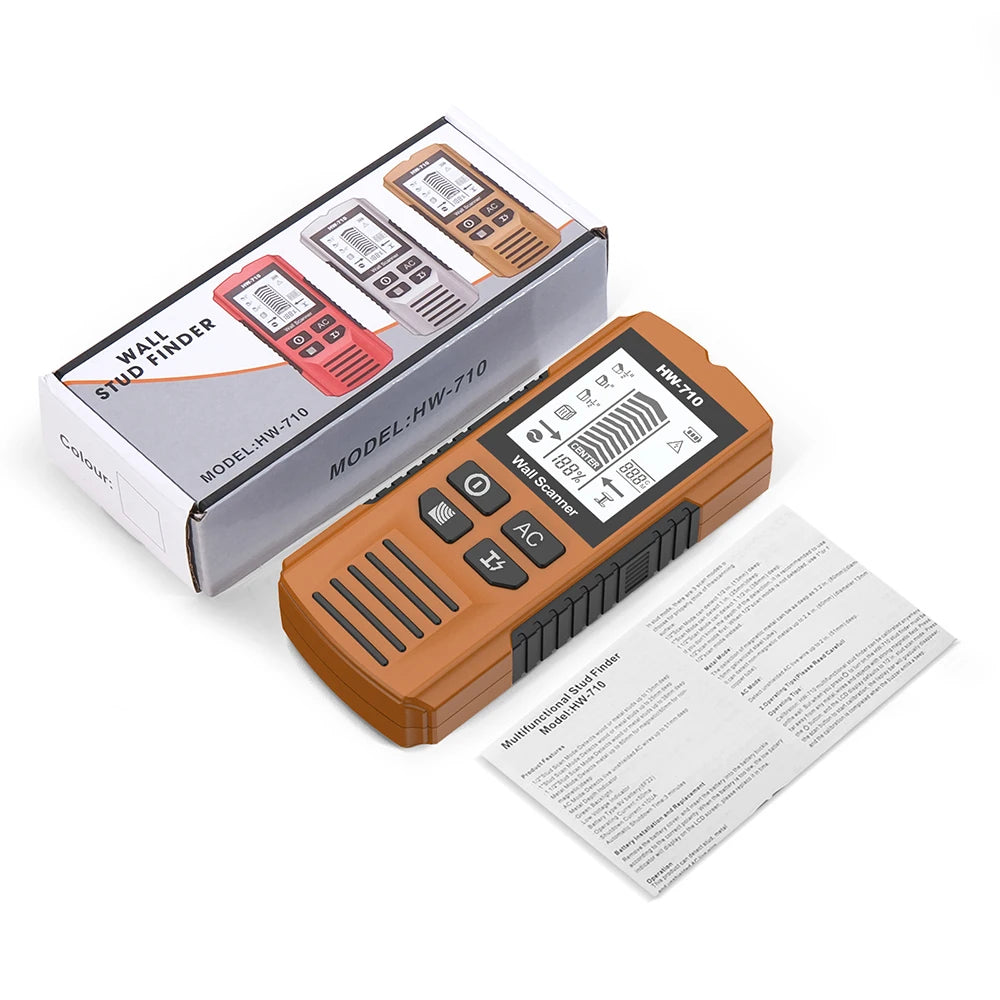

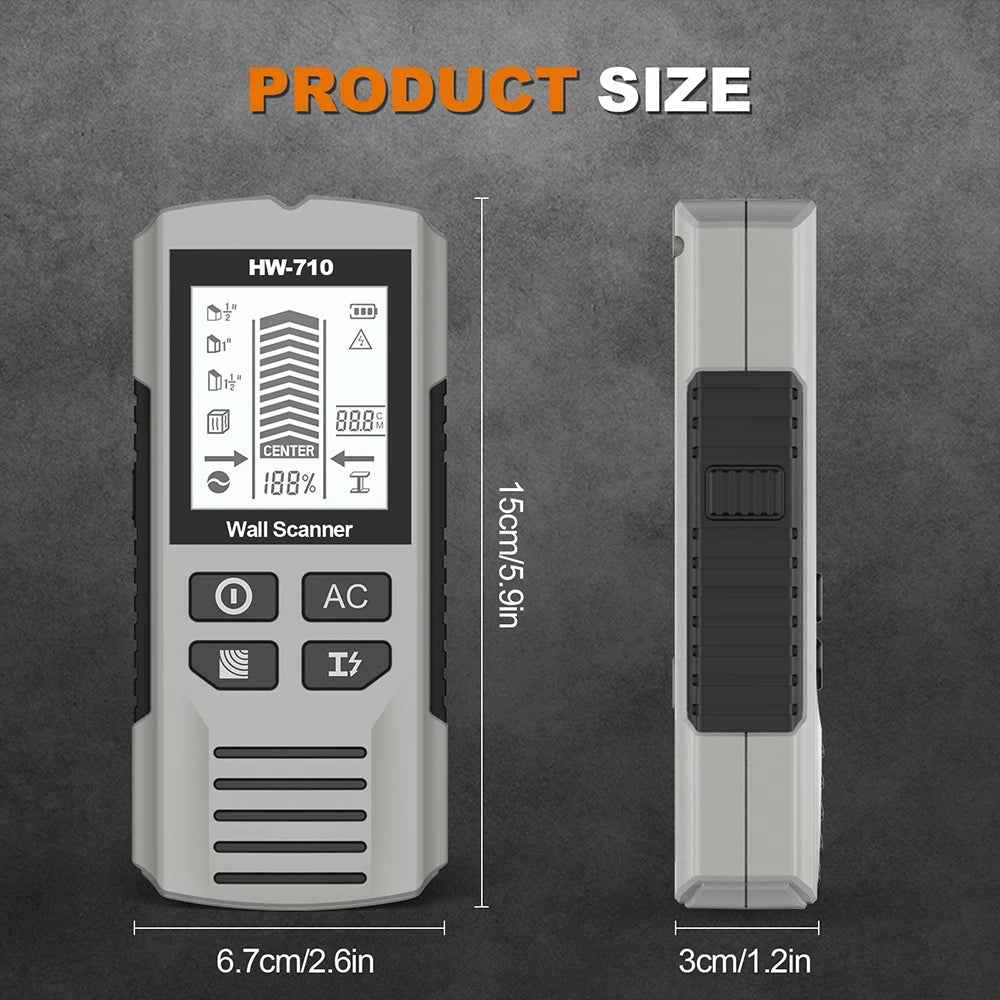

Packaging size: 174 * 76 * 41MM
Weight: 170G

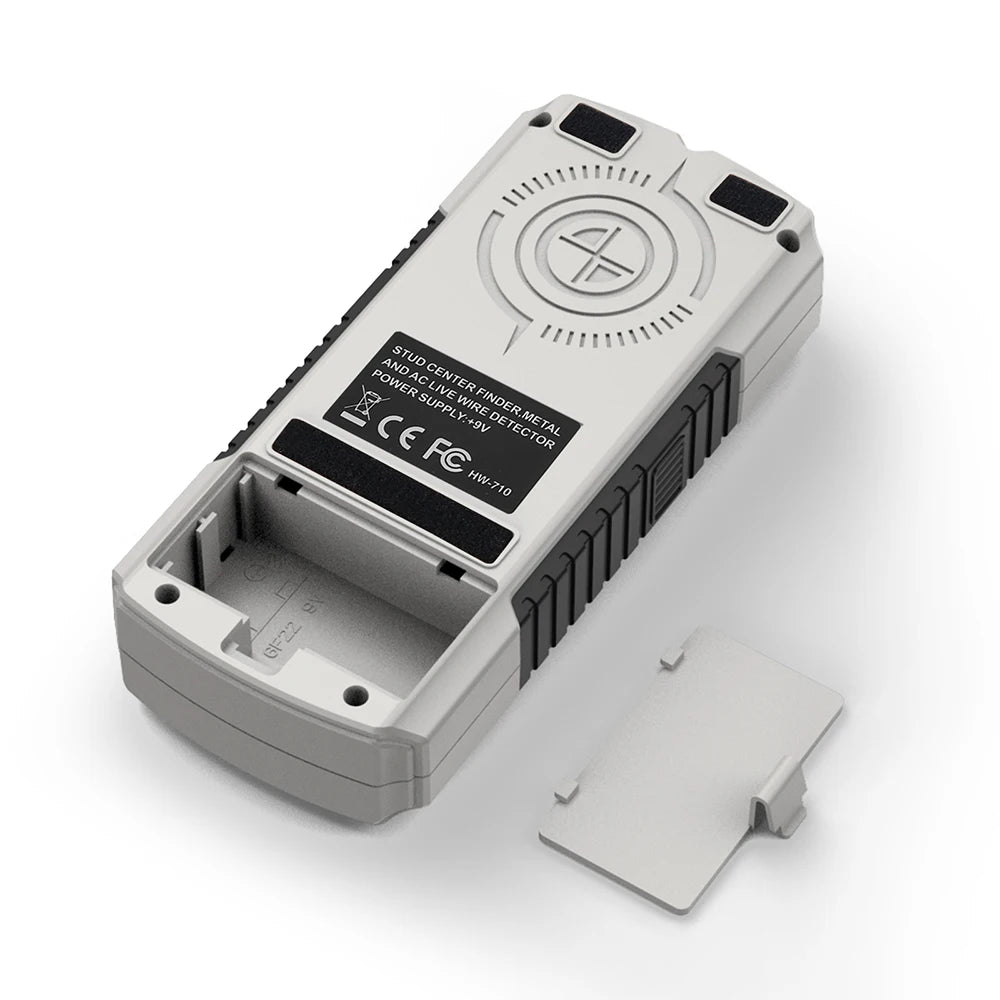

Battery: 9V battery 6F22 (not included)
Purpose: Quickly locate wood, metal, and AC wires hidden in the walls, floors, and ceilings of a house. It can work in Flat  noodles, wallpaper, wood floor, acoustic ceiling, spray painted wall and other places. Prevent you from encountering  danger when installing televisions, cabinets, garage racks, etc.

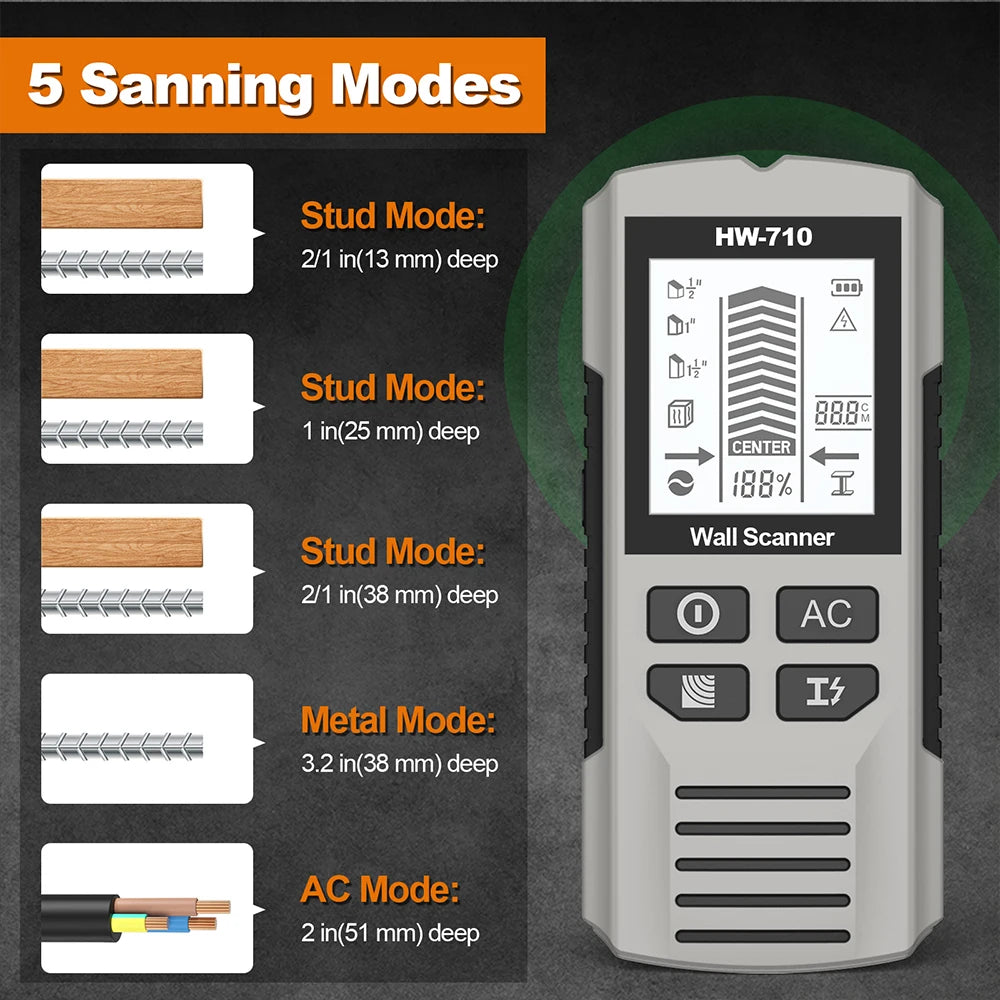

Detection Mode:

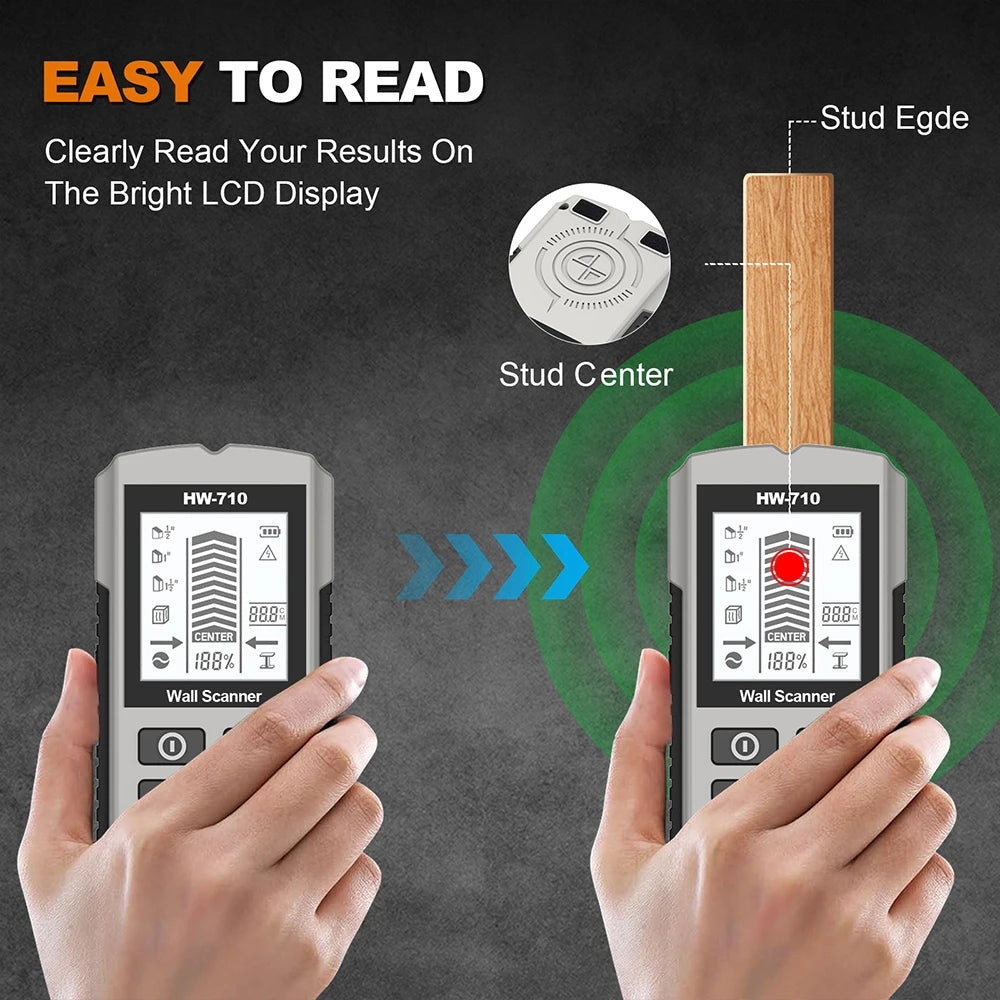

In stud mode, there are 3 scan modes o choose for properly thick of the scanning surface:
*1/2"Scan Mode can detect 1/2 in. (13mn) deep.
*1"Scan Mode can detect 1 in. (25mm)deep.
*1 1/2"Scan Mode can detect 1 1/2 in.(38mm) deep.
If you don't know the depth of the detection, it is recommended to use 1/2"scan mode first. When 1/2"scan mode is not detected, use 1"or 1 1/2"scan mode instead.

Metal Mode:

The detection of magnetic metal can be as deep as 3.2 in. (80mm)(diameter 15mm galvanized steel tube)
It can detect non-magnetic metals up tc 2.4 in. (60mm) (diameter 13mm copper tube).

AC Mode:

Detect unshielded AC live wire up to 2 in. (51mm) deep.
