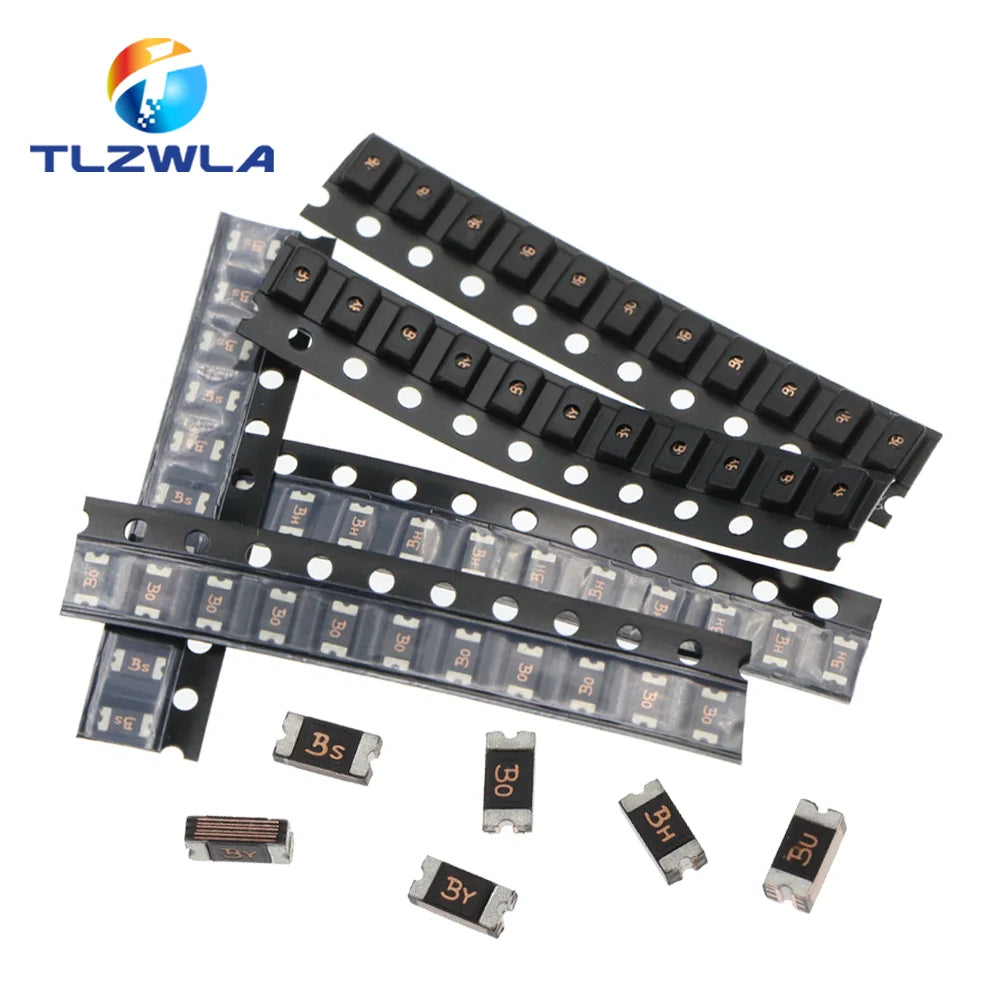

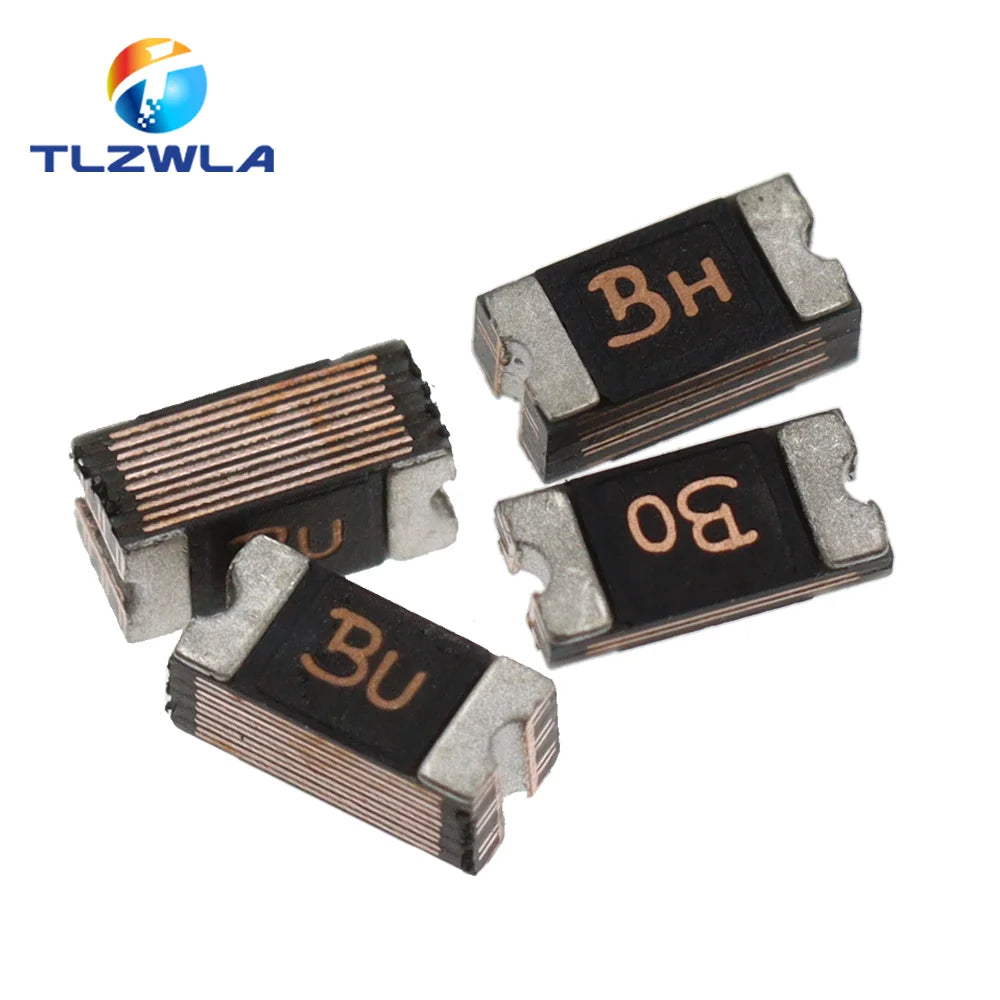

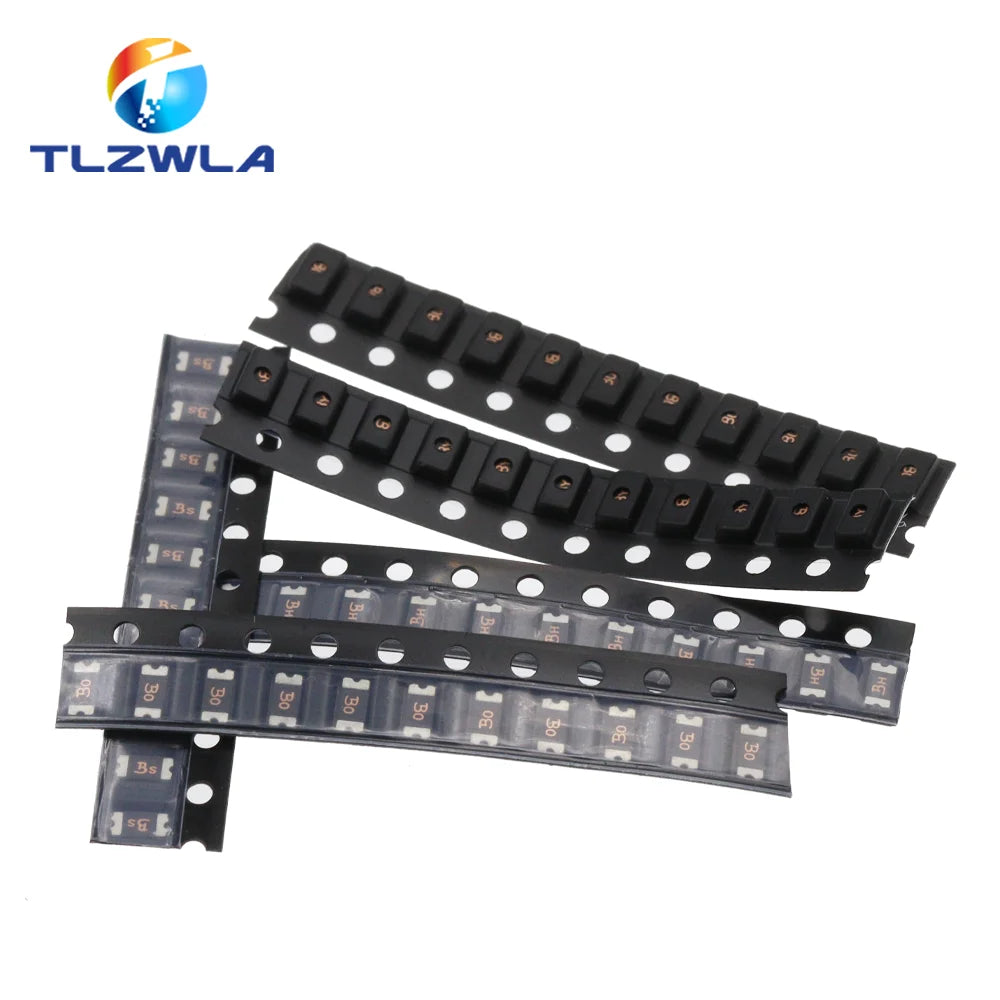

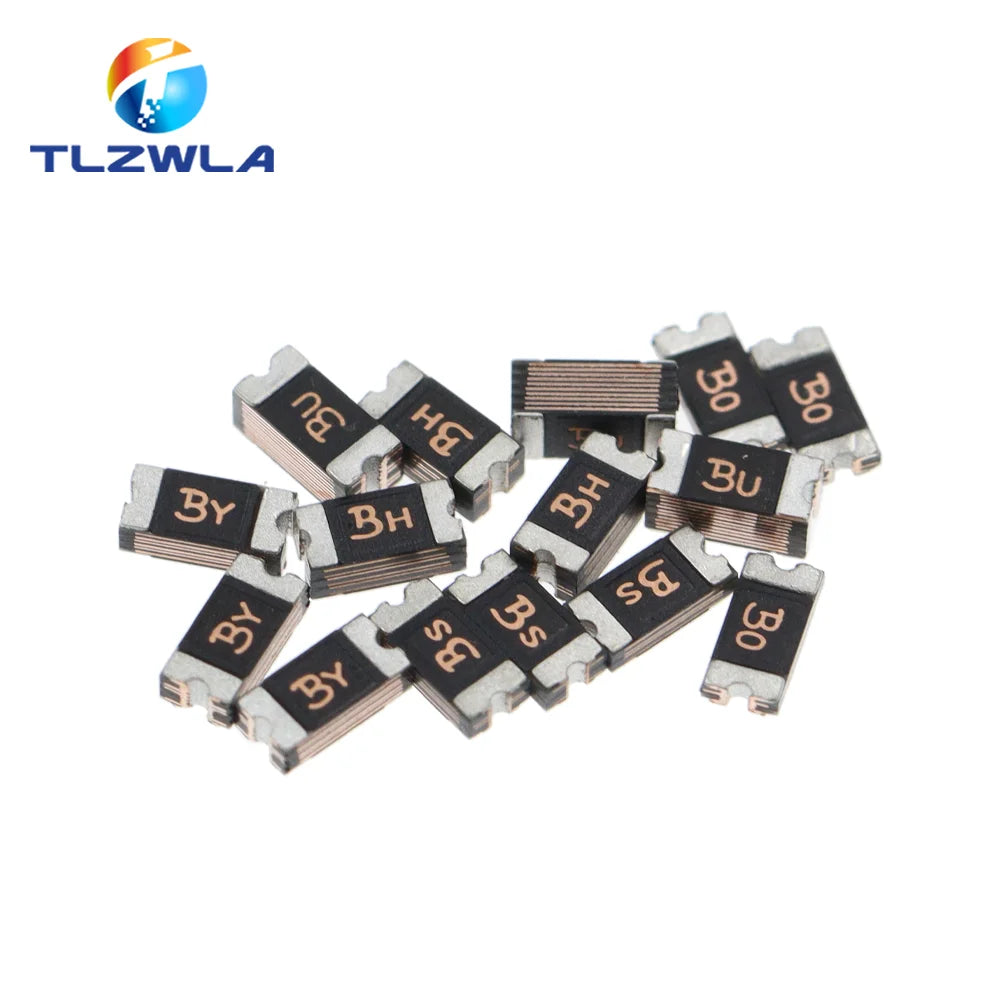

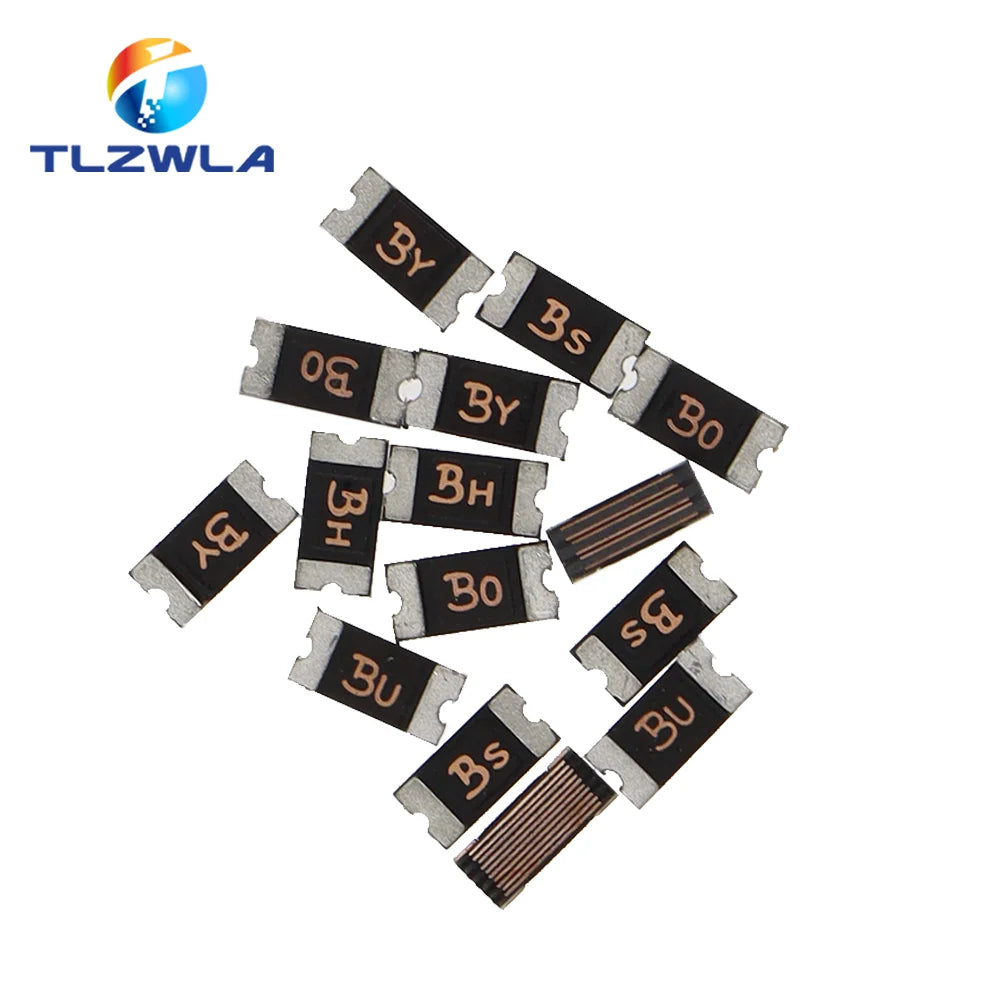

60 24 16 13 6V 3216 1206 0.05A 0.1A 0.12A 0.16A 0.2A 0.25A 0.5A 0.75A 1.1A 2A 3A-5A SMD Resettable Fuse PPTC Self-Recovery Fuse
B7 6V 0.75A
$5.09
Sale price
$5.09
Regular price
$0.00
Skip to product information
60 24 16 13 6V 3216 1206 0.05A 0.1A 0.12A 0.16A 0.2A 0.25A 0.5A 0.75A 1.1A 2A 3A-5A SMD Resettable Fuse PPTC Self-Recovery Fuse
$5.09
Sale price
$5.09
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: TLZWLA
Breaking Capacity: Low
Certification: CE,RoHS
Does it include a Battery?: No
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Material: Alloy
Model Number: 1206/3216 Self-restoring fuse
Origin: Mainland China
Safety Standards: IEC
Use: Low Voltage
is_customized: None
Features:
RoHS Compliant ＆ Halogen Free
faster tripping, 1206 Dimension, Surface mountable, Solid state
Operation Current: 0.05A~2.00A Maximum Voltage: 6V~60Vdc
Operating Temperature:-40℃TO 85℃ Agency recognition:UL,CSA,TUV
Thermal Derating Chart-IH(A) |
||||||||||
Part number |
Operation |
Maximum ambient operating temperatures(℃) |
||||||||
-40 |
-20 |
0 |
25 |
40 |
50 |
60 |
70 |
85 |
||
1206-005 |
0.05A |
0.09 |
0.08 |
0.06 |
0.05 |
0.04 |
0.04 |
0.03 |
0.03 |
0.02 |
1206-010 |
0.1A |
0.18 |
0.16 |
0.12 |
0.10 |
0.08 |
0.07 |
0.07 |
0.06 |
0.04 |
1206-012 |
0.12A |
0.22 |
0.19 |
0.14 |
0.12 |
0.10 |
0.09 |
0.08 |
0.07 |
0.05 |
1206-016 |
0.16A |
0.29 |
0.26 |
0.19 |
0.16 |
0.13 |
0.12 |
0.11 |
0.09 |
0.06 |
1206-020 |
0.2A |
0.31 |
0.26 |
0.22 |
0.20 |
0.18 |
0.16 |
0.15 |
0.13 |
0.07 |
1206-025 |
0.25A |
0.37 |
0.33 |
0.29 |
0.25 |
0.22 |
0.20 |
0.17 |
0.15 |
0.12 |
1206-030 |
0.3A |
0.44 |
0.40 |
0.35 |
0.30 |
0.26 |
0.24 |
0.20 |
0.18 |
0.14 |
1206-035 |
0.35A |
0.50 |
0.45 |
0.40 |
0.35 |
0.30 |
0.27 |
0.24 |
0.21 |
0.15 |
1206-050 |
0.5A |
0.71 |
0.64 |
0.57 |
0.50 |
0.42 |
0.39 |
0.35 |
0.31 |
0.25 |
1206-075 |
0.75A |
1.14 |
1.01 |
0.88 |
0.75 |
0.65 |
0.59 |
0.54 |
0.49 |
0.41 |
1206-100 |
1A |
1.45 |
1.31 |
1.15 |
1.00 |
0.84 |
0.77 |
0.69 |
0.61 |
0.48 |
1206-150 |
1.5A |
2.18 |
1.94 |
1.72 |
1.50 |
1.28 |
1.17 |
1.06 |
0.96 |
0.77 |
1206-200 |
2A |
2.60 |
2.44 |
2.35 |
2.00 |
1.78 |
1.67 |
1.50 |
1.45 |
1.10 |
1206-350 |
3.5A |
5.50 |
4.80 |
4.00 |
3.50 |
2.70 |
2.30 |
1.90 |
1.60 |
1.30 |
1206-400 |
4A |
5.80 |
5.20 |
4.60 |
4.00 |
3.40 |
3.10 |
2.82 |
2.52 |
2.10 |
1206-500 |
5A |
7.40 |
6.60 |
6.00 |
5.00 |
4.60 |
4.20 |
3.70 |
3.30 |
2.80 |
Electrical Characteristic |
||||||||||
Part number |
Operation |
Umax |
Imax |
Ihold |
Itrip |
Time to trip |
R25 |
|||
Current |
Time |
Rimin |
R1max |
|||||||
(Vdc) |
(A) |
(A) |
(A) |
(A) |
(Sec) |
() |
() |
|||
1206-005 |
0.05A |
60.00 |
100.00 |
0.05 |
0.15 |
0.25 |
1.50 |
3.600 |
50.000 |
|
1206-010 |
0.1A |
60.00 |
100.00 |
0.10 |
0.25 |
0.50 |
1.00 |
1.600 |
15.000 |
|
1206-012 |
0.12A |
30.00 |
100.00 |
0.12 |
0.29 |
1.00 |
0.20 |
1.350 |
10.000 |
|
1206-016 |
0.16A |
30.00 |
100.00 |
0.16 |
0.37 |
1.00 |
0.30 |
1.200 |
4.500 |
|
1206-020 |
0.2A |
24.00 |
100.00 |
0.20 |
0.46 |
8.00 |
0.08 |
0.350 |
3.500 |
|
1206-025 |
0.25A |
16.00 |
100.00 |
0.25 |
0.50 |
8.00 |
0.08 |
0.350 |
2.700 |
|
1206-030 |
0.3A |
16.00 |
100.00 |
0.30 |
0.65 |
8.00 |
0.10 |
0.250 |
2.000 |
|
1206-035 |
0.35A |
16.00 |
100.00 |
0.35 |
0.75 |
8.00 |
0.10 |
0.250 |
1.300 |
|
1206-050 |
0.5A |
6.00 |
100.00 |
0.50 |
1.00 |
8.00 |
0.10 |
0.150 |
0.700 |
|
1206-075 |
0.75A |
6.00 |
100.00 |
0.75 |
1.50 |
8.00 |
0.20 |
0.090 |
0.500 |
|
1206-100 |
1A |
6.00 |
100.00 |
1.00 |
1.80 |
8.00 |
0.30 |
0.055 |
0.270 |
|
1206-150 |
1.5A |
6.00 |
100.00 |
1.50 |
3.00 |
8.00 |
1.00 |
0.040 |
0.130 |
|
1206-200 |
2A |
6.00 |
100.00 |
2.00 |
3.50 |
8.00 |
1.00 |
0.018 |
0.080 |
|
1206-350 |
3.5A |
6.00 |
50.00 |
3.50 |
6.30 |
8.00 |
5.00 |
0.004 |
0.018 |
|
1206-400 |
4A |
6.00 |
50.00 |
4.00 |
8.00 |
20.00 |
2.00 |
0.004 |
0.010 |
|
1206-500 |
5A |
6.00 |
50.00 |
5.00 |
10.00 |
25.00 |
2.00 |
0.002 |
0.008 |
|
