Ac 220V four-stage EMI electromagnetic interference filter suppressor differential mode common mode power EMC audio amplifier

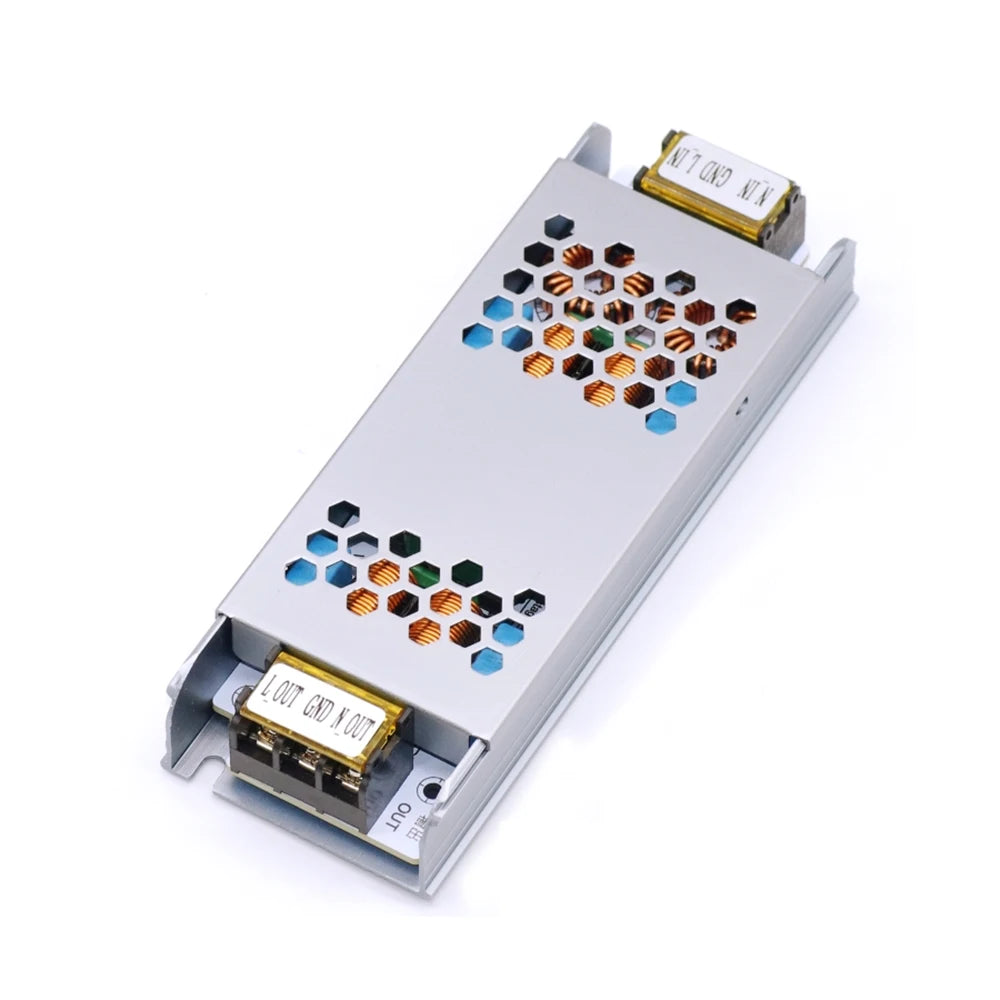

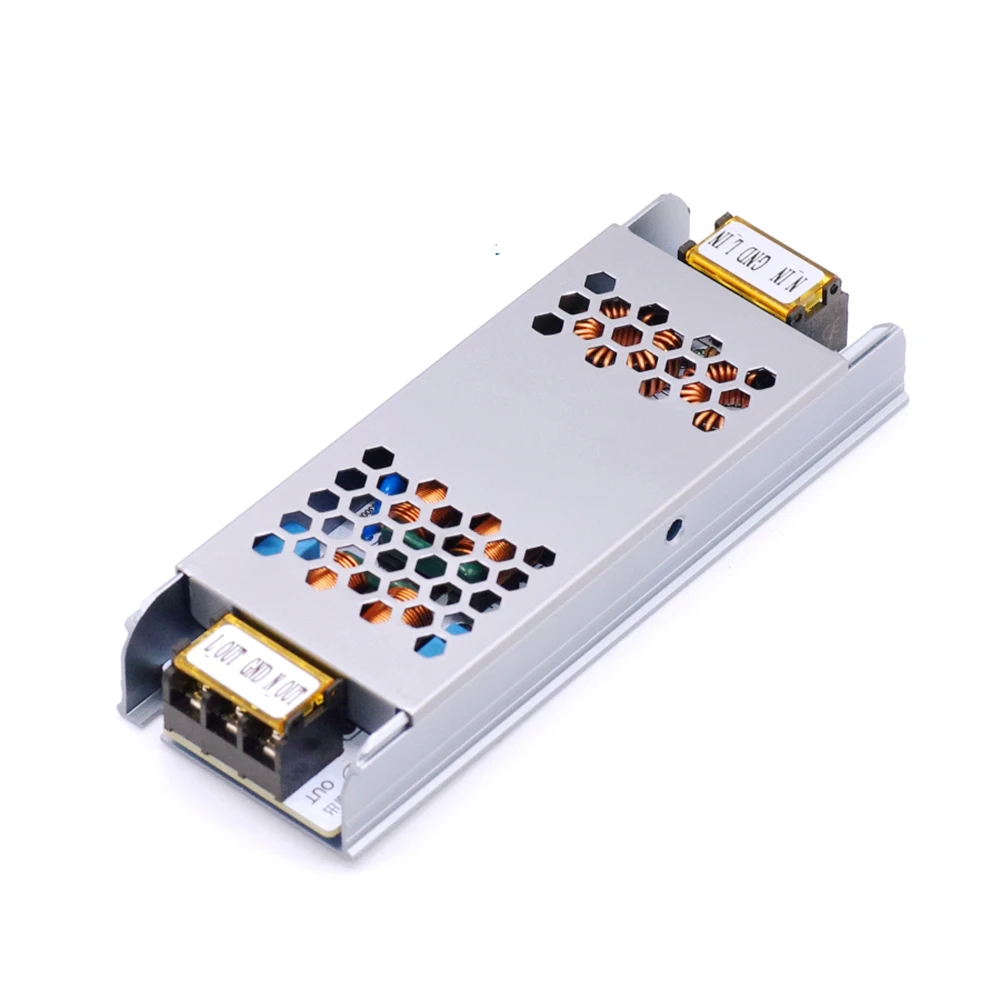

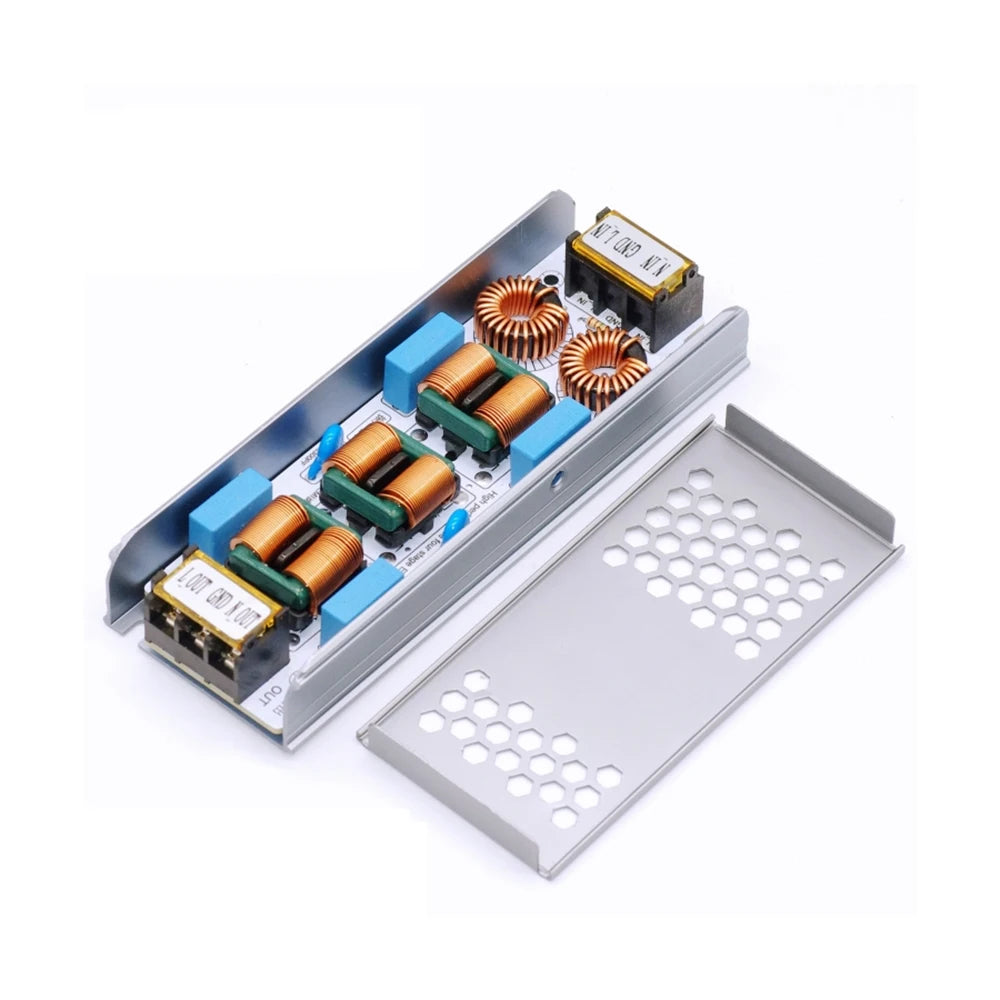

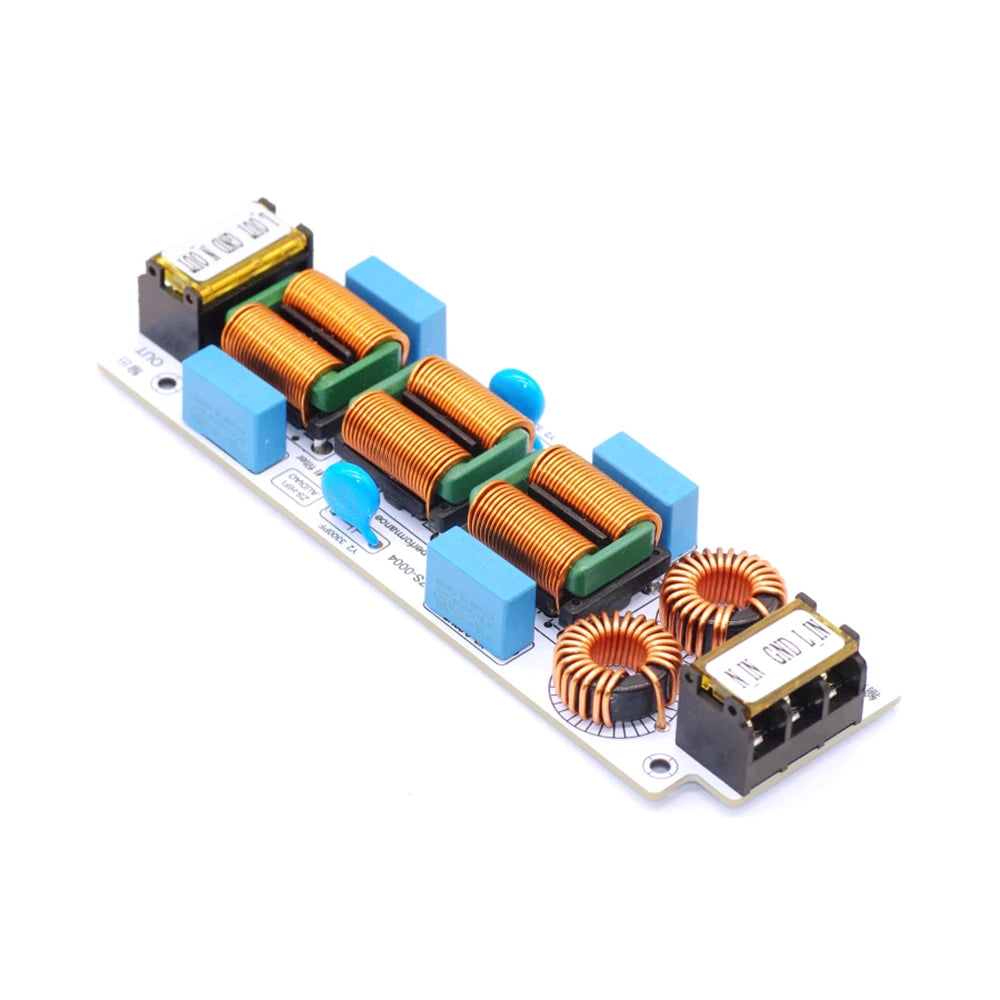

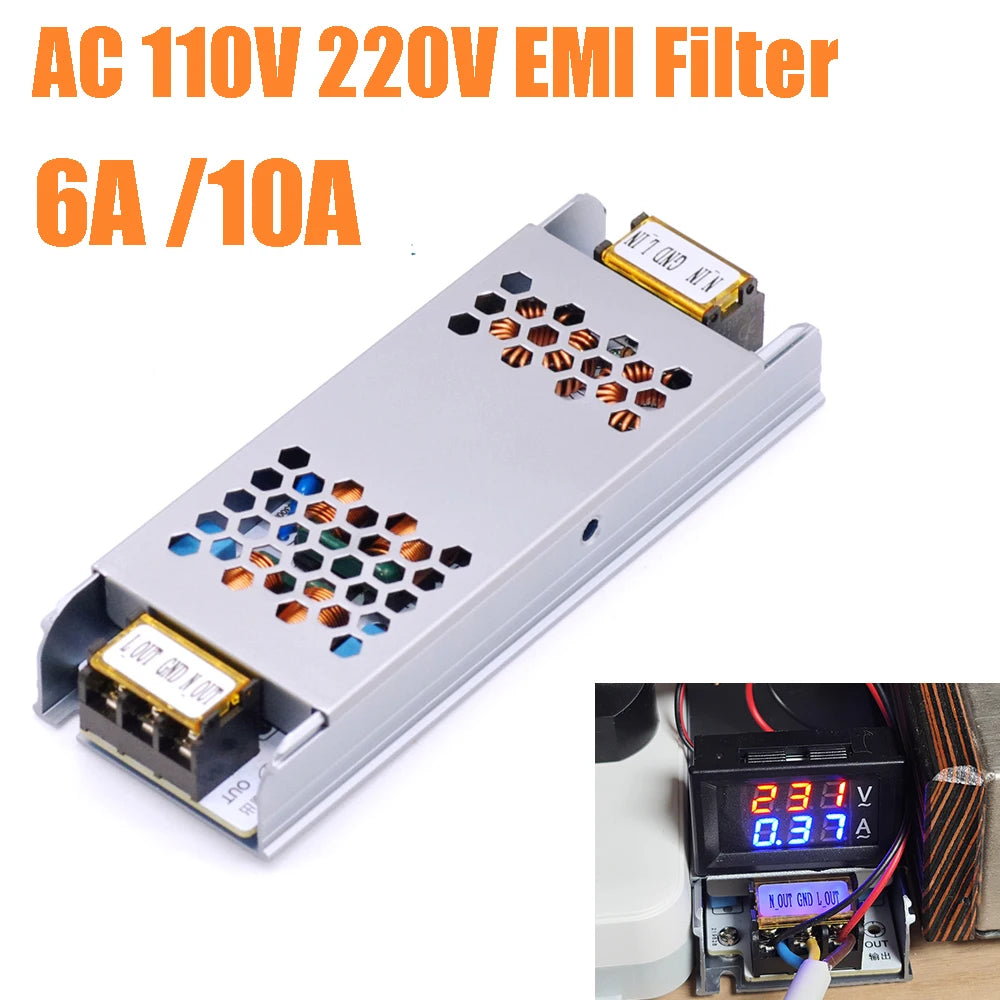

4- stage EMI filter

6A WITH shell 138X50X22MM 148g

10A WITH shell 138X50X22MM 169g

Model: ZS-0004

Input voltage: single-phase AC 110-250V

Output voltage: single-phase AC 110-250V

Rated current of load: 6A-10A

Input port: Three wire 7.62 socket input

Output port: Three wire 7.62 socket output

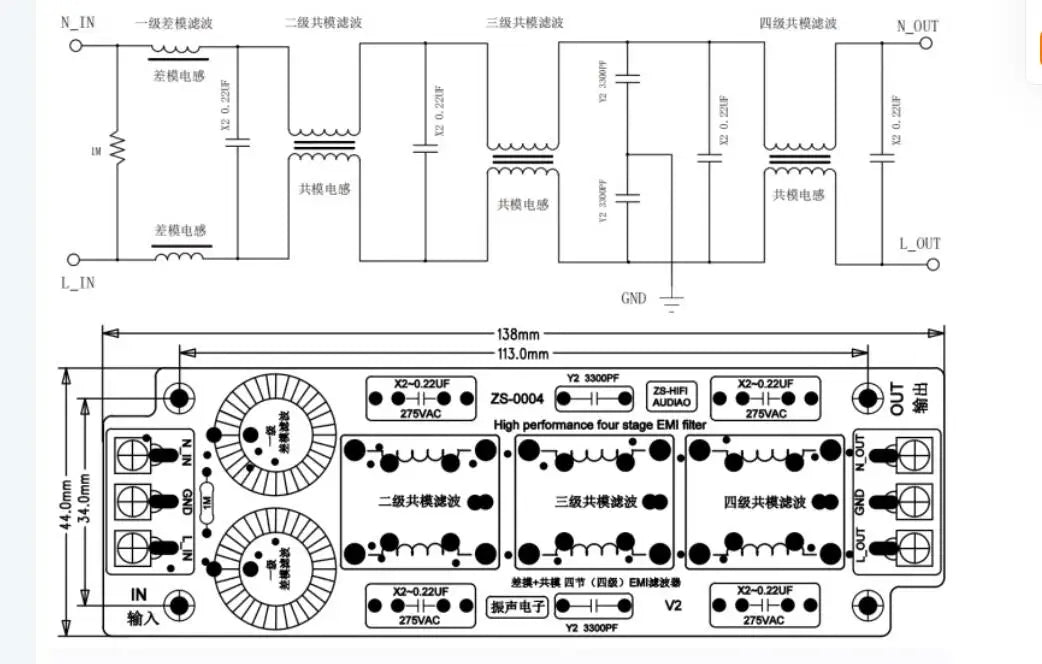

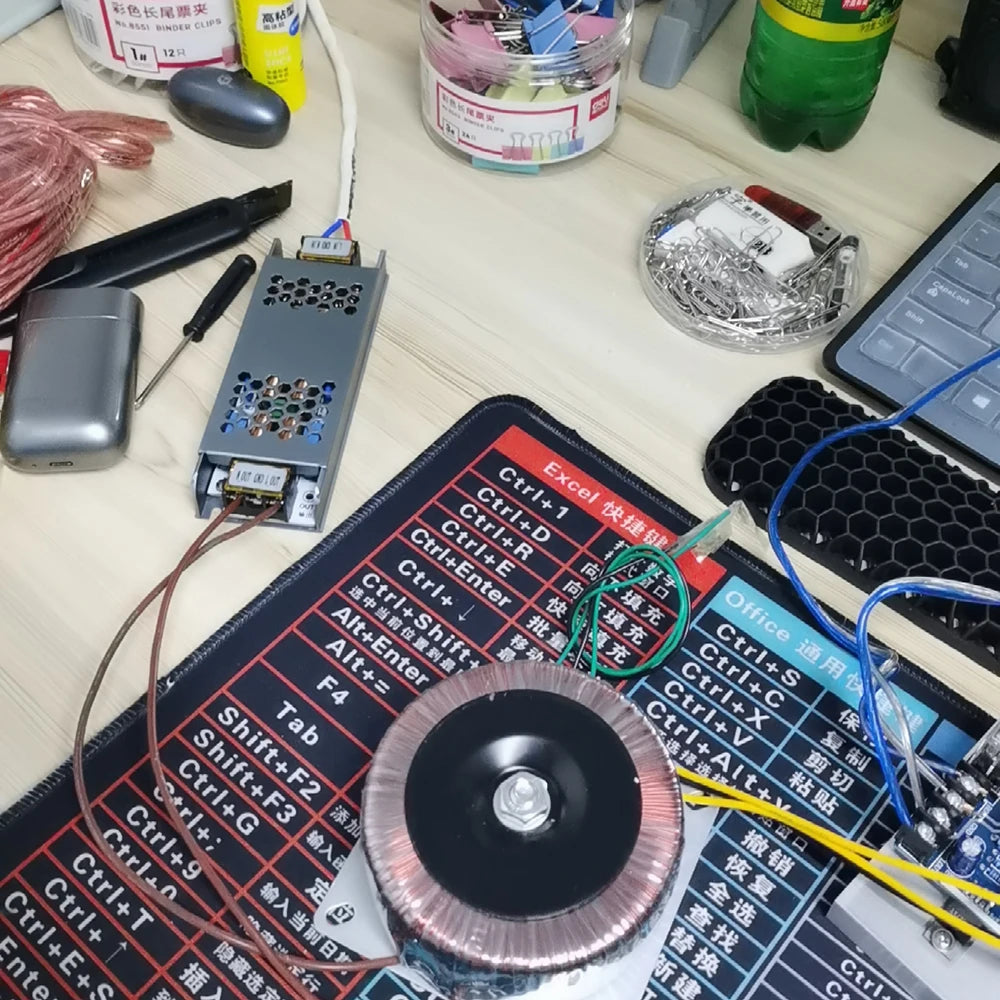

Function: First level differential mode filtering+third level common mode filtering, bidirectional EMI filtering, to prevent interference, extend the service life of electrical appliances, and increase equipment stability

Design features:

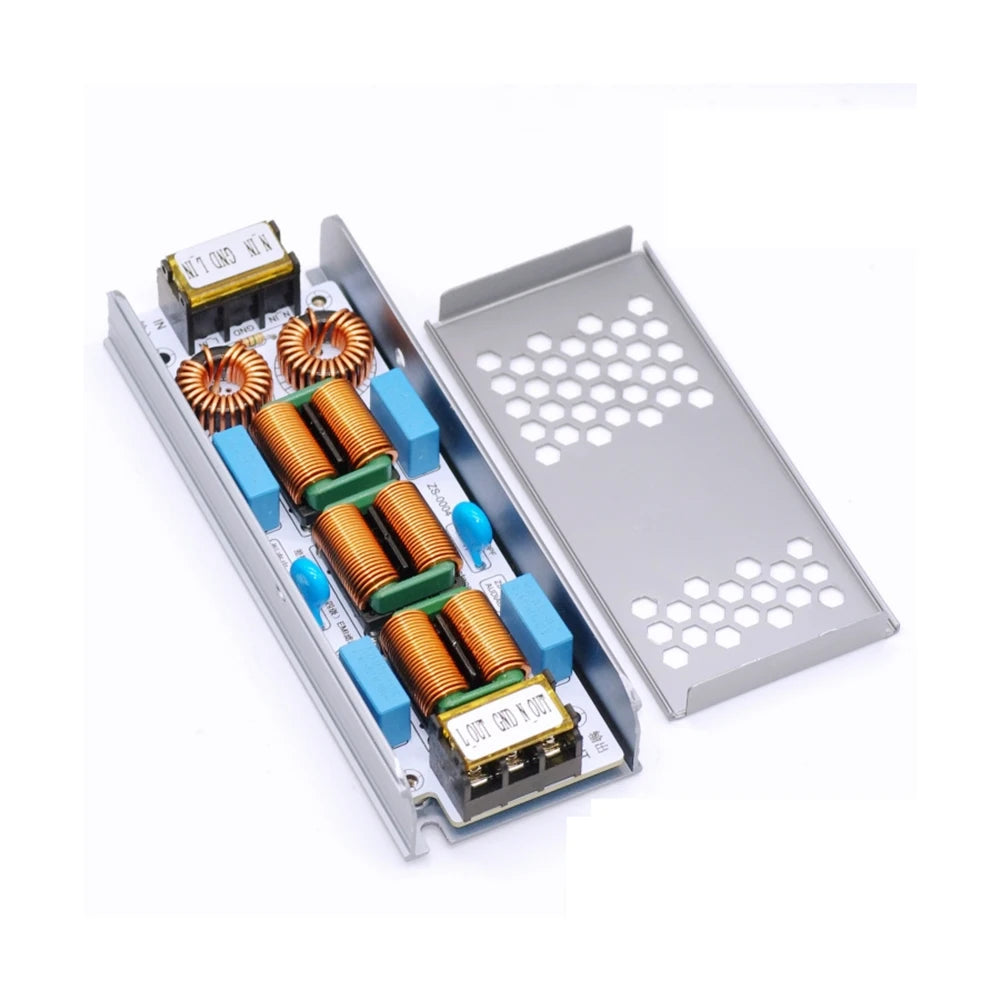

1) Ultra thin design, all aluminum casing.

2) A set of differential mode filters and two differential inductors are used to perform differential mode filtering on the AC power supply to suppress mid to high frequency interference.

3) Three sets of common mode filters are combined through X2 capacitors and common mode inductors to form a common mode filter. Due to the use of three-level (also known as three-level) filtering, the effect of filtering noise is better. For certain user sites with fast transient group pulse interference with a repetition frequency of several thousand hertz

The problem of disturbance can have a suppressive effect.

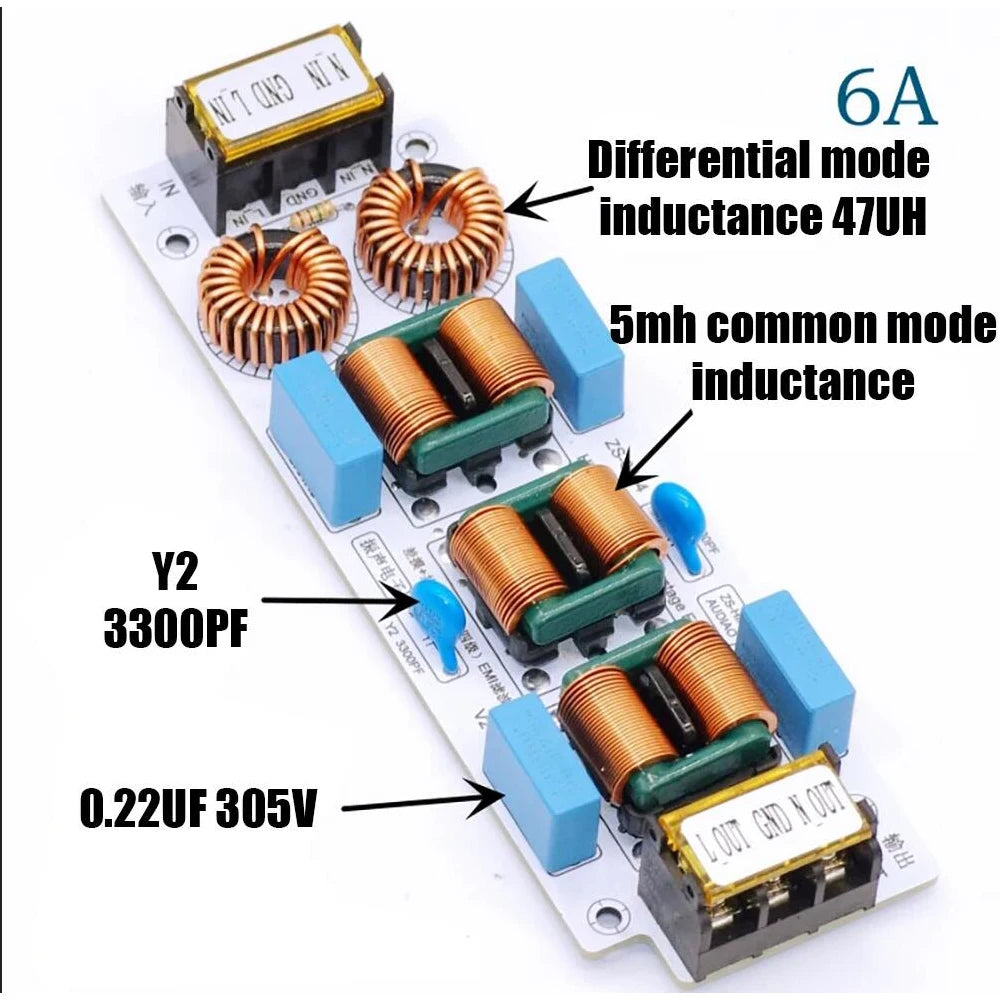

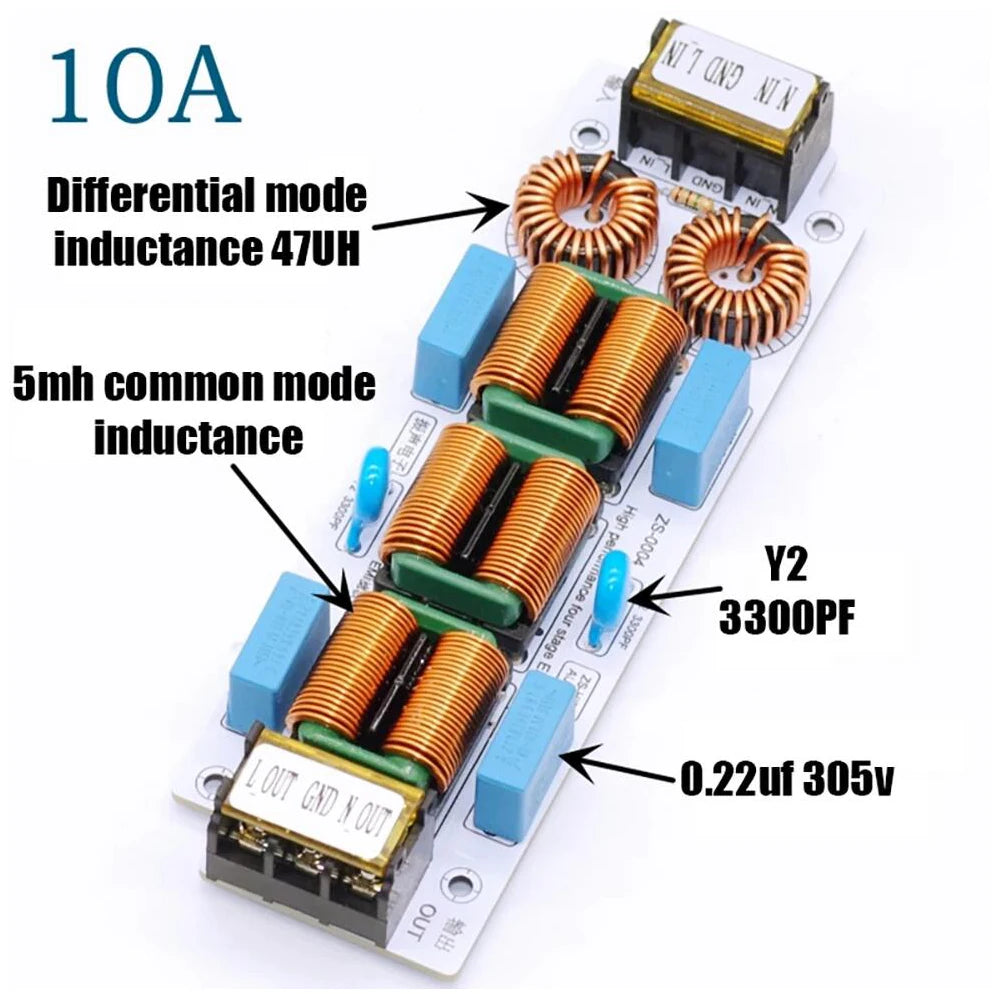

Main parts selection:

X2 capacitor: Germany Ximen 0.22UF 4PCS

Y2 capacitor: 275V 3300PF 2PCS

Differential mode inductance: 47UH 2PCS

Common mode inductance: 3 PCS

Resistance: 1PCS

Socket: 7.62 2PIN, 3PIN, 1 PCS each
