6A 12A EMI Filter DC LC Electromagnetic Interference EMC 12V 15V 24V Audio Digital Amplifier Car Switching Power Ripple Filter

6A 12A EMI Filter DC LC Electromagnetic Interference EMC 12V 15V 24V Audio Digital Amplifier Car Switching Power Ripple Filter

$54.45

$54.45 $0.00

Color 6A With case 12A With case 6A NO case 12A NO case

Description

SPECIFICATIONS

Brand Name: DYKBmetered

Certification: NONE

Choice: yes

DC EMI Electromagnetic interference Filter: two-stage LC filter

DIY Supplies: Electrical

Data Record: No

Electronic: No

High-concerned chemical: none

LC Filter Low-pass EMI Filter: common-mode EMI filter

Model Number: DC EMI Electromagnetic interference Filter

Origin: Mainland China

Output Voltage: Current: 6A.12A

Semi-finishedproduct: Yes

Size: common-mode EMI filter,

Style: two-stage LC filter.

Type: LC Filter Low-pass EMI Filter

semi_Choice: yes

Dc LC Low-pass High-frequency EMI Electromagnetic Interference EMC Automotive Audio Switching Power Ripple Filter

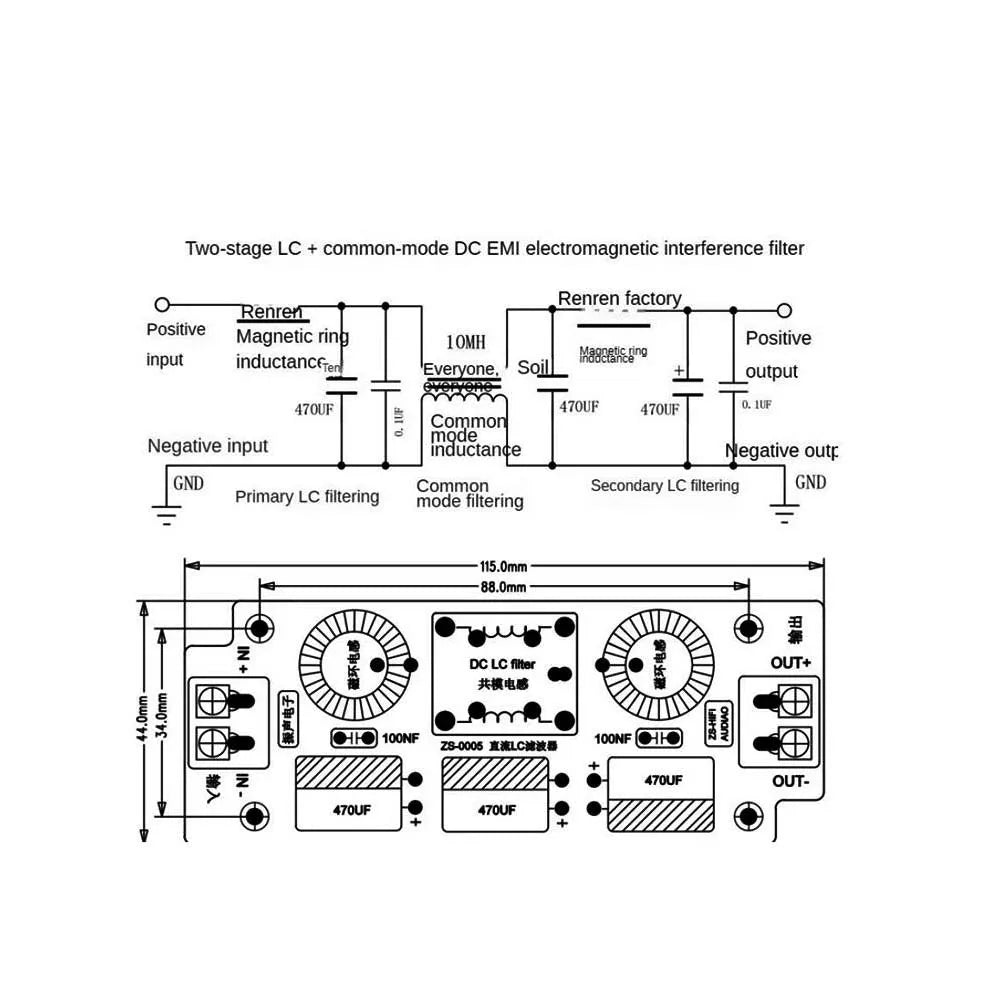

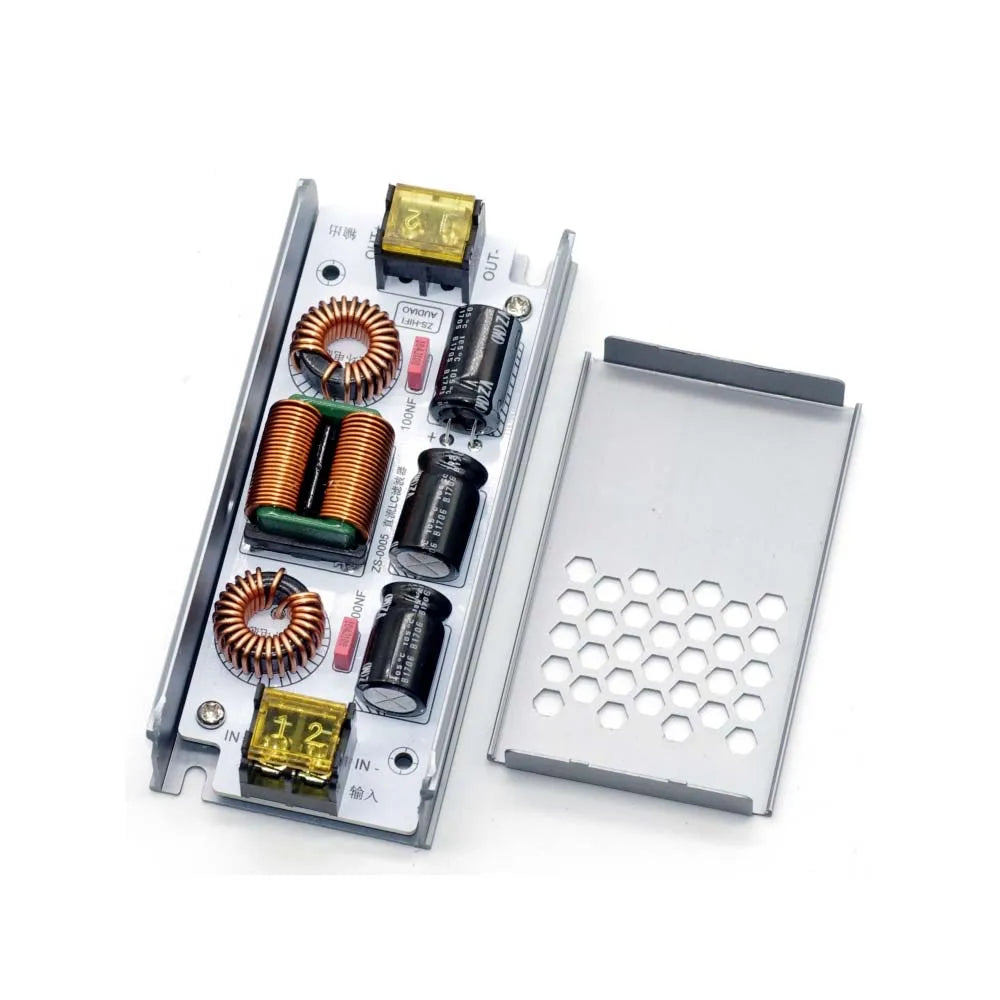

DC power filter circuit introduction: The circuit is composed of three filters, the first part is a level LC filter . The second part is a common-mode EMI filter, and the third part is a two-stage LC filter.

LC filter is generally called passive filter, is a traditional DC power supply harmonic composed of inductors and capacitors

The compensation device can filter the harmonics in the power supply one or more times, purify the DC power supply, and the common mode filter can be used

In order to solve the problem of fast transient group pulse interference with a repetition rate of several thousand Hertz in some users' field

Can act as a depressant.

Input: DC.

Output: DC

Voltage: 63V (Higher voltage can be replaced with electrolytic capacitor lift)

Current: 6A OR12A

Main parts specifications:

Circuit board: double-sided FR4 fiberglass board

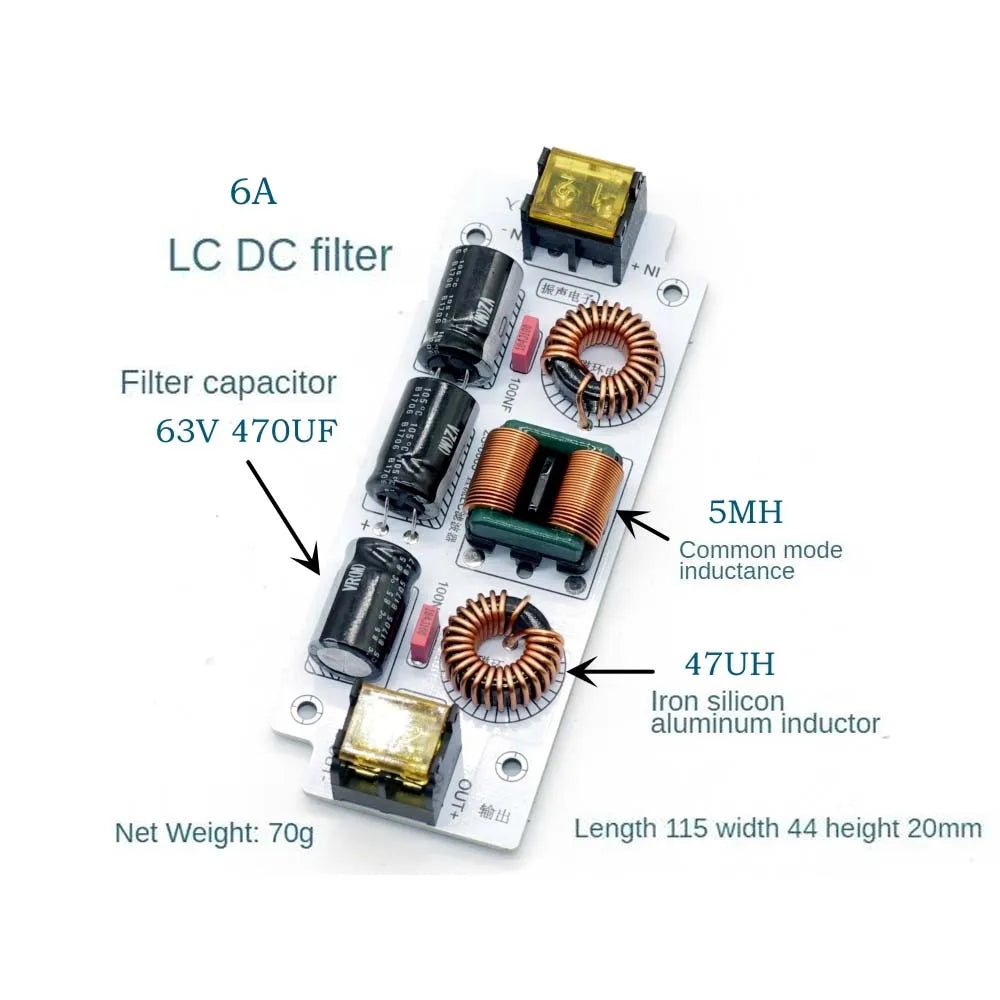

Electrolytic capacitor: 63V470UF diameter 13MM dosage 3PCS because the supply of fever capacitor is unstable, it will make

Import capacitors with different brands

Thin film capacitance: 100NF2PCS

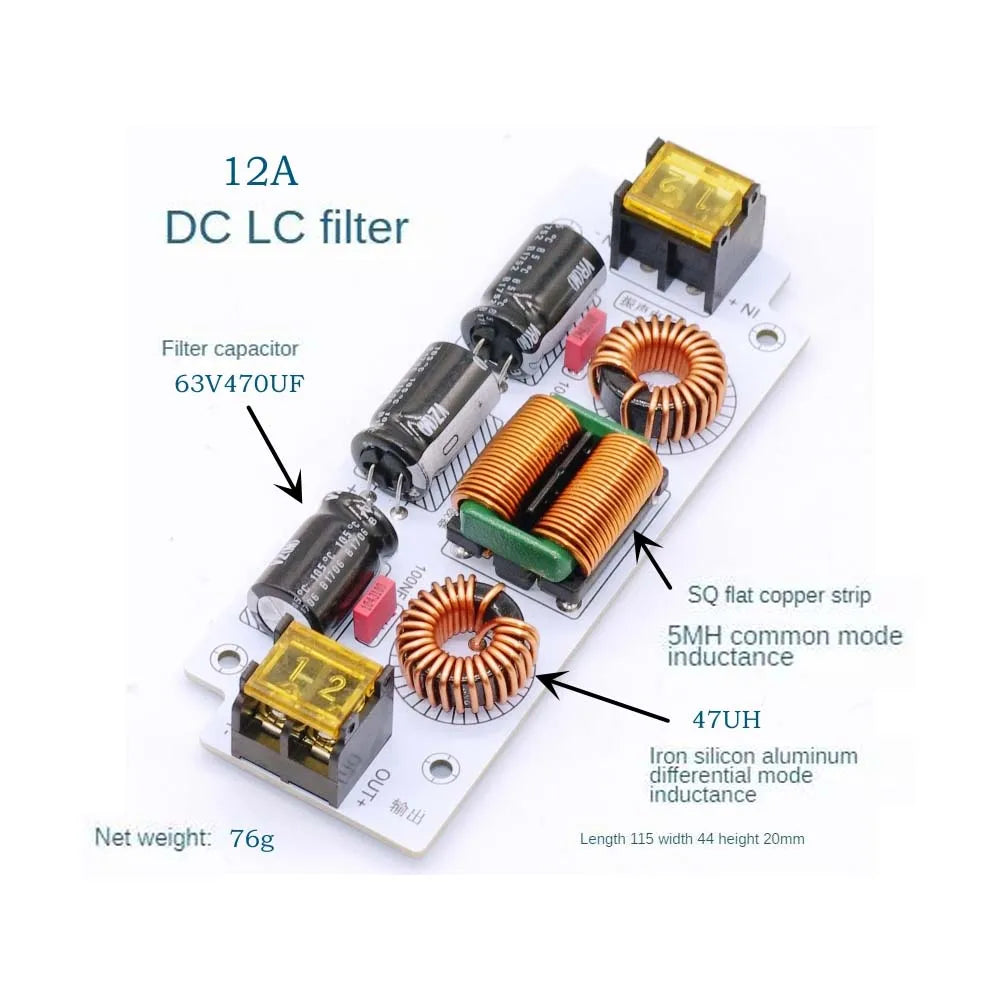

Magnetic ring inductance: 2PCS,

(Choose iron-silicon aluminum inductor),

Common mode inductance; Dosage 1PCS,

(Select flat copper inductor)

Socket: 7.62 socket 2PIN2PCS

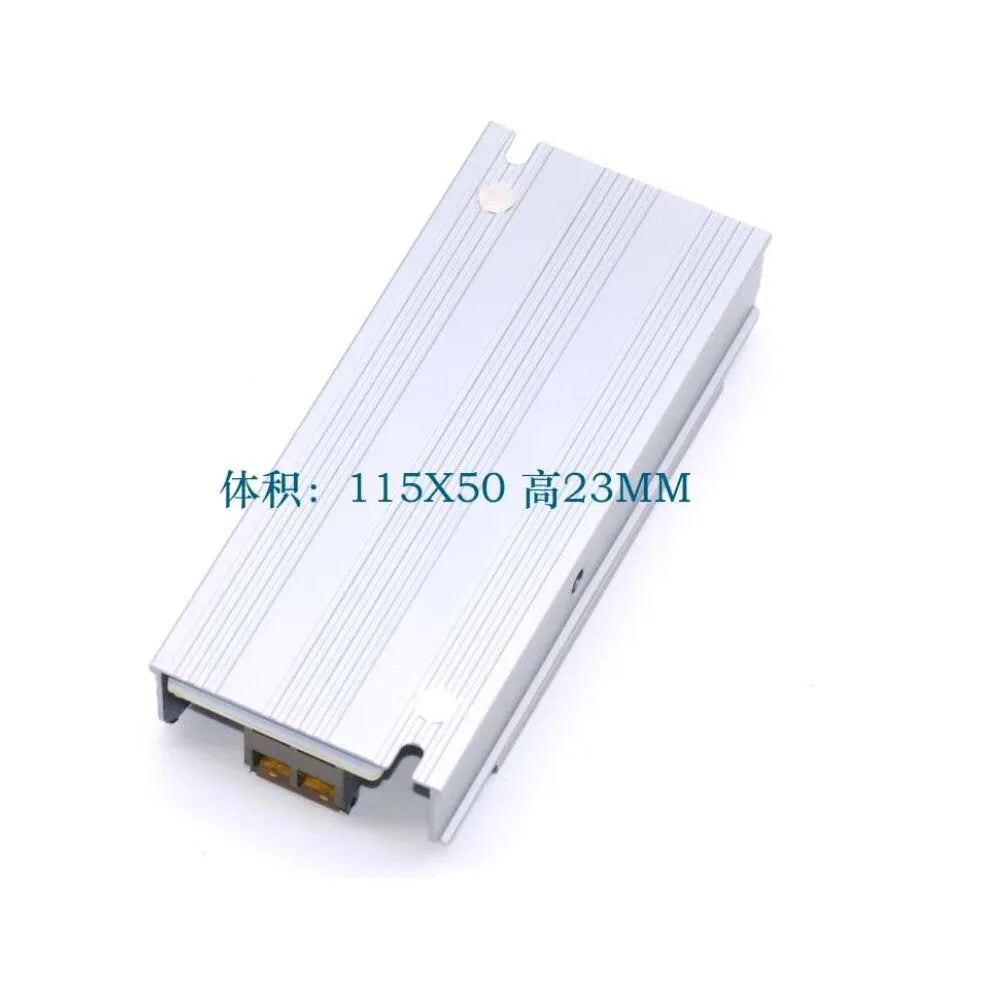

Housing: Aluminum alloy housing (as required)

This module is suitable for eliminating the use of DC power supply with electromagnetic interference, and can be applied after the output of switching power supply

Filter, automobile, motorcycle, direct current circuit with strong electromagnetic interference
