LOGO! 8 Expansion Modules

A wide range of expansion modules allows to set up an individual LOGO! configuration.
LOGO! 8: 24 digital inputs, 20 digital outputs, 8 analog inputs and 8 analog outputs!

If you do networking of several LOGO! one configuration can be expanded to overall 88 digital inputs, 80 digital outputs, 40 analog inputs and 24 analog outputs.

LOGO! 8 can also be connected to KNX sytems.

To combine different voltage levels you have to keep the following rule:
The basic module must be a 230 V version followed by 230 V expansion modules. Then an analog module must be used to achieve a galvanic isolation. Right from the analog module further analog modules or 12V / 24 V expansions can be attached.

6ED1055-1CB00-0BA2

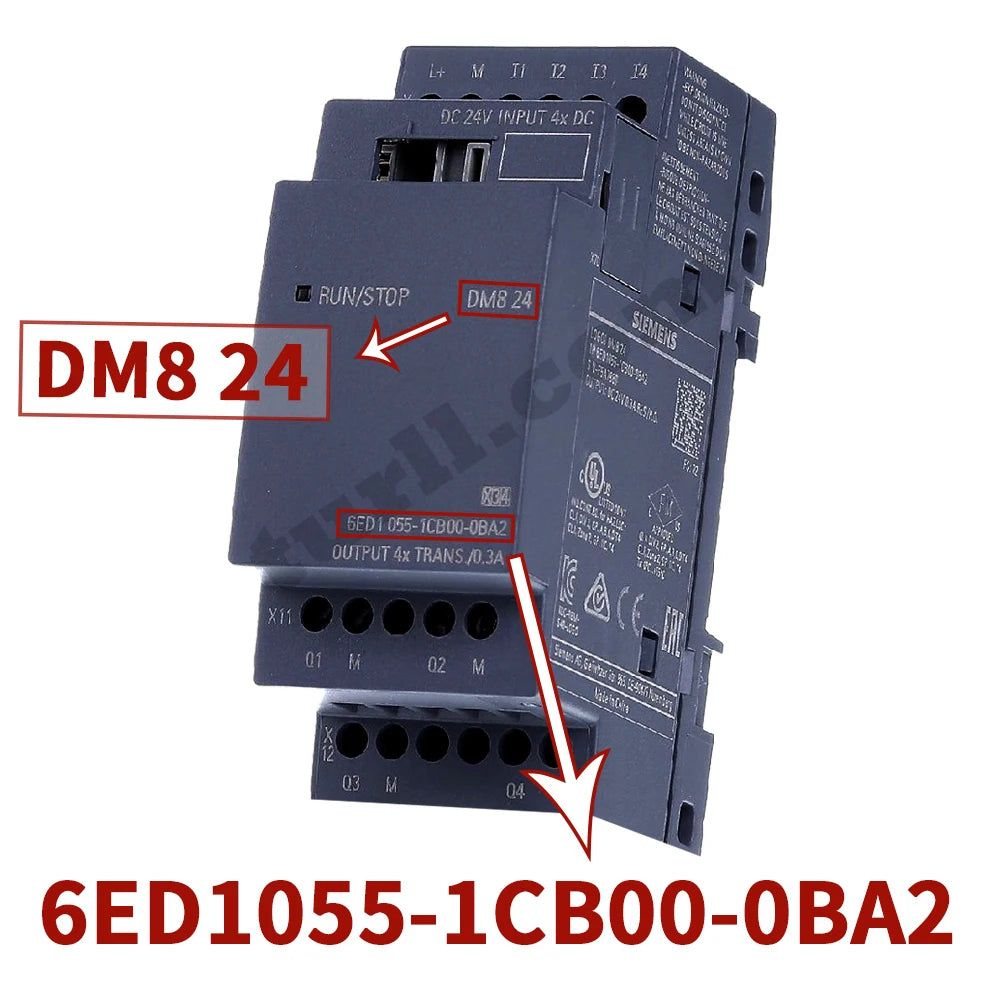

LOGO! DM8 24 expansion module, PS/I/O: 24V/24V/trans., 4 DI/4 DO for LOGO! 8

(1). DM8 24

(2). Digital inputs: 4

(3). Input / Supply voltage: 24 V DC

(4). Digital outputs: 4; transistors

(5). Continuous current: 0.3 A
https://turll.com/6ed1055-1cb00-0ba2/

6ED1055-1HB00-0BA2

LOGO! DM8 24R expansion module, PS/I/O: 24V/24V/relay, 2 MW 4 DI/4 DO, AC/DC/NPN input for LOGO! 8

(1). DM8 24R

(2). Digital inputs: 4

(3). Input / Supply voltage:
- DM8: 24 V AC/DC

(4). Digital outputs: 4; relays

(5). Continuous current:
- 5 A with resistive load
- 3 A with inductive load
https://turll.com/6ed1055-1hb00-0ba2/

6ED1055-1MB00-0BA3

LOGO! DM8 12/24R expansion module, PS/I/O: 12, 24V/12V/24V/relay, 2 MW, 4 DI/4 DO for LOGO! 9

(1). DM8 12/24R

(2). Digital inputs: 4

(3). Input / Supply voltage: 12...24 V DC

(4). Digital outputs: 4; relays

(5). Continuous current:
- 5 A with resistive load
- 3 A with inductive load
https://turll.com/6ed1055-1mb00-0ba2/

6ED1055-1FB00-0BA3

LOGO! DM8 230R expansion module, power supply / I/O: 230 V/230 V/relay, 2 MW, 4 DI/4 DO for LOGO! 9

(1). DM8 230R

(2). Digital inputs: 4

(3). Input / Supply voltage: 115 / 230 V AC / DC

(4). Digital outputs: 4; relays

(5). Continuous current:
- 5 A with resistive load
- 3 A with inductive load
https://turll.com/6ed1055-1fb00-0ba3/

6ED1055-1MA00-0BA2

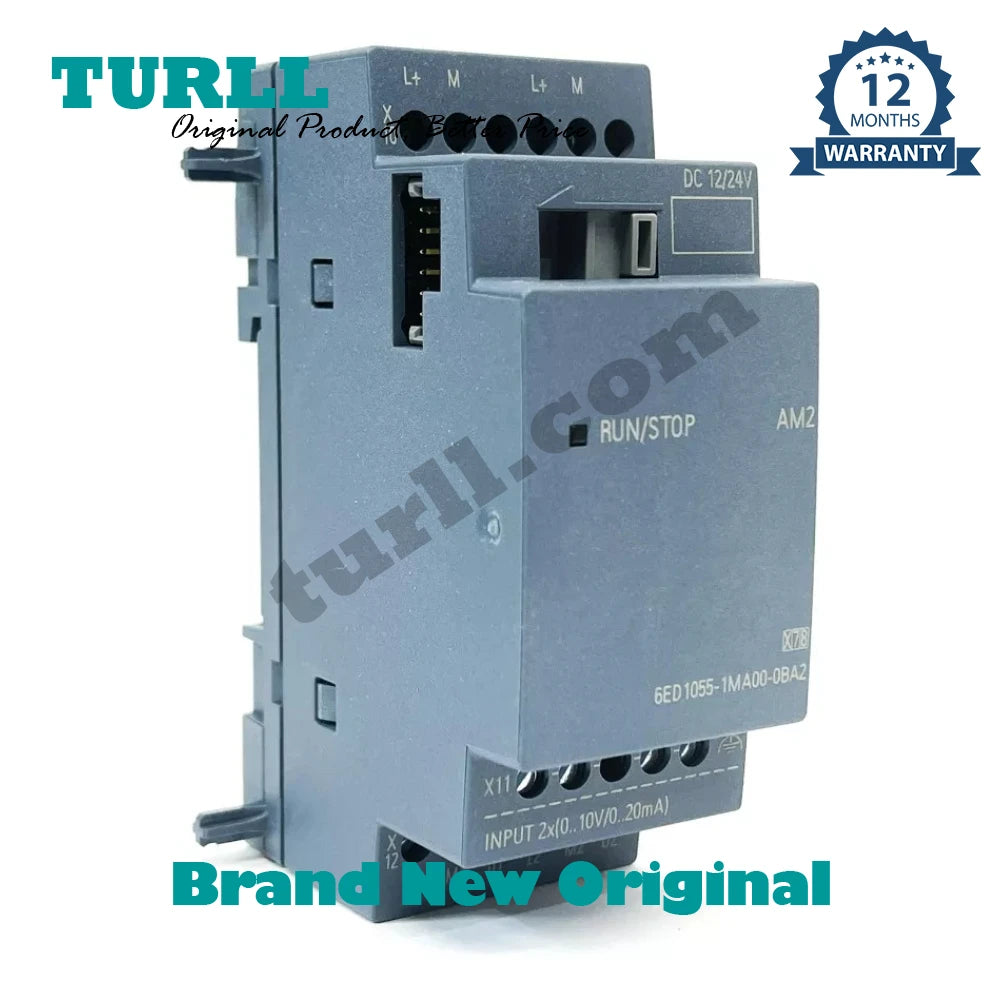

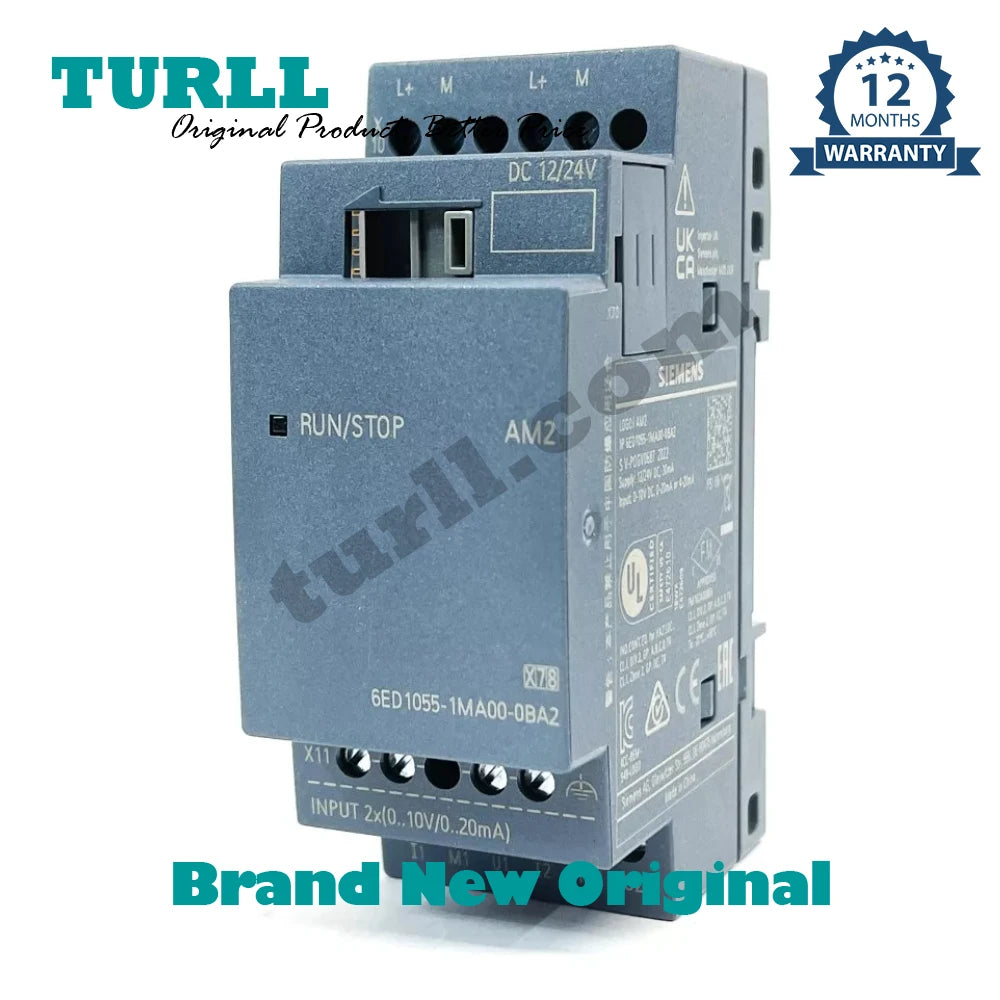

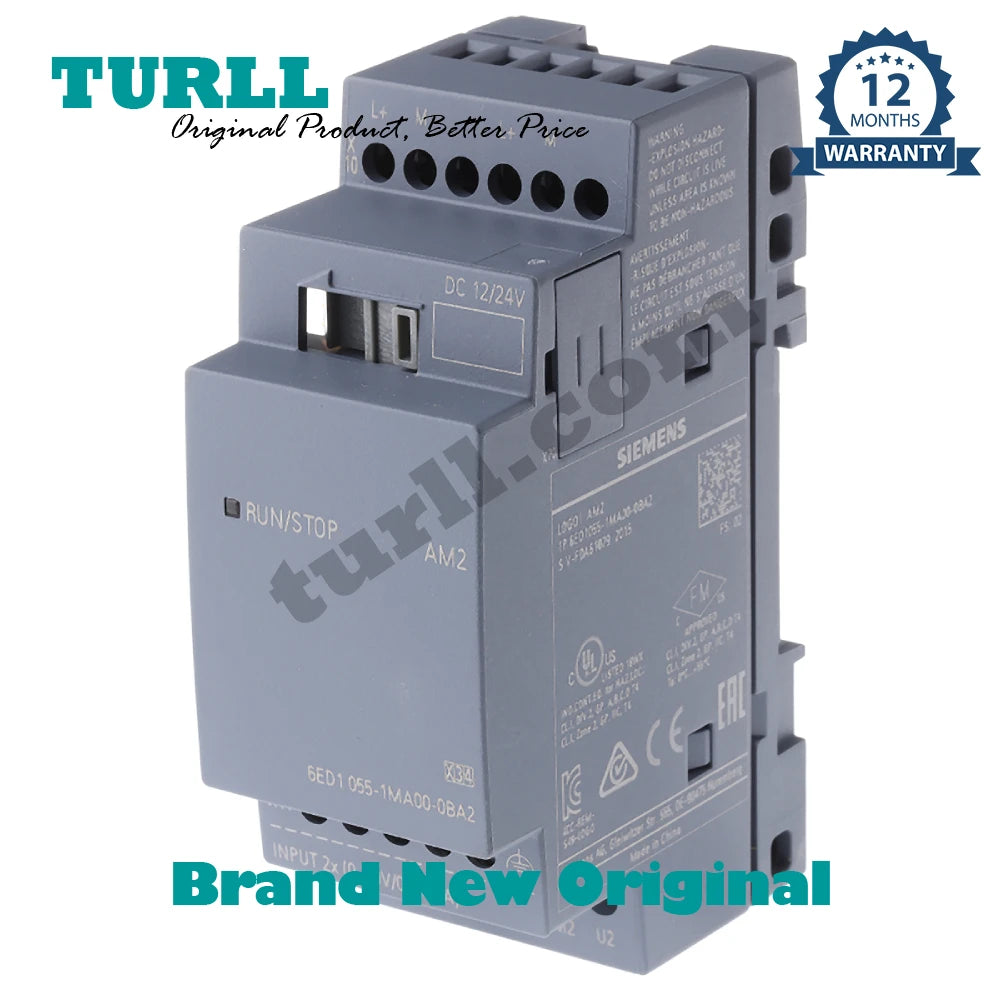

LOGO! AM2 expansion module, PS/: 12/24 V DC, 2 AI, 0-10 V or 0/4-20 mA for LOGO! 8
https://turll.com/6ed1055-1ma00-0ba2/

6ED1055-1MD00-0BA2

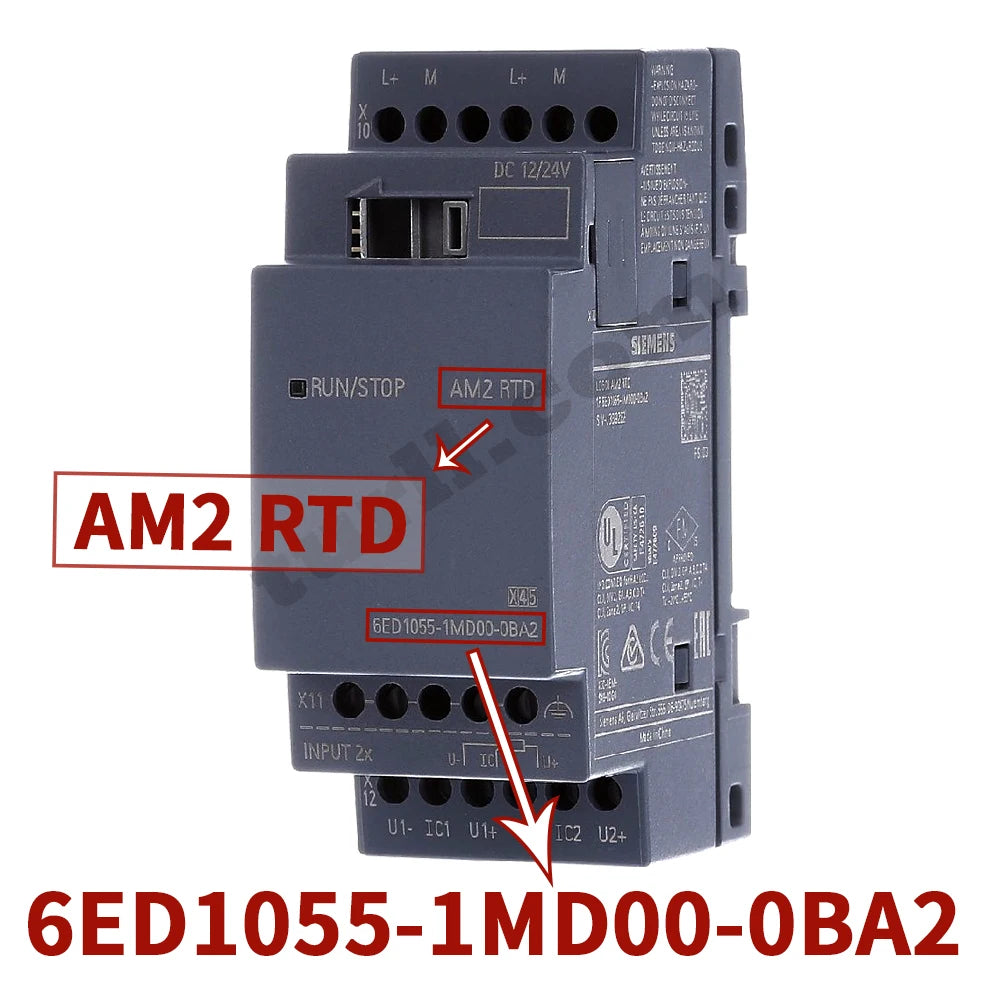

LOGO! AM2 RTD expansion module, PS: 12/24 V DC, 2AI-50...+200°/C Pt100/1000 for LOGO! 8
https://turll.com/6ed1055-1md00-0ba2/

6ED1055-1MM00-0BA2

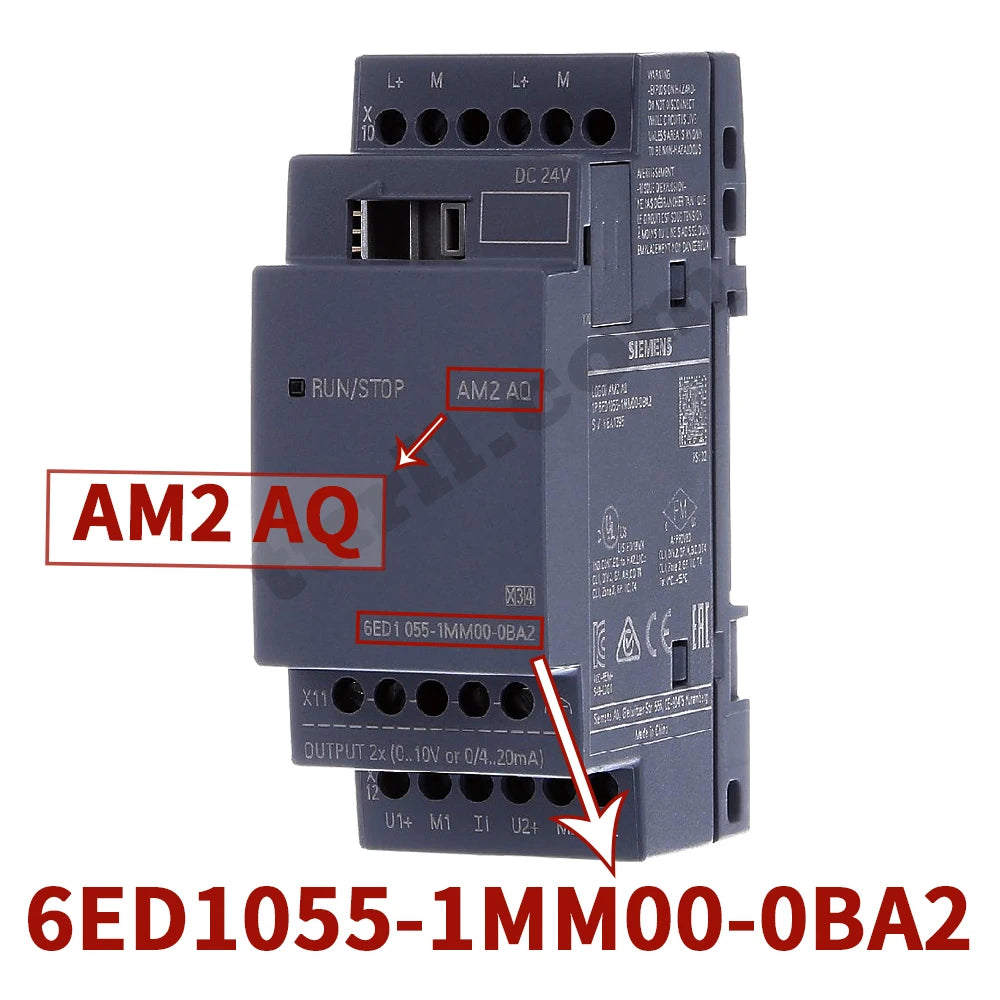

LOGO! AM2 AQ expansion module, PS: 24 V DC, 2 AO, 0-10 V, 0/4-20 mA for LOGO! 8
https://turll.com/6ed1055-1mm00-0ba2/

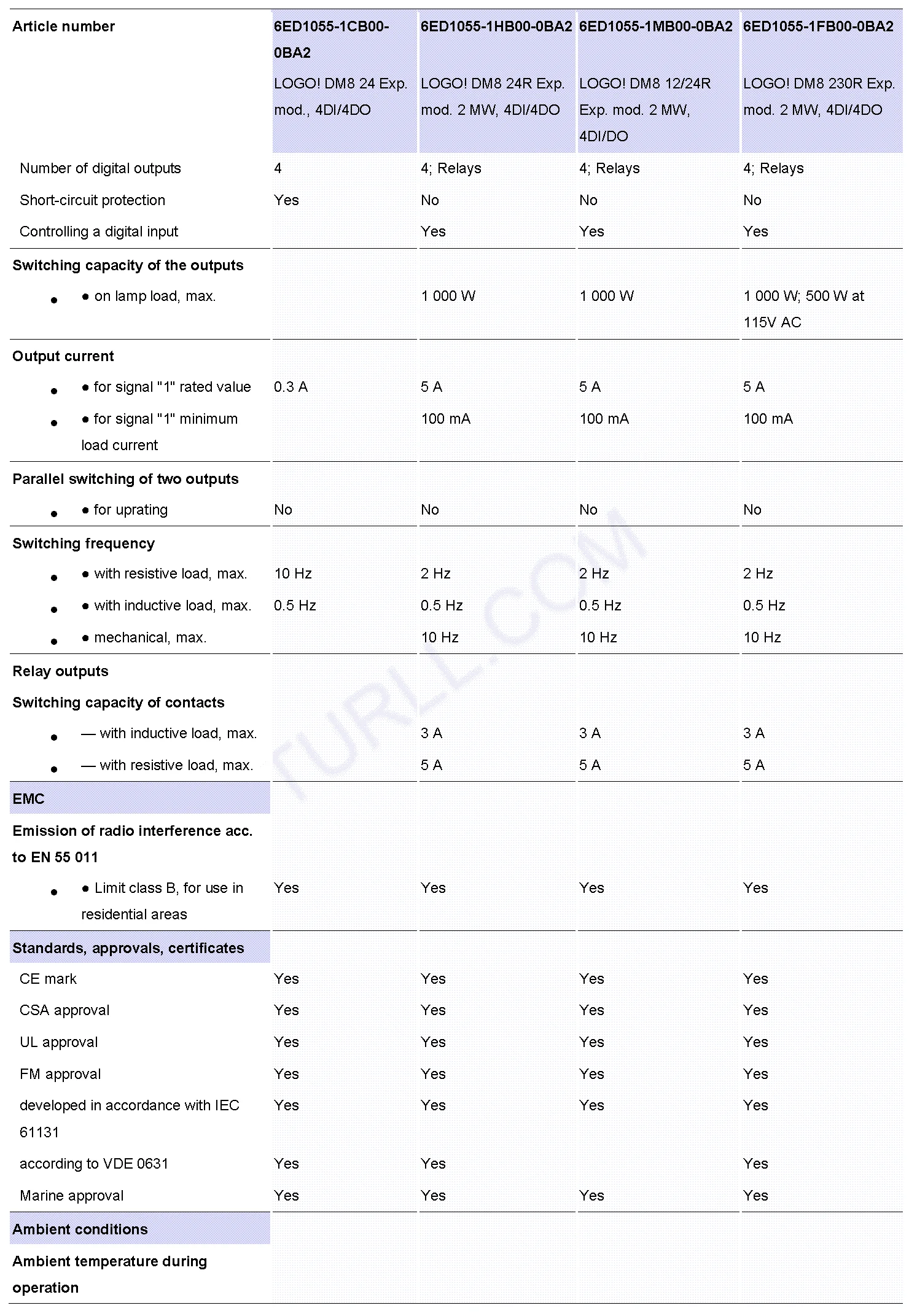

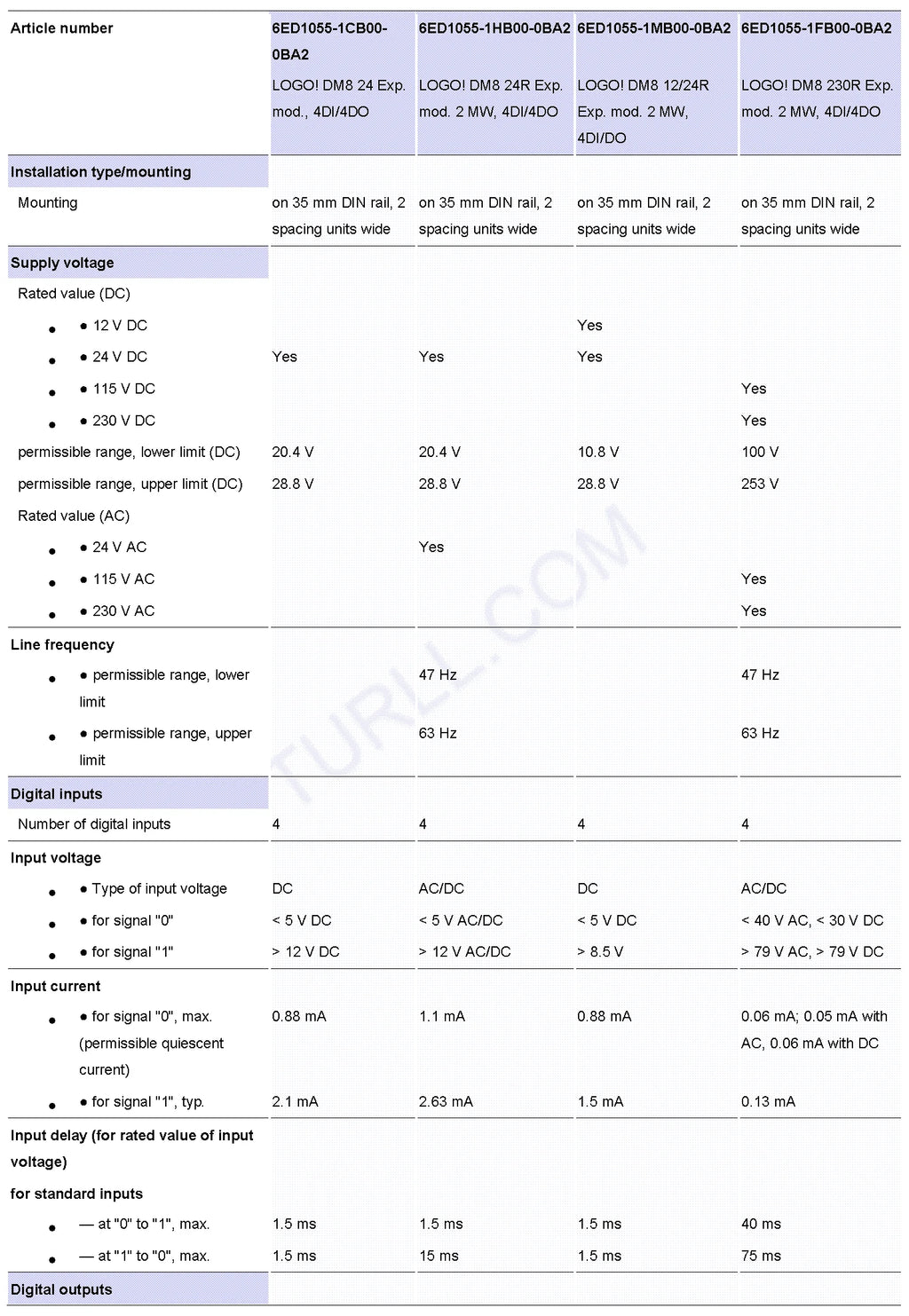

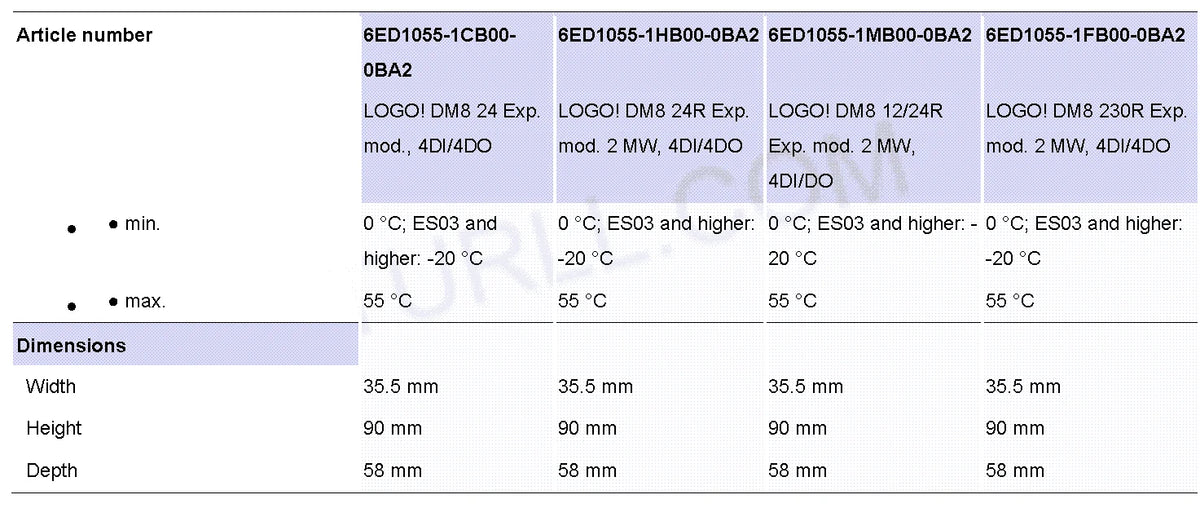

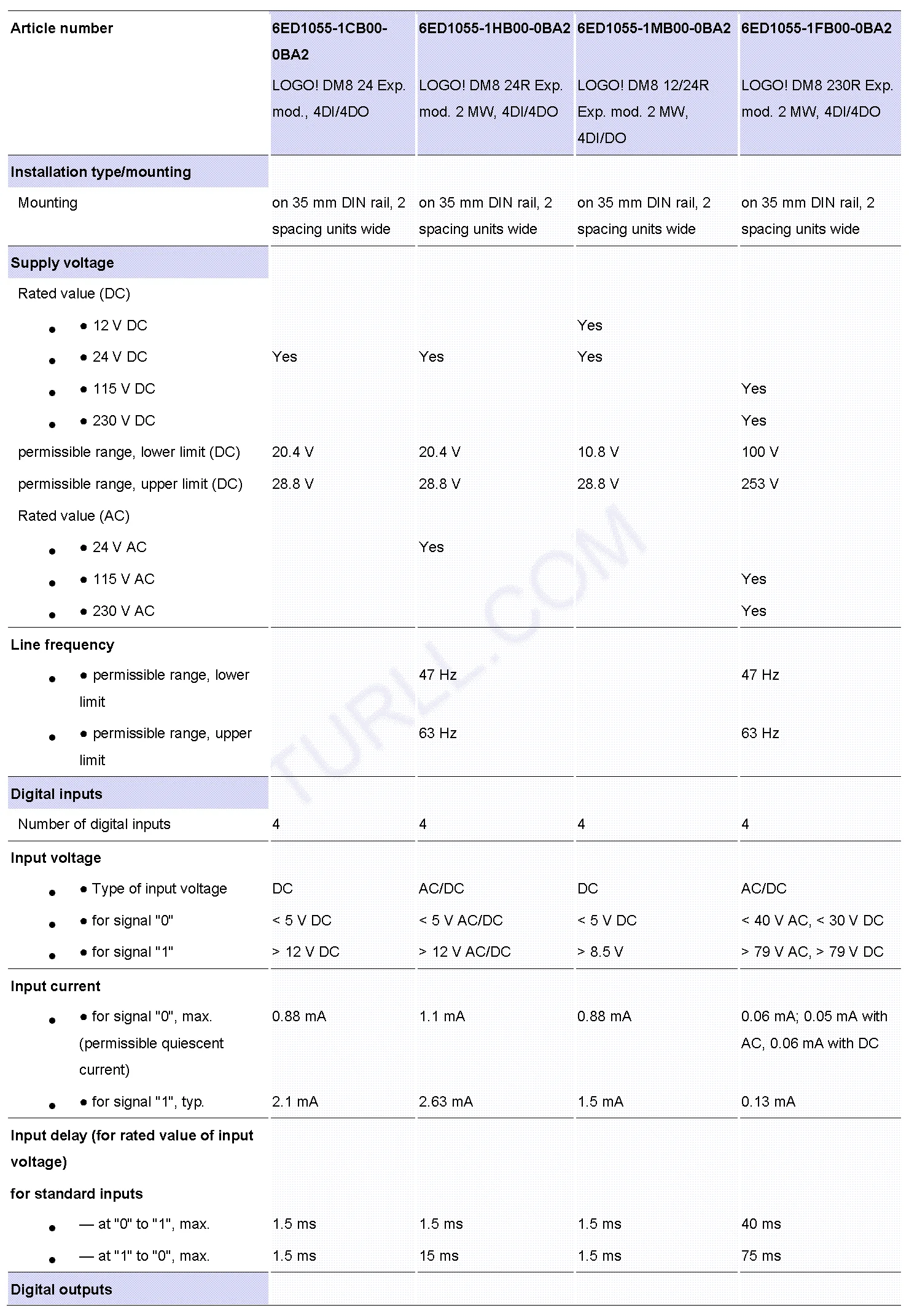

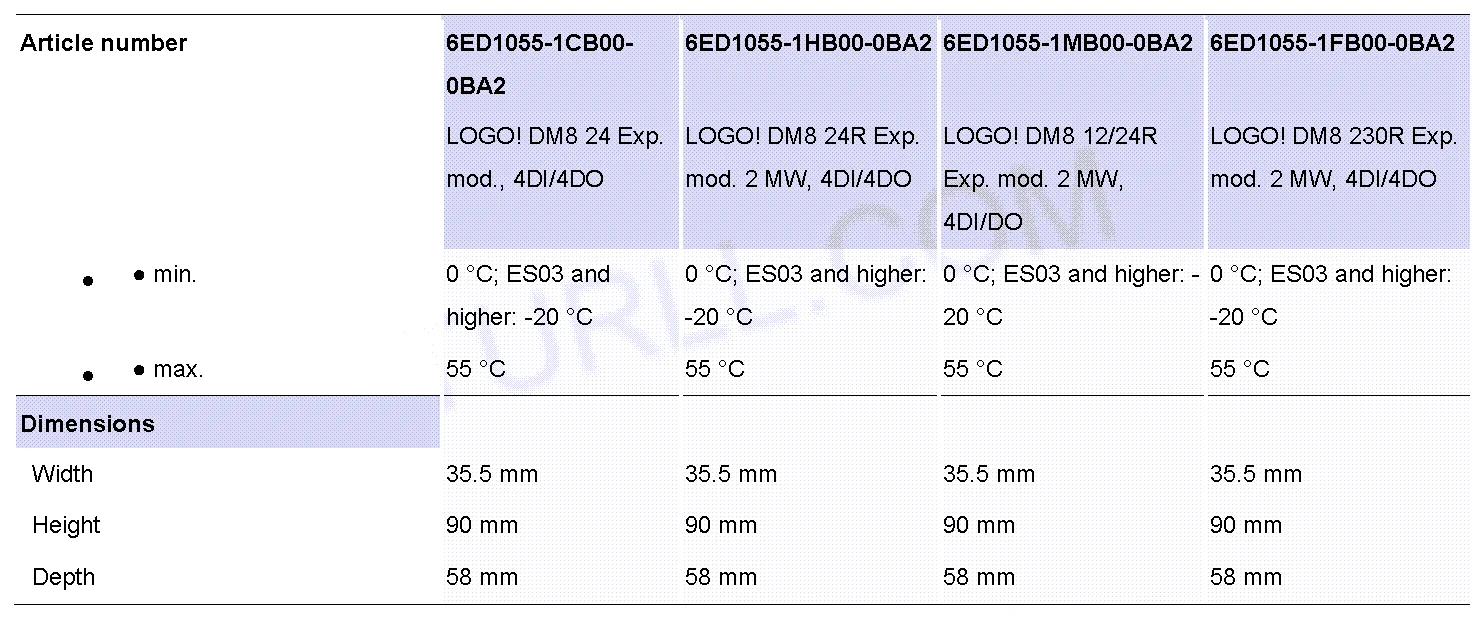

Technical specifications
