6g Servo Steering Motor Micro Mini Electric DC 5V Coreless Motor Mini Aeromodel RC Car Boat Model Robot Fixed Wing 90 Degrees

6g Servo Steering Motor Micro Mini Electric DC 5V Coreless Motor Mini Aeromodel RC Car Boat Model Robot Fixed Wing 90 Degrees

$12.40

$12.40 $0.00

Description

SPECIFICATIONS

Brand Name: NONE

Certification: CCC,ROHS

Choice: yes

Commutation: Brush

Construction: Permanent Magnet

Efficiency: IE 1

High-concerned chemical: none

Model: 6g Servo Steering Motor

Model Number: 6g Servo Steering Motor

Origin: Mainland China

Protect Feature: Totally Enclosed

Rotation angle: 90 degrees

Type: Servo Motor

Use: Home Appliance

Voltage: 5V

semi_Choice: yes

Tips: If you need large quantity, we can provide wholesales for you. Thanks

Specification

Model: 6g

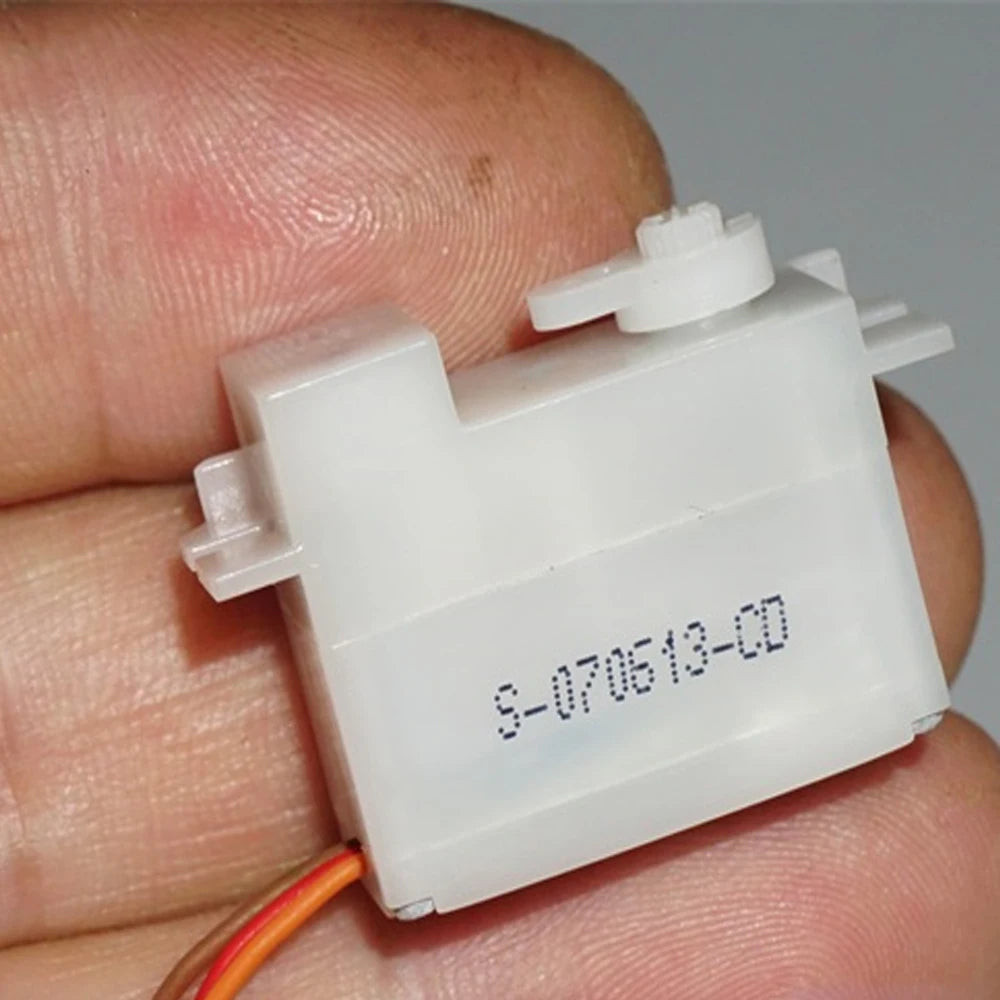

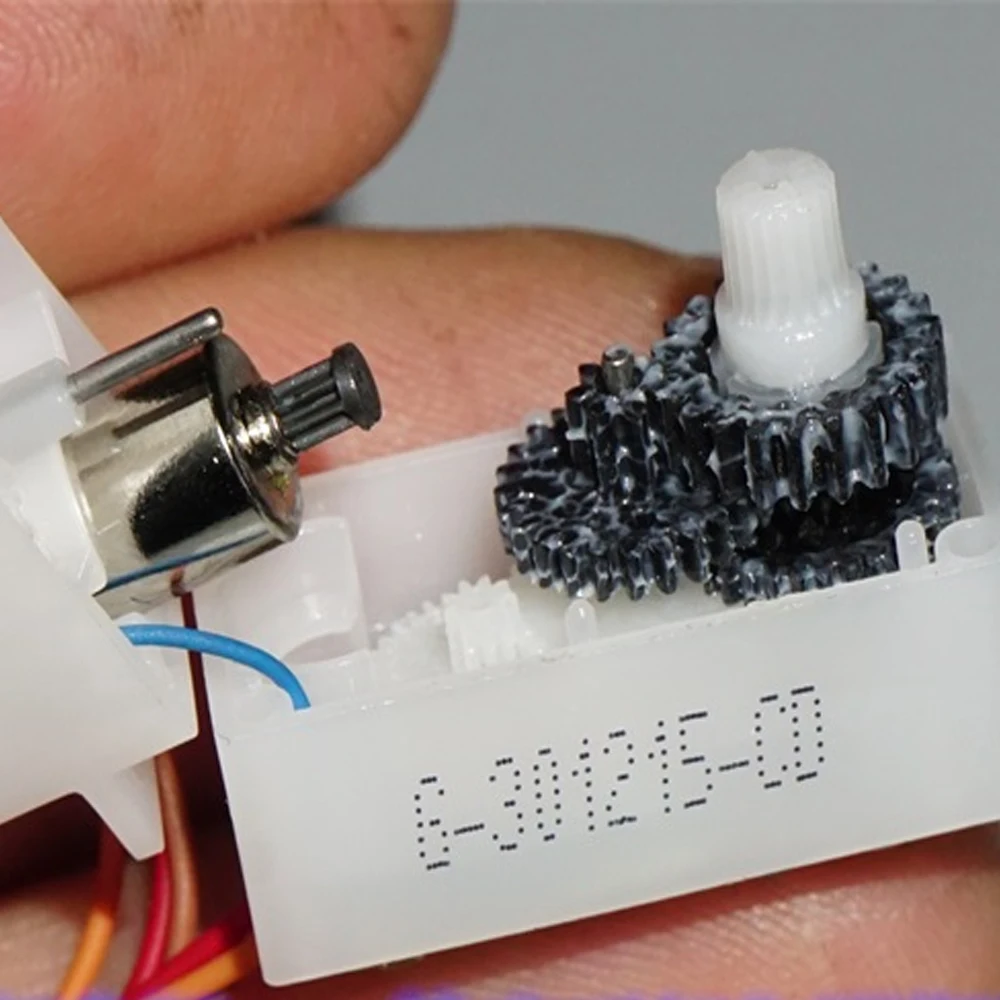

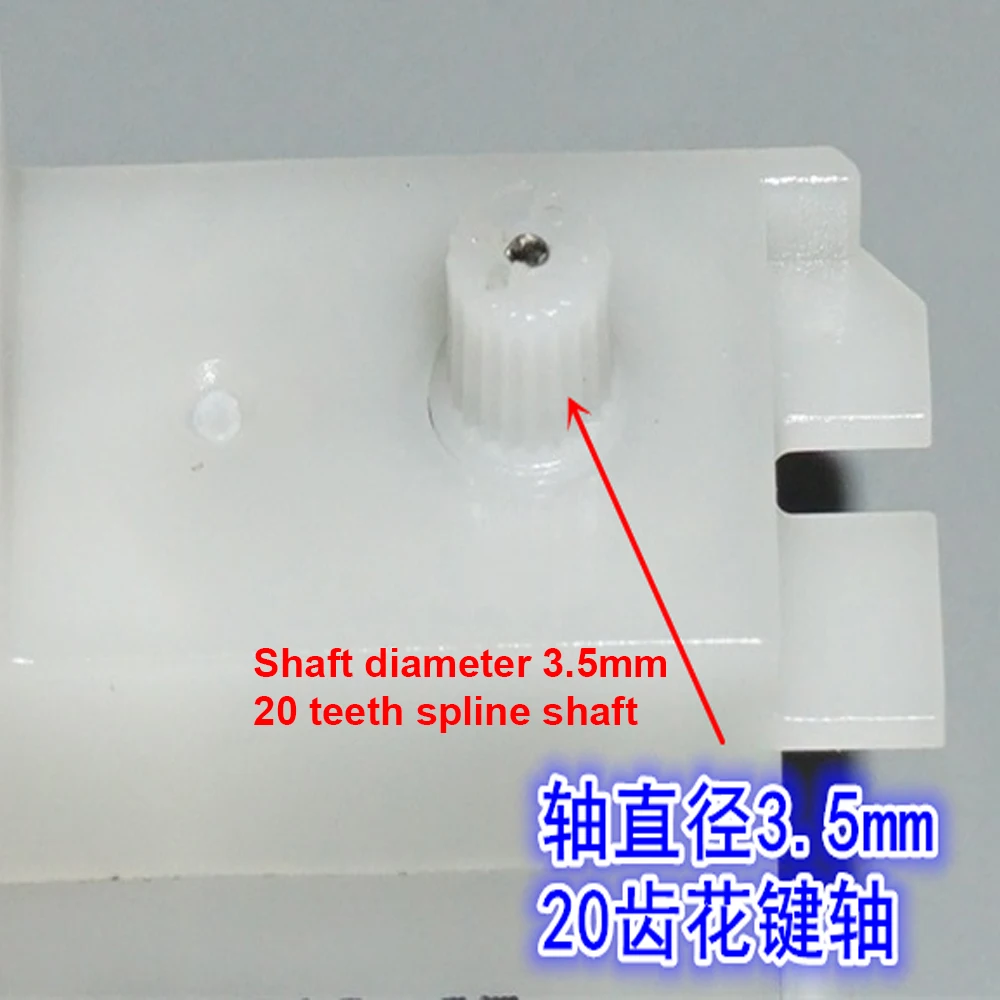

The 6g micro steering gear is driven by a coreless motor. Although the steering gear is made of plastic, the workmanship and materials are very good. The rear stage of the output gear is a reinforced composite fiber gear, and the output shaft of the steering gear is a 3.5mm diameter 20 teeth spline shaft.

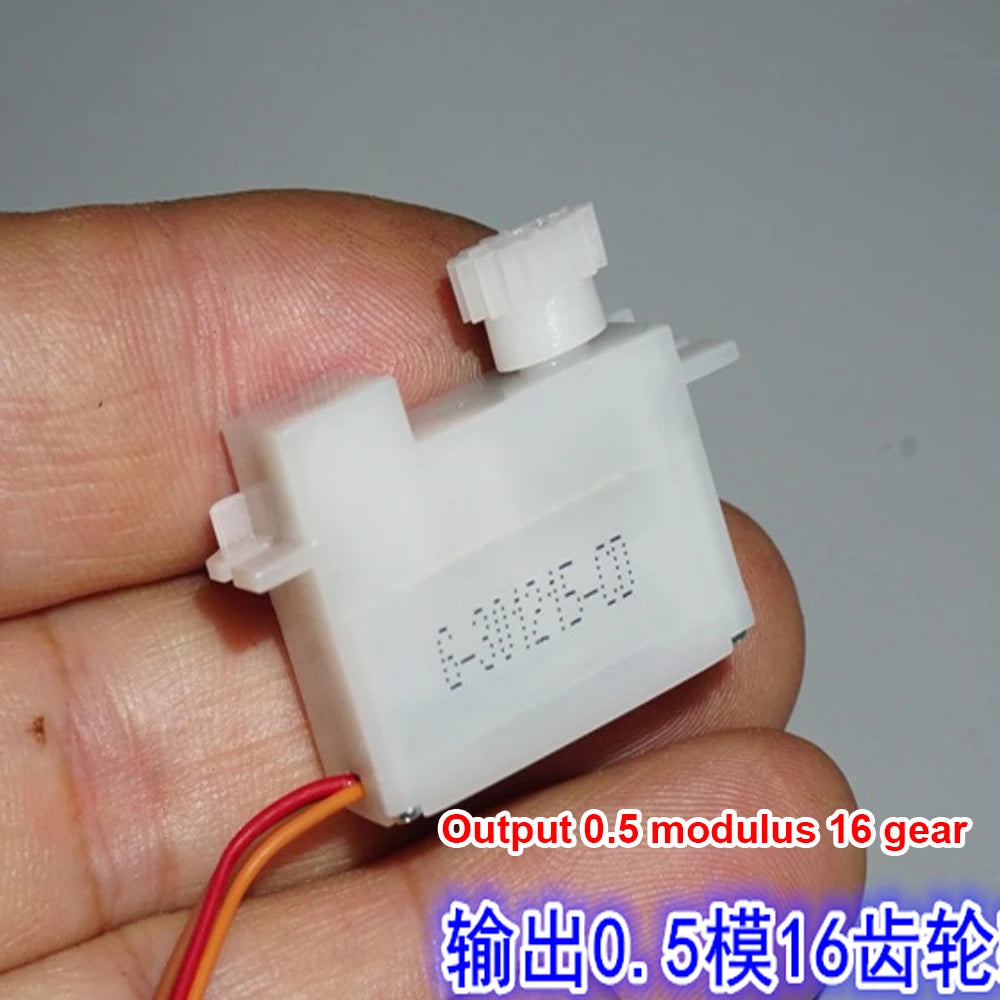

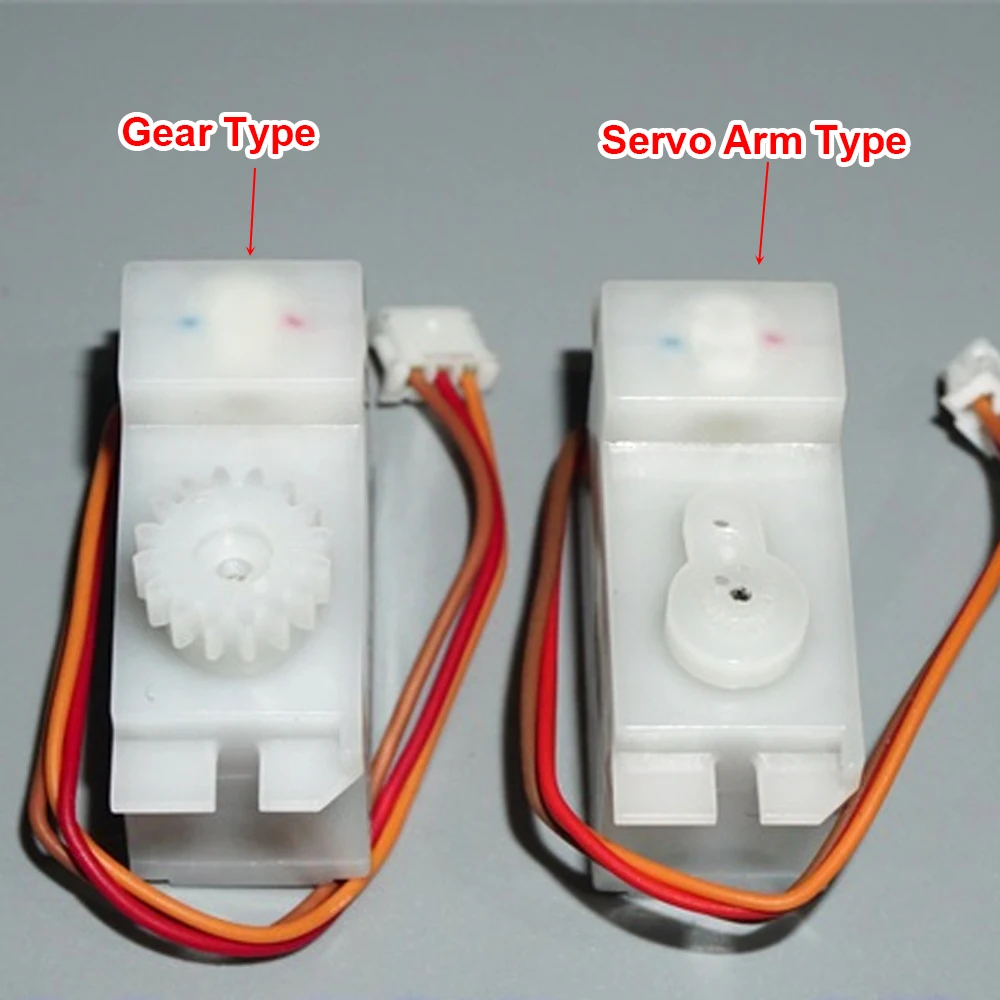

There are two types of the steering gear, and the main body of the steering gear is the same. It comes with a steering arm and a 16 teeth 0.5 modulus gear with different configurations, and can be purchased as needed.

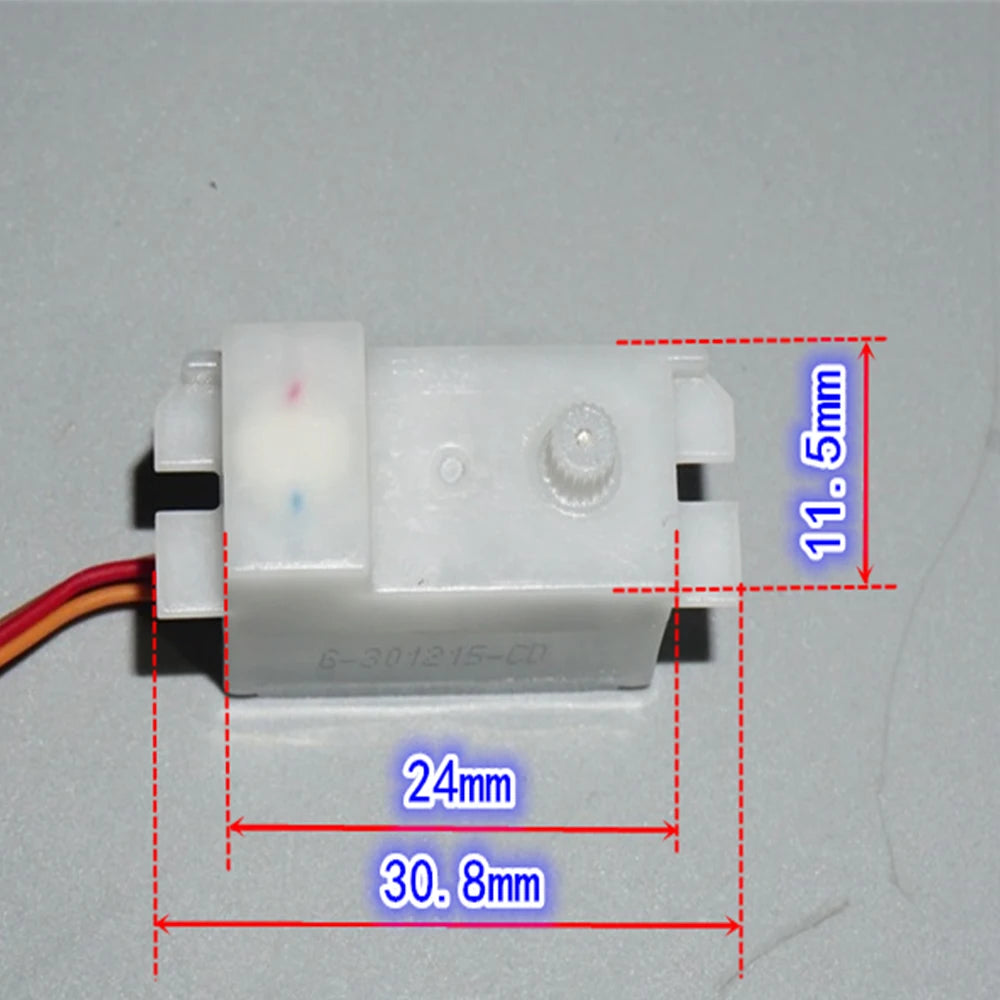

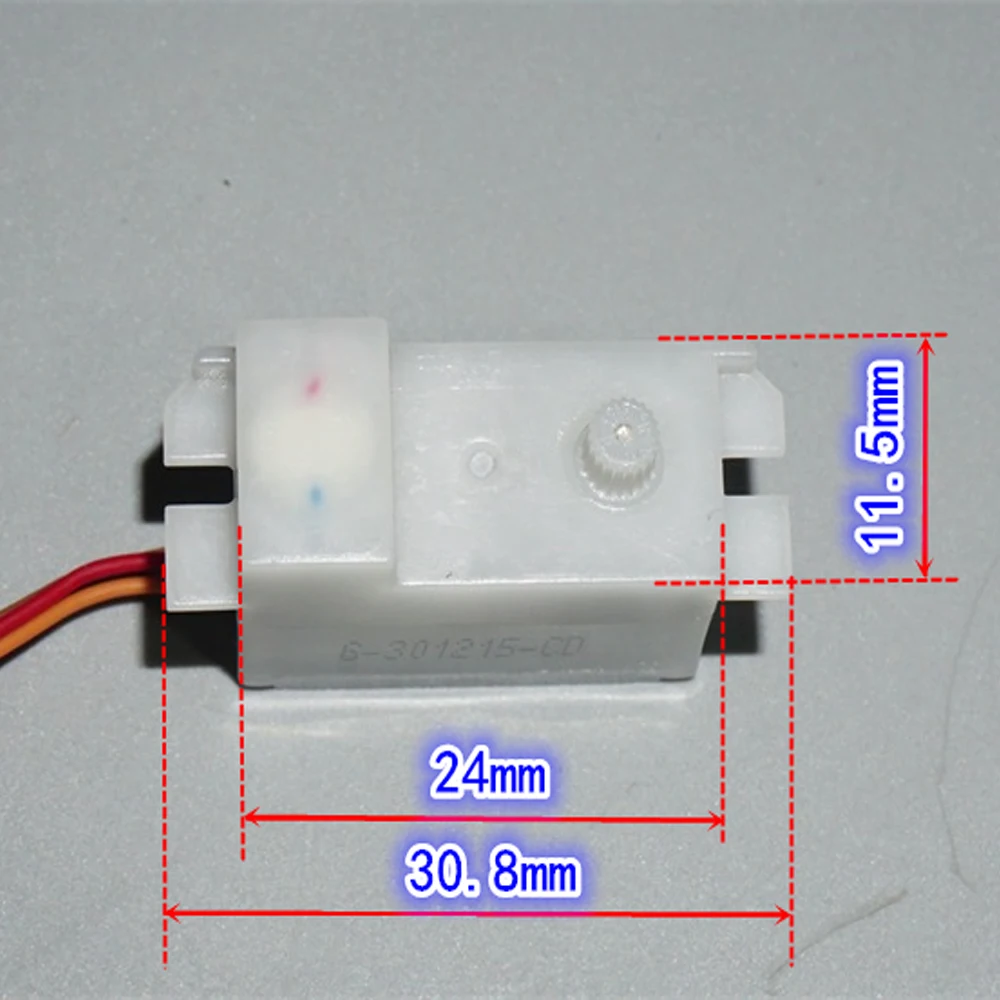

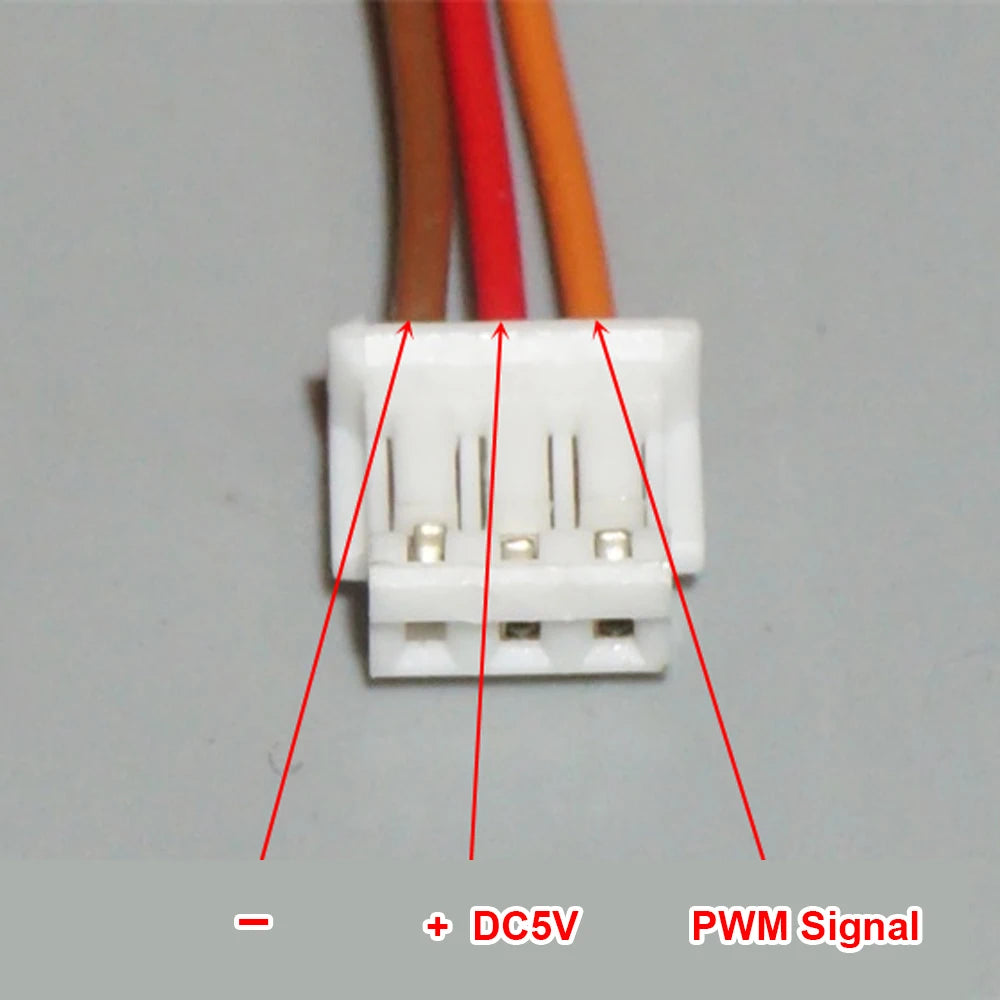

The actual maximum rotation range of the steering gear tested with a tester is about 120 degrees, which should belong to the 90 degree steering gear type. The steering gear comes with a plug that is not a standard universal plug, and modification requires self welding and matching. The steering gear cable length is 8CM, and the steering gear weight is about 6g.
