6V 12V 24V Solid Customized Micro Linear Actuator motor actuador lineal 10/21/30/50/75mm stroke Robotics Home Automation
50MMS 19.2N / 6V DC / 50mm stroke
$129.32
Sale price
$129.32
Regular price
$0.00
Skip to product information
Order link
6V 12V 24V Solid Customized Micro Linear Actuator motor actuador lineal 10/21/30/50/75mm stroke Robotics Home Automation
$129.32
Sale price
$129.32
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Certification: UL（纺织品）,ROHS,ce,UL,ROHS,ce
Color: black,Black
Commutation: Brush
Construction: Permanent Magnet
Continuous Current(A): 12V/0.4A
Does it include a Battery?: No
Does it include wireless functionality?: No
Efficiency: IE 4
High-concerned chemical: none
IP: IP54
Input: 6V 12V 24V
Materials: Metal gear
Max load: Max 188N 18KG 40LBS
Max speed: 150mm per second
Max stroke: 150MM
Model Number: OK-T8W
OEM: Yes
Origin: Mainland China
Output Power: ＜18.65
Output Voltage: 6V 12V 24V
Protect Feature: Drip-proof
Safety: Rohs CE UL
Torque: Max 188N 18KG 40LBS
Type: Tubular Motor

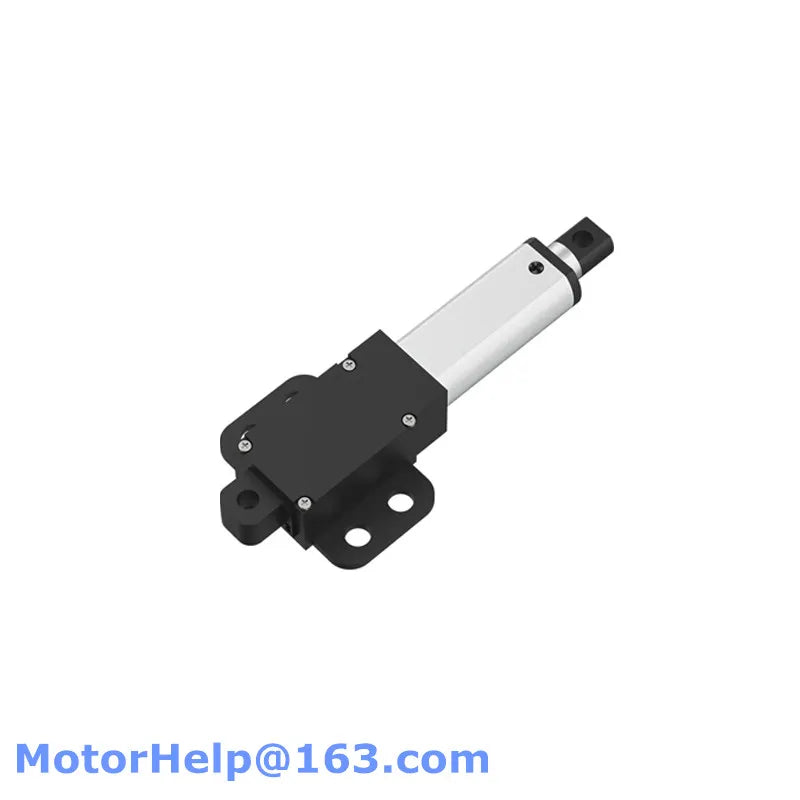

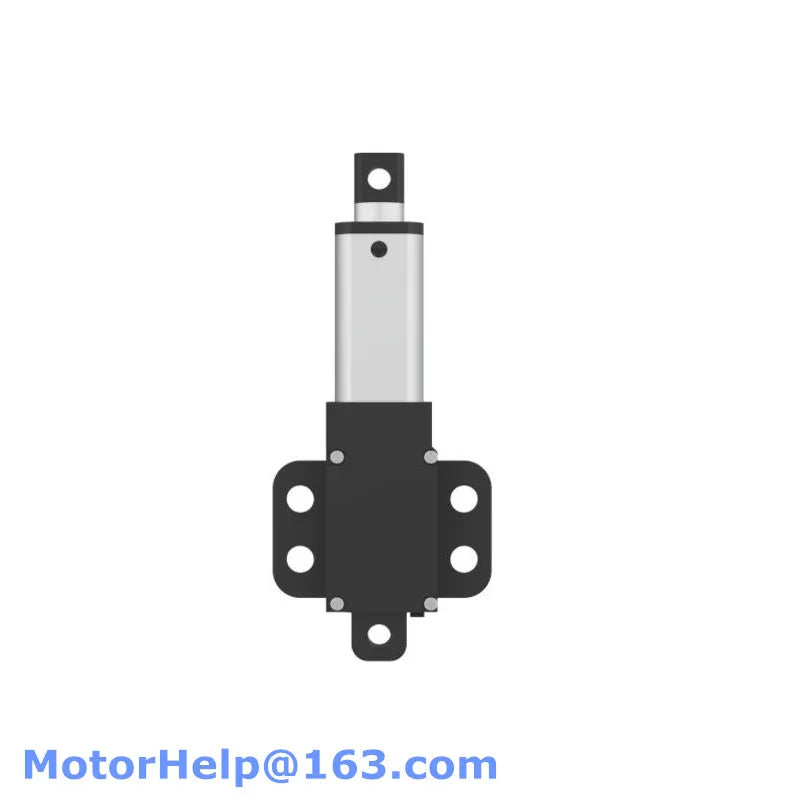

OK03 is mini linear actuator. Although it is smaller,great ideal for any project where space or weight is at a premium.

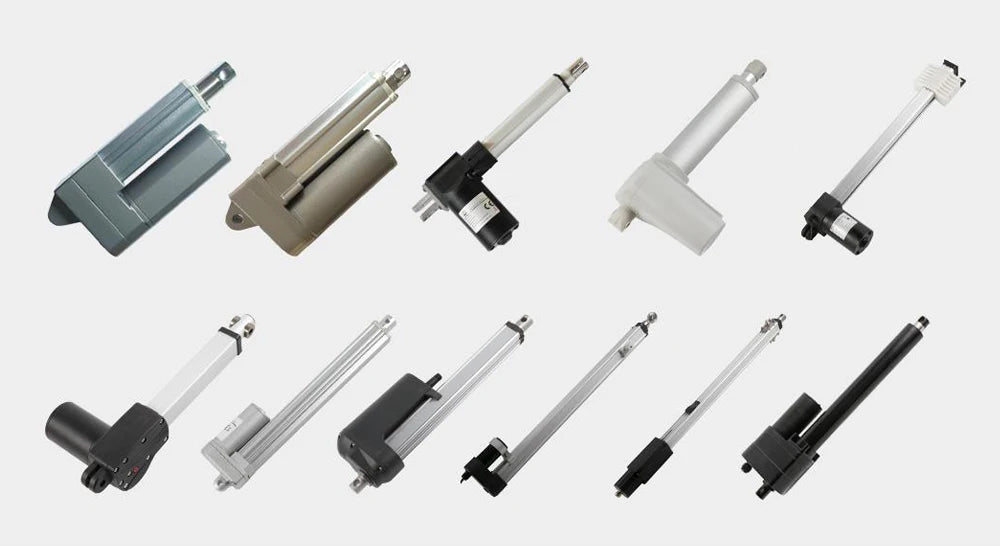

We produce linear actuator,tv lifts,control box,handset,lifting column,electric desk. The spare part suppliers work with us for many years,with rich experienced team and ISO good quality control system that is why our quality and service makes customer happy.
We deeply appreciate your interest to our company.
Linear actuator spec:
1 Type OK03 linear actuator
2 Input 6V 12V DC
3 Max Load 188N=18KG=44LBS
4 Max Speed 150mm per second
5 Limited switch With
6 Duty cycle 25%
7 Inner tube material Aluminum alloy
8 Stroke length Max 150mm
9 Lmin and Lmax Normal Lmin=Stroke+54.5
10 Color Black
11 Operation temperature -26 ~ +65 degree

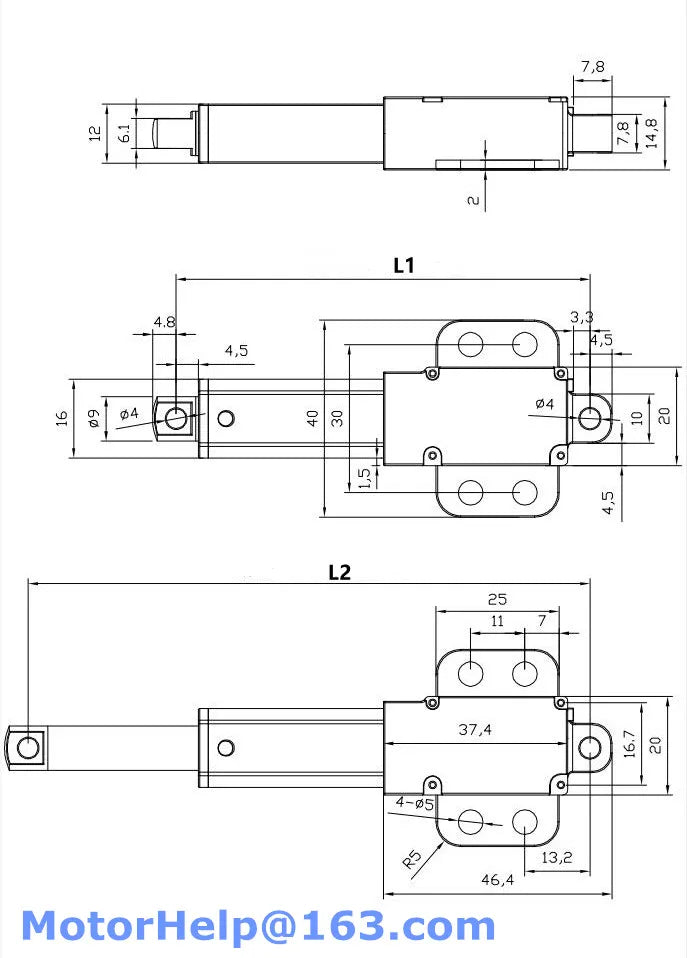

Normal size
1 L1=100% fully close length
Lmin means the length when linear actuator 100% fully closed, meanwhile,it will touch the tail limited switch and stop automatically.
2 Stroke means the movement length of linear actuator.
3 L2=100% fully open length
Lmax means the length when linear actuator 100% fully open, meanwhile,it will touch the head limited switch and stop automatically.

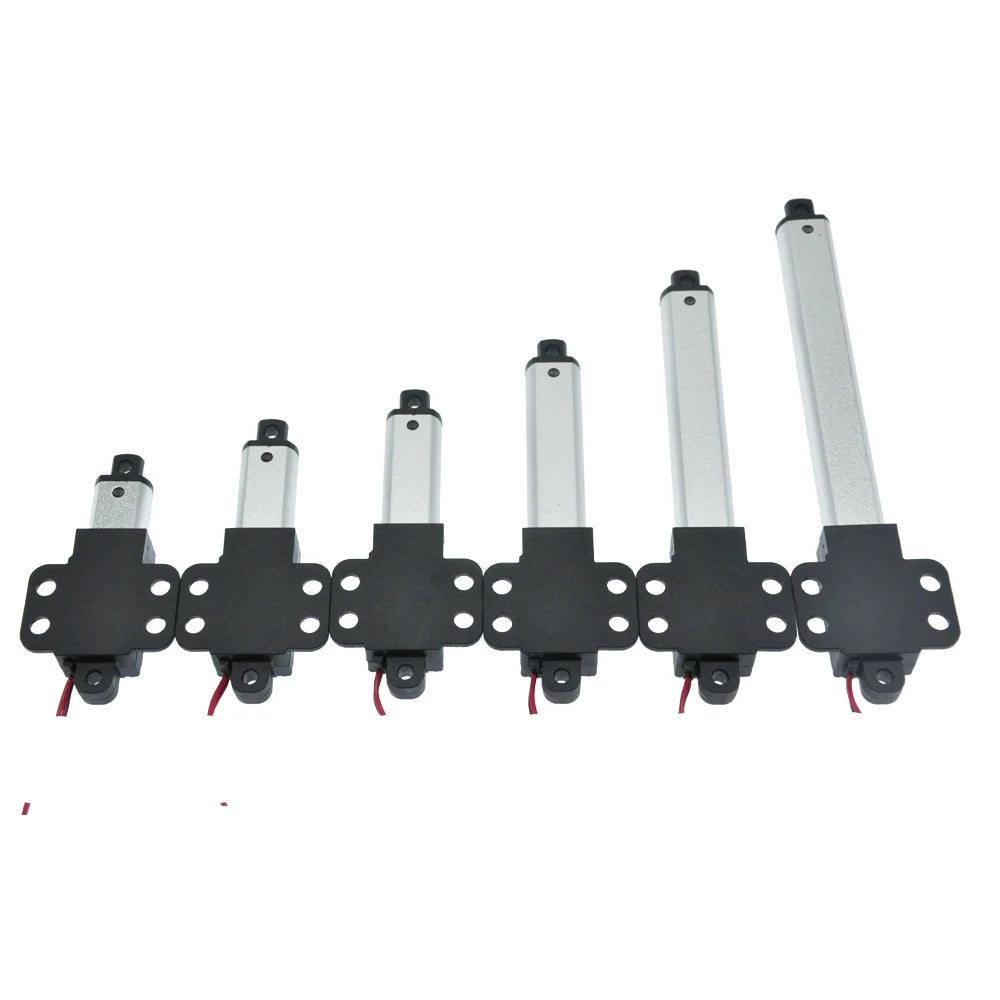

Stroke 10MM L1=64.5MM, L2=74.5MM
Stroke 17.5MM L1=72MM, L2=89.5MM
Stroke 21MM L1=75.5MM, L2=96.5MM
Stroke 25MM L1=79.5MM, L2=104.5MM
Stroke 30MM L1=84.5MM, L2=114.5MM
Stroke 50MM L1=104.5MM,L2=154.5MM
Stroke 75MM L1=129.5MM,L2=204.5MM
Stroke 100MM L1=154.5MM,L2=254.5MM
Stroke 150MM L1=208MM,L2=358MM
Why US
1 Rich experience engineer team
2 Spare parts 100% check before production
3 Product 100% check before shipping
4 We have patent and brand
5 Good service
6 If you want potentiometer or hall sensor or encoder type,we can make customized solution.
Normal service
1 We supply customized head and tail connector size,Lmin and Lmax size,cable and control system.
2 We supply OEM and ODM service
3 We supply discount for bulk order.
4 For bulk order,we supply ocean and air cargo shipping service,it is much cheaper.
5 If you have partner in China,we can send product to them.
Warranty
1 If you do not receive product or meet quality problem, we will send you new one.
2 We accept paypal, Escrow,Western union and bank transfer.
3 Please make sure your address and contact info is correct.
Thanks for your interest
