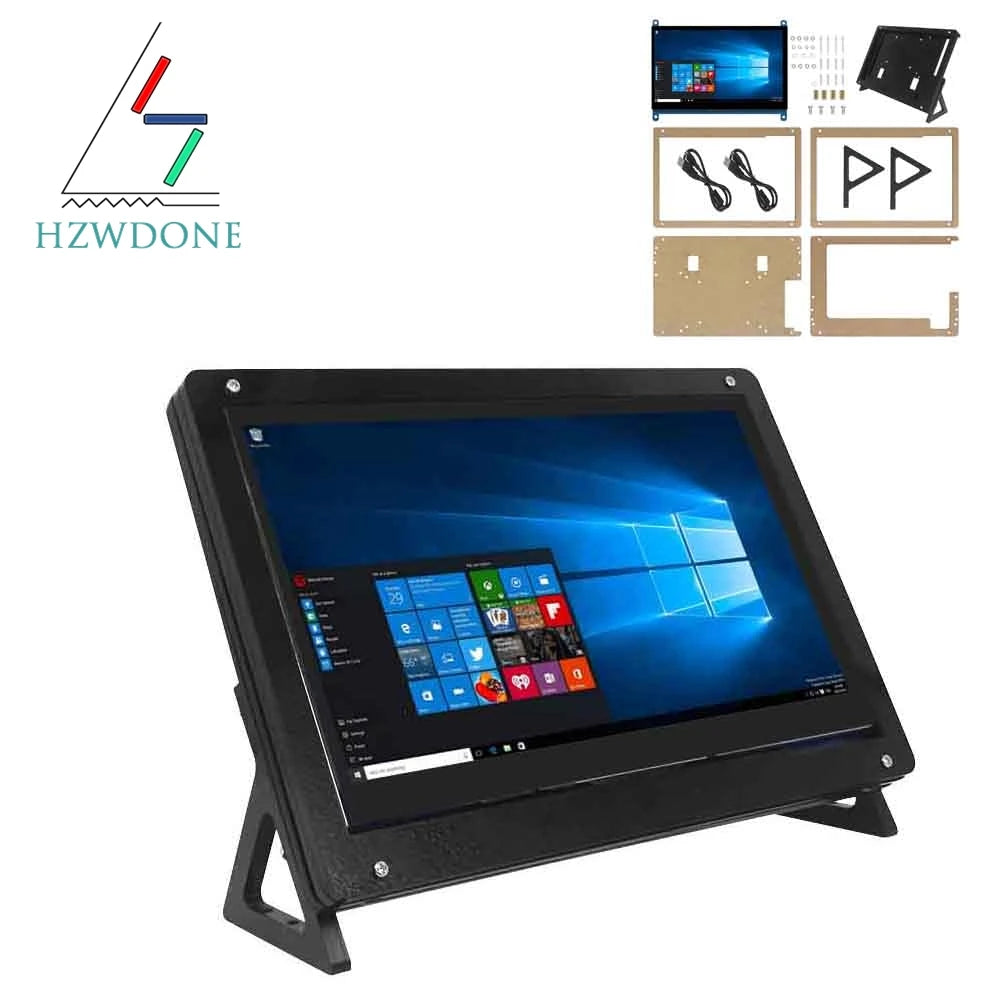

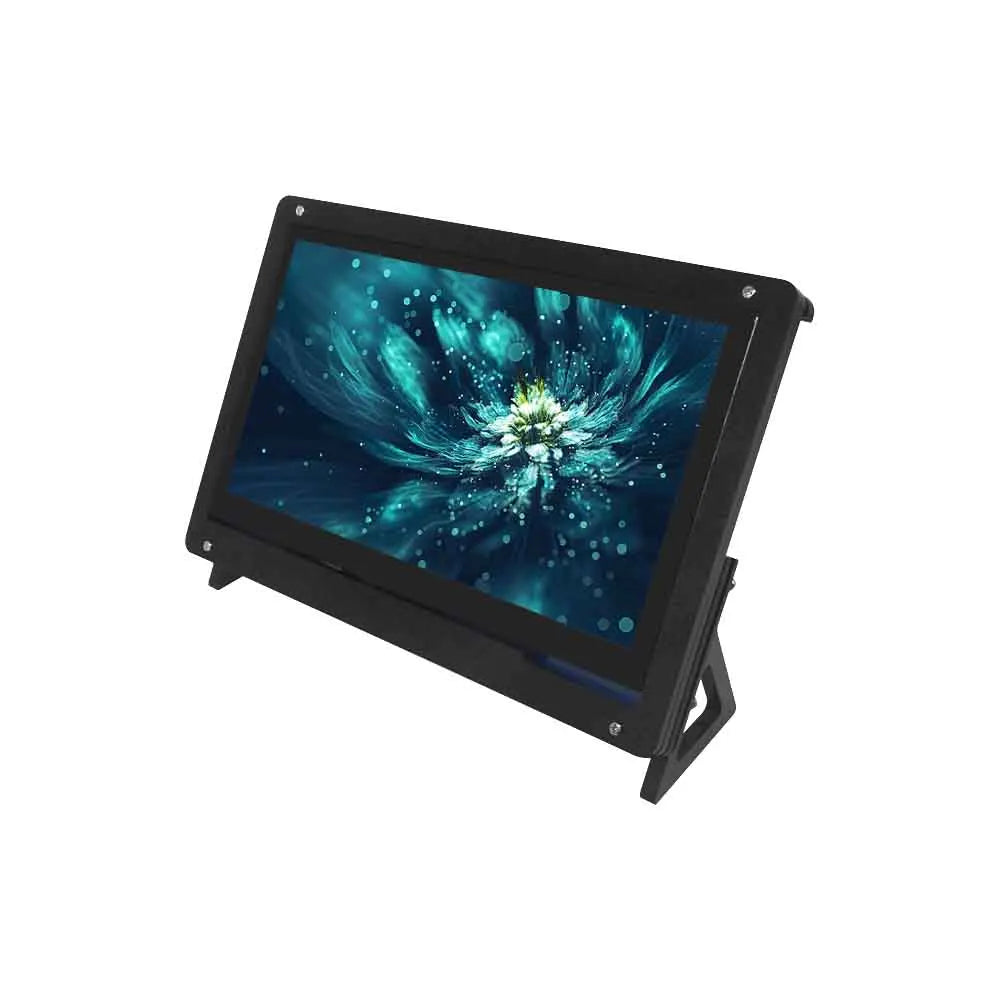

7 inch LCD Display HDMI-compatible Touch Screen 1024x600 Resolution Capacitive Touch Screen Support Systems for Raspberry Pi/PC

7 inch LCD Display HDMI-compatible Touch Screen 1024x600 Resolution Capacitive Touch Screen Support Systems for Raspberry Pi/PC

$154.67

$154.67 $0.00

Description

SPECIFICATIONS

Brand Name: HZWDONE

Choice: yes

Display Mode: 1024*600

High-concerned chemical: none

Model Number: 7 inch LCD Display HDMI-compatible Touch Screen

Origin: Mainland China

Resolution: 1280*800

Type: TFT

is_customized: Yes

Explain:

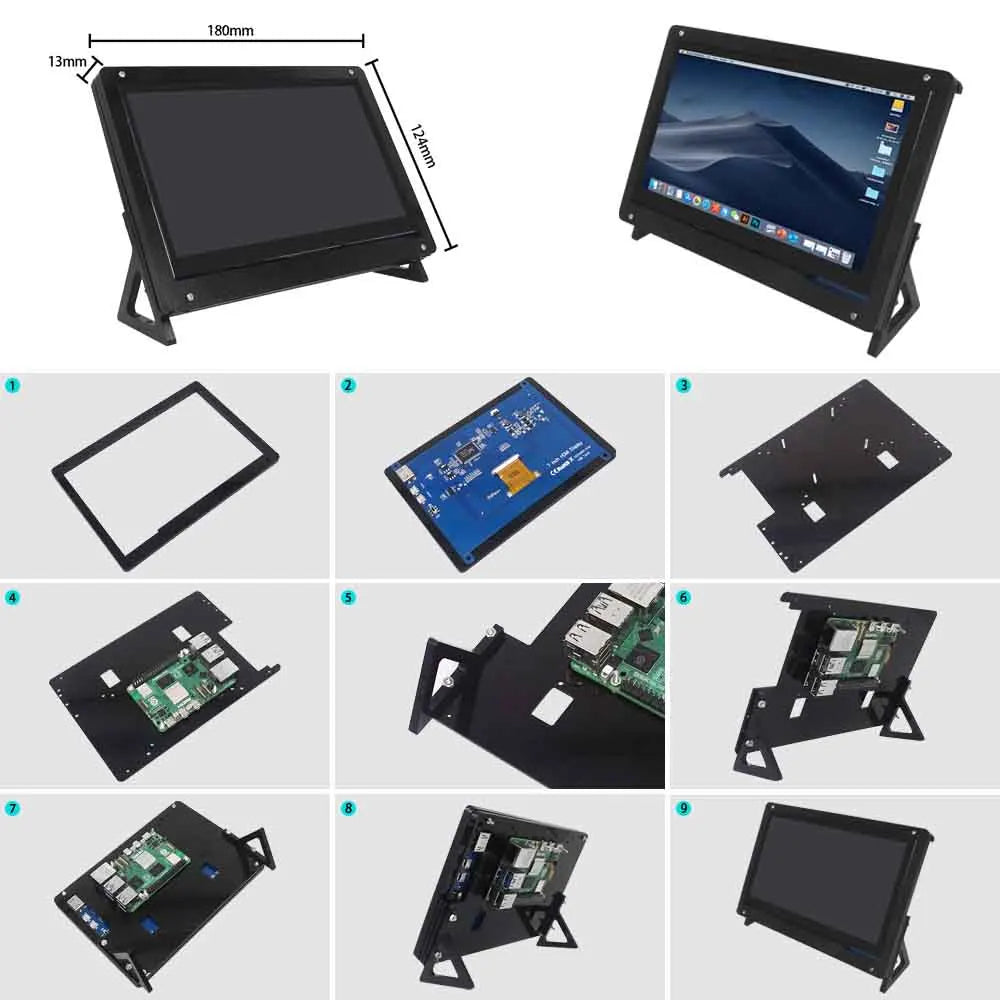

🔺. The casing of this set needs to be installed by oneself.

🔺. When installing the casing, it is necessary to remove the yellow protective sticker on the outside, which will be made of black material.

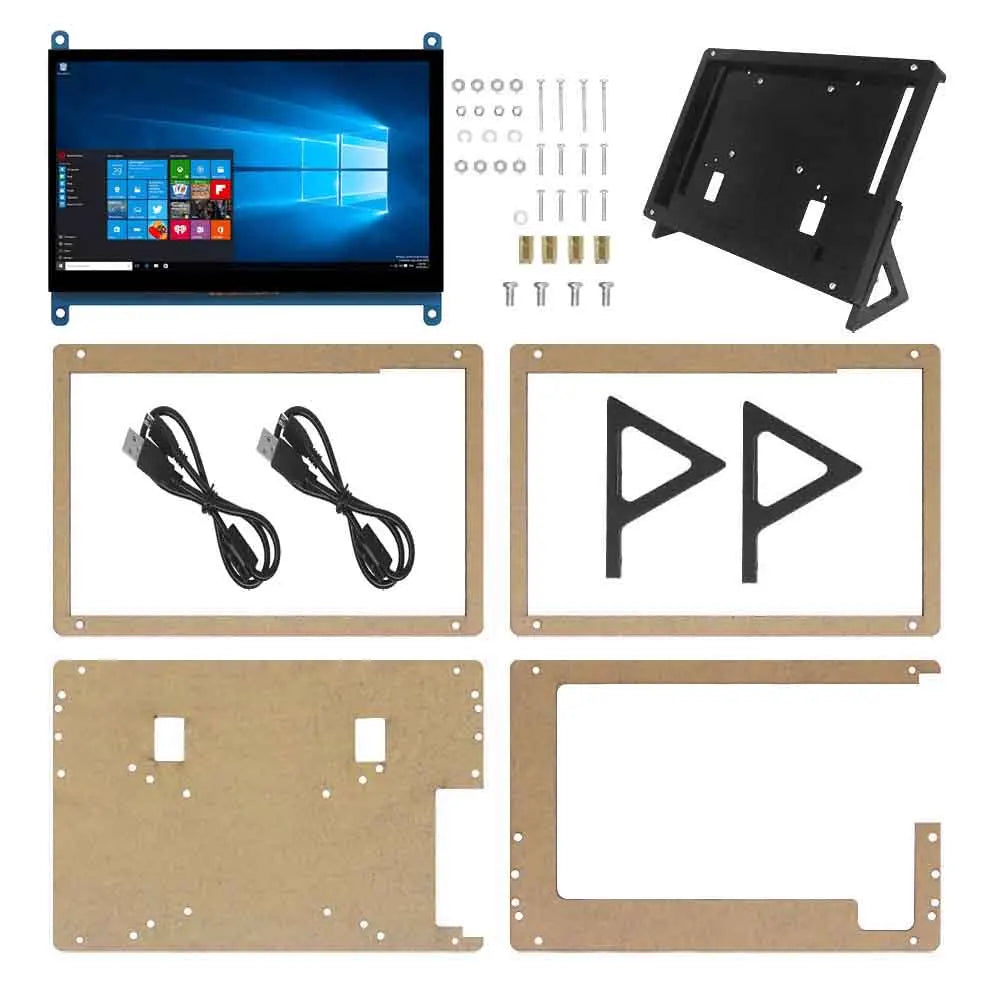

Product List:

1. Display screen

2. One power cable and one HDMI signal cable each

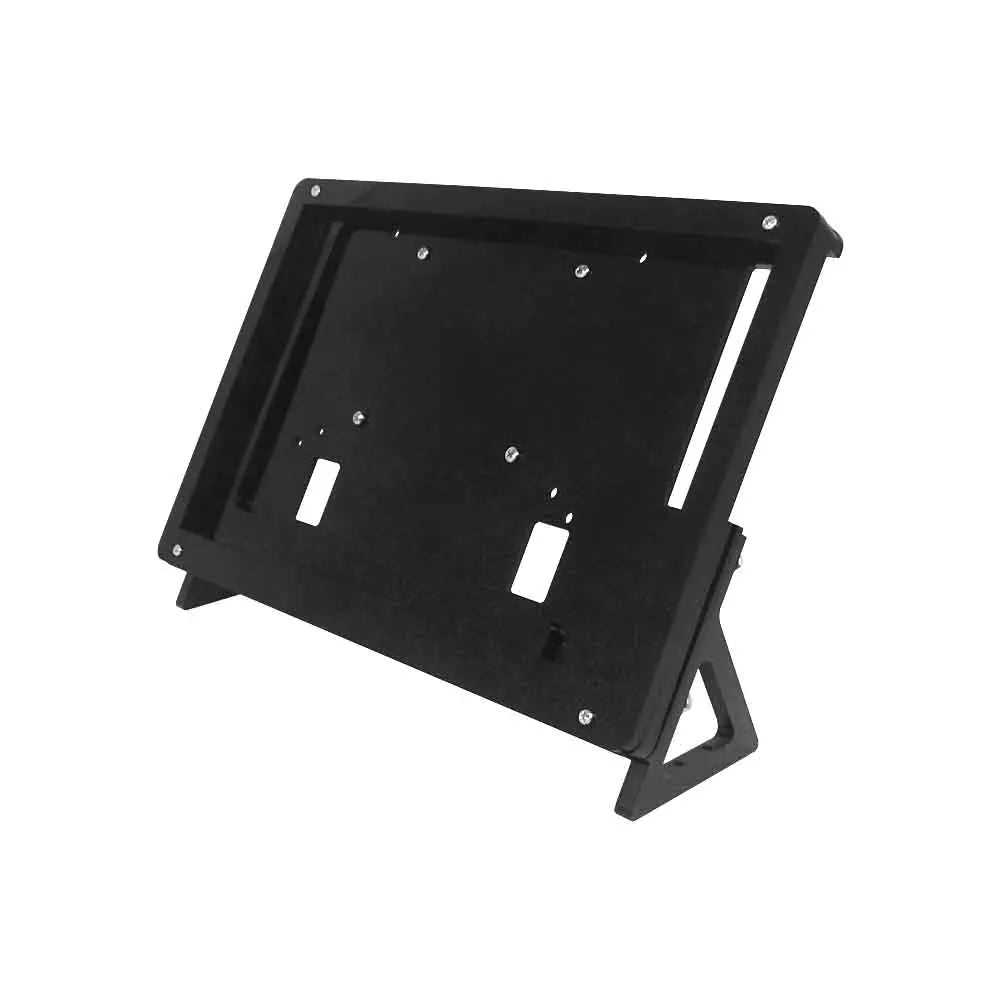

3. One set of display screen casing

4. Required number of fixing screws

The difference between tn screen and ips screen is as follows:

1. Different viewing angle restrictions

Due to the manufacturing principle, the TN screen cannot be rotated too much when viewed, otherwise the content on the screen will not be seen. The FILM compensation film technology can be used to increase the viewing angle to 170 °.

The IPS screen does not have these restrictions, and the content on the screen can be perfectly seen at an angle of 178 °

2. Different color gamut

The TN screen is a 6Bit native panel, which can only display 64 colors of red, green, and blue. The maximum actual color is only 262,144. It can be increased to more than 16 million known colors through the "jitter" technology, but the final color display The highest number is only 16.2 million colors.

IPS screen can display more colors, and its color accuracy is better than tn screen.
3. Different response speed

The gray scale response time of the TN screen is longer, which will cause the dynamic image displayed on the screen to leave a special afterimage, which will have a certain impact on the user.
IPS hard screen technology changes the arrangement of liquid crystal molecules, and uses horizontal conversion technology to make the LCD screen faster and more stable. It can express dynamic high-definition pictures with excellent performance. Compared with tn screens, it is more suitable for moving image reproduction. There are no afterimages and trailing genus.

Product Features:

⭐ 7-inch standard display, 1024 × 600 ultra clear resolution

⭐ Capacitive touch screen, single point or 5-point touch

⭐ Support separate control of backlight, can turn off backlight to save power consumption

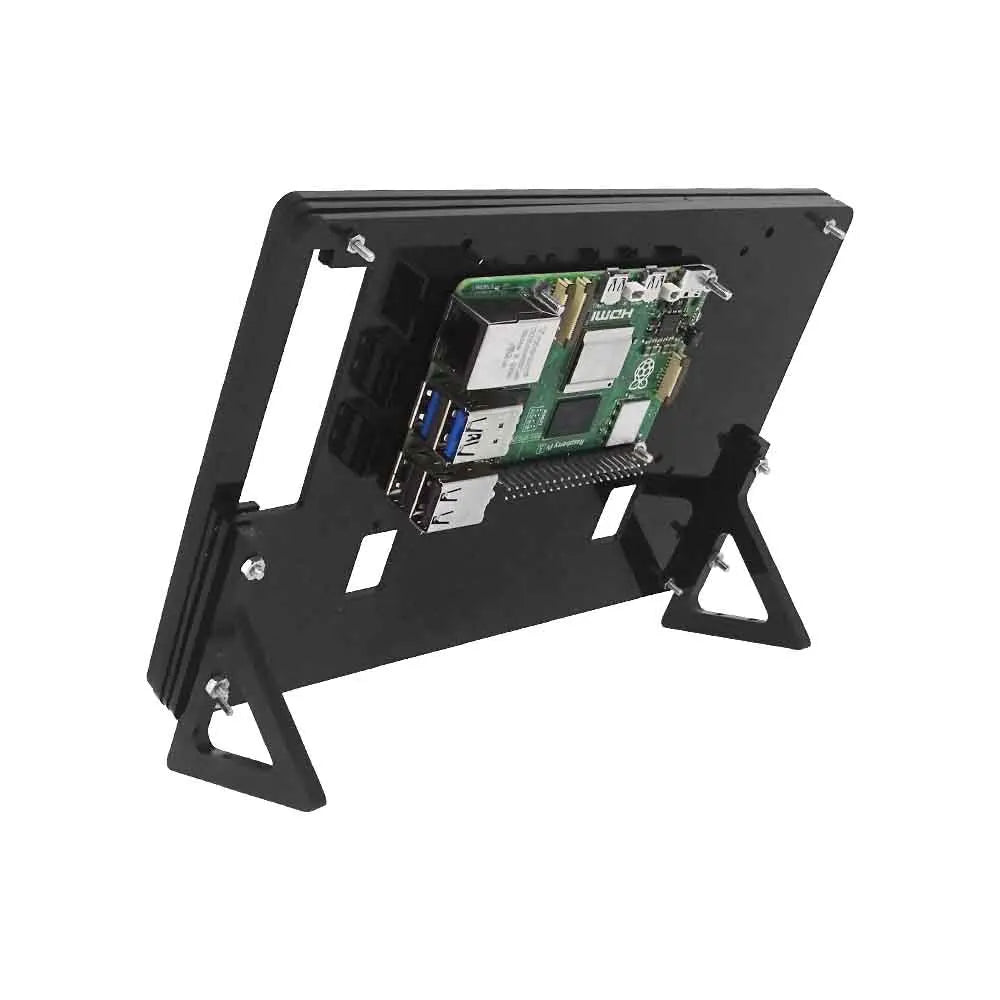

⭐ Supports standard HDMI interface input, compatible and can be directly plugged into Raspberry Pi (3rd generation, 2nd generation, 1st generation)

⭐ Can be used as a universal HDMI monitor, such as connecting a computer HDMI as a secondary monitor (the resolution output should be adjustable to 1024X600)

⭐ Used as a Raspberry Pi monitor, supporting Raspbian, Ubuntu,Kodi,win10 IOT, Single touch, no drive required
