SPECIFICATIONS

Brand Name: NONE

Certification: NONE

Color: Silver

Commutation: Brush

Construction: Permanent Magnet

Continuous Current(A): n/a

Does it include a Battery?: No

Does it include wireless functionality?: No

Efficiency: IE 1

High-concerned chemical: none

Model Number: rs775

Origin: Mainland China

Output Power: 37.5-74.6（include74.6）,n.a

Output Voltage: 12V/24V

Protect Feature: Totally Enclosed

Torque: 20KGF.CM--100kgf.cm

Type: Micro Motor

Usage: Home Appliance

Use: Home Appliance

RS775 DC gear Motor Parameters:

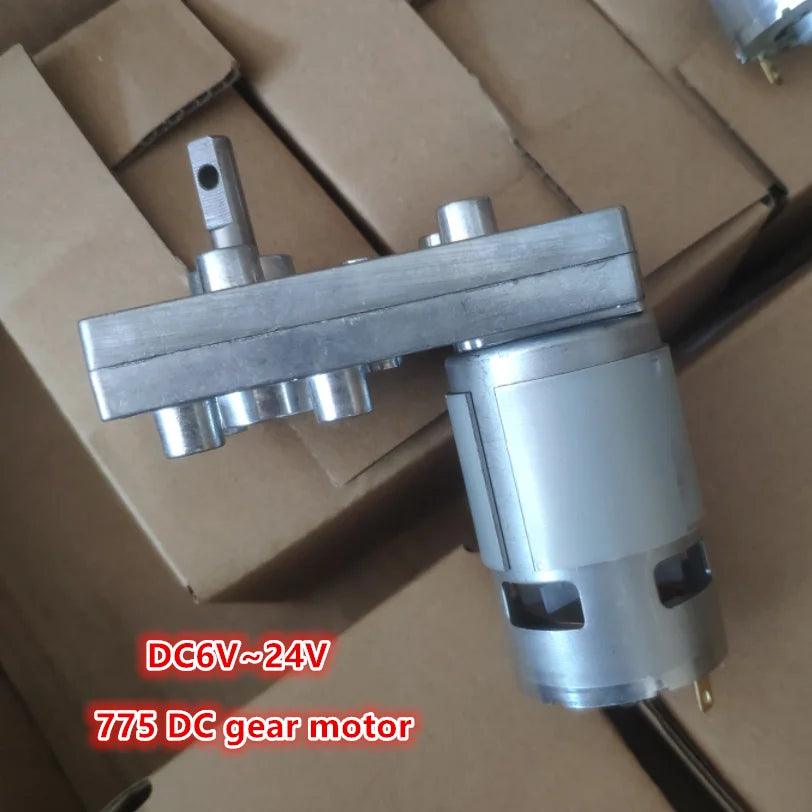

Voltage range : DC6V~24V

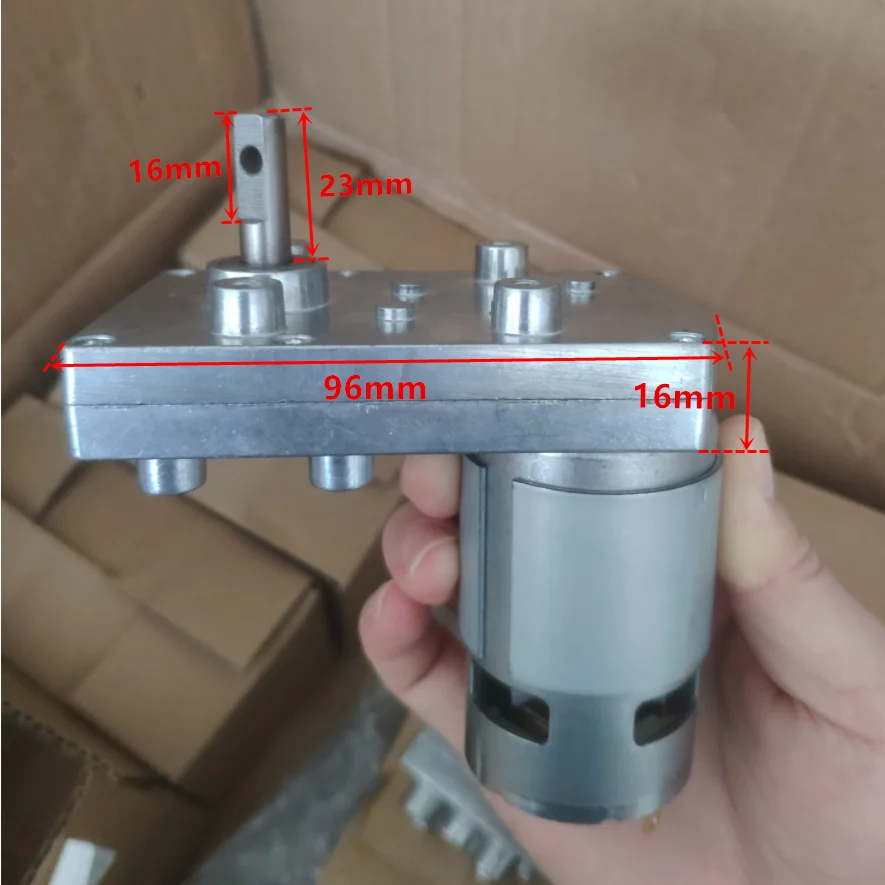

Shaft diamter : 8mm; D shaft :7mm

Shaft length: 23.5m, D shaft length : 16mm

Weight : 750g

PS : If you need other speed, pls contact us before placing an order, thanks!

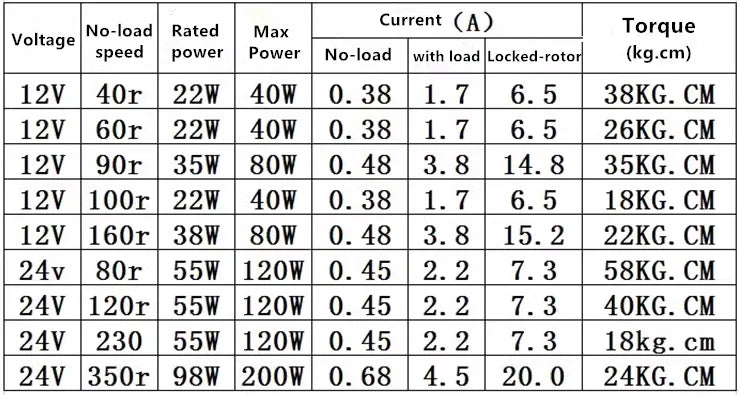

12V ,No-load speed : 2.5rpm  5rpm  10rpm  15rpm 20rpm  30rpm 40rpm  45rpm 60rpm  80rpm   90rpm  110rpm 160rpm

24V , No-load speed : 5rpm 10rpm 15rpm 20rpm 30rpm 60rpm 80rpm 90rpm 120rpm 160rom 180rpm 220rpm 300rpm
