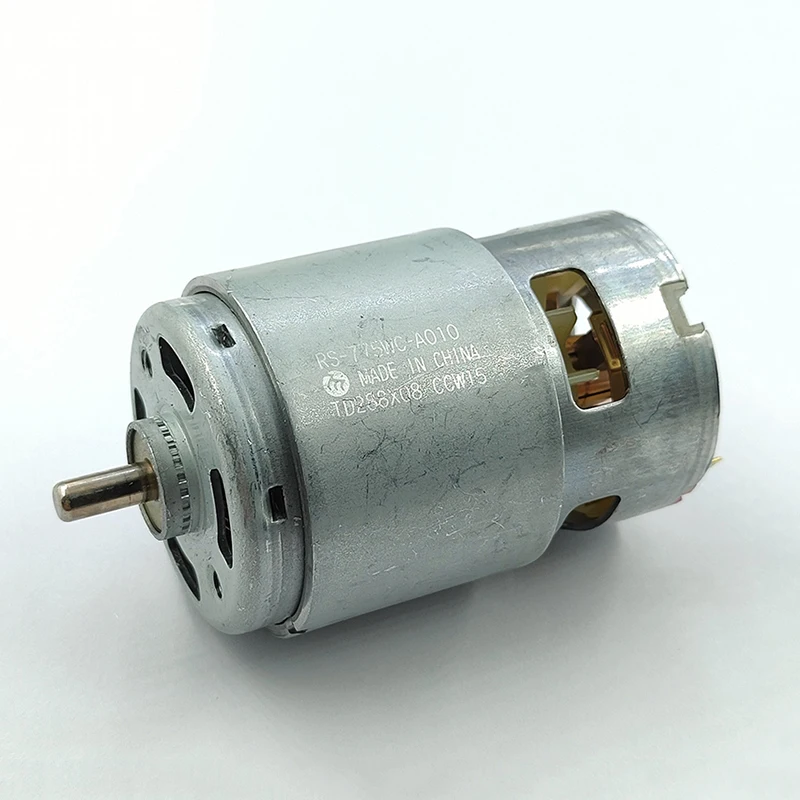

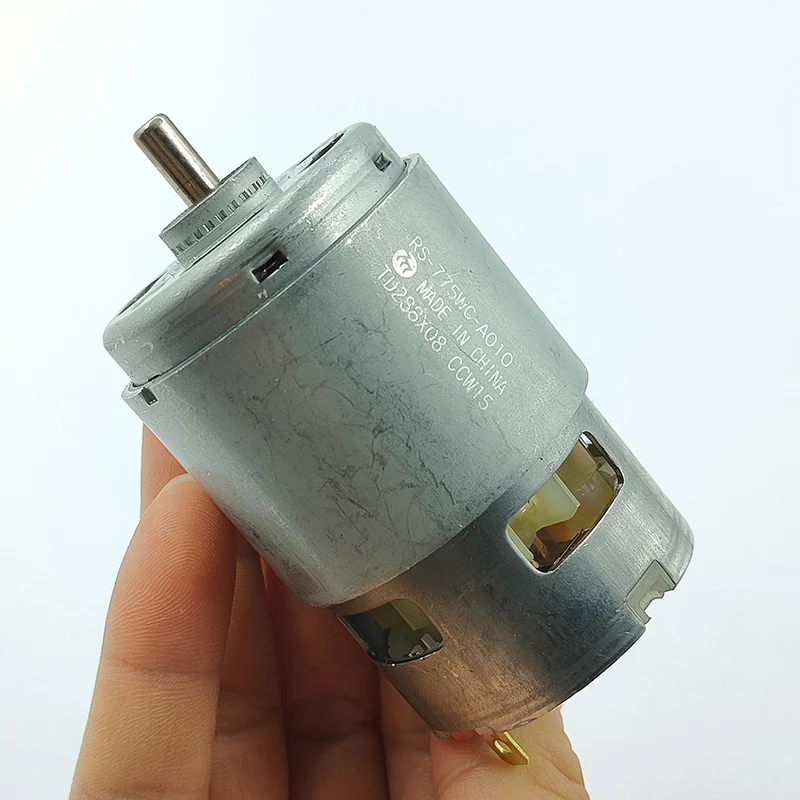

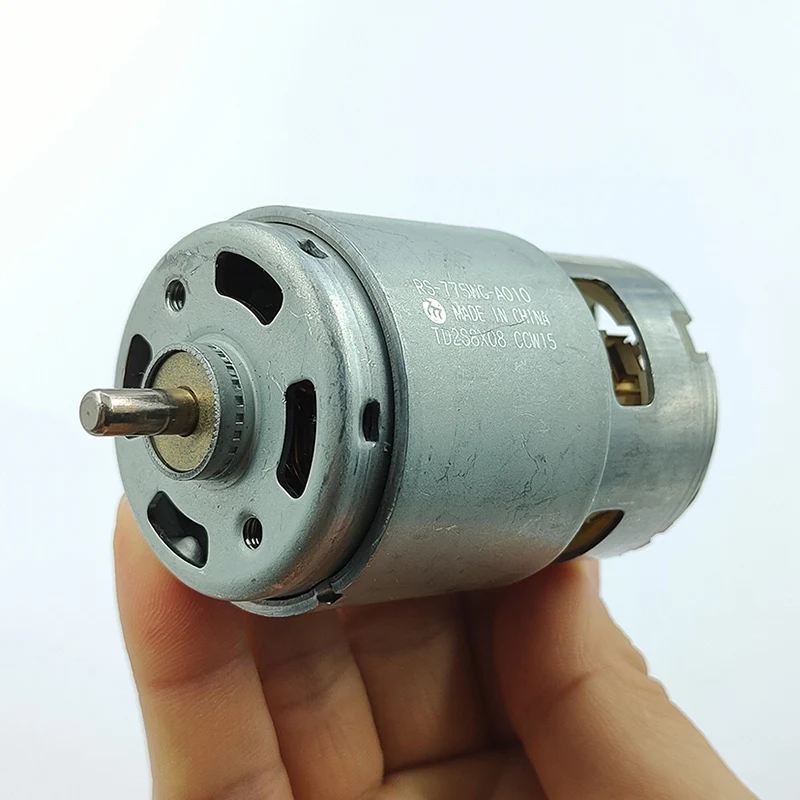

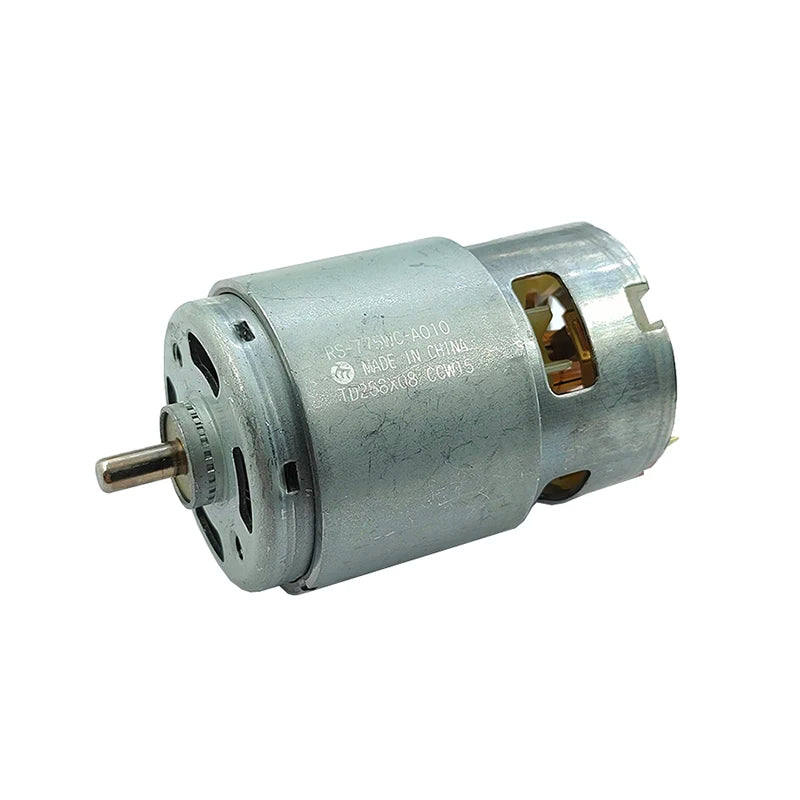

775 Motor DC 12V-18V 14V 20000RPM MABUCHI RS-775WC-A010 CCW15 42MM High Speed Power Electric Motor 5mm Shaft Drill Tools Engine
17000 / 12V / 0
$123.92
Sale price
$123.92
Regular price
$0.00
Skip to product information

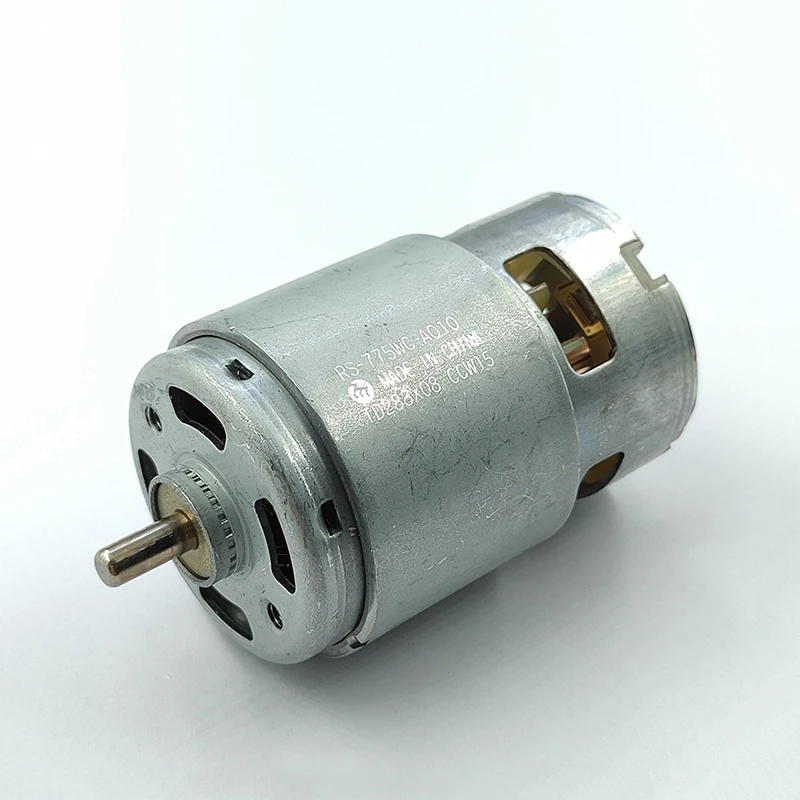

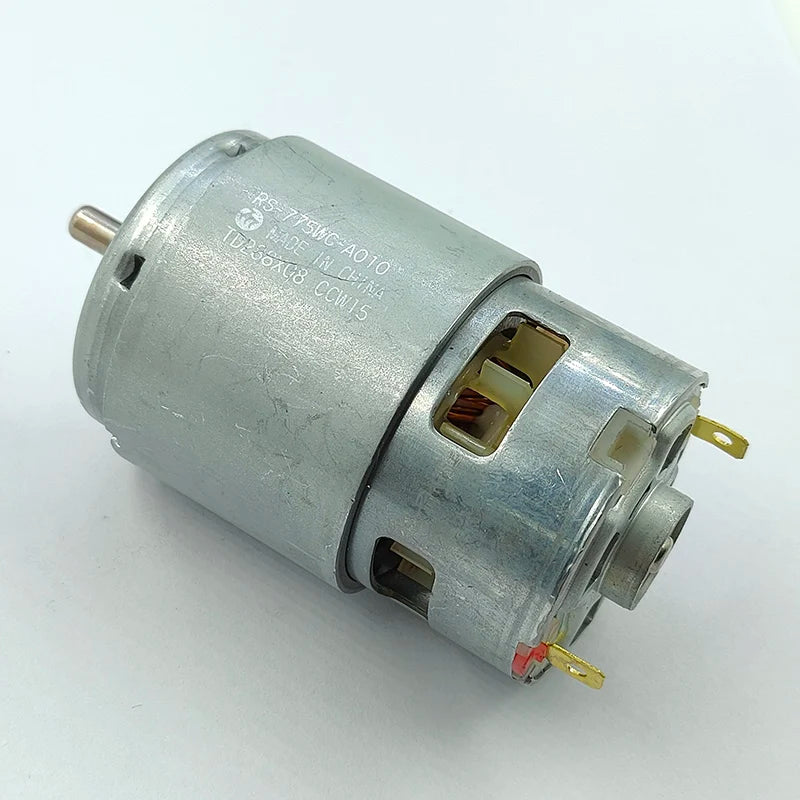

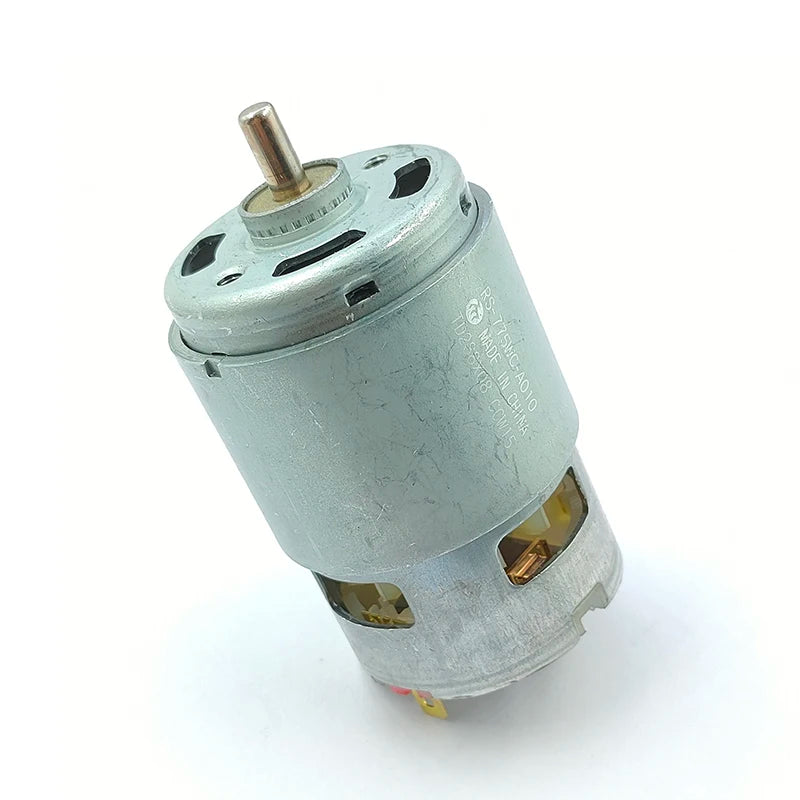

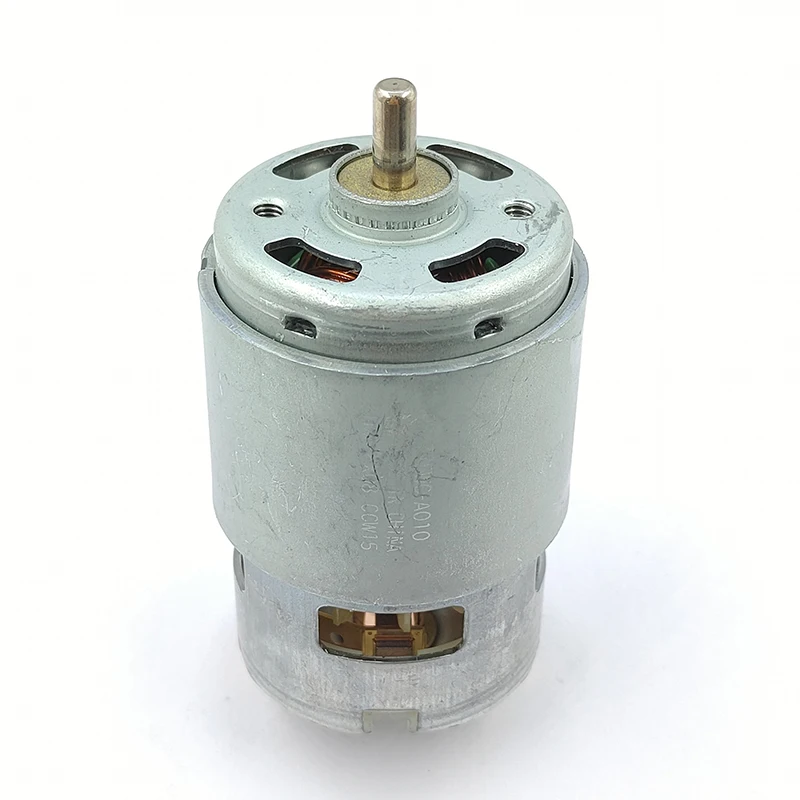

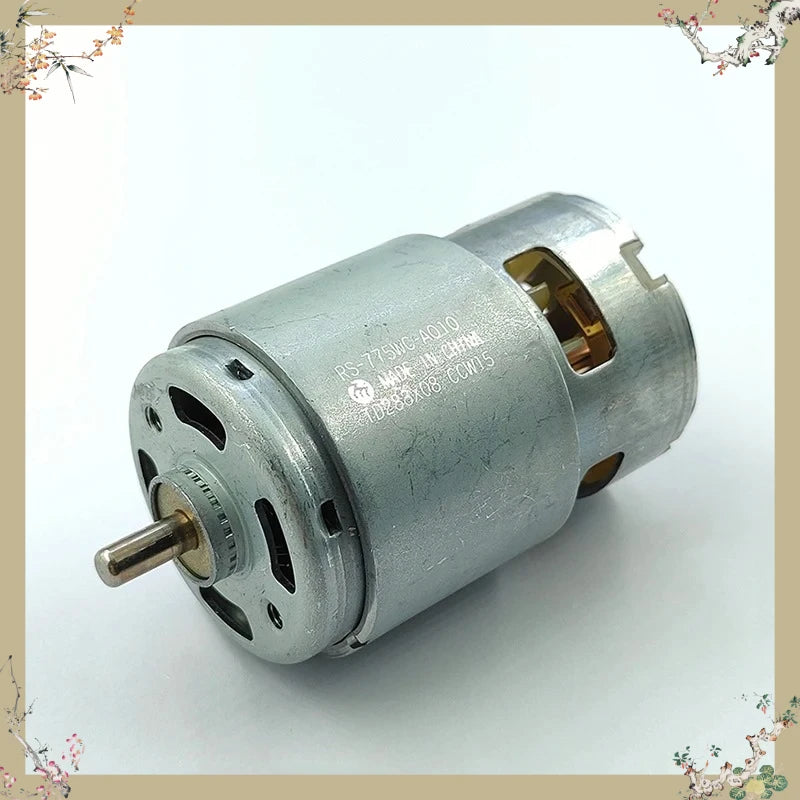

775 Motor DC 12V-18V 14V 20000RPM MABUCHI RS-775WC-A010 CCW15 42MM High Speed Power Electric Motor 5mm Shaft Drill Tools Engine
$123.92
Sale price
$123.92
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Certification: NONE,CE
Choice: yes
Commutation: Brush
Construction: Permanent Magnet
Does it include a Battery?: No
Does it include wireless functionality?: No
High-concerned chemical: none
Model Number: RS-775WC-A010
Model number: RS-775WC-A010 / CCW15
Motor diameter: 42mm (with cover 46mm)
Origin: Mainland China
Output Power: ＜18.65
Output Voltage: 12V-18V
Output shaft diameter: 5mm
Protect Feature: Explosion-proof
Type: Micro Motor
Use: Home Appliance
semi_Choice: yes

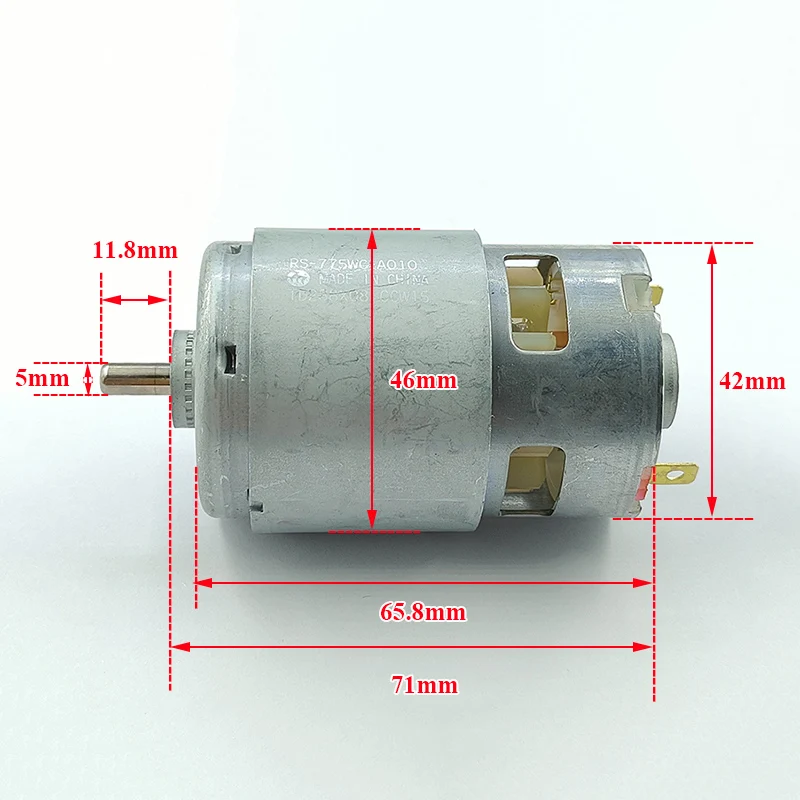

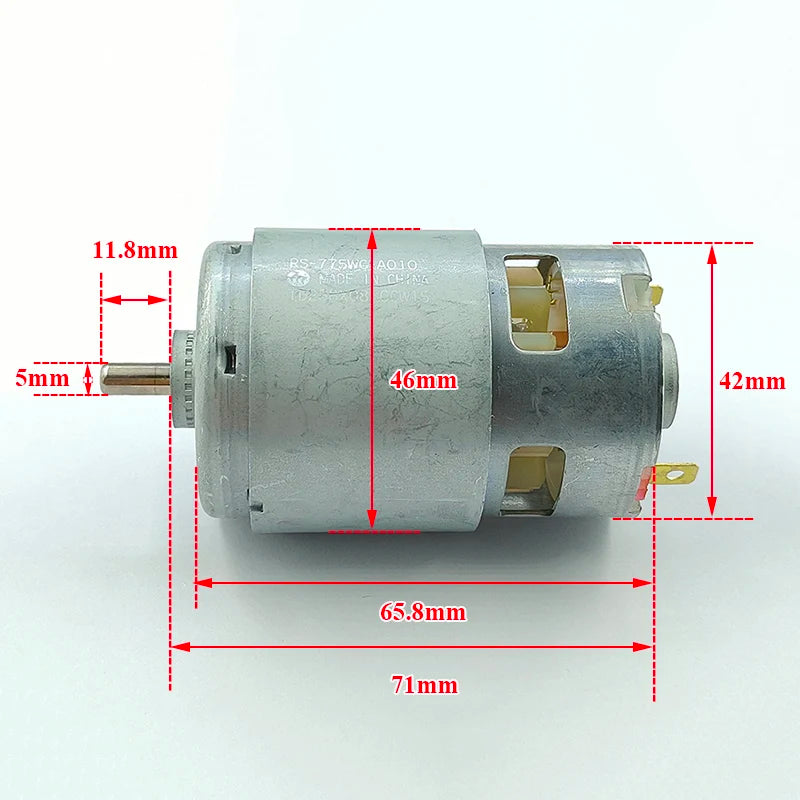

Specification:
Model number: RS-775WC-A010 / CCW15
Motor diameter: 42mm (with cover 46mm)
Motor height: 65.8mm
Output shaft diameter: 5mm
Output shaft length: 11.8mm
Weight: 380g
Suitable voltage: DC 8V-18V
Test data:
Voltage:8V No-load current:2.3A No-load speed:11000RPM
Voltage:12V No-load current:2.9A No-load speed:17000RPM
Voltage:14V No-load current:3.2A No-load speed:20000RPM
Voltage:18V No-load current:4.2A No-load speed:26000RPM
9.Note: The motor is never used before, motor body has some scratches, but it works well.
=========================
Package List:
Motor x 1PCS
