Product details:

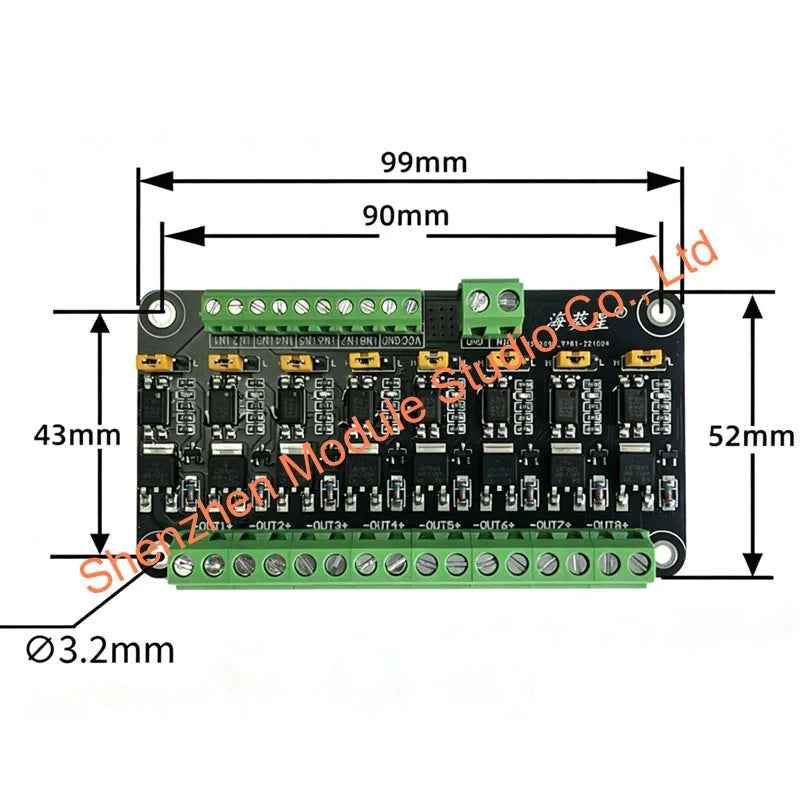

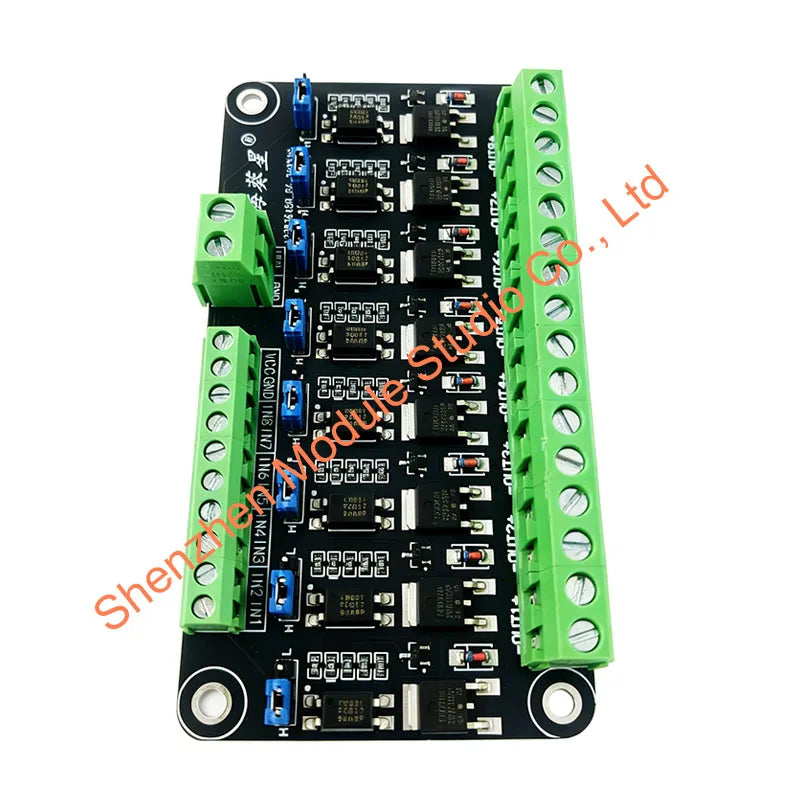

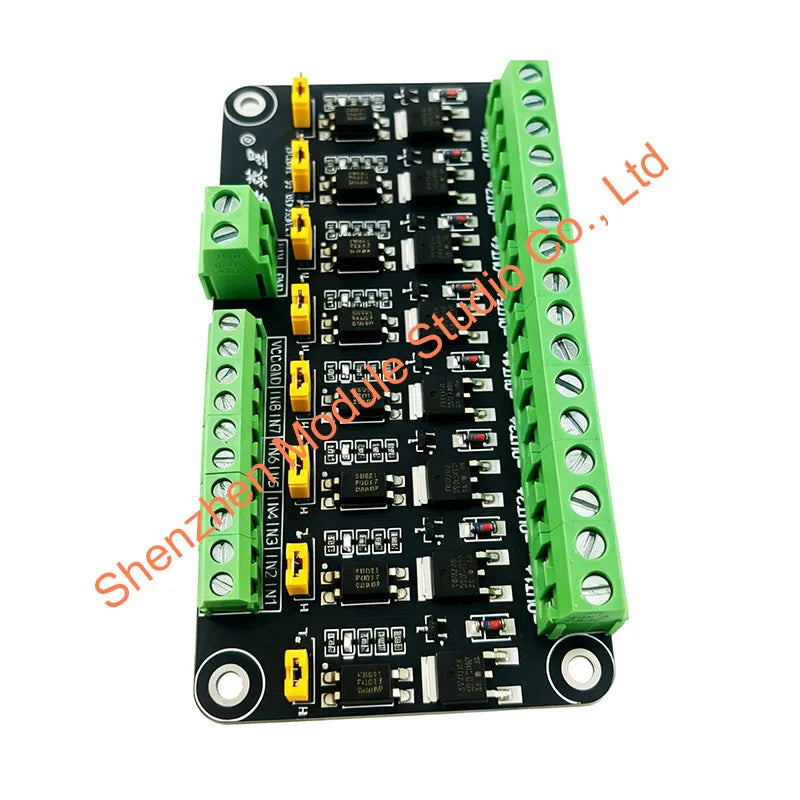

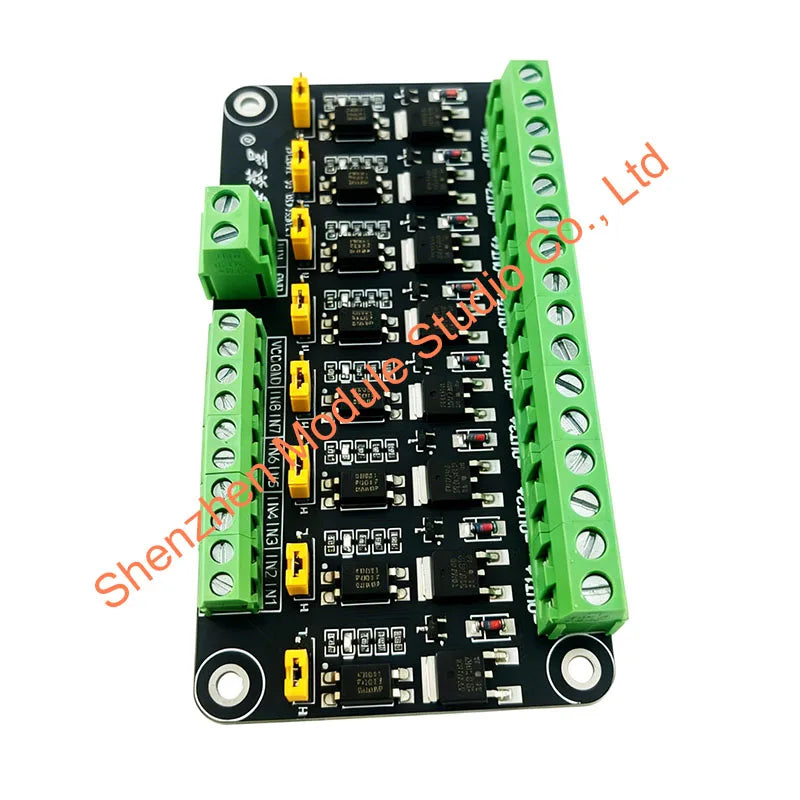

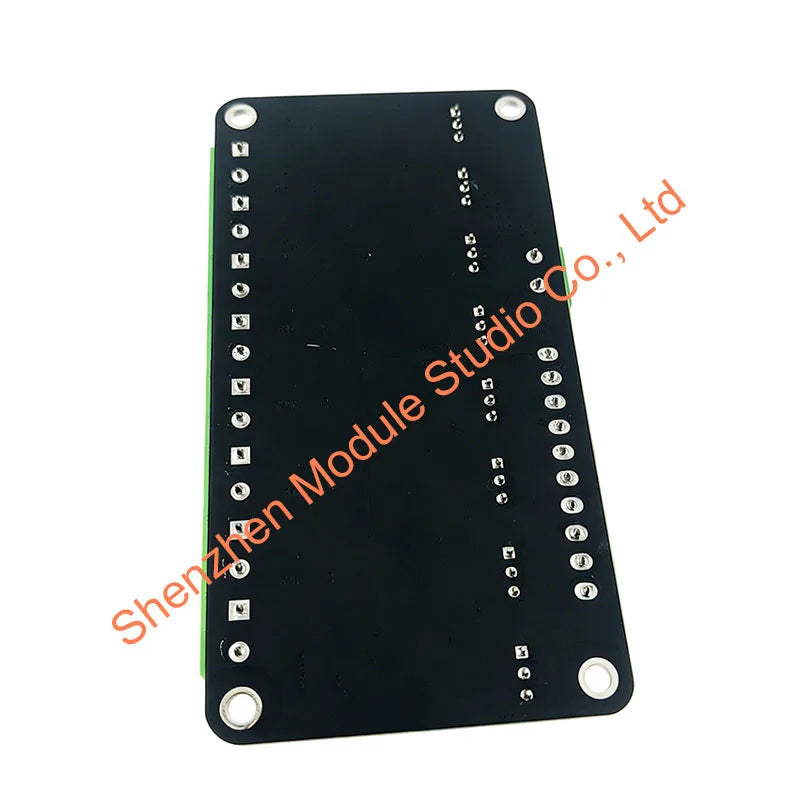

8 Channel MOSFET Module Microcontroller PLC Amplification Field-effect Drive Tube Optocoupler Isolation PWM Control Light Switch

Product parameters

• Power supply mode: DC

• Continuous output current: 2A

• Input voltage: 48V

• Suitable motor: DC

• Maximum applicable motor capacity: 60W

• Maximum output current: 3A

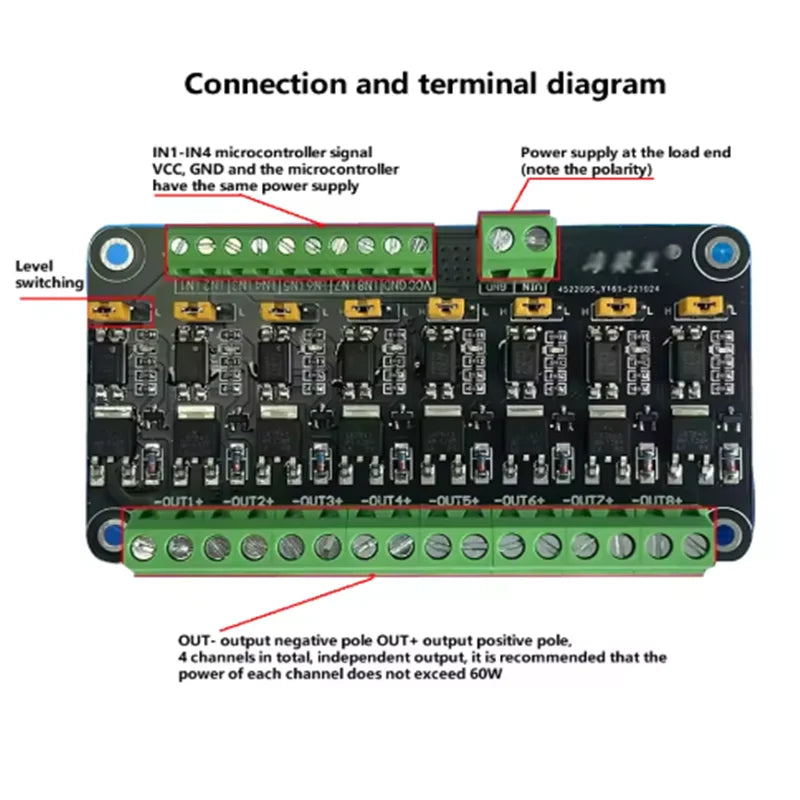

Interface Description

• 1. VCC: Connect to the positive pole of DC5v (3.3v) power supply

• 2. GND: Connect the negative terminal of the DC5v (3.3v) power supply, which needs to be grounded together with the signal terminal

• 3. IN1-IN8: Connect to the IO port of a microcontroller or PLC

• 4. H/L jumper: H is high level, L is low level, and the middle is the common terminal

• 5. VIN: Load side power supply DC positive level

• GND: Load side power supply DC negative pole

• 6. Connect the load terminals OUT1-OUT8 to the positive pole of the load device

• Connect the load terminal GND to the negative terminal of the load device

Parameter Description

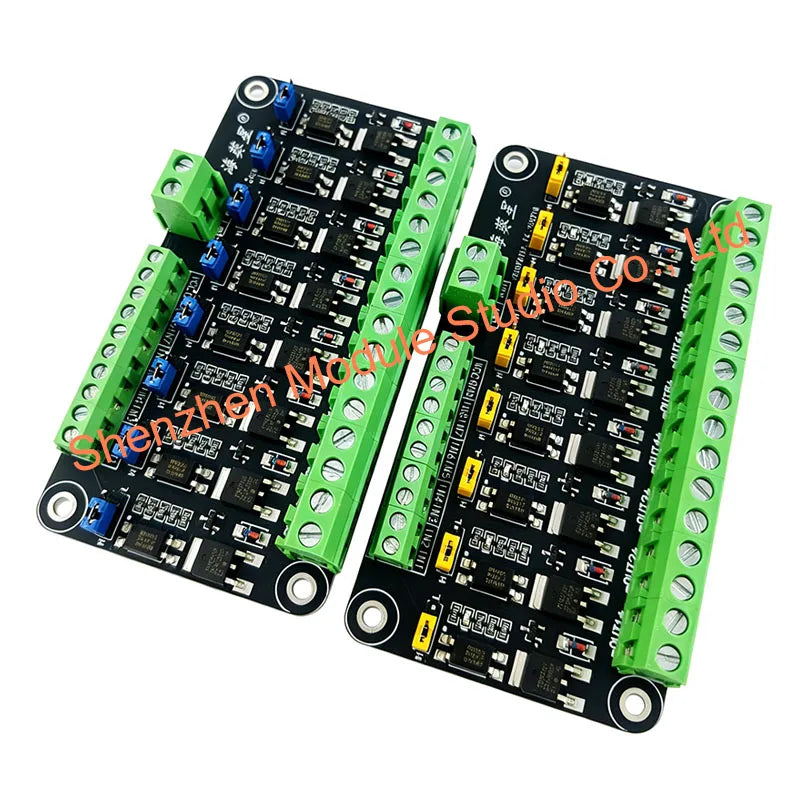

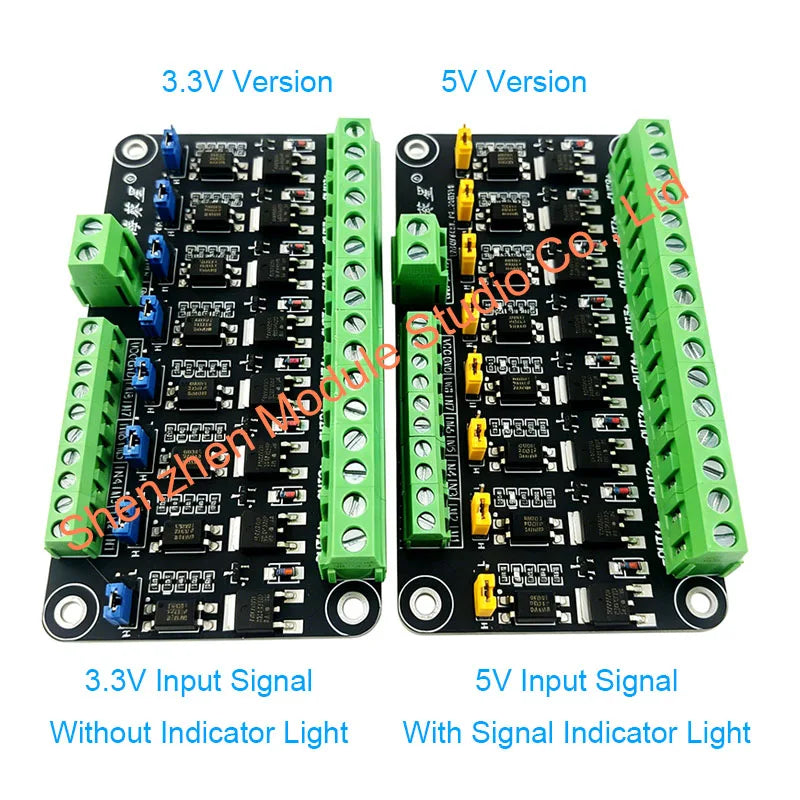

• 1. Indicator light: The 5V version comes with an indicator light, which lights up when there is a signal; 3.3V version without indicator light;

• 2. Application scenario: The output end can control high-power DC devices such as motors, light bulbs, LED light strips, DC motors, micro water pump solenoid valves, etc; PWM can be input to control motor speed, light brightness, etc;

• 3. The voltage range of the control terminal is DC5V-DC48V. As the control board has not undergone high-power heat dissipation treatment, it is recommended that the single power should not exceed 60W;

• 4. The control end and signal end are isolated by optocouplers, please feel free to use:
