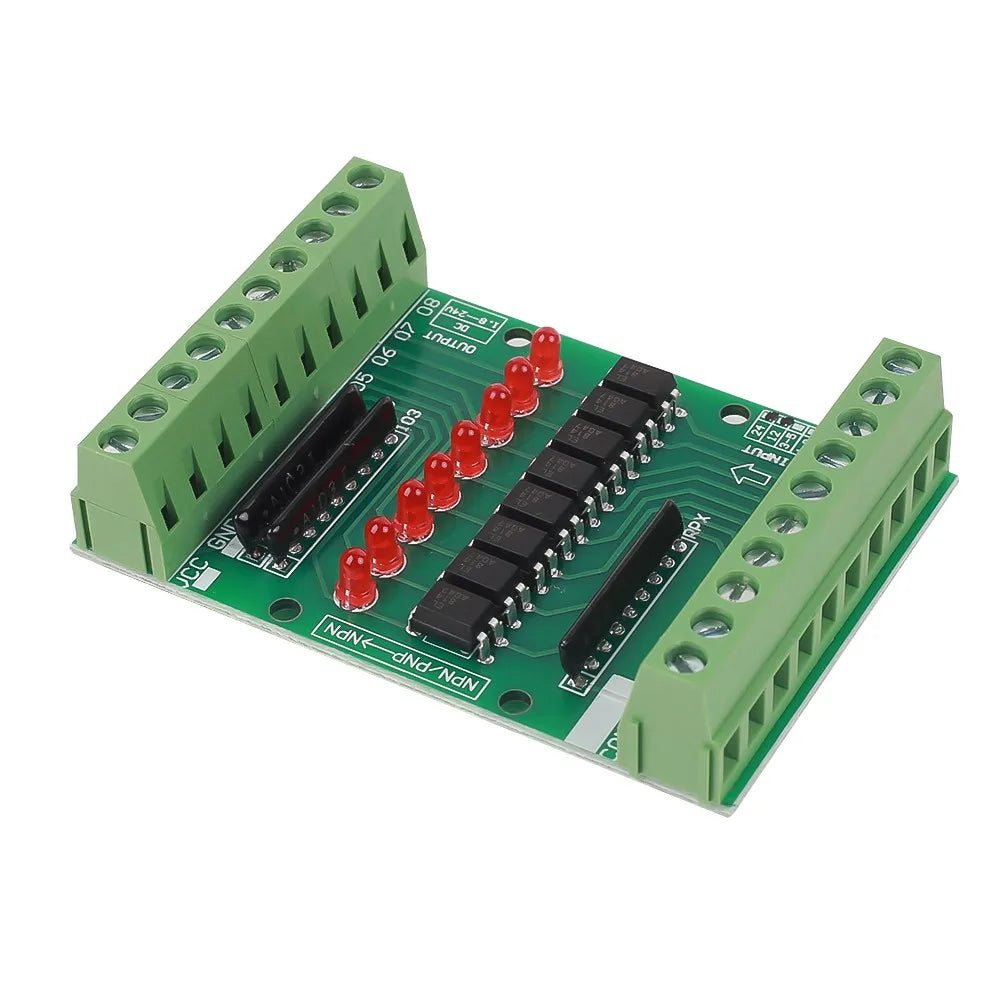

8 Channel Optocoupler Isolation Module Signal Voltage Converter Adapter PNP NPN Low High Level Output AC 110V 220V DC 3.3V 5V 12V 24V

AC 220V 8-CH NPN

1.Description:
It is a AC 110V 220V 8-Channel Optocoupler Isolation Module.It can detect 8-Channel AC input power sources and output DC voltage according to the detection results. The output results can be applied to PLC system and other control equipment.
It can detect whether there is input power. The output status will change when the input power is detected.

2.Features:
1>.Optocoupler isolation control
2>.8-Channel input and output
3>.NPN(Low level) signal output
4>.Support AC 110V and 220V input
5>.DC 3V-24V load voltage

3.Parameters:
1>.Product name: AC 110V 220V 8-Channel Optocoupler Isolation Module
2>.Input Voltage:AC 110V~220V
3>.Load Input Voltage:DC 3V~24V
4>.Output type:NPN(Low level) signal output
5>.Output current:100mA~300mA
6>.Work Temperature:-20℃~85℃
7>.Work Humidity:10%~85%RH

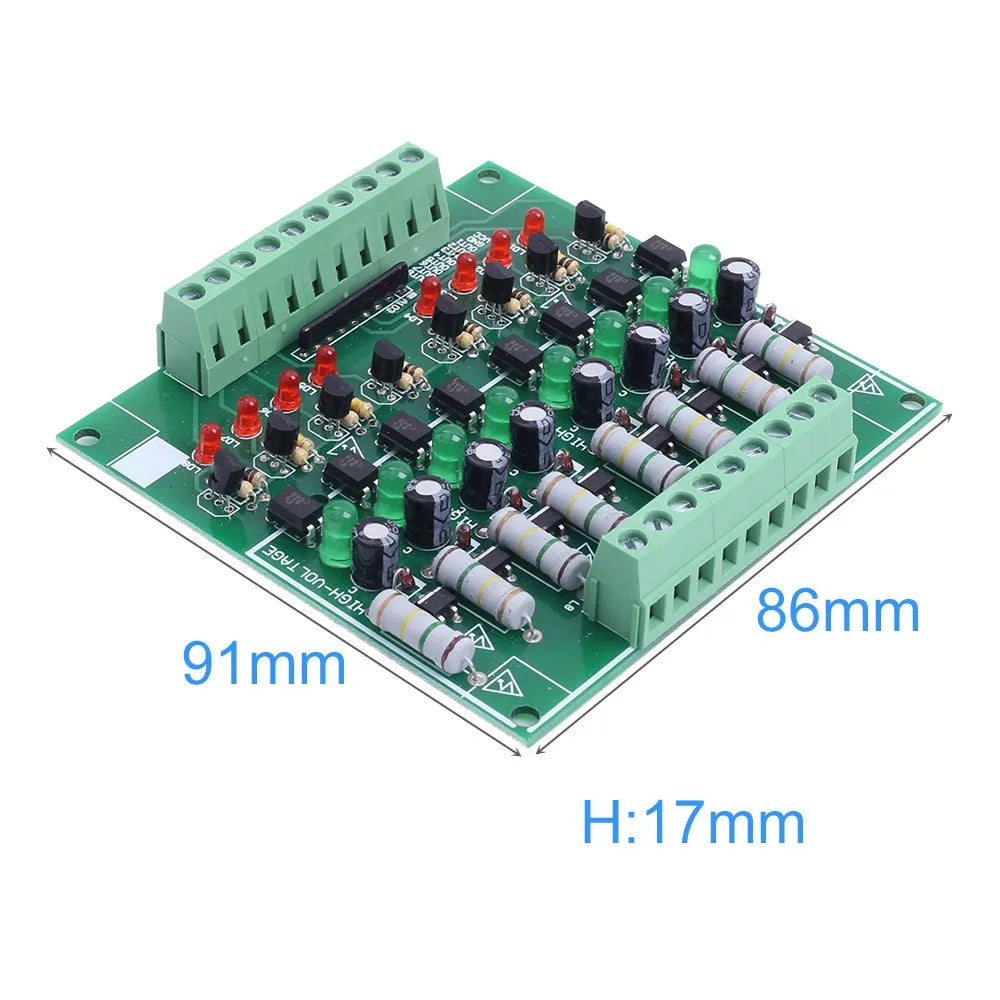

8>.Size:91*86*17mm

4.Application:
1>.AC power detection
2>.PLC control system
3>.Device alarm

AC 220V 8-CH PNP

1.Description:
It is a AC 110V 220V 8-Channel Optocoupler Isolation Module.It can detect 8-Channel AC input power sources and output DC voltage according to the detection results. The output results can be applied to PLC system and other control equipment.
It can detect whether there is input power. The output status will change when the input power is detected.

2.Features:
1>.Optocoupler isolation control
2>.8-Channel input and output
3>.PNP(High level) signal output
4>.Support AC 110V and 220V Input
5>.DC 3V-5V load voltage

3.Parameters:
1>.Product name: AC 110V 220V 8-Channel Optocoupler Isolation Module
2>.Input Voltage:AC 110V~220V
3>.Load Input Voltage:DC 3V~5V
4>.Output type:PNP(High level) signal output
5>.Output current:100mA~300mA
6>.Work Temperature:-20℃~85℃
7>.Work Humidity:10%~85%RH

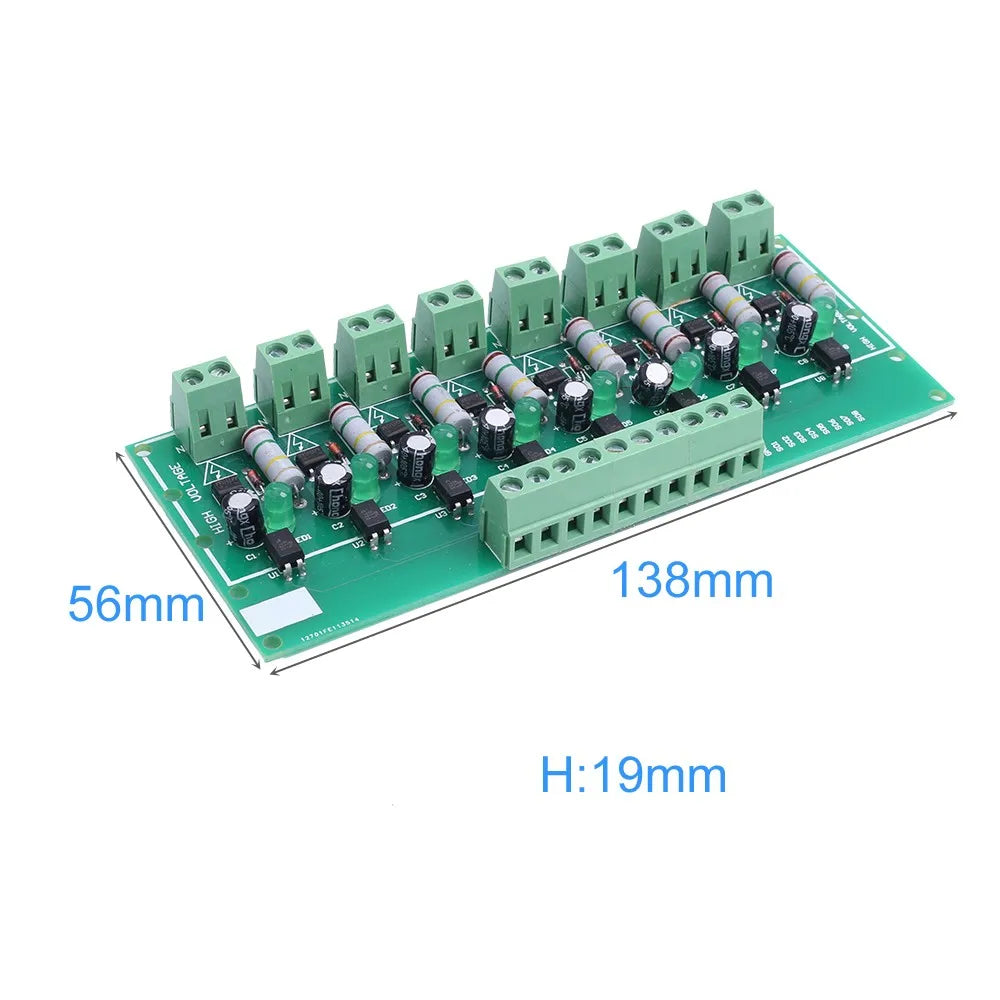

8>.Size:138*56*19mm

4.Application:
1>.AC power detection
2>.PLC control system
3>.Device alarm

3.3V 5V 8-CH NPN

1.Description:
It is a DC 3.3V 5V 8-Channel Optocoupler Isolation Module.It can detect 8-Channel DC input power sources and output DC voltage according to the detection results. The output results can be applied to PLC system and other control equipment.
It can detect whether there is input power. The output status will change when the input power is detected.

2.Features:
1>.Optocoupler isolation control
2>.8-Channel input and output
3>.NPN(Low/High level) signal output
4>.Support DC 3.3V~5V Input
5>.DC 1.8V-24V load voltage

3.Parameters:
1>.Product name: DC 3.3V 5V 8-Channel Optocoupler Isolation Module
2>.Input Voltage:DC 3.3V~5V
3>.Load Input Voltage:DC 1.8V~24V
4>.Output type:NPN(Low/High level) signal output
5>.Output current:50mA
6>.Work Temperature:-20℃~85℃
7>.Work Humidity:10%~85%RH
8>.Size:72*50*27mm

4.Application:
1>.DC power detection
2>.PLC control system
3>.Device alarm

12-24V 8-CH NPN

It is a DC 12V 24V 8-Channel Optocoupler Isolation Module.It can detect 8-Channel DC input power sources and output DC voltage according to the detection results. The output results can be applied to PLC system and other control equipment.

2.Parameters:
1>.Product name: DC 12V 24V 8-Channel Optocoupler Isolation Module
2>.Input Voltage:DC 12V~24V
3>.Load Input Voltage:DC 1.8V~24V
4>.Output type:NPN(Low/High level) signal output
5>.Output current:50mA
6>.Size:72*50*27mm

It can detect whether there is input power. The output status will change when the input power is detected.

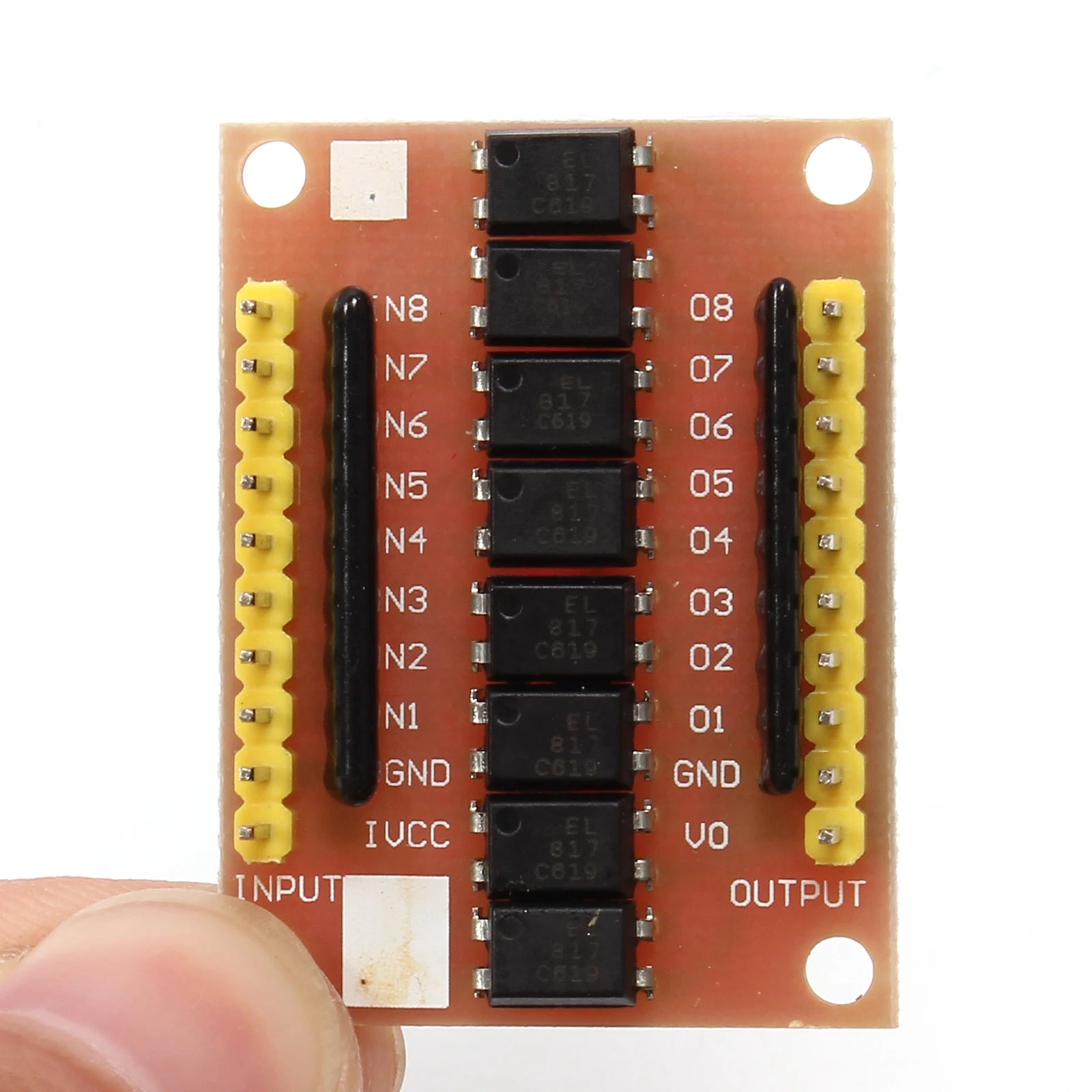

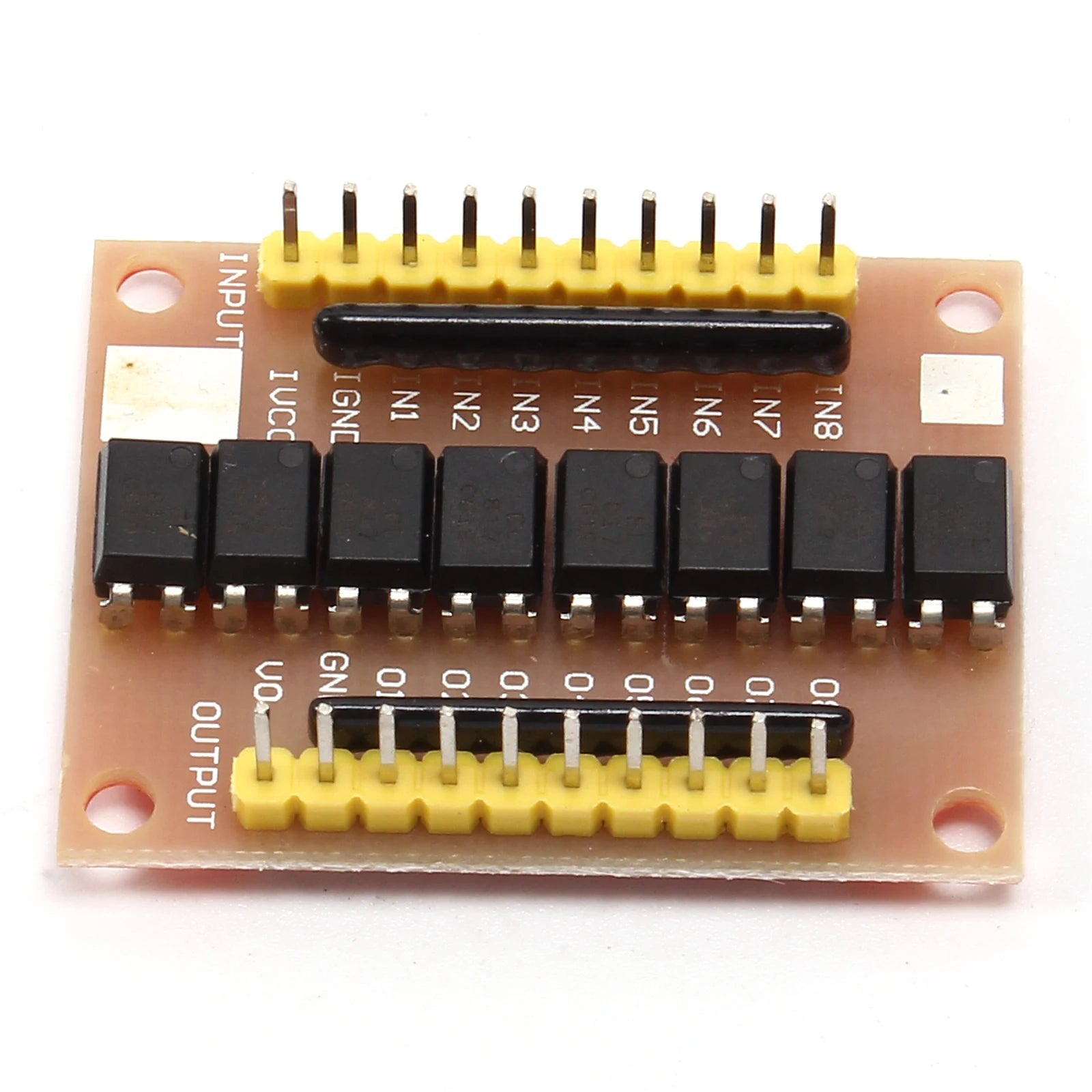

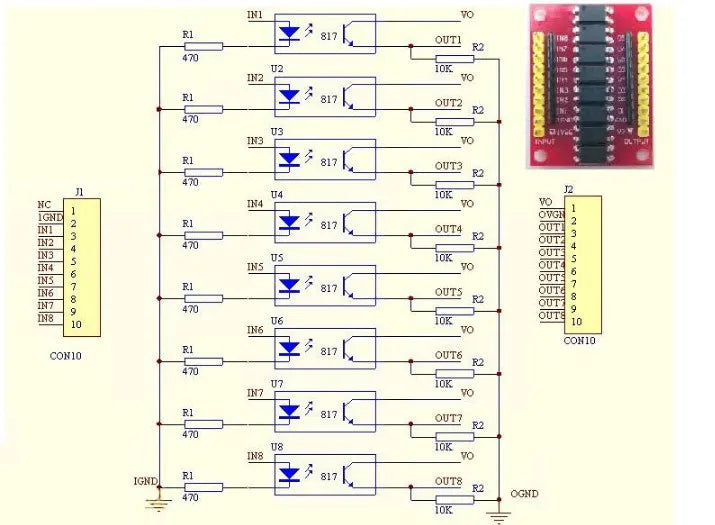

12V 8-CH High Level

Introduction:
1.Isolation Voltage:more than 3000V
2.Input Current:50MA(MAX)
3.Operating Current:more than 1MA
4.Output Maximum Current:50MA (when input voltage is within the range of 15-20MA)
5.Operating Temperature:-55 Celsius-110 Celsius
6.Maximum Signal Frequency:80KHz

Functions:
1.SCM output level can be used to isolating,anti-interference and protect SCM some circuit when driving motor
2.SCM outpput level is low,and driven module voltage is high
3.High voltagr testing
4.Amplifying Current

If it is high level trigger please make sure your high level has a certain driving ability, because the light inside the LED is 5-10 to MA.

Ordinary 51 microcontroller IO driver to use low-level trigger on it.The output of the high level with your output at the output of the VO, can be 3V-24V.
