SPECIFICATIONS

Assembly Required: no

Brand Name: PremierCable

Certification: CE,RoHS,UL

Choice: yes

High-concerned chemical: none

Model Number: PCM-HD-0216

Origin: Mainland China

Package: Yes

Type: Extension Cable

semi_Choice: yes

The prices on the retail platform are all small batch retail prices. If you need more quantity or different specifications, please contact our online customer service or email us. The bulk quantity will have a very preferential unit price! Email: sales06@premier-cable.net

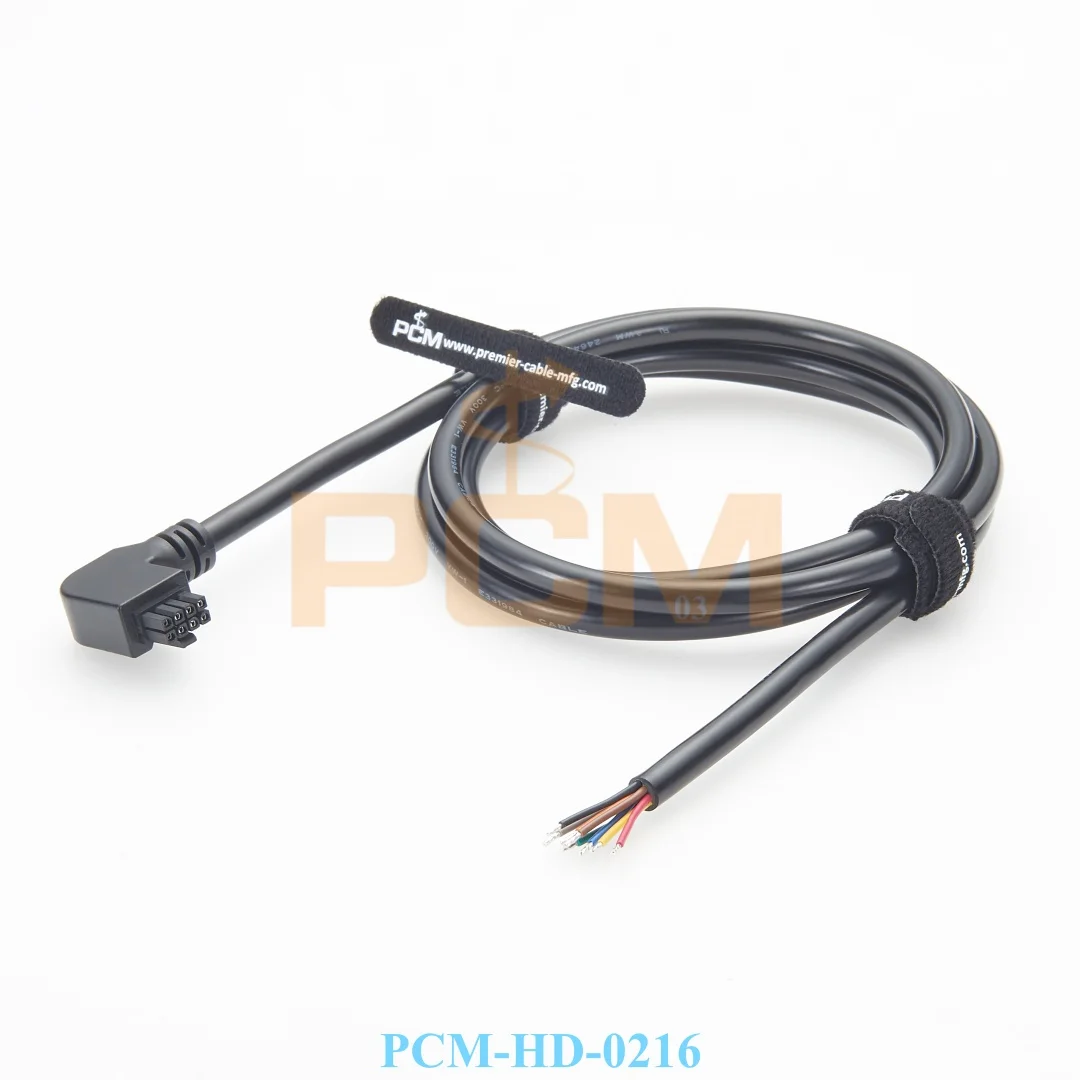

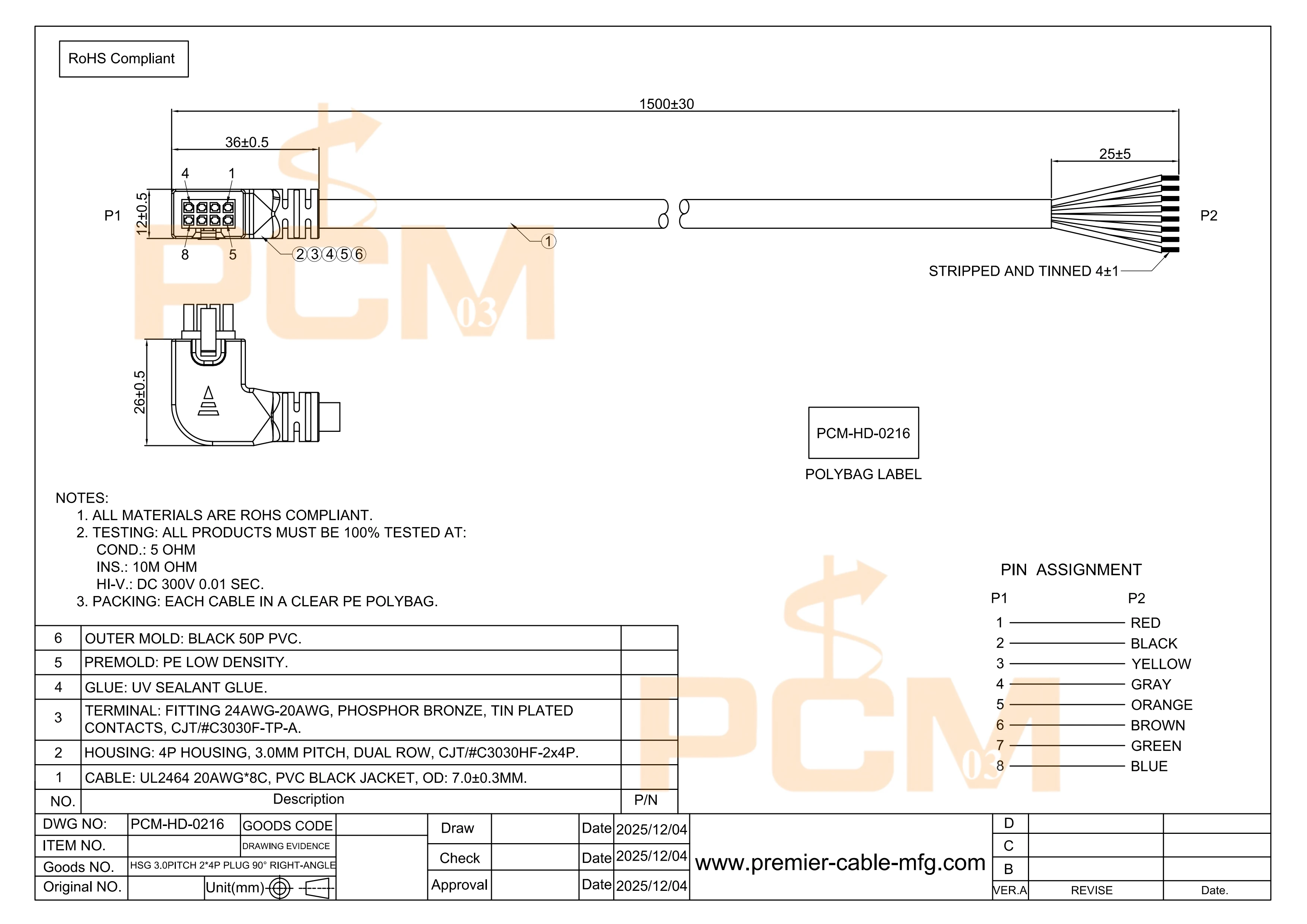

PCM-HD-0216 is a Right Angle Micro-Fit 3.0 8-Pin Cable Assembly, designed in accordance with Molex Micro-Fit 3.0 interconnect system standards for compact, high-reliability power and signal transmission.

The 90° right-angled connector orientation enables controlled cable exit in space-constrained enclosures, improving wire routing efficiency, reducing mechanical stress and enhancing long-term durability in vibration-prone environments.

Based on the Molex Micro-Fit 3.0 specification, this 8-pin cable assembly features a 3.00 mm pitch, supports up to 5.0 A per circuit and operates within a –40°C to +105°C temperature range.

The assembly is built using 20 AWG stranded copper wire, precision-molded housings and high-retention Micro-Fit terminals to ensure secure mating, stable contact resistance and excellent electrical performance.

This right-angle Micro-Fit 8-pin harness is ideal for embedded electronics, industrial control systems, compact power distribution, IoT gateways, sensor interfaces, GPIO connections and networking equipment.

It is fully compatible with devices from Microhard, Cradlepoint, Teltonika, Peplink, Sierra Wireless and other industrial communication and embedded platforms.

Custom options including wire length, pinout configuration, overmolding, labeling and shielding are available to support OEM, ODM and industrial applications.
