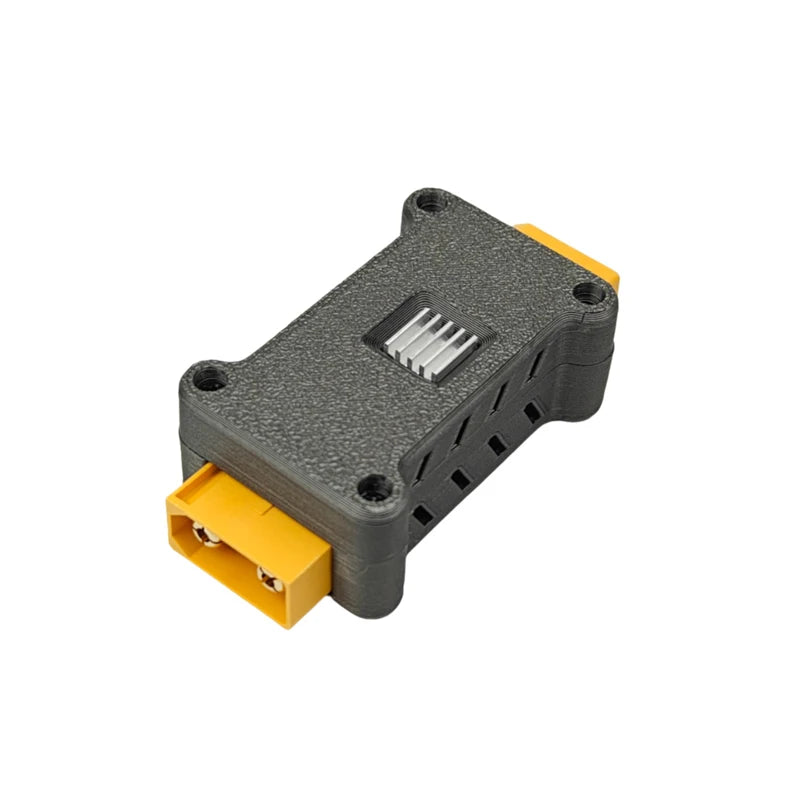

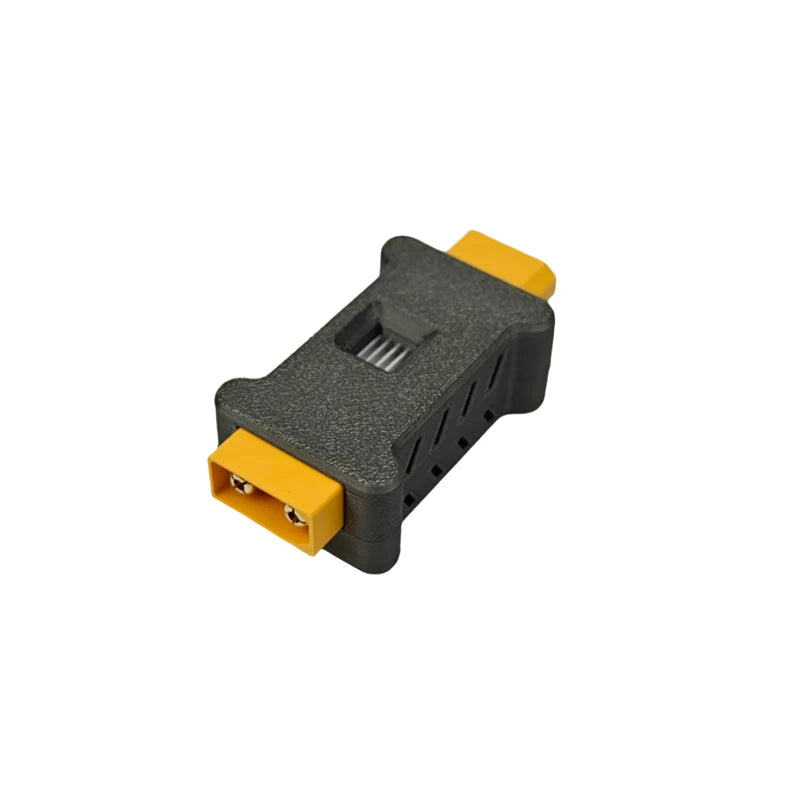

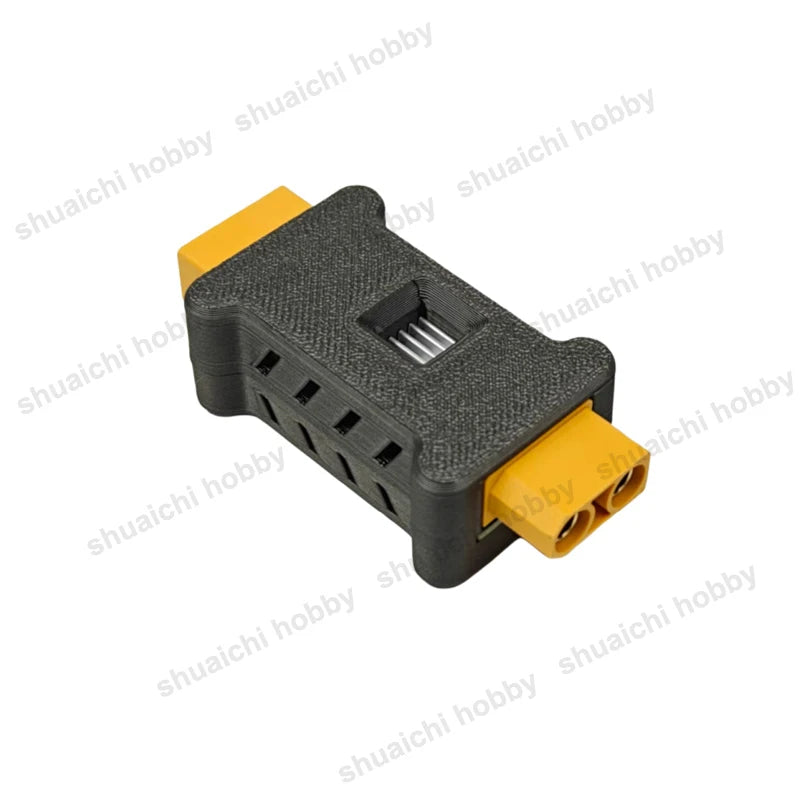

80A 100V Ideal Diode Module High Power Anti-Reflux 5-90V Charging Adapter AWG10 Silicone Connecting Wire XT90 Plug for RC Model

Description:

- Adopts a 100V 300A 1.5 mR large MOS ideal diode module for anti-backflow protection, and it is a solar anti-backflow charging module without voltage limitation.

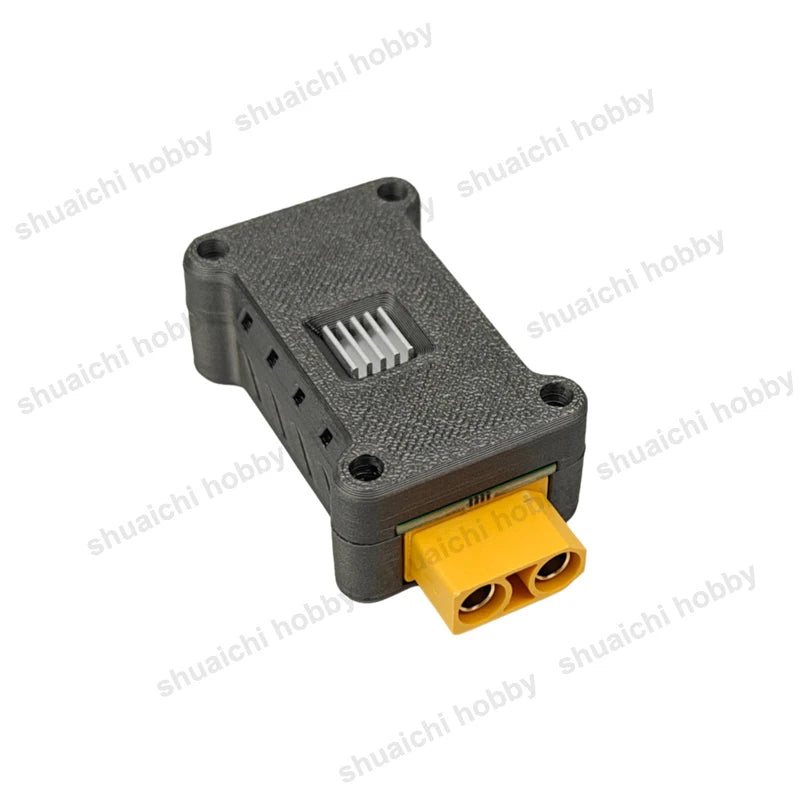

- It is recommended to install a heat sink for long-term high-current operation!

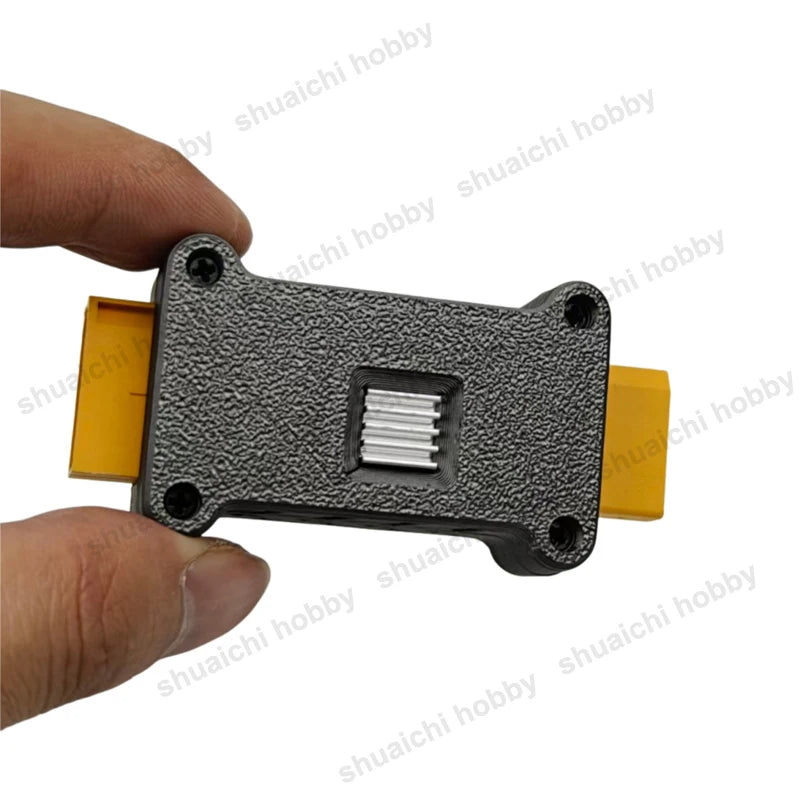

- The main board adopts a 4-layer thickened copper foil design, with pad windows that allow tin stacking. The 1.5 mΩ 100V 300A MOS tube supports high current!

Specifications:

- Item name: diode module

- Voltage range: 5-90V

- Interface: XT90 plug

- Working temperature: -40°C to 125°C

- Weight: about 39g

Load voltage drop data: (Ordinary diodes cannot achieve such a low voltage drop.)

Current (A) Voltage Drop (V)

1. Current: 10A Voltage Drop: 0.015V

2. Current: 20A Voltage Drop: 0.03V

3. Current: 30A Voltage Drop: 0.045V

4. Current: 40A Voltage Drop: 0.06V

5. Current: 50A Voltage Drop: 0.075V

6. Current: 60A Voltage Drop: 0.09V

7. Current: 70A Voltage Drop: 0.105V

8. Current: 80A Voltage Drop: 0.12V

9. Current: 90A Voltage Drop: 0.135V

10. Current: 100A Voltage Drop: 0.15V

Attention:

- Do not exceed 100V. For applications with counter electromotive force, an additional TVS diode (NOT included) is required.

- In short, under this connection method, the battery with a higher voltage mainly supplies power to the load. Alternatively, when the voltages are the same, one battery may start supplying power randomly, but in fact, the two batteries are similar to being connected in parallel (except that reverse current is blocked).

Features:

- 300A high-current MOS tube with low internal resistance and low heat generation.

- It can quickly respond to reverse polarity situations internally; the input and output are equivalent to a diode. When the output voltage is detected to be higher than the input, the output is turned off immediately. The detection value is at the millivolt level, and the response speed is extremely fast.

- Supports an operating temperature range of -40°C to 125°C.

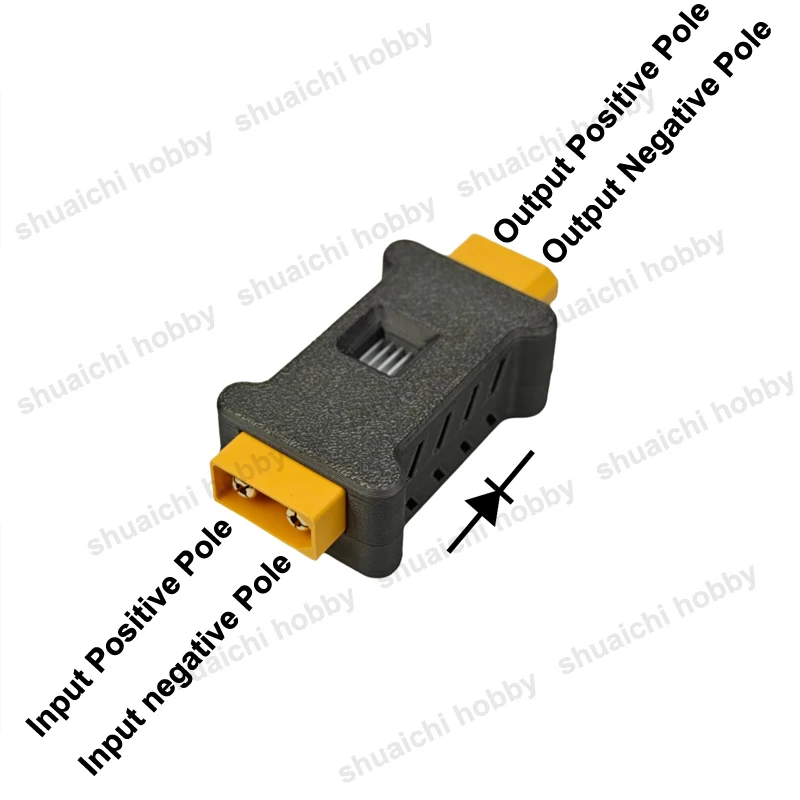

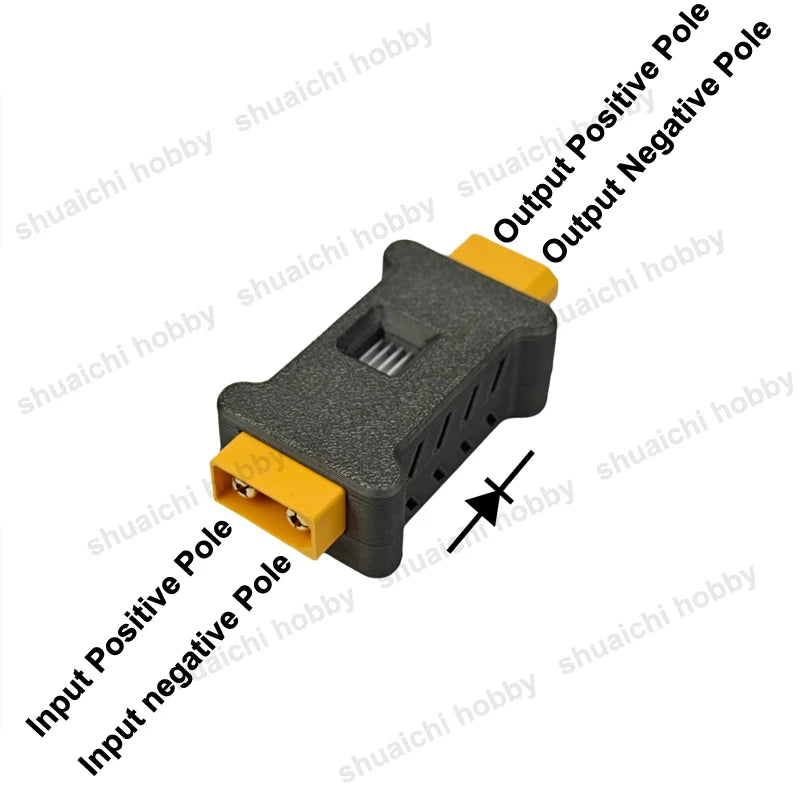

- It can replace ordinary high-current diodes, storage batteries, and solar panels, and prevent backflow and reverse current. It is an ideal choice for anti-reverse connection when connected in series at the input end of the power supply.

Precautions:

- When two batteries are connected to a load through ideal diodes, the ideal diodes have unidirectional conductivity.

- If the voltages of the two batteries are different, only the battery with the higher voltage can supply power to the load through the diode. When the high-voltage battery starts supplying power, current flows from the positive pole of the high-voltage battery, passes through the diode and the load, and then returns to the negative pole of the high-voltage battery. The low-voltage battery cannot supply power to the load due to the blocking of the diode.

- If the two batteries have the same voltage and are connected in the correct direction, due to the unidirectionality of the diode, one of the batteries may randomly supply power to the load first. However, once power supply starts, the two batteries are actually equivalent to supplying power to the load in parallel, but reverse current is blocked due to the existence of the diode.

3 types for your refer:

- 1pcs diode module

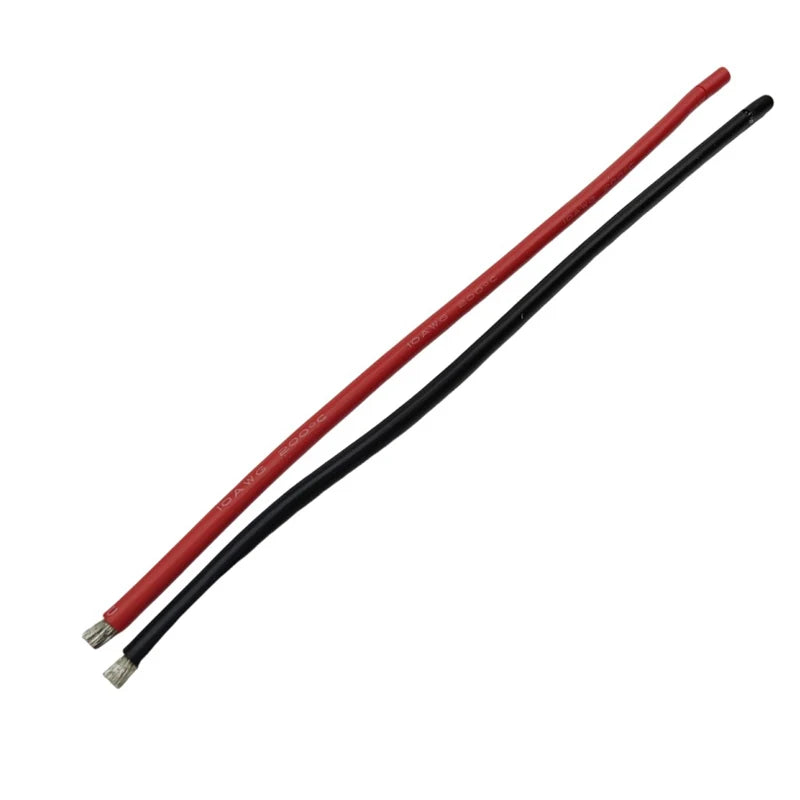

- 1pair AWG10 wire: 25cm in length

- 1pair XT90 plug

Note: size is manual measurement, there are exist errors.

Package include is optional:

1pcs x diode module

or

1pair x AWG10 silicone wire

or

1pair x XT90 plug
