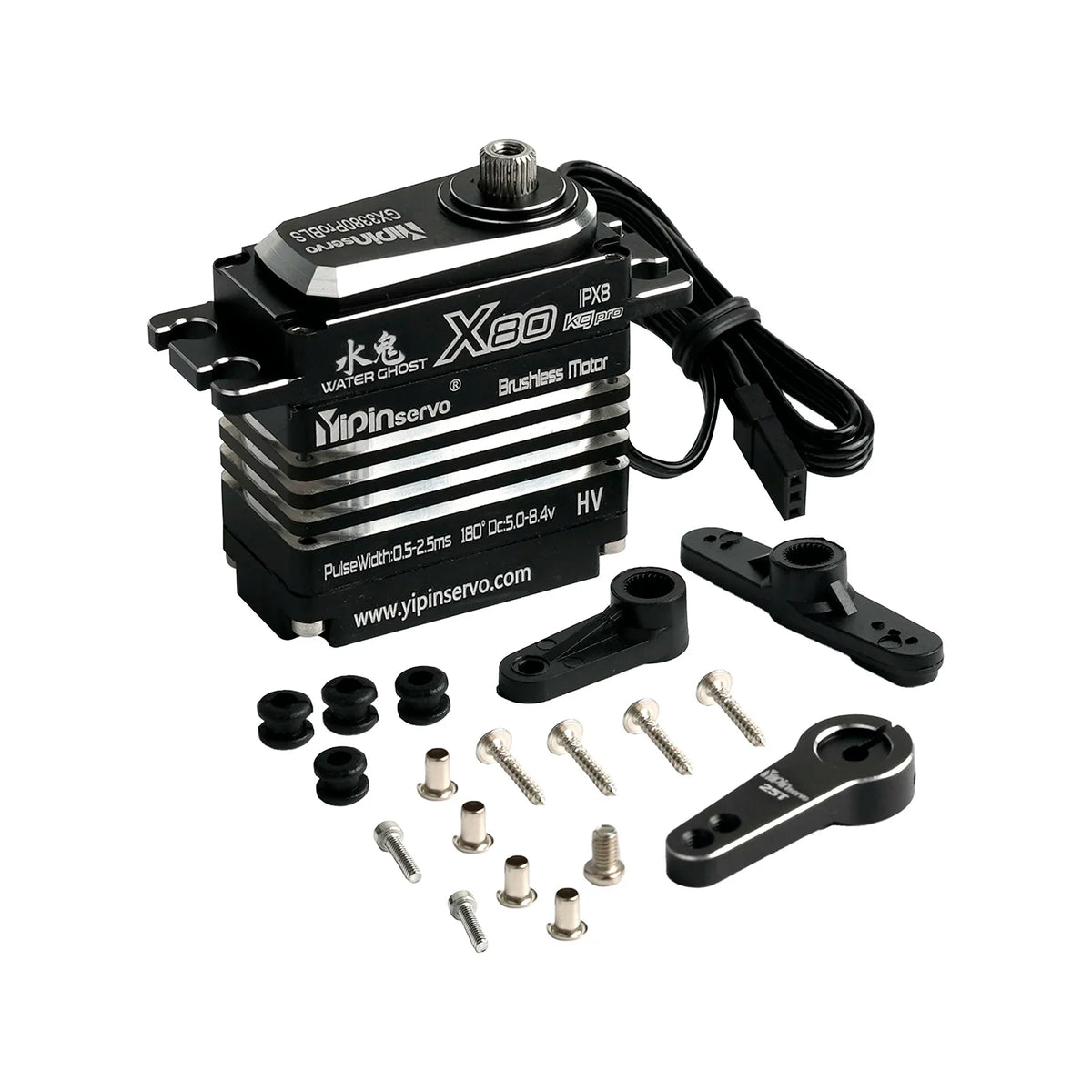

80KG Digital Servo All Metal IP67 Waterproof 5.0-8.4V Brushless Motor Steel Gear RC Model Car Industrial Grade Servo
270 Degree
$293.04
Sale price
$293.04
Regular price
$0.00
Skip to product information
80KG Digital Servo All Metal IP67 Waterproof 5.0-8.4V Brushless Motor Steel Gear RC Model Car Industrial Grade Servo
$293.04
Sale price
$293.04
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: stemedu
High-concerned chemical: none
Model Number: FZ7018
Origin: Mainland China
RC Parts & Accs: Servo Accessories
Recommend Age: 14+y
Remote Control Peripherals/Devices: Servos
Use: Vehicles & Remote Control Toys
80KG Digital Servo All Metal IP67 Waterproof 5.0-8.4V Brushless Motor Steel Gear RC Model Car Industrial Grade Servo
Control System: PWM Pulse Width Modulation Control
Operating Voltage: 5.0-8.4V
Operating Temperature Range: -20°C to +60°C
Test Voltages: 6V, 7.4V, 8.4V
Stall Torque: 60kg, 68kg, 80kg
No-load Speed: 0.14/60°, 0.13/60°, 0.1/60°
Stall Current: 12A, 13A, 15A
Load Current: 2.3A, 2.8A, 3.5A
Motor Type: Brushless
Deadband: 2μsec
Pulse Width Angle: 500μs-2500μs = 180°
Direction: Counterclockwise (CCW)
Protection Rating: IP67
Angle Sensor: Magnetic coding
Signal Processing Method: Digital
Parameter Programming: Supported
Weight: 80g (excluding accessories)
Cable Length: 300mm

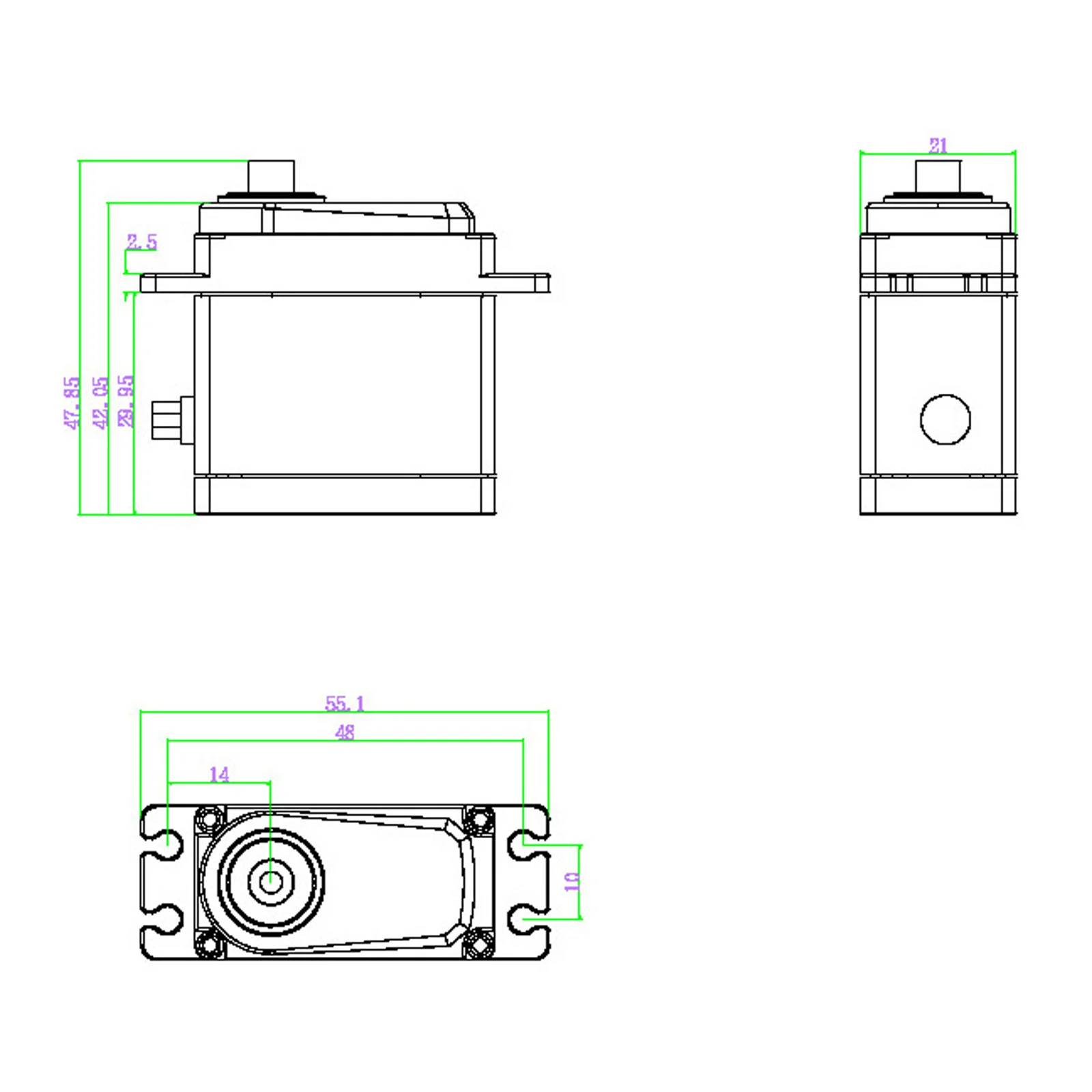

Dimensions: 40.5X21X53.65mm
