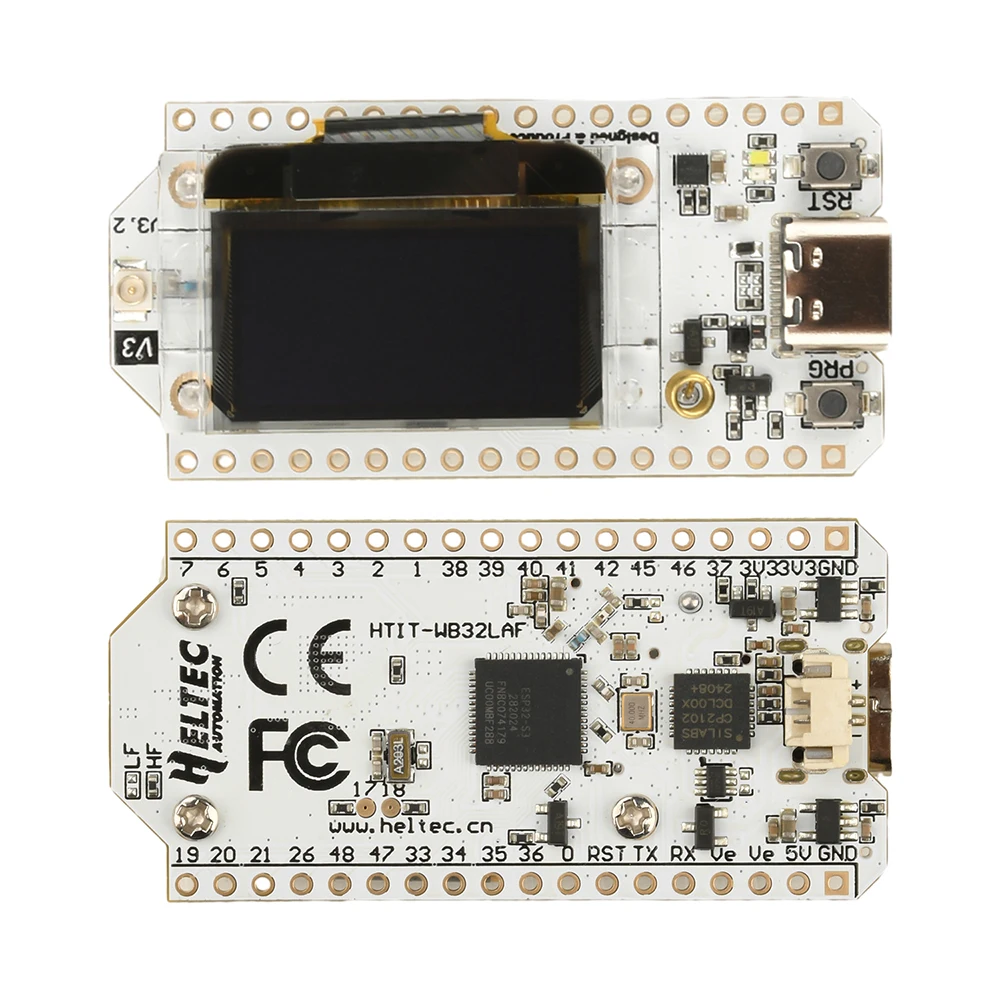

868MHz 915MHz ESP32 LoRa32 Development Board SX1276 0.96 Inch OLED Display BT+WIFI Lora Kit for Arduino IOT Smart Home
LA 863-928
$78.12
Sale price
$78.12
Regular price
$0.00
Skip to product information

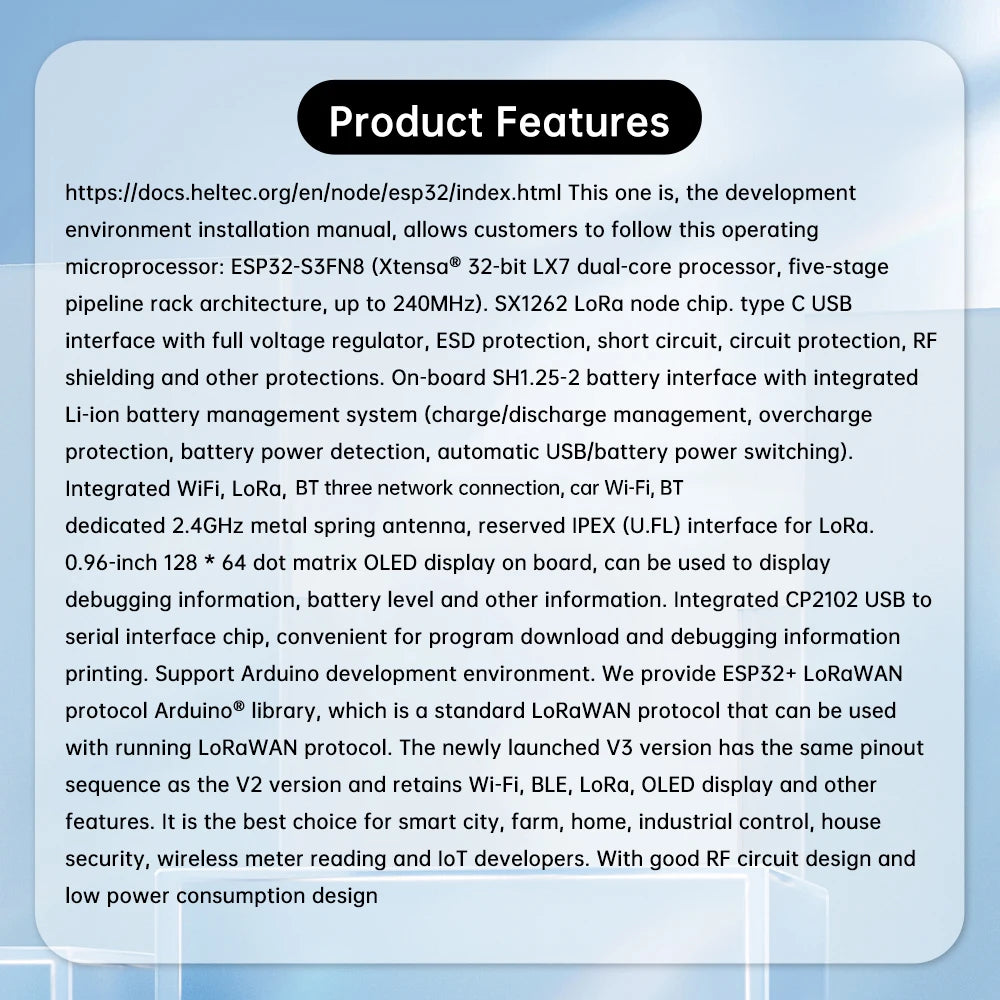

Features:

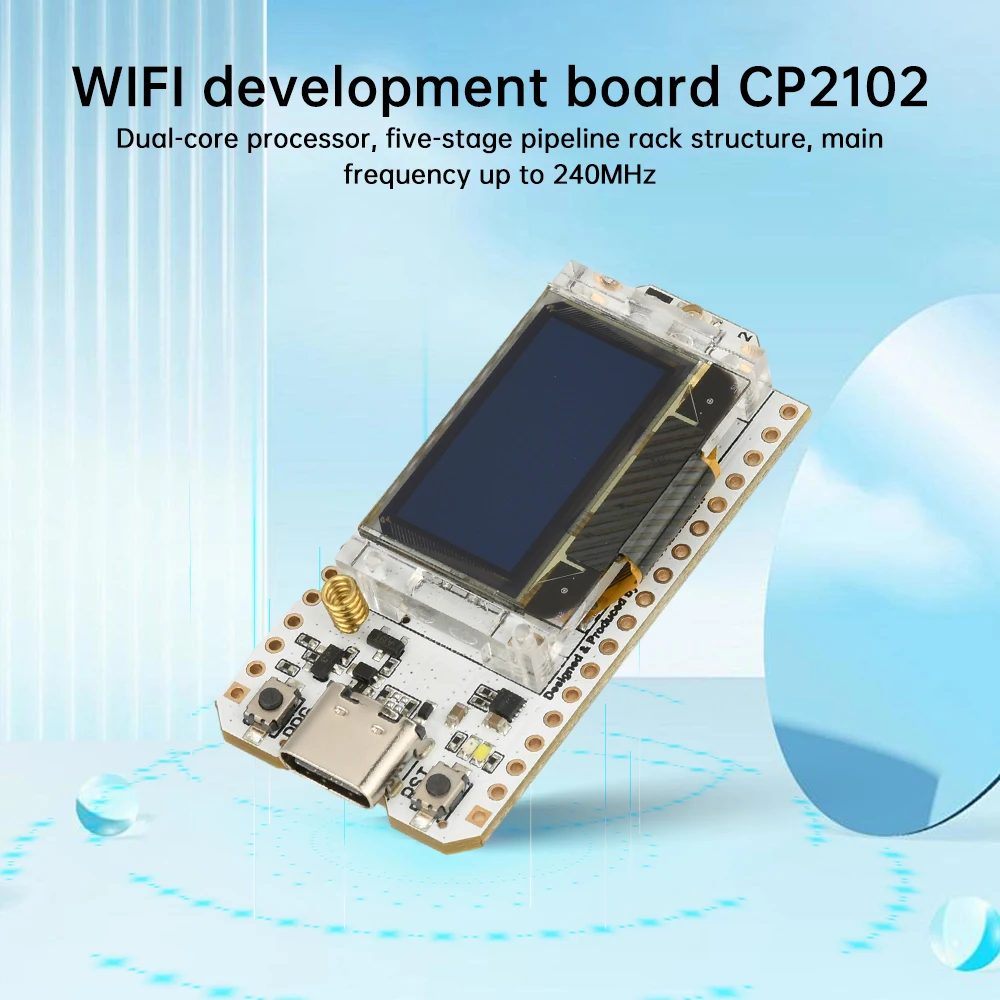

1.Microprocessor: ESP32-S3FN8 (Xtensa ® 32 bit LX7 dual core processor, 5-stage pipe rack structure, with the dominant frequency up to 240MHz).
2.SX1262 LoRa node chip.
3.C-type USB interface is equipped with complete voltage regulator, ESD protection, short circuit, circuit protection, RF shielding and other protection measures.

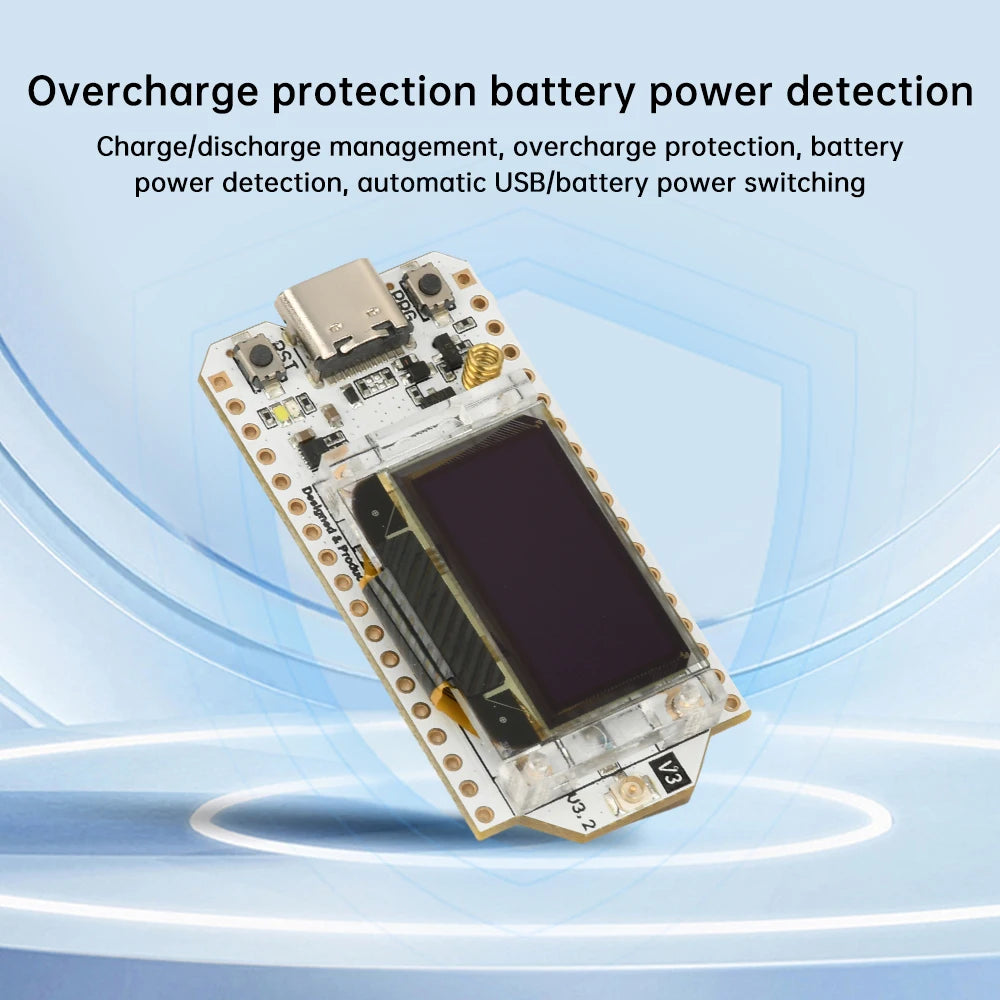

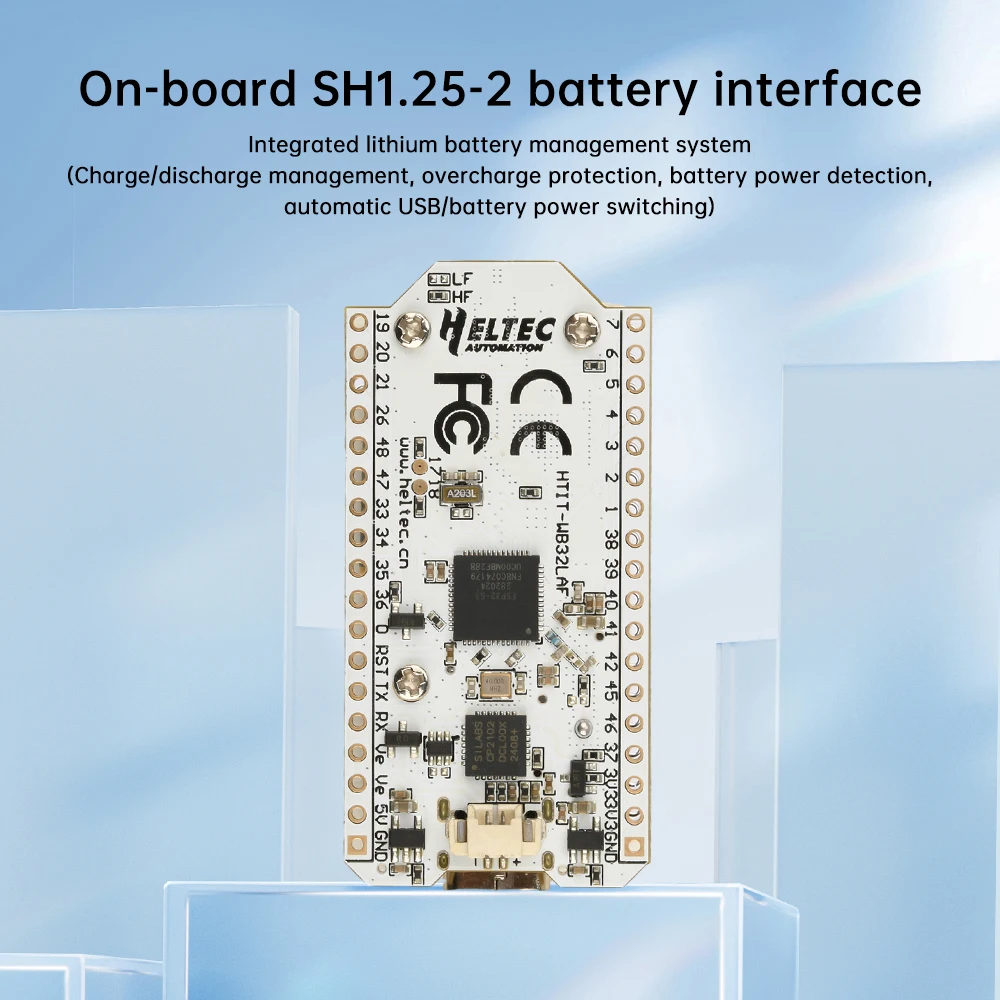

4.On board SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB/battery power automatic switching).
5.Integrated WiFi, LoRa, Bluetooth three network connection, vehicle mounted Wi Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa.
6.On board 0.96 inch 128 * 64 dot matrix OLED display can be used to display debugging information, battery power and other information.
7.Integrated CP2102 USB to serial port chip, convenient for program downloading and debugging information printing.
8.Support Ar-duino development environment. We provide ESP32+LoRaWAN protocol Ar-duino Library, which is a standard LoRaWAN protocol and can be used to run the LoRaWAN protocol with.
9.The new V3 version has the same pin sequence as the V2 version, and retains Wi Fi, BLE, LoRa, OLED display and other functions.
10.It is the best choice for developers of smart cities, farms, homes, industrial control, house security, wireless meter reading and the Internet of Things.
11.Good RF circuit design and low power consumption design.

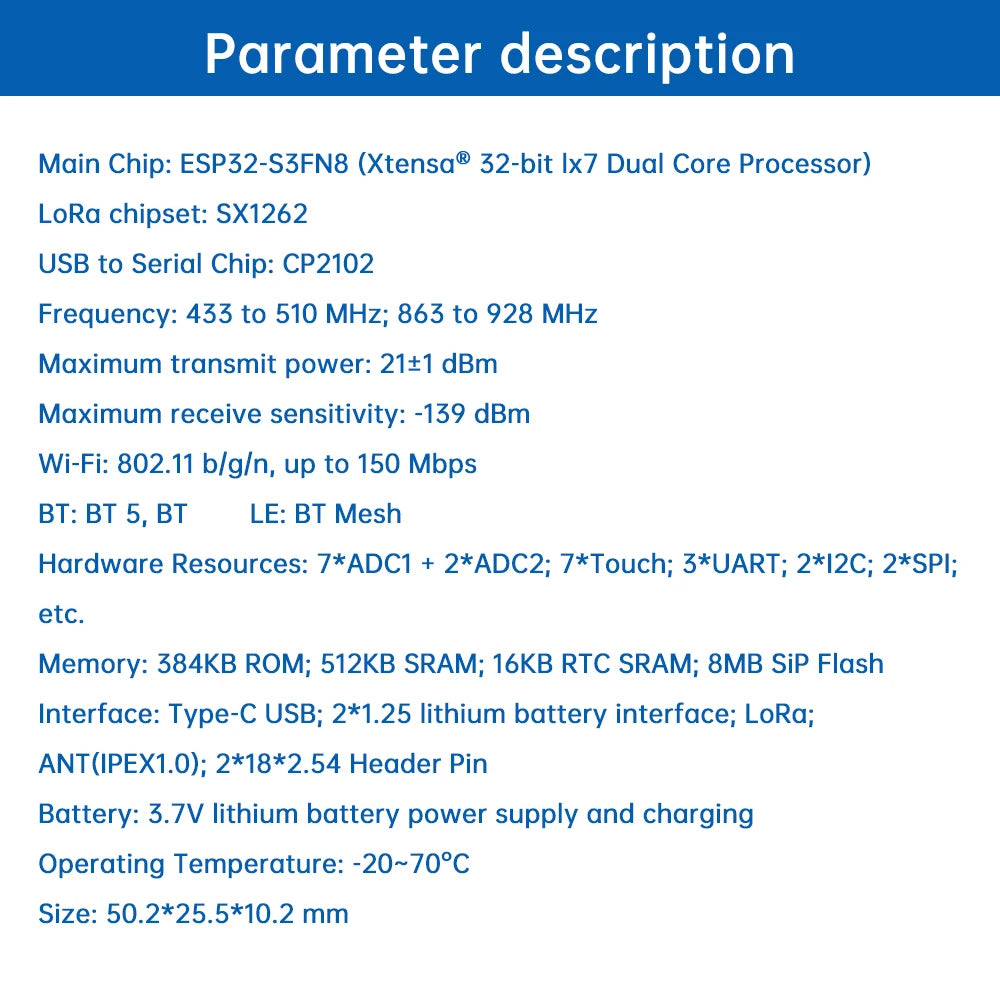

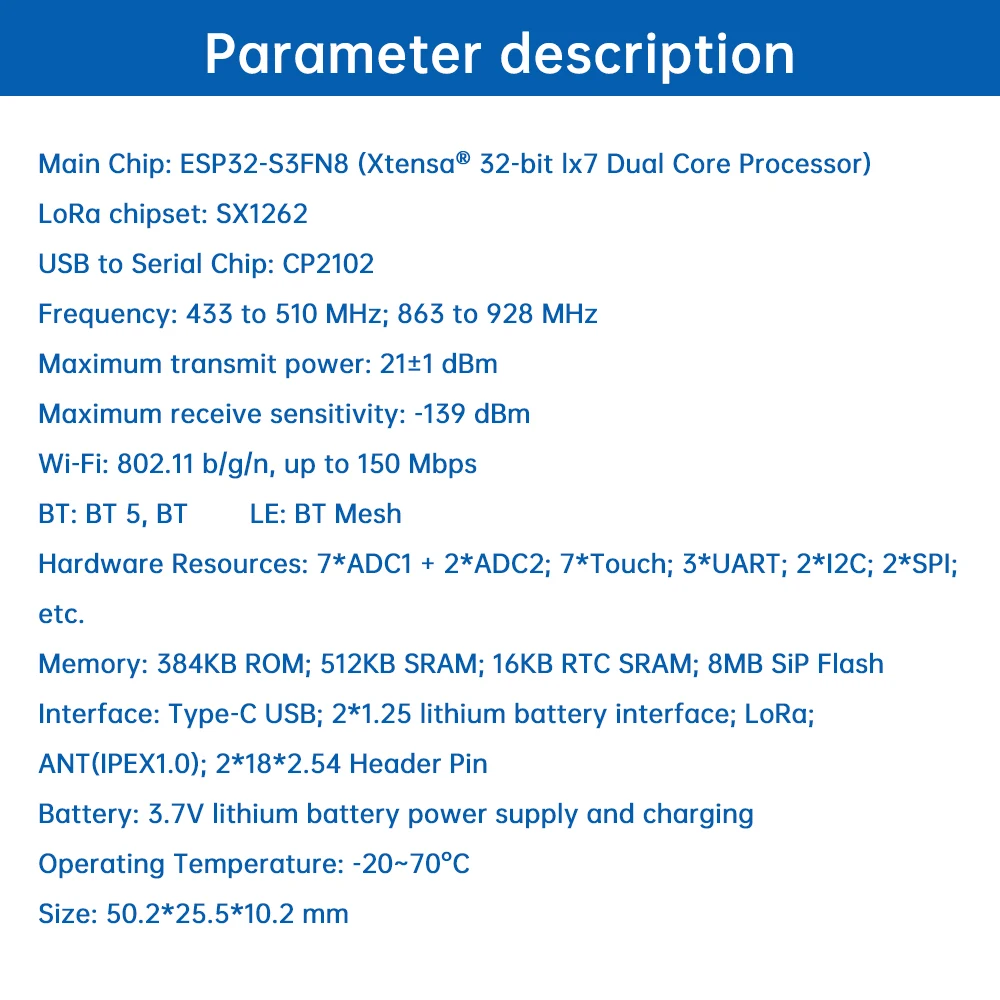

Parameter:
Main chip: ESP32-S3FN8 (X-tensa ® 32-bit lx7 dual core processor)
LoRa chipset: SX1262
USB to serial chip: CP2102
Frequency: 433 ～ 510MHz; 863～928 MHz
Maximum transmitting power: 21 ± 1 dBm
Maximum receiving sensitivity: - 139 dBm
Wi Fi: 802.11 b/g/n, up to 150Mbps
Bluetooth: Bluetooth 5,
Bluetooth LE: Bluetooth grid
Hardware resources: 7 * ADC1+2 * ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc.
Memory: 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash
Interface: Type-C USB; 2*1.25 lithium battery interface; LoRa； ANT(IPEX1.0); 2*18*2.54 Header Pin
Battery: 3.7V lithium battery for power supply and charging
Operating temperature: - 20~70 ℃

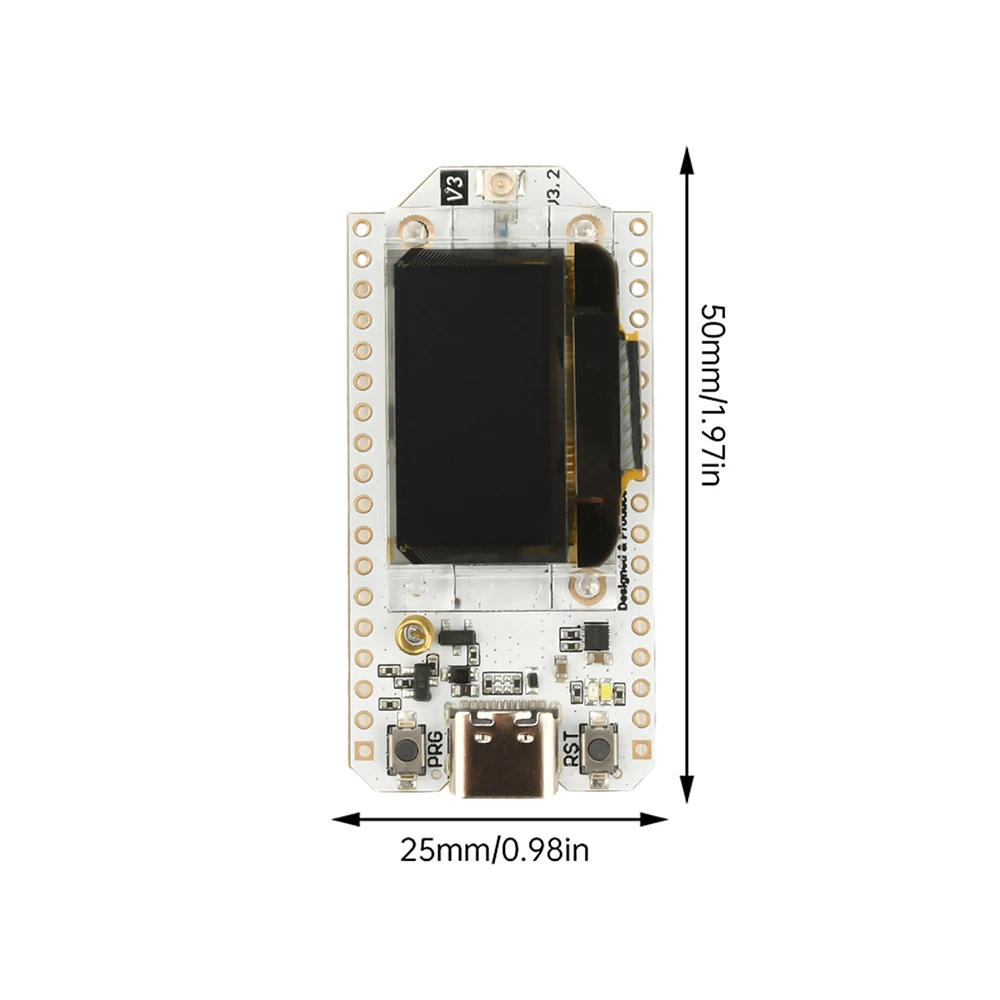

Size: 50.2 * 25.5 * 10.2 mm

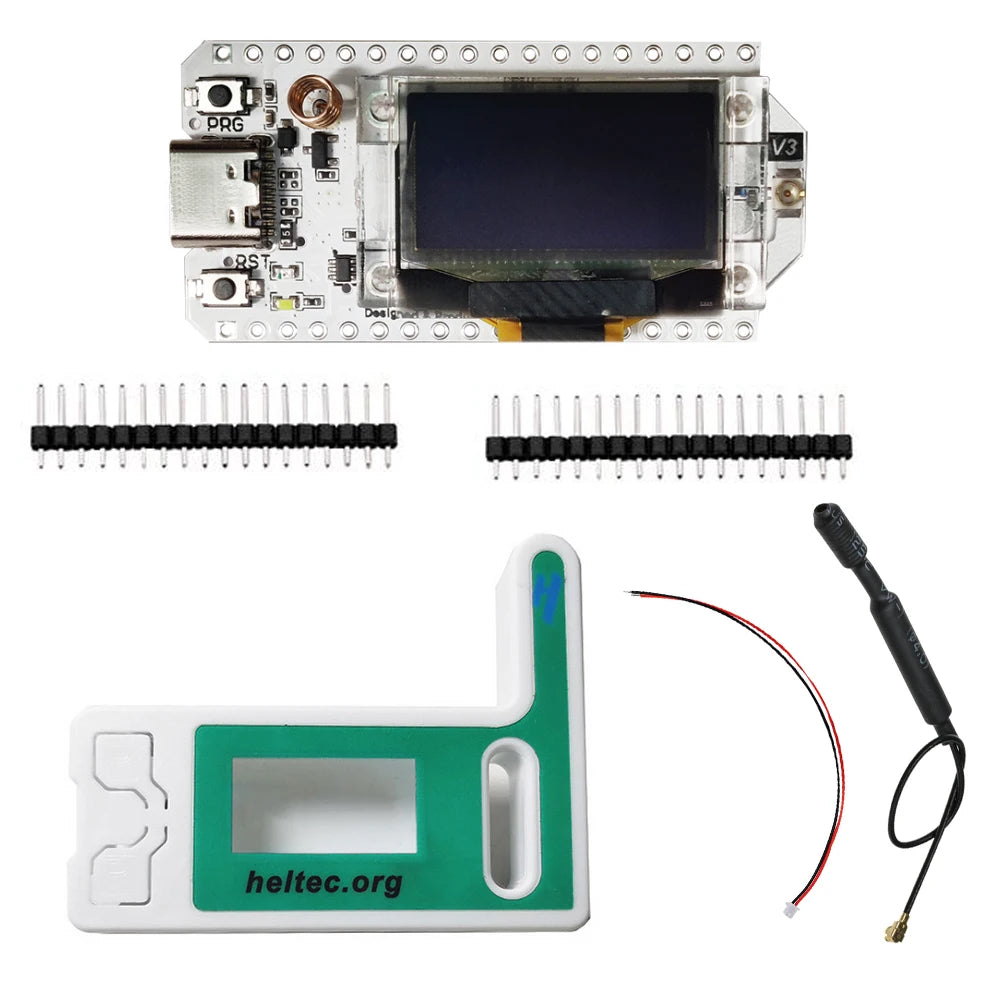

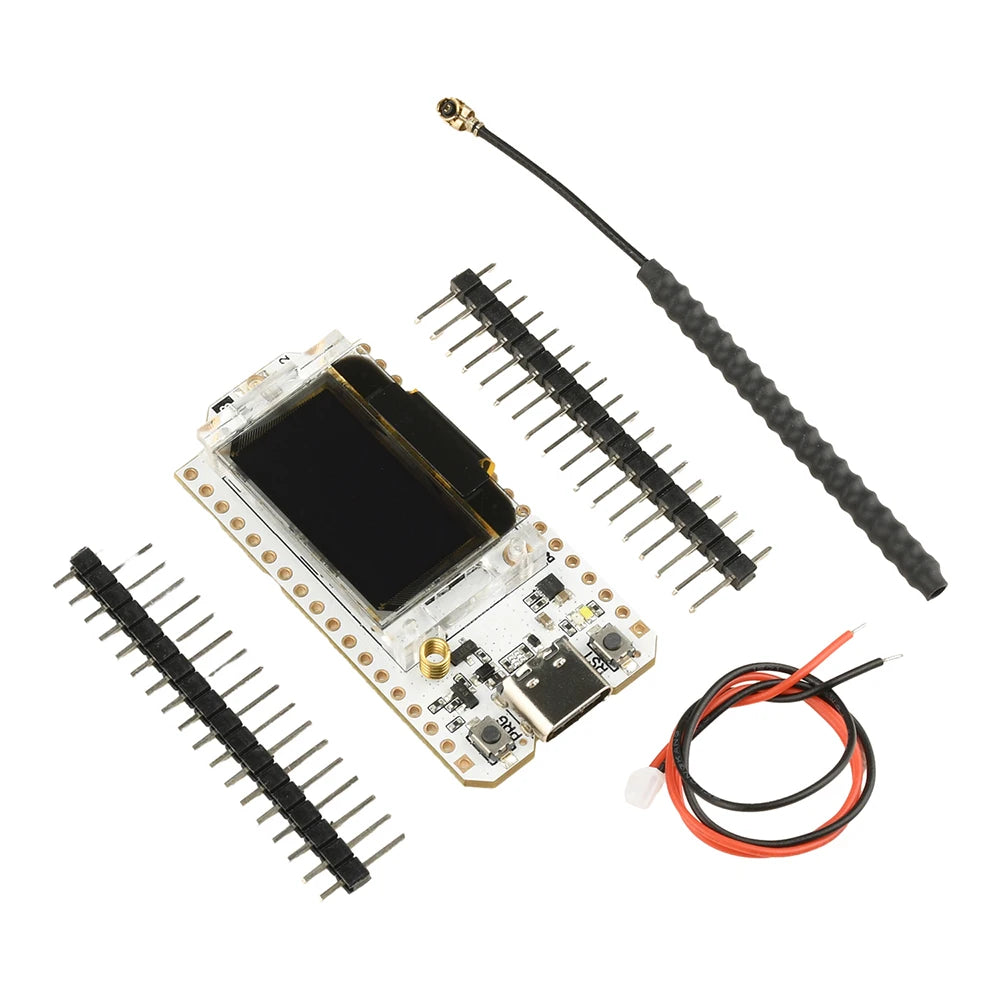

Package include：
Module x1
Spring antenna X1
Row needle x2;
Terminal line x1
868MHz 915MHz ESP32 LoRa32 Development Board SX1276 0.96 Inch OLED Display BT+WIFI Lora Kit for Arduino IOT Smart Home
$78.12
Sale price
$78.12
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: diymore
Condition: New
High-concerned chemical: none
Origin: Mainland China
Type: Module
Features:1.Microprocessor: ESP32-S3FN8 (Xtensa ® 32 bit LX7 dual core processor, 5-stage pipe rack structure, with the dominant frequency up to 240MHz).
2.SX1262 LoRa node chip.
3.C-type USB interface is equipped with complete voltage regulator, ESD protection, short circuit, circuit protection, RF shielding and other protection measures.
4.On board SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB/battery power automatic switching).
5.Integrated WiFi, LoRa, Bluetooth three network connection, vehicle mounted Wi Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa.
6.On board 0.96 inch 128 * 64 dot matrix OLED display can be used to display debugging information, battery power and other information.
7.Integrated CP2102 USB to serial port chip, convenient for program downloading and debugging information printing.
8.Support Ar-duino development environment. We provide ESP32+LoRaWAN protocol Ar-duino Library, which is a standard LoRaWAN protocol and can be used to run the LoRaWAN protocol with.
9.The new V3 version has the same pin sequence as the V2 version, and retains Wi Fi, BLE, LoRa, OLED display and other functions.
10.It is the best choice for developers of smart cities, farms, homes, industrial control, house security, wireless meter reading and the Internet of Things.
11.Good RF circuit design and low power consumption design.
Parameter:
Main chip: ESP32-S3FN8 (X-tensa ® 32-bit lx7 dual core processor)
LoRa chipset: SX1262
USB to serial chip: CP2102
Frequency: 433 ～ 510MHz; 863～928 MHz
Maximum transmitting power: 21 ± 1 dBm
Maximum receiving sensitivity: - 139 dBm
Wi Fi: 802.11 b/g/n, up to 150Mbps
Bluetooth: Bluetooth 5,
Bluetooth LE: Bluetooth grid
Hardware resources: 7 * ADC1+2 * ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc.
Memory: 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash
Interface: Type-C USB; 2*1.25 lithium battery interface; LoRa； ANT(IPEX1.0); 2*18*2.54 Header Pin
Battery: 3.7V lithium battery for power supply and charging
Operating temperature: - 20~70 ℃
Size: 50.2 * 25.5 * 10.2 mm
Package include：
Module x1
Spring antenna X1
Row needle x2;
Terminal line x1
