SPECIFICATIONS

Brand Name: NONE

Color: Red

High-concerned chemical: none

Main Material: Steel and Aluminum Alloy

Model: PA400

Model Number: PA400

Motor Type: Pure Copper Motor

Mounting Type: Vertical

Movable: Yes

Origin: Mainland China

Power Source: Ac

Protection Grade: IP40

Remote Control Model: YDL-V2S

Remote Control Range: Within 100m/328 ft

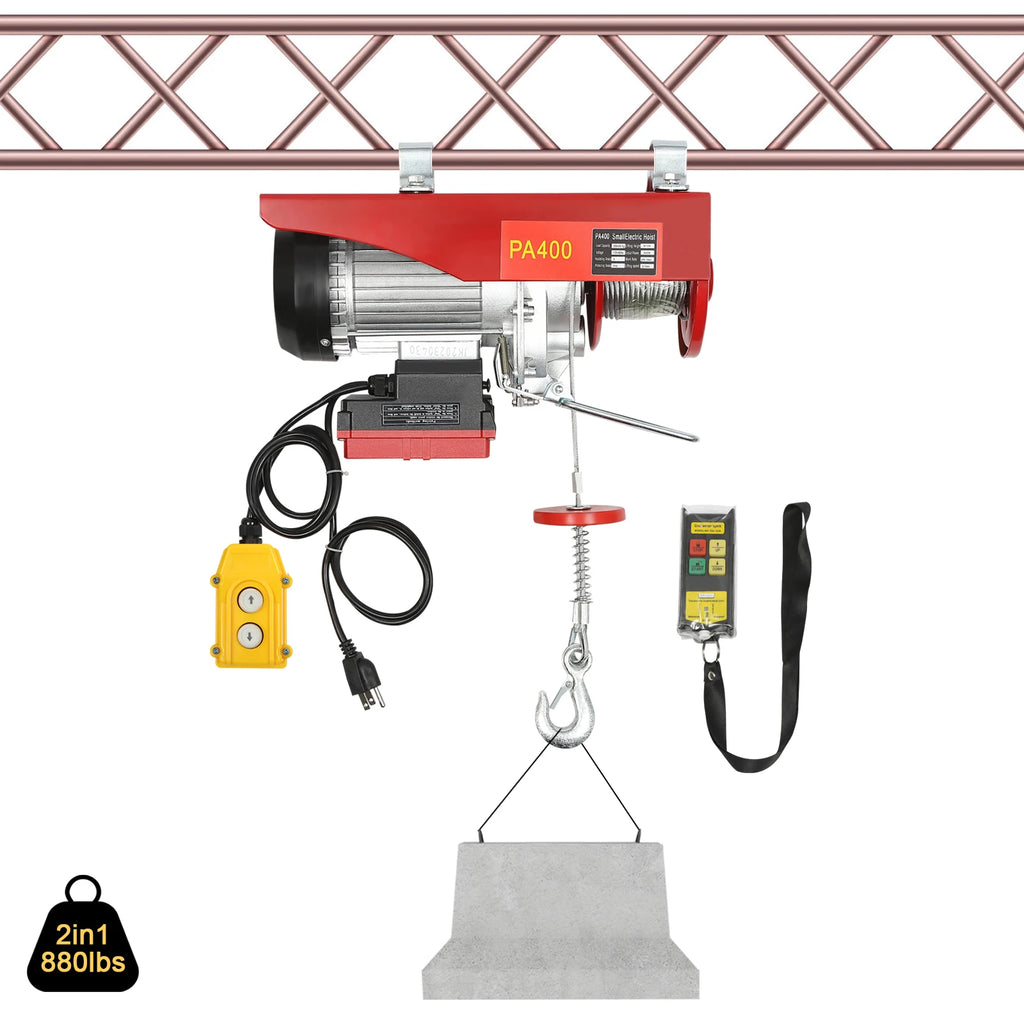

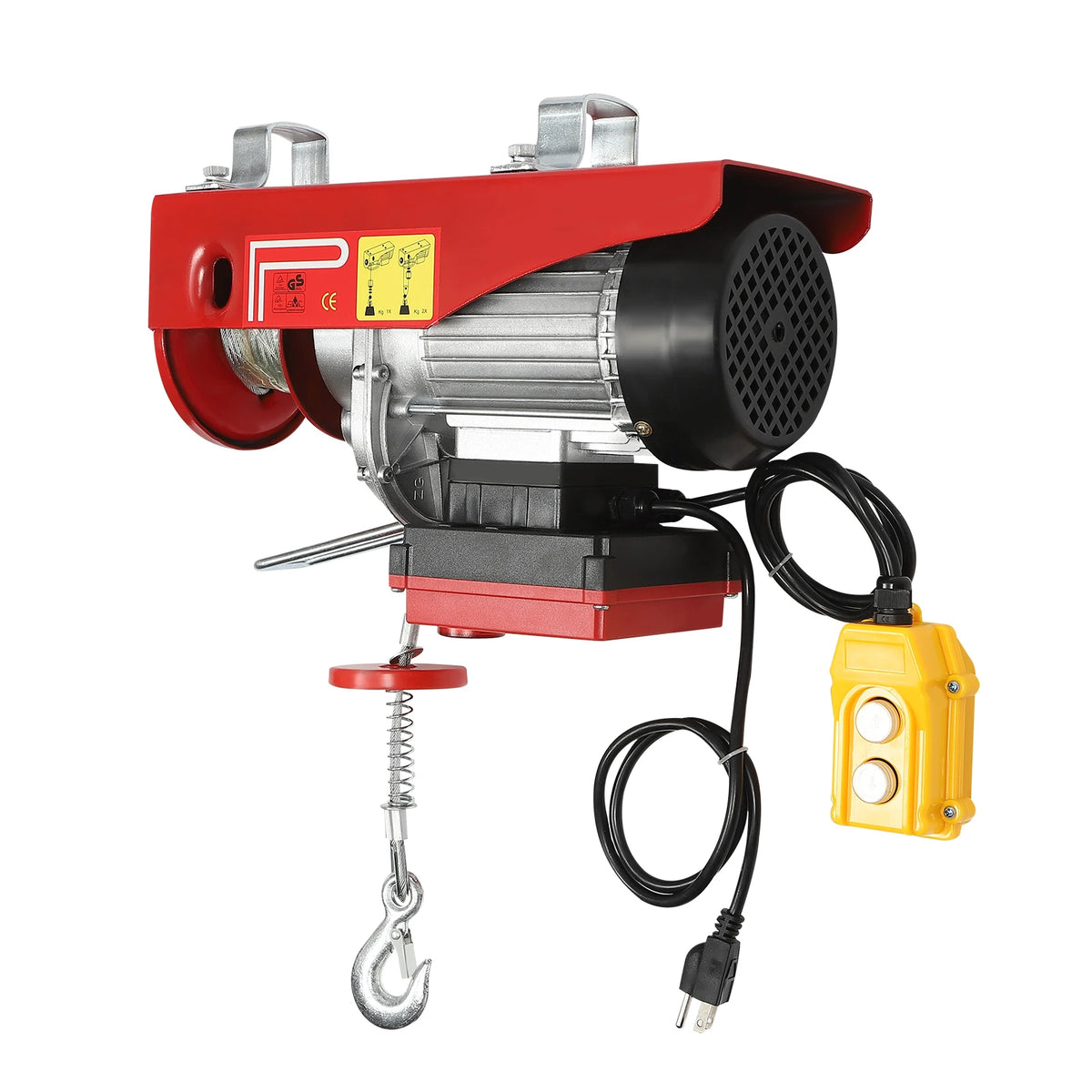

Description

I guess you always encounter moving heavy objects in your daily life and work, and you simply can't move them by hand, but with the development of technology, this electric lift of ours came into being. Powerful motor and sturdy wire rope provide strong lifting capacity and high working efficiency. It will become a good assistant for your lifting work!

Specifications

Main Material: Steel and Aluminum Alloy

Shell Material: Alloy

Hook Material: Alloy

Cable Material: Galvanized Steel Wire

Mounting Type: Vertical

Finish: Electrostatic Plastic Spraying, Paint Spraying

Motor Type: Pure Copper Motor

Color: Red

Model: PA400

Remote Control Model: YDL-V2S

Remote Control Range: Within 100m/328 ft

Plug Type: US Standard

Voltage: 110V, 60Hz

Input Power: 850W

Insulation Grade: B

Protection Grade: IP40

Lifting Capacity: 440 lbs / 200 kg (Single Cable), 880 lbs / 400 kg (Dual Cable)

Lifting Speed: 10m/33 ft/min (Single Cable), 5m/17 ft/min (Dual cable)

Lifting Time: 5-10min

Work Rate: 20%, 10min

Lifting Height: 39.4 ft / 12 m (Single Cable), 20 ft / 6 m (Dual Cable)

Lanyard Length: 12m/39.37 feet

Package Size: 48*20*39cm/17.32*6.69*6.3in

Gross Weight: 16.5kg/36.67lbs

Package Included

1 * Electric Lift

1 * Remote Control

1 * Hook

2 * Mounting Clamp Brackets

1 * Wired Remote Control

1 * English Manual

All Accessories for Installation

Key Features

Robust and Durable: It features a steel-aluminum alloy with plastic spray treatment, braided galvanized steel wire, and a high-hardness alloy hook, making it resistant to wear and tear, rust-proof, and with a long service life.

High Load Capacity: Strong wire and hook ensure high load capacity. It can bear 880 lbs, which can meet your heavy lifting needs.

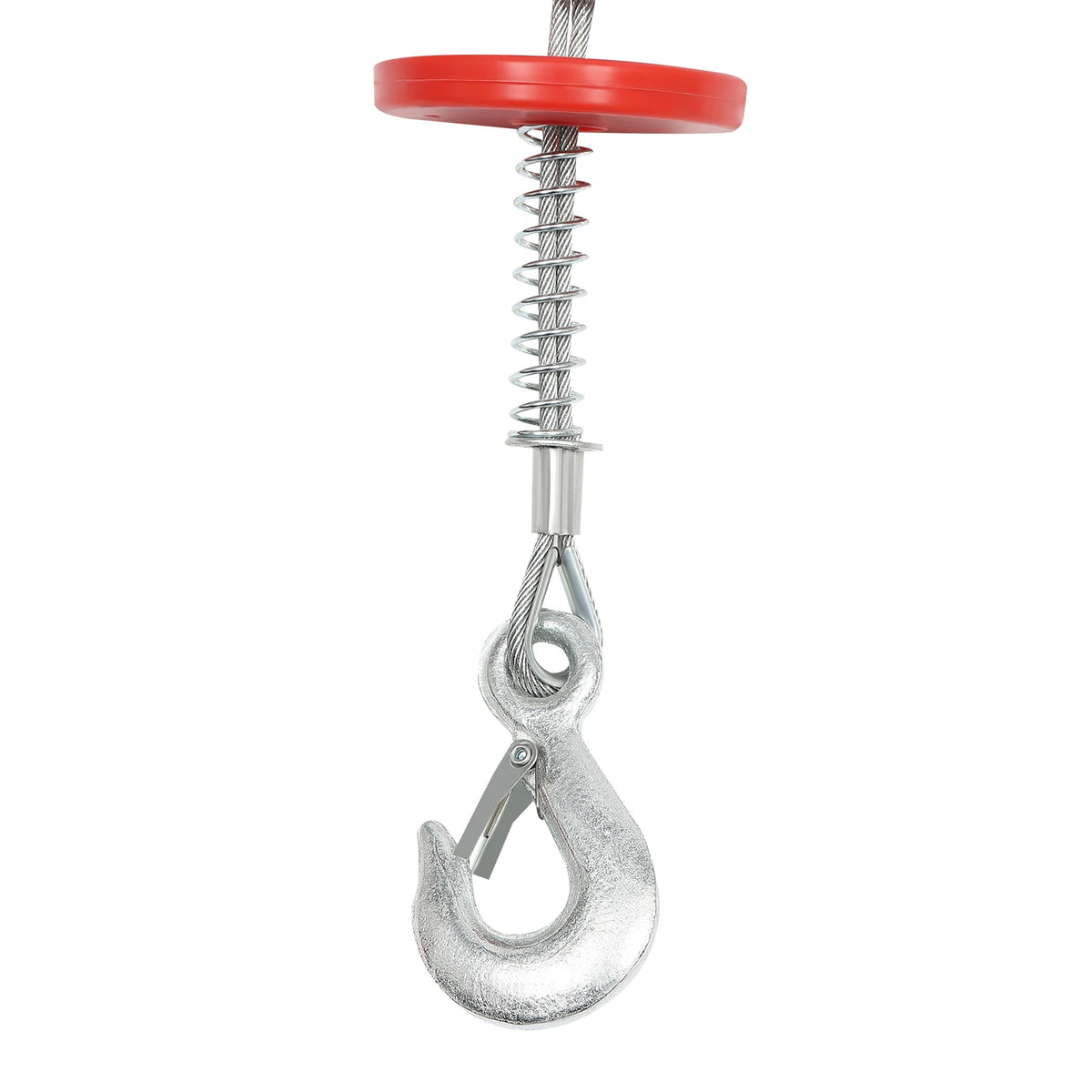

High-safety: It is equipped with a safety limit switch and emergency stop button, which automatically stops lifting as well as automatically cuts off power when the hook is touched or overloaded, preventing the machine from being lifted too high and damaged, making it safe to use. In addition, the hook with lock provides further protection.

High Efficiency:Adopting a pure copper motor with a power of 850W, it can raise the cargo by 19.69-39.37ft in 5-10 minutes, which makes it possible to use it for heavy lifting even if you are in a high building.

Intelligent Control: We are equipped with a wireless remote control (available in 328 ft) and wired lift, you can choose the control mode according to your needs, making the whole process of manipulation more comfortable.

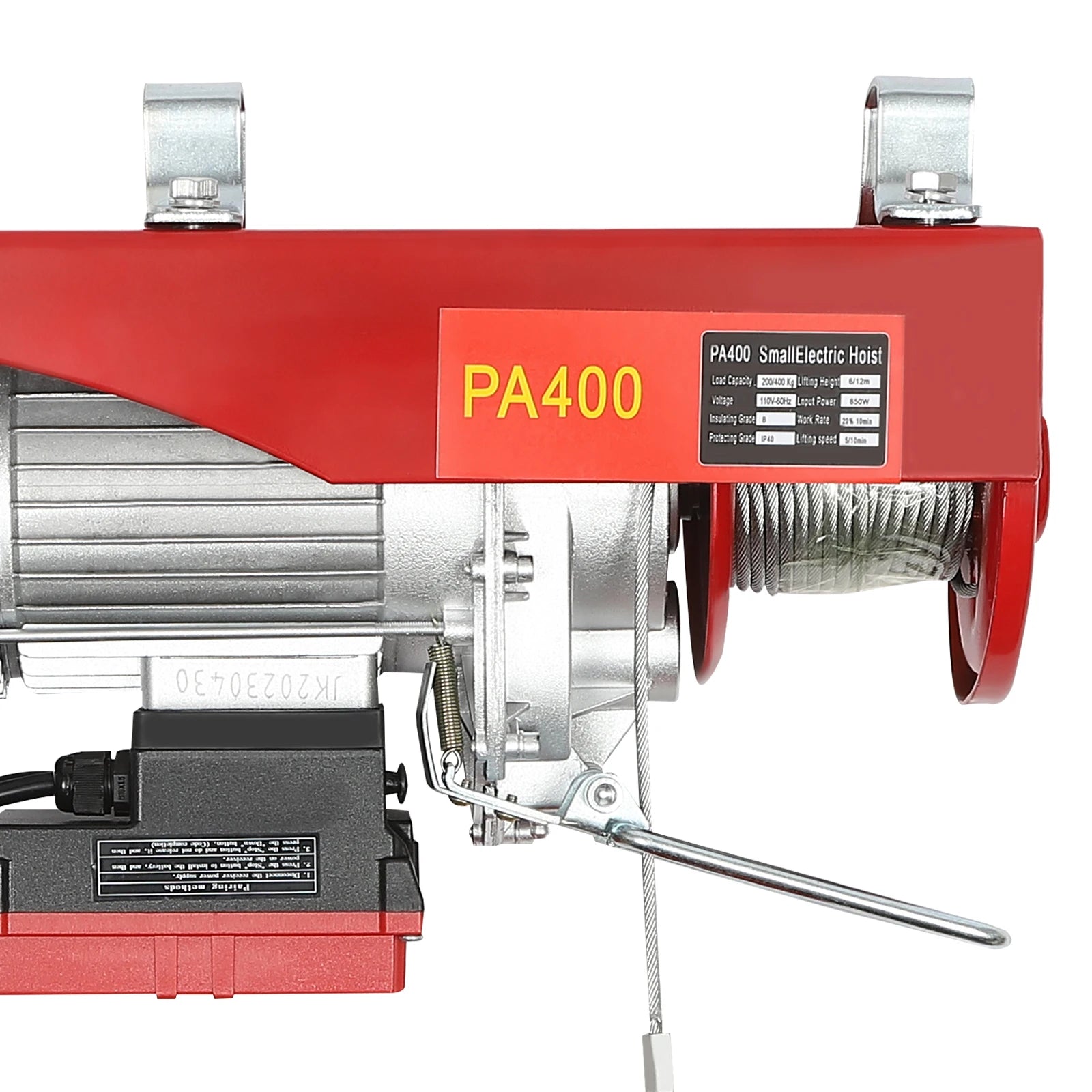

Strong Heat Dissipation: This electric lift has a fan and mesh-type heat dissipation holes, which can quickly dissipate heat and reduce the risk of burning out the machine, ensuring stable operation.

Easy Installation: We provide fully equipped accessories and user instructions, so you can easily install them vertically.

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

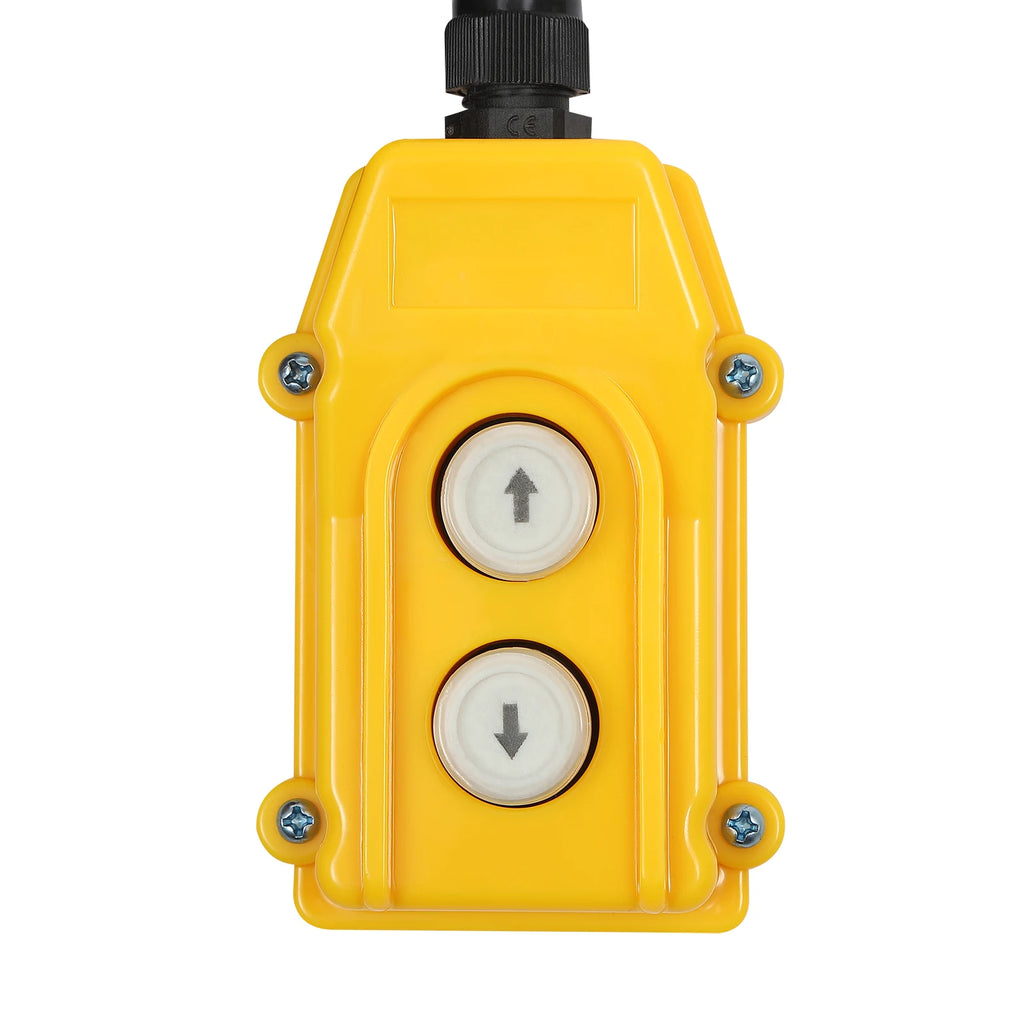

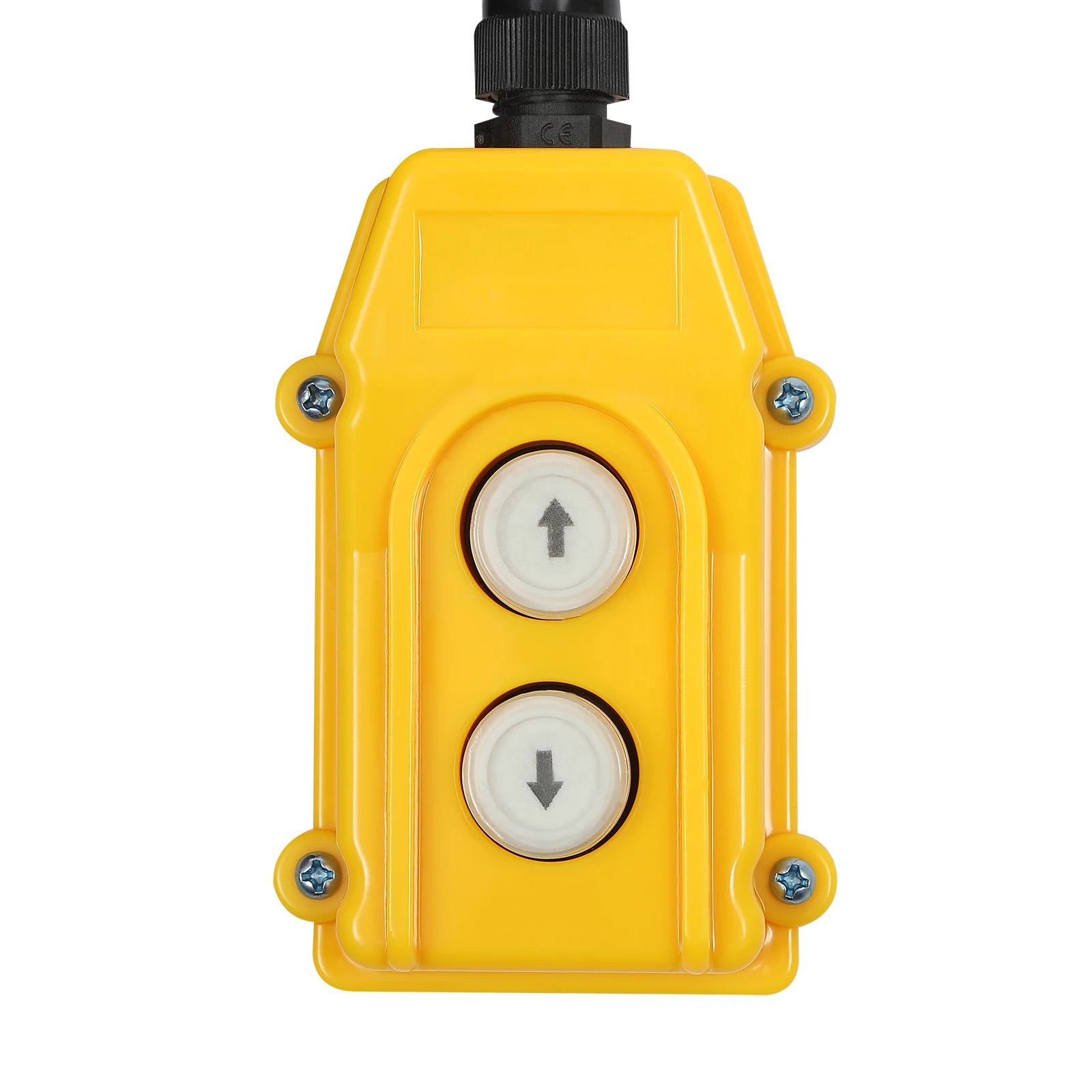

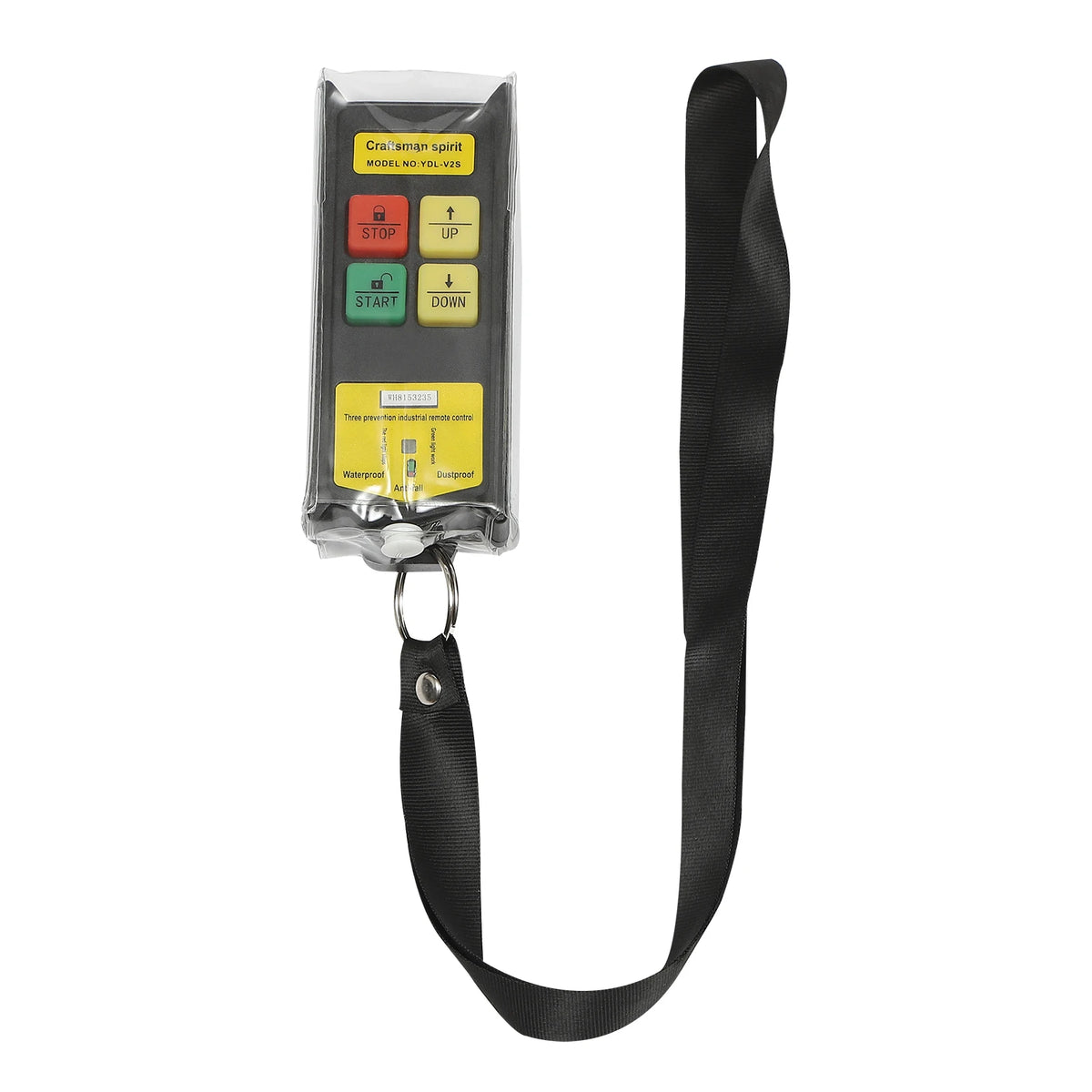

High-quality Remote Controls: Our wired and wireless remote controls are waterproof and dustproof, which allows you to use them normally even in rainy weather.

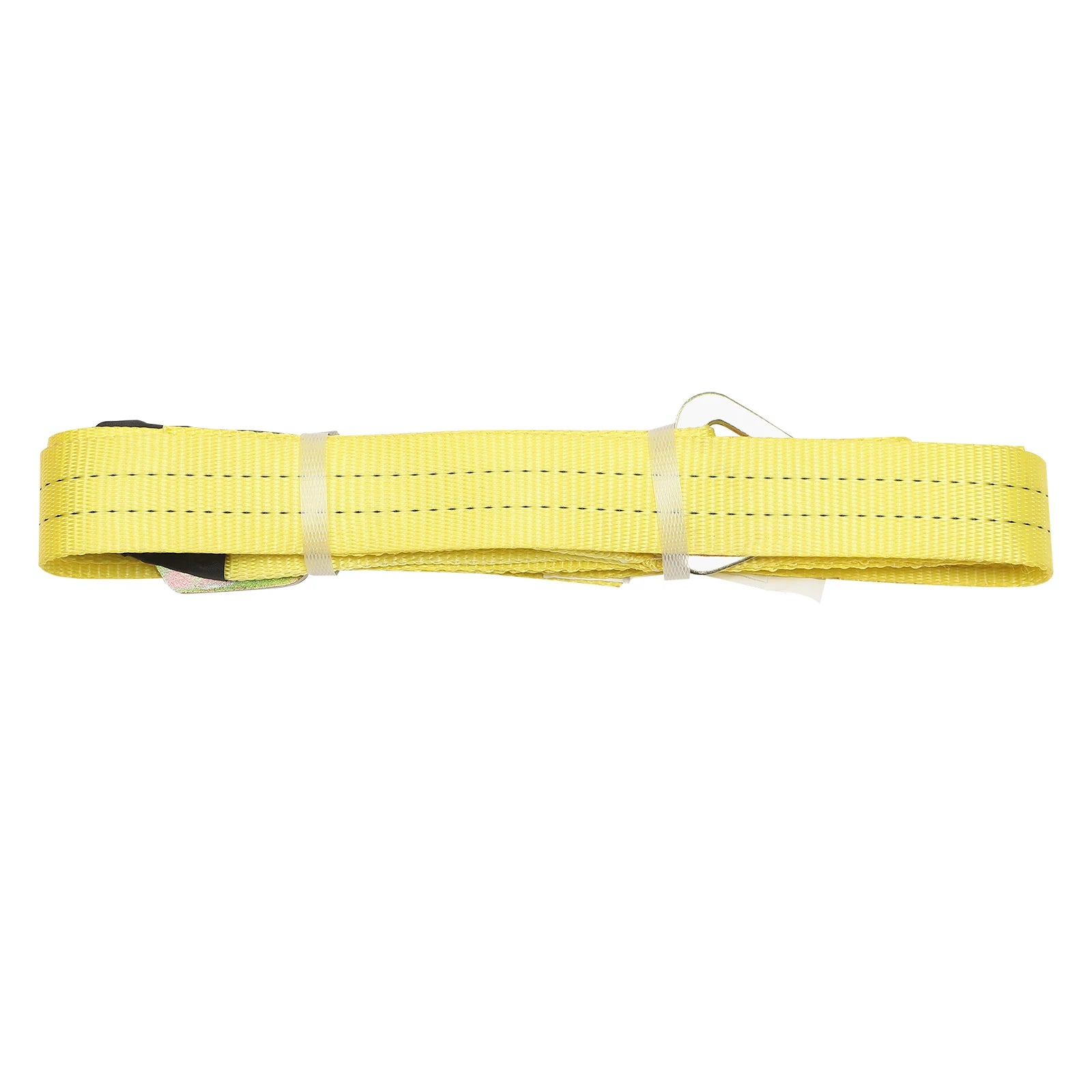

Practical Lifting Straps: The package is equipped with an additional lifting strap for securing hard-to-hook goods, so you don't need to buy extra, which is economical and convenient.

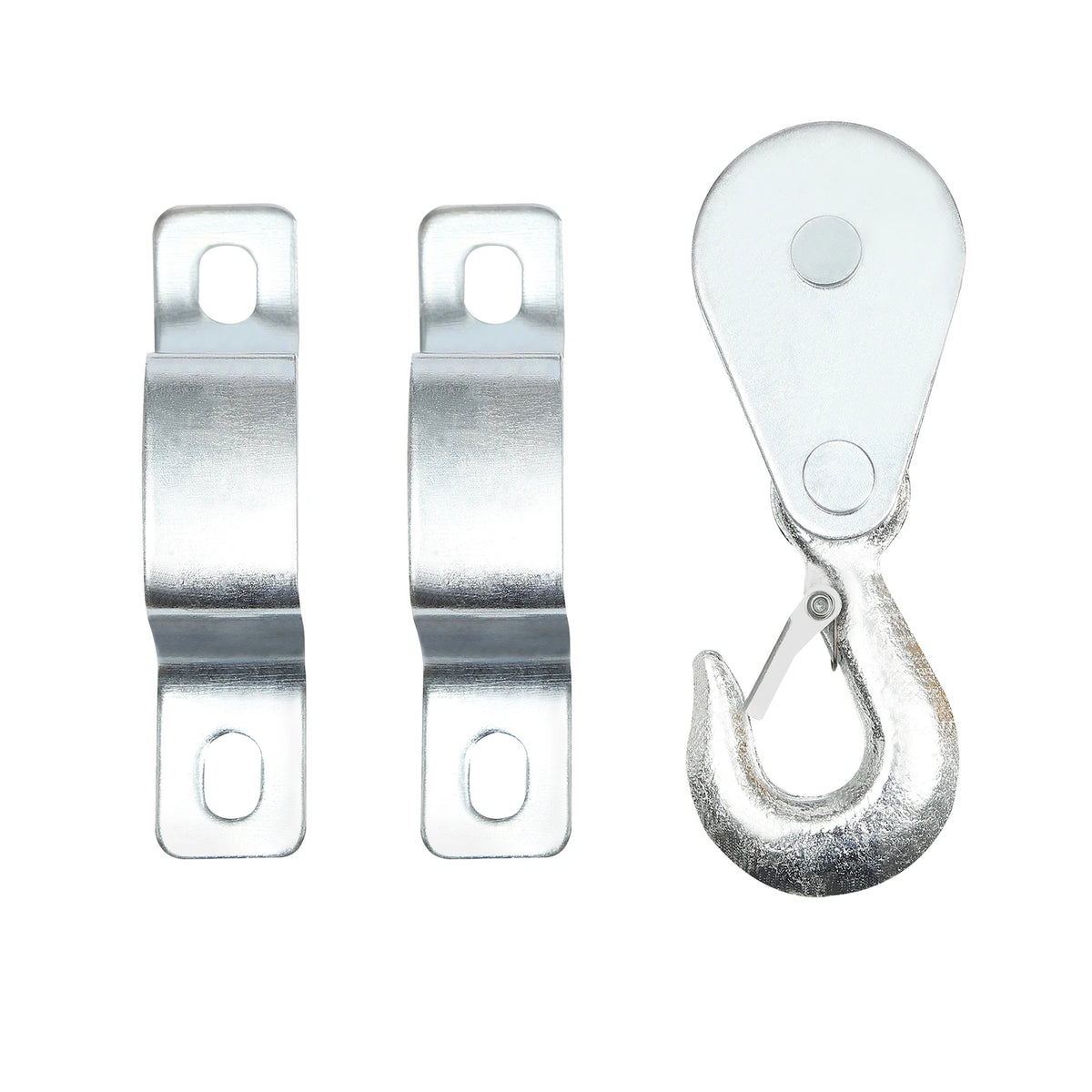

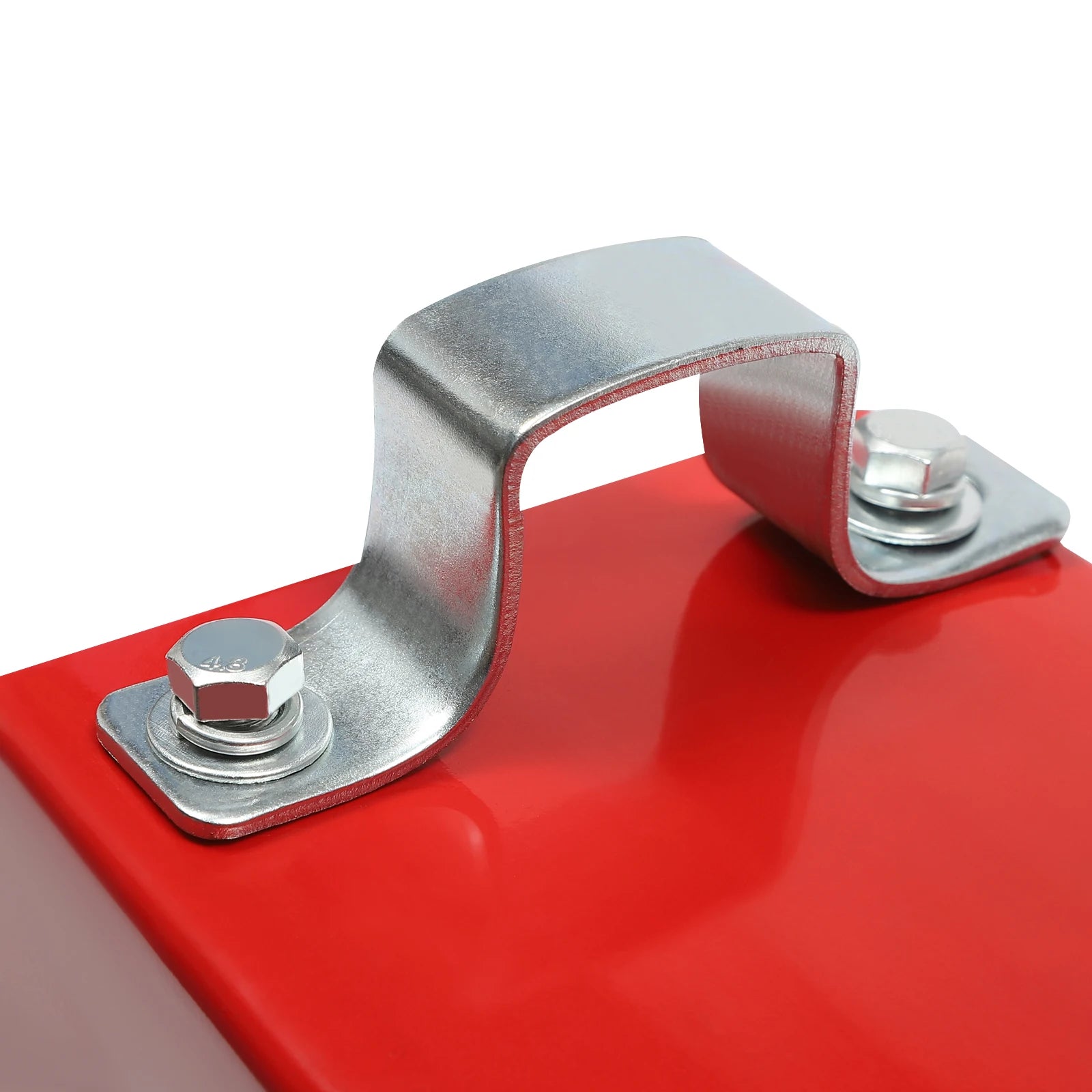

Portable Brackets: It has two solid brackets on the top, which makes it easy for you to lift it for vertical installation.

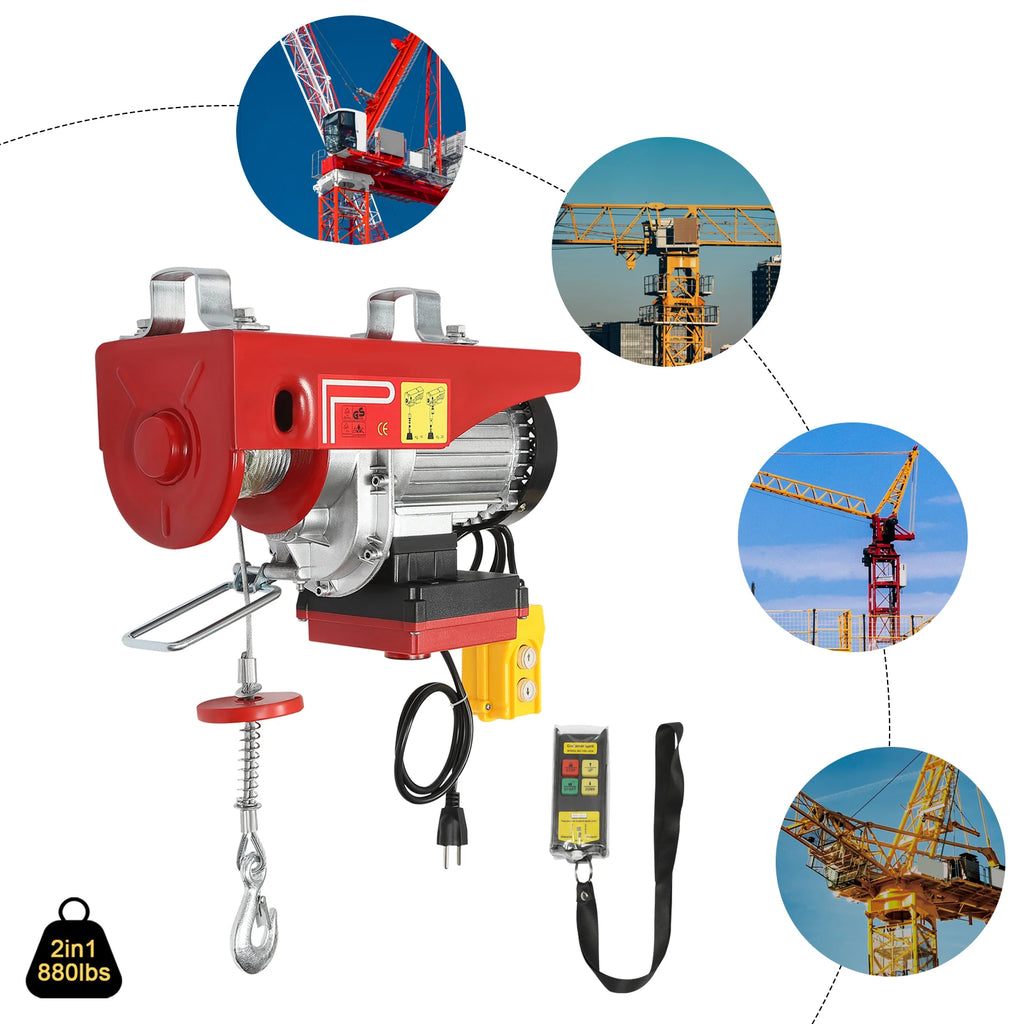

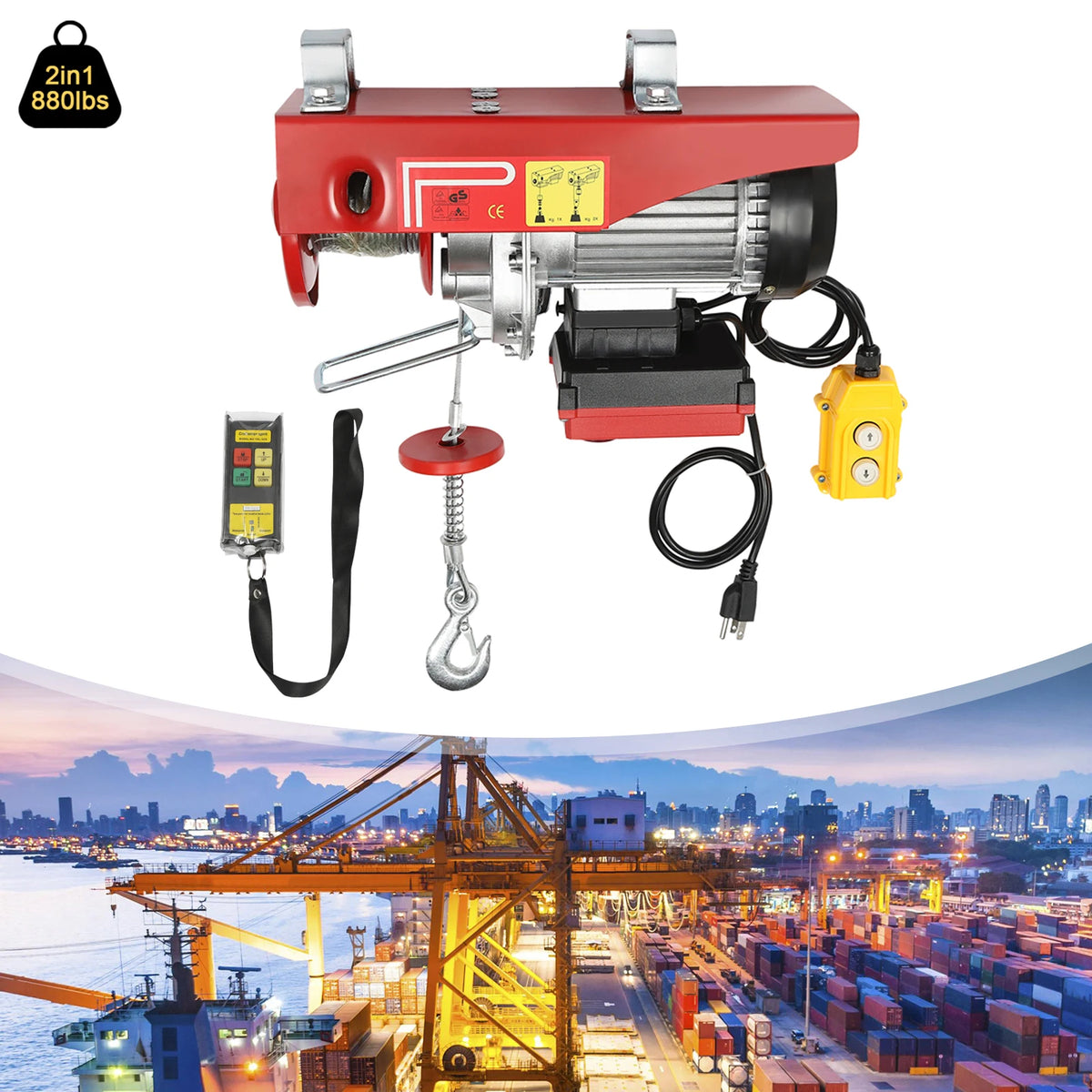

Application

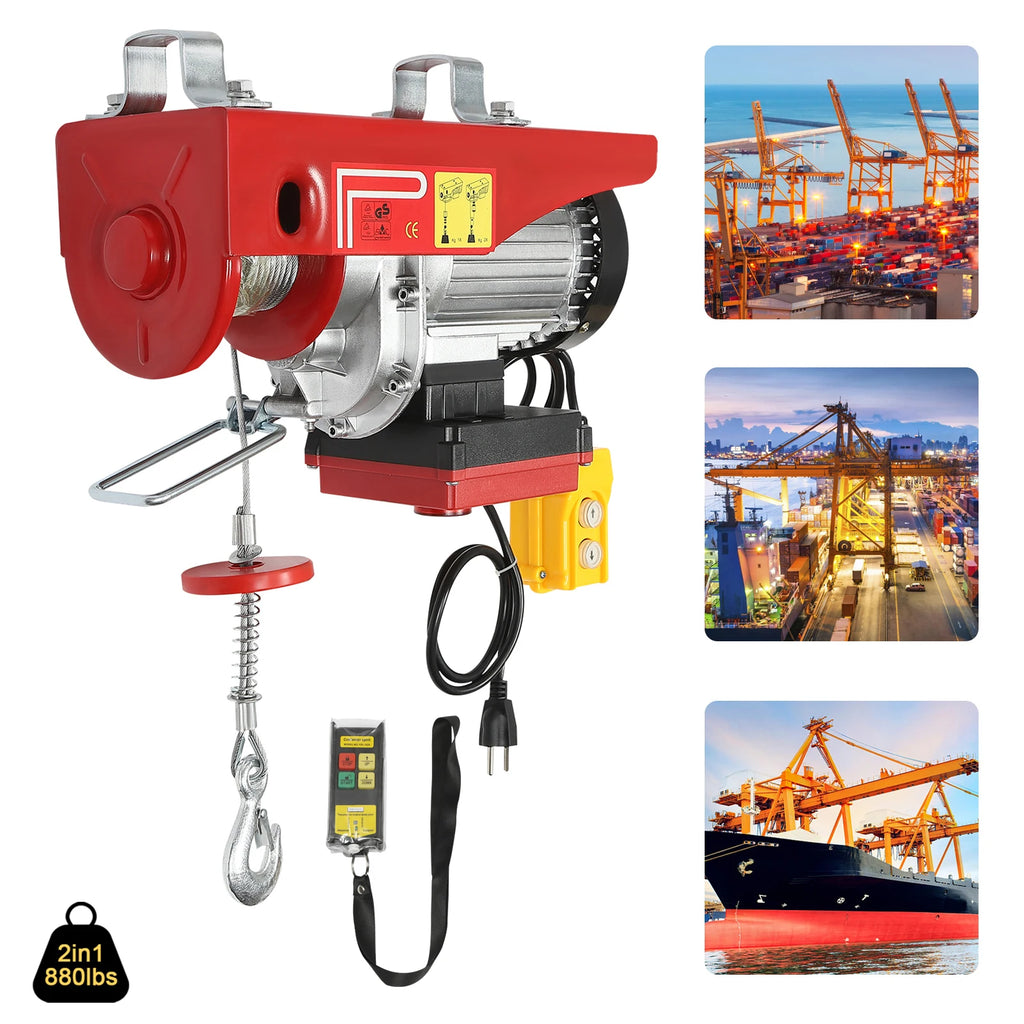

It is also suitable for professionals and amateurs, perfect for air conditioning installation, home renovation, cargo handling, factory lifting, garages, stores, hotels, and homes, boat repair, cars, lawnmowers, golf carts, home improvement, engines, boulders, trees, etc. This electric lift is ideal not only for lifting machinery but also for hanging prey.

Notes

1. Please note that the width and height of the boom should not exceed the internal dimensions of the mounting bracket.

2. Please ensure that all persons in the immediate area are informed and warned of the need for safety before lifting and moving heavy objects. If necessary, set up a lifting area to remind unoccupied and uninvolved persons that they are not allowed in.

3. If the hook is cracked or deformed, or if the wire rope is kinked or corroded, please do not use the product.

4.  Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
