SPECIFICATIONS

Brand Name: HAXNFIELEC

Filter Technology: EMI

Grounding: Standard Grounding

High-concerned chemical: none

Input Voltage: AC 110V-250V(Max 250V)

Input/Output Interface: Three wire 7.62 wiring socket

Origin: Mainland China

Output Voltage: AC 110V-250V

Rated Current of Load: 8A/10A/15A/18A

Type: Three stage EMI power filter

WIFI: No

8A 10A 15A 18A EMI Electromagnetic Interference Power Filter

Filtering Pulse Surge Lightning Protection Common mode Suppressor

Features:

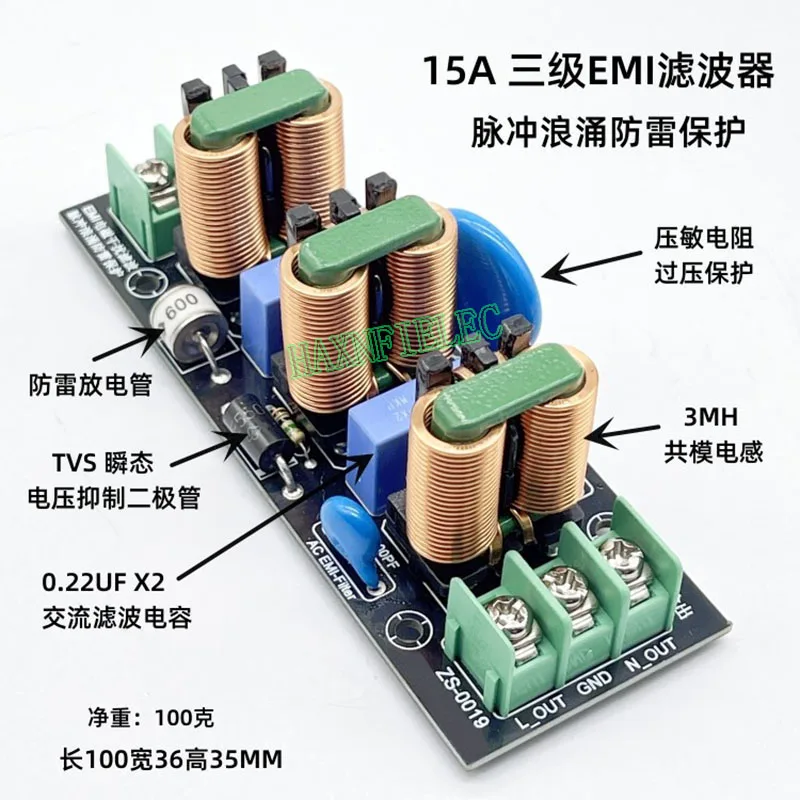

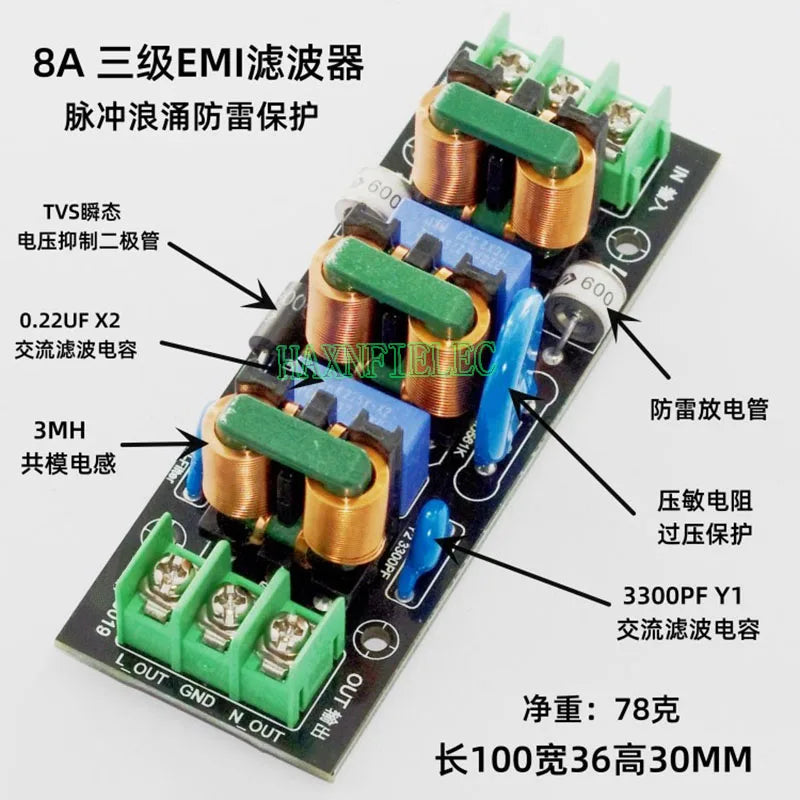

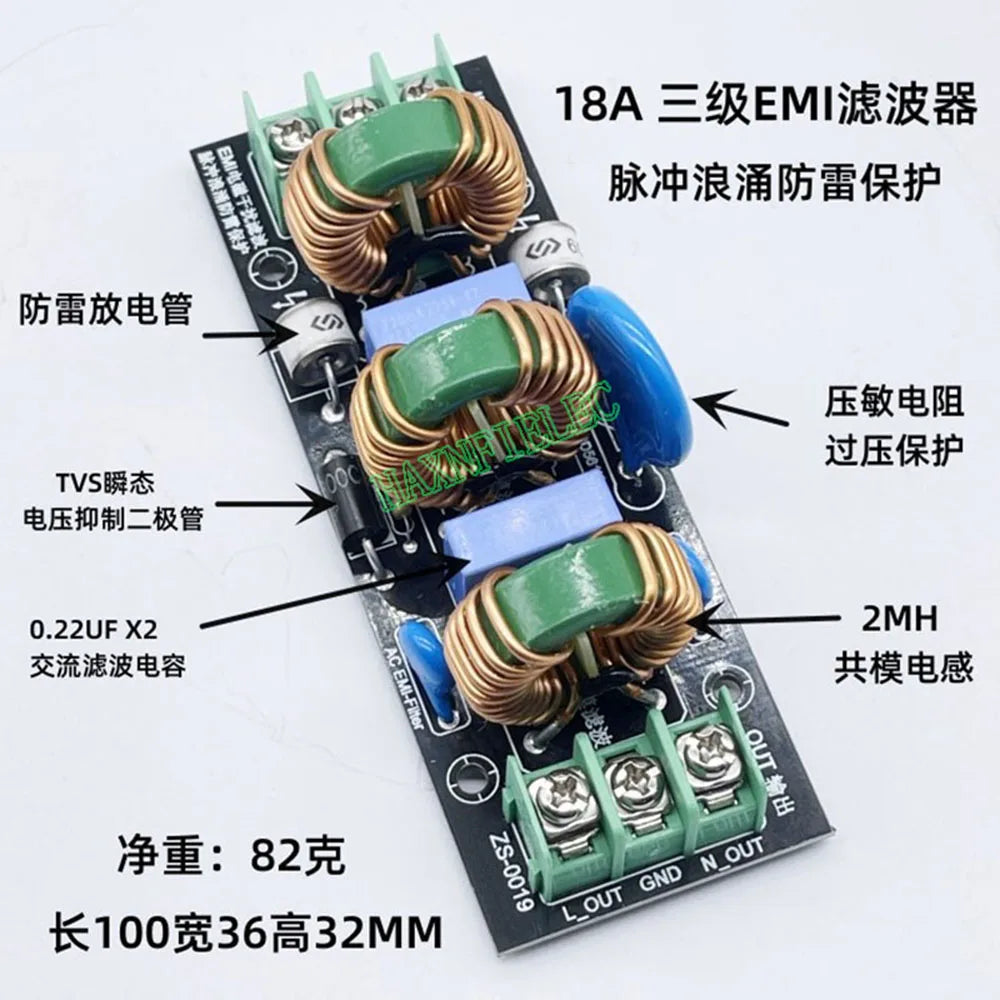

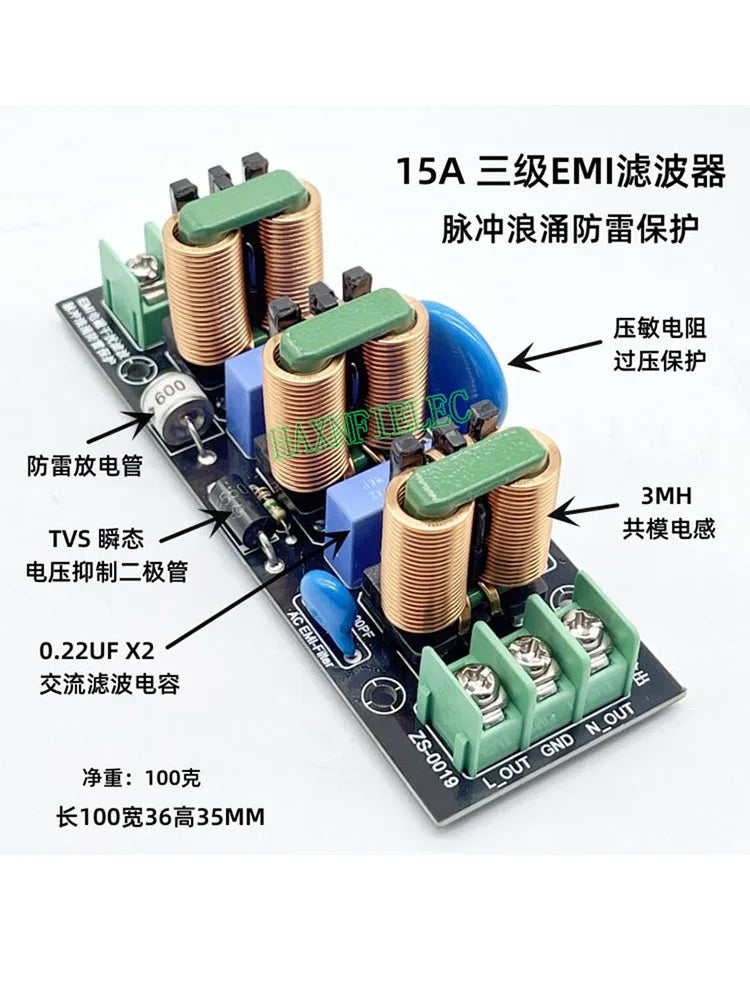

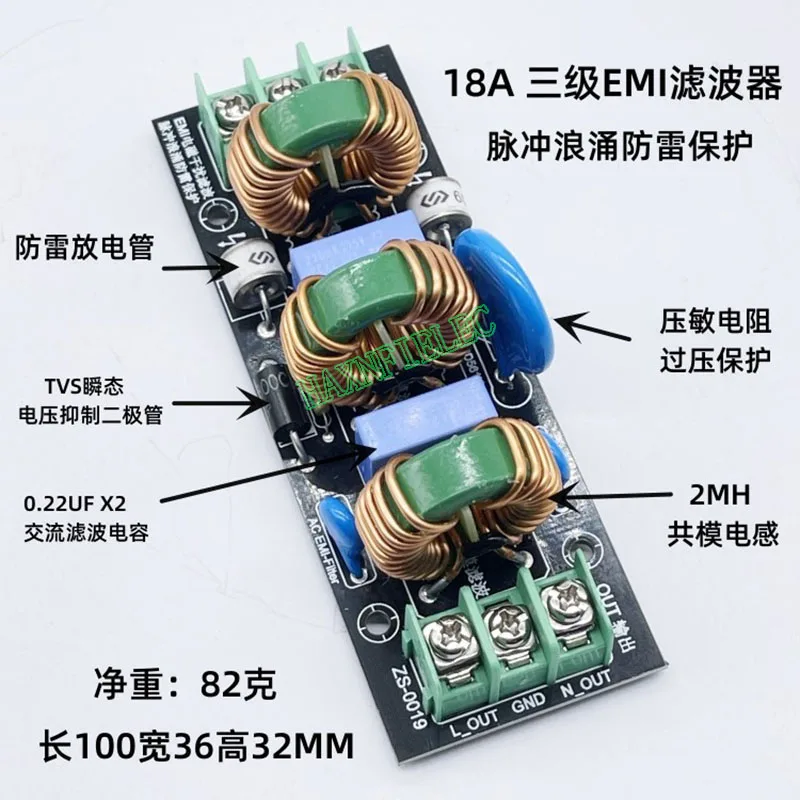

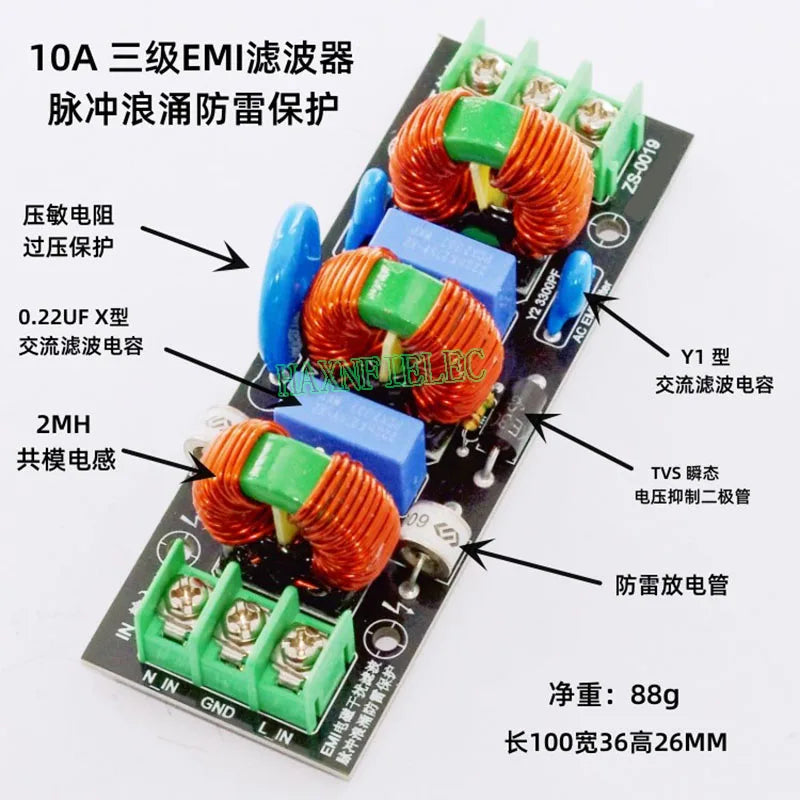

1> The pulse surge lightning and overvoltage protection circuit adopts lightning discharge diodes and TVS transient voltage suppression diodes, providing multiple protections to effectively prevent damage to equipment caused by surges, high voltage, lightning strikes, etc.

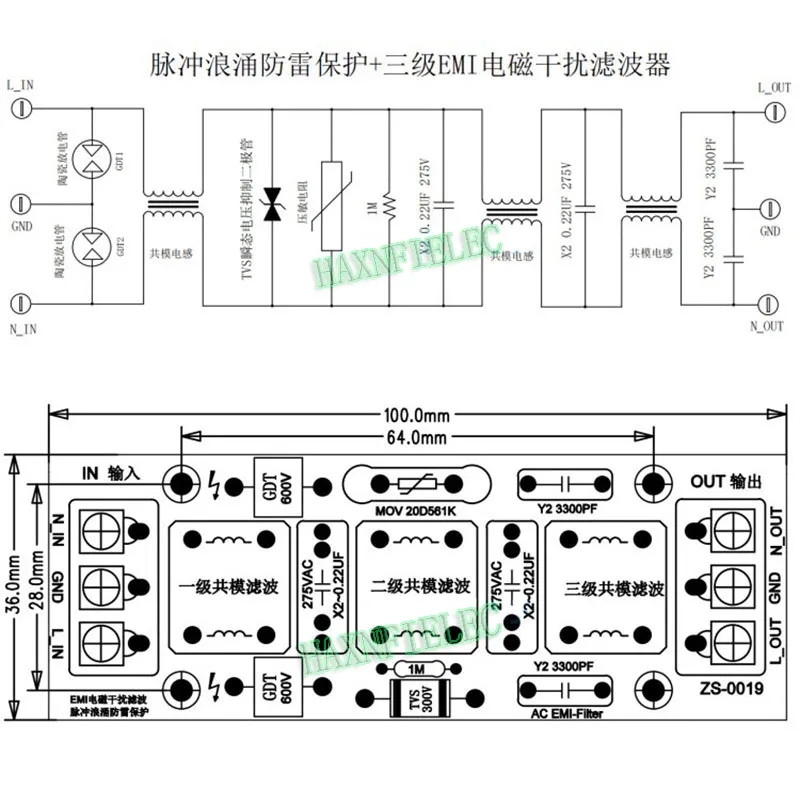

2> Three sets of common-mode filter, through the X2 capacitor and common mode inductor, combined into the common mode filter. Due to it is use of three stages filtering, so the filtering effect is more better. In view of the problem of rapid transient group pulse interference with repetition rate of several kilohertz in some users, it can play an inhibitory role.

Notice: This filter filters high-frequency interference components in the AC power supply, preventing interference from the power grid from entering electrical equipment, and also preventing interference from equipment from entering the power grid and interfering with other electrical equipment. Used in power amplifiers and speakers, it can only improve the quality of the power supply and cannot solve the problem of current noise. The current noise of the power amplifier is caused by the ground loop of the power amplifier, and can only be solved from the design of the board. There is no external filtering device that can solve this problem.

Parameters:

Name: Three stage EMI power filter

Input Voltage: AC 110V-250V(Max 250V)

Output Voltage: AC 110V-250V

Rated Current of Load: 8A/10A/15A/18A

Input/Output Interface: Three wire 7.62 wiring socket

Function: 1> Pulse surge+lightning protection, overvoltage protection.

                  2> Three level common mode filtering, bidirectional EMI filtering to prevent interference, extend the service life of electrical appliances and increase equipment stability.

Packing List:

1pcs x Three stage EMI power filter
