8Bit Low Level TTL to RS485 Converter Module MODBUS RTU PNP Switch Signal Collector DC 12V 24V

8Bit Low Level TTL to RS485 Converter Module MODBUS RTU PNP Switch Signal Collector DC 12V 24V

$28.88

$28.88 $0.00

Description

SPECIFICATIONS

Application: TTL to RS485

Brand Name: IS

Command control mode: MODBUS RTU 03 06 16

Condition: New

Dissipation Power: none

High-concerned chemical: none

Module Size: 44*29*13mm

Operating Temperature: -25-85 Celsius

Origin: Mainland China

Package: SOP

Parallel equipment: 247(MAX)

Supply Voltage: DC 6V-24V

Type: Logic ICs

Work current: 8-12mA

Work mode: 8bit-input

is_customized: Yes

1.Description:
R4DIF08 is a 8Bit TTL to RS485 Converter Module. User can control R4DIF08 by MODBUS RTU 03 06 16 AT command. It can be used 8-channel input to meet a variety of different application scenarios.

2.Features:
1>.Controllable high/low signal input/output
2>.8-Channel TTL signal control
3>.MODBUS RTU 03 06 16 programmable control
4>.Support up to 247 devices in parallel
5>.Automatically report input status

3.Parameters:
1>.Product name: R4DIF08 8Bit TTL to RS485 Converter Module
2>.Work voltage:DC 6V-24V
3>.Work current:8-12mA
4>.Command control mode:MODBUS RTU 03 06 16
5>.Work mode:8bit-input
6>.Level input :Low level signal(default),High level signal
7>.Baud rate:Adjustable 1200~19200bps(default 9600bps)
8>.Parallel equipment:247(MAX)
9>.Work Temperature:-40℃~80℃
10>.Work Humidity:10%~90%RH

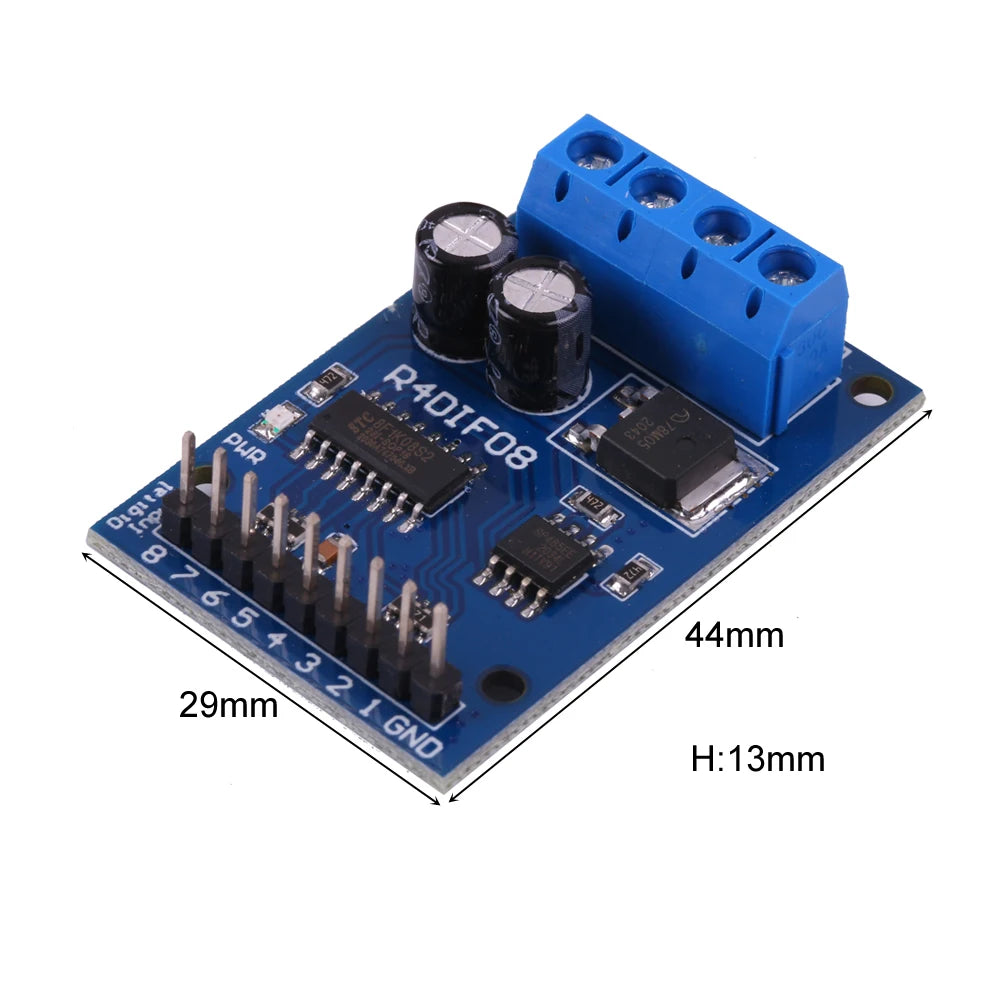

11>.Module Size:44*29*13mm

4.Note:

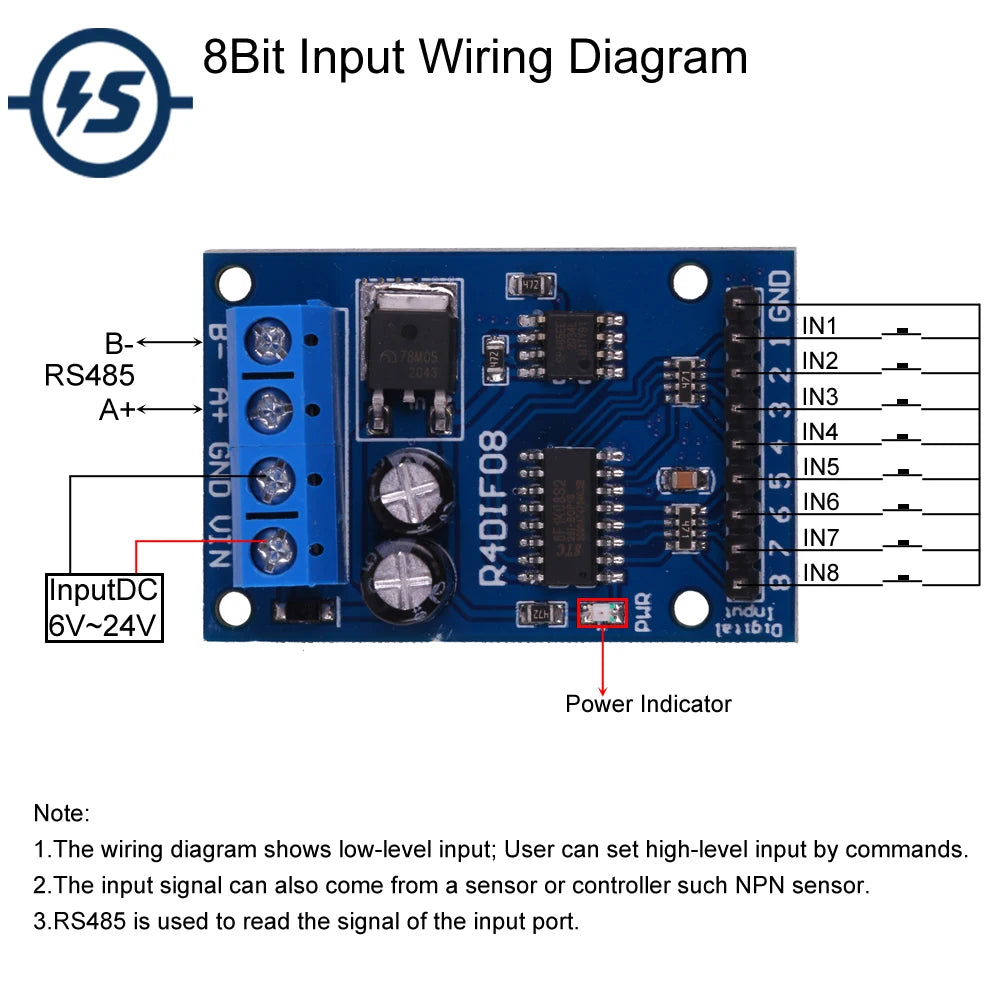

1>.Its status is 8-channel Low level signal input TTL to RS485 Converter.
2>.There are so many MODBUS RTU control commands that the page cannot be filled in. After purchase, please contact us to send MODBUS RTU control instructions.

5.Application:
1>.Data monitoring field
2>.Water tank monitor
3>.Production line product inspection
4>.Counting statistics field

6.Package:
1>.R4DIF08 8Bit TTL to RS485 Converter Module
