8CH DC 12V RS485 DS18B20 Temperature Sensor Temperature acquisition collector module for Paperless recorder PLC Configuration

8CH DC 12V RS485 DS18B20 Temperature Sensor Temperature acquisition collector module for Paperless recorder PLC Configuration

$70.47

$70.47 $0.00

Description

SPECIFICATIONS

Application: Other

Brand Name: eletechsup

Choice: yes

Condition: New

Dissipation Power: 0.1W

High-concerned chemical: none

Operating Temperature: -40-85

Origin: Mainland China

Package: SMD

Supply Voltage: DC 6-24V

Type: Other

is_customized: Yes

Download instruction manual link:

https://1drv.ms/u/s!AjrAGEbCBLlsgekxBiDFYHPyz4cwPw?e=Prgnt2

Product Name: 8CH DC 12V RS485 DS18B20 Temperature Sensor Temperature acquisition collector module for Paperless recorder PLC Configuration Software

Packing list:

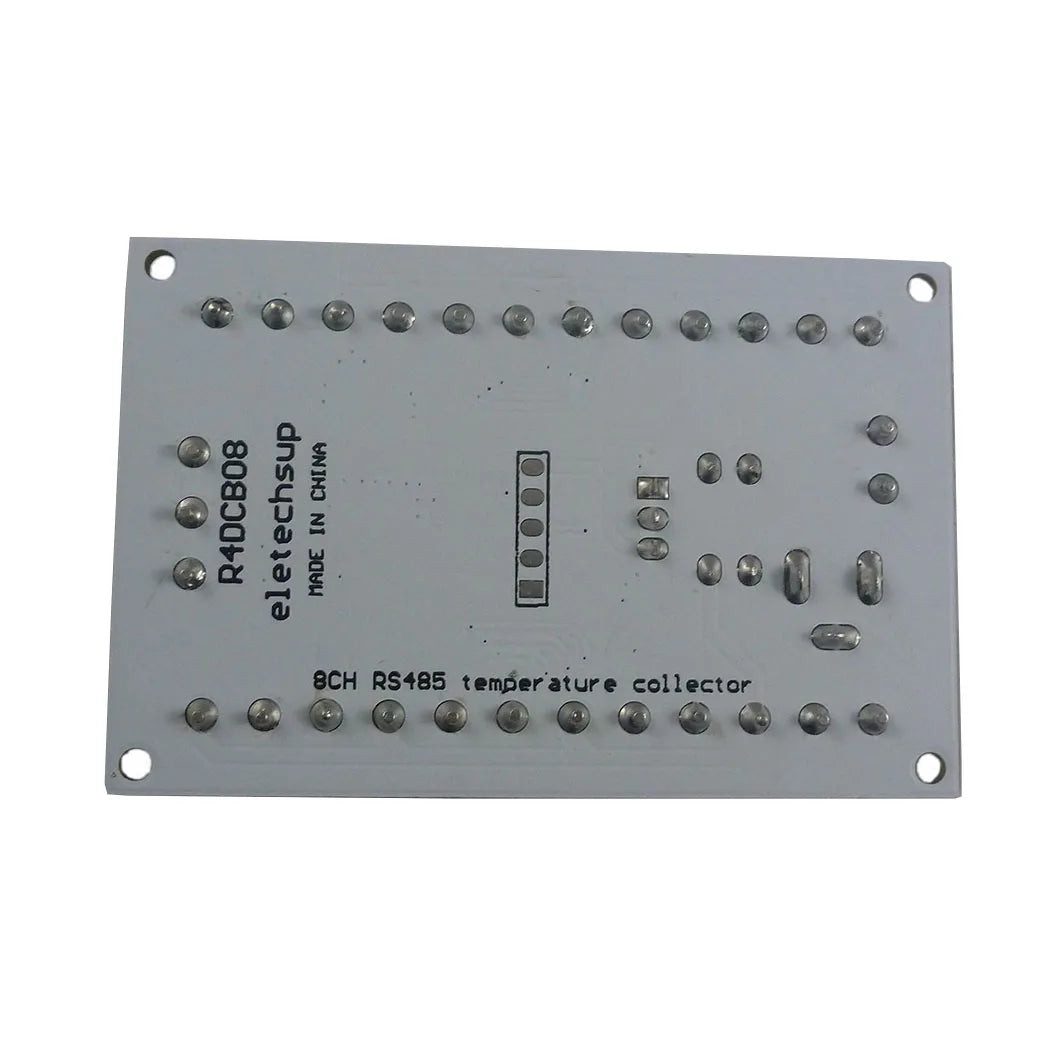

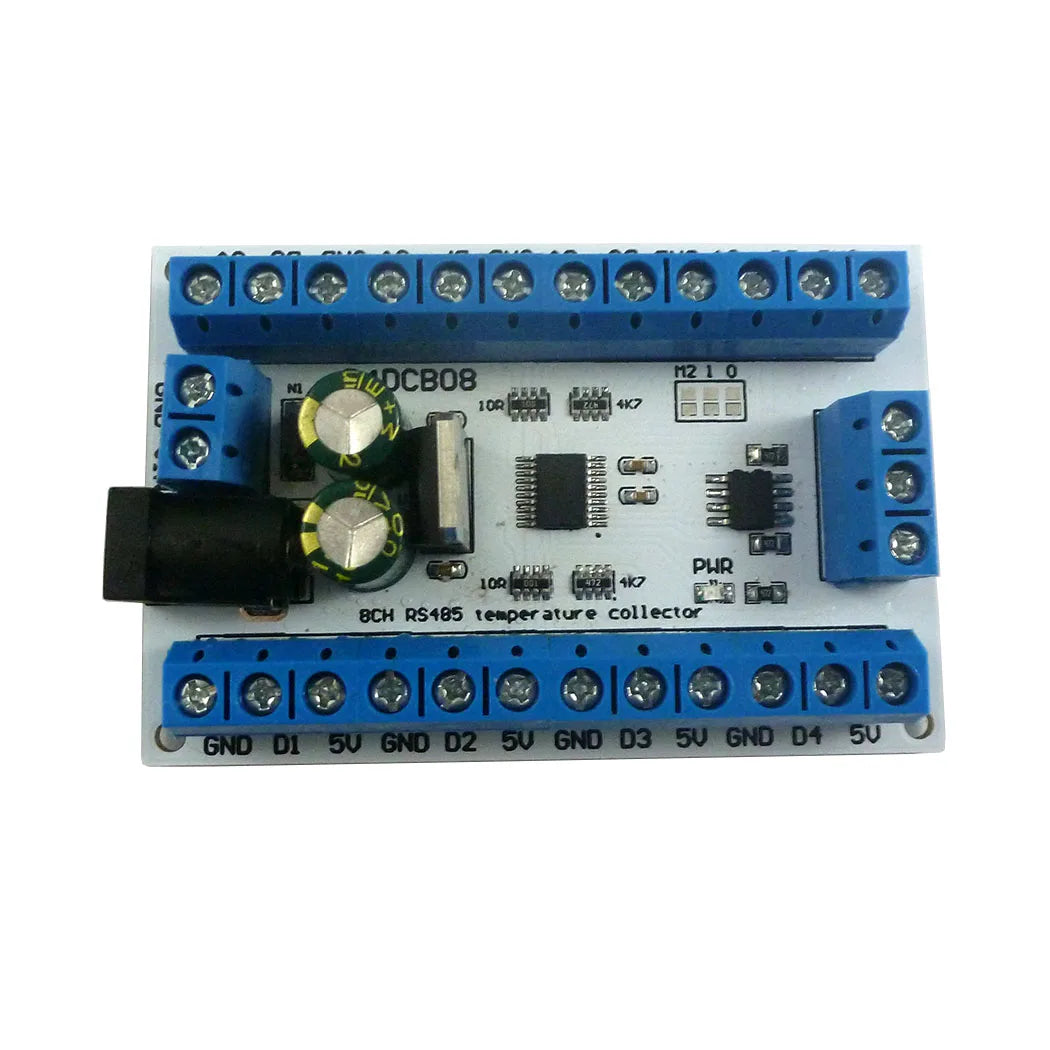

1 pcs R4DCB08 8CH RS485 Temperature sensor Board

Description :

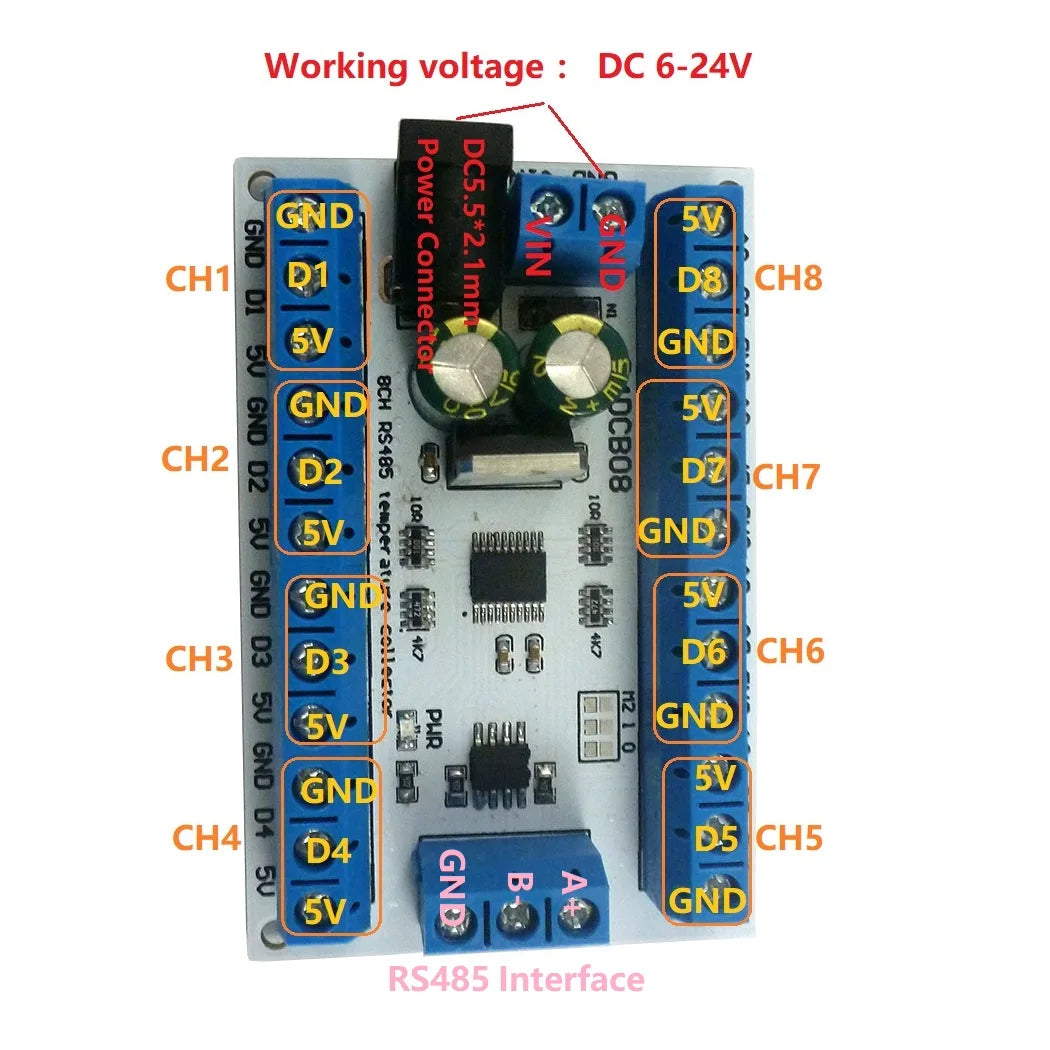

1: Operating Voltage : DC 6-24V(DC 9V 12V 15V 24V)

2: Operating Current :8-13MA(It is related to the number of external DS18B20)

3: MODBUS RTU Command support 03 06 function code

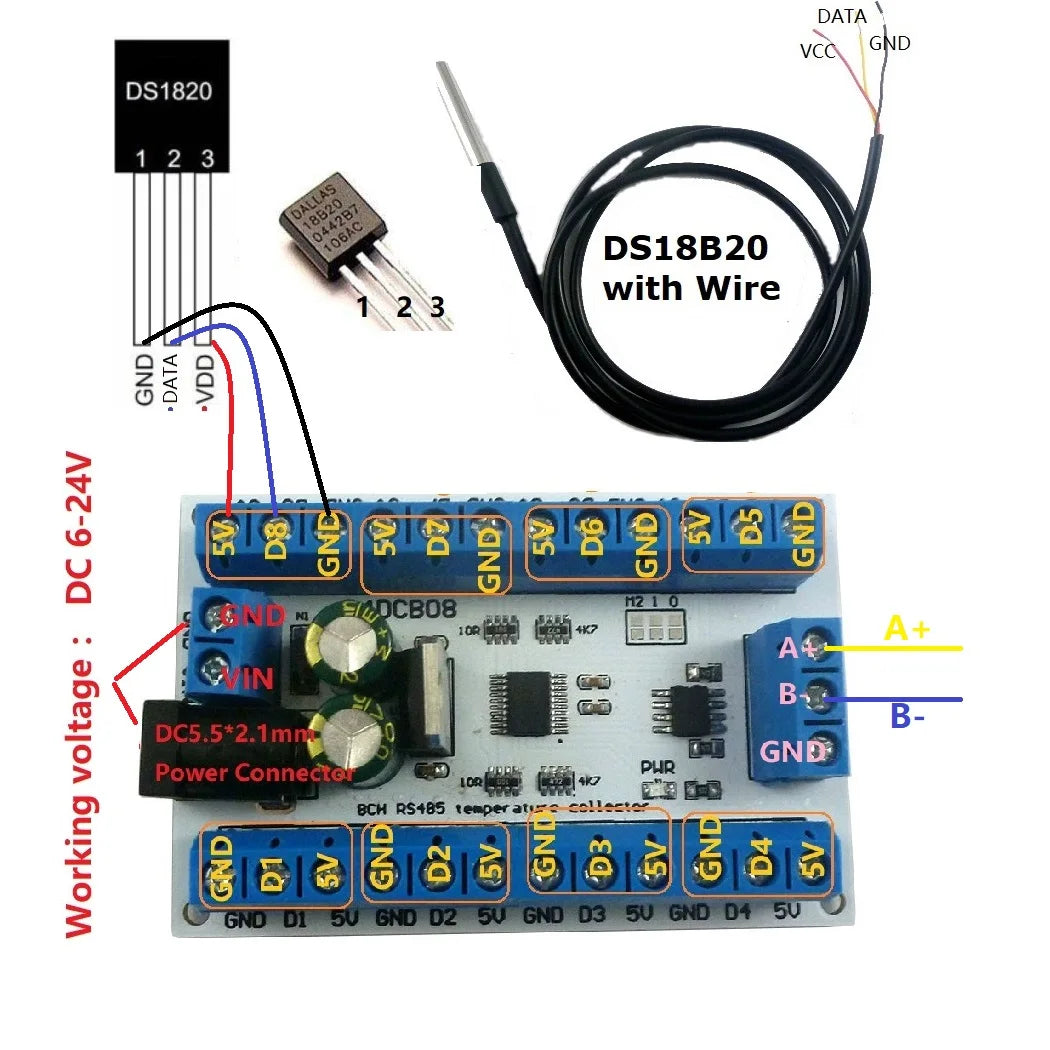

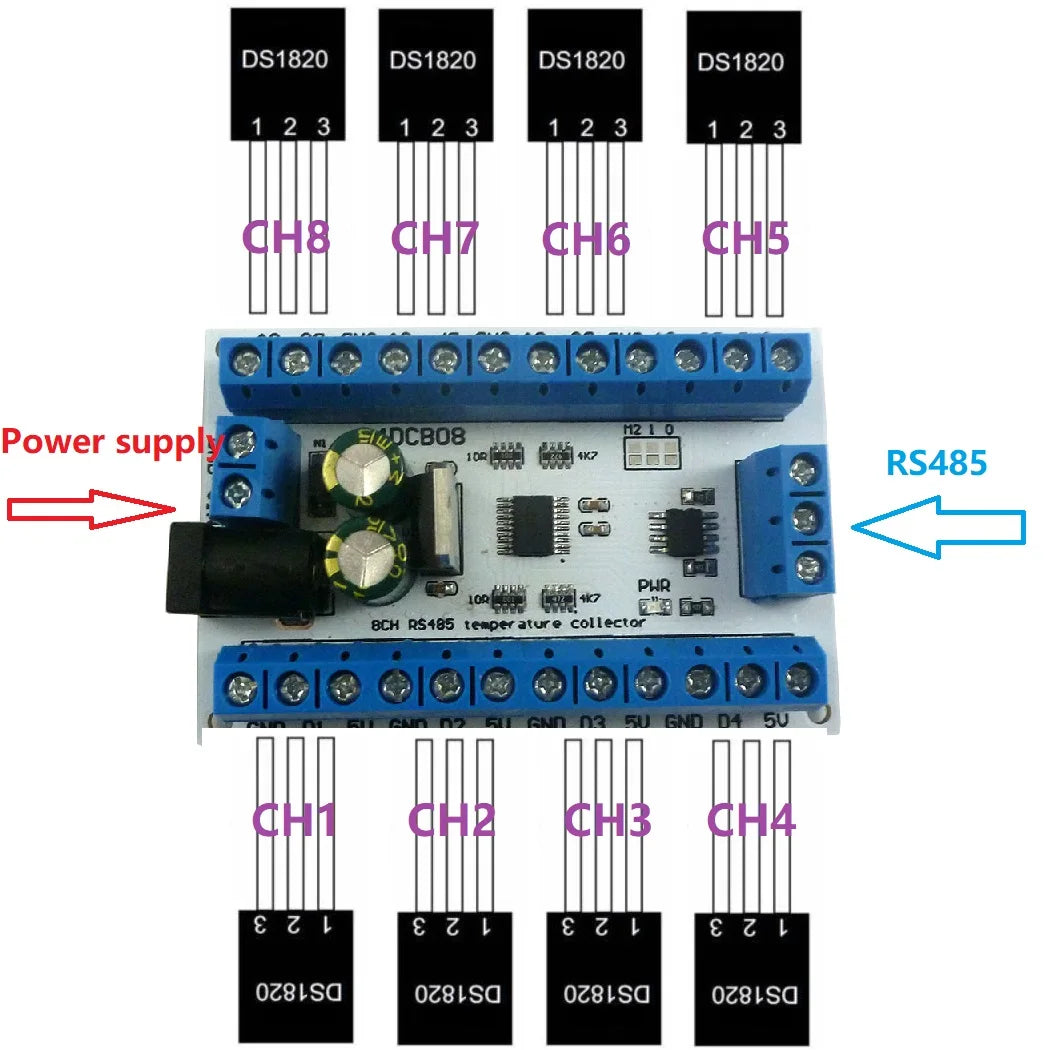

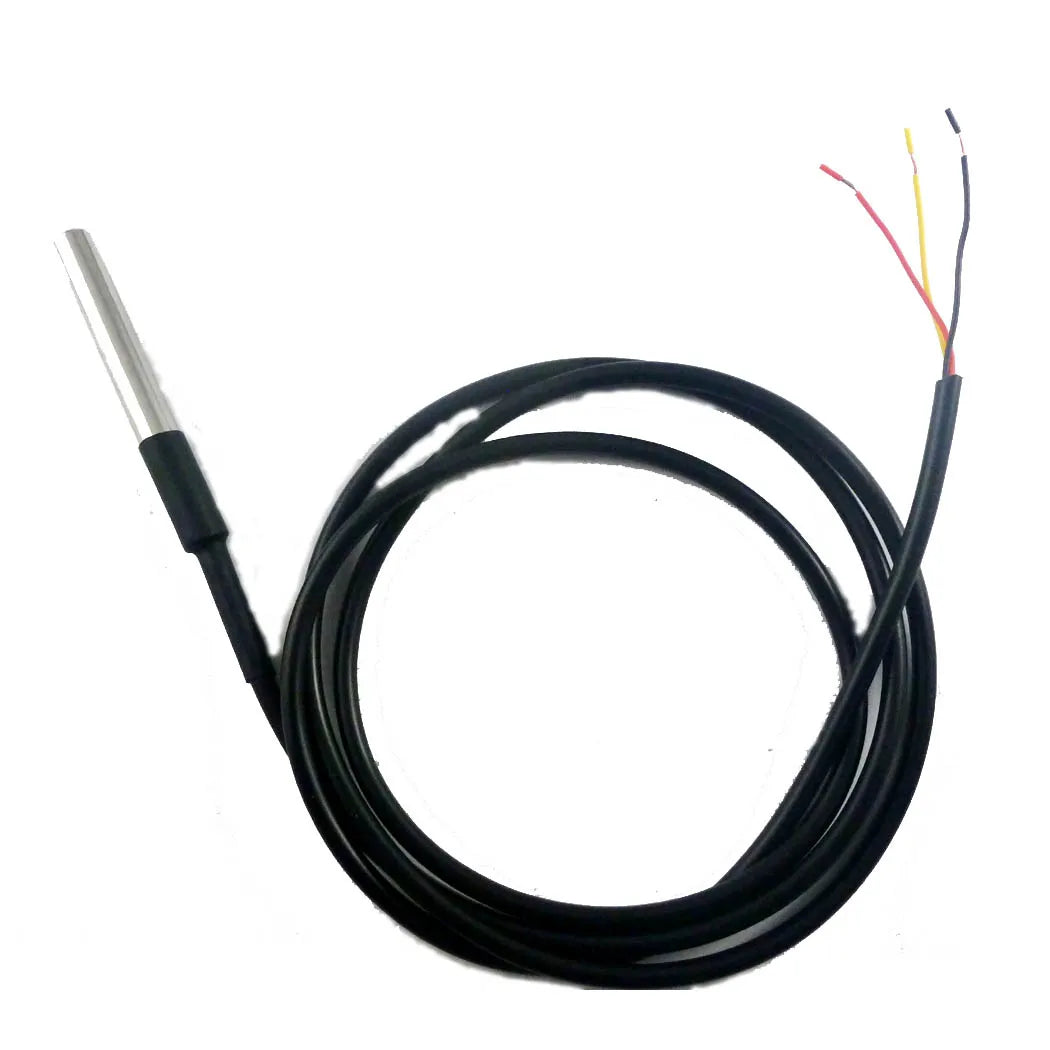

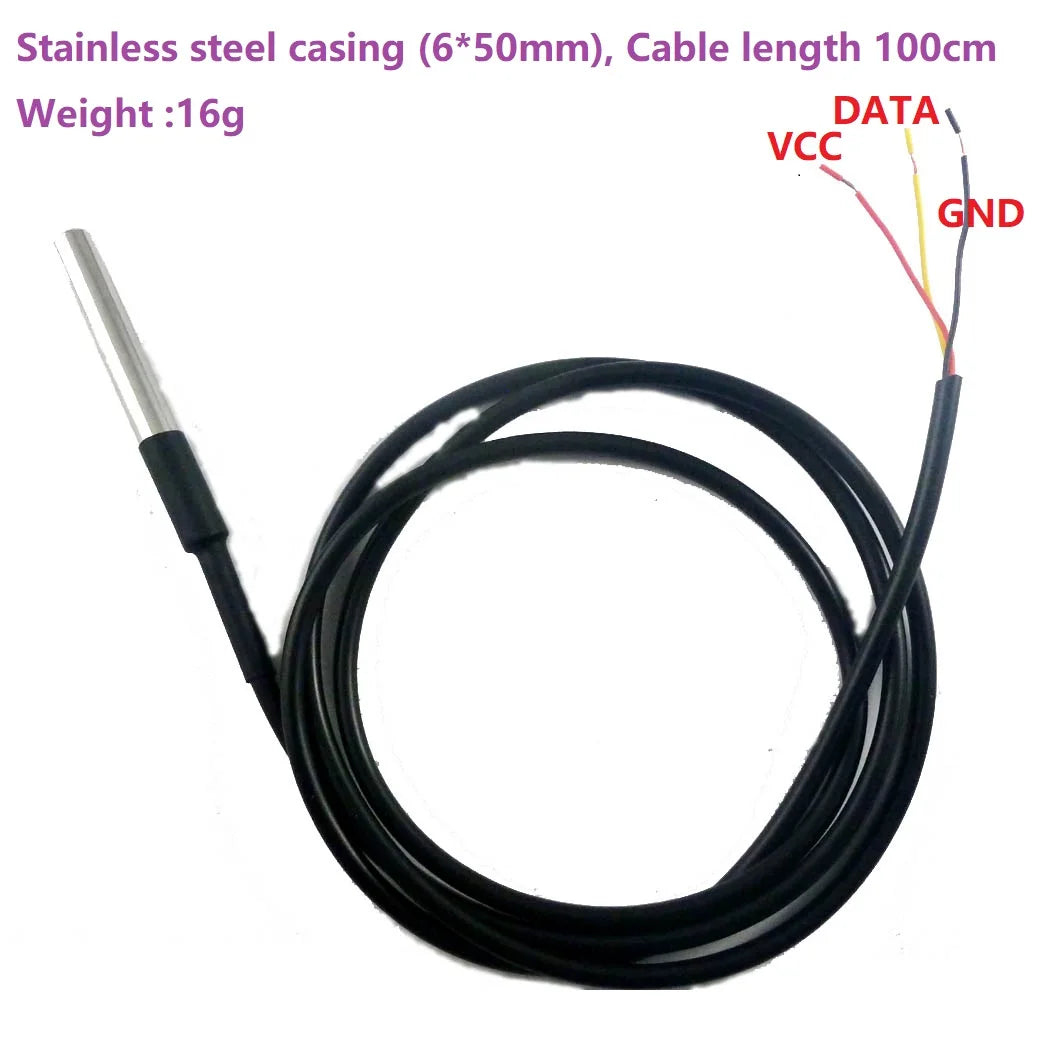

4Temperature sensor is DS18B20, Up to 8 DS18B20 temperature sensors can be connected at the same time

5 Measures Temperatures from -55°C to +125°C(-67°F to +257°F)
±0.5°C Accuracy from -10°C to +85°C

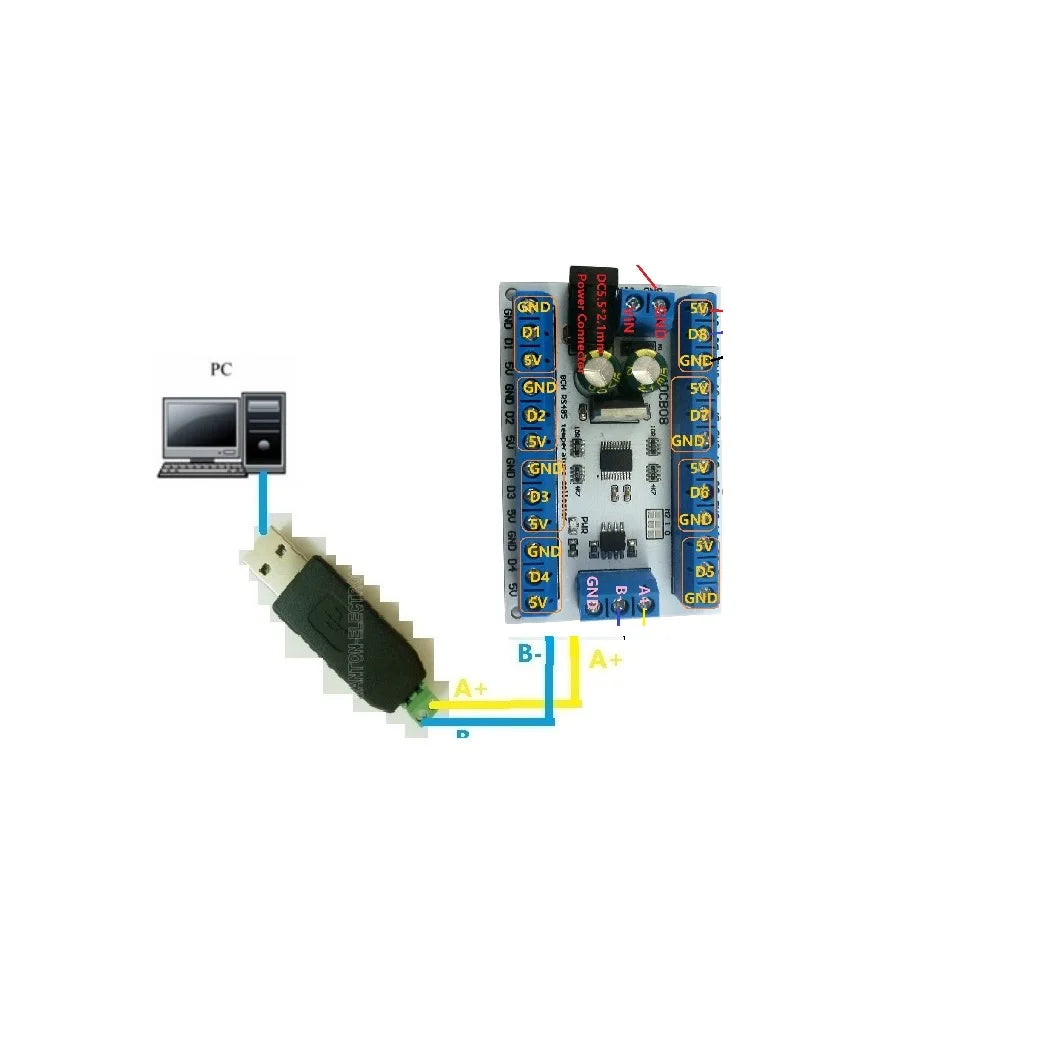

6 :MODBUS commands can be made serial HyperTerminal (serial assistant) OR PLC Enter;

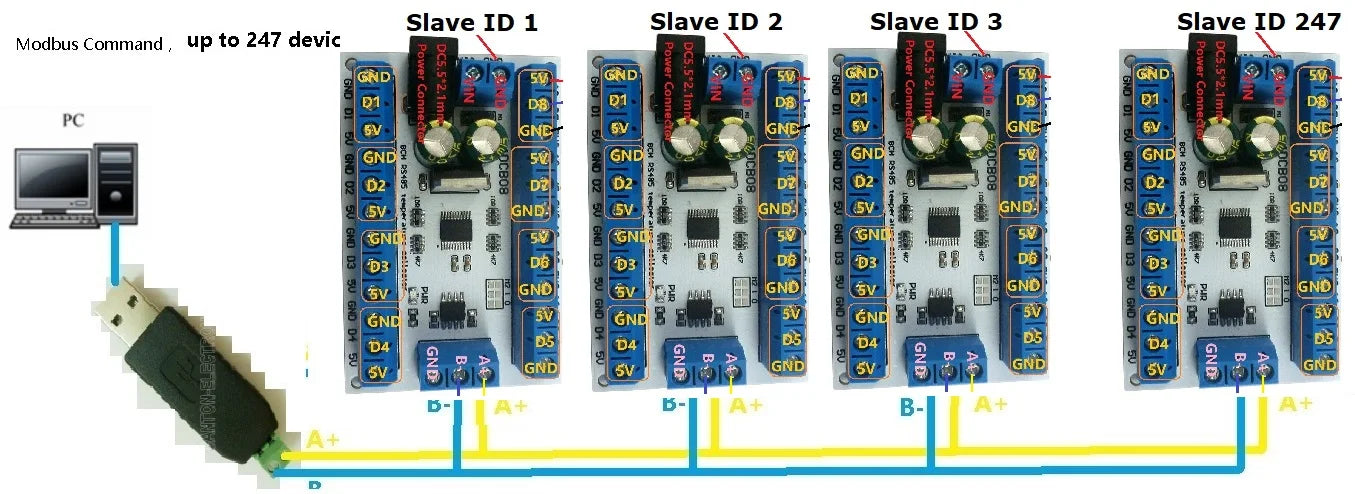

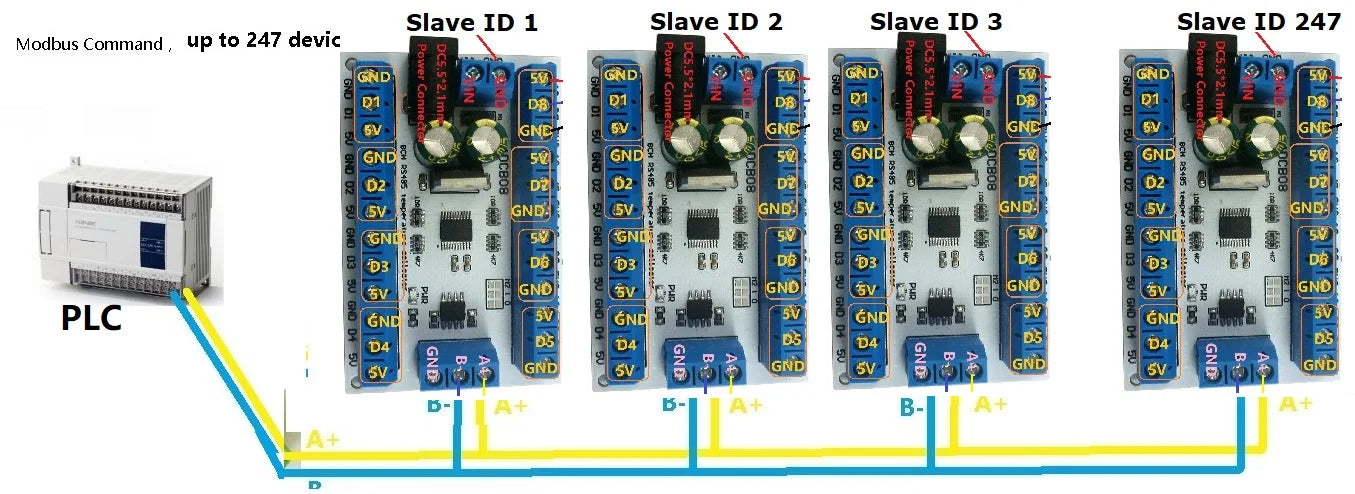

7 :Under the MODBUS command mode, it can support up to 247 devices in parallel

8 :Size: 70 * 46 * 18mm
9 :Weight: 40 g

Typical application:

Thermostatic Controls
Paperless recorder
Industrial Systems
Consumer Products
Thermometers
Thermally Sensitive Systems
Indoor and outdoor temperature measurement
Temperature in vegetable garden
Weather forecasting, and monitoring
Temperature in Computer Room
Warehouse temperature
PLC
Configuration Software
