8CH Modbus RTU RS485 R4DCB08 Temperature Receiver Relay Module Temperature Acquisition Collector Paperless Recorder for PLC

8CH Modbus RTU RS485 R4DCB08 Temperature Receiver Relay Module Temperature Acquisition Collector Paperless Recorder for PLC

$72.44

$72.44 $0.00

Description

SPECIFICATIONS

Adapted Sensor: DS18B20 Temperature Sensor(Not included!!!)

Application: Computer

Brand Name: IS

Command Control Mode: RS485 MODBUS RTU 03 06

Condition: New

Feature 1: RS485 Temperature Monitor

Feature 2: Modbus Temperature Controller

Feature 3: Temperature Relay Module

High-concerned chemical: none

Measurement Accuracy: 1%

Operating Temperature: -40~80 Celsius

Origin: Mainland China

Package: DIP

Supply Voltage: DC 6-24V

Temperature Range: -55℃~125℃

Type: Drive IC

Work Current: 8mA~13mA

Work Humidity: 10%~90% RH

is_customized: Yes

8CH Modbus RTU RS485 R4DCB08 Temperature Receiver Relay Module Temperature Acquisition Collector Paperless Recorder for PLC Configuration Data Signal Controller Recorder

1.Description:

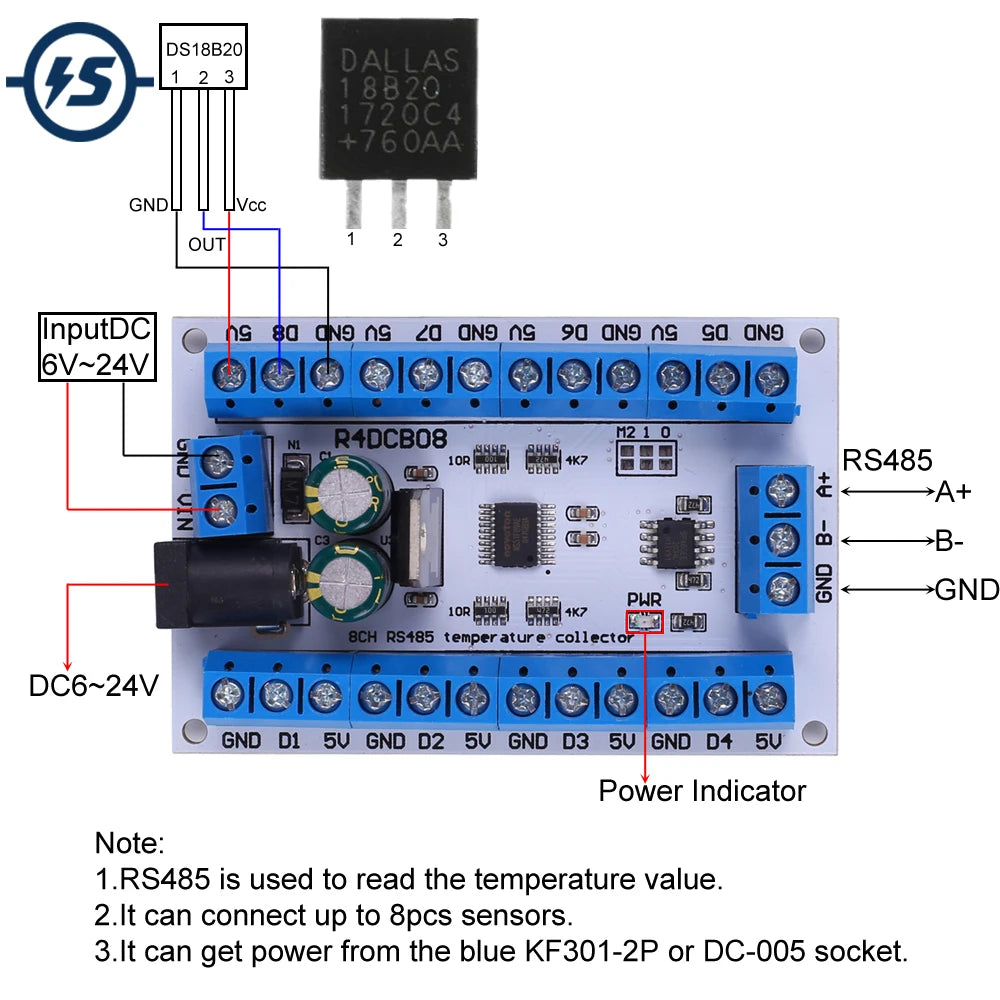

R4DCB08 is a 8Bit RS485 Temperature Receiver for 8pcs DS18B20 sensors. It can read 8 temperature value from 8 DS18B20 sensors and output by RS485 terminal.Users can read the temperature of different monitoring points, which is convenient for equipment and temperature control.

2.Features:
1>.Read 8-channel temperature
2>.RS485 MODBUS RTU 03 06 programmable control
3>.Support up to 247 devices in parallel

3.Parameters:
1>.Product name:R4DCB08 8Bit RS485 Temperature Receiver for 8pcs DS18B20 sensors
2>.Work voltage:DC 6V-24V
3>.Work current:8mA~13mA
4>.Command control mode:RS485 MODBUS RTU 03 06
5>.Adapted sensor:DS18B20 Temperature Sensor(Not included!!!)
6>.Temperature range:-55℃~125℃
7>.Measurement accuracy:1%
8>.Work Temperature:-40℃~80℃
9>.Work Humidity:10%~90%RH

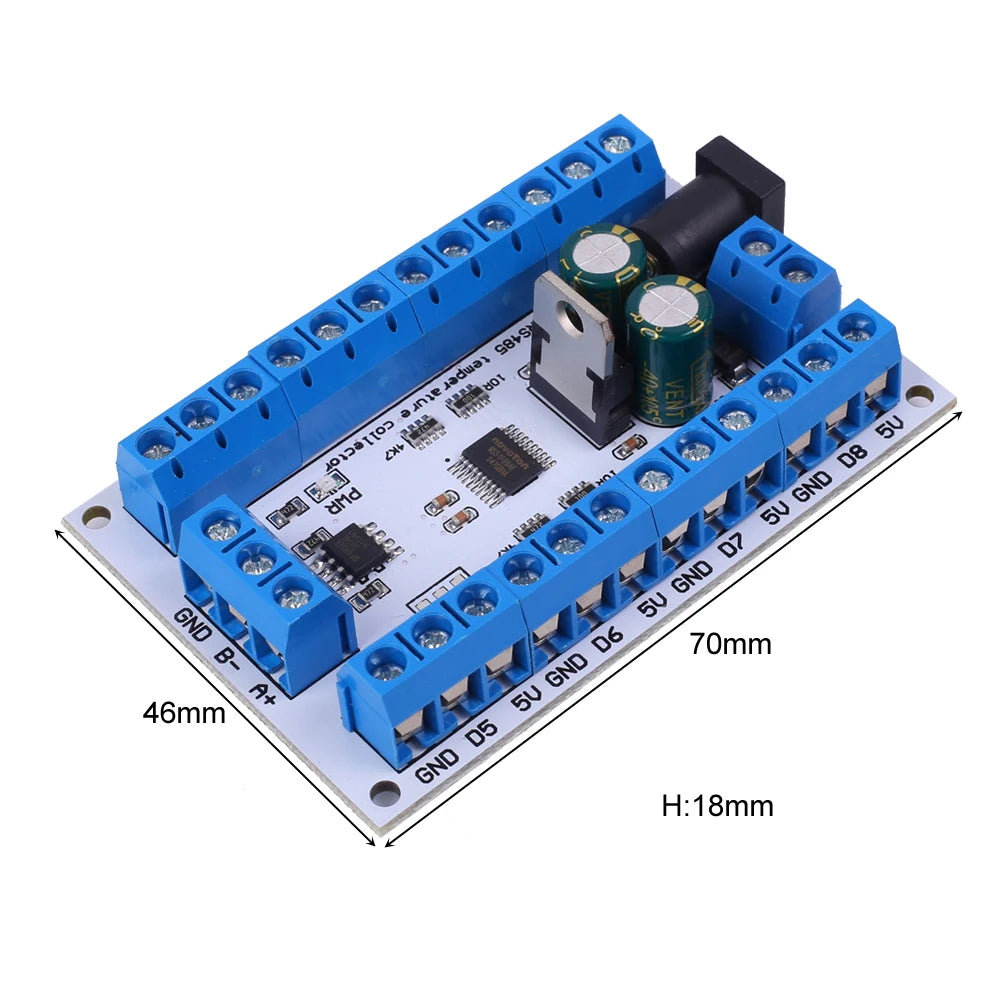

10>.Module Size:70*46*18mm

4.Note:
1>.It is a DS18B20 temperature reader but not include DS18B20 sensor.
2>.There are so many AT and UART control commands that the page cannot be filled in. After purchase, please contact us to send AT and UART control instructions.

5.Application:
1>.Aquarium temperature measurement
2>.Equipment temperature monitoring
3>.Intelligent control of greenhouse planting
