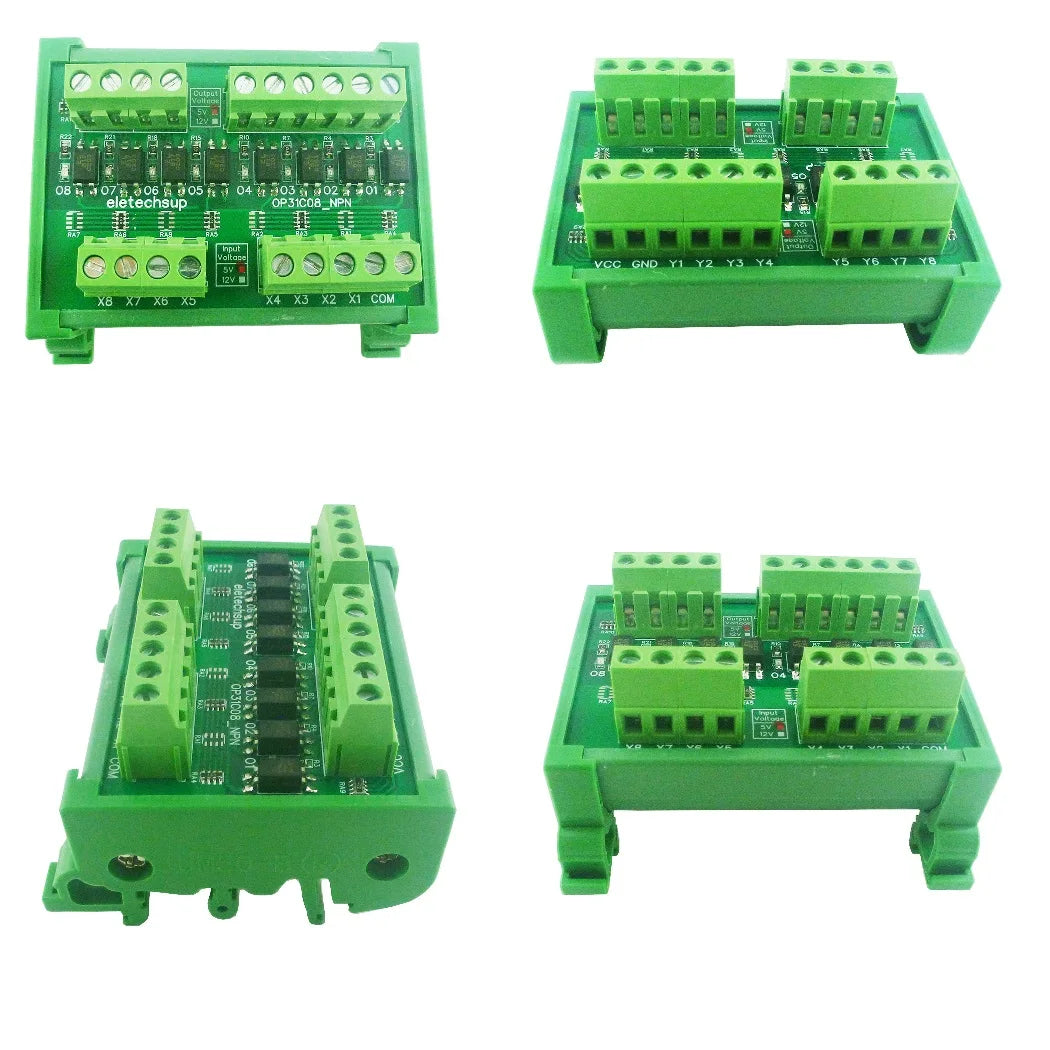

8CH Opto Isolated Level Converter Module NPN PNP 3.3V 5V 12V 24V for Arduino PLC Raspberry Pi MCU 3000V Isolation

8CH Opto Isolated Level Converter Module NPN PNP 3.3V 5V 12V 24V for Arduino PLC Raspberry Pi MCU 3000V Isolation

$32.04

$32.04 $0.00

Color In 3-8V Out 3-8V In 9-24V Out 9-24V In 9-24V Out 3-8V In 3-8V Out 9-24V

Socket Type NPN to NPN PNP to PNP

Output Voltage only Board with Box

Description

SPECIFICATIONS

Brand Name: eletechsup

Certification: NONE

Choice: yes

High-concerned chemical: none

Model Number: OP31C08

Origin: Mainland China

Output Current: =<9MA

Output Frequency: DC-DC

Output Type: SINGLE

Size: 76*63*44MM

Type: DC/DC Converters

Weight: 75g

is_customized: Yes

semi_Choice: yes

Product Name:8ch 3.3V 5V 12V 24V TTL LvTTL Digital Logic Level Conversion Module NPN PNP Isolation Protection Panel for ARDUINO PLC MCU PI

Packing list:

1 PCS 8CH DC 3.3V/5V/12V/24V NPN TO NPN (
PNP TO PNP) Opto-isolated level conversion module

Description:

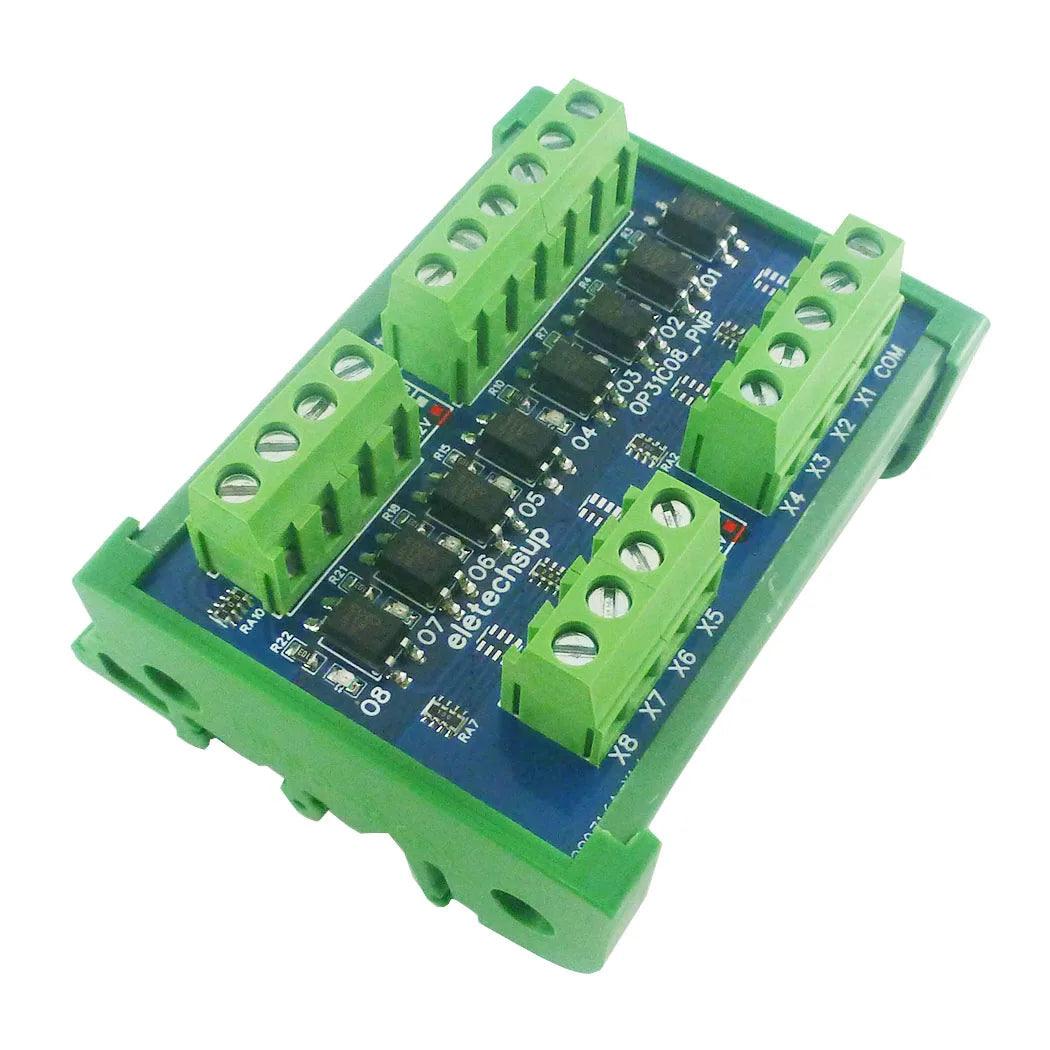

This is a 8-channel photoelectric isolation module, which can realize NPN to NPN(PNP to PNP) conversion, and can realize any level conversion of 3-24V. It is a reliable MCU PLC input and output port isolation module.

Input level : 3-8V/9-24V two versions
Output level: 3-8V/9-24V two versions
Working current: 3-8V out version 4-20MA; 9-24V out version 6-25MA
Input signal type: NPN/PNP
Output signal type: NPN/PNP
Input signal current: 3-8V version 4-15MA; 9-24V version 3-9MA
Output signal current: 3-8V version 1-3MA; 9-24V version 2-5MA
Isolation voltage: 3000V
Signal frequency: <10KHz
Working temperature: -40-110 degrees Celsius

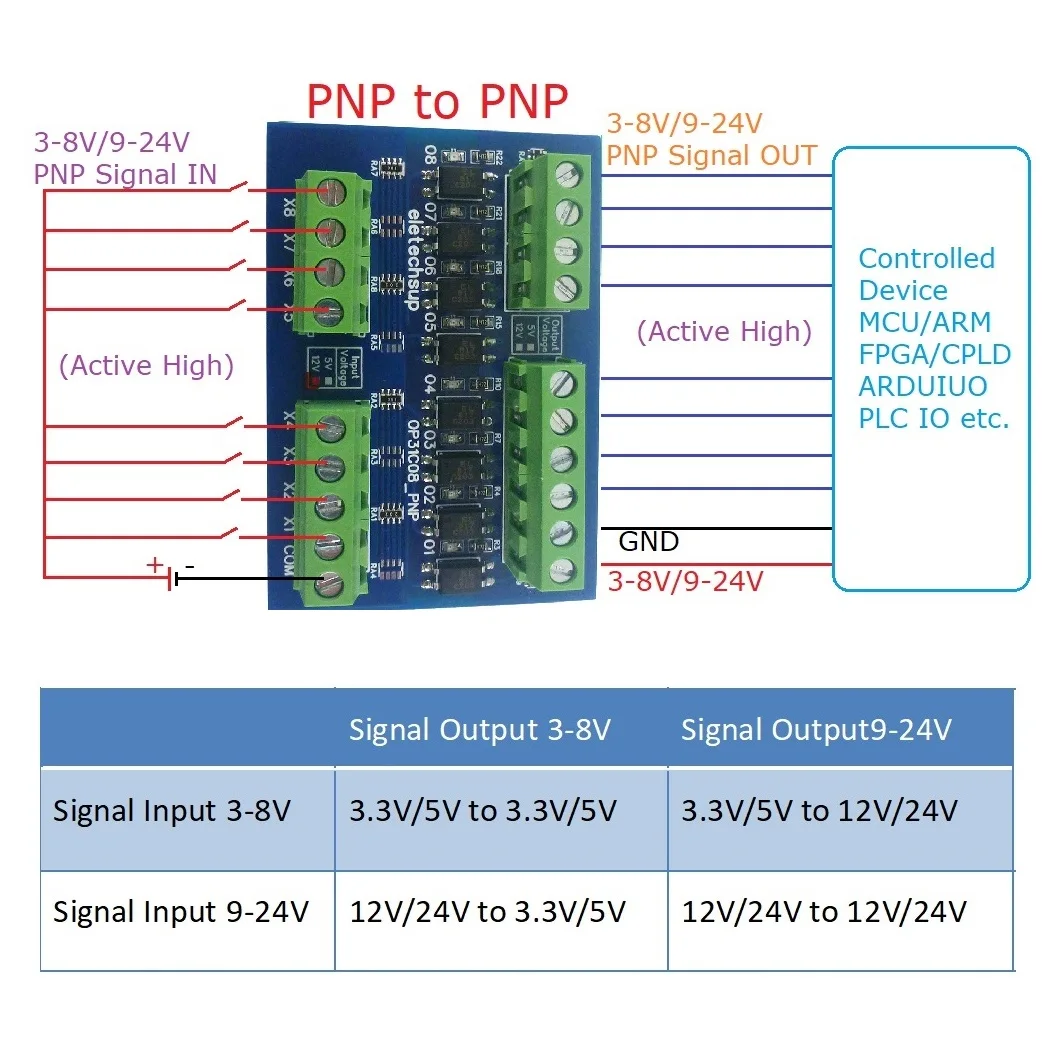

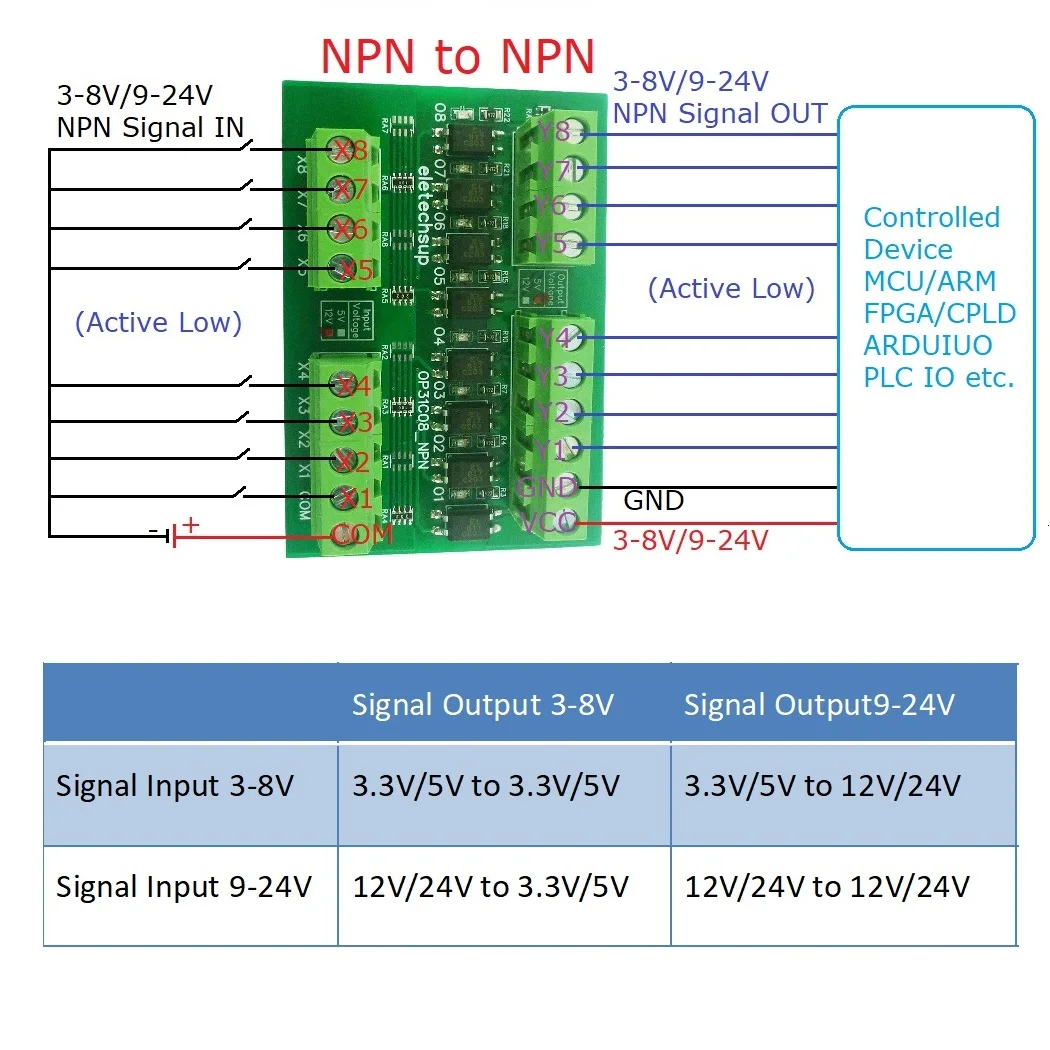

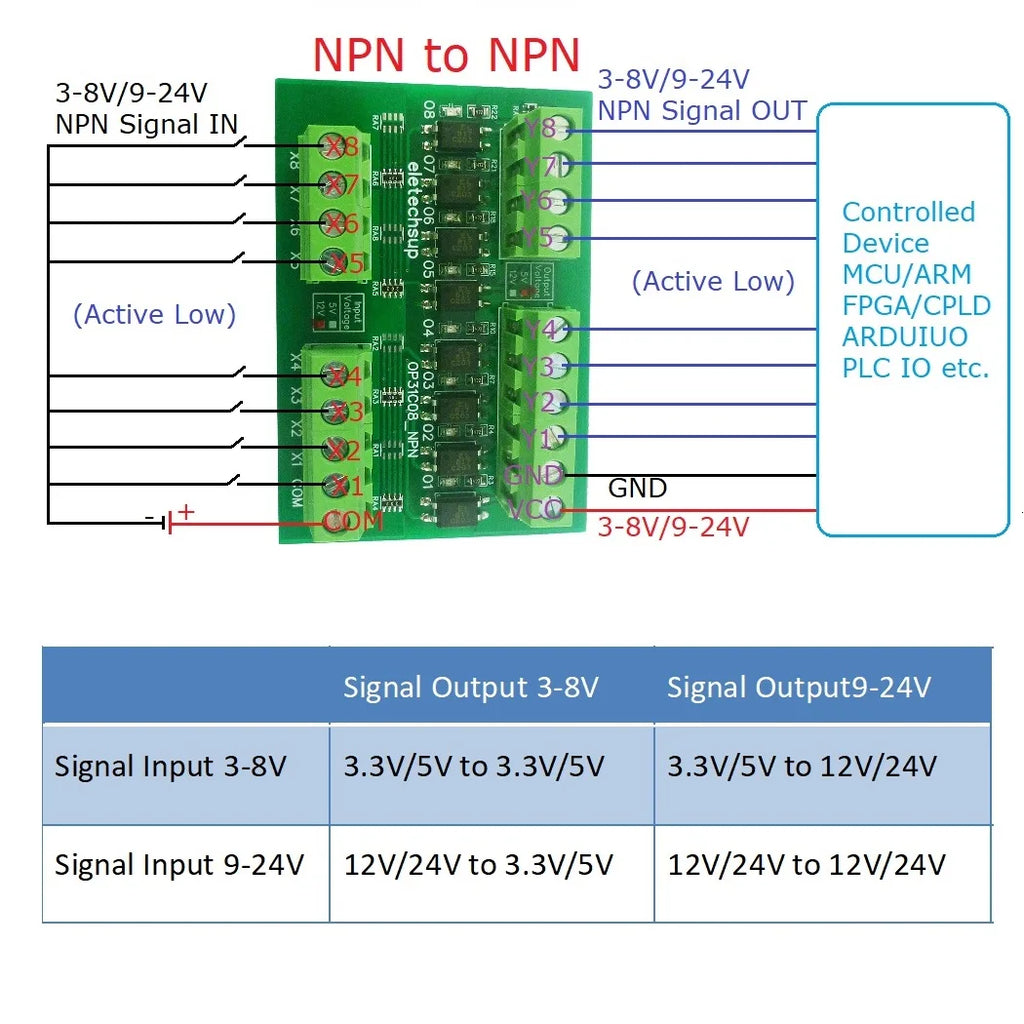

Conversion type: NPN to NPN; PNP to PNP

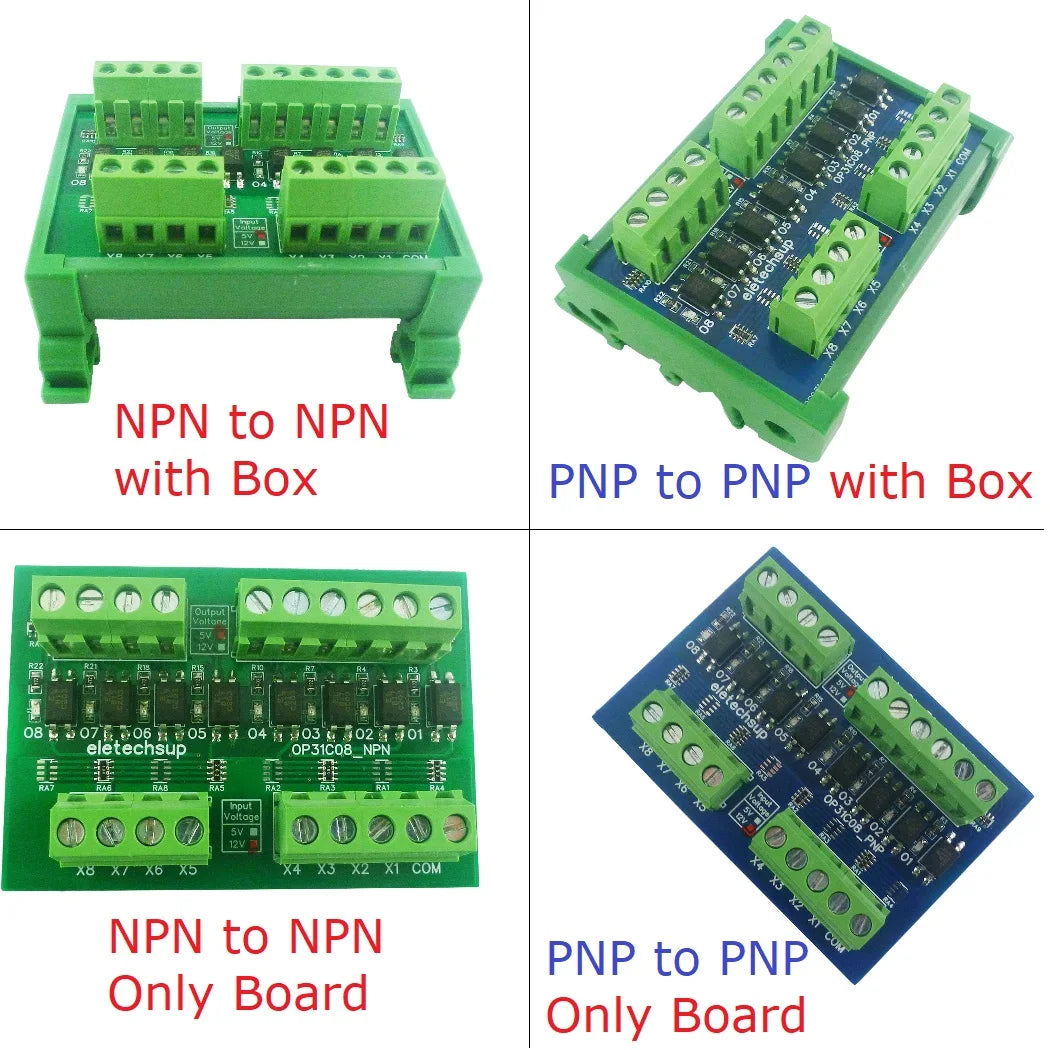

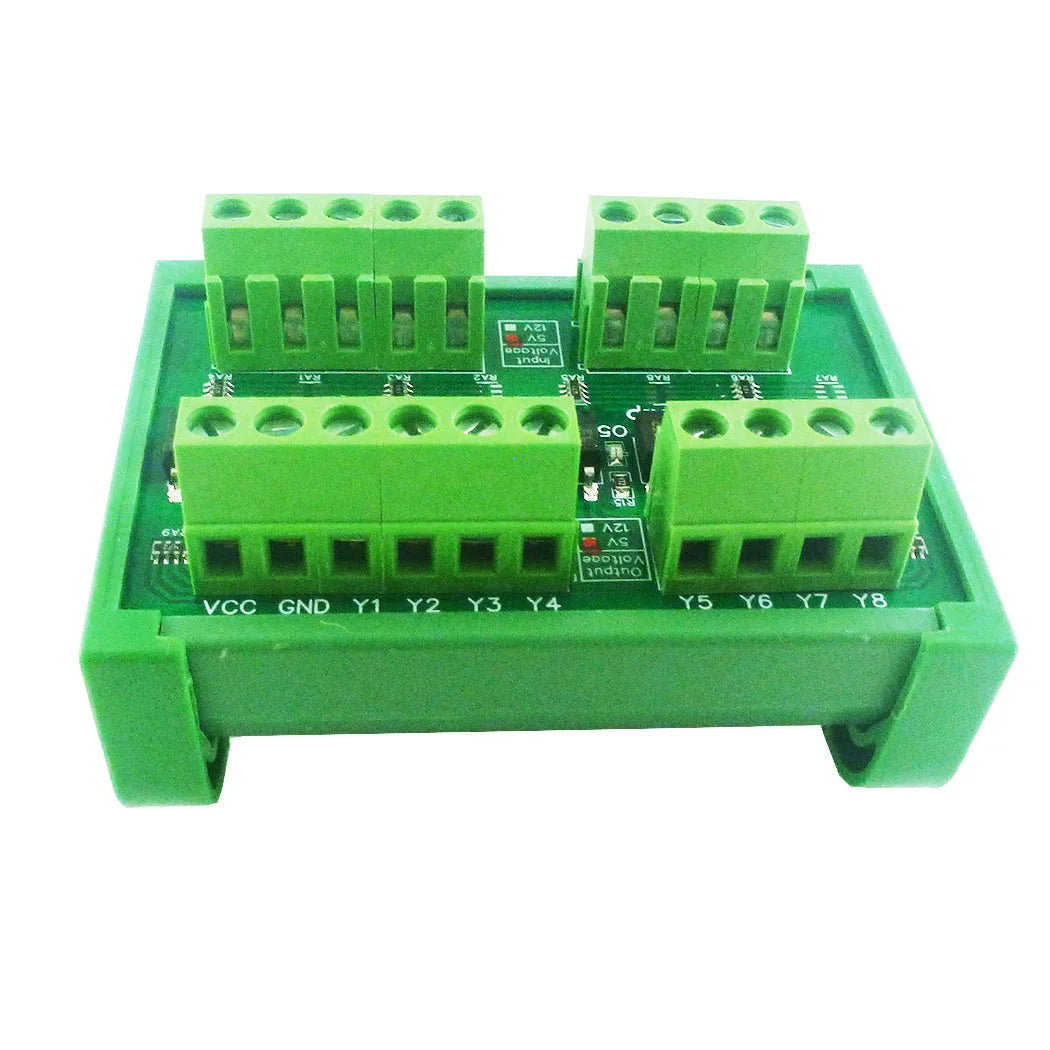

Size: 72*50*18MM(only Board);76*63*44MM(with Box)
Weight: 37 grams(only Board);75 grams(with Box)

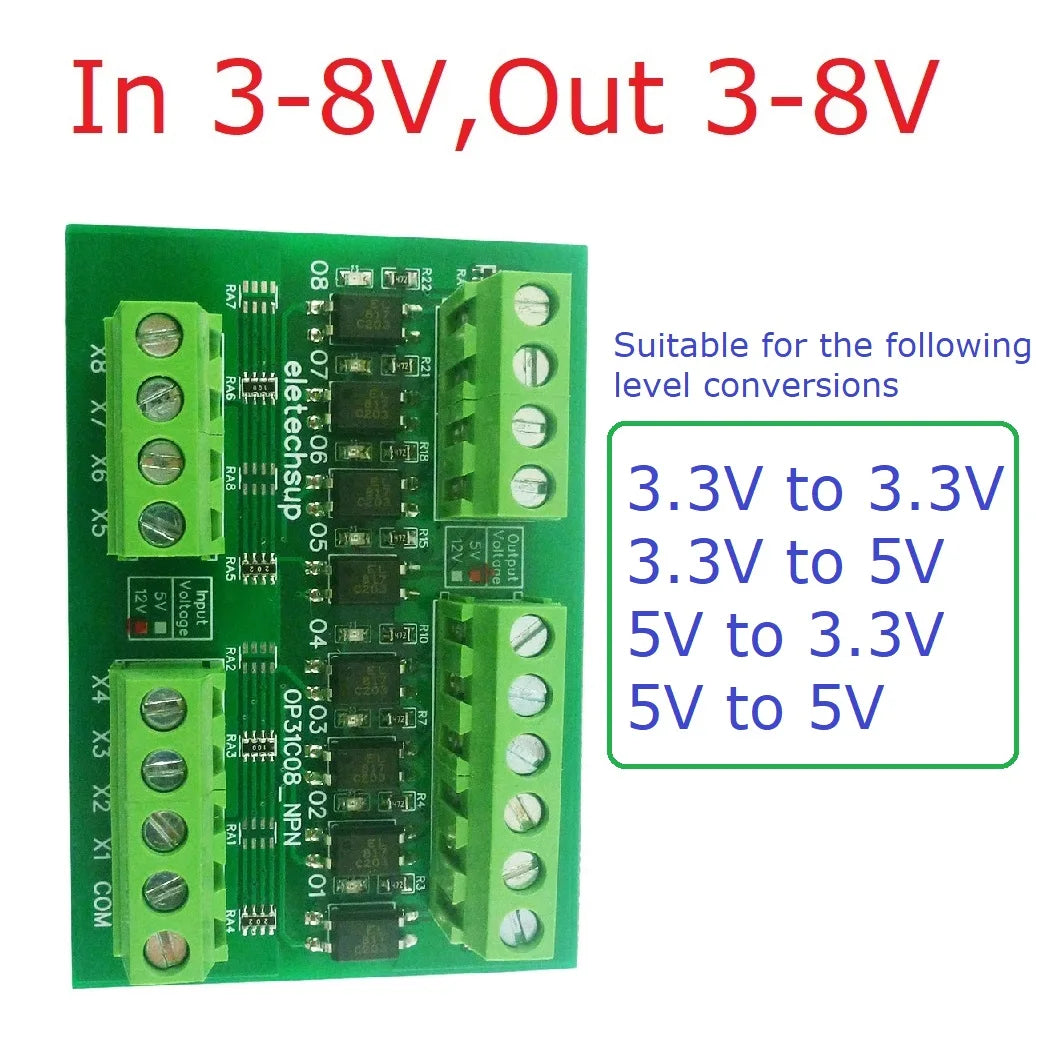

In 3-8V,Out 3-8V Version ,Suitable for the following level conversions
3.3V to 3.3V
3.3V to 5V
5V to 3.3V
5V to 5V

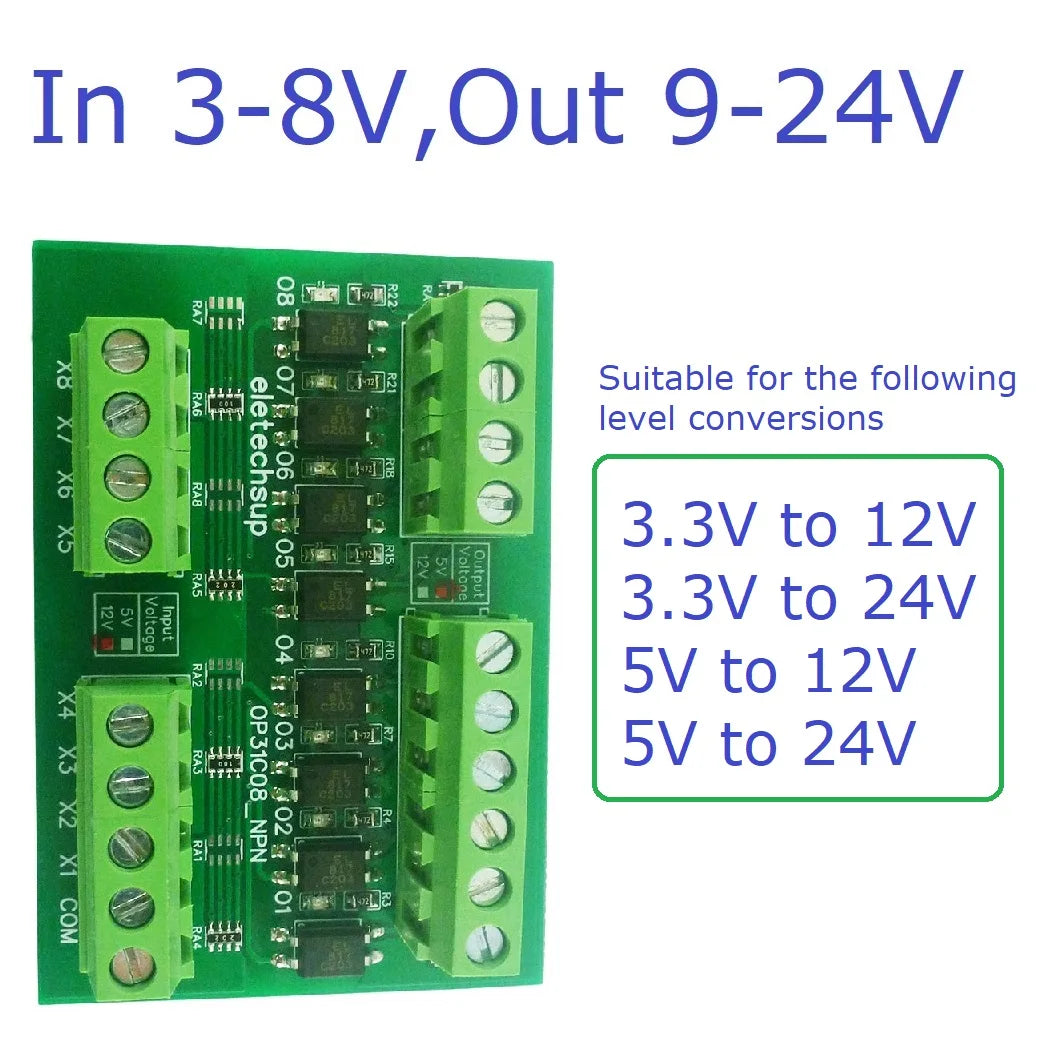

In 3-8V,Out 9-24V Version ,Suitable for the following level conversions
3.3V to 12V
3.3V to 24V
5V to 12V
5V to 24V

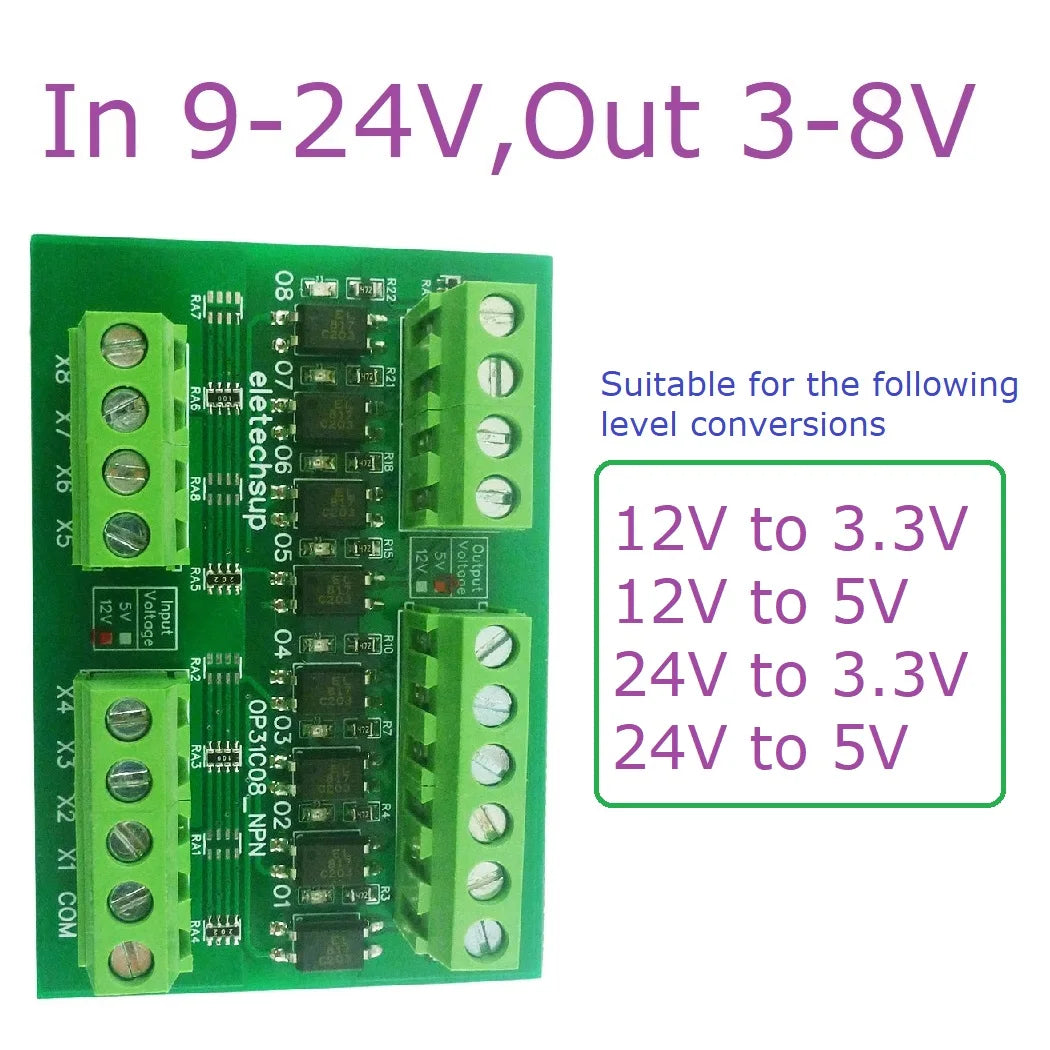

In 9-24V,Out 3-8V Version ,Suitable for the following level conversions
12V to 3.3V
12V to 5V
24V to 3.3V
24V to 5V

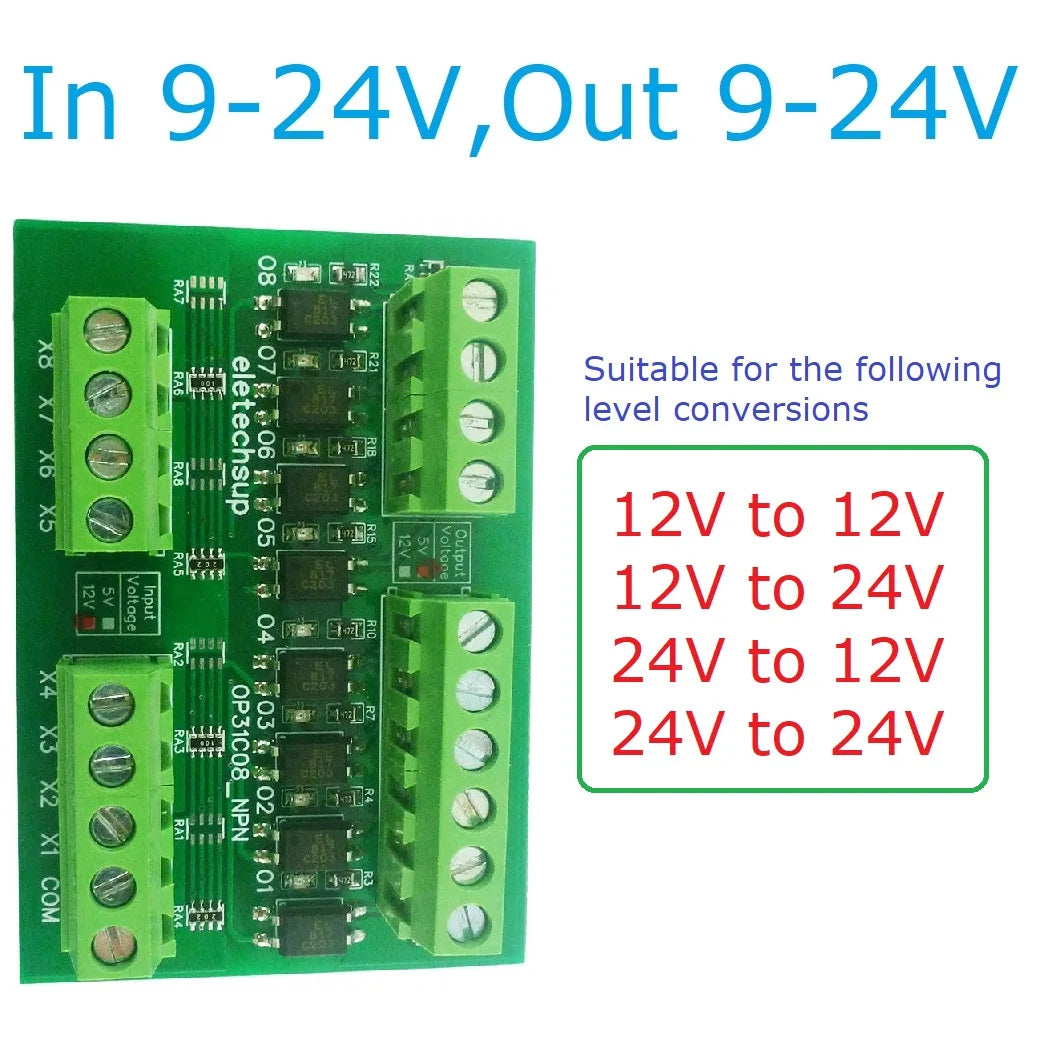

In 9-24V,Out 9-24V Version ,Suitable for the following level conversions
12V to 12V
12V to 24V
24V to 12V
24V to 24V
