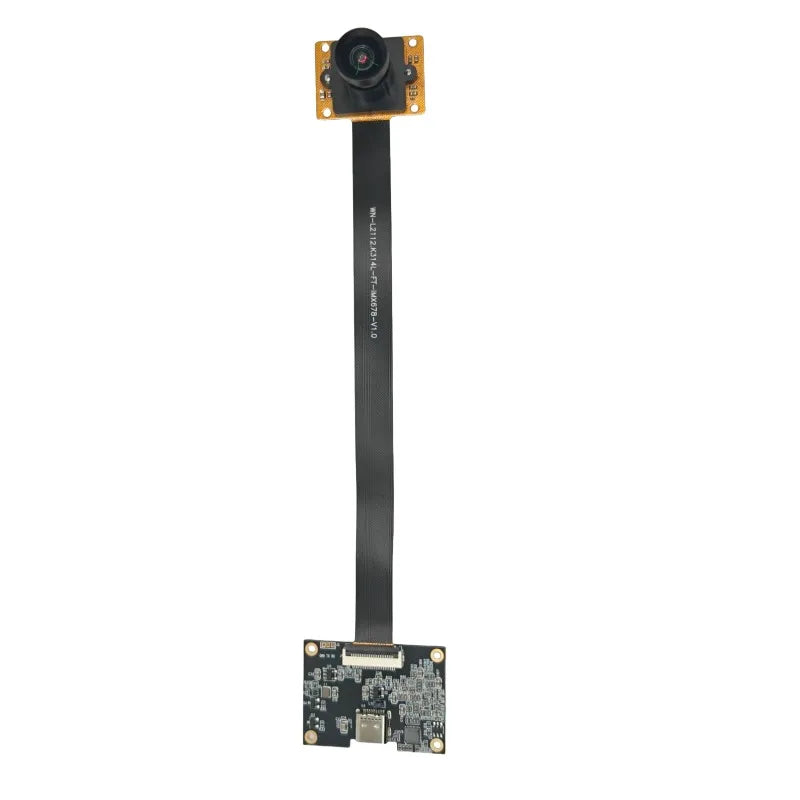

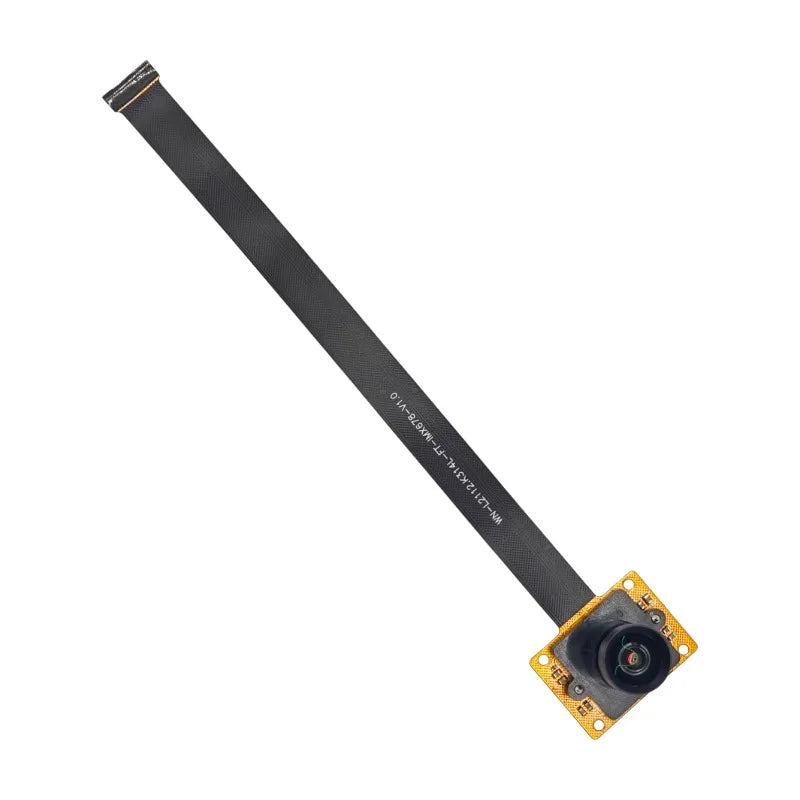

8MP IMX678 USB2.0/3.0/MIPI Camera Module, 4K 3840x2160 30FPS, 92° Wide FOV, 2D-DNR & Mic, Compatible with Windows/Android/Linux
USB2.0 camera module
$404.08
Sale price
$404.08
Regular price
$0.00
Skip to product information
8MP IMX678 USB2.0/3.0/MIPI Camera Module, 4K 3840x2160 30FPS, 92° Wide FOV, 2D-DNR & Mic, Compatible with Windows/Android/Linux
$404.08
Sale price
$404.08
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Certification: CE,FCC,RoHS,KC
Compatible Camera Style: Point & Shoot Cameras
High-concerned chemical: none
Image Sensor: 1/1.8-inch IMX678-AAQR1-C CMOS Sensor
Max. Resolution: 3840H*2160V
Model Number: WN-L2112.K314L-FT-IMX678
Origin: Mainland China
Package: Yes
Pixel Size: 2.0*2.0μm

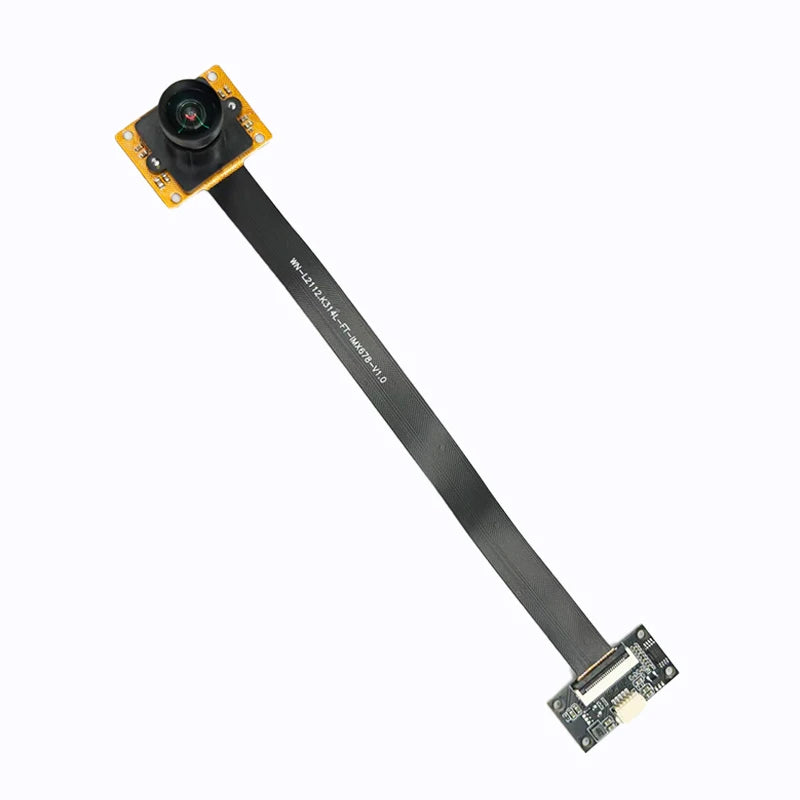

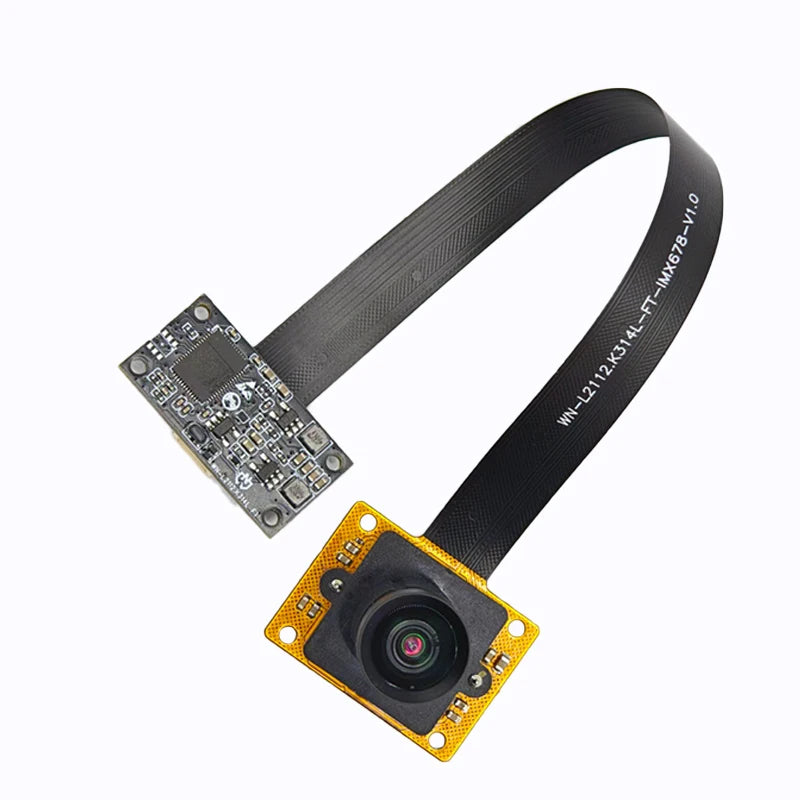

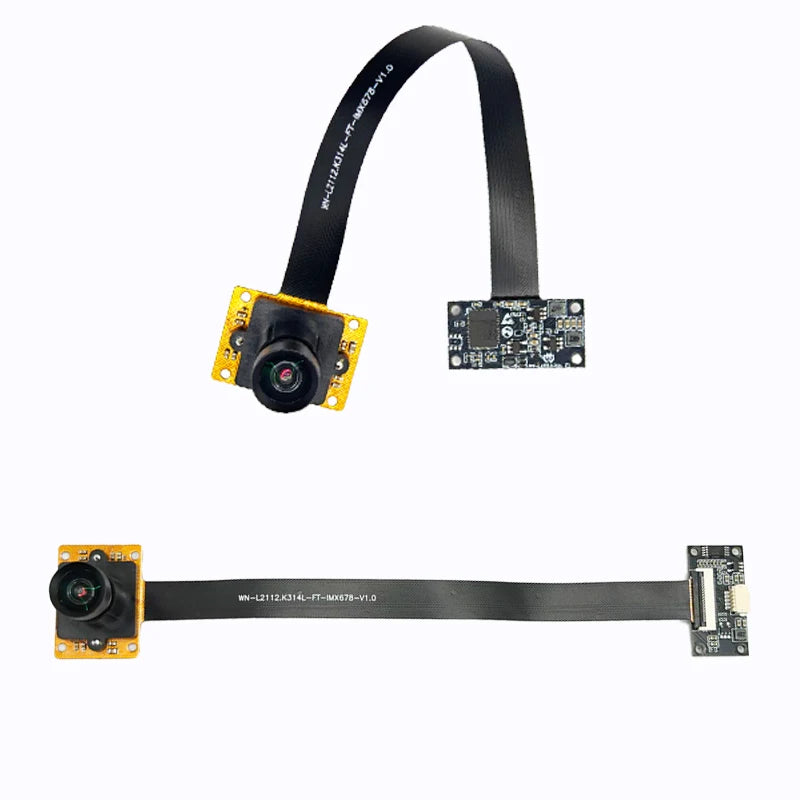

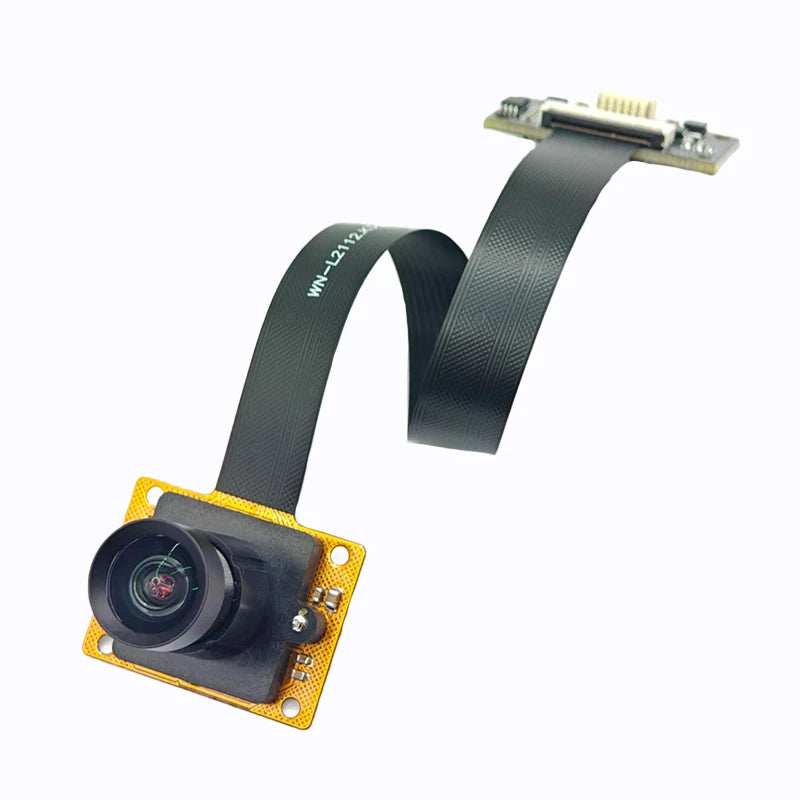

Product Name: IMX678 USB2.0 4K / 8MP Camera Module
USB2.0 Camera Module Key Parameters |
Module Size |
PCB: 30*15*5.2mm FPC: 171.5*30*24.03mm |
Sensor |
1/1.8-Inch IMX678-AAQR1-C |
Resolution |
3840H x 2160V |
Pixel Size |
2.0*2.0µm |
Output Format |
MJPEG, YUV2, |
Field of View |
D 92°x H 85°x V 54°(or TBD) |
Lens |
FEL:4.2 F/NO:2.0 3G+3P IR 650NM (M12 P0.5) |
Focus Mode |
Fixed Focus/ Manual Focus |
Shutter Mode |
Electronic Rolling Shutter |
Output and Power Supply |
High Speed USB2.0 |
Interface |
5 PIN 1.25 MM Socket |
Controllable Parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure |
Supported OS |
Windows10,Windows11, Android, Linux, |
Cable Length |
Default 1 Meter USB2.0 Cable |
Supported Resolution and Frame Rate |
Format |
Resolution |
Frame Rate (USB2.0) |
|
MJPG |
3840x2160(4K) |
30FPS |
2560x1440(2K) |
30FPS |
|
2592x1944(5MP) |
30FPS |
|
2048x1536(3MP) |
30FPS |
|
1600x1200(2MP) |
30FPS |
|
1920x1080 (1080P) |
30FPS |
|
1280x720 (720P) |
30FPS |
|
640x480 (VGA) |
30FPS |
|
|
YUY2 |
||
3840x2160(4K) |
1FPS |
|
2560x1440(2K) |
1FPS |
|
2592x1944(5MP) |
1FPS |
|
2048x1536(3MP) |
2FPS |
|
1600x1200(2MP) |
3FPS |
|
1920x1080 (1080P) |
5FPS |
|
1280x720 (720P) |
10FPS |
|
640x480 (VGA) |
30FPS |

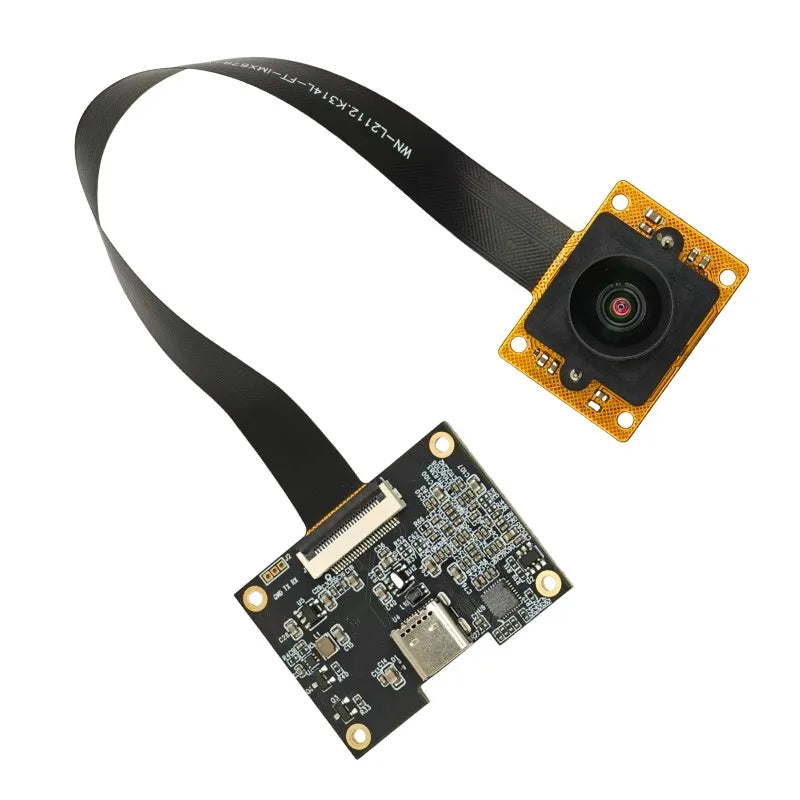

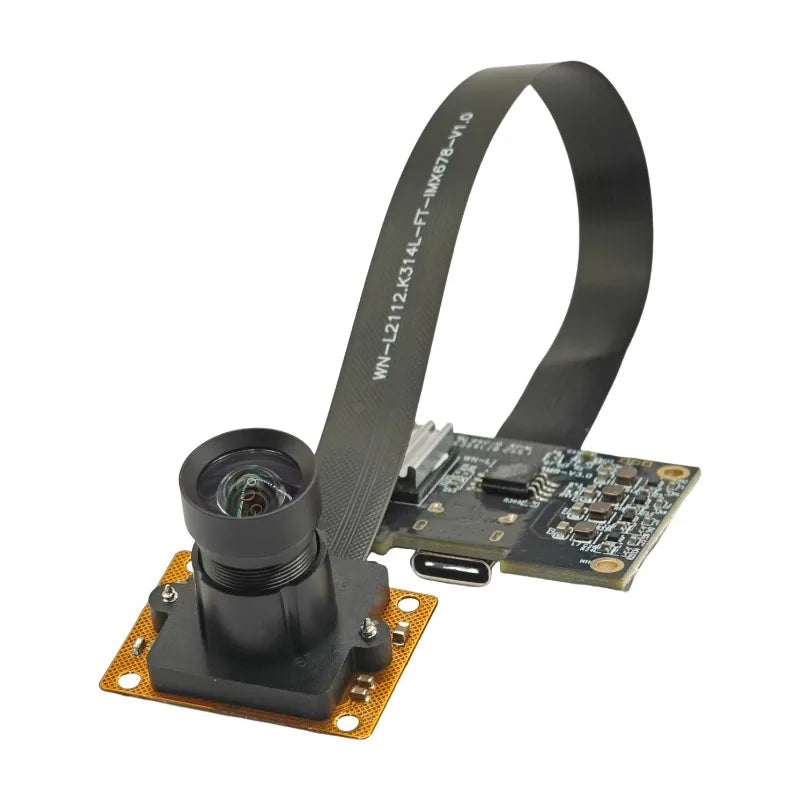

USB3.0 Camera Module Key Parameters |
Module Size |
40*29*9.46mm, FPC: 171.5*30*24.03mm |
Sensor |
1/1.8-Inch IMX678 |
Resolution |
3840H x 2160V |
Pixel Size |
2.0*2.0µm |
Output Format |
MJPEG, YUV2,NV12,H.264 ,H.265, |
Field of View |
D92°, H85°, V54° |
Lens |
FEL:4.2mm F/NO:2.03G+3P IR 650NM |
Focus Mode |
Fixed Focus/ Manual Focus |
Shutter Mode |
Electronic Rolling shutter |
Output and Power Supply |
High Speed USB3.0 |
Interface |
TYPEC USB3.0 |
Controllable Parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure |
Supported OS |
UVC-compliant, Plug and Play for Windows, Android, Linux, Mac OS, etc. |
Cable Length |
Default 1.5 Meter USB Cable |
Supported Resolution and Frame Rate |
Format |
Resolution |
Frame Rate (USB3.0) |
MJPG |
3840x2160(4K) |
30FPS |
2592x1944(5MP) |
30FPS |
|
2560x1440(2K) |
30FPS |
|
1920x1080 (1080P) |
30FPS |
|
1280x720 (720P) |
30FPS |
|
640x480 (VGA) |
30FPS |
|
YUV2 |
3840x2160(4K) |
18FPS |
2592x1944(5MP) |
30FPS |
|
2560x1440(2K) |
30FPS |
|
1920x1080 (1080P) |
30FPS |
|
1280x720 (720P) |
30FPS |
|
640x480 (VGA) |
30FPS |
|
NV12 |
3840x2160(4K) |
18FPS |
2592x1944(5MP) |
30FPS |
|
2560x1440(2K) |
30FPS |
|
1920x1080 (1080P) |
30FPS |
|
1280x720 (720P) |
30FPS |
|
640x480 (VGA) |
30FPS |
|
H.264 |
3840x2160(4K) |
30FPS |
2592x1944(5MP) |
30FPS |
|
2560x1440(2K) |
30FPS |
|
1920x1080 (1080P) |
30FPS |
|
1280x720 (720P) |
30FPS |
|
640x480 (VGA) |
30FPS |
|
H.265 |
3840x2160(4K) |
30FPS |
2592x1944(5MP) |
30FPS |
|
2560x1440(2K) |
30FPS |
|
1920x1080 (1080P) |
30FPS |
|
1280x720 (720P) |
30FPS |
|
640x480 (VGA) |
30FPS |

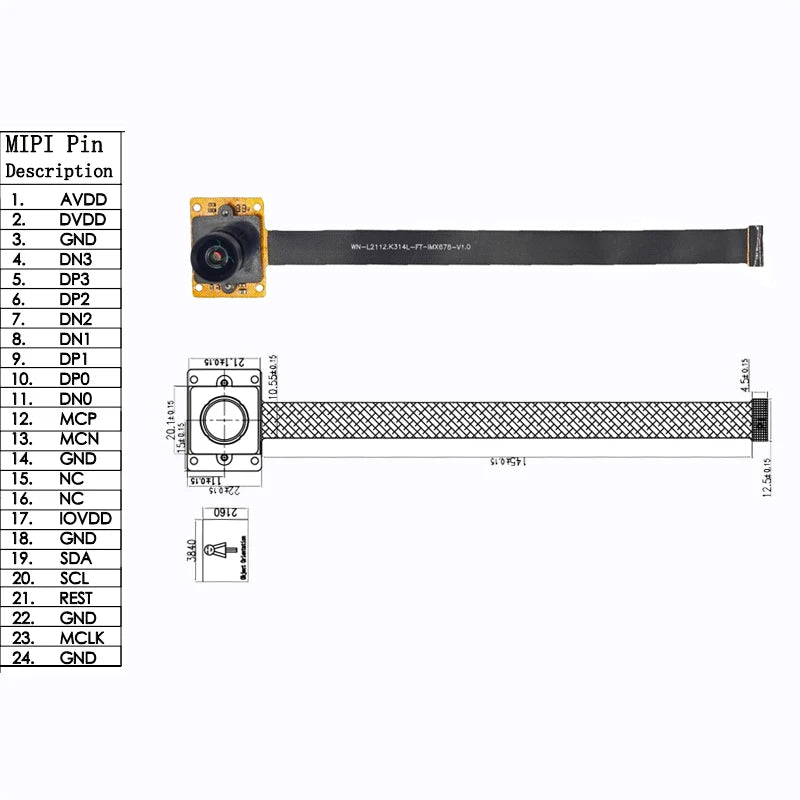

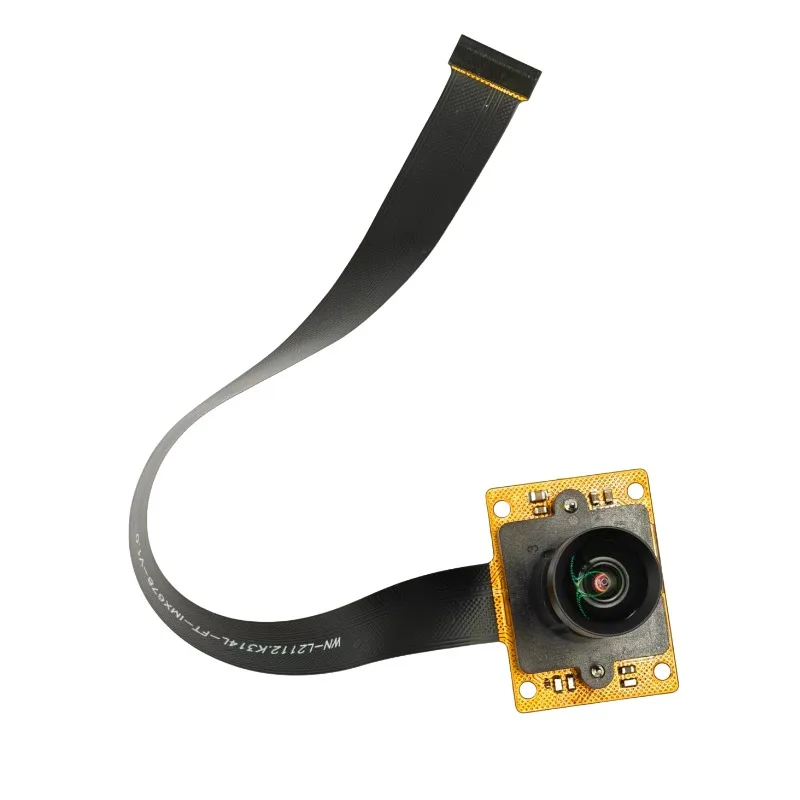

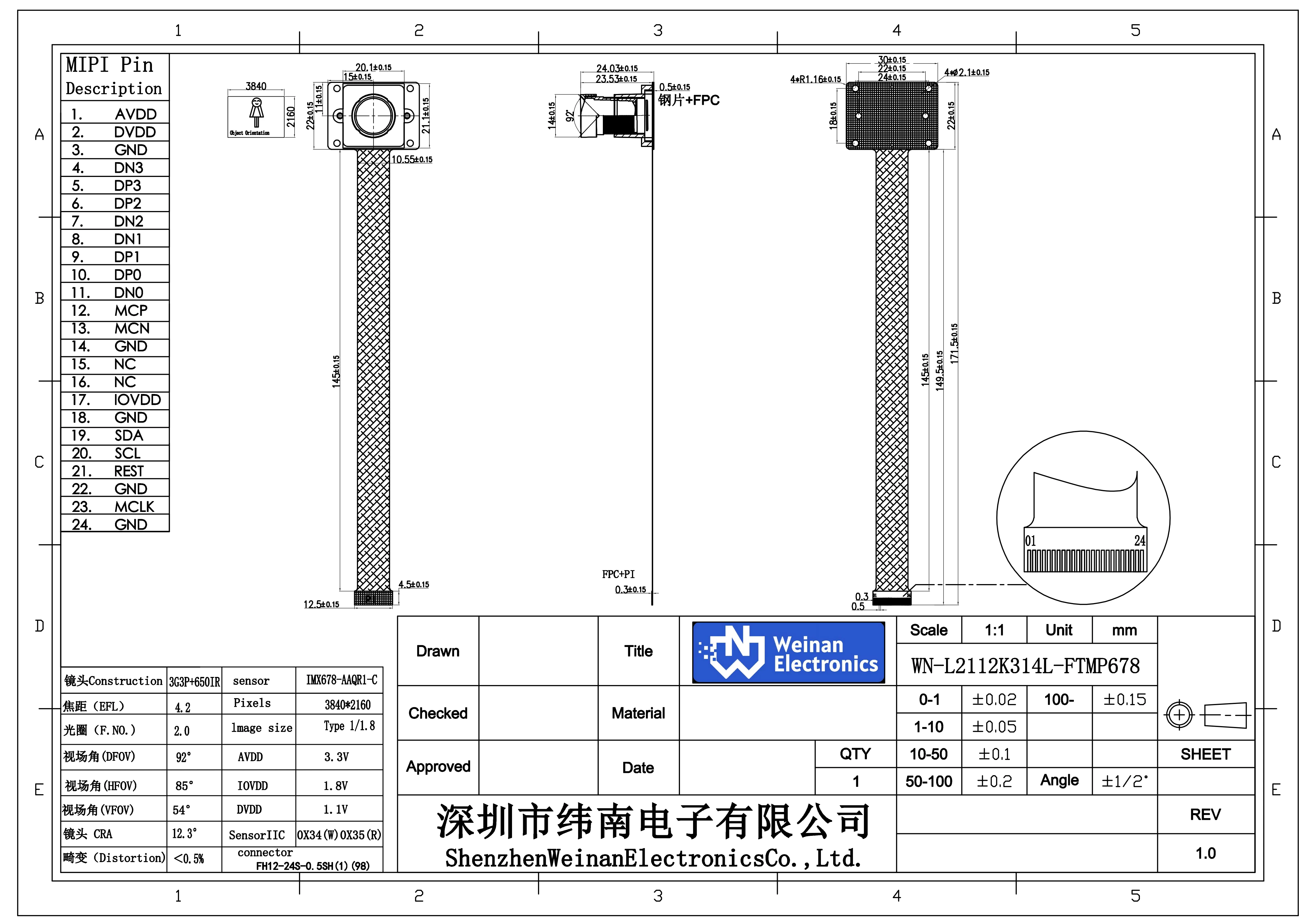

MIPI Camera Module Specifications
USB3.0 Module
USB2.0 Module
MIPI Module
