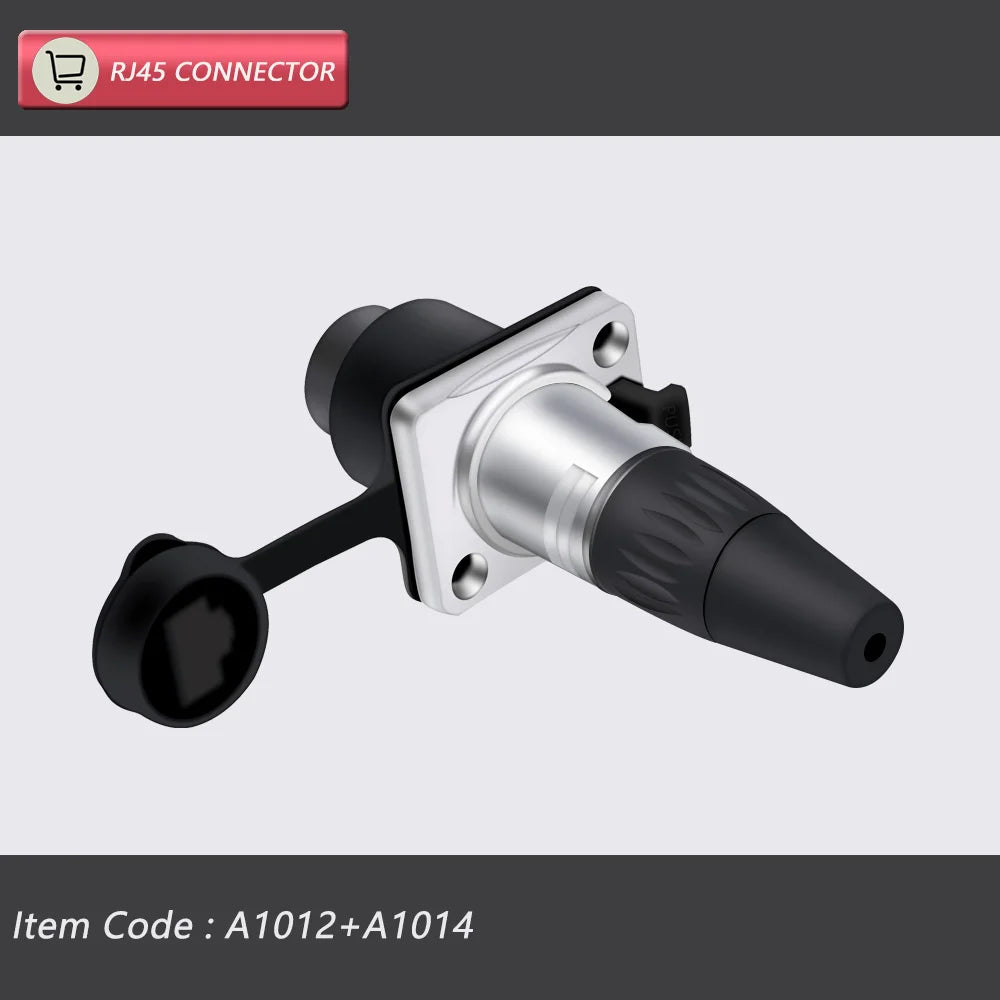

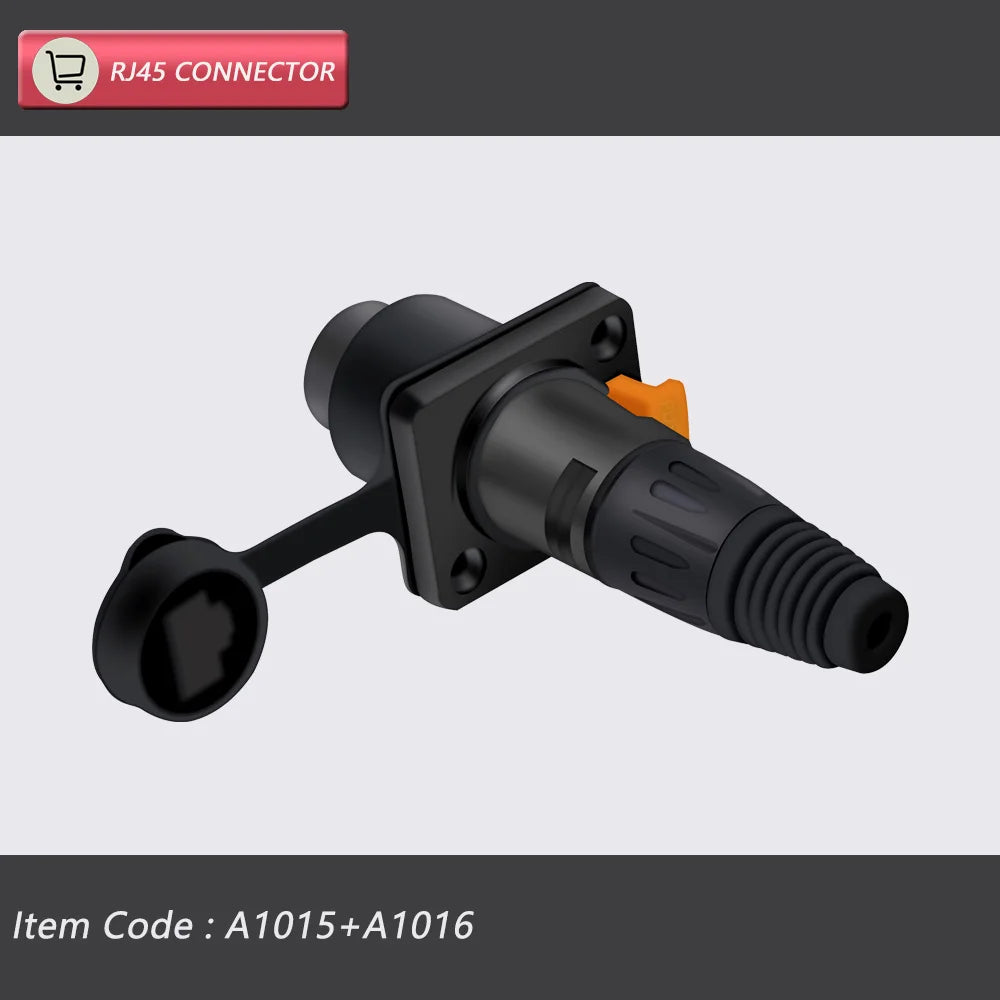

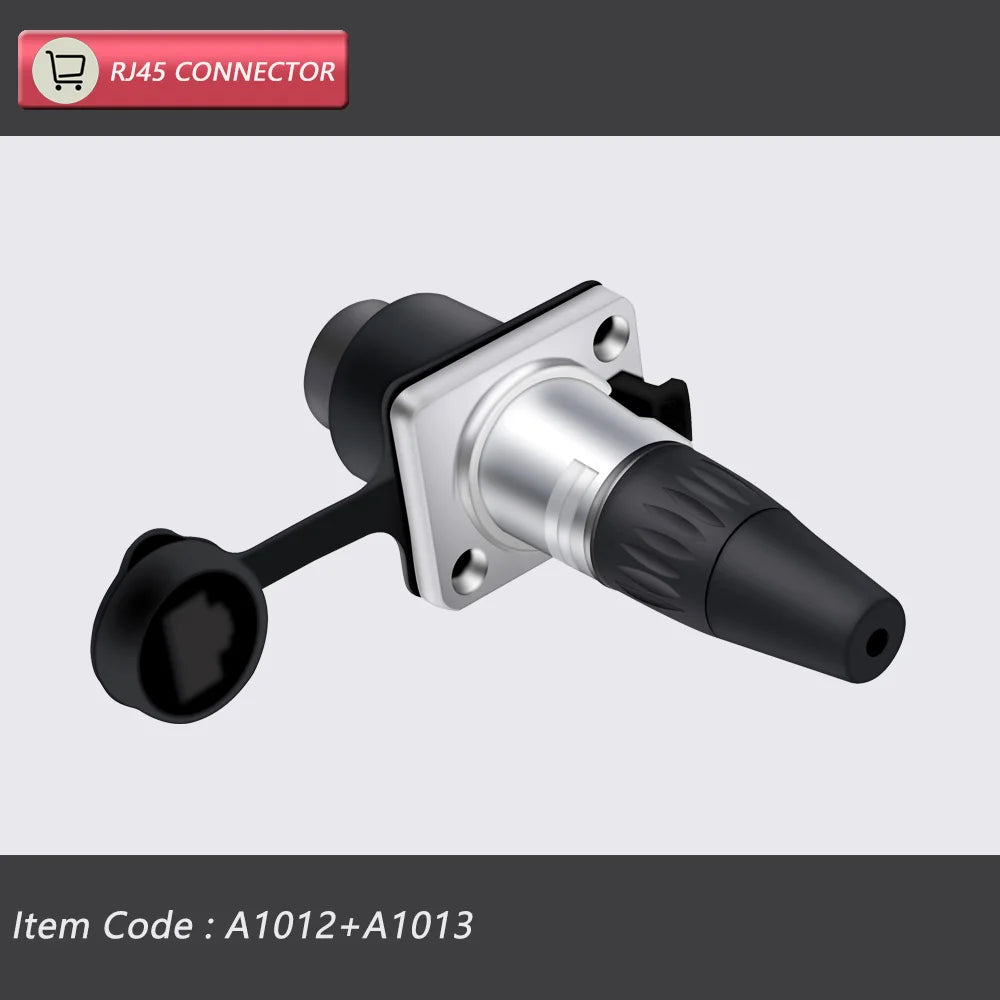

8PCS 8P8C RJ45 Connector, Waterproof, RJ45 Male Plug & RJ45 Female Panel Mount Sockets, RJ45 Ethernet Network Connector
4xA1015-4xA1017 / Russian Federation
$56.08
Sale price
$56.08
Regular price
$0.00
Skip to product information
8PCS 8P8C RJ45 Connector, Waterproof, RJ45 Male Plug & RJ45 Female Panel Mount Sockets, RJ45 Ethernet Network Connector
$56.08
Sale price
$56.08
Regular price
$0.00
Description
SPECIFICATIONS
8p8c: Yes
Brand Name: R
Certification: CE
Color: black, orange
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
Gender: Female
High-concerned chemical: none
Material: Zinc alloy+ Good performance plastic

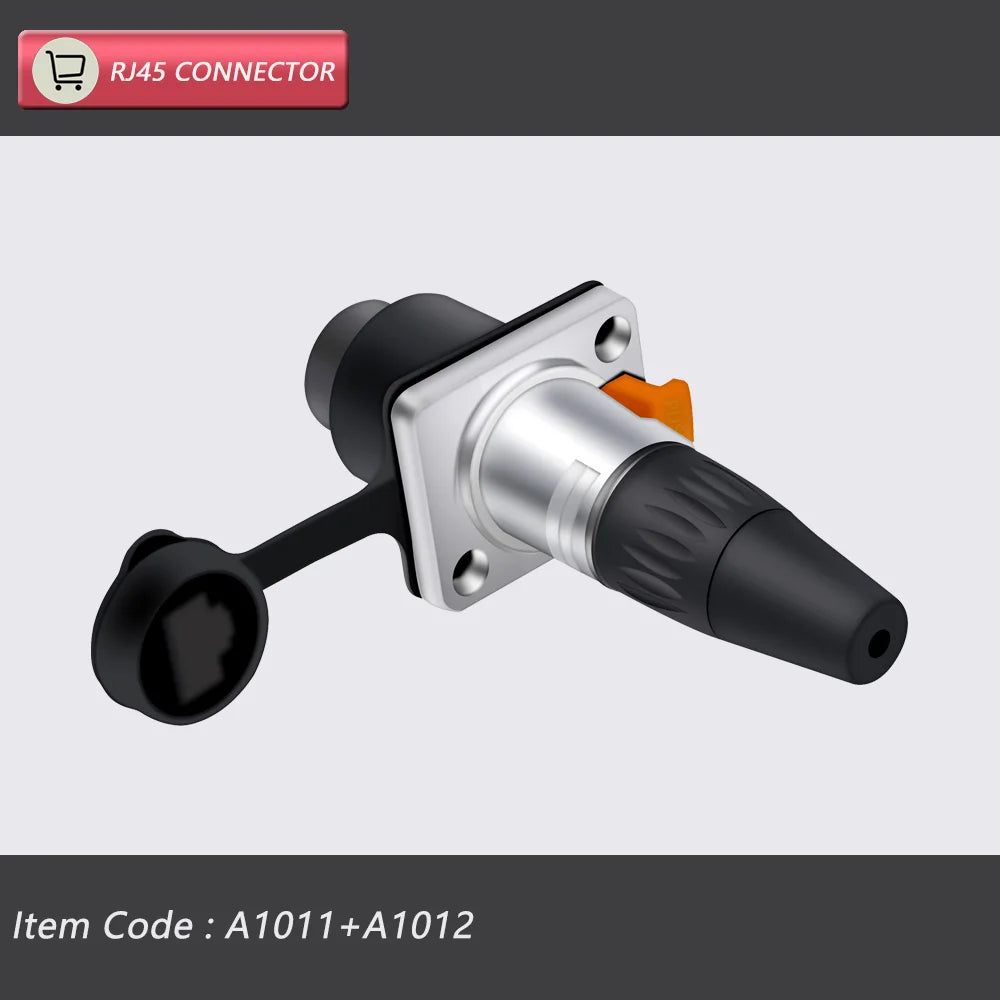

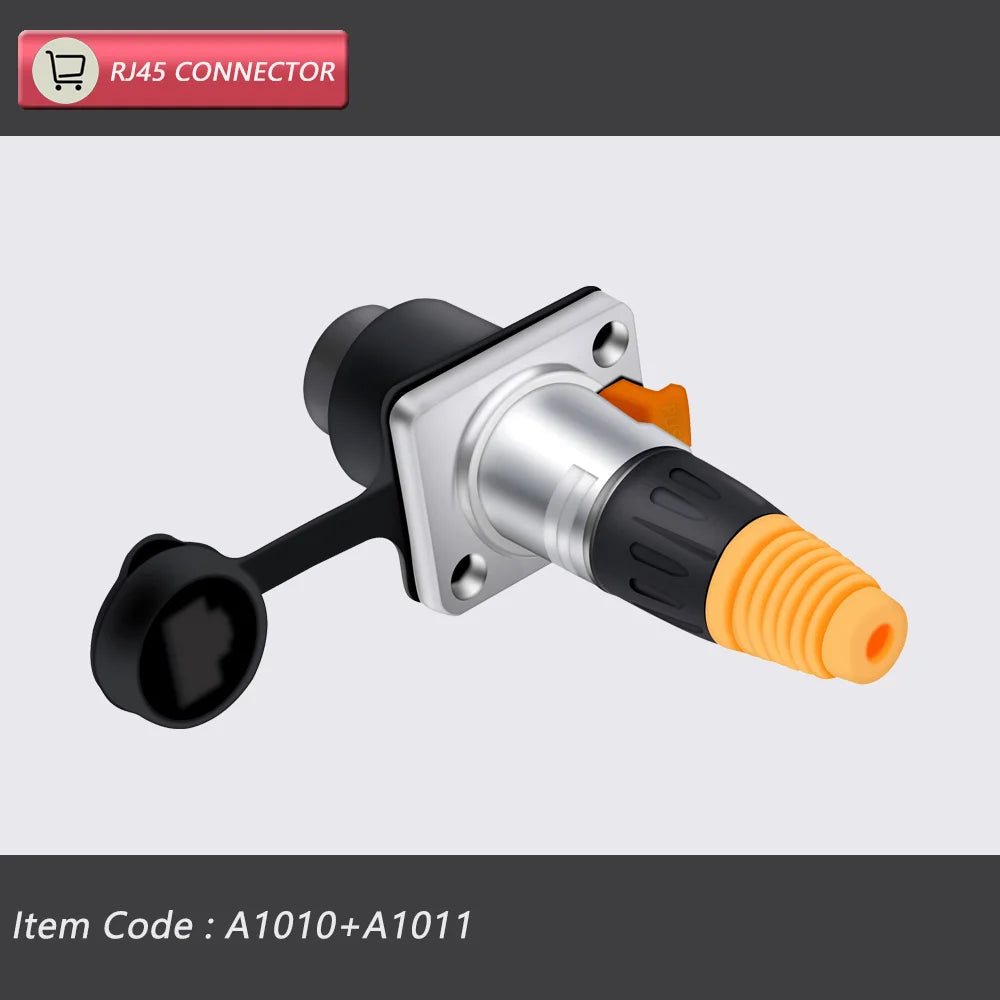

Model Number: A1010+A1011+A1012+A1013
Name: RJ45 Female Socket Connector
Origin: Mainland China

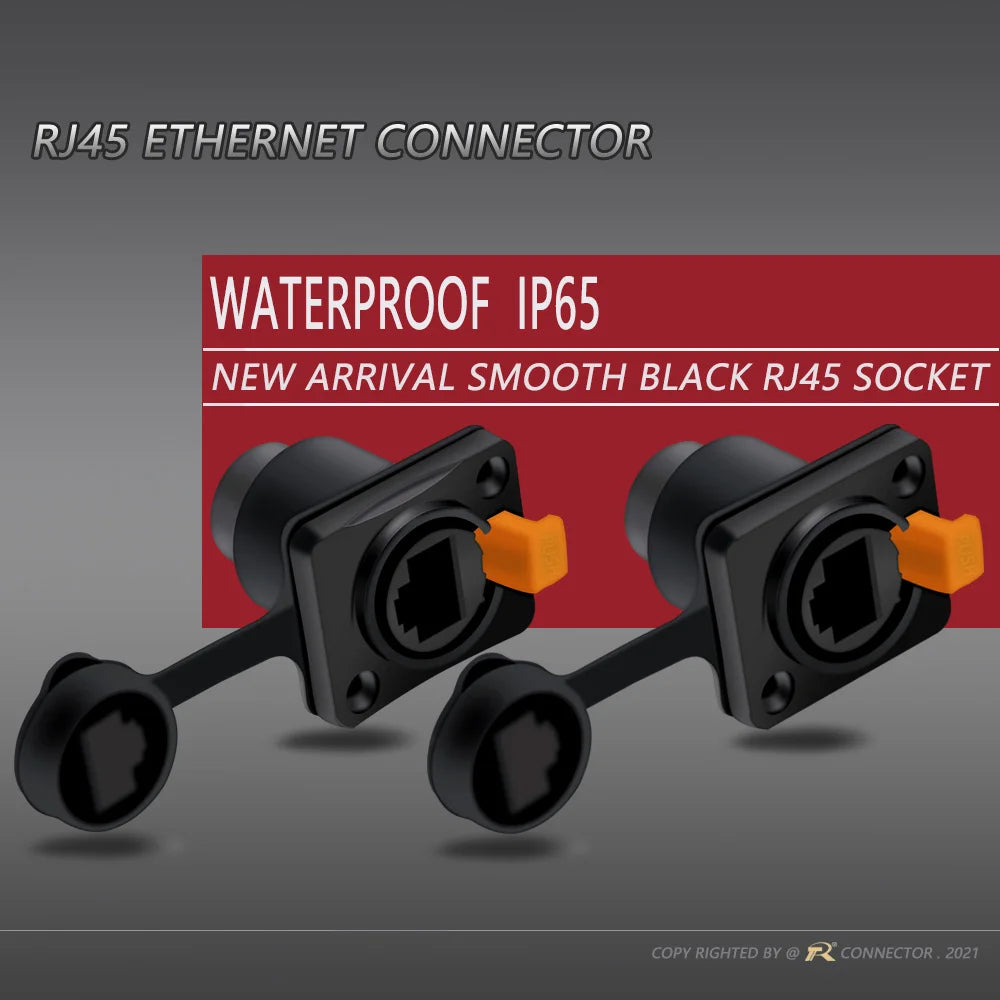

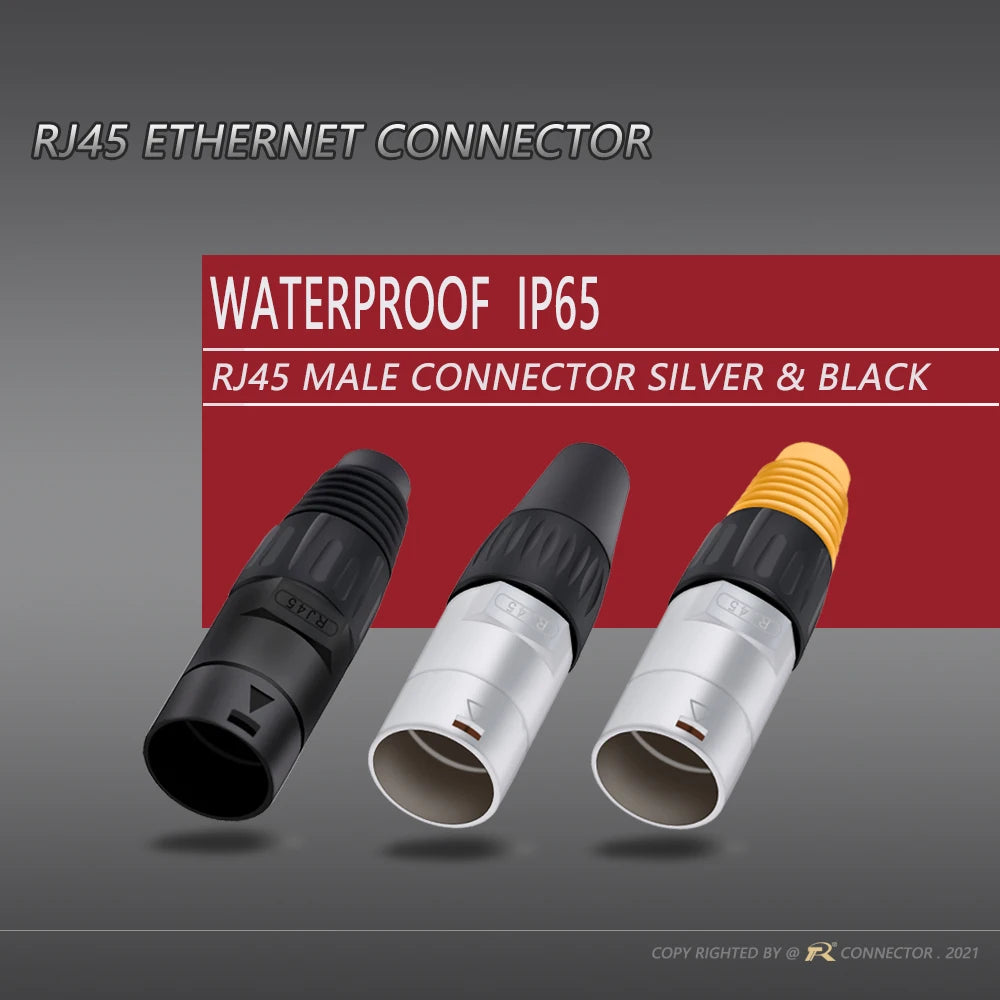

Protection level: IP65
Specification: waterproof
Type: RJ45 Connector
Voltage: 24V

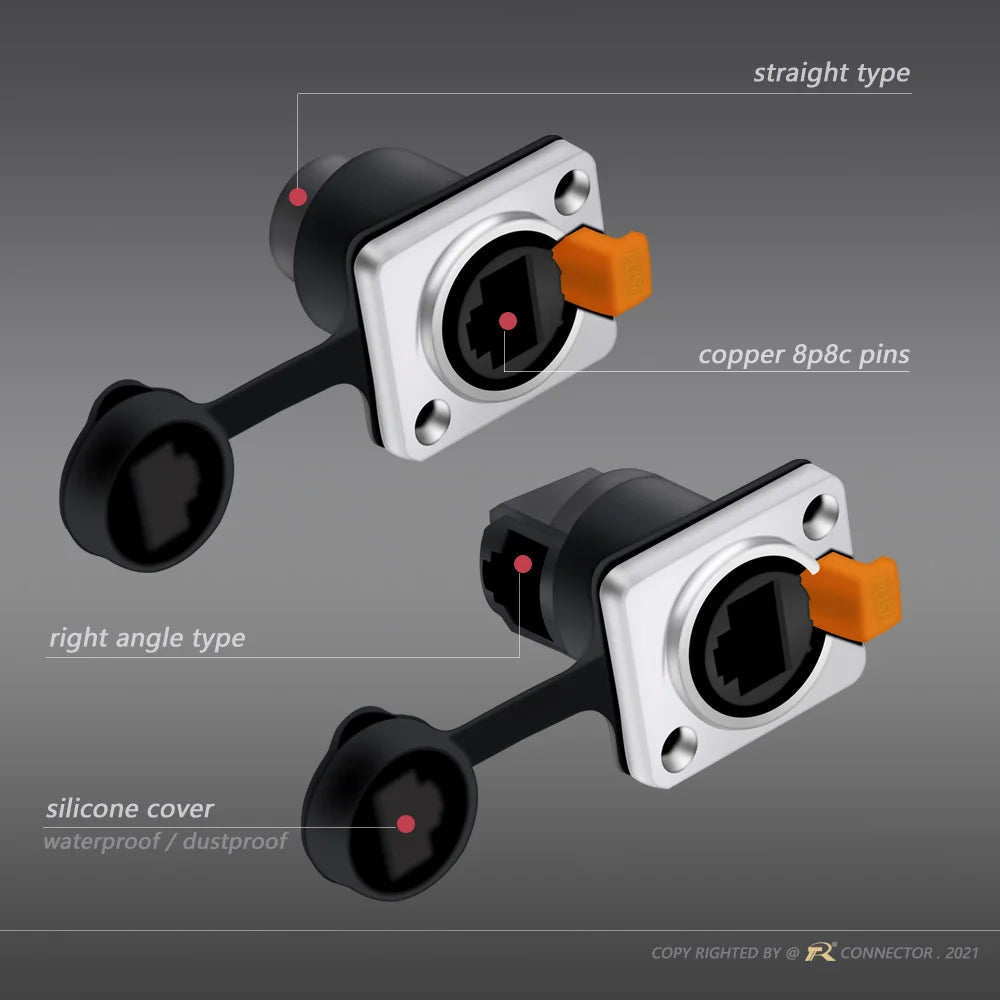

RJ45 Waterproof Network Connector,Copper Pins 8p8c Female Chassis Panel Mount Sockets RJ45 Ethernet Connector IP65 Straight Type
Connecting mode: Plug/unplug
Protection level: IP65
Cable specification: 0.15 mm2 ~ 0.2 mm2 /26~24 AWG
Diameter range: Φ5.5mm ~Φ7mm
Contact diameter×Qty: 8
Current rating(A): 1.5A
Operating voltage(AC.V.rms): 500V
Withstand voltage(AC.V)1min: 2500V
Contact resistance: <1mΩ
Insulation resistance: >500MΩ
Durability: ≥500 mating&unmating cycles
Temperature rating: -40°C~80°C
Method of connecting cable: Solder
Prevent the combustion level: UL94-V0
Temperature rise: 20A per contact at 30°C, 25A per contact at 40°C, 30A per contact at 50°C.
Net Weight: 29.5g/pcs for male plug. 23.6g/pcs for female socket
