8W USB Input DC 5V To 12V/9V 2A Step Up Converter Booster Power Supply Module DC-DC Voltage Regulator Board for Power Bank

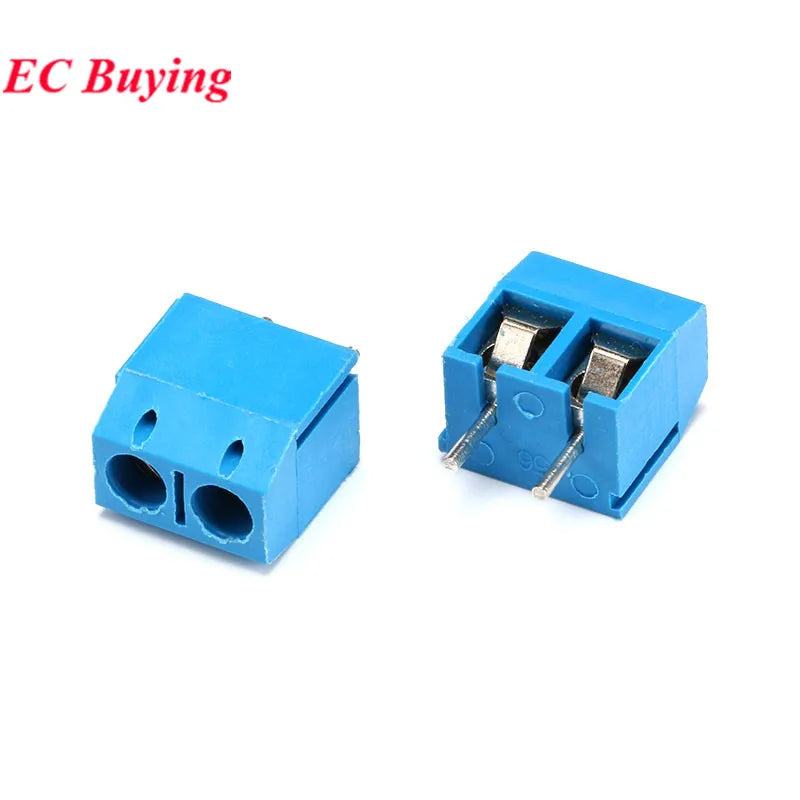

Terminals
$2.20
Sale price
$2.20
Regular price
$0.00
Skip to product information
8W USB Input DC 5V To 12V/9V 2A Step Up Converter Booster Power Supply Module DC-DC Voltage Regulator Board for Power Bank
$2.20
Sale price
$2.20
Regular price
$0.00
Description
SPECIFICATIONS
Application: MOBILE PHONE
Brand Name: EC Buying
Condition: New
Dissipation Power: low
High-concerned chemical: none
Operating Temperature: -40-+85℃
Origin: Mainland China
Package: Module
Smart Electronics Experiment: Switch And Sensor For Arduino STM32
Supply Voltage: 2-12V
Type: Voltage Regulator
is_customized: Yes

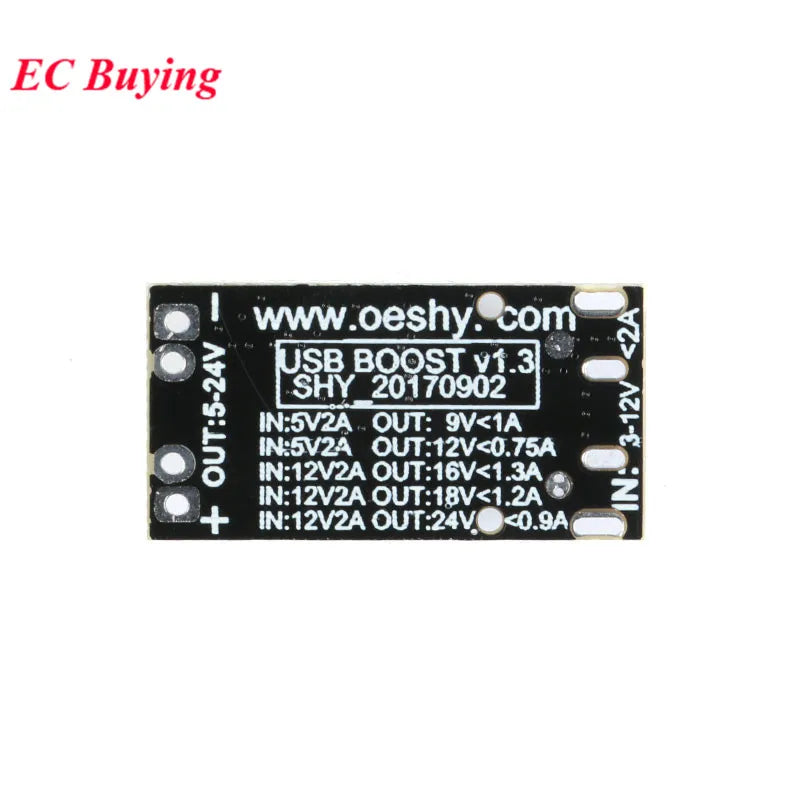

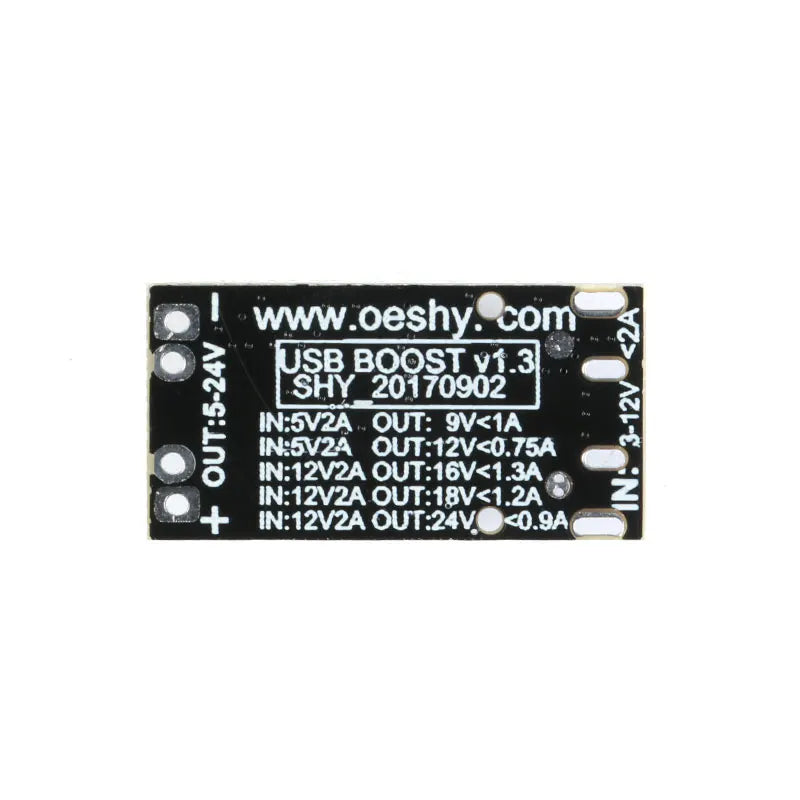

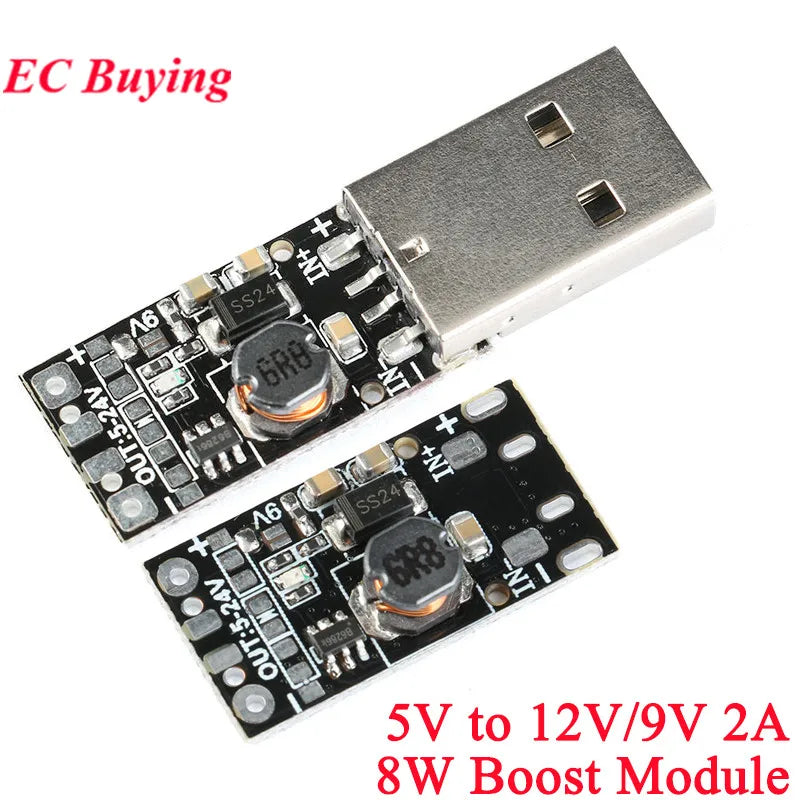

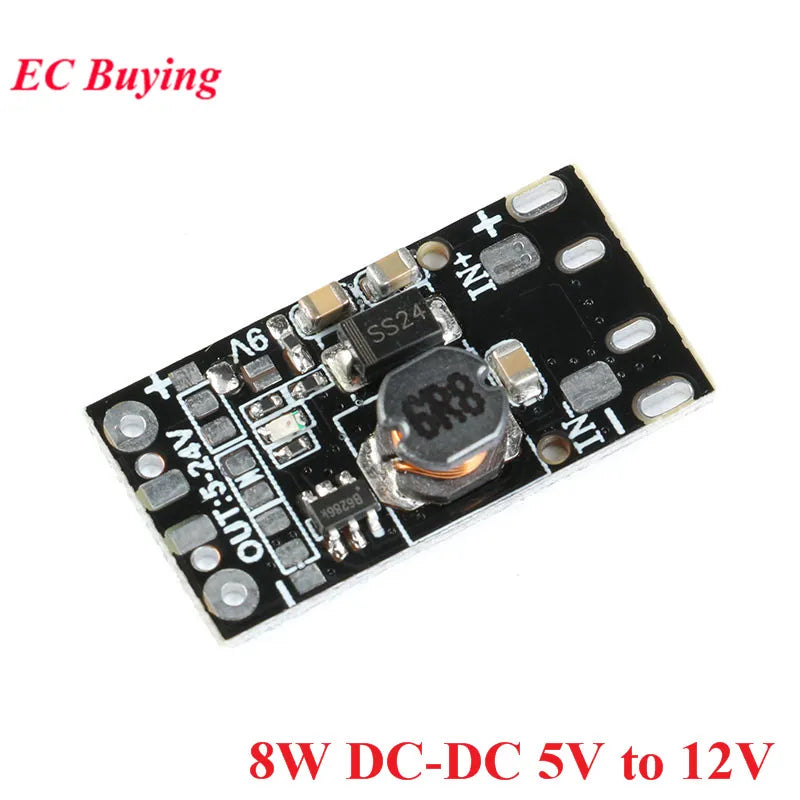

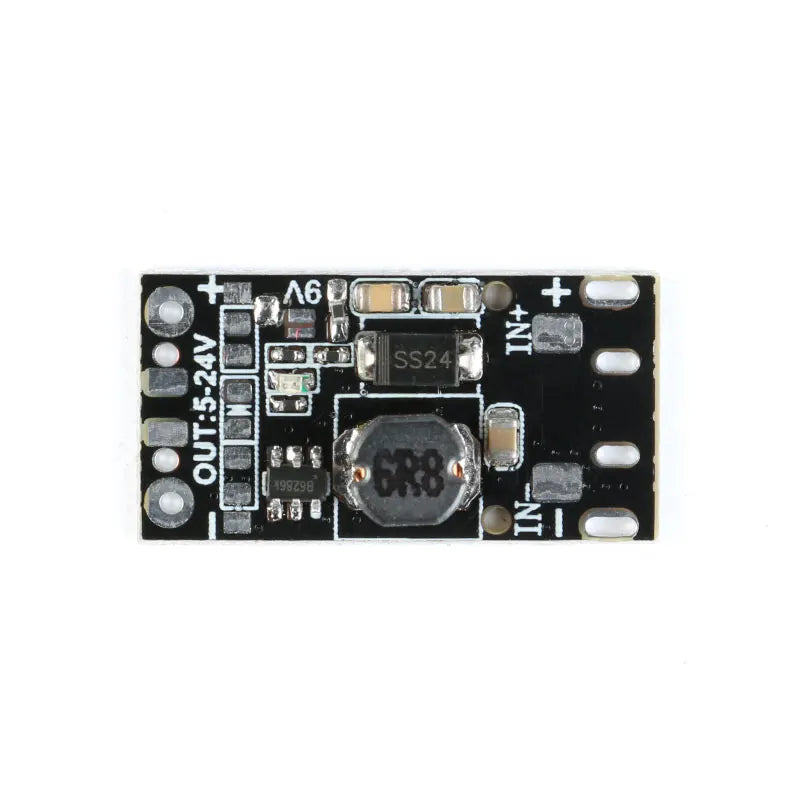

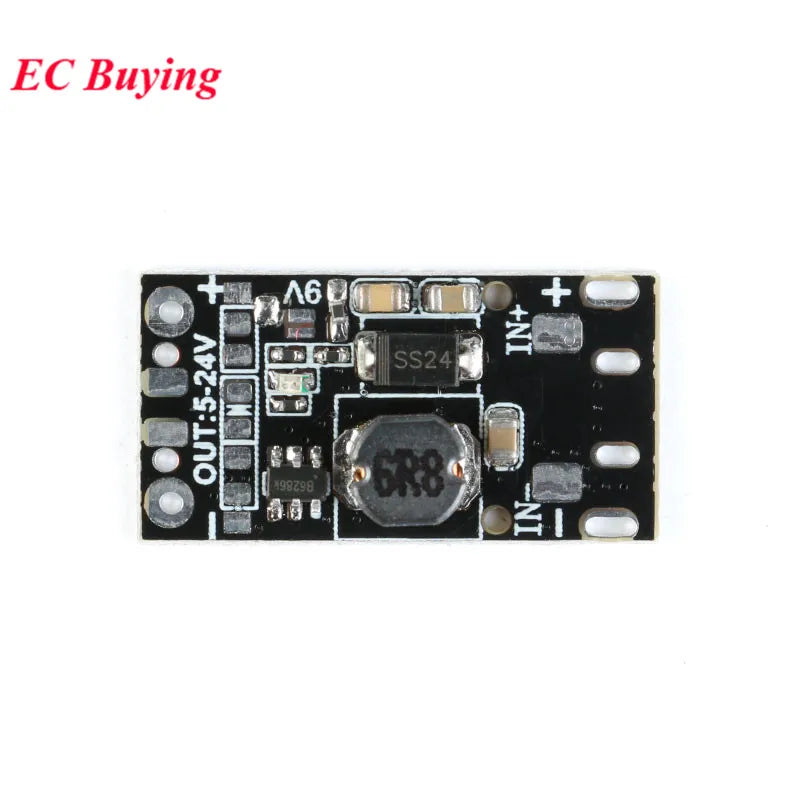

8W DC-DC 5V to 12V Step up Module
Product Parameters:
Start voltage: 2V
Input voltage: 2V-12V
Input current: 2A
Output voltage: default 12V, can be set to 9V. Other voltages can be customized.
Output power: maximum 8w (input 5V case) (high easy to overheat)
No-load current: less than 4mA (input 5v output 12v with LED indicator)
Operating temperature: -40--80 degrees
Board size: 25 * 14 * 5mm
The following is a routine test data: (for reference only)
Input DC2V boost to 12v output current of about 260mA
Input DC3V boost to 12v output current of about 400mA or so
Input DC4.2V boost to 12v output current of about 560mA
Input DC5V boost to 12v output current of about 660mA
Input DC8.2v boost to 12v output current of about 1100mA or so
Input DC2V boost to 9v output current of about 350mA or so
Input DC3V boost to 9v output current of about 530mA or so
Input DC4.2V boost to 9v output current of about 740mA or so
Input DC5V boost to 9v output current of about 880mA
Input DC8.2v boost to 9v output current of about 1450mA
Note:
1. The module is booster board, the output voltage must be greater than the input voltage;
2. Boost efficiency at 97% -80%, the greater the output power, the lower the efficiency of 80%;
3. Pay attention to air temperature! To avoid overheating damage;
4. The output voltage is not recommended more than 6 times the input, easy to output loss of control!
5. Boost power is only less than the input power, booster plate will produce heat loss, booster board is not a generator, but the voltage conversion module.
6. For example, input 5V 2A Calculate output power: 5V * 2A * 0.8 = 8W, current: 8W / 12 = 0.66A = 660mA

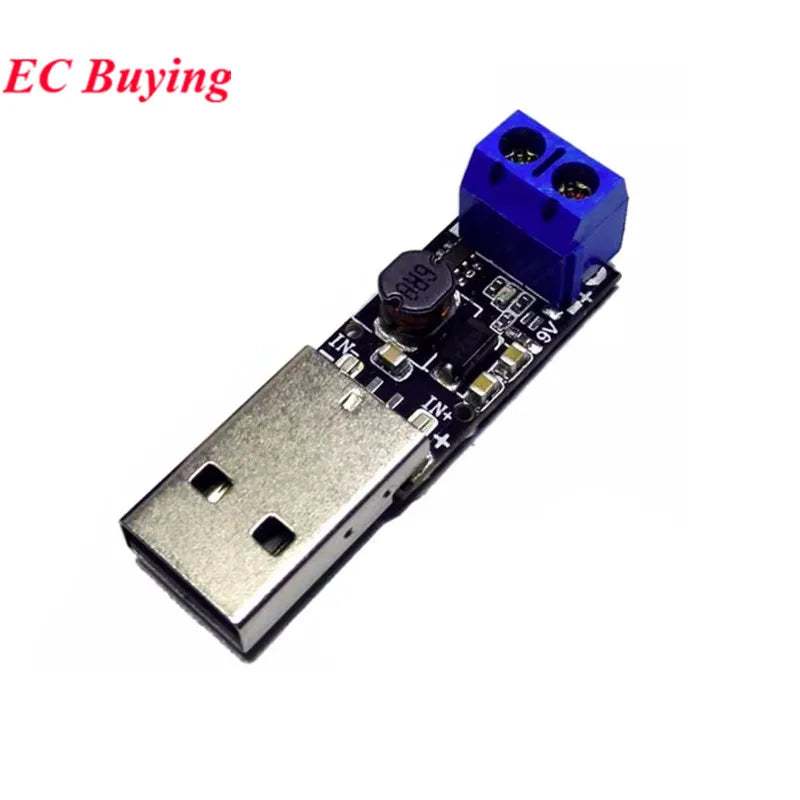

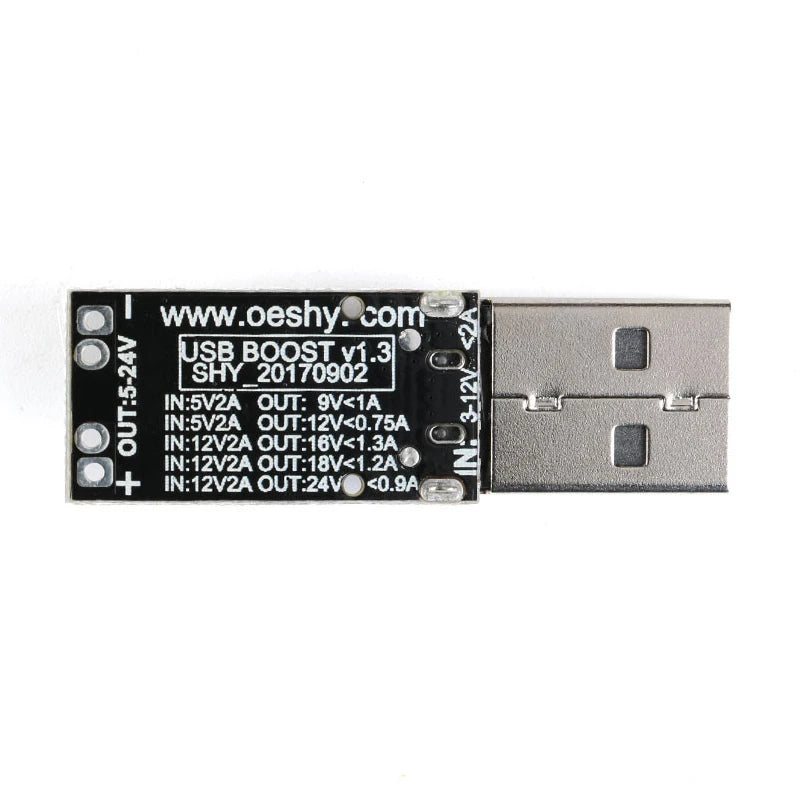

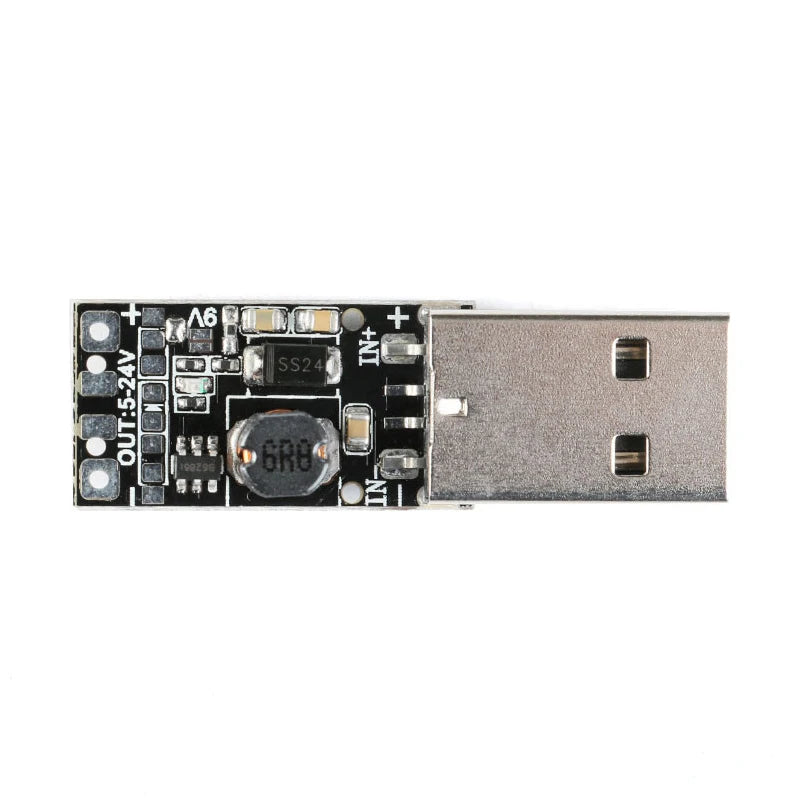

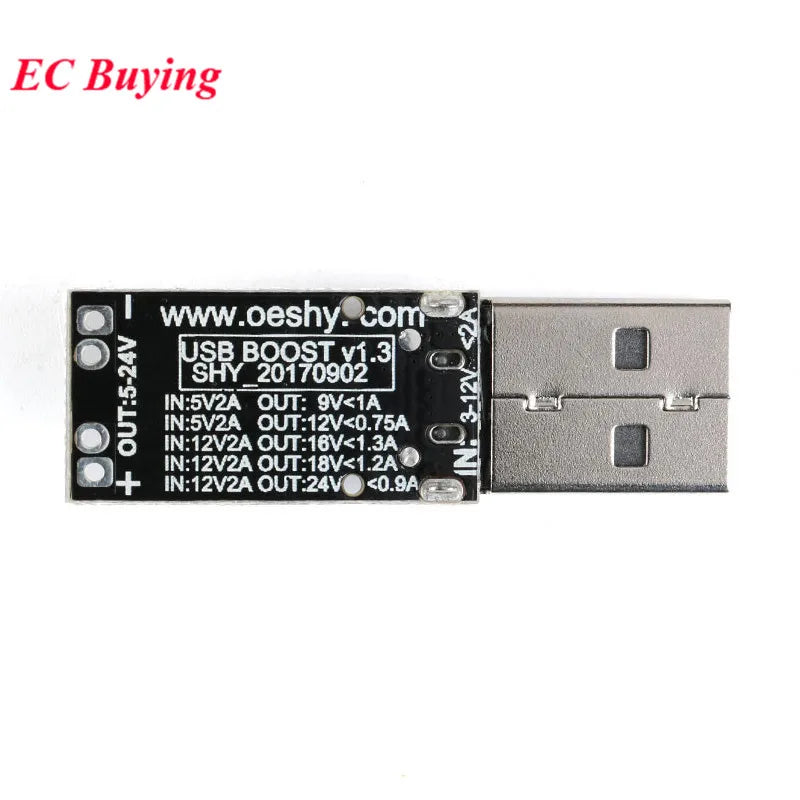

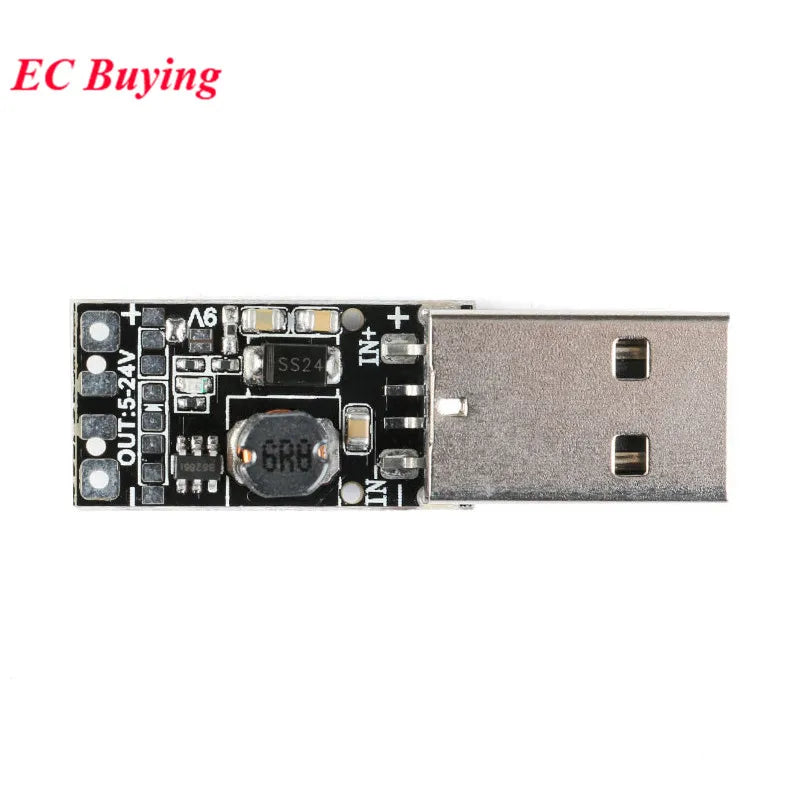

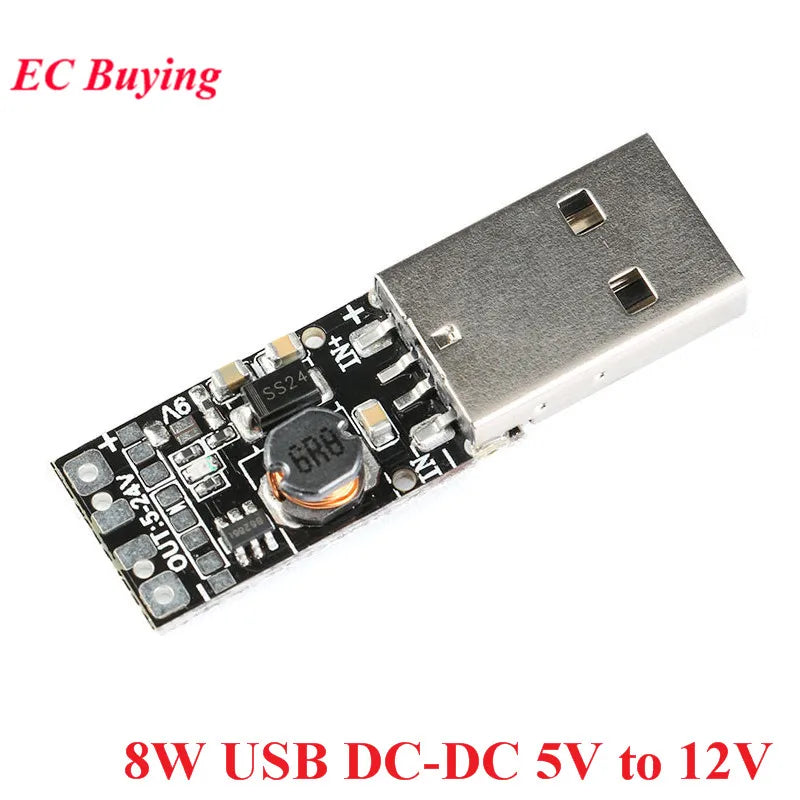

8W USB DC 5V to 12V Step up Module
Product Parameters:
Start voltage: 2V
Input voltage: 2V-12V
Input current: 2A
Output voltage: default 12V, can be set to 9V. Other voltages can be customized.
Output power: maximum 8w (input 5V case) (high easy to overheat)
No-load current: less than 4mA (input 5v output 12v with LED indicator)
Operating temperature: -40--80 degrees
Board size: 25 * 14 * 5mm
The following is a routine test data: (for reference only)
Input DC2V boost to 12v output current of about 260mA
Input DC3V boost to 12v output current of about 400mA or so
Input DC4.2V boost to 12v output current of about 560mA
Input DC5V boost to 12v output current of about 660mA
Input DC8.2v boost to 12v output current of about 1100mA or so
Input DC2V boost to 9v output current of about 350mA or so
Input DC3V boost to 9v output current of about 530mA or so
Input DC4.2V boost to 9v output current of about 740mA or so
Input DC5V boost to 9v output current of about 880mA
Input DC8.2v boost to 9v output current of about 1450mA
Note:
1. The module is booster board, the output voltage must be greater than the input voltage;
2. Boost efficiency at 97% -80%, the greater the output power, the lower the efficiency of 80%;
3. Pay attention to air temperature! To avoid overheating damage;
4. The output voltage is not recommended more than 6 times the input, easy to output loss of control!
5. Boost power is only less than the input power, booster plate will produce heat loss, booster board is not a generator, but the voltage conversion module.
6. For example, input 5V 2A Calculate output power: 5V * 2A * 0.8 = 8W, current: 8W / 12 = 0.66A = 660mA
