90 Degree Metal Gear Micro Servo 180/270/360 Degree Controllable Angle Steering Motor for RC Car Boat DIY

90 Degree Metal Gear Micro Servo 180/270/360 Degree Controllable Angle Steering Motor for RC Car Boat DIY

$49.88

$49.88 $0.00

Description

SPECIFICATIONS

Brand Name: wishiot

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Motors

High-concerned chemical: none

Material: Metal

Origin: Mainland China

Product: Analog Servo

Recommend Age: 12+y,14+y

Remote Control Peripherals/Devices: Servos

Tool Supplies: Assembly Category

Upgrade Parts/Accessories: Gear

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

Work for: for Fixed-wing model airplane remote control aircraft

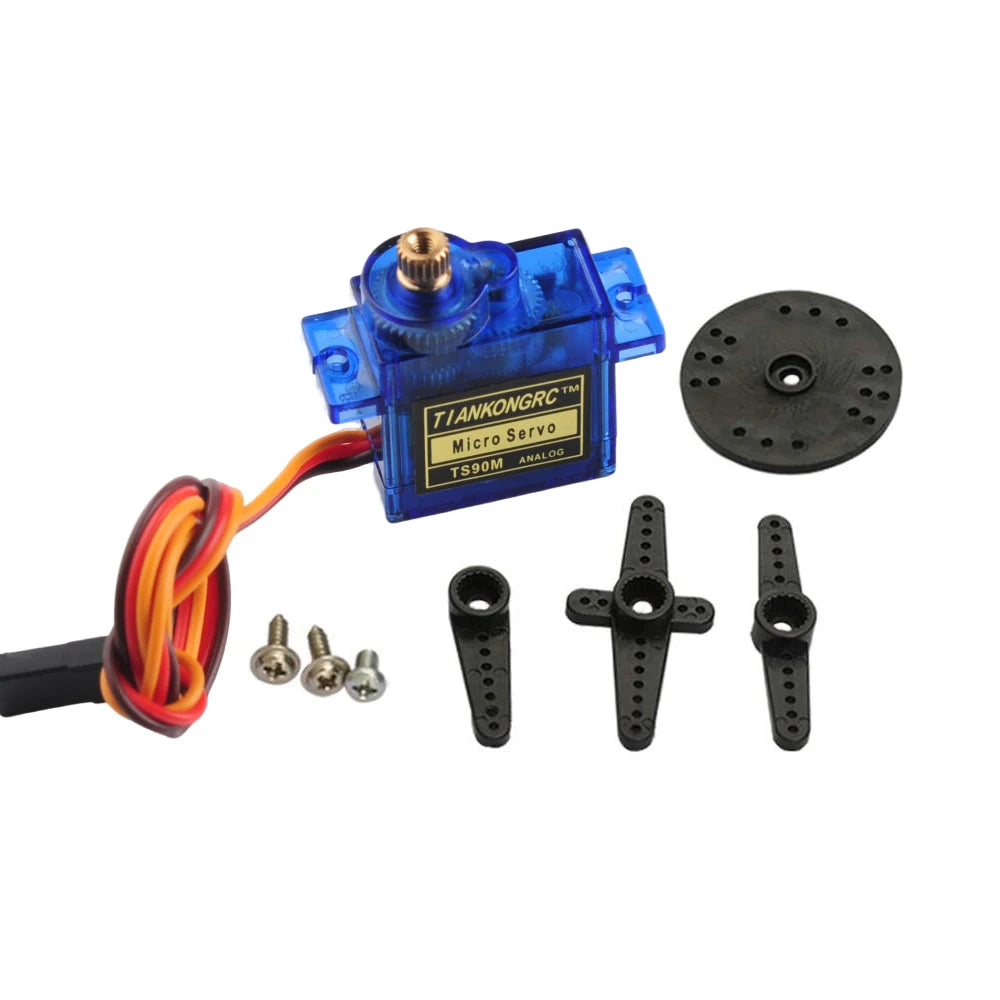

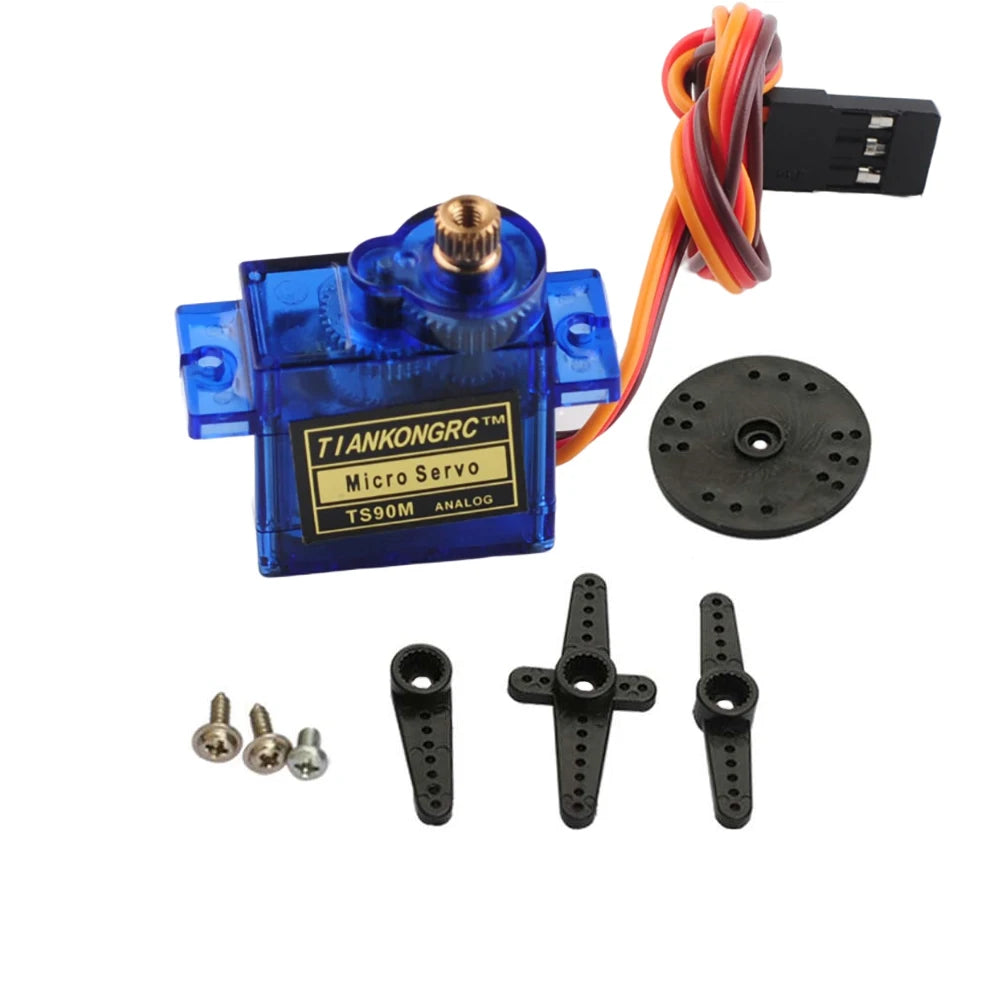

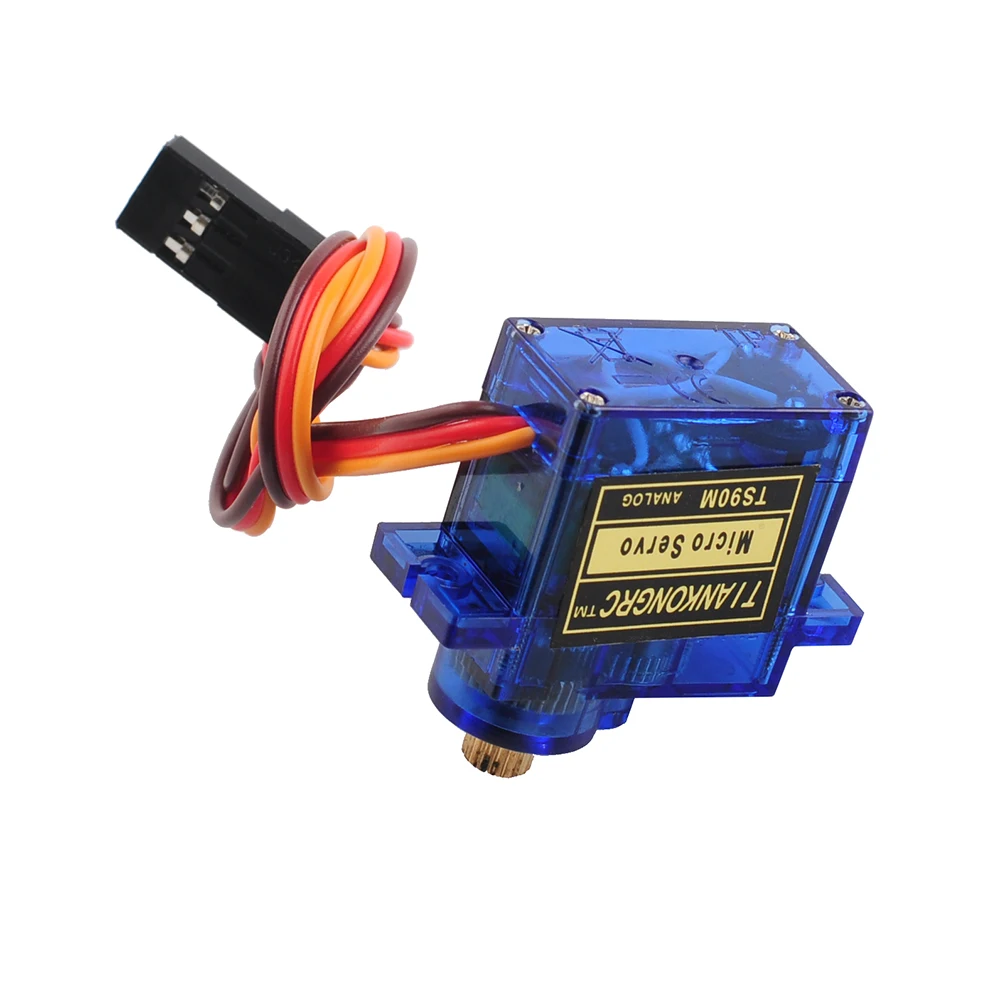

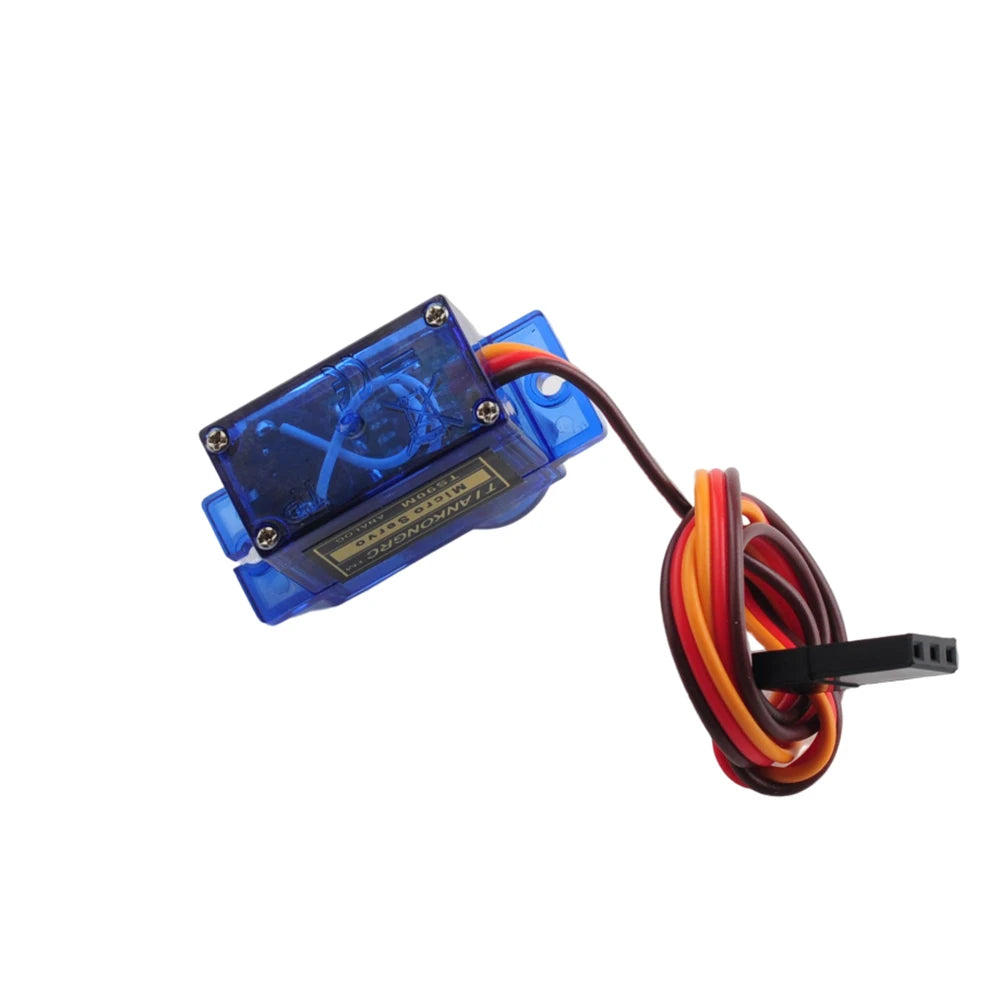

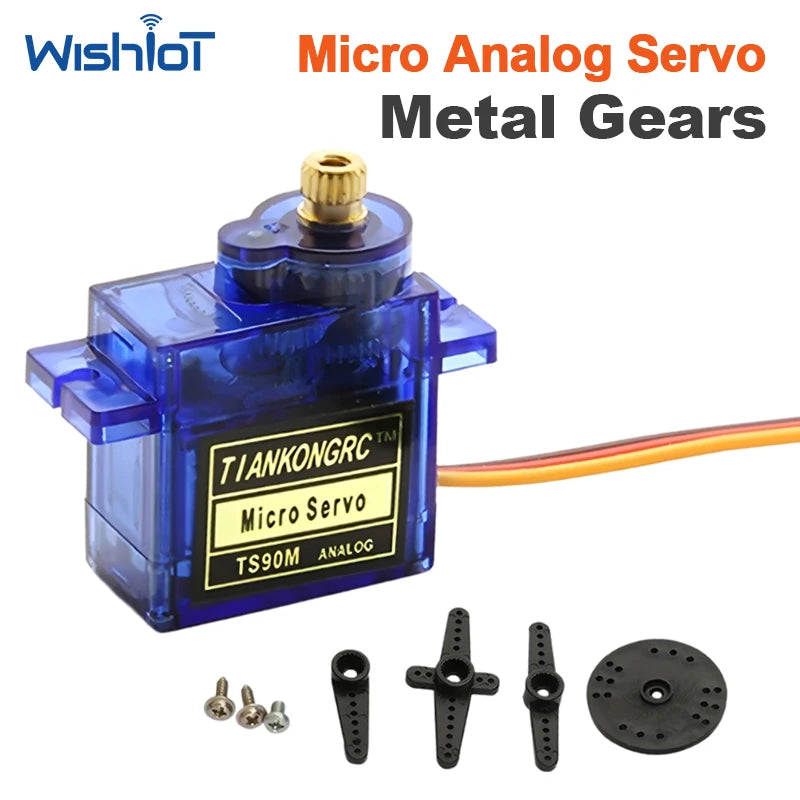

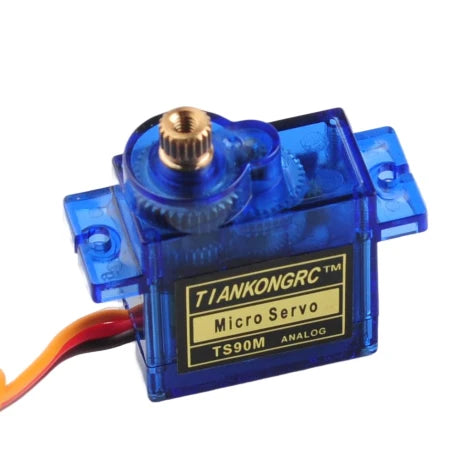

9g TS90M Micro Analog Servo Full Metal Gear 90/180/270 Degree Controllable Angle 360° Continuous Rotation for Airplane Model

Mechanical specifications
Size: 22.4 x 12.5 x 22.8mm
Mechanism limit angle: 200 ° ± 15 °
Output shaft: 20T, diameter: 4.9mm
Gear material: metal

Electrical characteristics
Working voltage: 4.8V-6V
No load speed: 0.11sec/60 °
No-load current: 220mA/6V
Locked rotor torque: 2.2Kg-cm/6V
Locked rotor current: 800mA ± 10%
Static current: 5mA-6mA

Control characteristics
Control signal: Pulse width modification
Control system type: Analog controller
Mid point position: 1500usec
Pulse width range: 500~2500usec

Note:
Please use a standard PWM control signal, the period is 20ms, the high level time is 0.5-2.5ms.

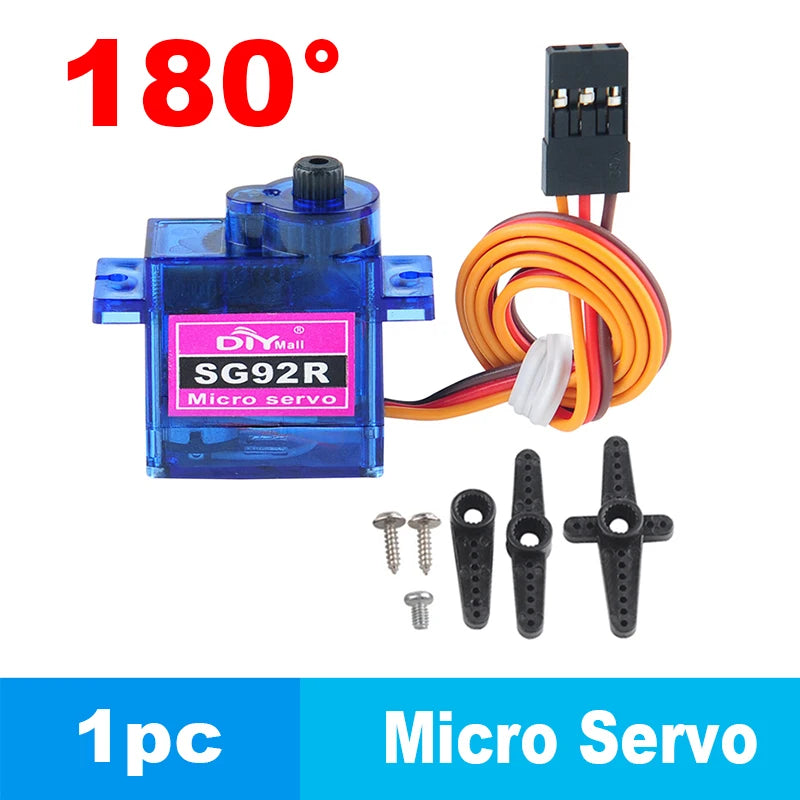

270 degrees and 180 degrees can stop at any angle, and the angle can be adjusted.

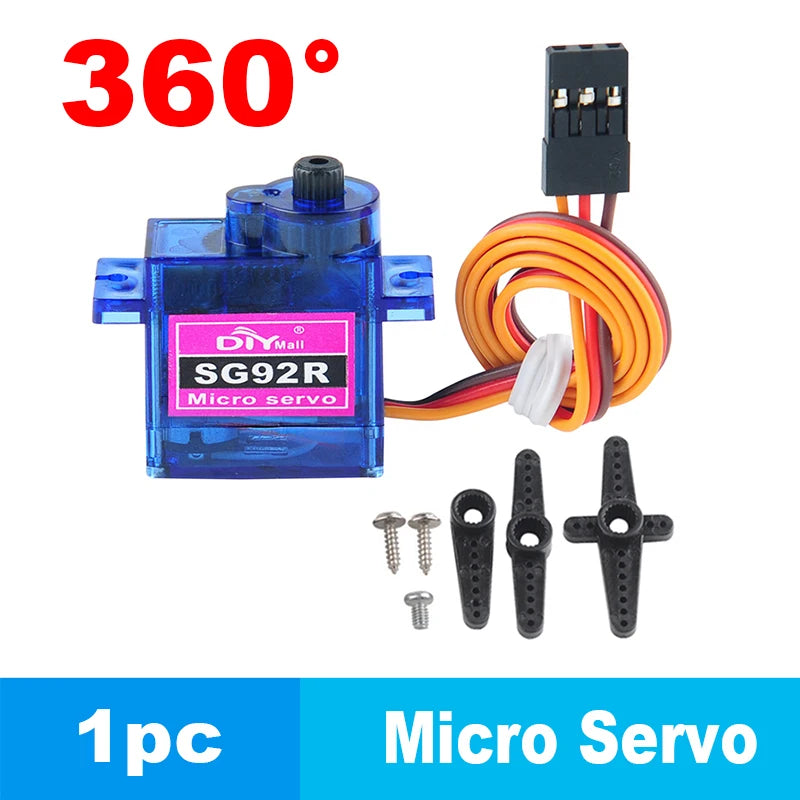

360 degrees is a continuous rotation, and the angle and speed cannot be controlled.

180 degrees and 270 degrees need PWM 500-2500us,or can only rotate half of the angle.
