SPECIFICATIONS

Brand Name: NONE

High-concerned chemical: none

Is Bulbs Included: No

Item Type: LED Modules

Origin: Mainland China

Power Source: DC

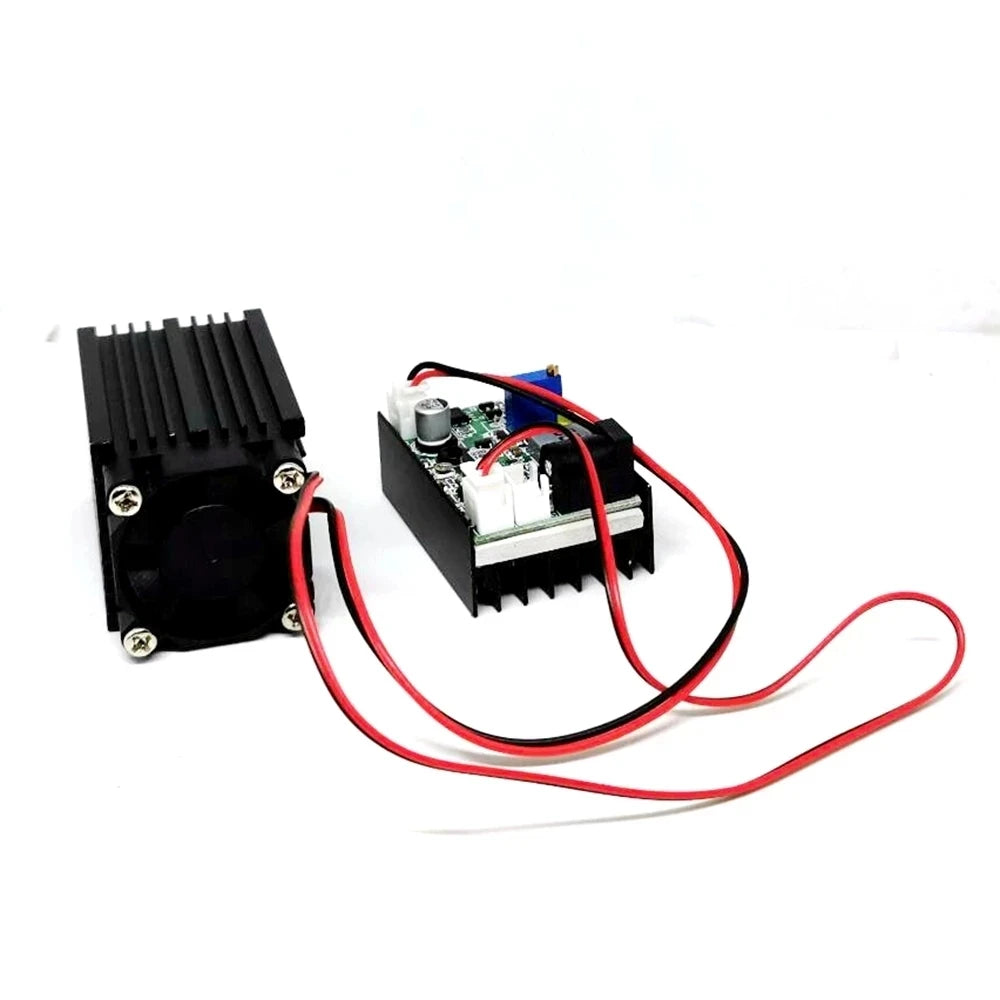

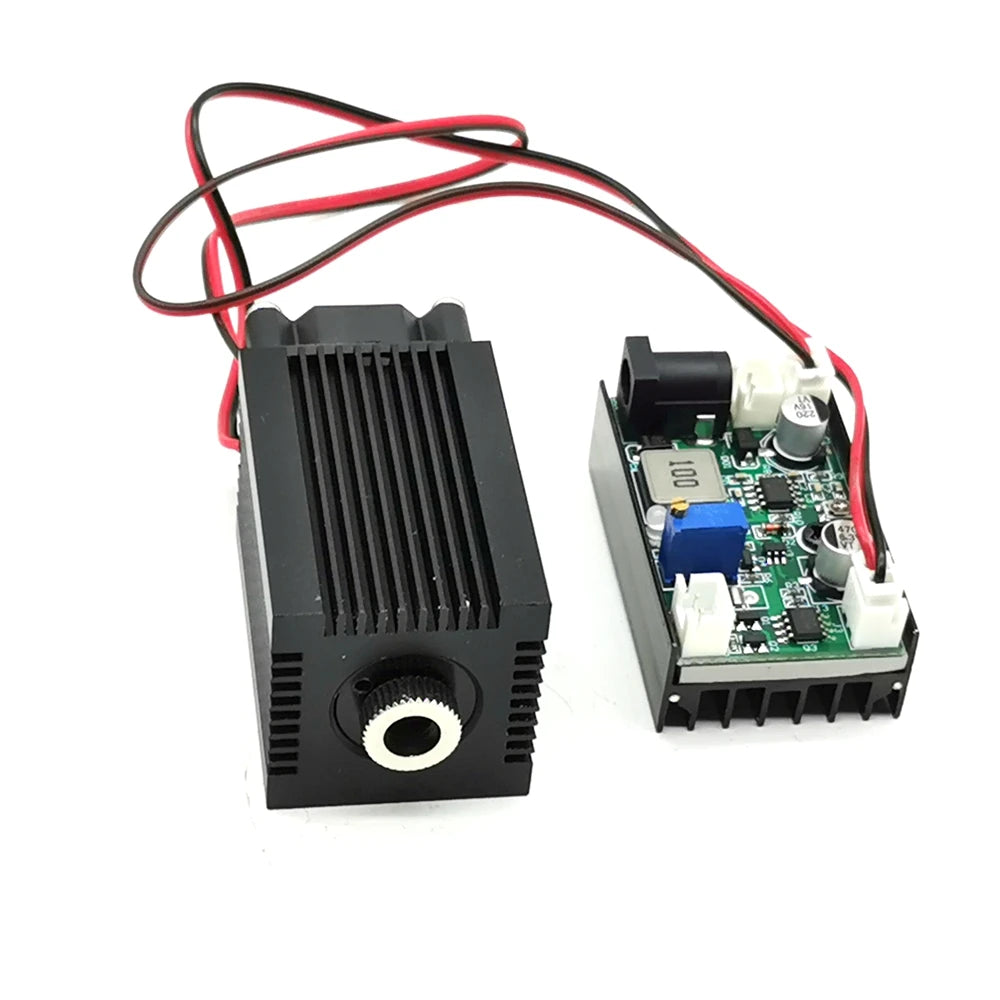

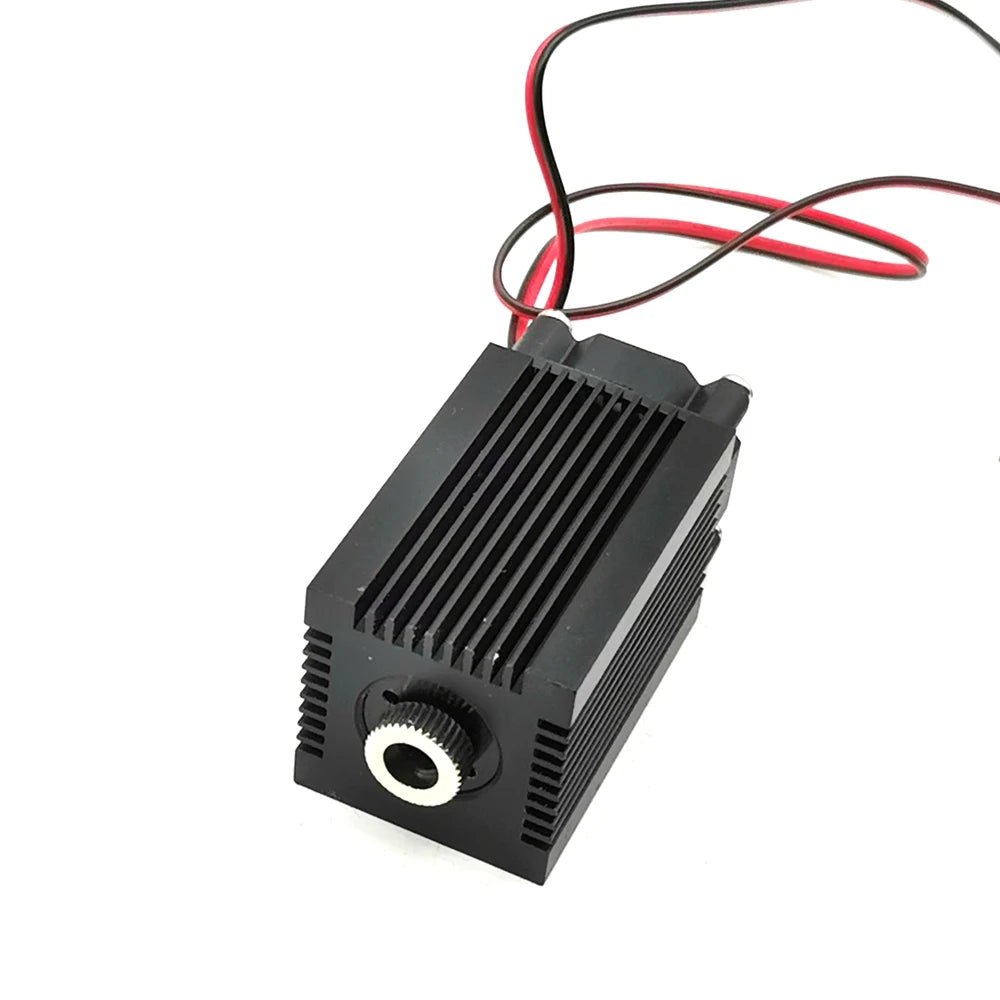

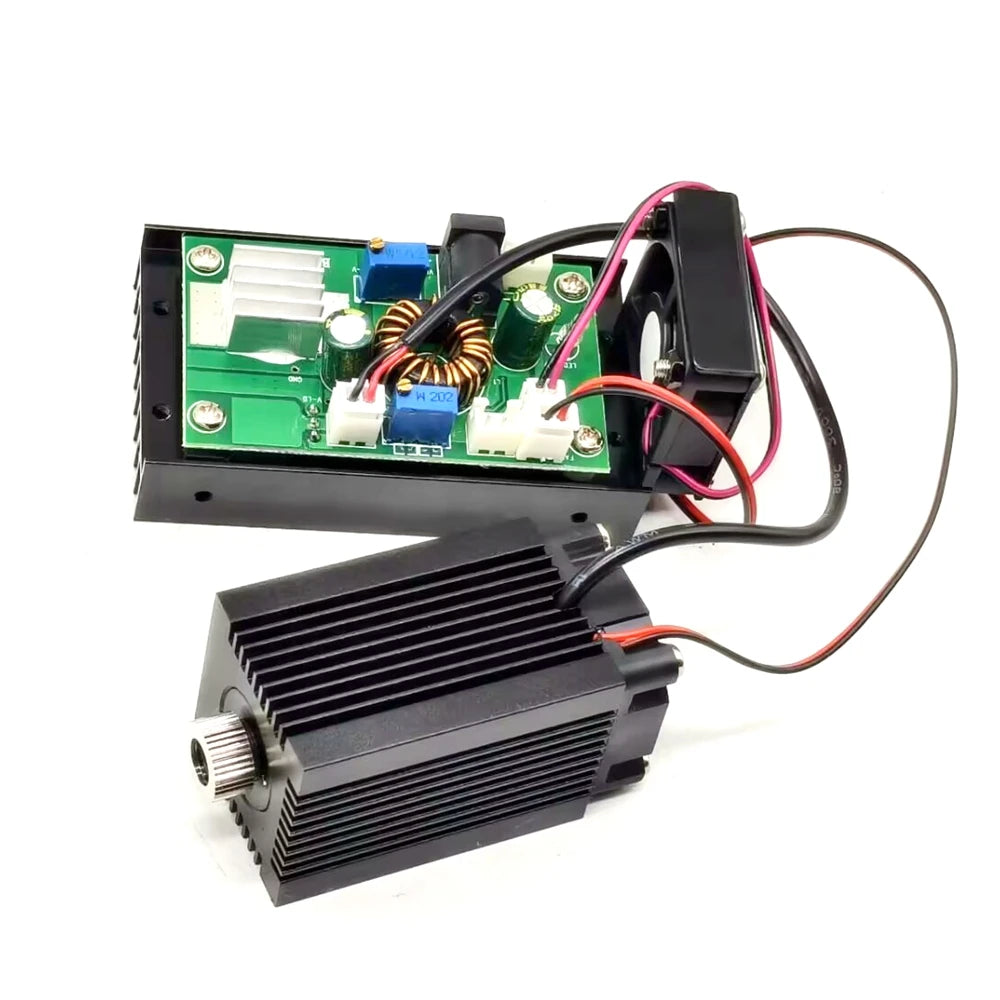

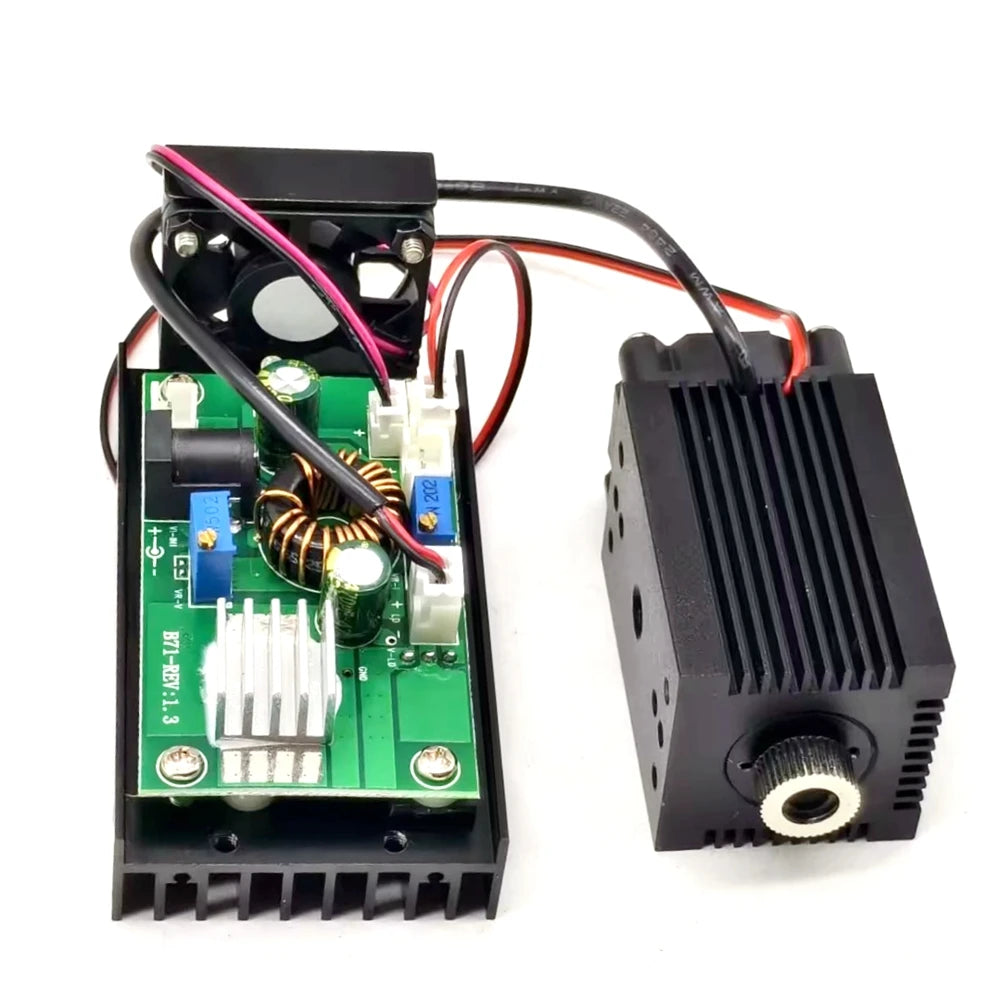

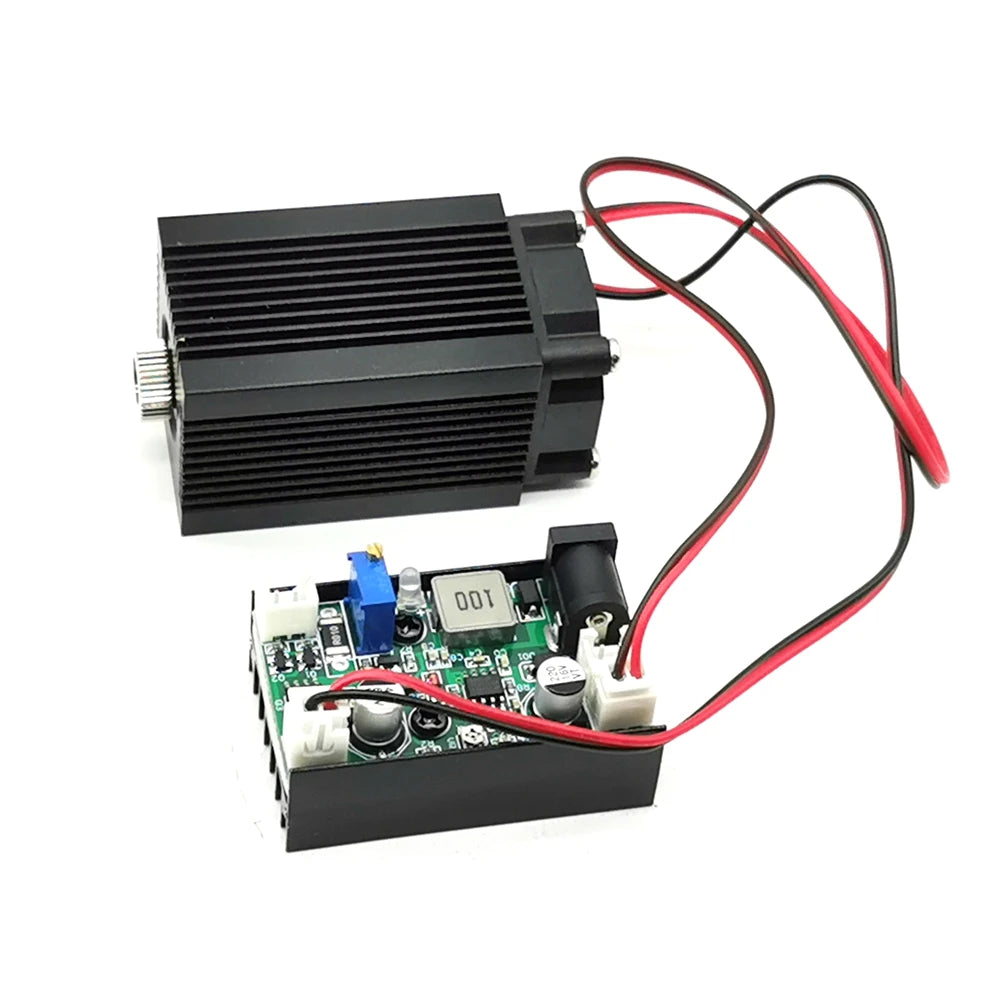

High Power 980nm 1W/ 3W/ 5W Infrared Focusable Dot Head Invisible Light Laser Diode Module TTL

Please note that this is 980nm IR Lasers which can not be seen by naked eyes and the spot is rectangular. It's normal.

Parameters:

Laser head size: 50mmx33mmx33mm
Circuit Board size: 45mm*34mm
Wavelength: 980nm
Output power: 1W/3W/5W

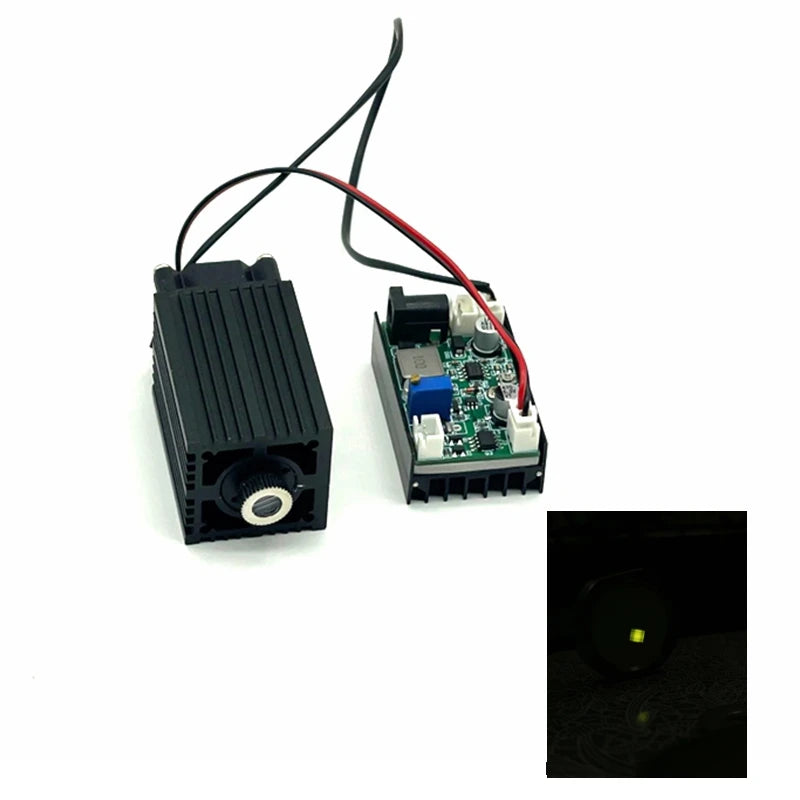

Laser shape:Dot(rectangular to oval)
Focusable:YES
Modulation frequency: AdjUstable TTL modulation
Working:Long time working
Finish Color: Black
Case Material: Aluminum
The circuits control: constant current
Reverse polarity protection: with automatically identify the positive and negative
Operating voltage: DC = 12V
Warm-up time: None
Operating Temperature: -10 ℃ ~ +40 ℃
Storage temperature: -10 ℃ ~ +40 ℃

Features:

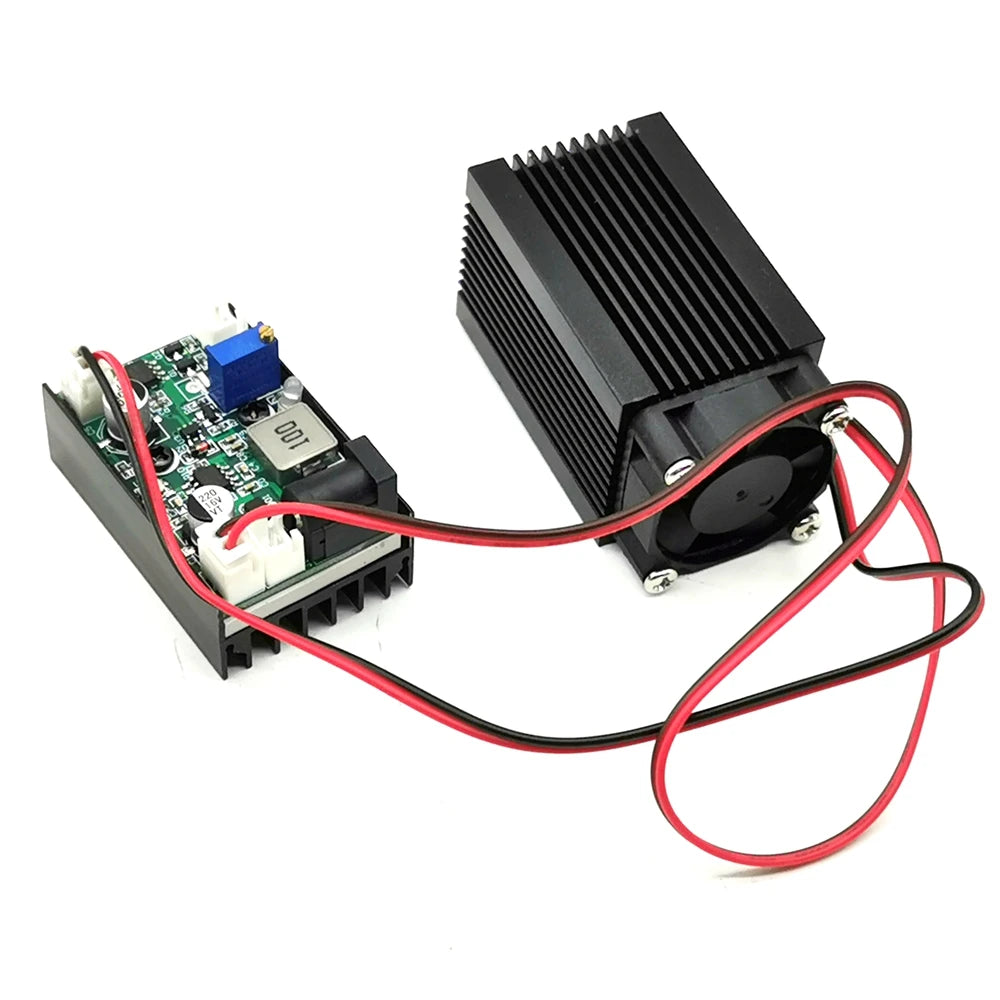

1. This laser module can work for a long time with cooling fan.But please make sure to keep the laser working under 30℃.
2. Please add a 12VDC power to this laser module. Red wire connects”+” pole; Black wire connects ”-” pole. TTL 0V on, 3-5V off. If you don't use TTL, please just leave the blue and white wire.

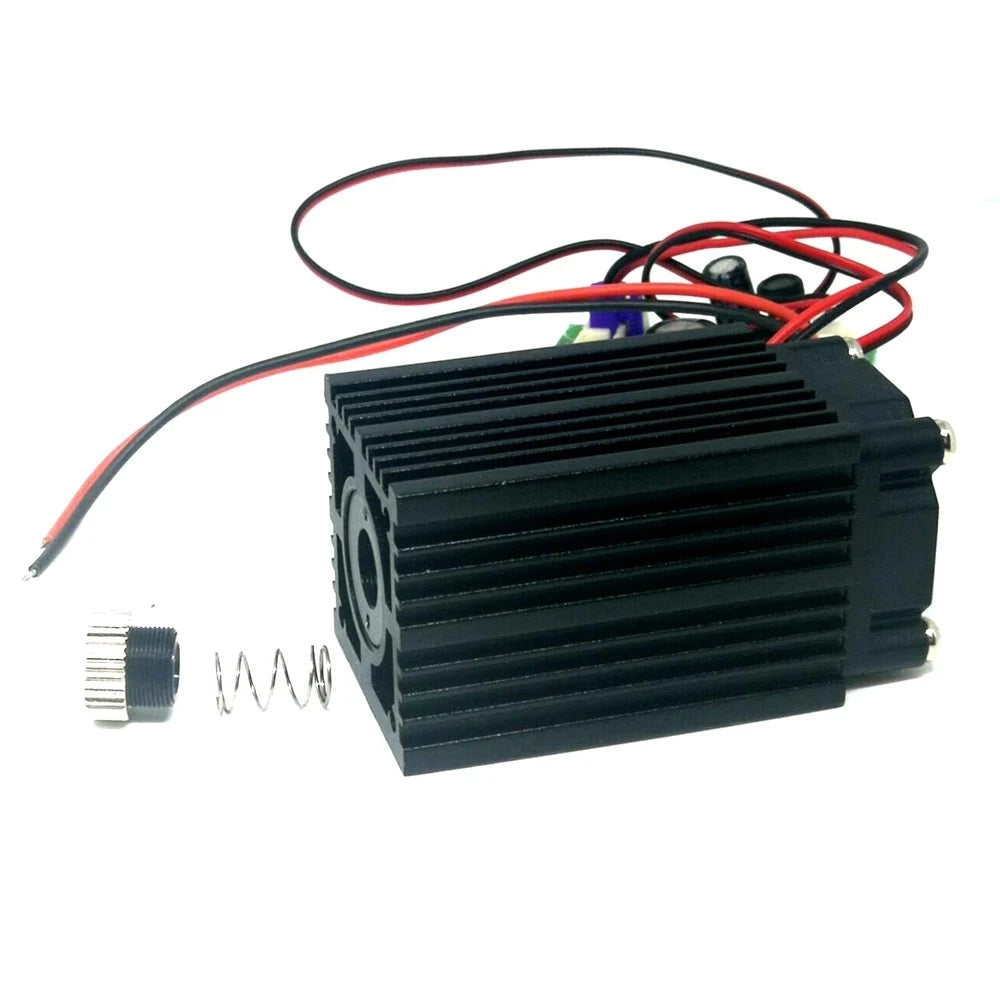

3. This is a focusable laser module. Please do not take off the lens adjustable part off to avoid dust.
4. Please wear IR laser protection goggles to protect your eyes when working on this module.

Package:

1pc 980nm Laser Diode Module
