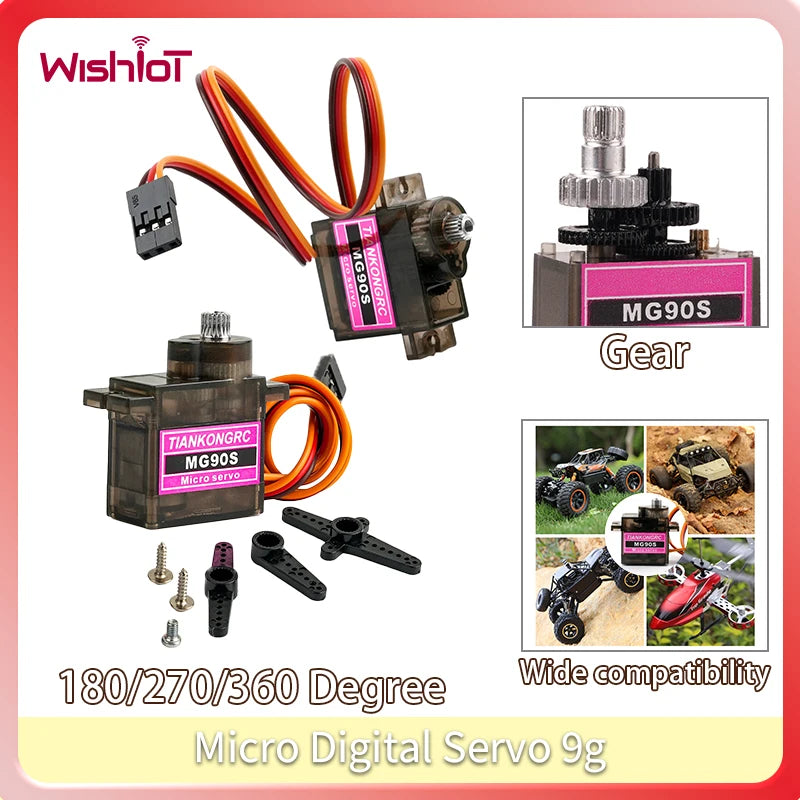

9g Micro Digital Servo Metal + Plastic Gear Brushed Motor MG90S 180/270/360° High Torque for RC Car Robot Airplane Model DIY Toy

9g Micro Digital Servo Metal + Plastic Gear Brushed Motor MG90S 180/270/360° High Torque for RC Car Robot Airplane Model DIY Toy

$14.68

$14.68 $0.00

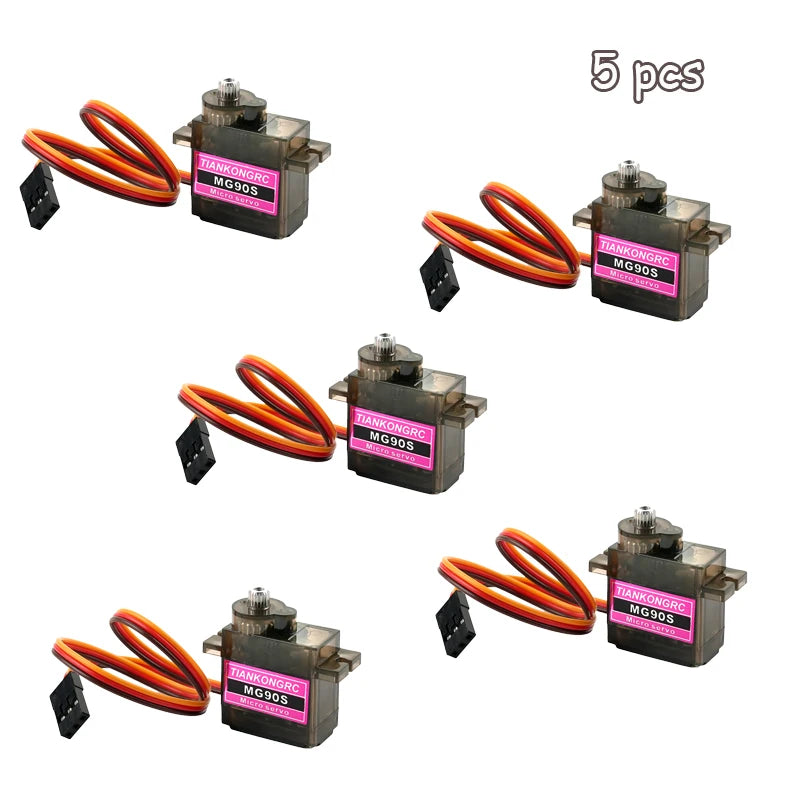

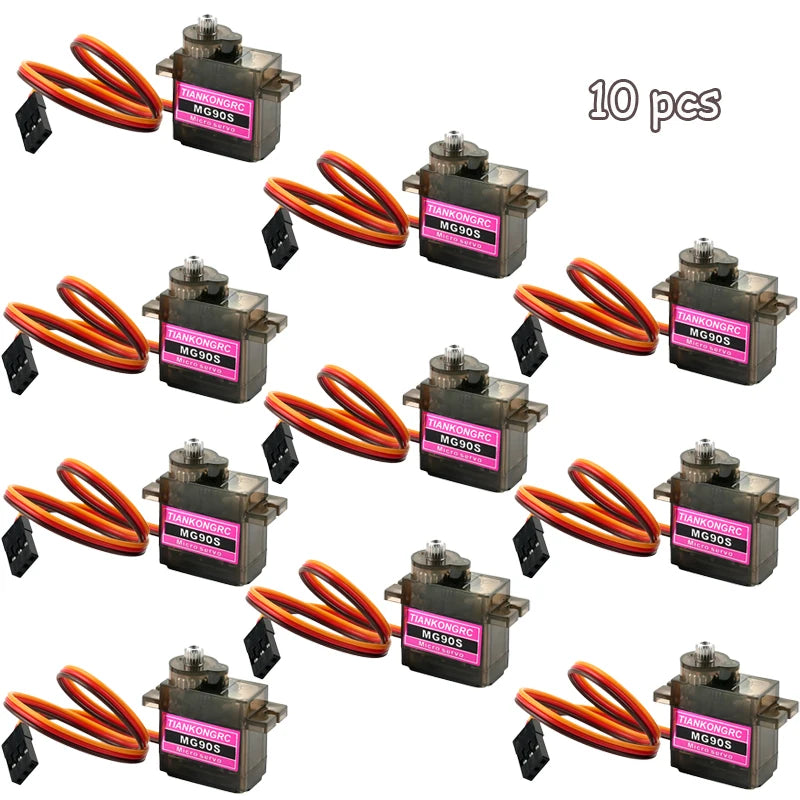

Color 180 Degree 360 Degree 270 Degree 5PCS 270 Degree 5PCS 180 Degree 10PCS 180 Degree 5PCS 360 Degree 10PCS 360 Degree 10PCS 270 Degree

Description

SPECIFICATIONS

Brand Name: wishiot

Choice: yes

High-concerned chemical: none

Model Number: MG90D

Origin: Mainland China

Product: Analog Servo

Recommend Age: 14+y

Type: MG90S

Work for: for Fixed-wing model airplane remote control aircraft

9g Micro Digital Servo Metal + Plastic Gear Brushed Motor MG90S 180/270/360° High Torque for RC Car Robot Airplane Model DIY Toy

Please note:
Please use the standard PWM control signal, the cycle is 20ms, the high level time is 0.5-2.5ms.
270 degrees and 180 degrees are the same, you can stop at any angle, the angle can be adjusted, 360 degrees is continuous rotation, the angle and speed cannot be controlled.
180 degrees and 270 degrees can control the angle, PWM500-2500 remote control can only have half the stroke.

Parameter:
Appearance size: 22.4*12.1*22.8mm
Mechanism limit angle: 200°±5°
Output shaft: 20T diameter: 4.9mm

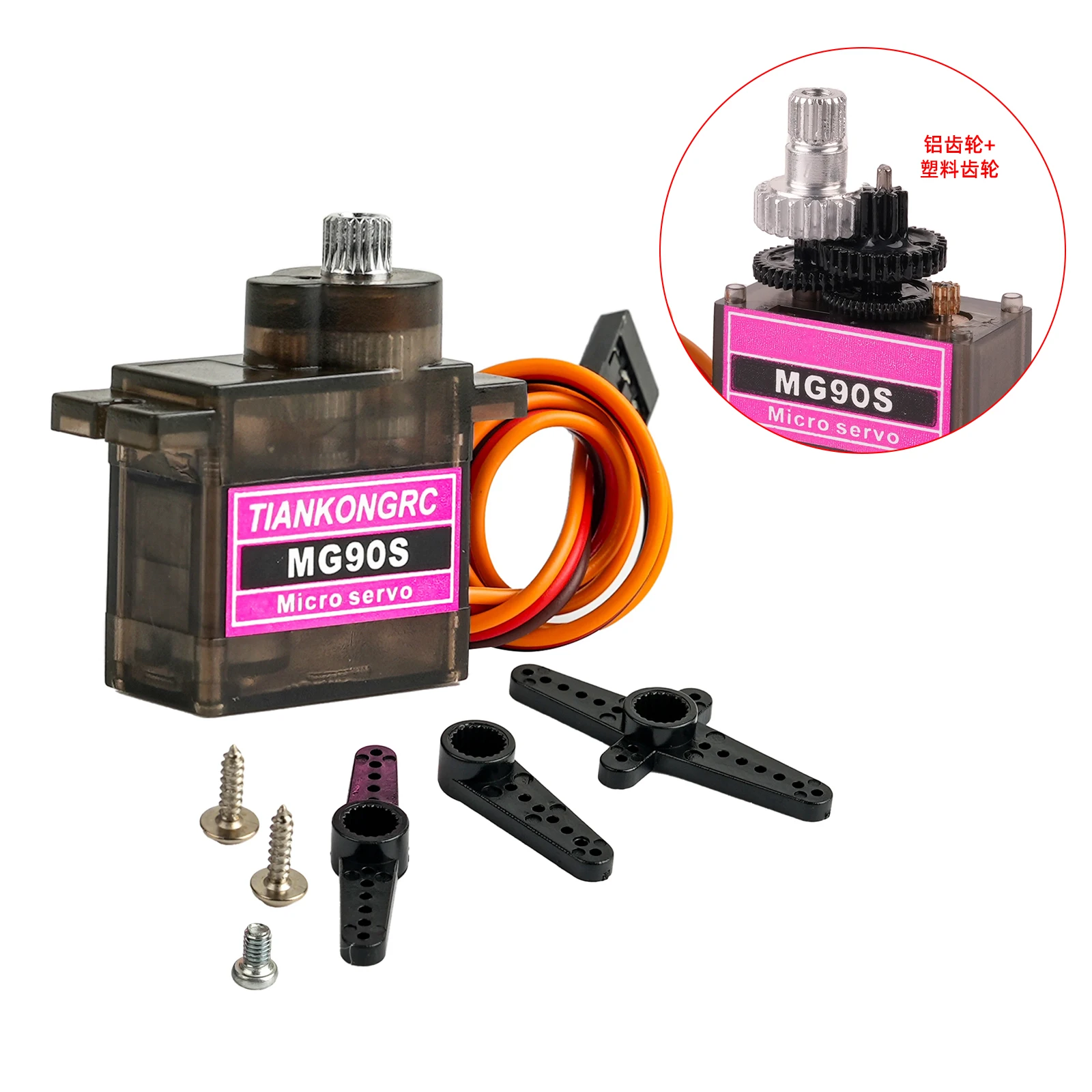

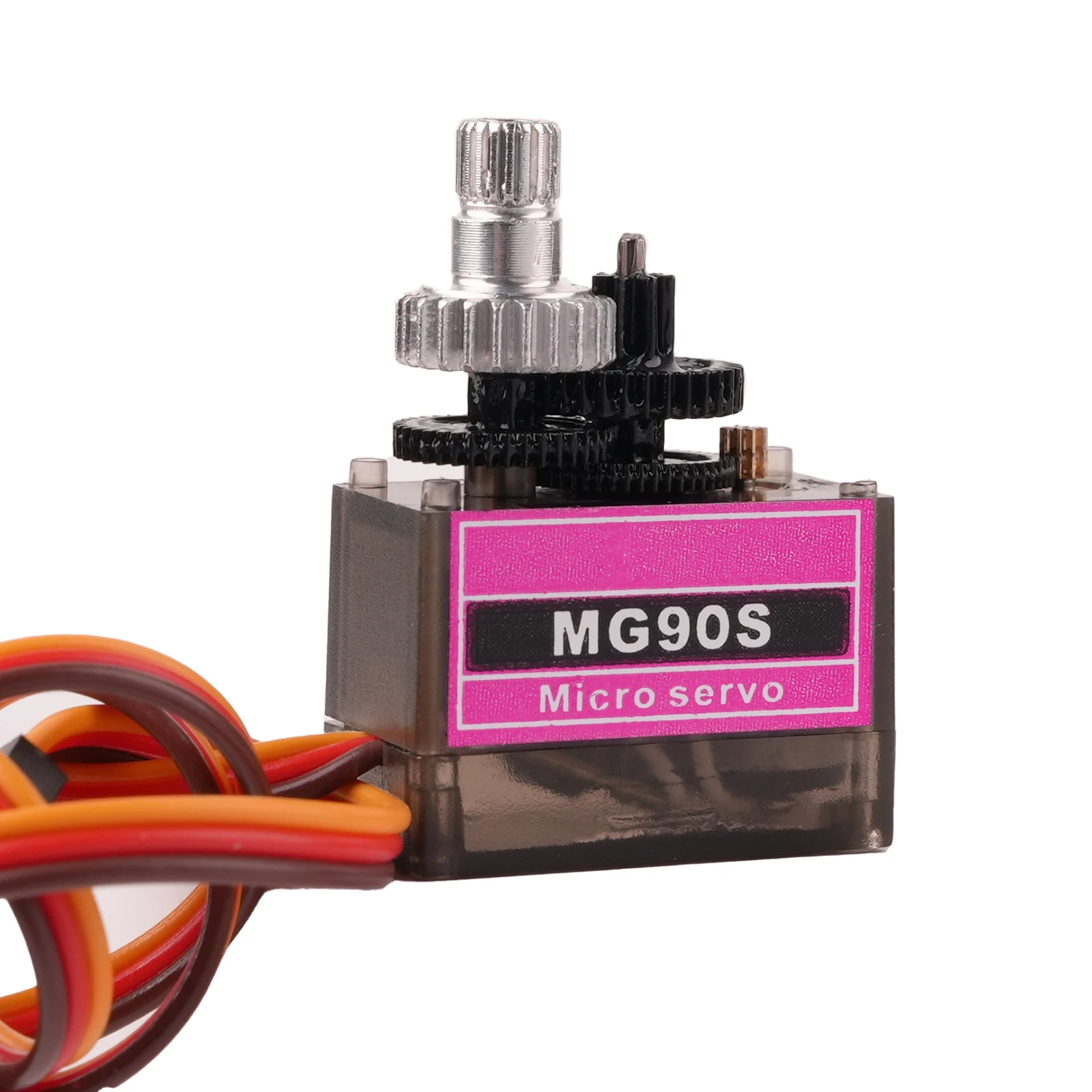

Gear material: metal teeth
Working voltage: 4.8V-6V
No-load speed: 0.12sec/60°
No-load current: 90mA/6V
Stalling torque: 2.2Kg-cm/6V
Stalling current: 860mA+10%
Quiet current: 5mA-6mA
Control signal: Pulse width modification
Control system type: Analog controller
Midpoint position: 1500usec
Pulse width range: 500~2500usec
