SPECIFICATIONS

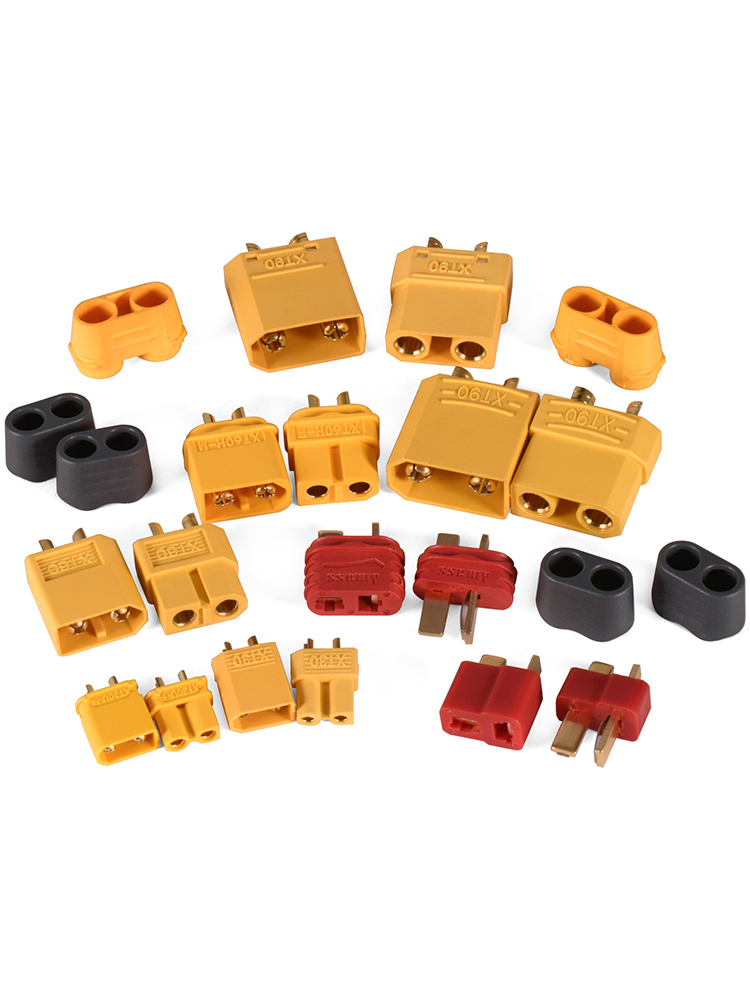

9IMOD 5/10pairs XT60 XT30 XT90 T-plug Male Female Bullet Connectors Amass XT30U XT60H XT90 T Plug Deans with Sheath Housing Power Plugs Upgrade for RC Lipo Battery/Car/Boat/Drone

Features:
1. High-quality male and female XT60 XT30 XT90 T-plug connectors are non-slip, durable, ensures high-amp connection, and easy to plug and unplug.
2. High Temperature Nylon and Gold Plated Bullet connectors, Half open end, easier for welding, for RC Lipo Batteries Drones Airplanes Cars.
3. Ergonomically designed and easy to grip. Low resistance for high current capacity.

Specification:

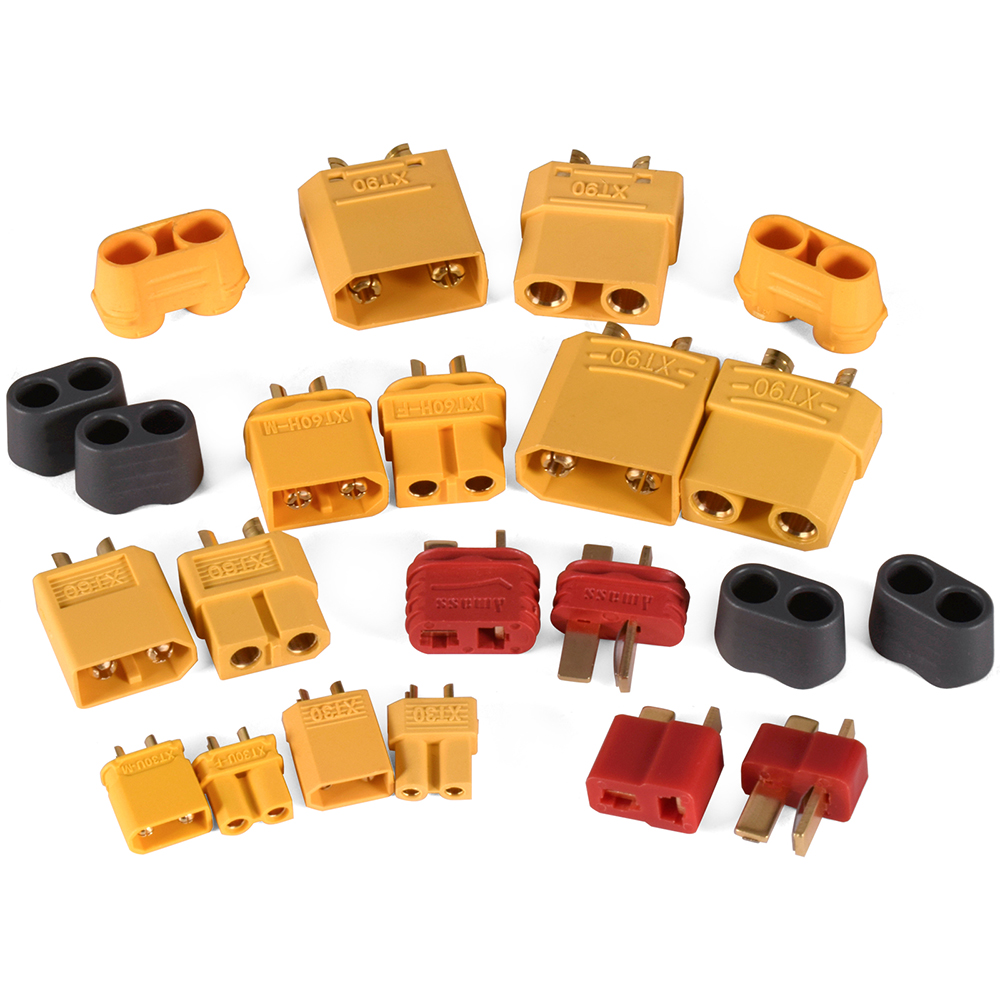

Ordinary Model: XT60 XT30 XT90 T-plug (optional)
Amass Model: XT30U  XT60H XT90 T Plug (optional)

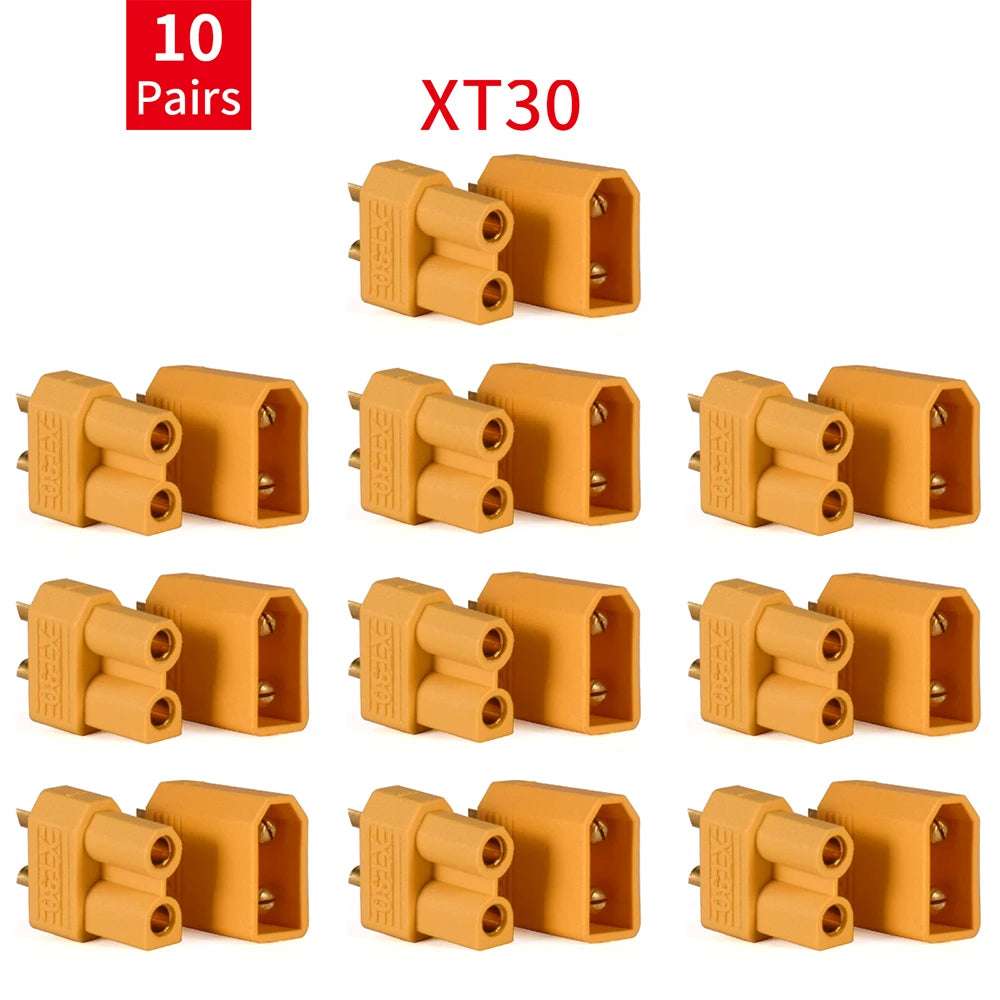

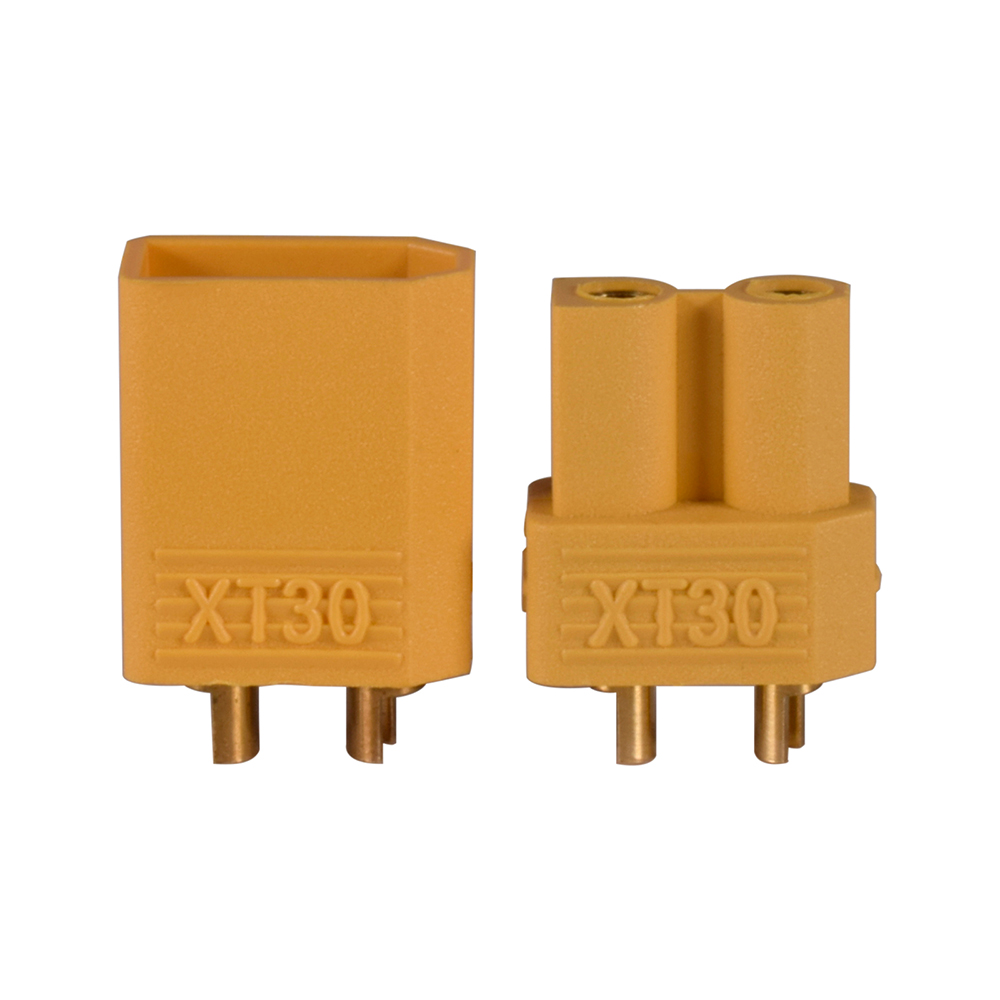

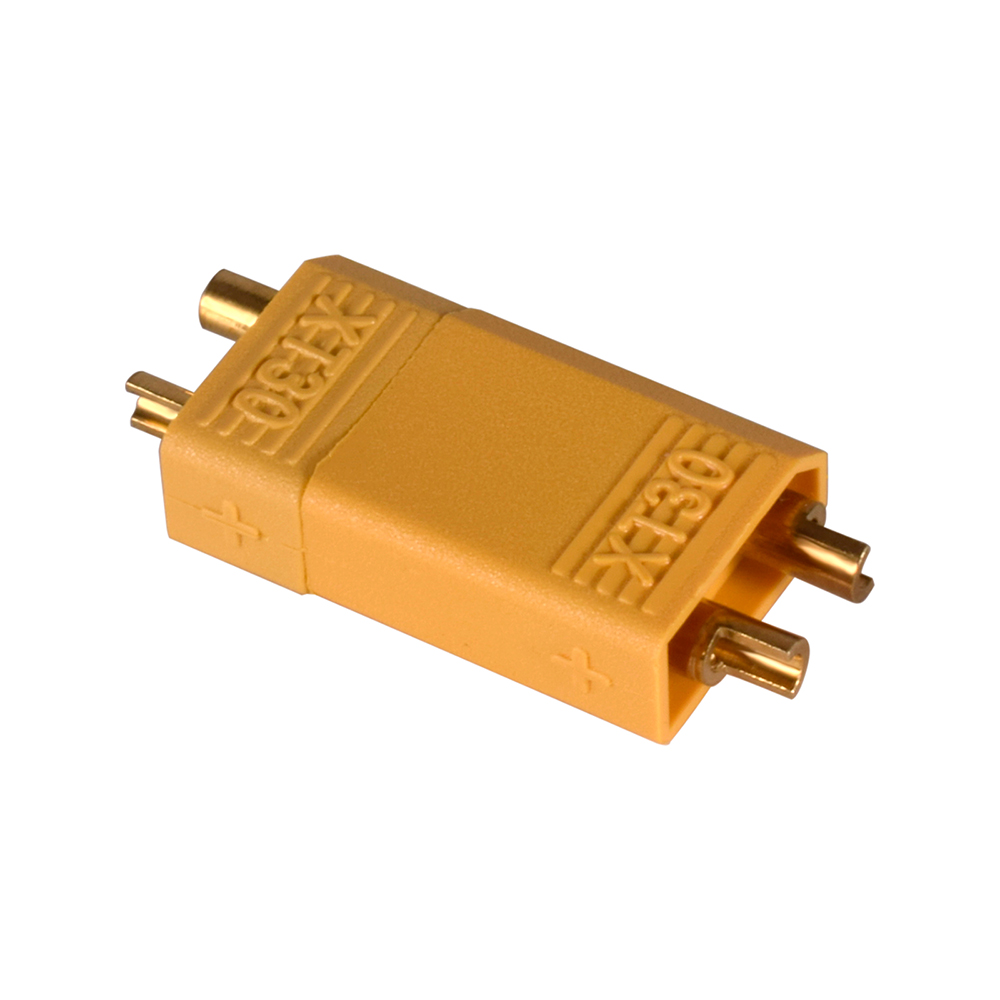

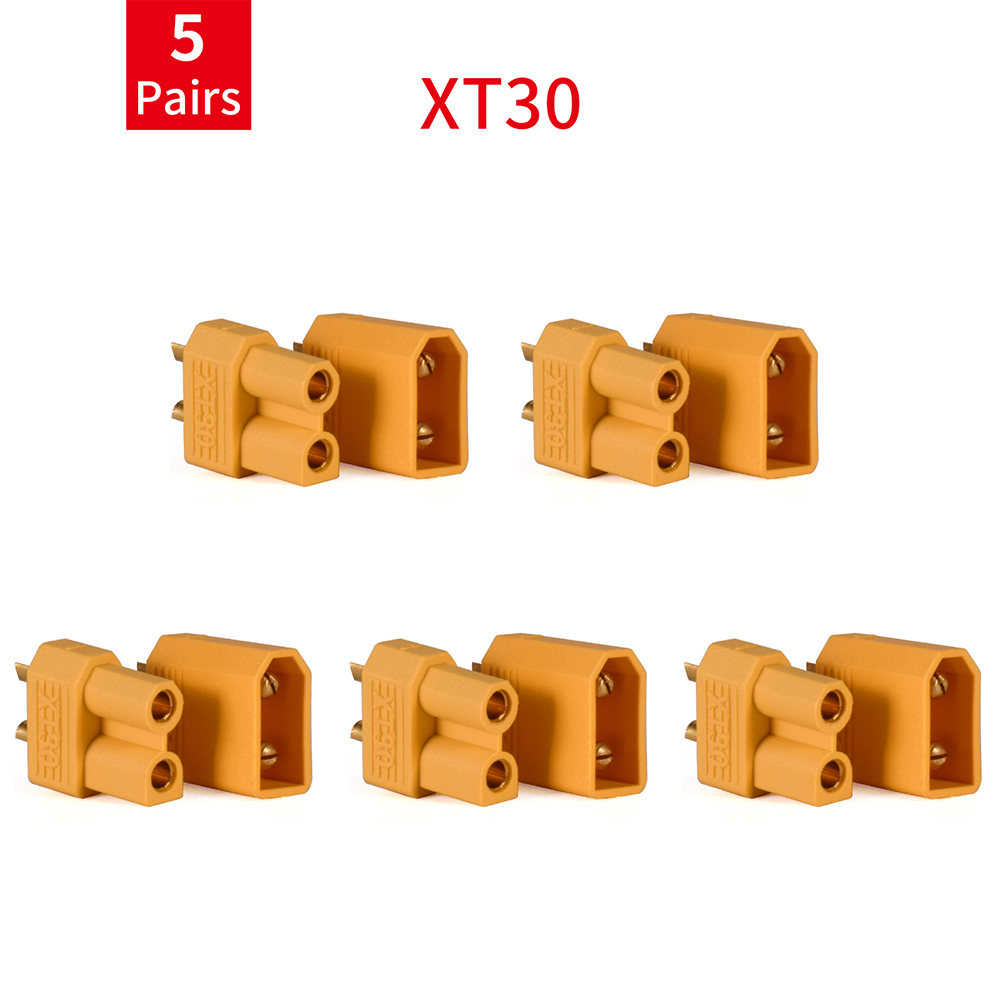

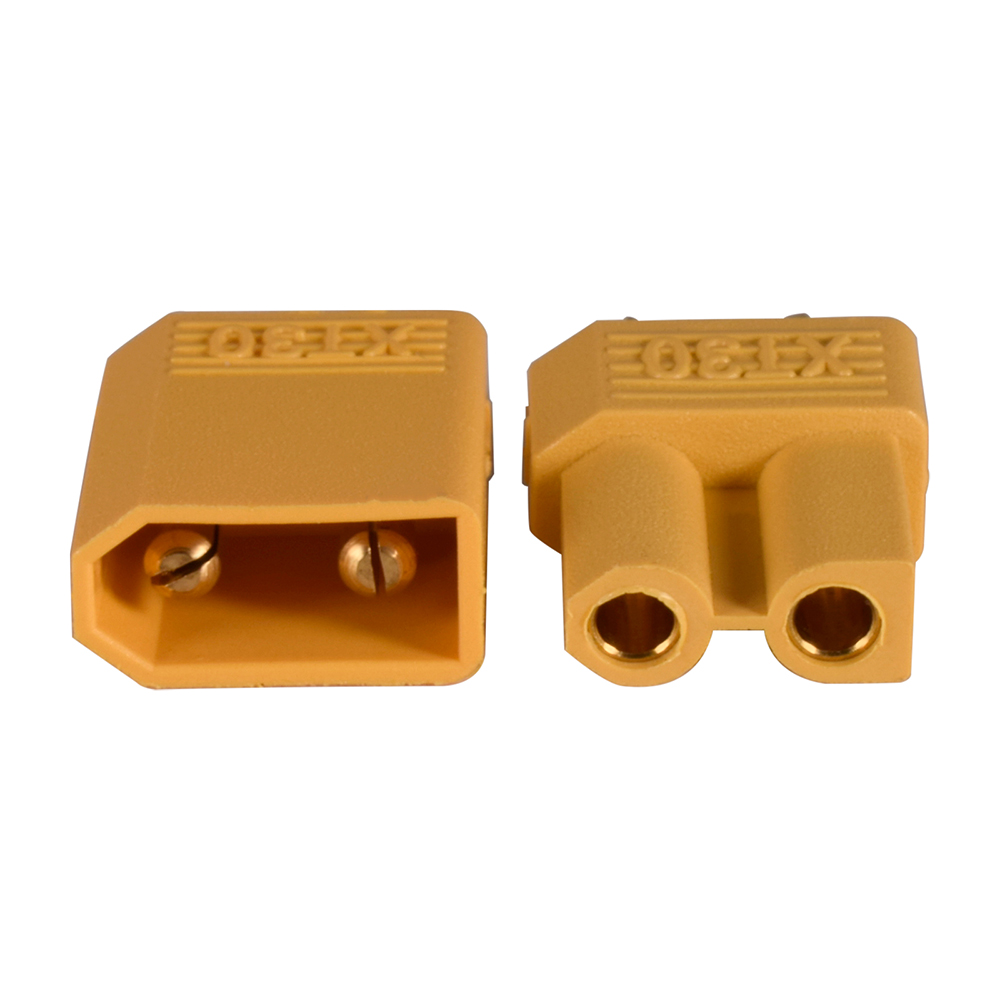

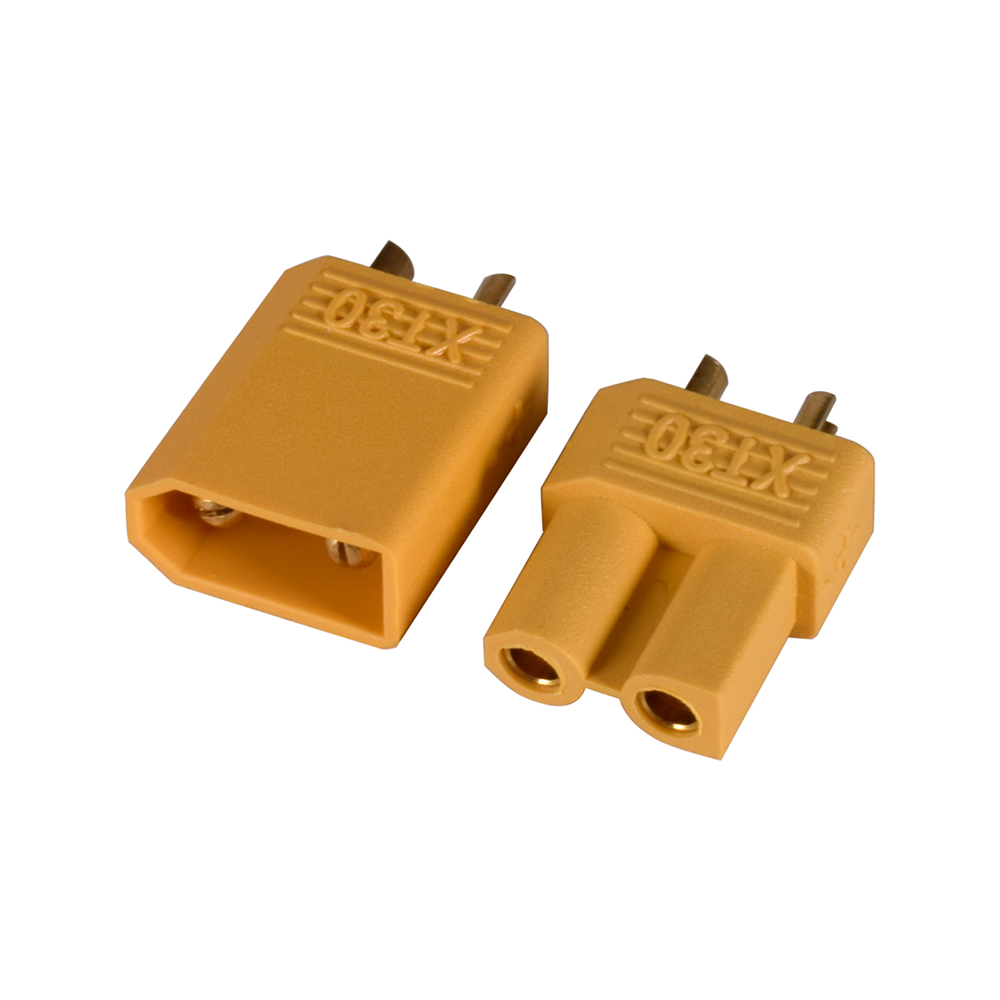

Ordinary XT30
15 Amp Current Handling Bullet Connectors
High Temperature Nylon Material

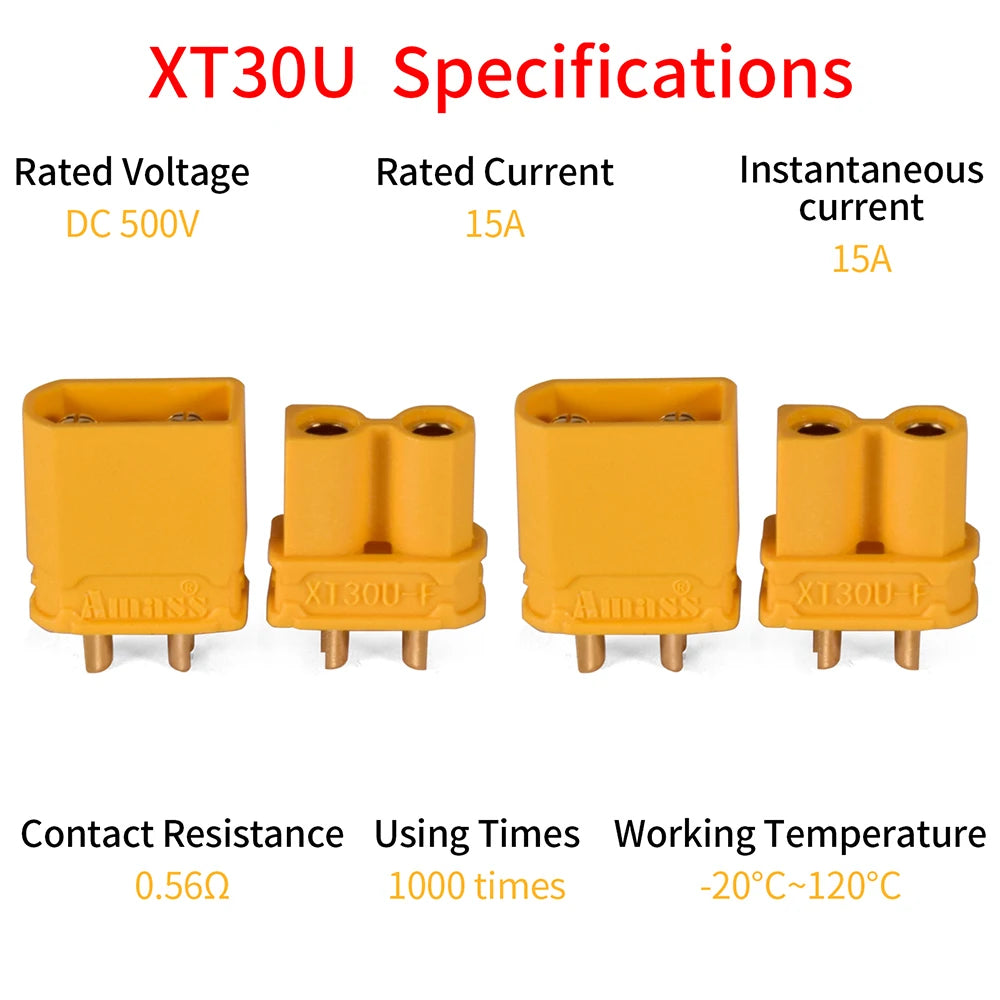

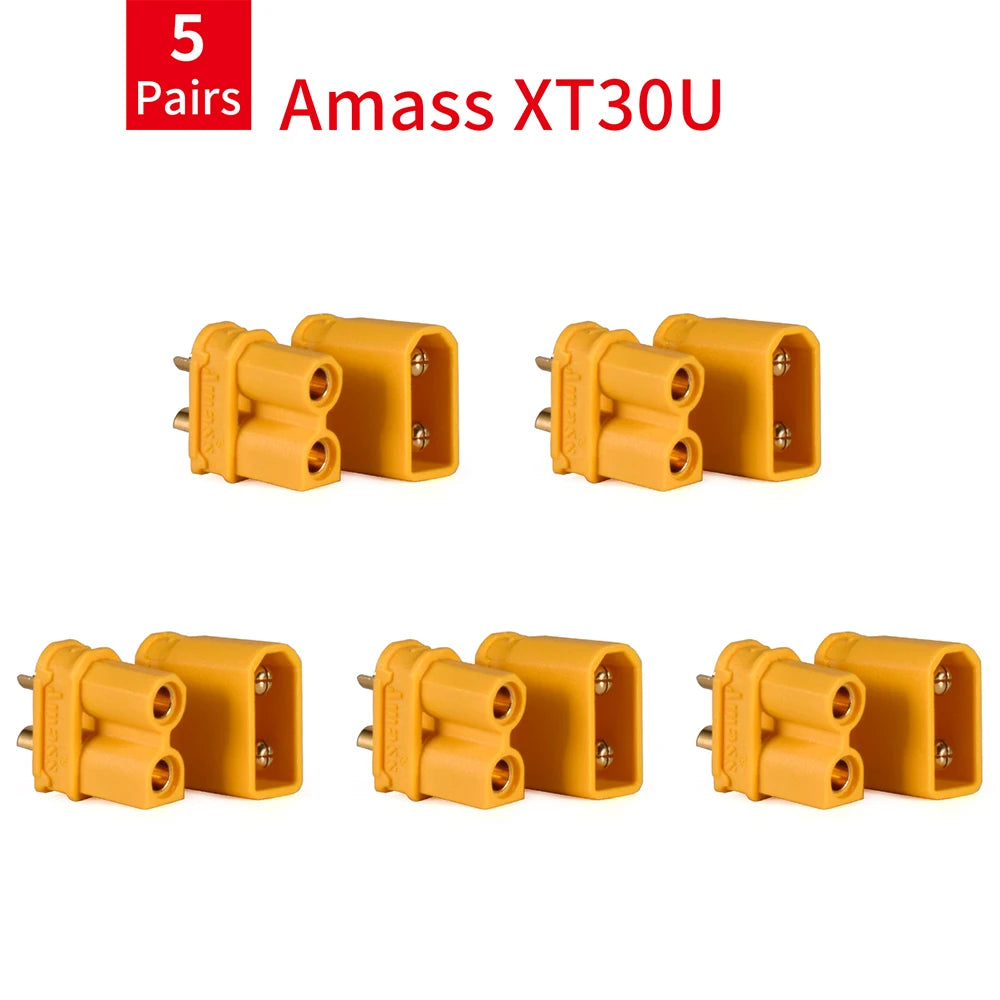

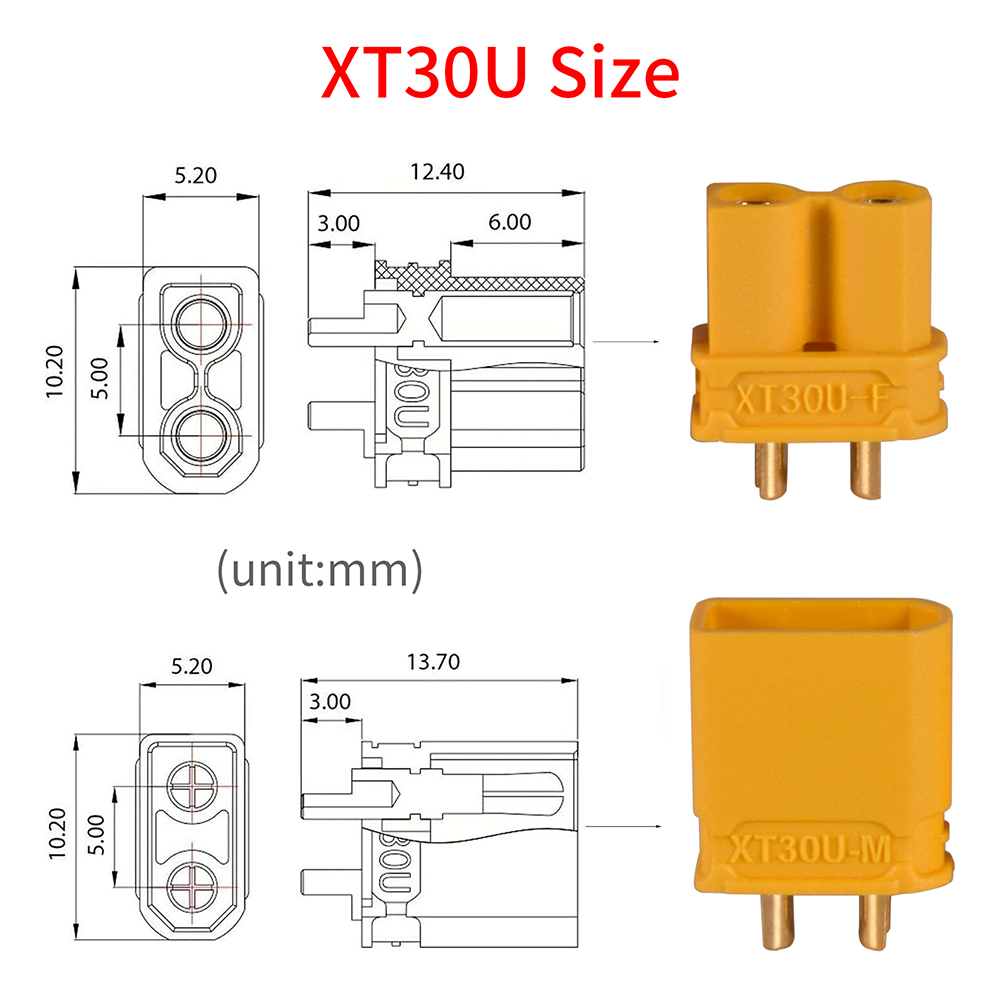

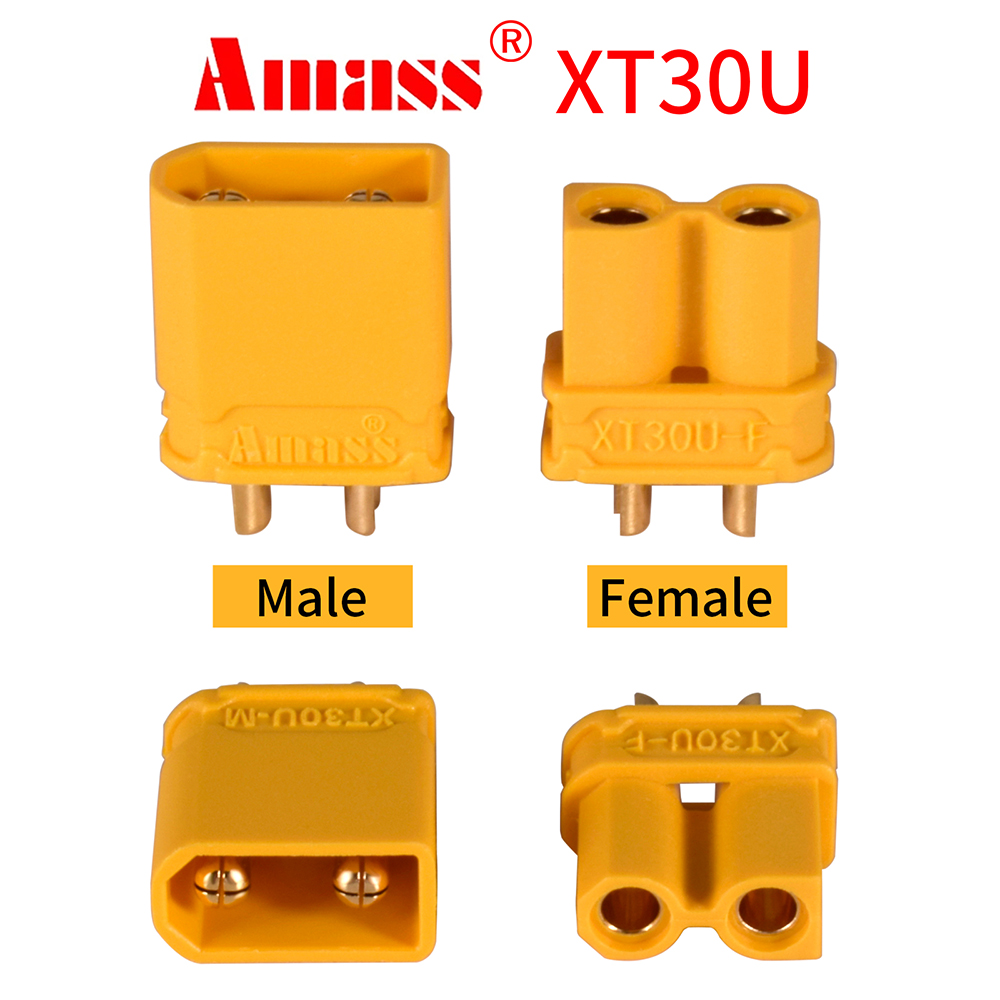

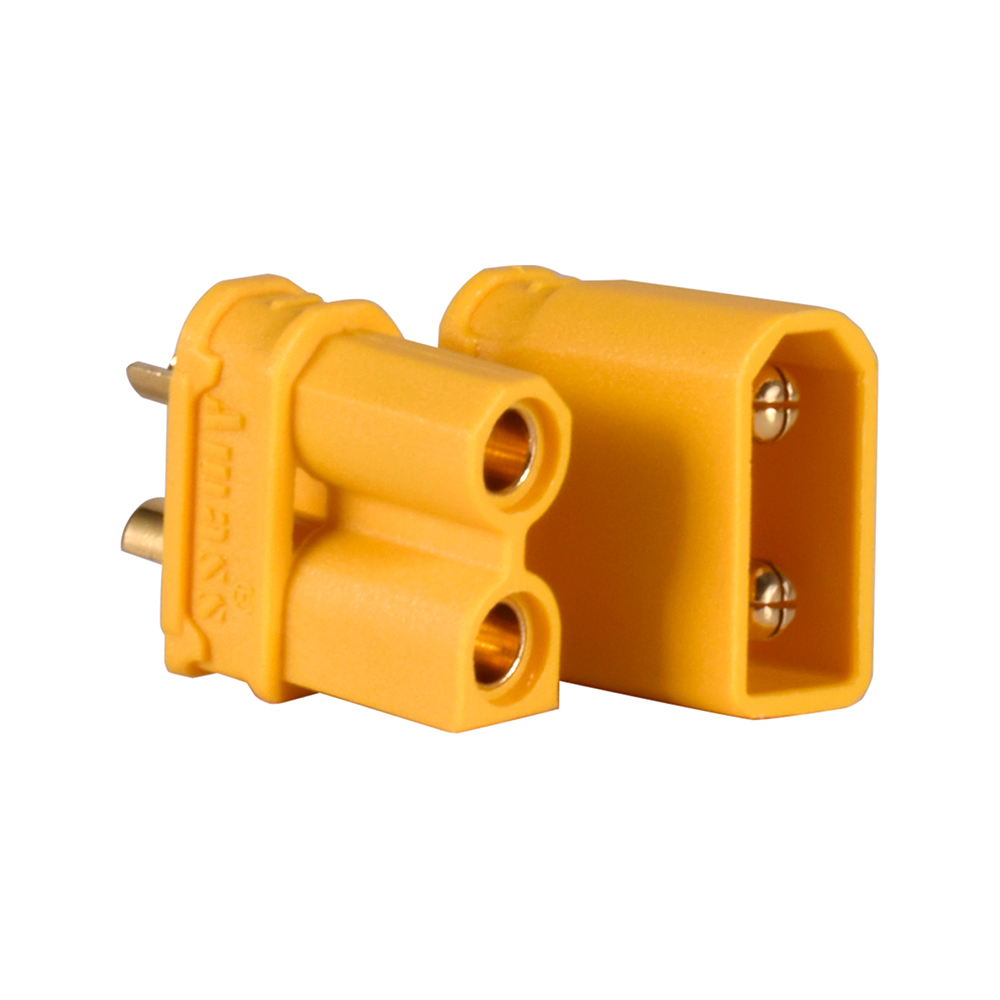

Amass XT30U
Banana Plug: 2mm
Metal Material: Brass gold-plated
Plastic Material: PA66
Flammability Rating: UL94 V0
Contact Resistance: 0.56mΩ
Rated Voltage: DC 500V
Rated Current: 15A
Instantaneous Current: 30A
Recommend Use: 1000 times
Recommend Cable Spec.: 14-18 AWG
Recommend Temperature: -20°C ~ 120°C

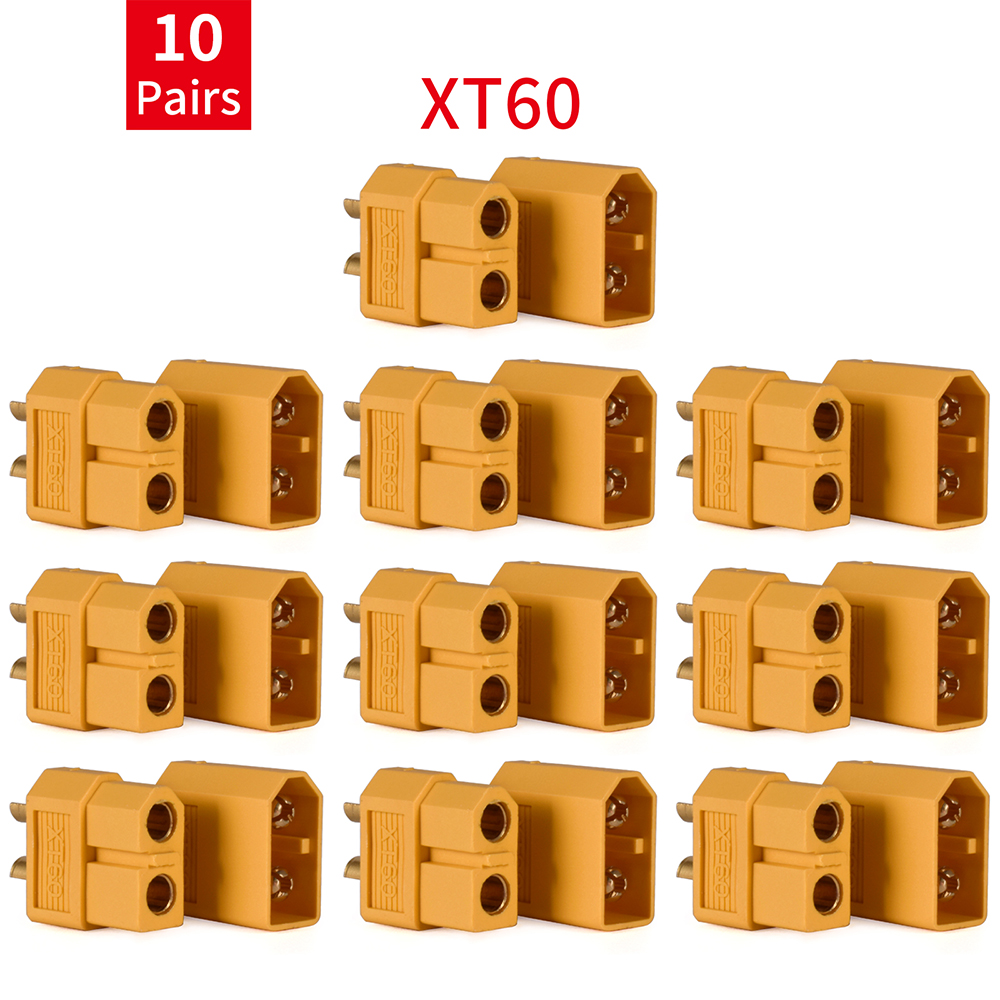

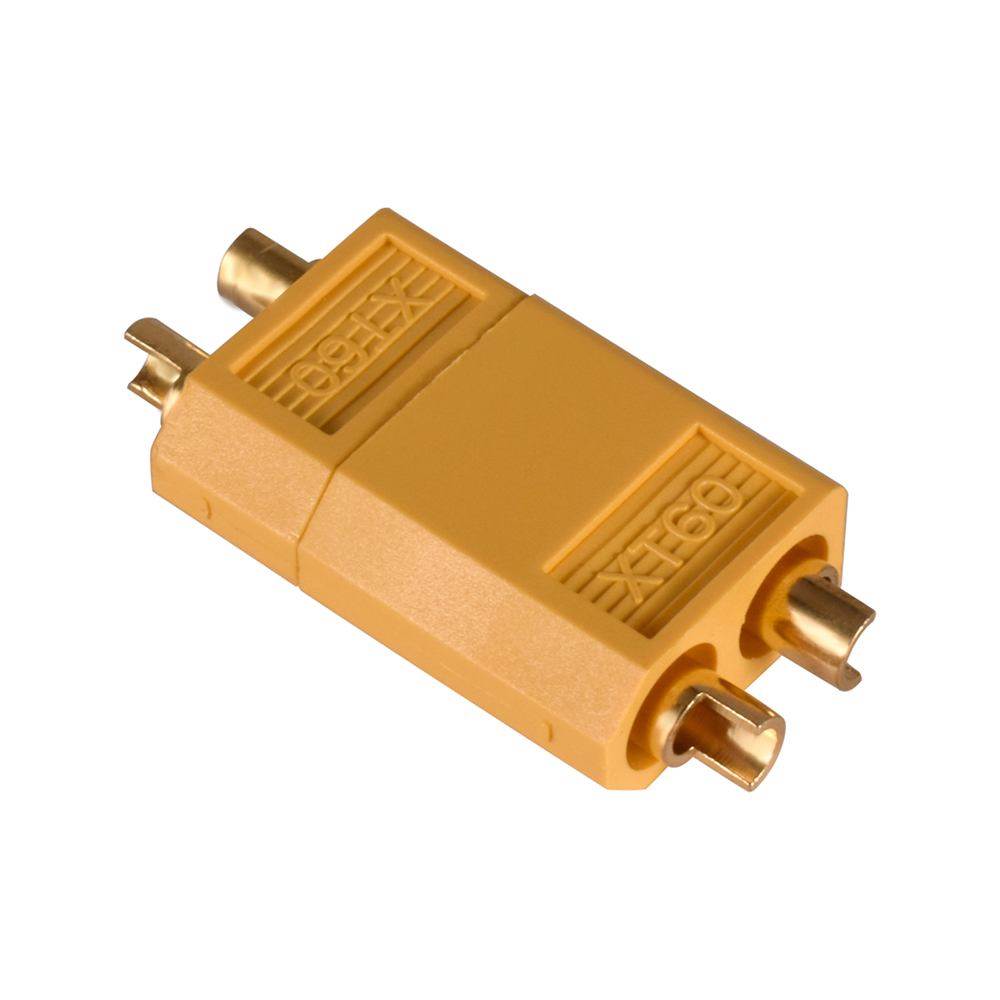

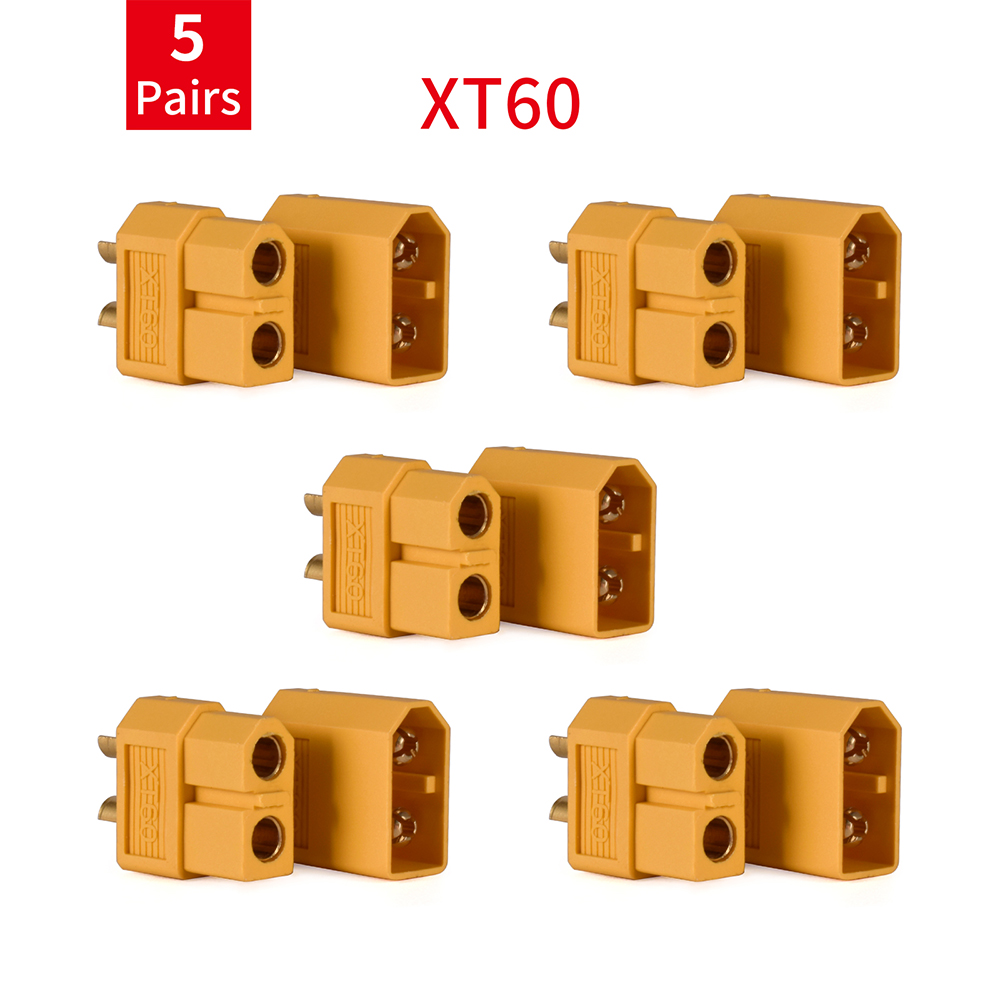

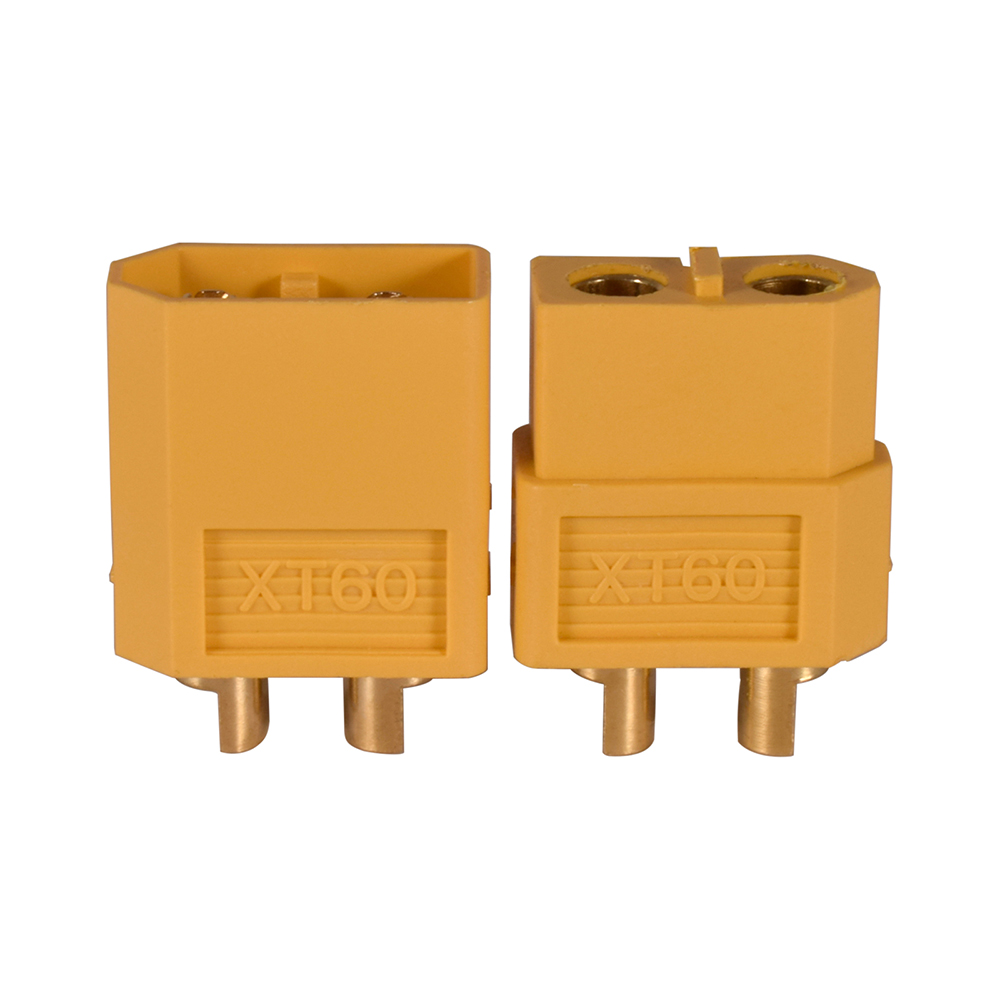

Ordinary XT60
60 Amp Current Handling Bullet Connectors
High Temperature Nylon Material

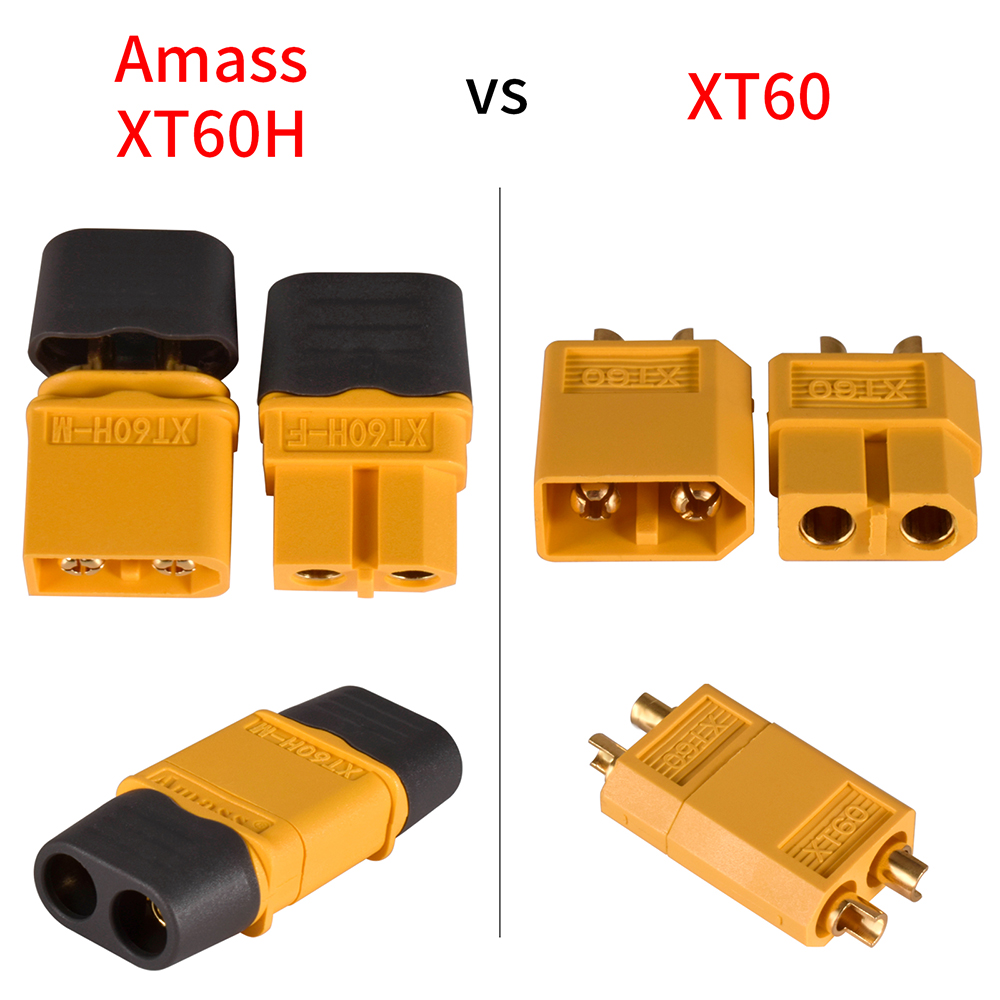

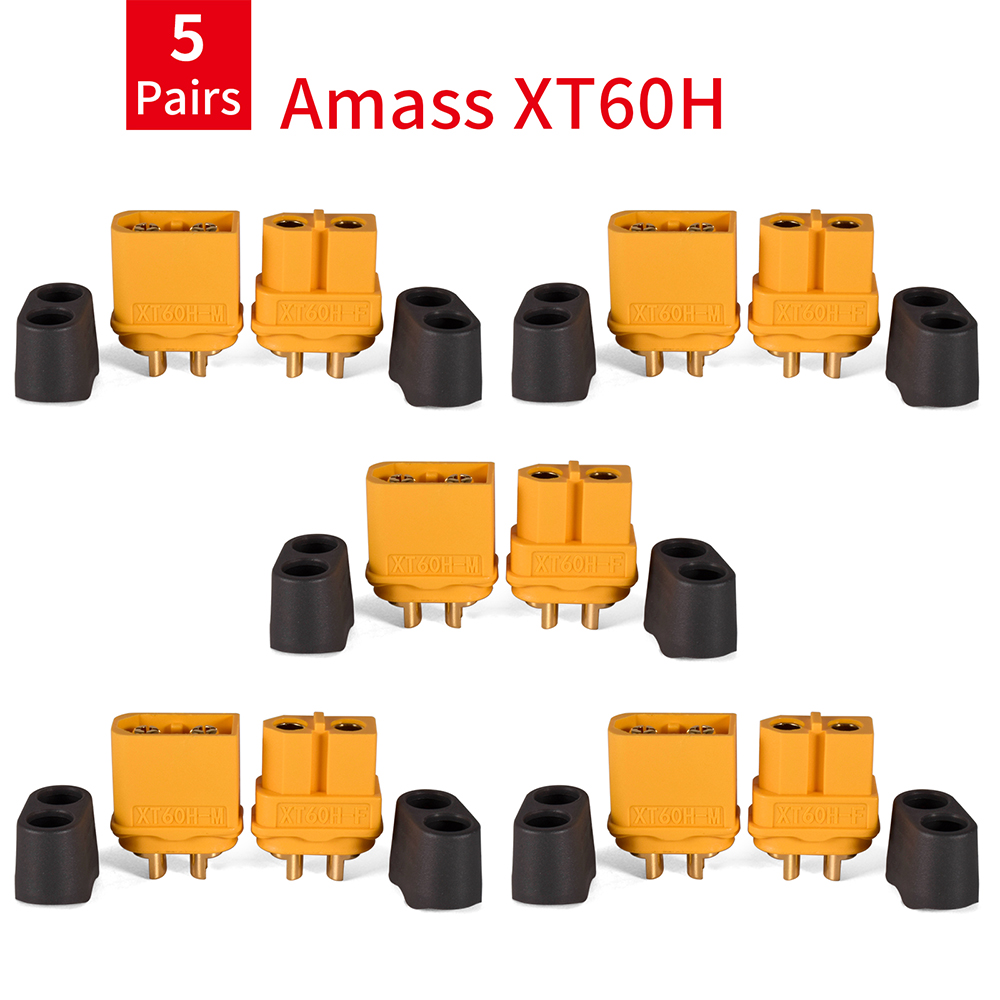

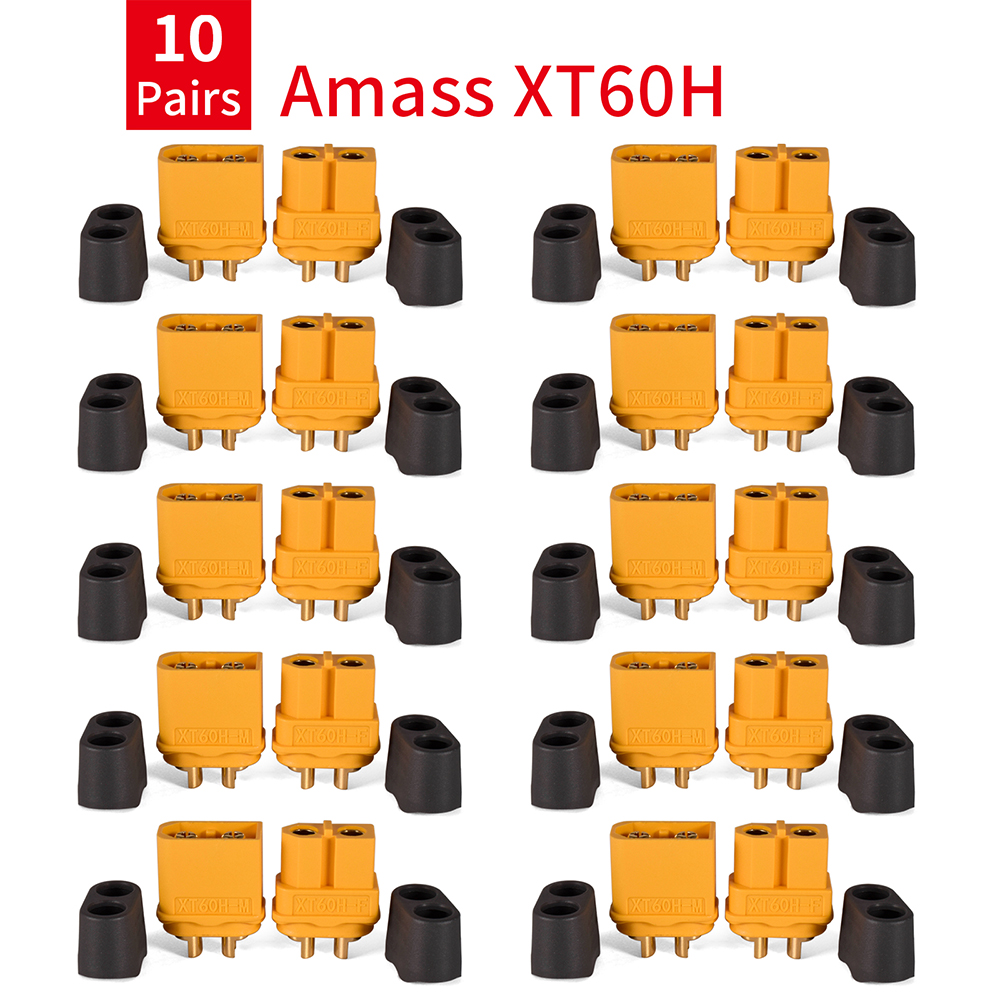

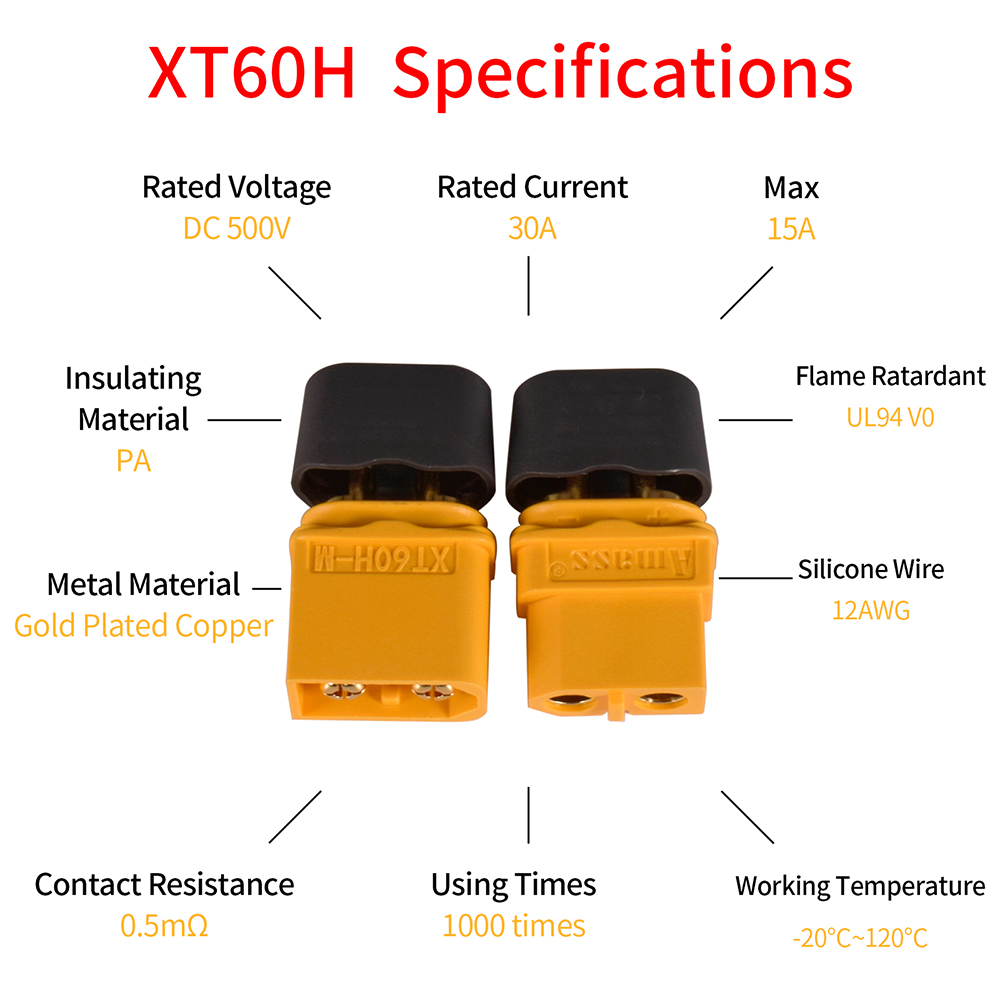

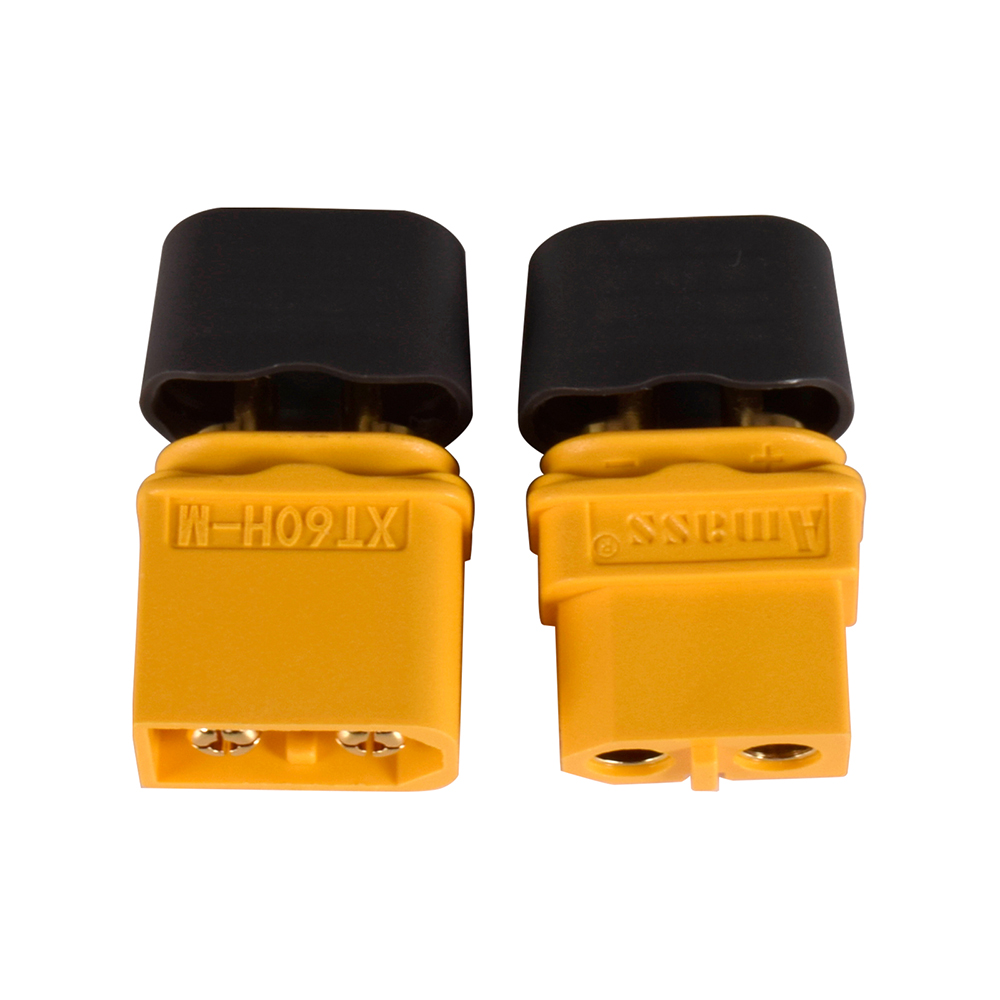

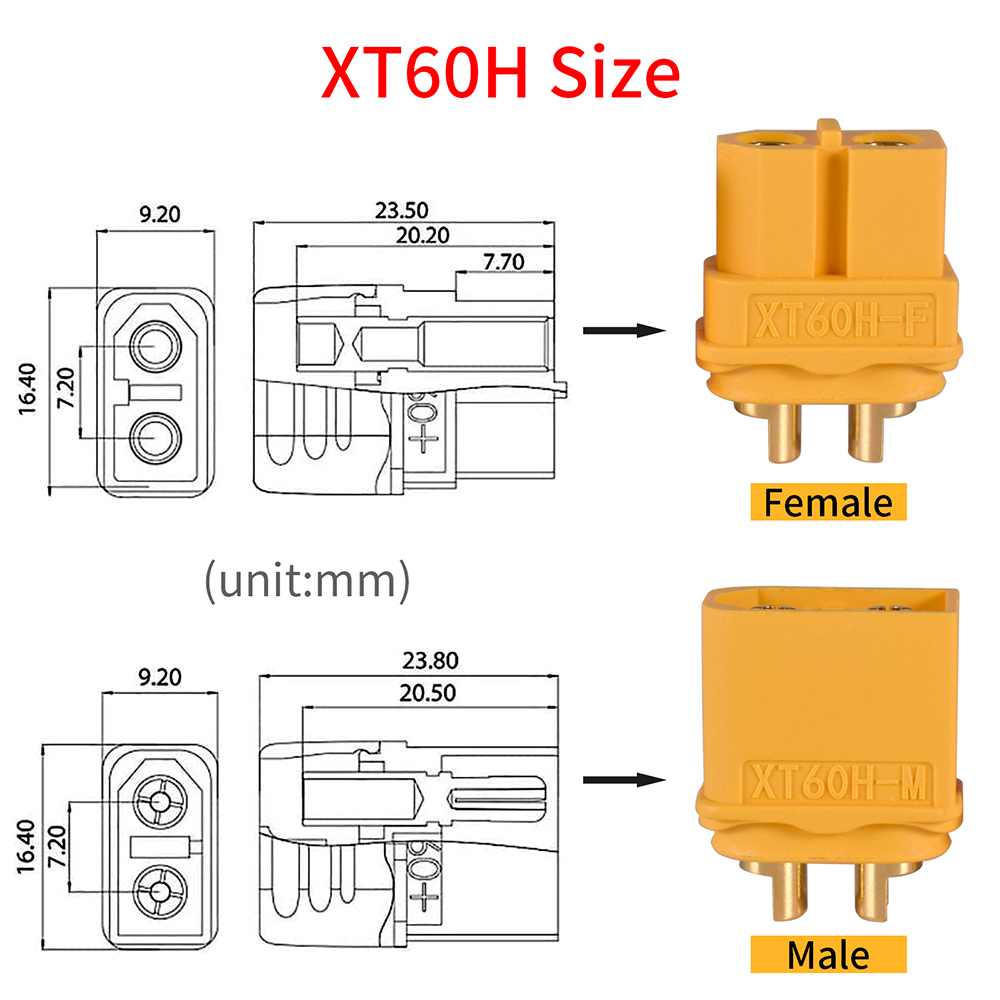

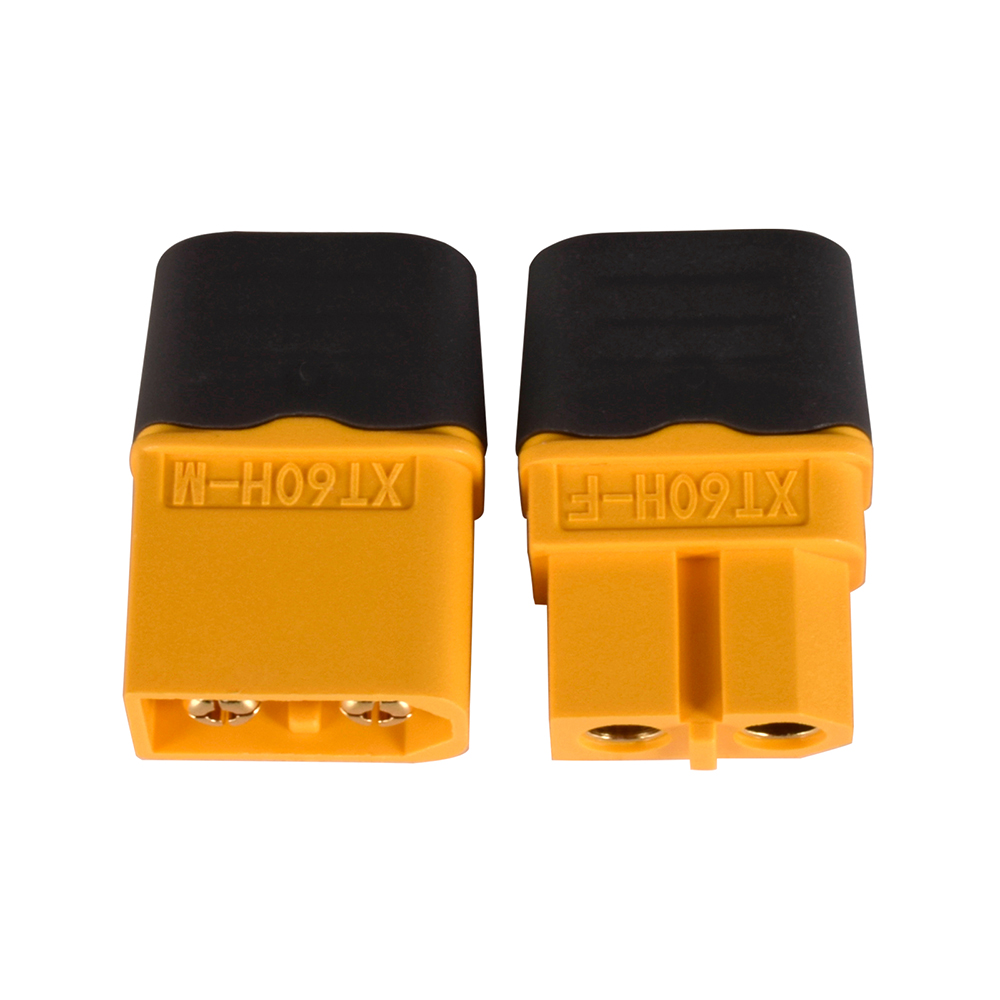

Amass XT60H with protection housing
Body Material: Gold-plated copper
Internal Material: Nylon/PA
Rated Voltage:DC 500V
Internal Resistance: 0.5mΩ
Max. RC/MC: 60A/100A
Pulling Force/600: 3kg
Temperature Resistance: -20°C~120°C
Recommend Use: 1000 times
Recommend Cable Spec.: 12AWG
Recommend Soldering Spec.: 480°C/4S

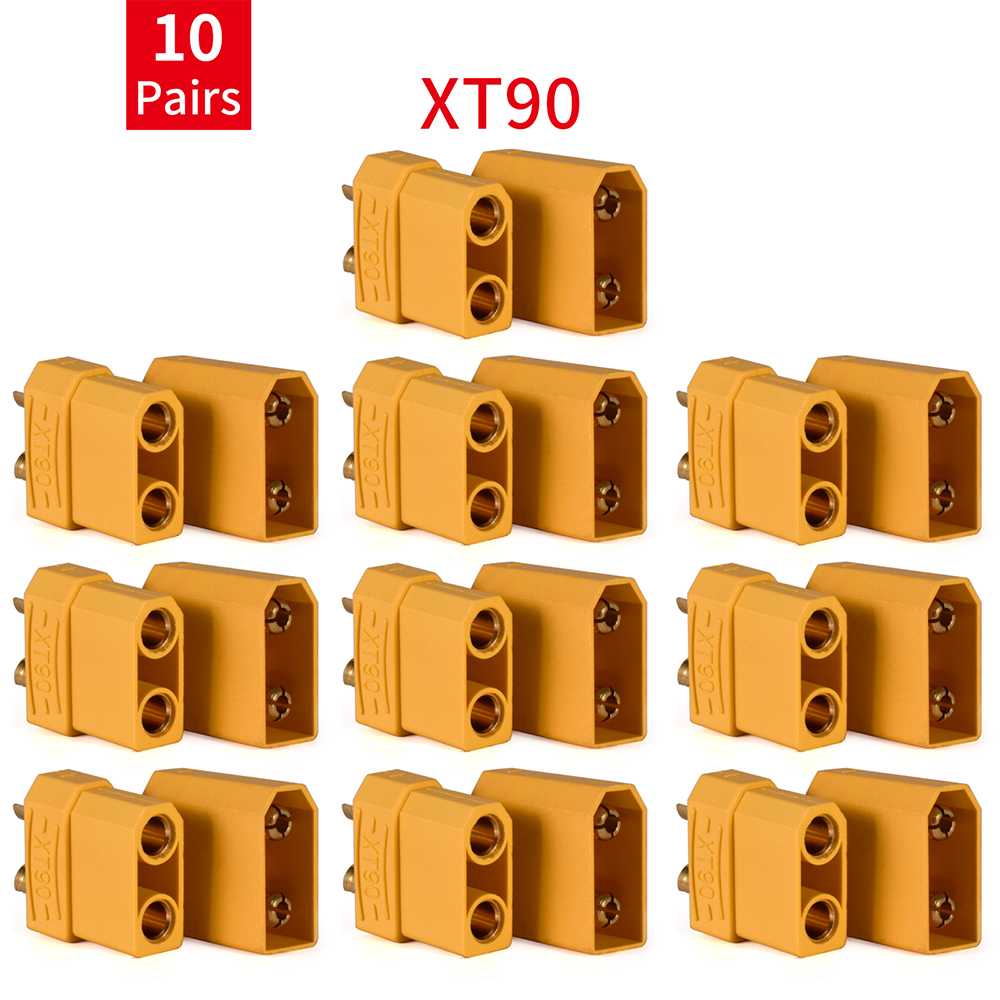

Ordinary XT90
60 Amp Current Handling Bullet Connectors
High Temperature Resistant Nylon Material

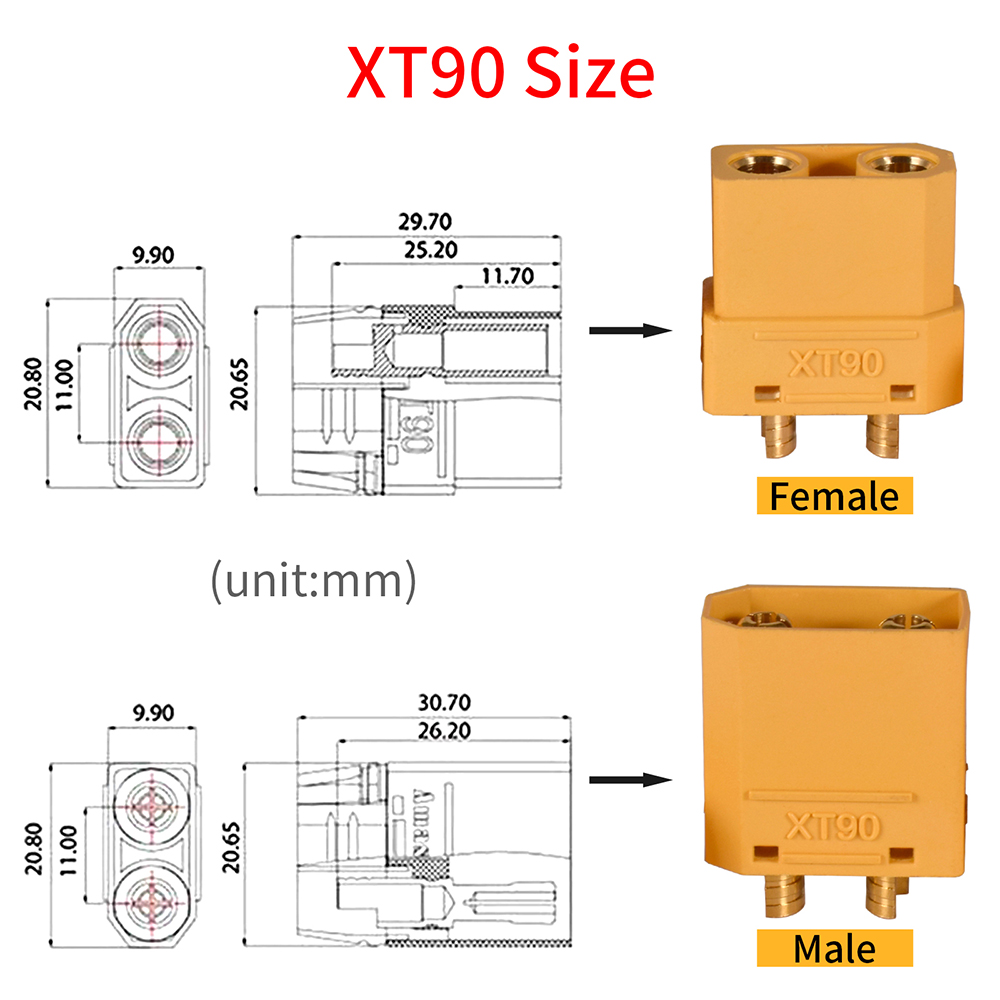

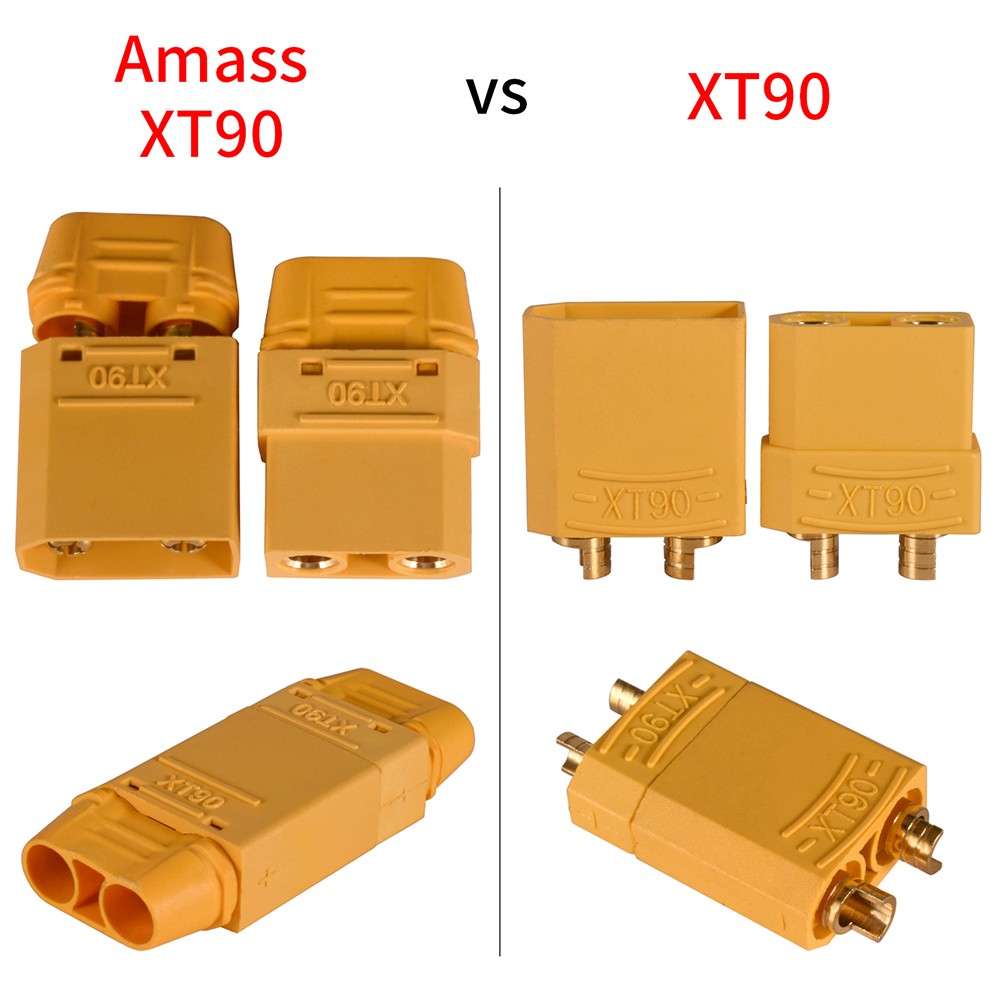

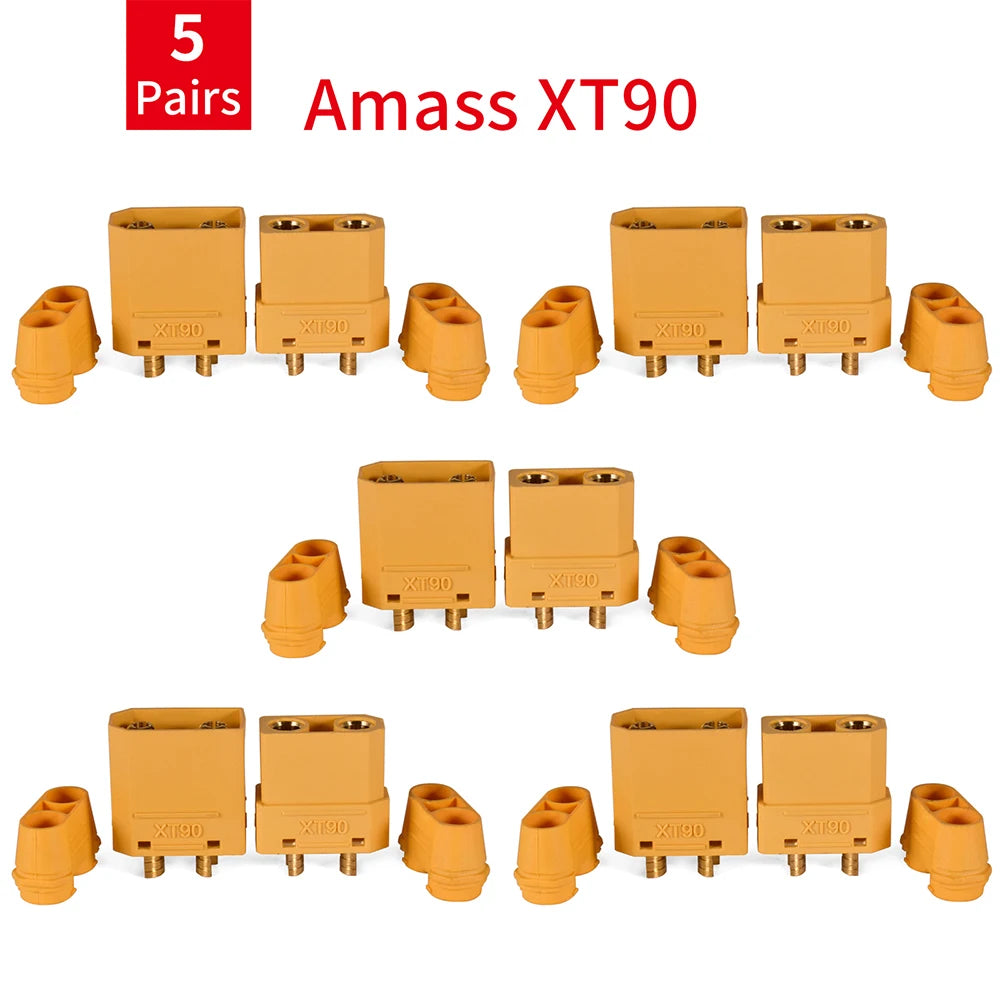

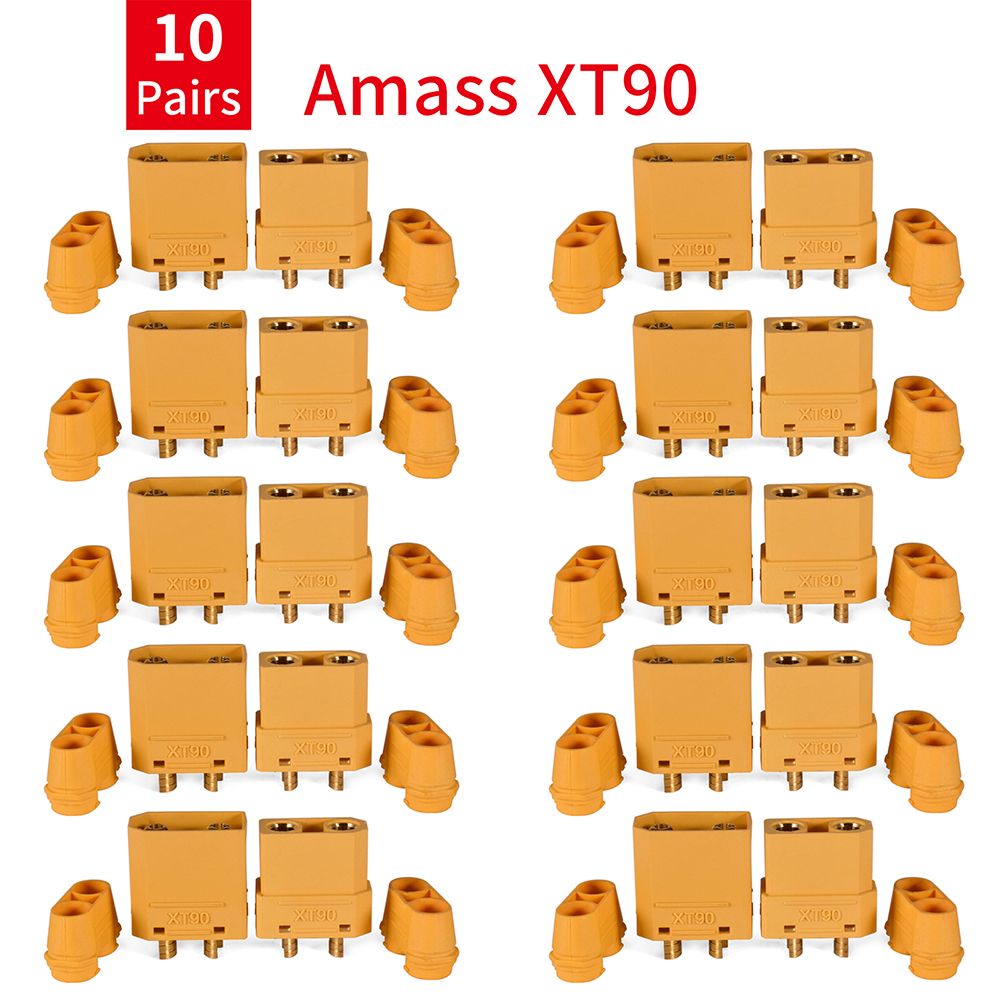

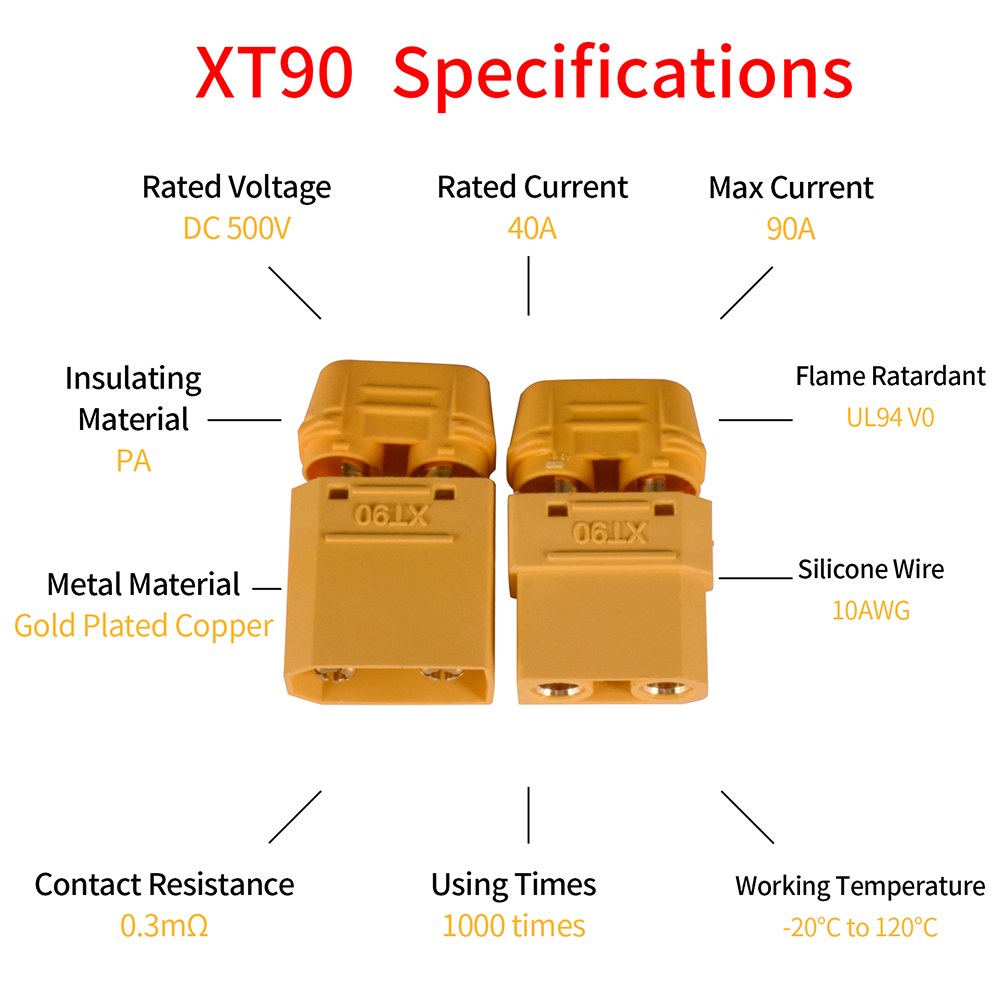

Amass XT90 Connector with protection housing
Body Material: Gold-plated copper
Internal Material: Nylon/PA
Rated Voltage:DC 500V
Internal Resistance: 0.3mΩ
Max. RC/MC: 90A/120A
Pulling Force/500: 60N
Temperature Resistance: -20°C~120°C
Recommend Use: 1000 times
Recommend Cable Spec.: 10AWG

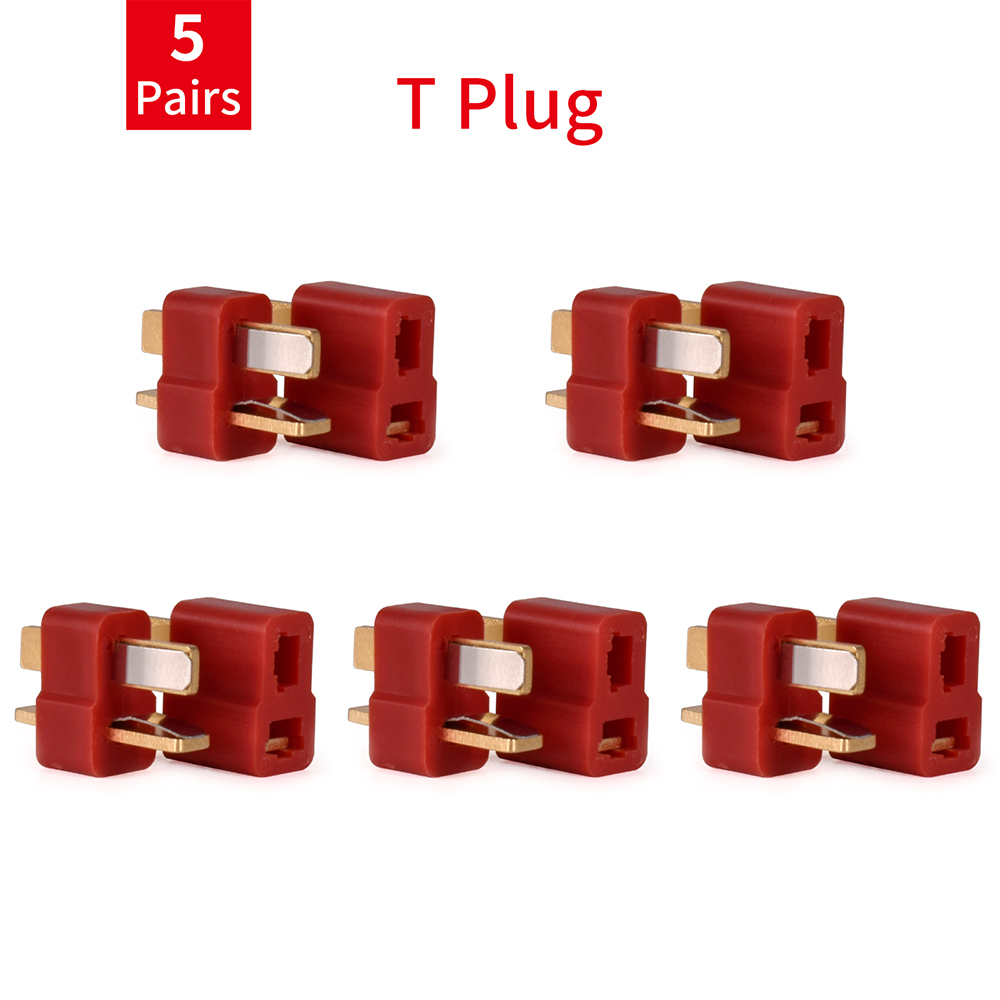

Ordinary T Plug
Material: durable flame-resistant gold-plated copper and hard plastic.
Max. current: about 120A.
Rate: 60-75A

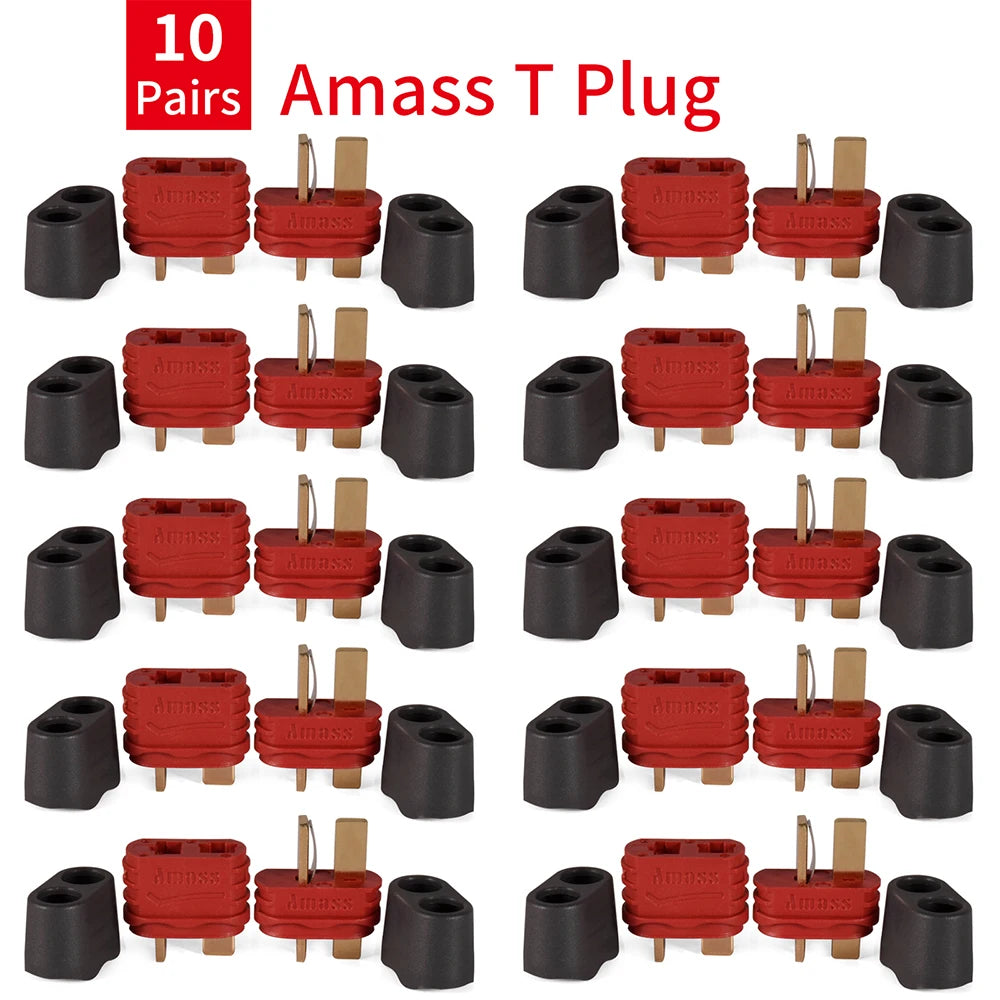

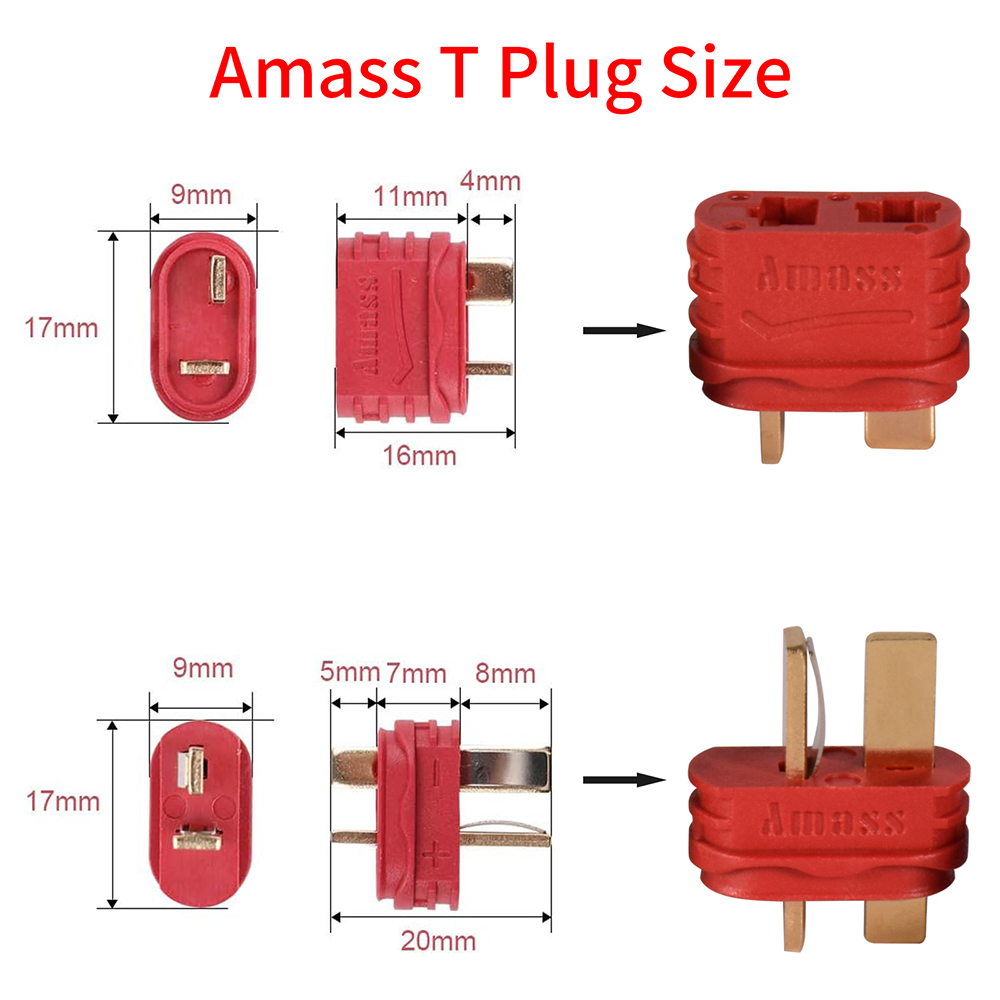

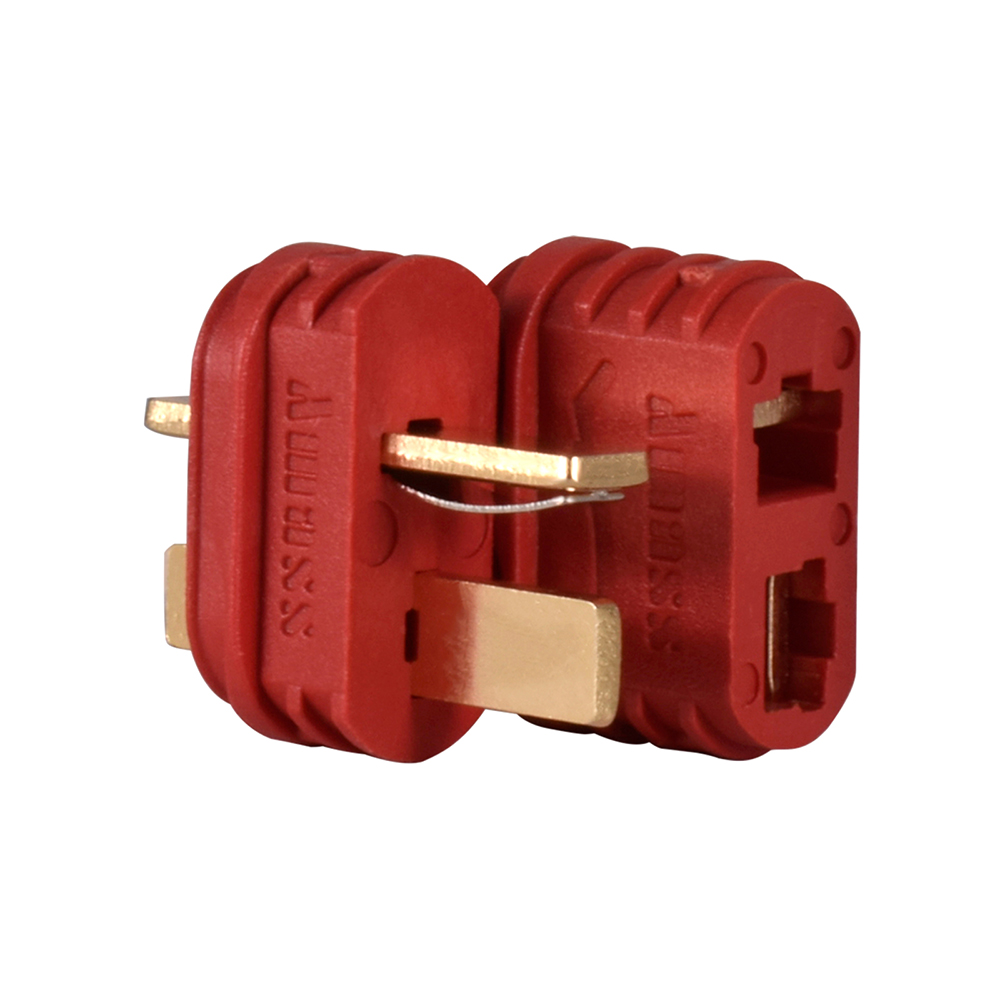

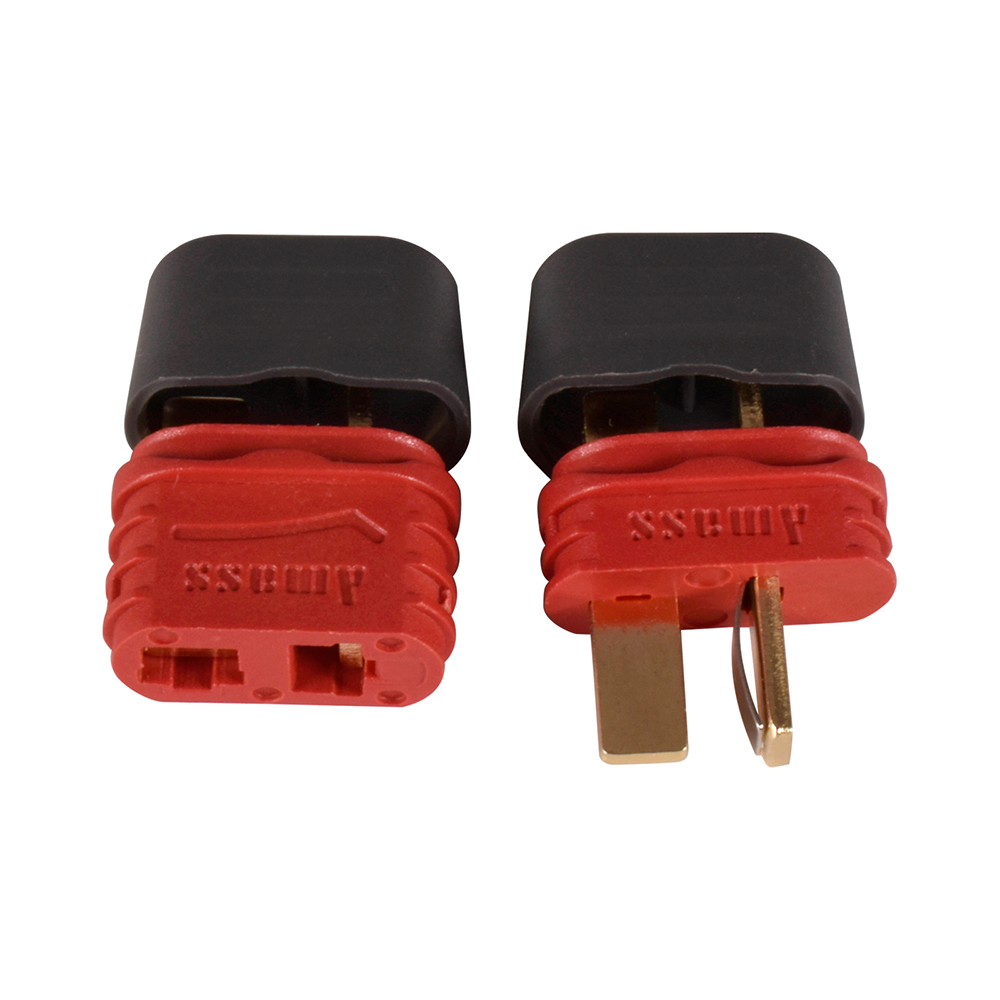

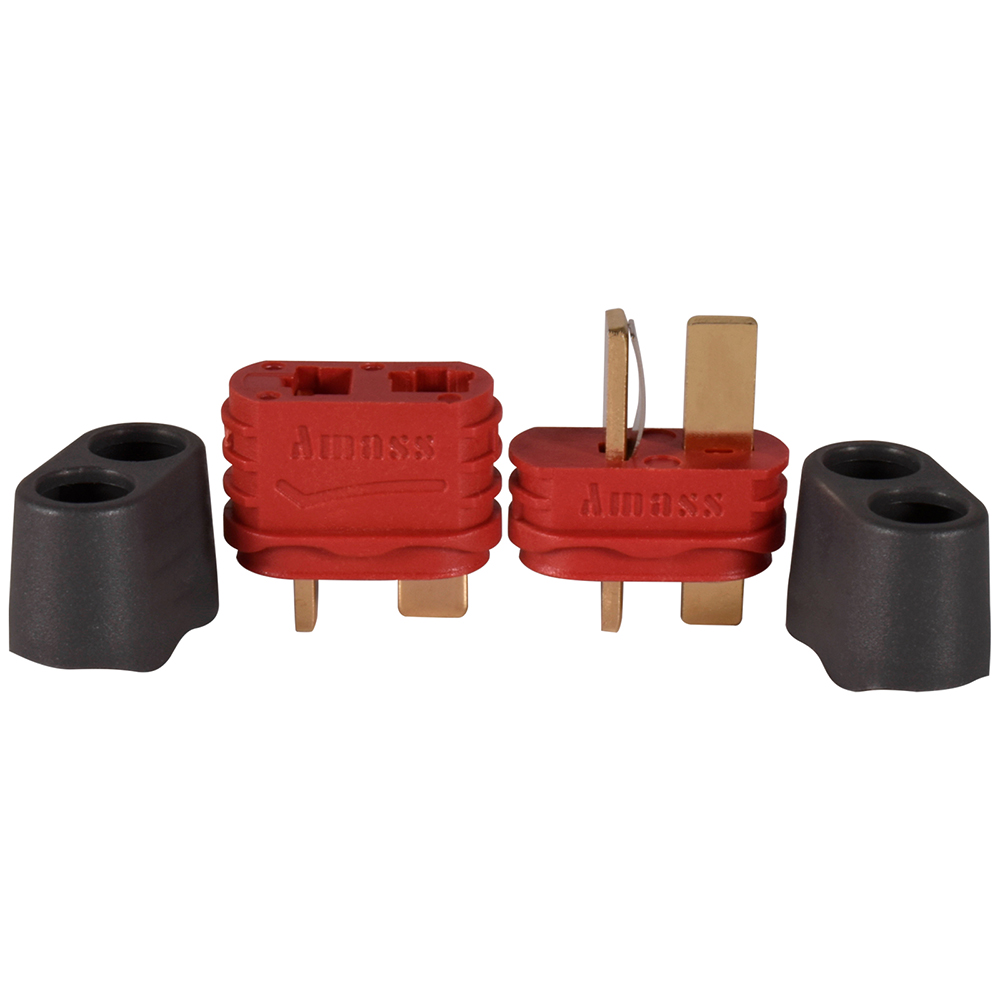

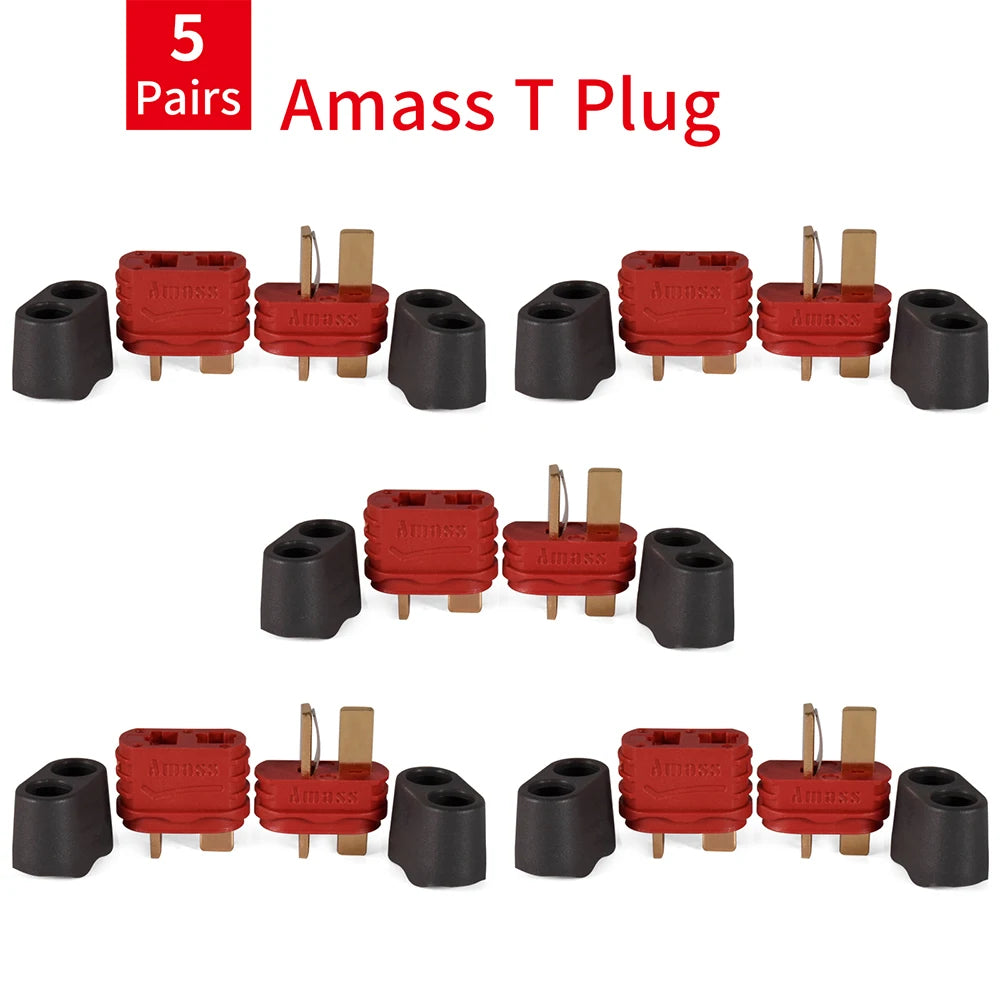

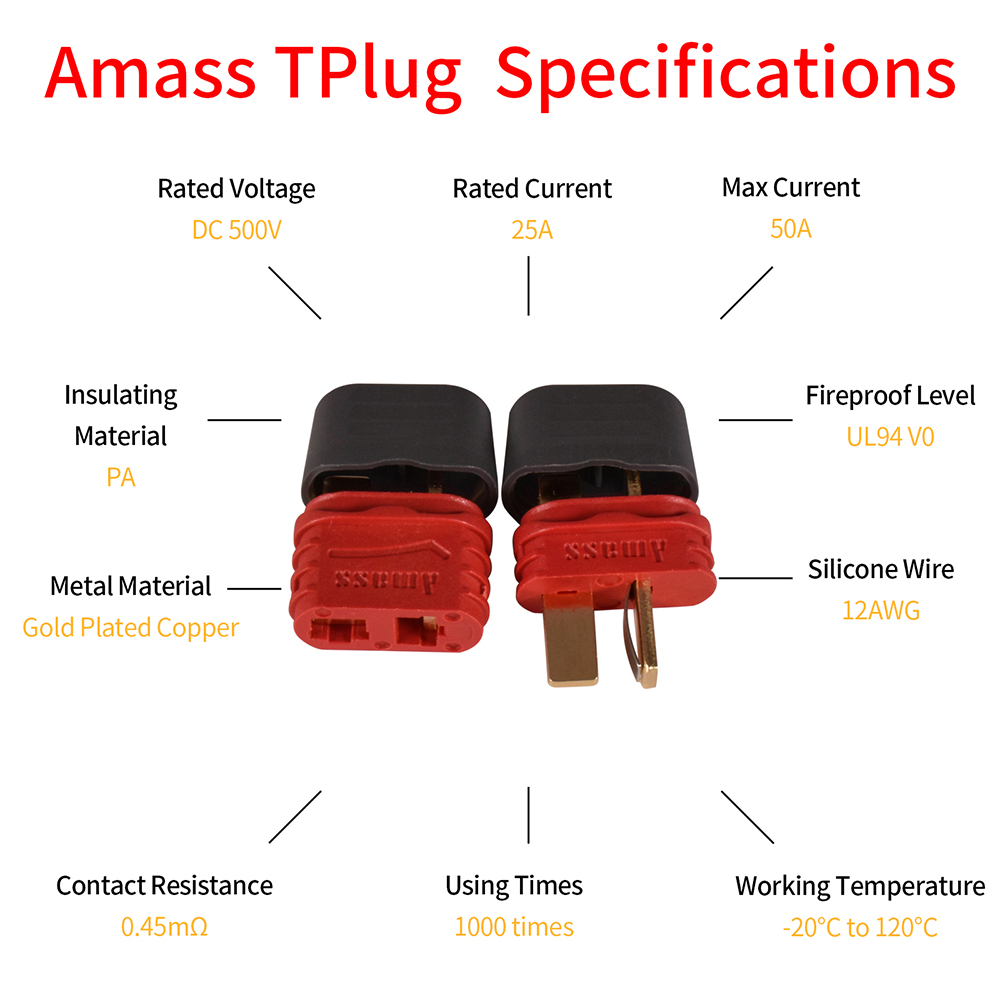

Amass T Plug Deans with protection housing
Body Material: Brass and gold plated
Internal Material: Nylon/PA
Rate Voltage: DC 500V
Internal Resistance: 0.45mΩ
Rated Current: 25 A Peak 50 A
Temperature Resistance: -20°C ~ 120°C
Pulling Force/500: 25N
Recommend Connected Wire: 12AWG

Package Included:
5/10Pairs x Connectors

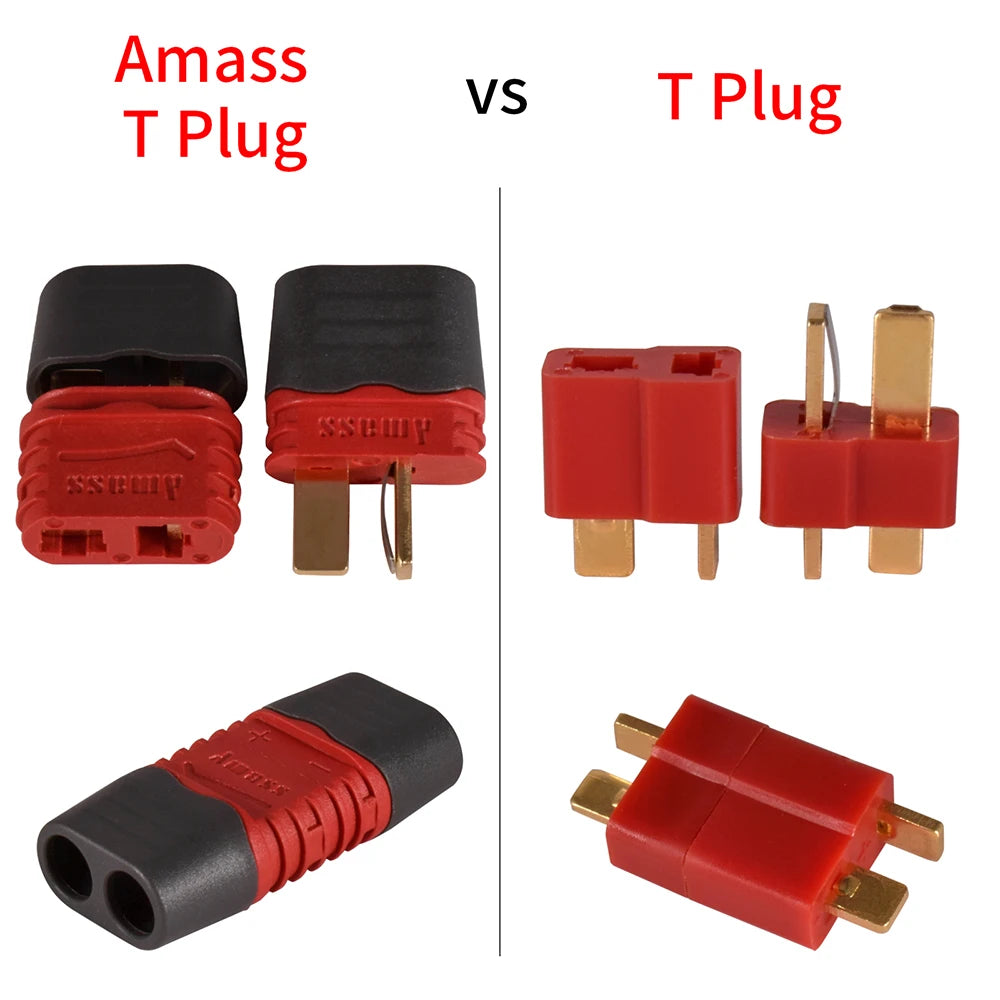

Choose Tips:
Ordinary type are cheap.
Amass type are original Nylon plugs, manufactured by AMASS, can handle more current for extended periods without high temperature . These plug is also less likely to deform or melt in comparison to copied non-Nylon plugs.

Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
