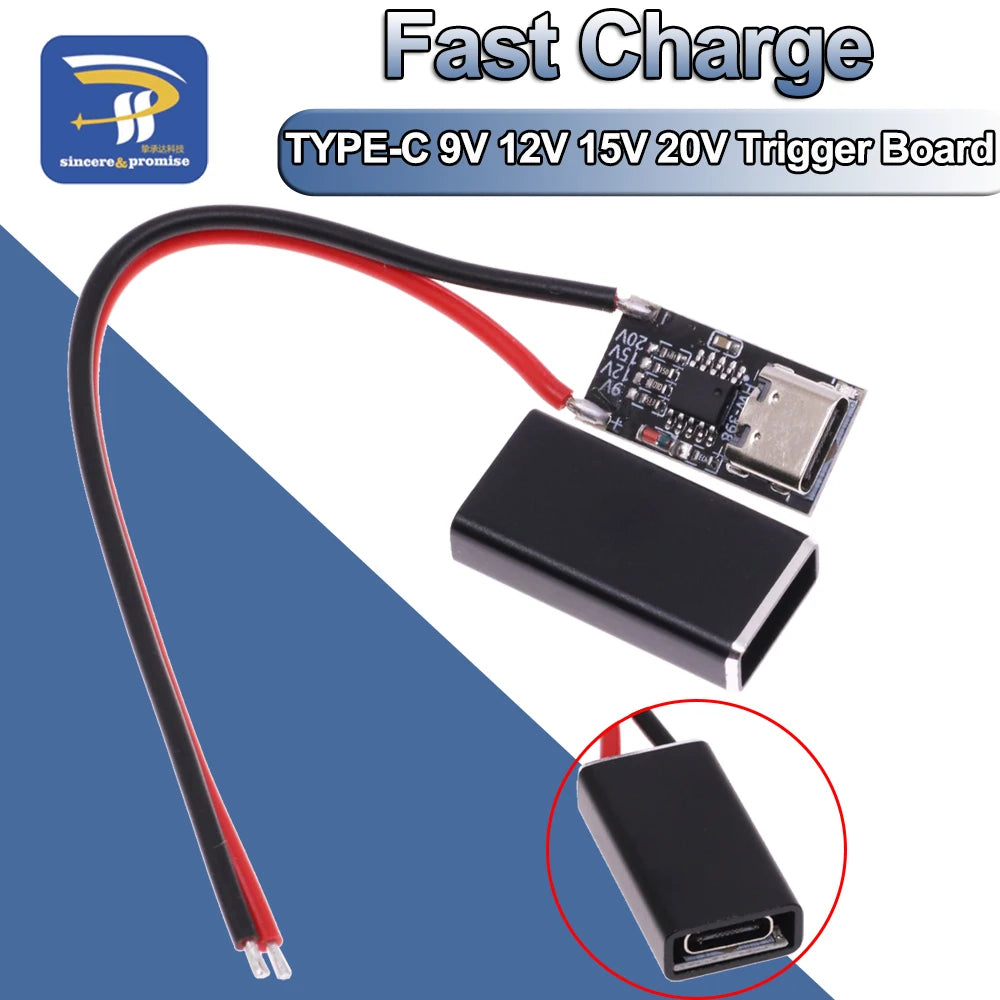

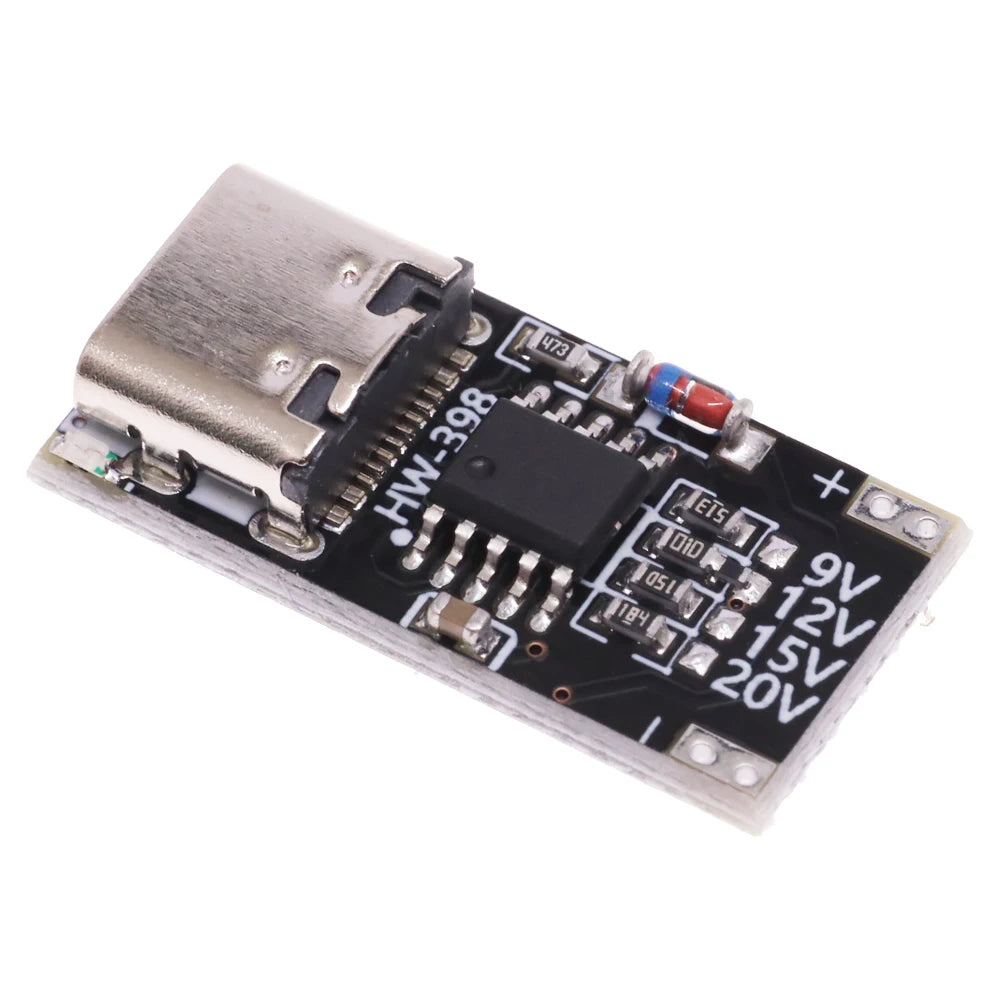

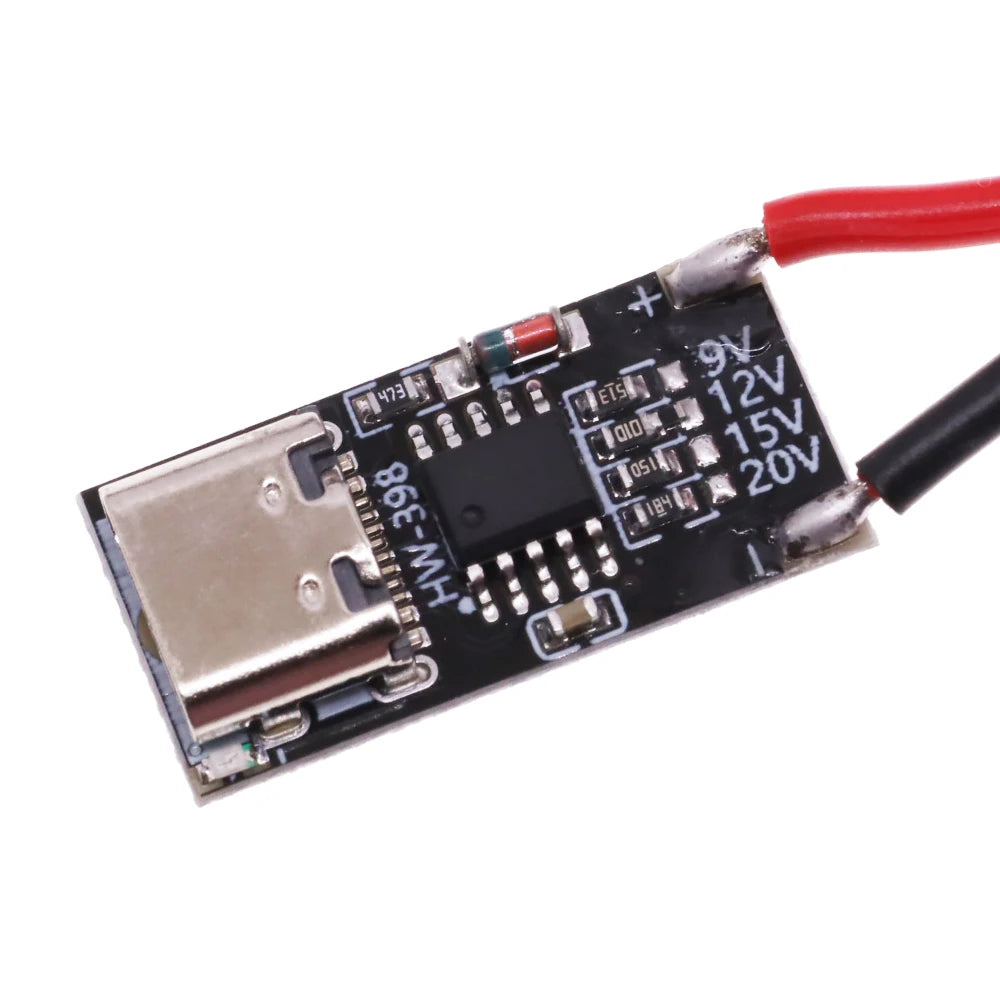

9V 12V 15V 20V Trigger Board Module PD/QC Decoy Board Fast Charge USB Type-C 5A High Speed Charger Power Delivery Boost Module

9V 12V 15V 20V Trigger Board Module PD/QC Decoy Board Fast Charge USB Type-C 5A High Speed Charger Power Delivery Boost Module

$58.60

$58.60 $0.00

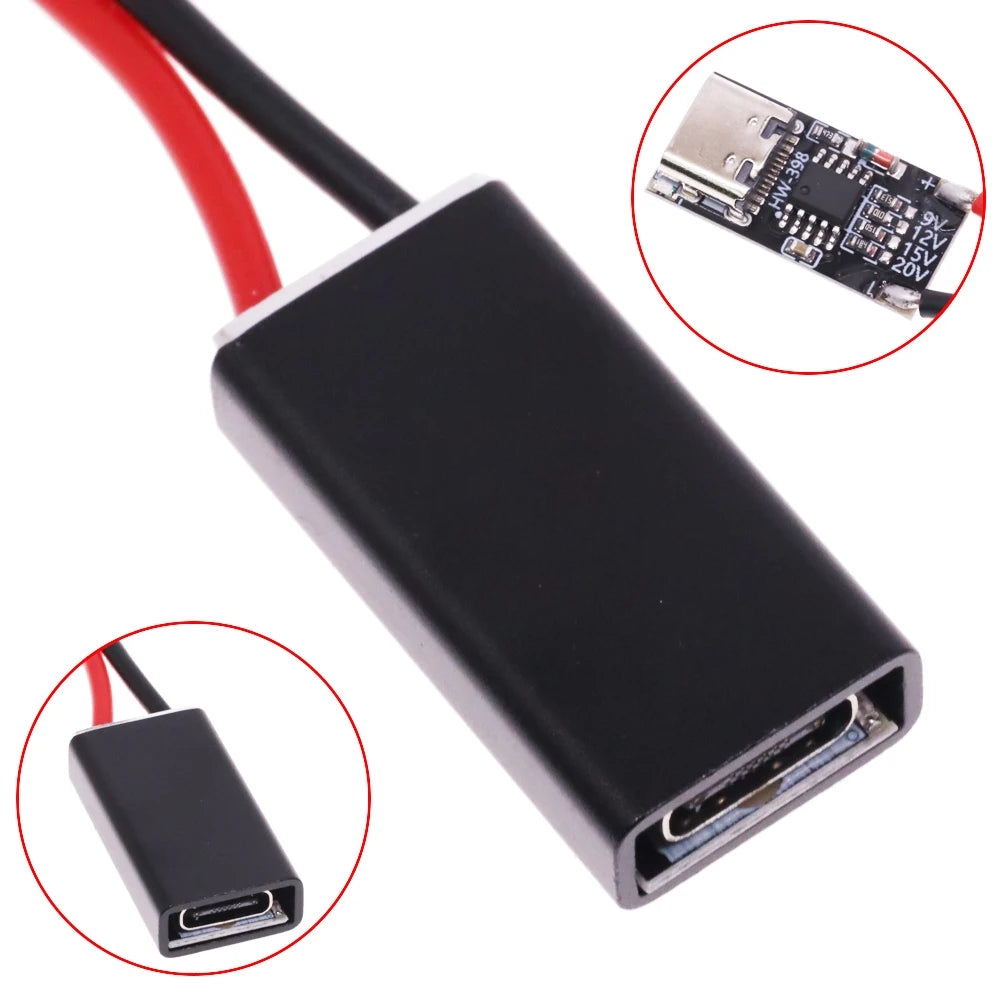

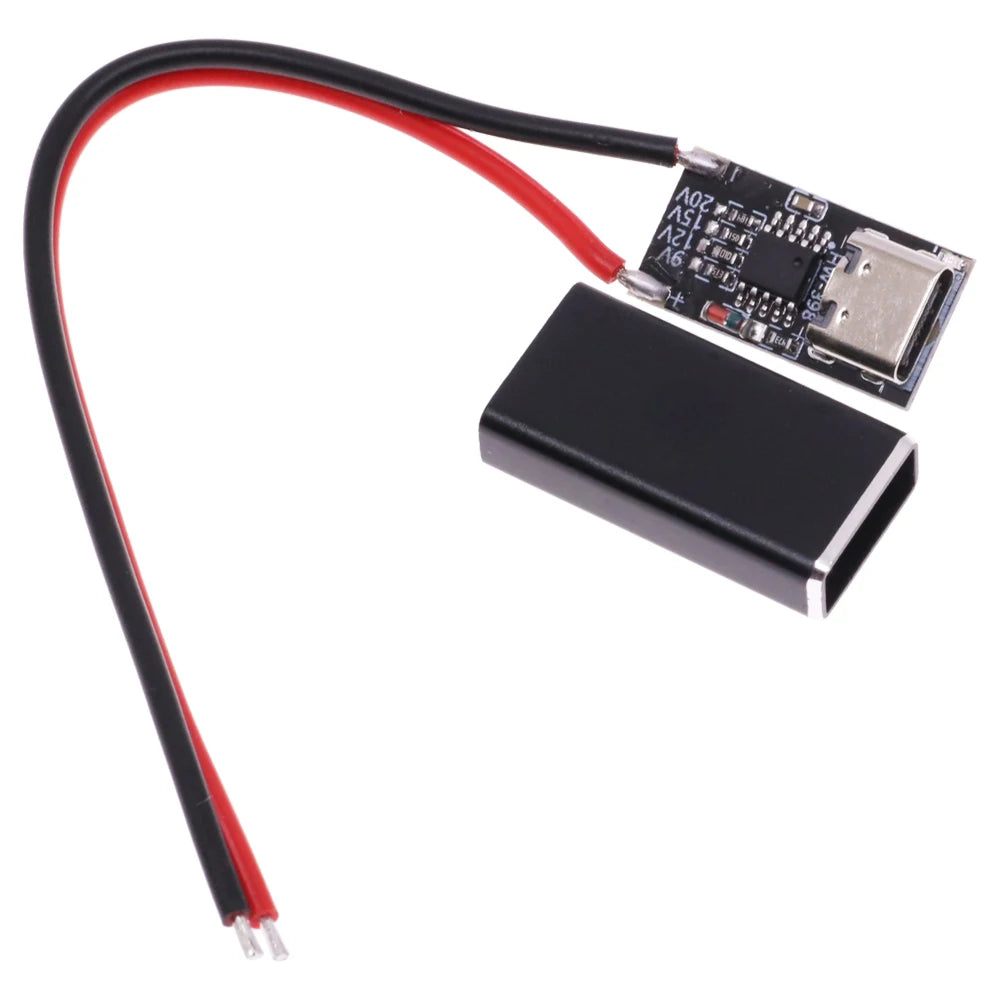

Color Board with shell-10 Decoy Board-10pcs Decoy Board Board with shell

Description

SPECIFICATIONS

Brand Name: sincere&promise

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Supply Voltage: 5V

Type: Voltage Regulator

semi_Choice: yes

Support dropshipping and wholesaling.

100% Original and with free after-sale warranty.

Product selling point

1: Support a variety of fast charging protocols

2: Wide range of applications

3: Small size

4: Maximum support 5A

5: TYPE-C port power supply

1. Support a variety of fast charging protocols:

PD3.0/2.0, PPS/QC4+, QC3.0/2.0, FCP, AFC

2. Function/function of this product:

1. Trick out the voltage of the fast charging charger/charging treasure and use it as a DC power supply. For example, let the fast charging power bank output 9 volts,12 volts to power routers, light cats, etc.!

2. Turn some traditional DC-powered devices into TYPE-C port power supply.

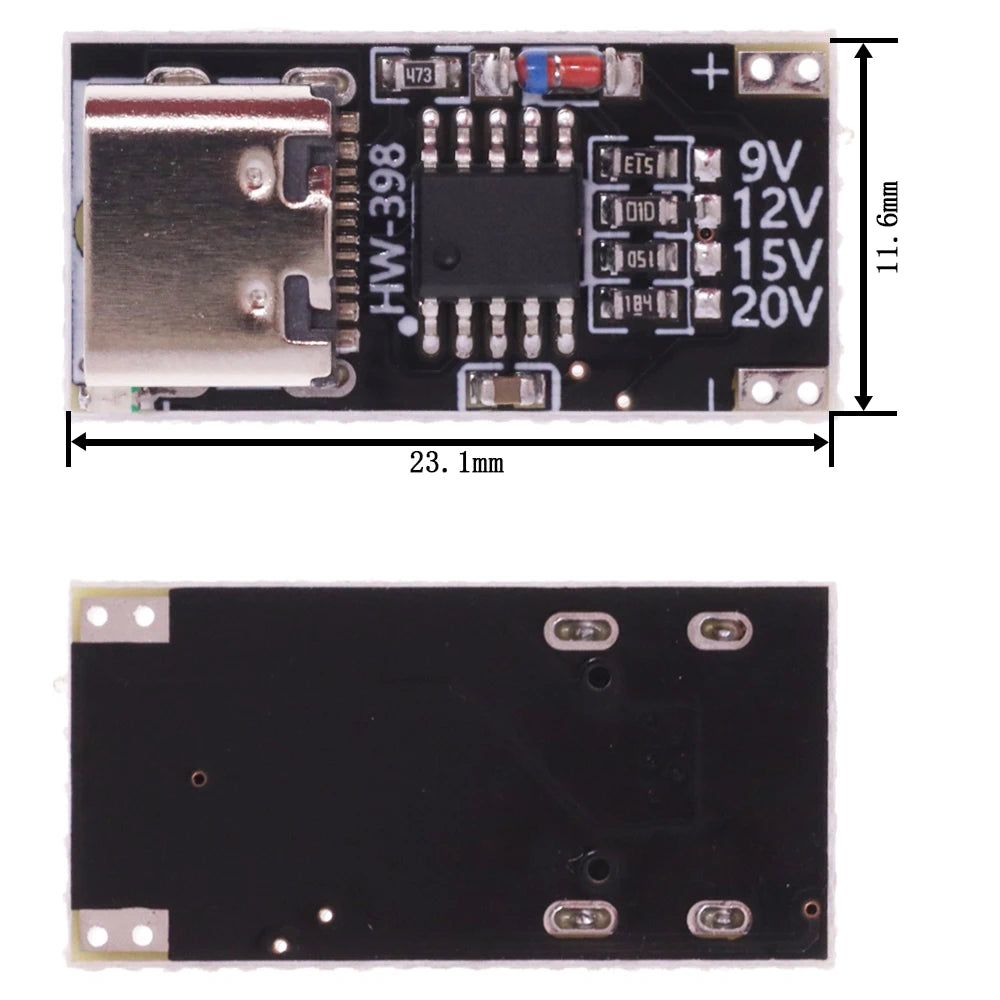

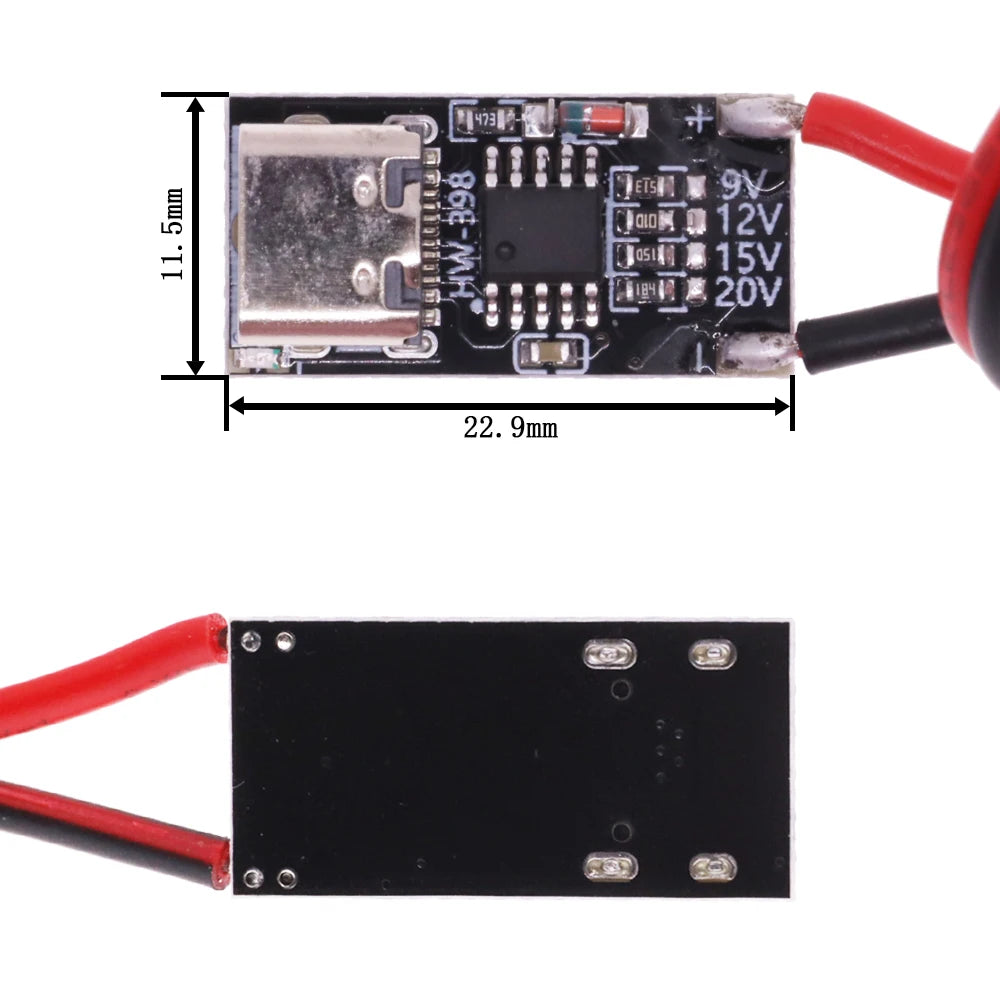

3. The size of the decoy board: 23*11.5*4mm

Fourth, remind you:

1. Mobile phone chargers/charging treasures must first support fast charging such as PD/QC in order to deceive the fast charging voltage.

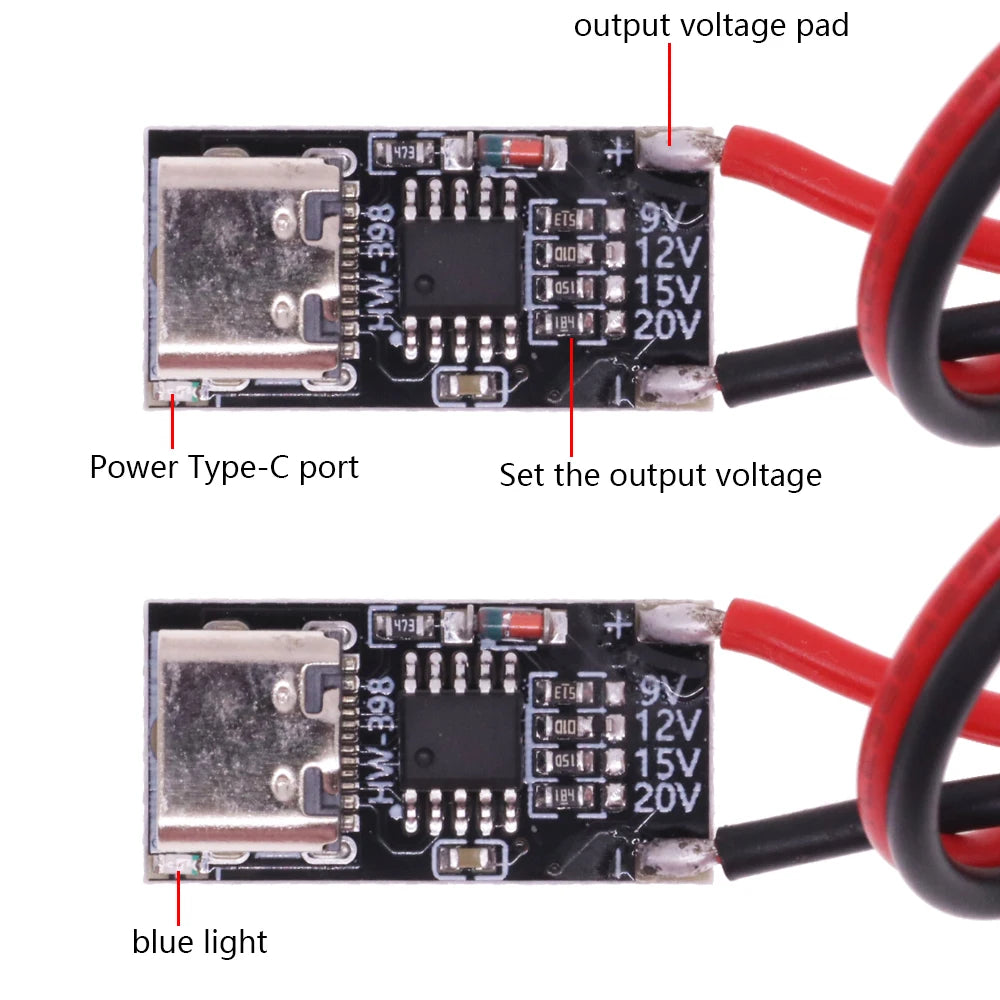

2. Fix the four gears of 9/12/15/20 volts, what voltage is needed, just short the corresponding pads.

3. For example, if you set the decoy to 20 volts, but your charger is only up to 9 volts, it will automatically downshift to deceive the output to 9 volts.

4. The maximum support is 5A, and the actual output current/power is determined by your fast charging charger and load.

Package Contents:

: 1*PD/QC decoy board fast charge USB boost module Type-c

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
