SPECIFICATIONS

Brand Name: NONE

Certification: NONE

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Origin: Mainland China

Specification 1: SOT23 SOT233 to SIP3

Specification 2: SOT23 to SIP3

Specification 3: SMD Turn To DIP SIP3 Adapter

Specification 4: SOT SIP IC Socket PCB Board

Specification 5: SMD SOT233 to DIP SIP3 Adapter

Voltage: 24V

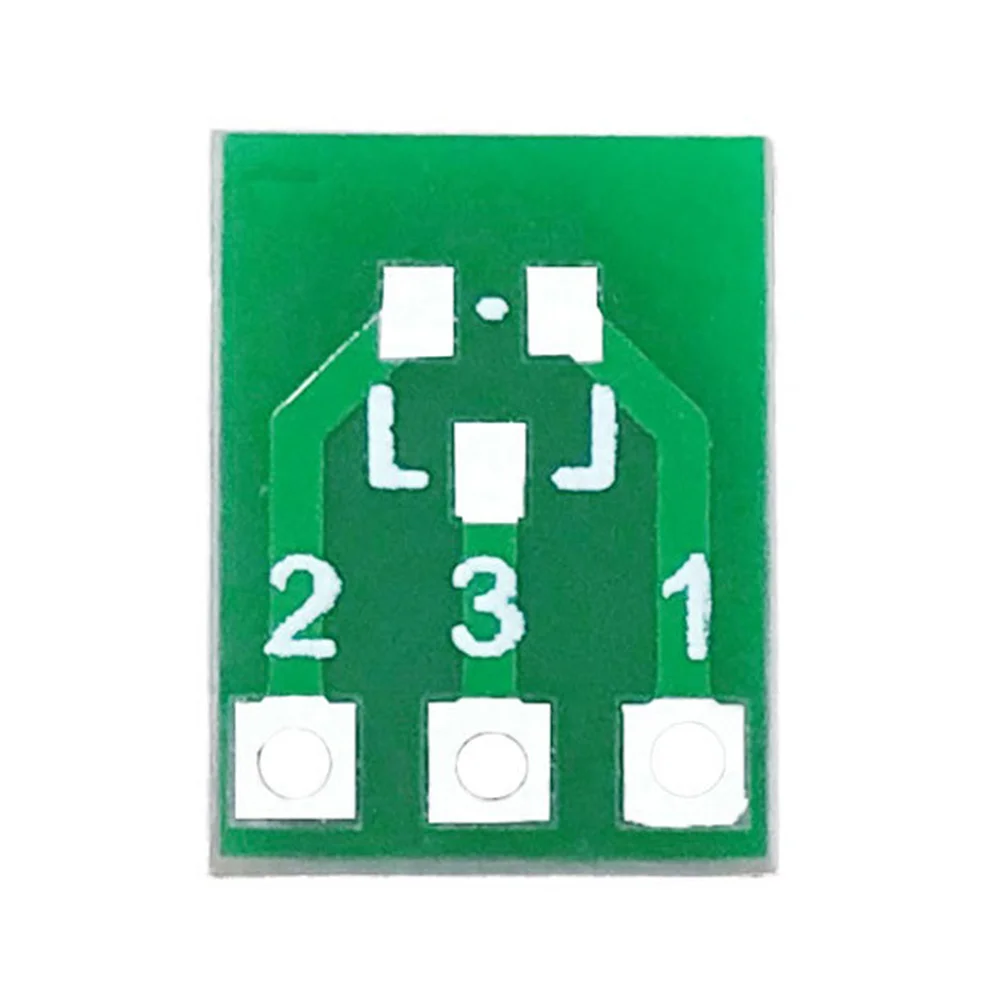

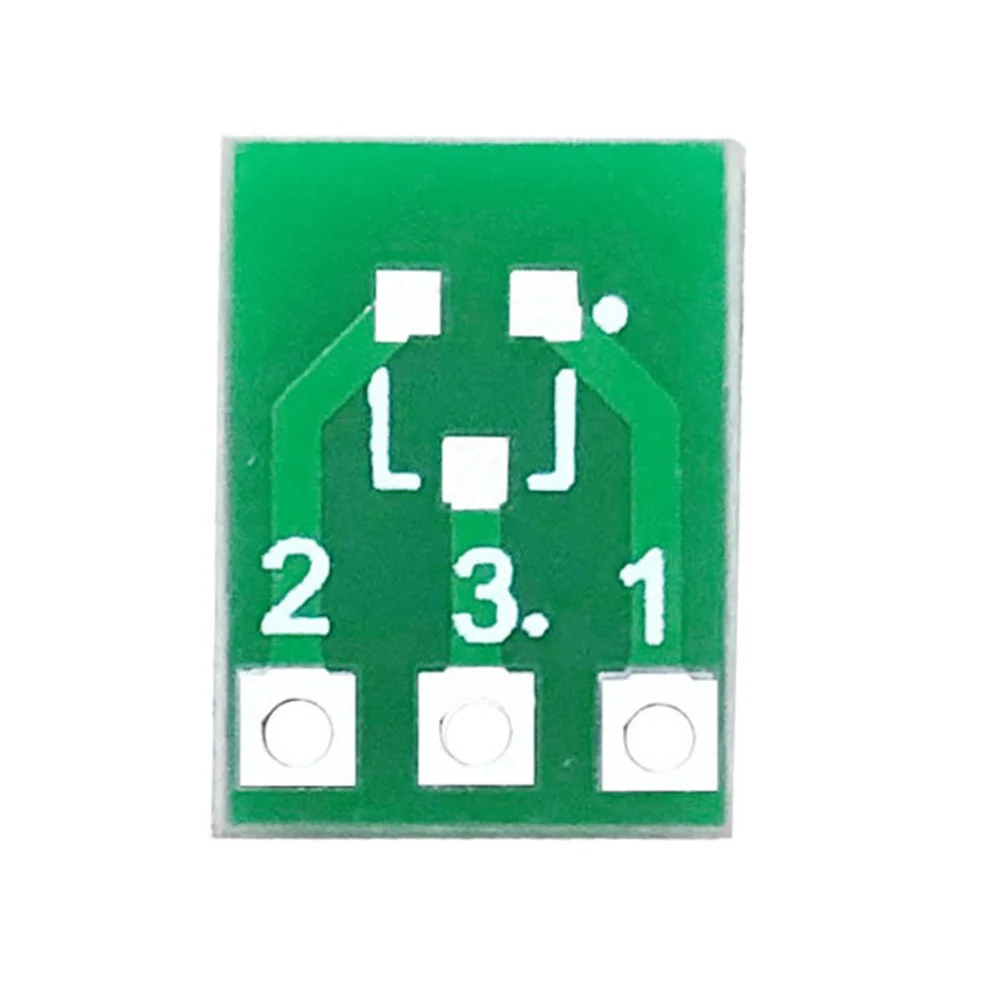

A01F-SOT23 SOT23-3 Turn SIP3 Double-Side SMD Turn DIP SIP3 Adapter Converter Plate SOT SIP IC Socket PCB Board DIY Kit

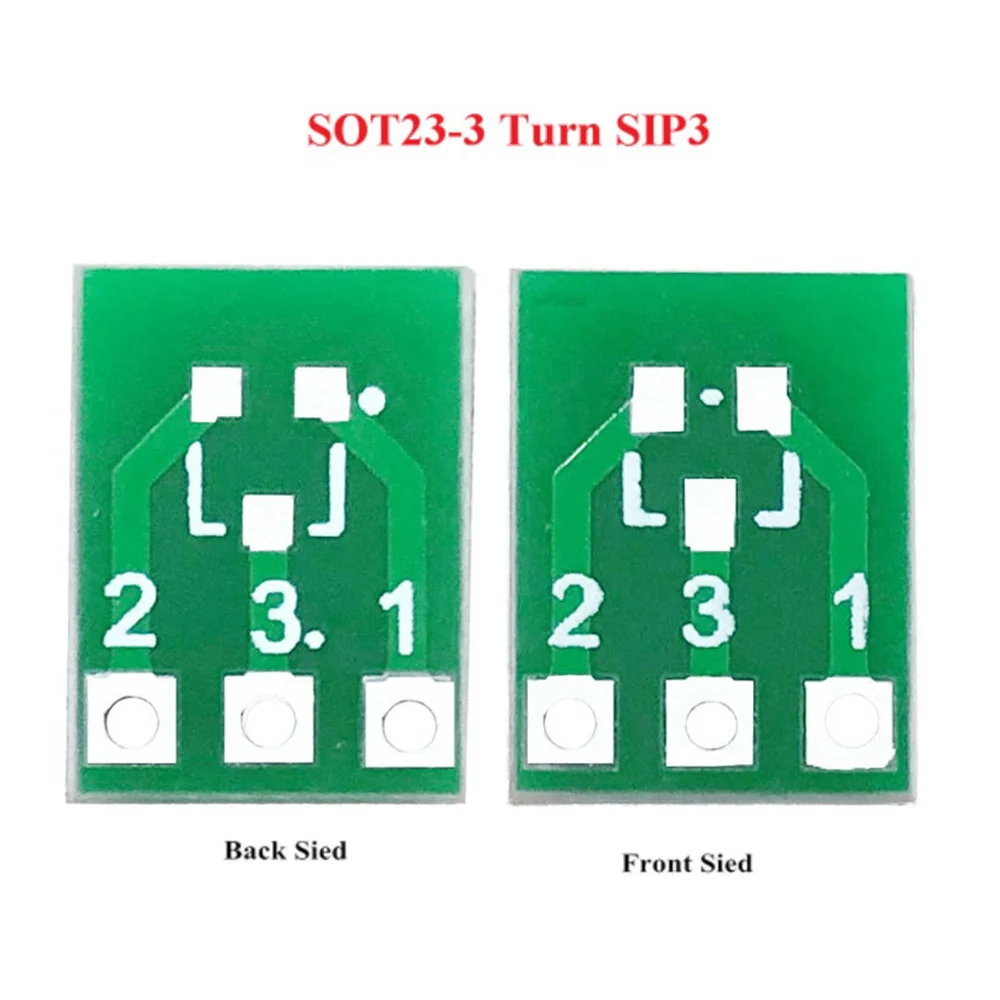

The PCB board has two sides. A side and B side it can be used to convert SOT23 (Pin pitch 0.95mm) to SIP3 (2.54mm pin pitch).
The PCB board mounting 2.54mm pitch Pin Header. It can be plugged directly into 2.54mm PCB board or breadboard.

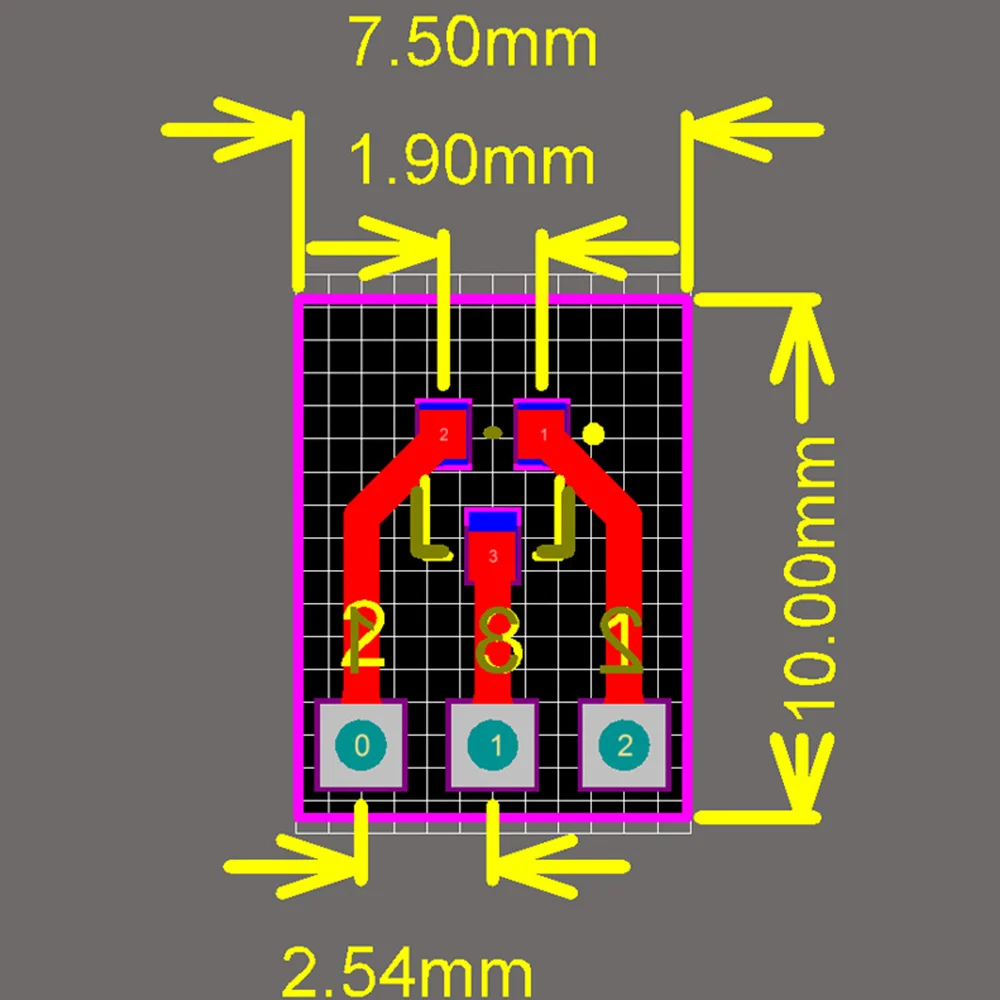

SOT23(Pitch 0.95mm)to SIP3(2.54pin pitch)
Product parameters:

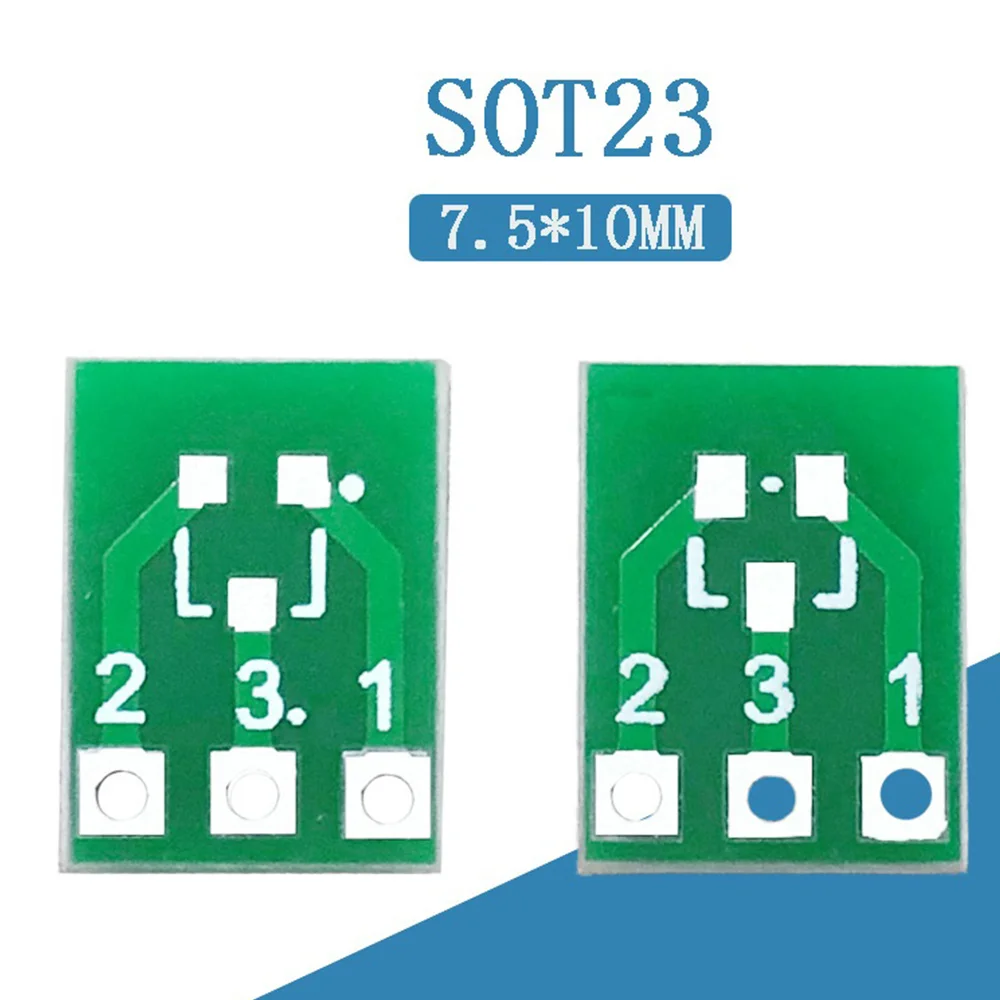

size:7.5 x 10mm
Hole distance:2.54mm
Aperture:1.0mm
Plate thickness:1.6mm
Type:Integrated Circuits
Model Number:SOT23 SOT23-3
color:Green
Material:FR-4 glass fiber board
size:7.5 x 10mm

Package Contents:

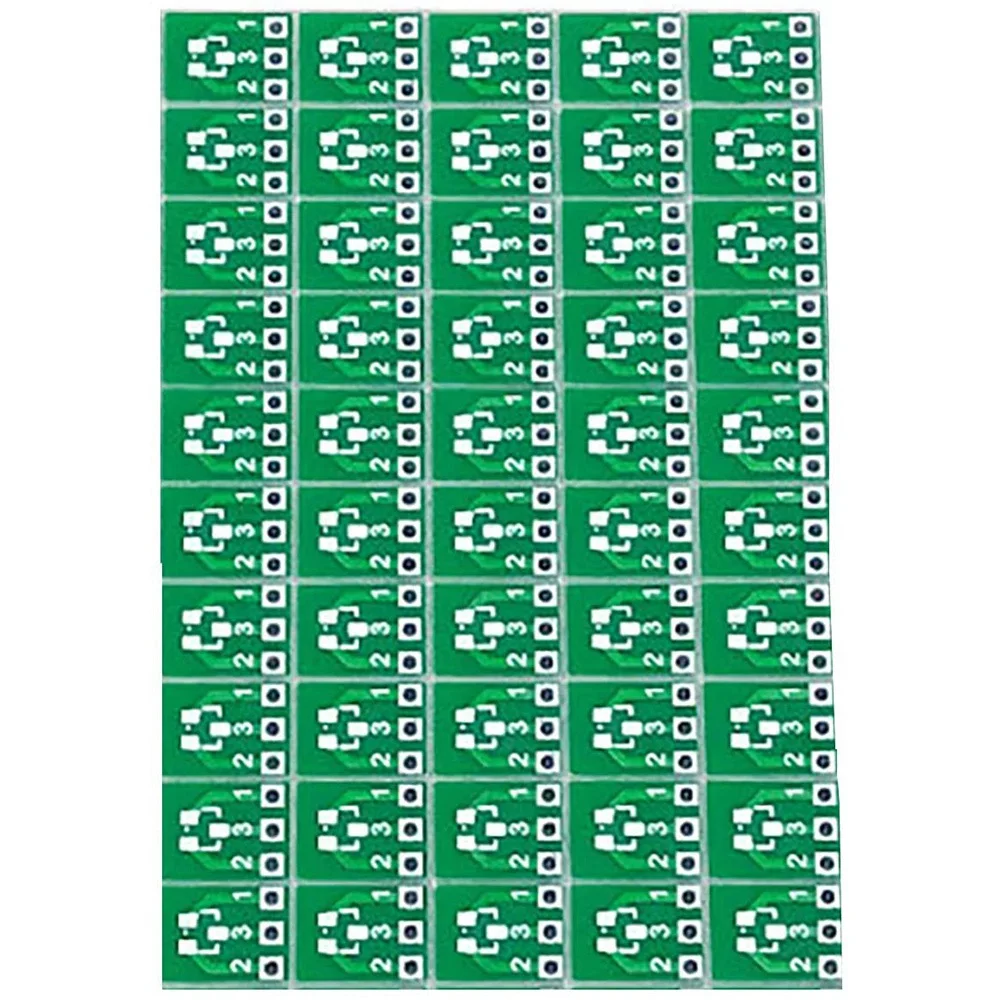

50 x SMD SOT23-3 to DIP SIP3 Adapter
/
20 x SMD SOT23-3 to DIP SIP3 Adapter
/
10 x SMD SOT23-3 to DIP SIP3 Adapter

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
