A02YYUW Waterproof ultrasonic sensor
$118.00
Sale price
$118.00
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
High-concerned chemical: none
Origin: Mainland China
Output: Analog Sensor
Theory: Optical Sensor
Type: Gas Sensor
Use: Gas Sensor
INTRODUCTION
Ultrasonic distance sensor determines the distance to a target by measuring time lapses between the sending and receiving of the ultrasonic pulse. This is an easy-to-use commercial-grade ultrasonic sensor module of high performance and reliability, featuring much smaller blind zone, wider sensing angle and a certain penetration power(smog, dust) compared with other similar sensors .

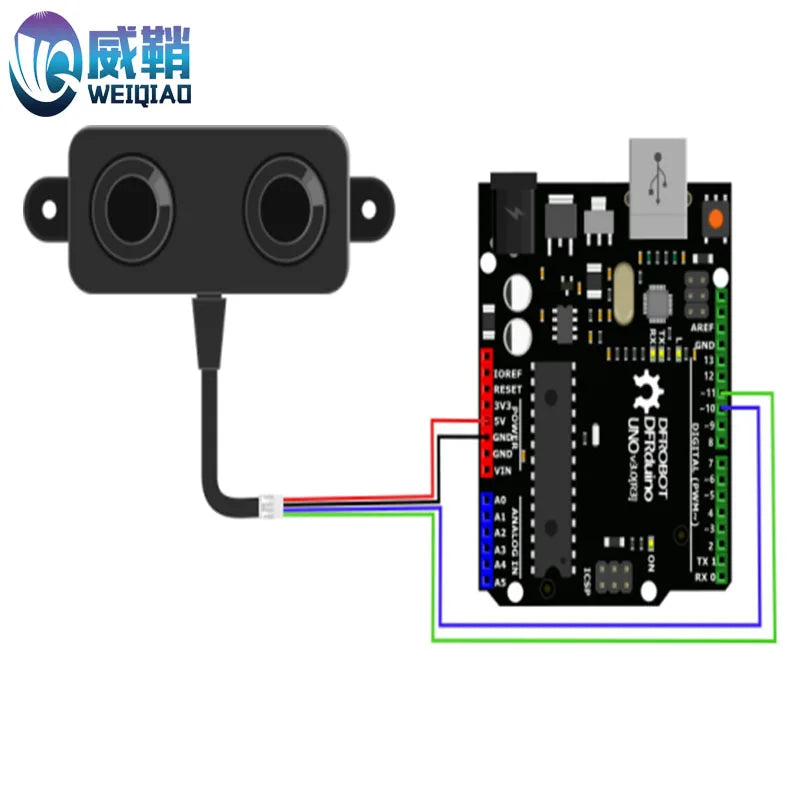

Connection with Arduino
The ultrasonic sensor adopts closed separated probe, waterproof and dustproof, which could be well suitable for harsh and moist measuring environment. All the signal processing units are integrated inside the module, so users can directly obtain the distance value through Asynchronous Serial Interface. With 9600bit/s band rate, the sensor can easily communicate with upper-host or other MCU, which greatly shortens the developing cycle for users.

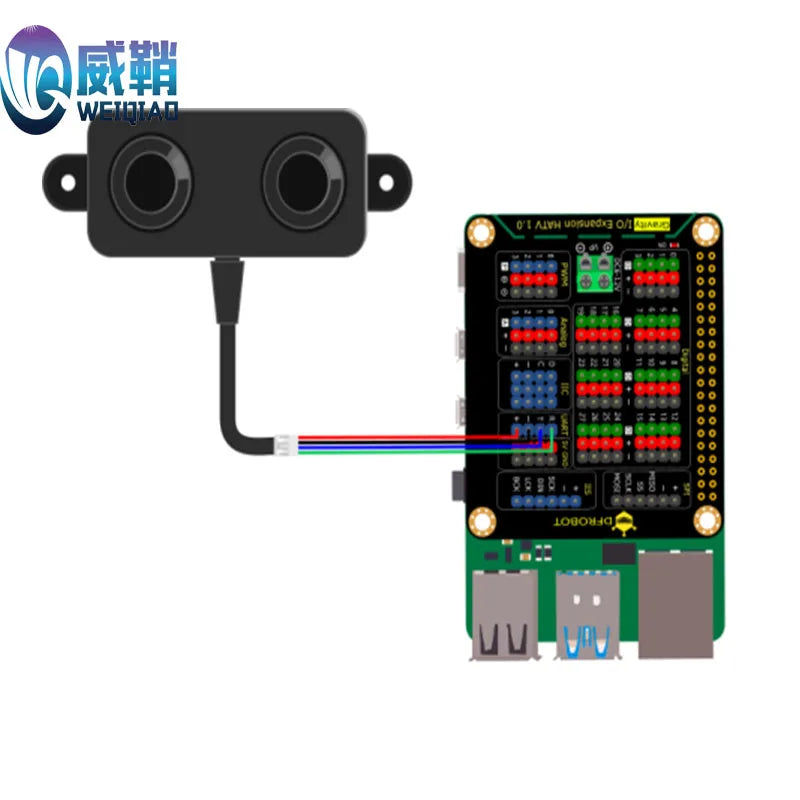

Connection with Raspberry Pi
Use the sensor with Arduino controller to build up your projects, such as backing car annunciator, obstacle avoidance robot, object approaching detection etc.
Product parameters
Operating Voltage: 3.3~5V
Average Current: <8mA
Blind Zone Distance: 3cm
Detecting Range(Flat object): 3-450cm
Output: URAT
Response Time:100ms
Operating Temperature: -15~60℃
Storage Temperature: -25~80℃

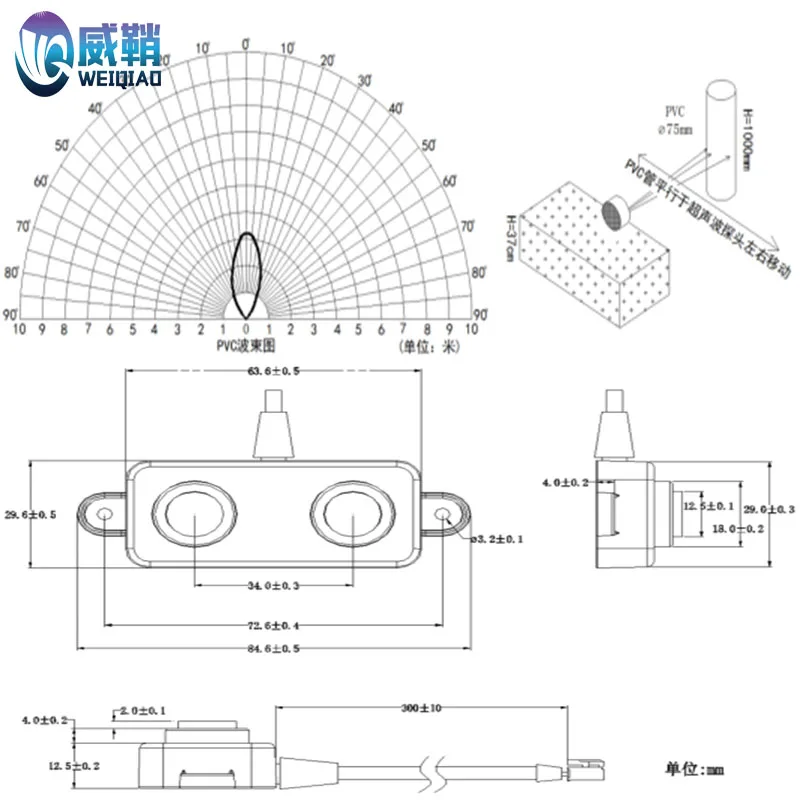

Reference Angle: 60º
Waterproof Grade: IP67
