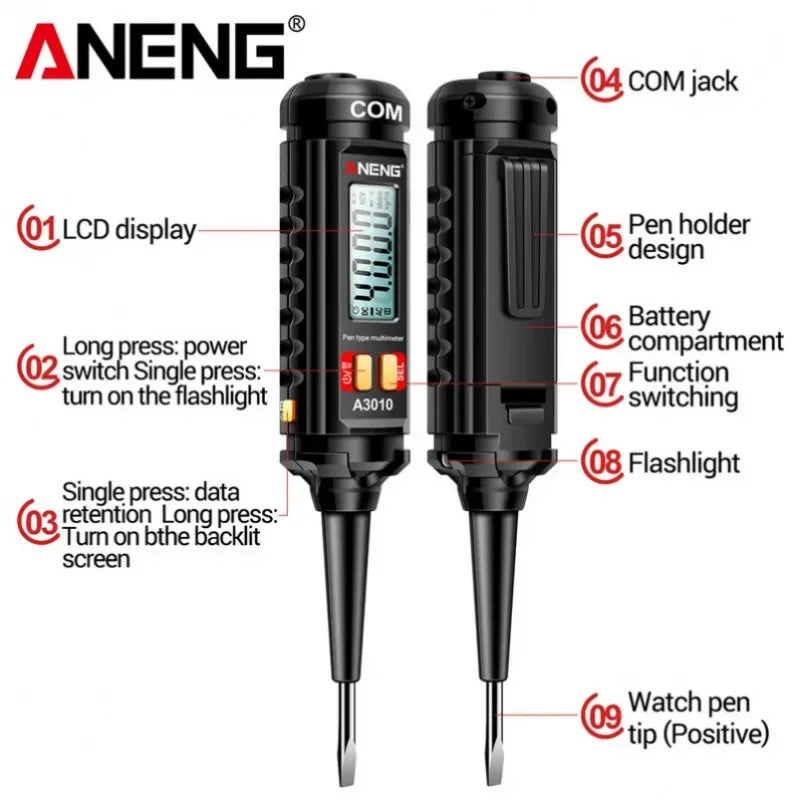

A3010 Pen-Type Digital Multimeter 4000 Counts True RMS Auto Range AC DC Tester with Backlight LCD Display

A3010 Pen-Type Digital Multimeter 4000 Counts True RMS Auto Range AC DC Tester with Backlight LCD Display

$102.36

$102.36 $0.00

Description

SPECIFICATIONS

AC Current: No

AC Voltage: Standard

Battery Included: no

Brand Name: NONE

DC Current: No

DC Voltage: Standard

DIY Supplies: Electrical

Dimensions: 162*30*22mm

Display Type: Digital Display

High-concerned chemical: none

Measuring Capacitance Range: 0~4mF

Measuring Inductance Range: No

Measuring Resistance Range: 4K/40K/400K/4M/40M

Model Number: ANENG A3010 Pen Multimeter

Operating Mode: Auto Range

Operating Temperature: 0 - 40 ℃

Origin: Mainland China

Semi-finishedproduct: No

Welcome to our store! 🛍️
Thank you for visiting. We hope you enjoy shopping with us!

Product Details:

Introduction:

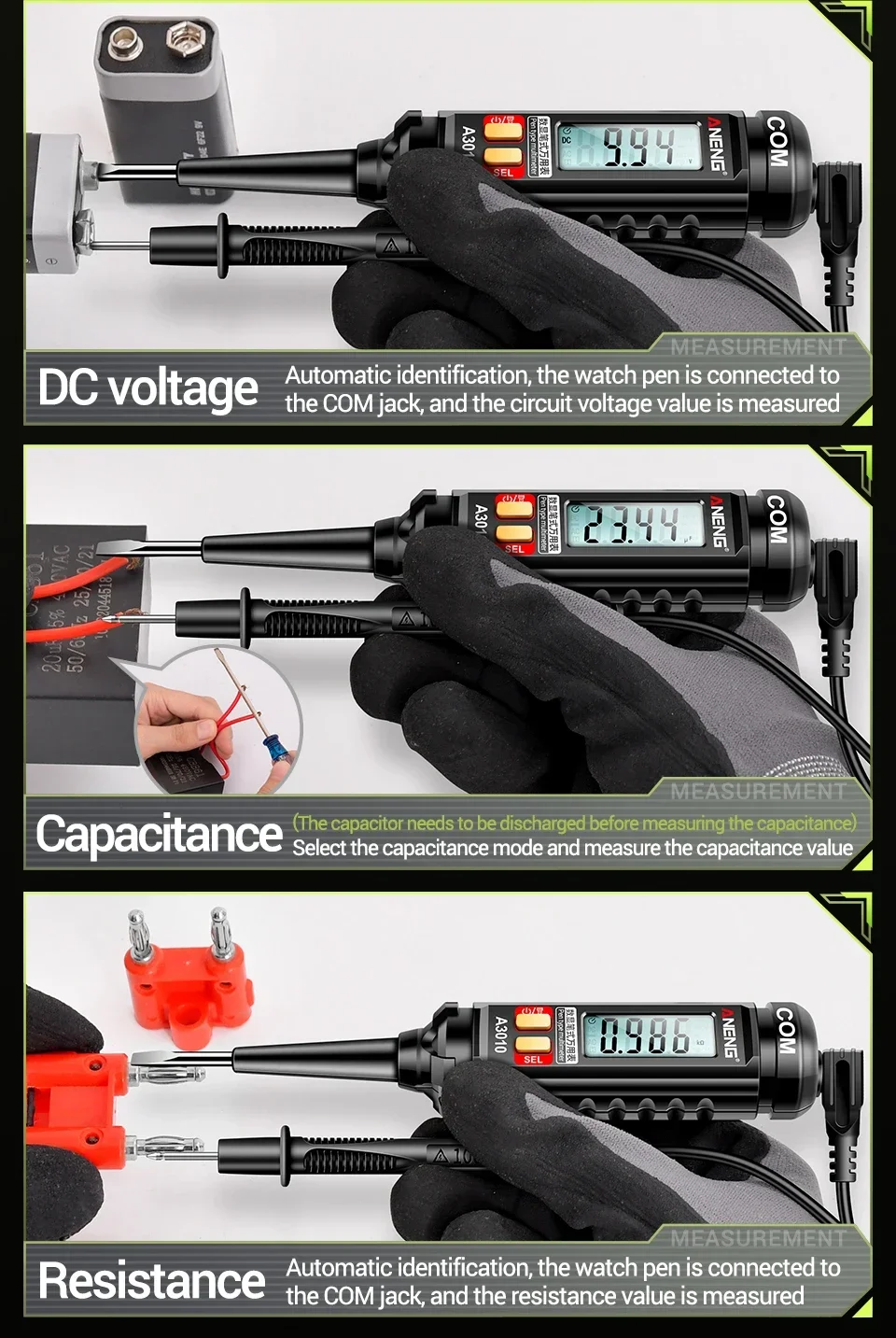

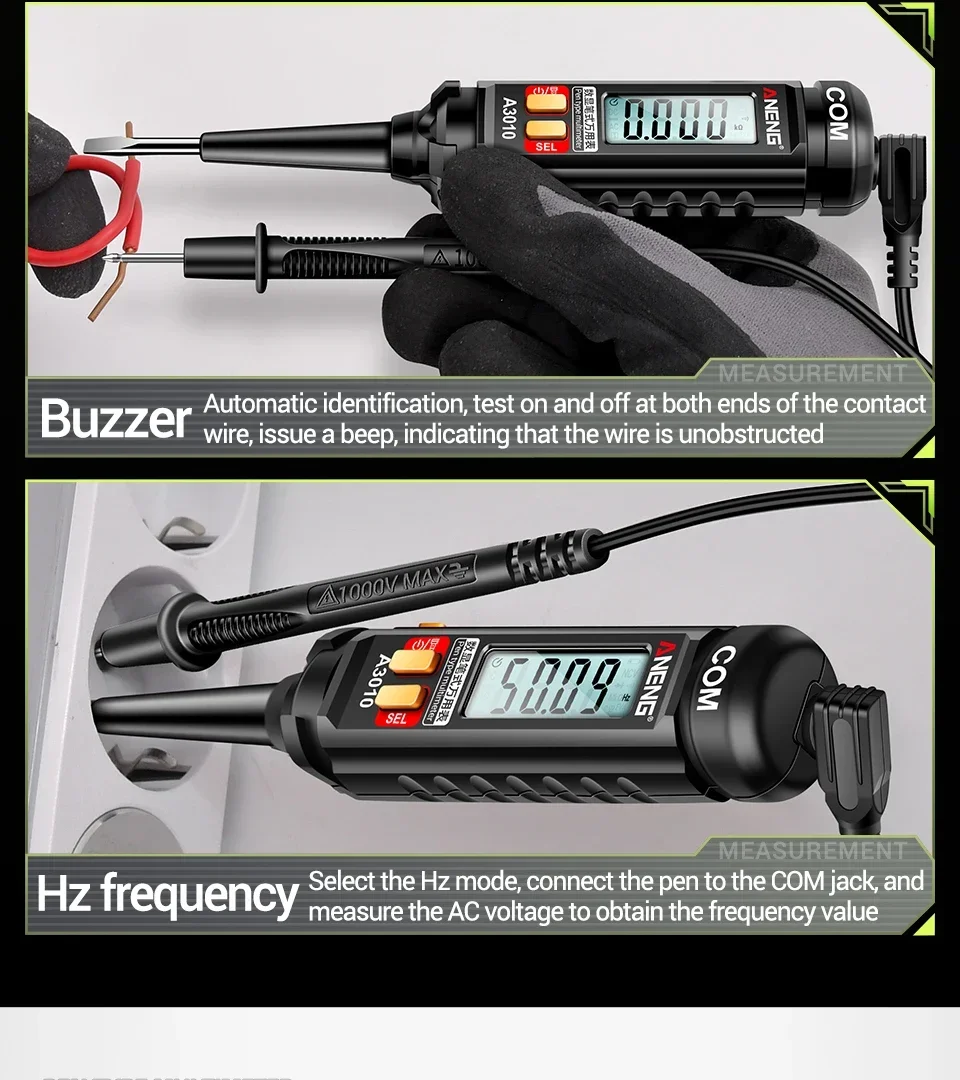

This instrument performs AC/DC voltage,Resistance,Capacitance,Audible continuity,Diode and Frequency measurement.
It is a 3 3/4 digits,4000 counts auto ranging DMM.

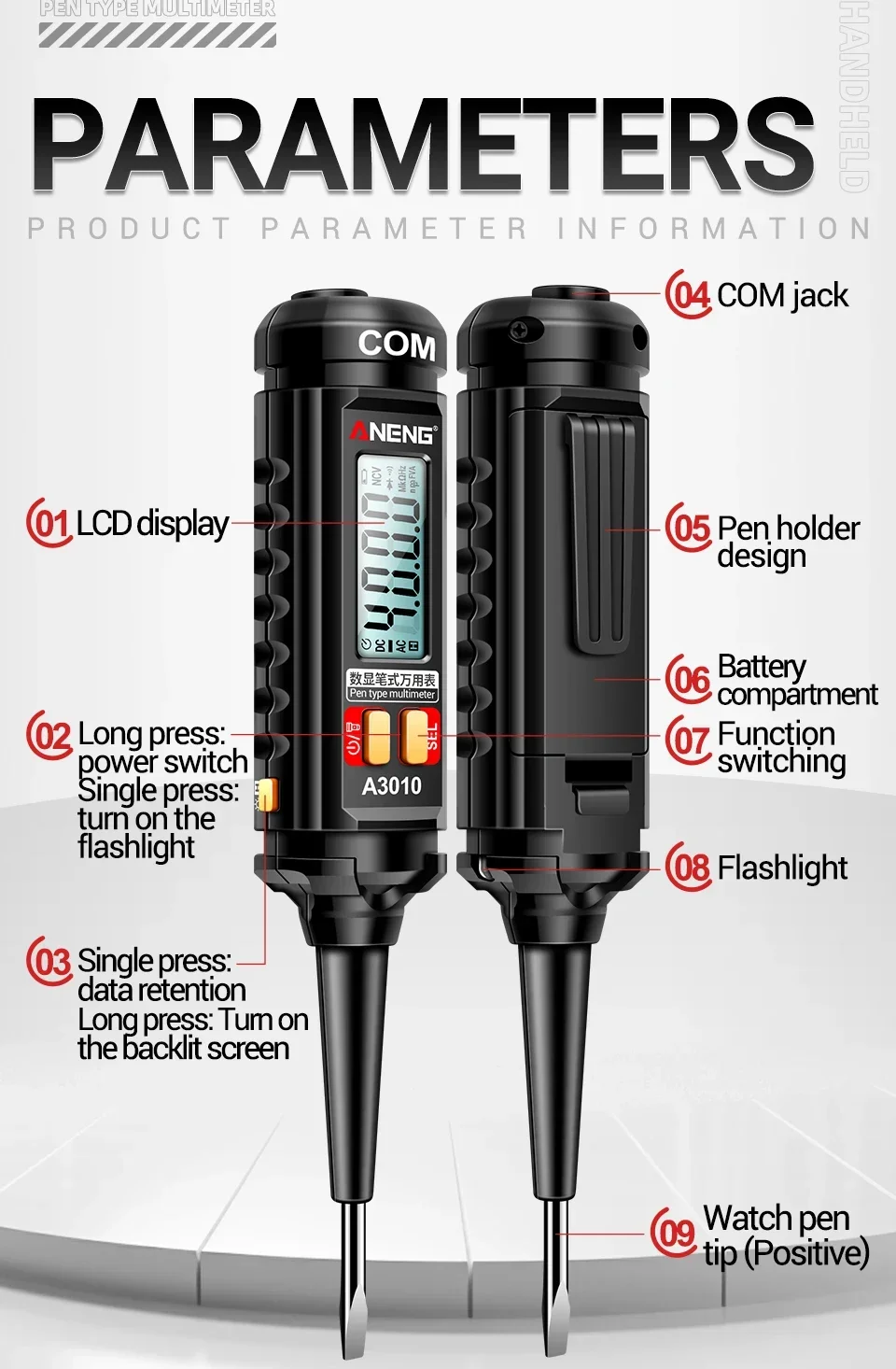

It has the functions of polarity indication,data hold,over range indication.It can be operated easily and is an ideal instrument tools.

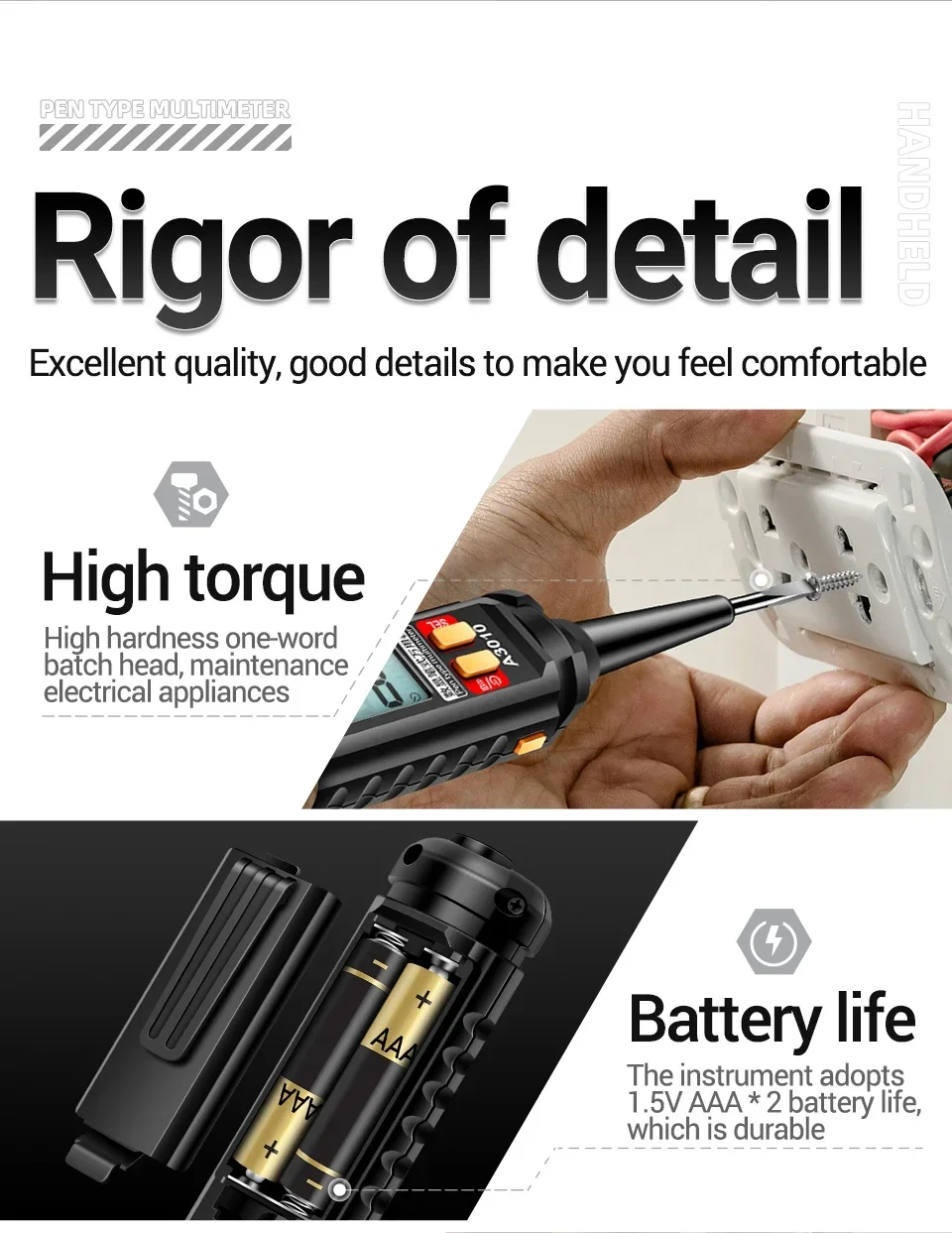

Battery Type: 1.5 AAA*2(Ship with battery)

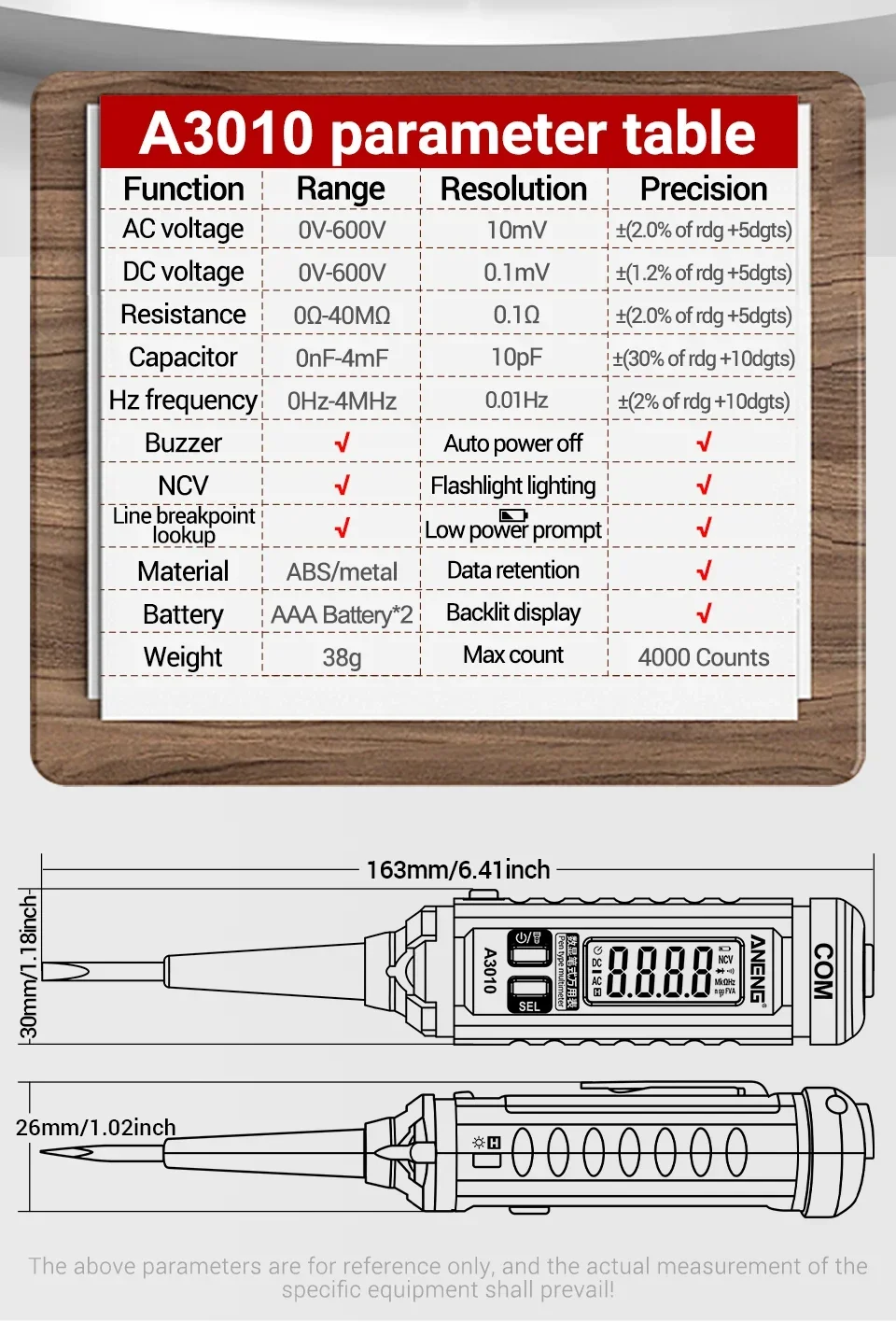

Specification:

Function	Range	Resolution	Accuracy
DC Voltage	4V/40V/400V	1mV/10mV/100mV	+-(1.0% of rdg +5 dgts)
	600V	1V	+-(1.2% of rdg +5 dgts)
AC Voltage	4V/40V/400V	1mV/10mV/100mV	+-(1.5% of reading +5 digits)
	600V	1V	+-(2.0% of rdg +5 dgts)
Frequency	40Hz~4MHz	/	+-(2.0% of rdg +10 dgts)
Resistance	4KΩ	1Ω	+-(2.0% of rdg +10 dgts)
	40KΩ/400KΩ/4MΩ	10Ω/100Ω/1kΩ	+-(1.0% of rdg +5 dgts)
	40MΩ	10kΩ	+-(2.0% of rdg +5 dgts)
