SPECIFICATIONS

and high quality PICKIT3 Programmer Description:USB (Full speed 12 Mbits/s interface to host PC) Real-time execution. MPLAB IDE compatible (free copy included) The MPLAB PICkit 3 allows debugging and programming of PIC® and dsPIC® Flash microcontrollers at a most affordable price point using the powerful graphical user interface of the MPLAB Integrated Development Environment (IDE). The MPLAB PICkit 3 is connected to the design 's PC using a full speed USB interface and can be connected to the target via an debug (RJ-11) connector (compatible with MPLAB 2, MPLAB 3 and MPLAB REAL ICE) Supports low voltage to 2.0 volts (2.0v to 6.0v range) Diagnostic LEDs (power, busy, error) Read/write program and data memory of microcontroller Erase of program memory space with verification Freeze-peripherals at breakpoint Program up to 512K byte flash with the Programmer-to-Go Instructions for use: Installing the microcontroller, 28-pin, 40-pin microcontroller left aligned 28/40P (A) This flag line short-circuit cap on the A position The 8,14,18,20-pin microcontroller aligned on the left 8P/14P/18P/20P flag line (B), shorting cap on the B position The ICD2, KIT2, KIT3 crystal head or 6Pin Block programming connection for programming the programming operation. (Note: a separate program of the seat can not be programmed the chip is programmed functions) The seat supports the following programming microcontroller: PIC16/18XX 40PIN Series devices (except 16F59) PIC16/18XX 28PIN Series devices (except 16F57) PIC16/18XX 18PIN Series devices The PIC 8PIN/14PIN/20PIN family of devices (except 10FXX) Colour:Red Material:plastic Size:14.5 x 7 x 4CM Package Contents: 1 * PICKIT3 Simulator 1 * USB Cable 1 * 6Pin cable

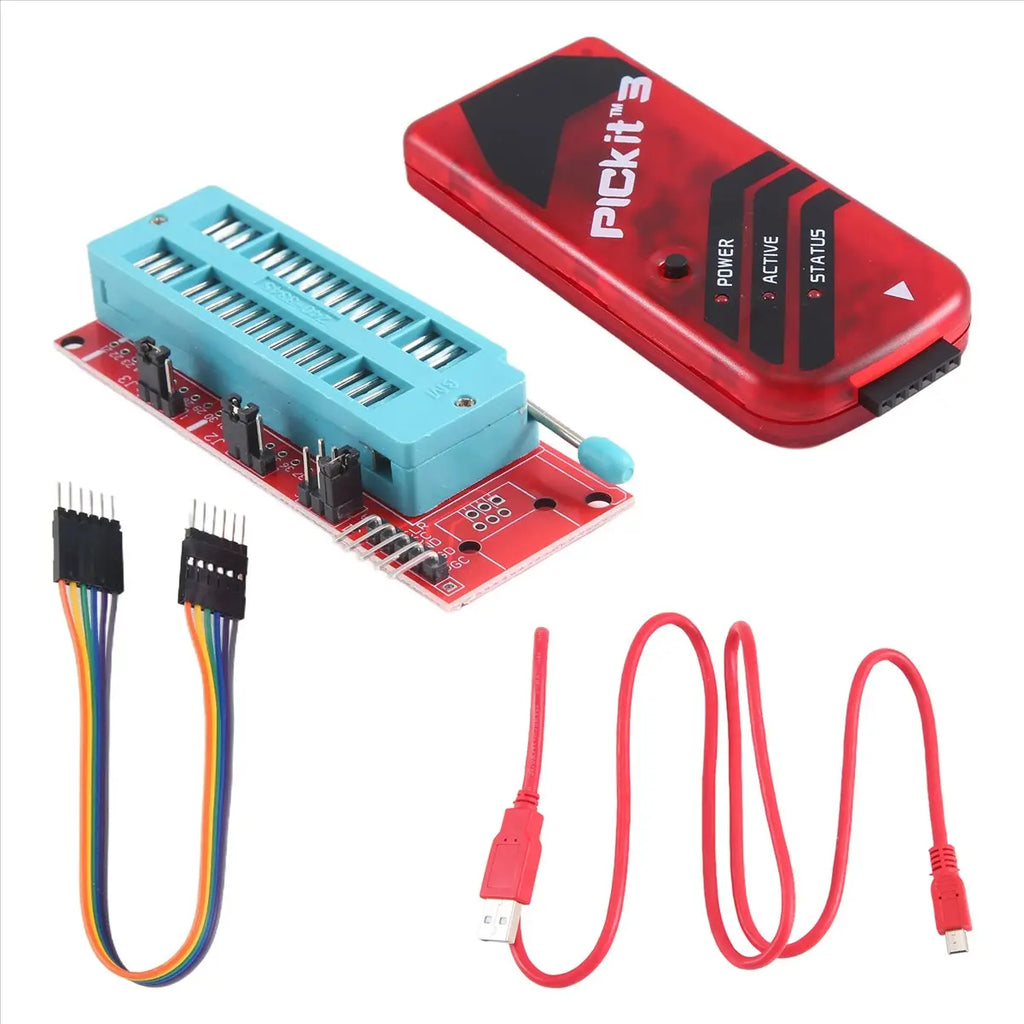

1 * Universal Programmer Seat Only the above package content, other products are not included. Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
