A4988 Stepper Motor Driver Module with Heat Sink for Arduino 3D Printer Reprap CNC Machine or Robotics
$8.60
Sale price
$8.60
Regular price
$0.00
Description
SPECIFICATIONS
Application: REPRAP 3D Printer
Brand Name: diymore
Choice: yes
Condition: New
Dissipation Power: Please Check Description
High-concerned chemical: none
Operating Temperature: -20 -120℃
Origin: Mainland China
Package: SOP
Quantity: 1
Supply Voltage: Please Check Description
Type: Module
is_customized: Yes
Description:

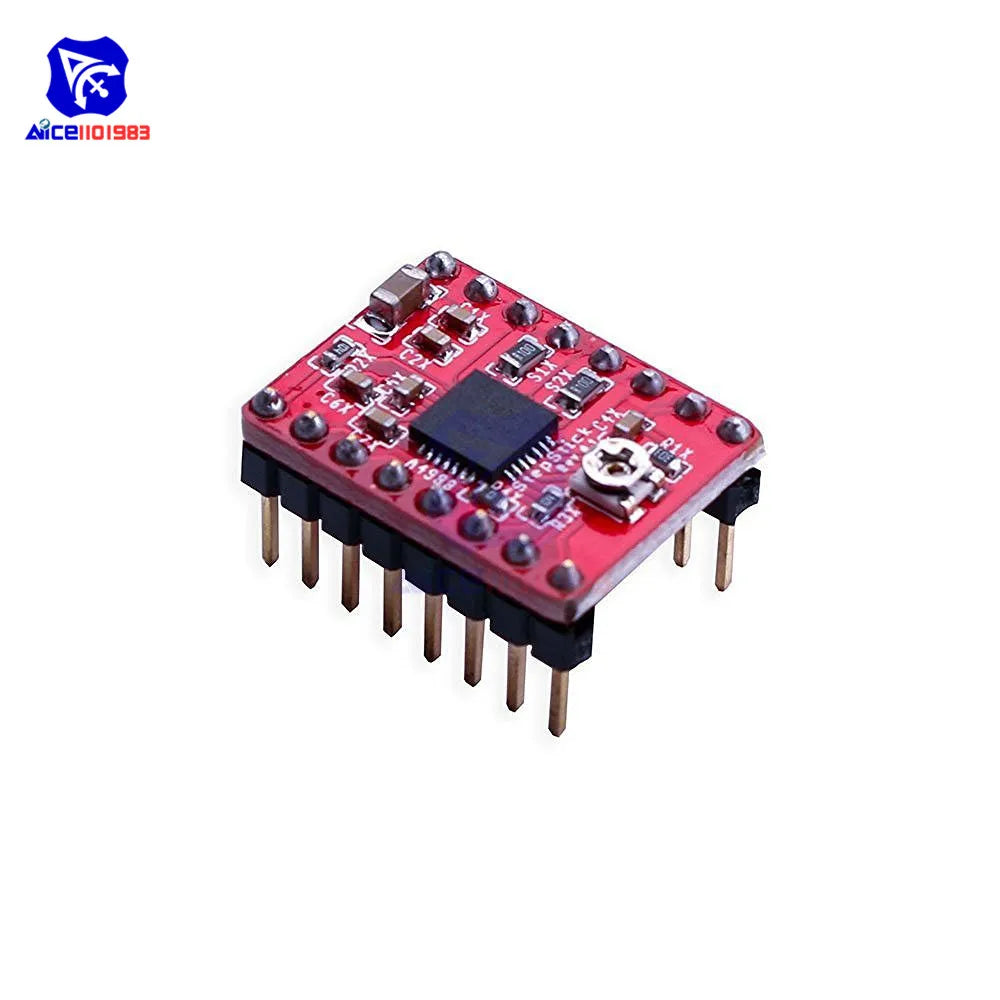

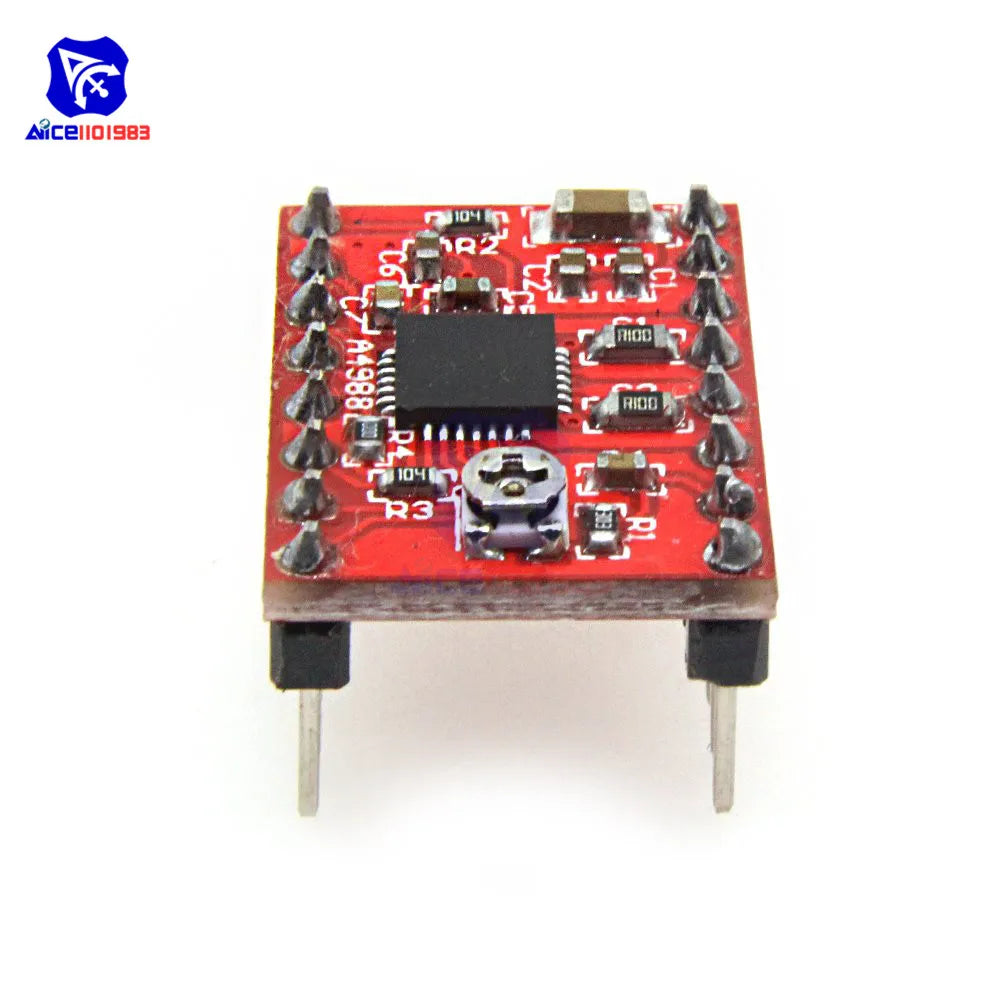

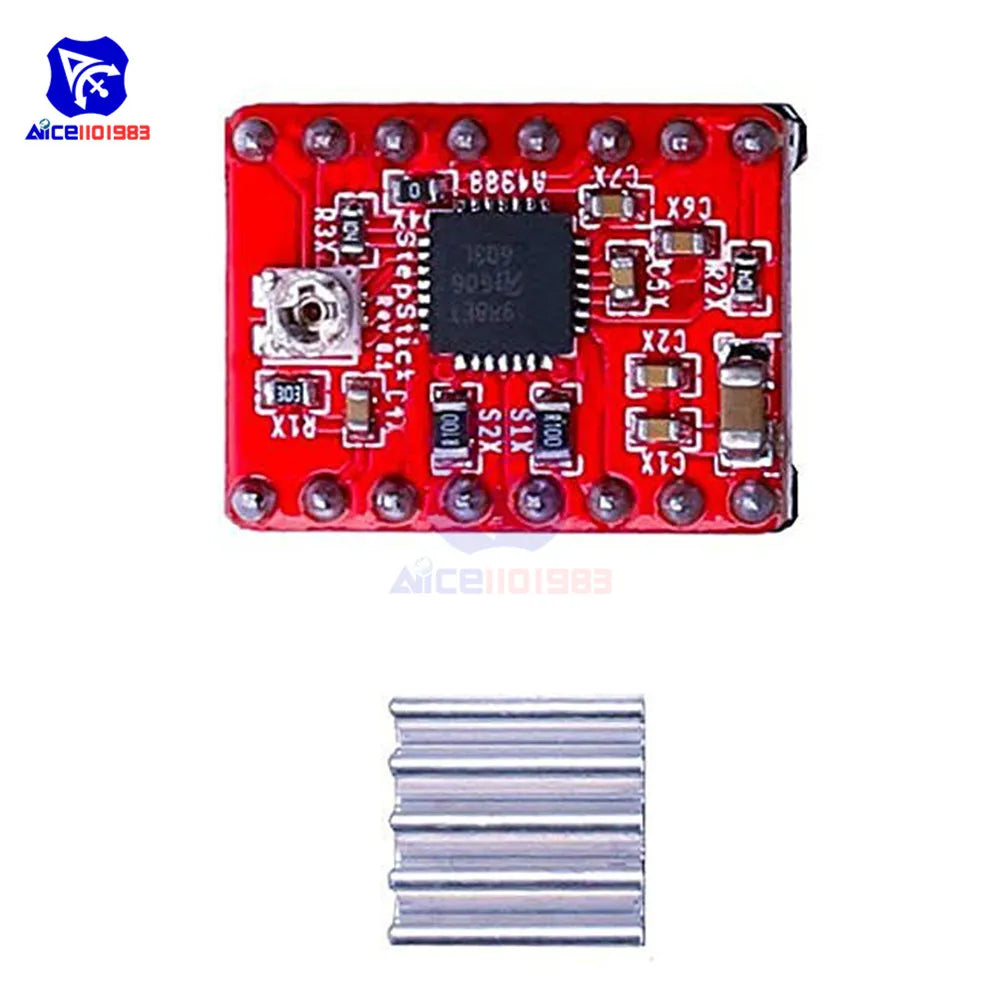

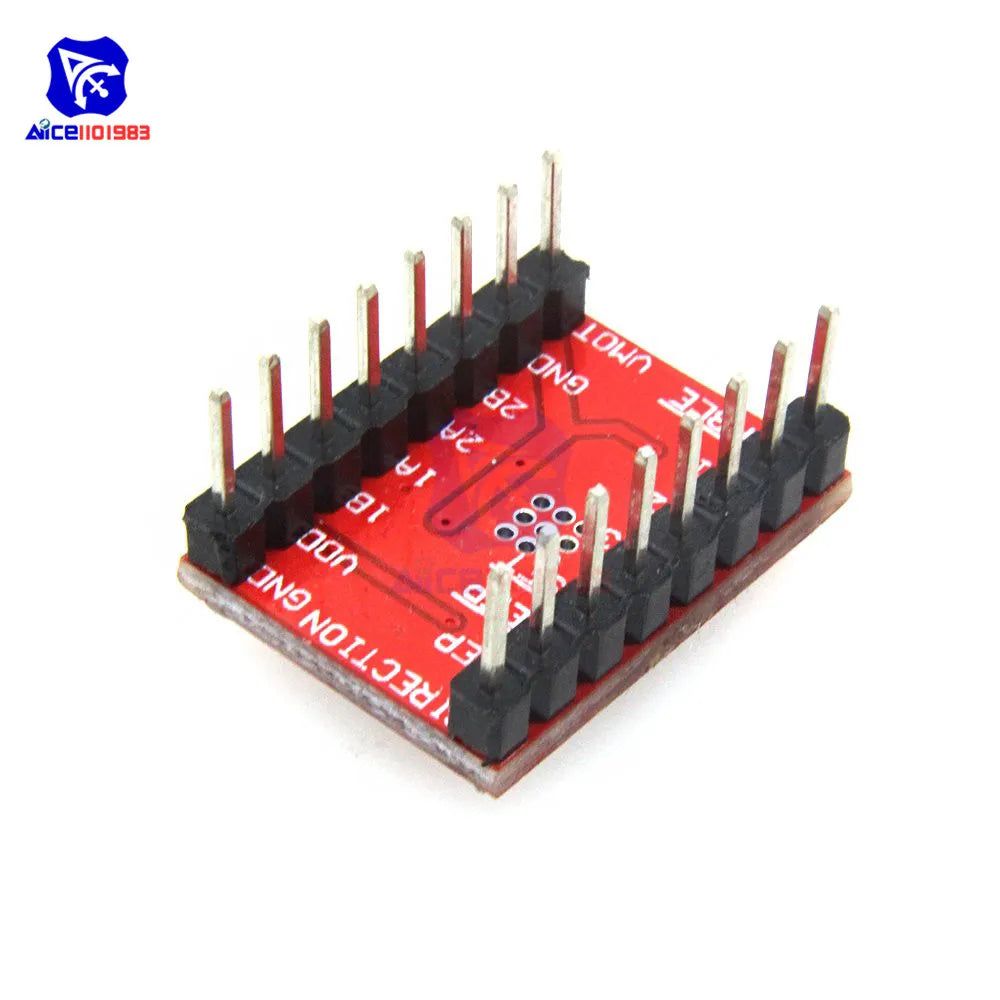

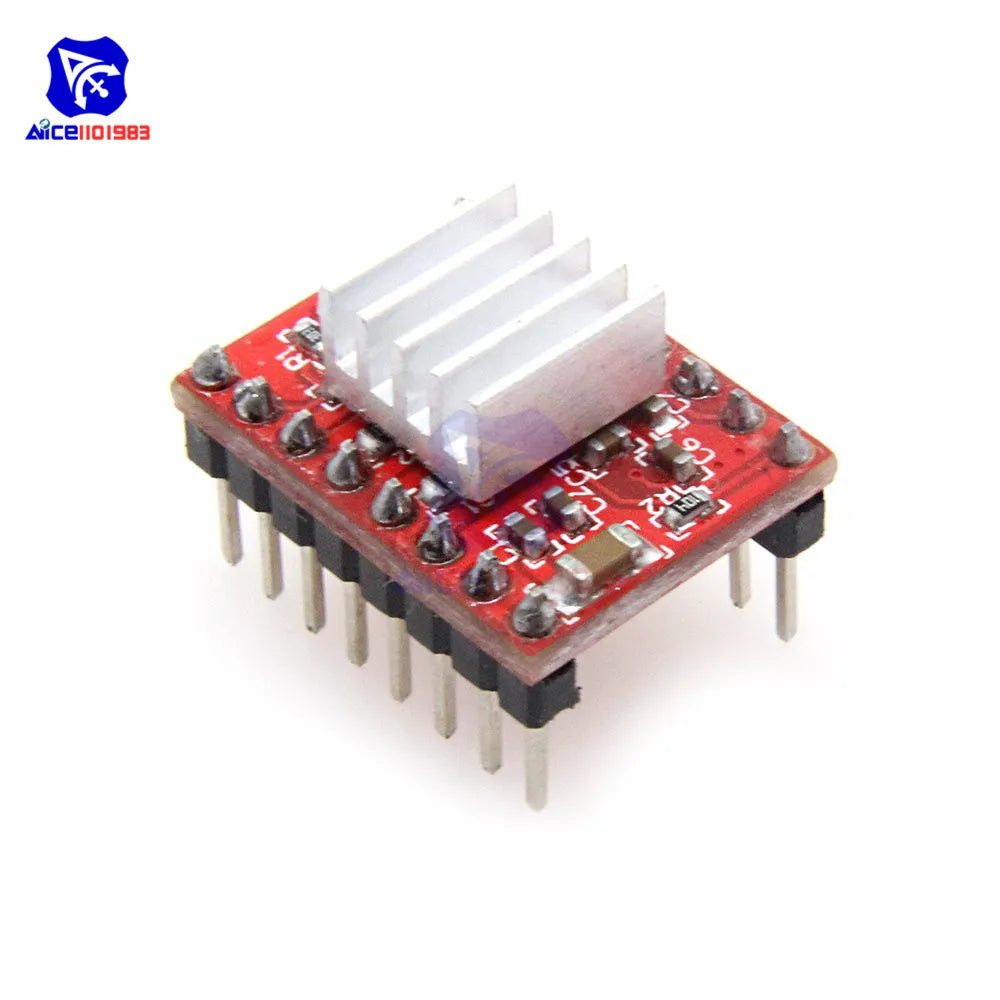

This product is a breakout board for Allegro's A4988 DMOS Microstepping Driver with Translator and Overcurrent Protection; please read the A4988 datasheet carefully before using this product.
This stepper motor driver lets you to operate bipolar stepper motors in full-, half-, quarter-, eighth-,
and sixteenth-step modes, with an output drive capacity of up to 35 V and 2 A.
The translator is the key to the easy implementation of the A4988.
Simply inputting one pulse on the STEP input drives the motor one microstep.
There are no phase sequence tables, high frequency control lines, or complex interfaces to program.
The A4988 interface is an ideal fit for applications where a complex microprocessor is unavailable or is overburdened.
Feature:
Simple step and direction control interface
Five different step resolutions: full-step, half-step, quarter-step, eighth-step, and sixteenth-step
Adjustable current control lets you set the maximum current output with a potentiometer,
which lets you use voltages above your stepper motor's rated voltage to achieve higher step rates
Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)
Over-temperature thermal shutdown, under-voltage lockout, and crossover-current protection
Short-to-ground and shorted-load protection
Warning:
Connecting or disconnecting a stepper motor while the driver is powered can destroy the driver.
(More generally, rewiring anything while it is powered is asking for trouble.)
Package Included:
1 x A4988 Stepper Motor Driver Module for REPRAP 3D Printer
