SPECIFICATIONS

Battery Included: no

Brand Name: NONE

Certification: NONE

DIY Supplies: Electrical

High-concerned chemical: none

Origin: Mainland China

Semi-finishedproduct: No

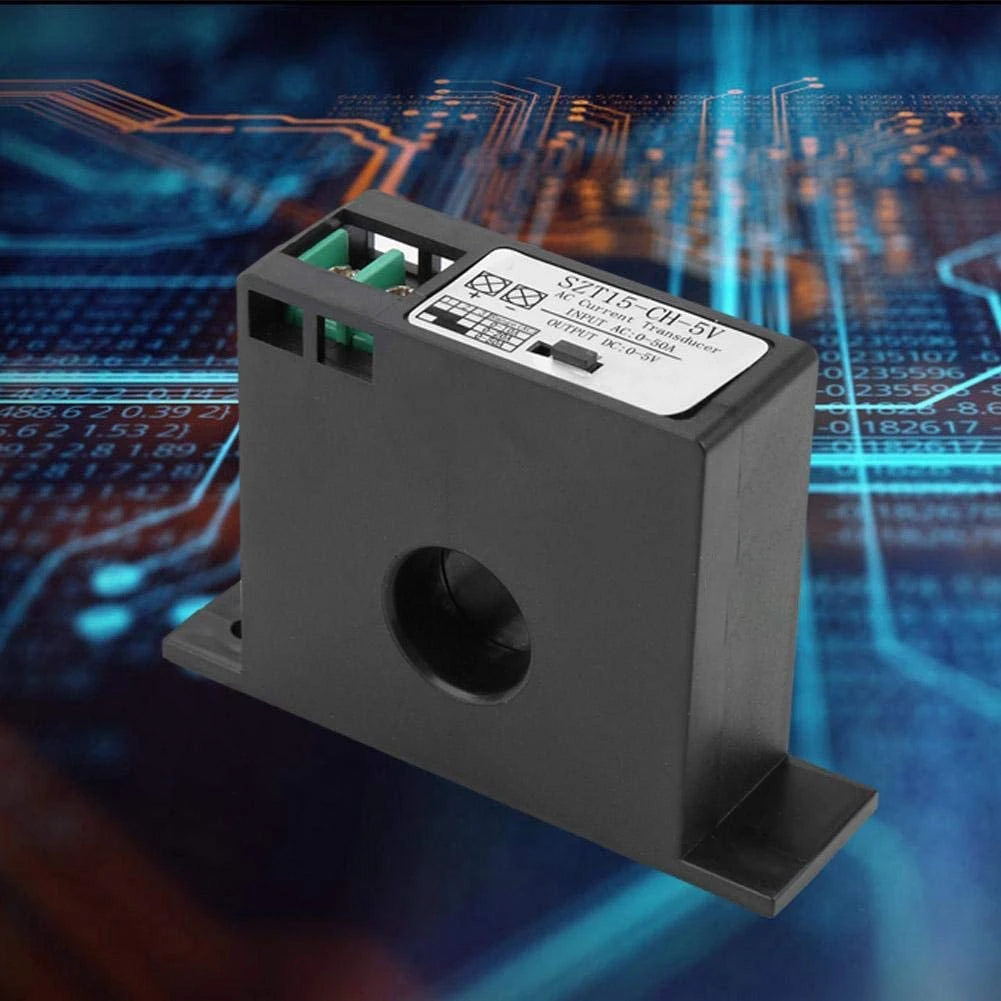

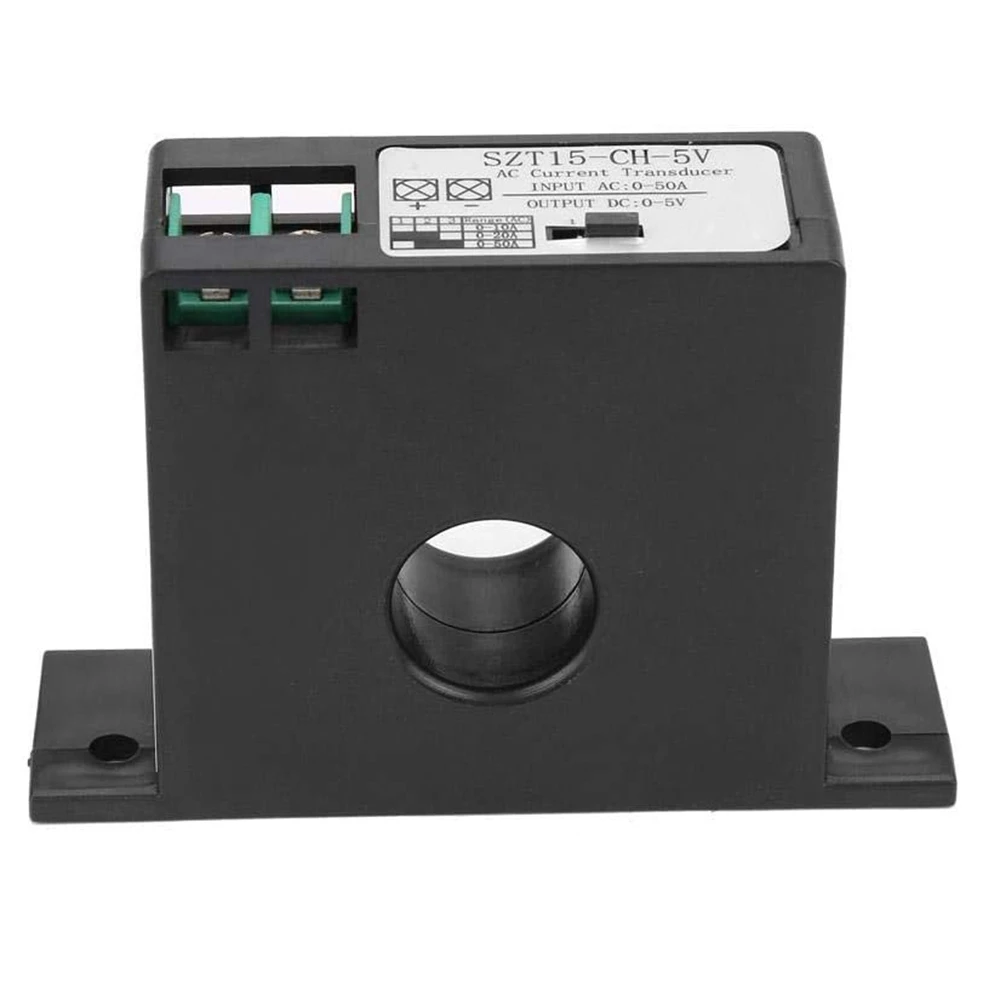

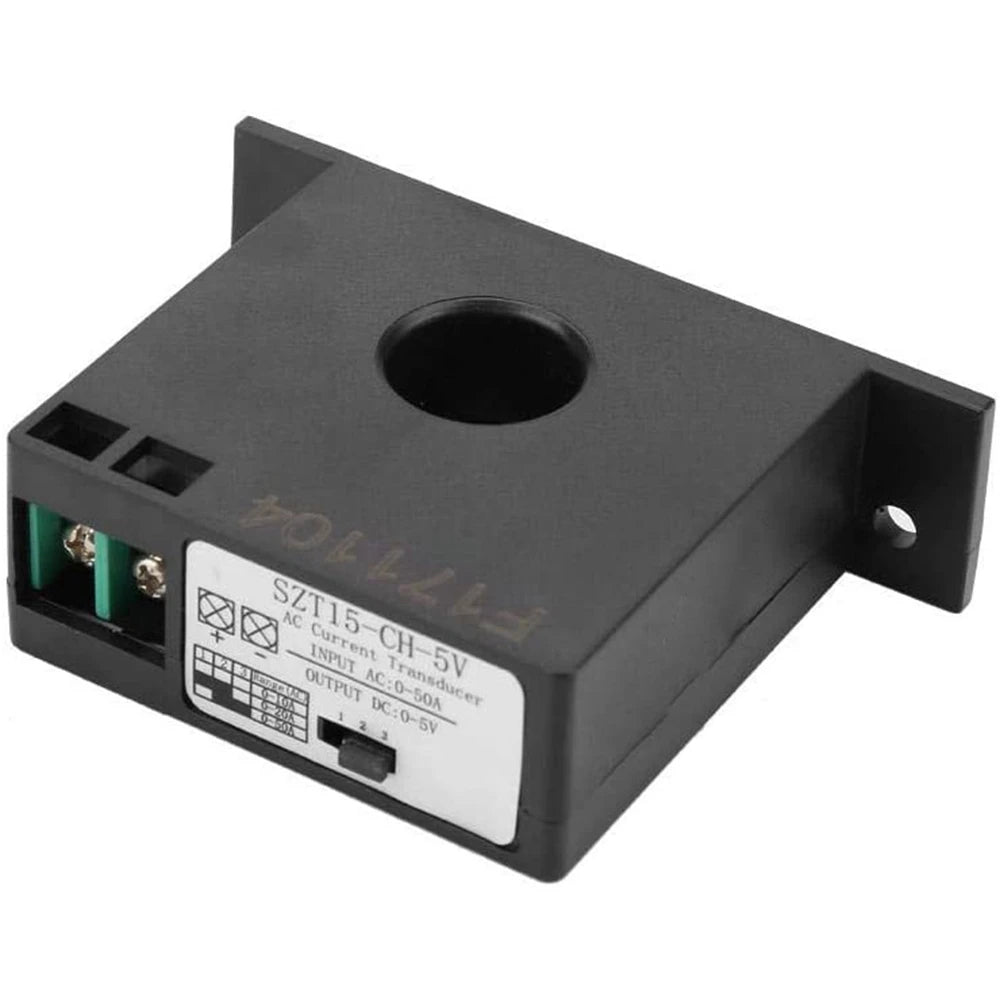

Specification 1: AC Current Transmitter

Specification 2: AC Current Transducer

Specification 3: SZT15CH5V

Specification 4: Current Sensing Switch

Specification 5: Current detection switch

Safe Security: Mutual inductance current monitoring has high current detection accuracy and safe isolation of input and output.
Easy To Use: Easy to install and use, no need to connect DC into the circuit when measuring.
Product Specification: Self-powered, no external power supply required. Measured current AC 0-10/20/50A, output signal DC 0-5V. Straight-through structure design, isolation withstand voltage up to 2000V.
High Quality:The outer casing is made of self-extinguishing material plastic.
Widely Application: Hysteresis is less than 1% and can be used under strong magnetic conditions. Suitable for AC current measurement and monitoring, AC motor overload protection, electronic switch of automatic control system and so on.

Material:plastic
colour:Black

Package Contents:
1 x AC Current Transmitter

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
