SPECIFICATIONS

Brand Name: NONE

Certification: NONE

Compatible Audio & Video Equipment Style: Amplifier

Electronic: Yes

High-concerned chemical: none

Origin: Mainland China

Specification 1: TTL To RS485 Module

Specification 2: TTL To RS485 Module Converter

Specification 3: TTL To RS485 Adapter

Specification 4: Serial Conversion Module

Specification 5: 33V5V Level Converter Module

Type: IR

Compatible with TTL/RS485 standard, can convert TTL signal into differential RS485 signal, half-duplex communication. Compatible with 3.3V~5VTTL signal level, with overvoltage prevention circuit on the power supply end

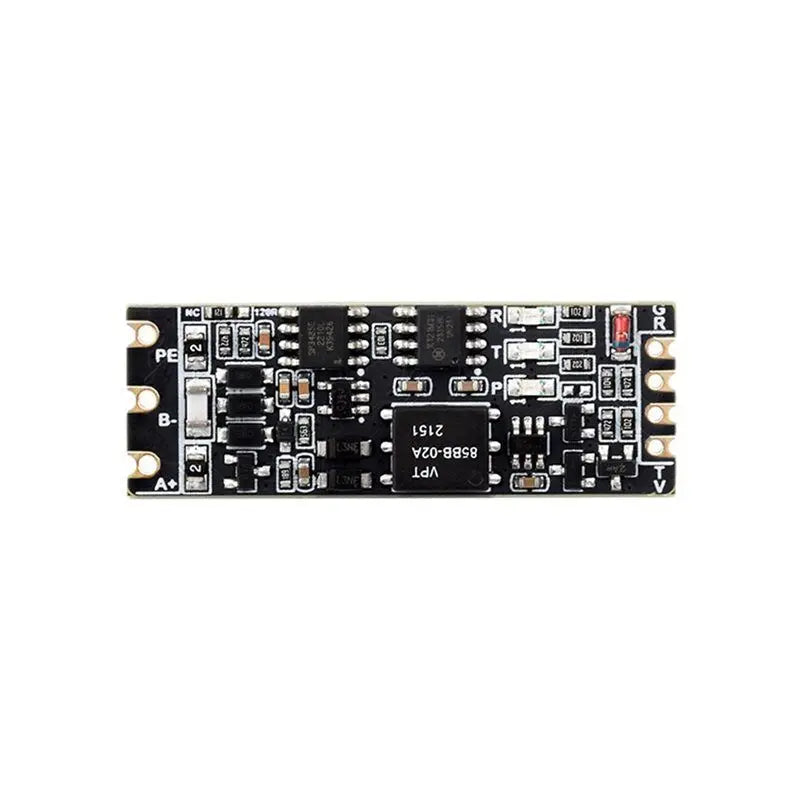

The on-board integrated power supply isolation can provide stable isolation voltage, and the isolation terminal does not require additional power supply. The on-board integrated digital isolation can perform signal isolation and has the characteristics of high reliability, strong and low power consumption
Onboard TVS (transient voltage suppressor), which can effectively suppress surge voltages and transient peak voltages in the circuit, and protect against Lightning-and static electricity
On-board self-restoring fuses and protection diodes ensure stable current and voltage output, prevent overcurrent and overvoltage, and improve impact resistance
The onboard RS485 output terminal has a 120R resistor, which can be switched and enabled by welding. It adopts black immersion gold technology and is compact in size, making it easy to integrate and embed

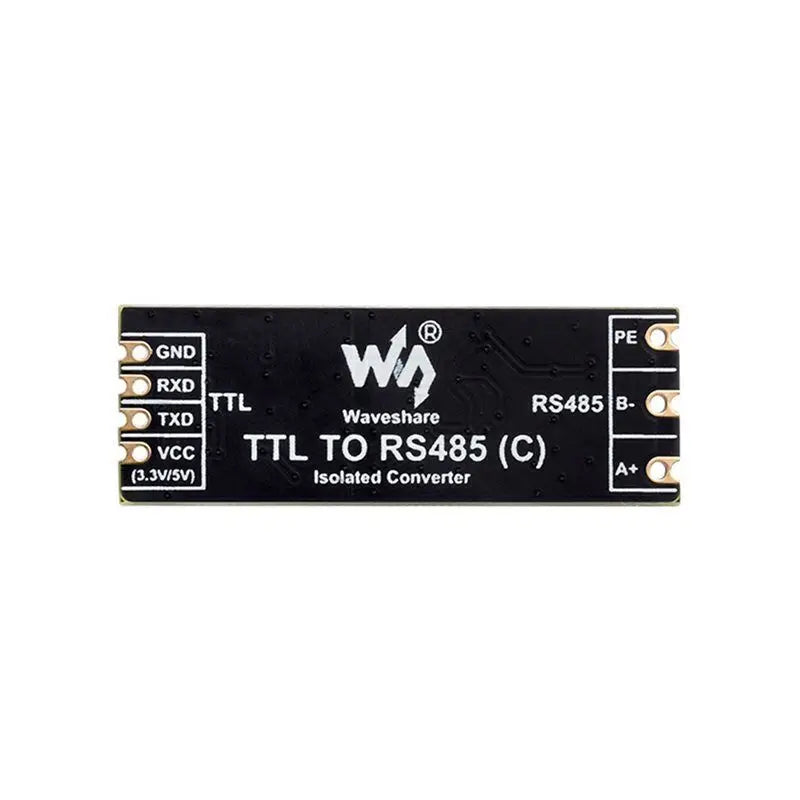

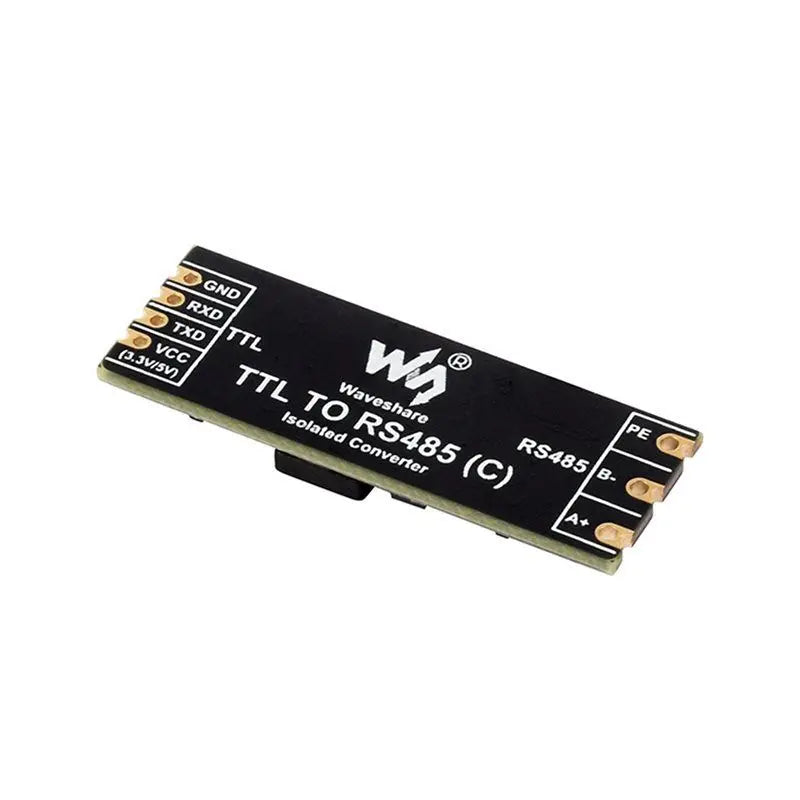

Product type: Electrically isolated TTL to RS485 serial port converter
Power supply interface
Supply voltage: 3.3V ~ 5V
Interface protection: prevent overvoltage

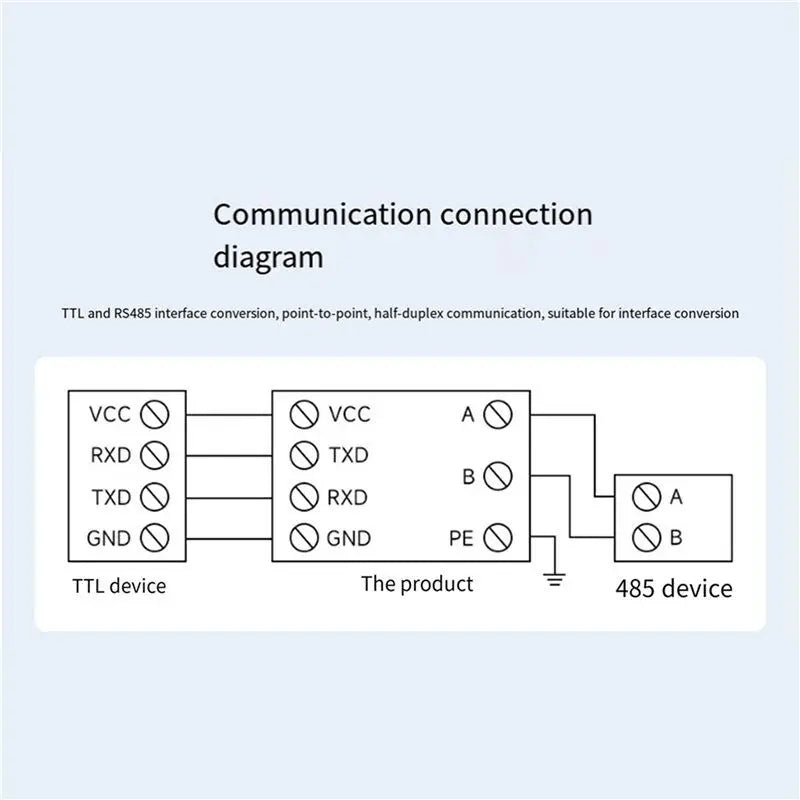

Device interface: compatible with TTL/RS485 standard
TTL interface
Transmission distance: less than 10 meters
Transmission mode: point-to-point
RS485 interface
Interface protection: Provides 200W Lightning-protection, anti-surge and 6KV electrostatic protection
Terminal resistance: 120R, can be enabled by welding switch
Transmission distance: about 1200 meters
Transmission mode: point-to-many (up to 32 nodes, it is recommended to add a repeater for more than 16 nodes)
Colour:Black
Material:PCB

Package Contents:

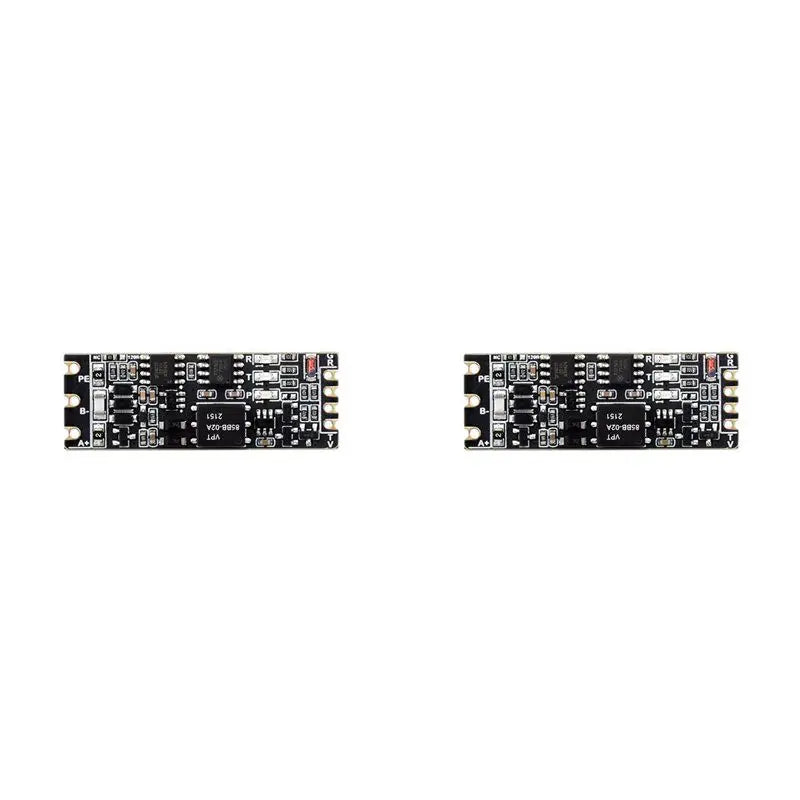

2x TTL To RS485 Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
