Description

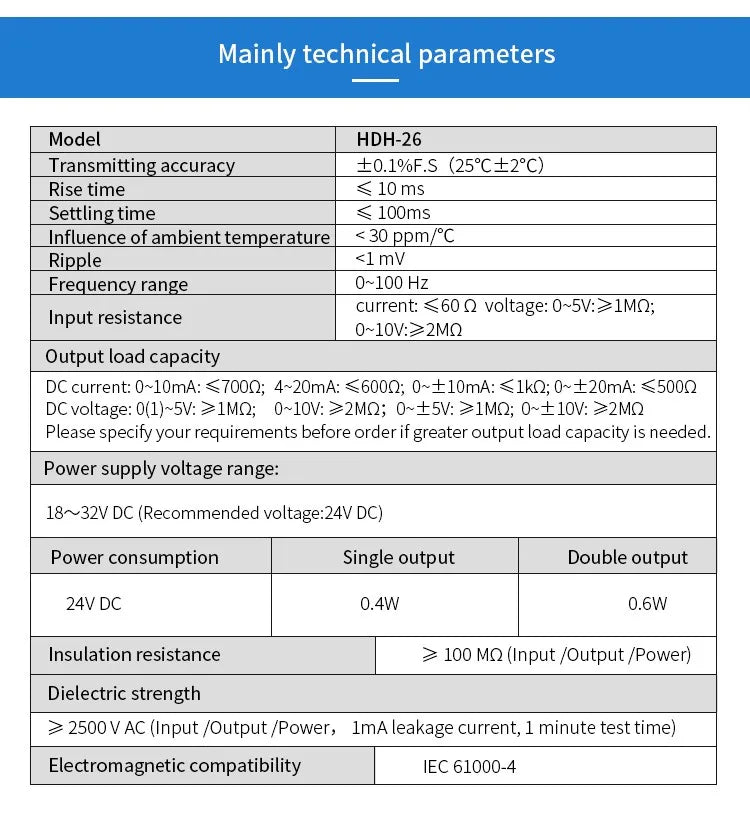

SPECIFICATIONS

Accuracy Class: 0.2%

Battery Included: no

Brand Name: NoEnName_Null

Certification: CE

Characteristics: small size

DIY Supplies: Electrical

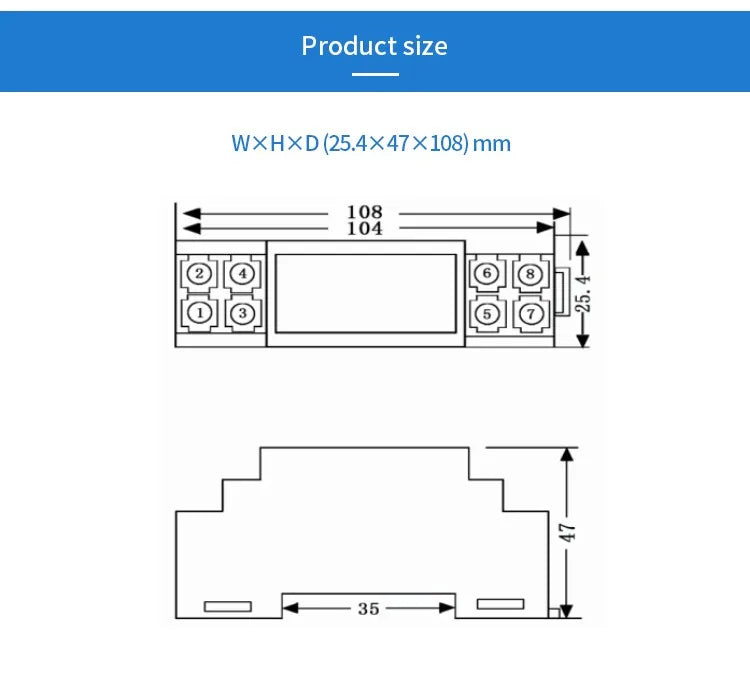

Dimensions: 25.4*108*47mm

Display Type: Analog and Digital

Electromagnetic compatibility: IEC 61000-4

Frequency range: 0~100 Hz

High-concerned chemical: none

Influence of ambient temperature: < 30 ppm/℃

Input signal: 0-1A,0-5A,0-10A

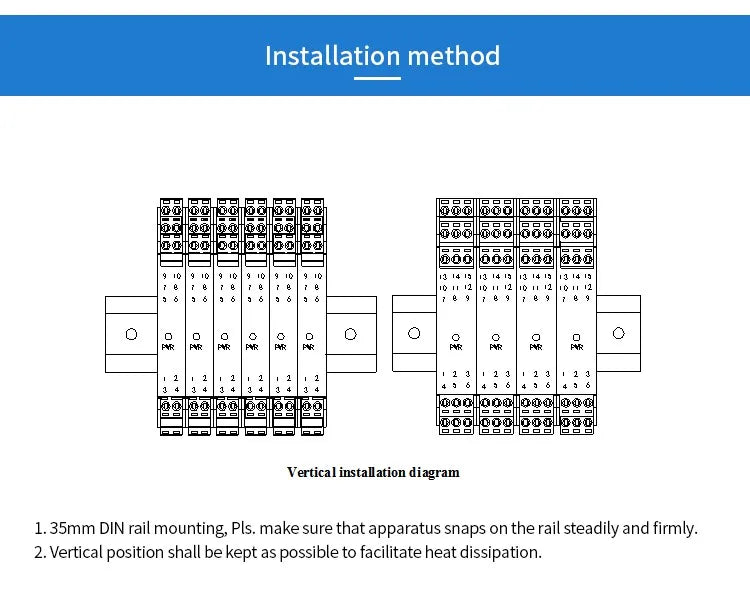

Installation: 35mm DIN rail

Insulation resistance: ≥ 100 MΩ (Input /Output /Power)

Linearity: 0.1%

Model Number: HDH-26

Operating Temperature: -40~85℃

Origin: Mainland China

Output signal: 4-20ma,1-5v,0-10v

Response time: ≤50MS

Ripple: <1 mV

Semi-finishedproduct: No

Supply Voltage: DC24V

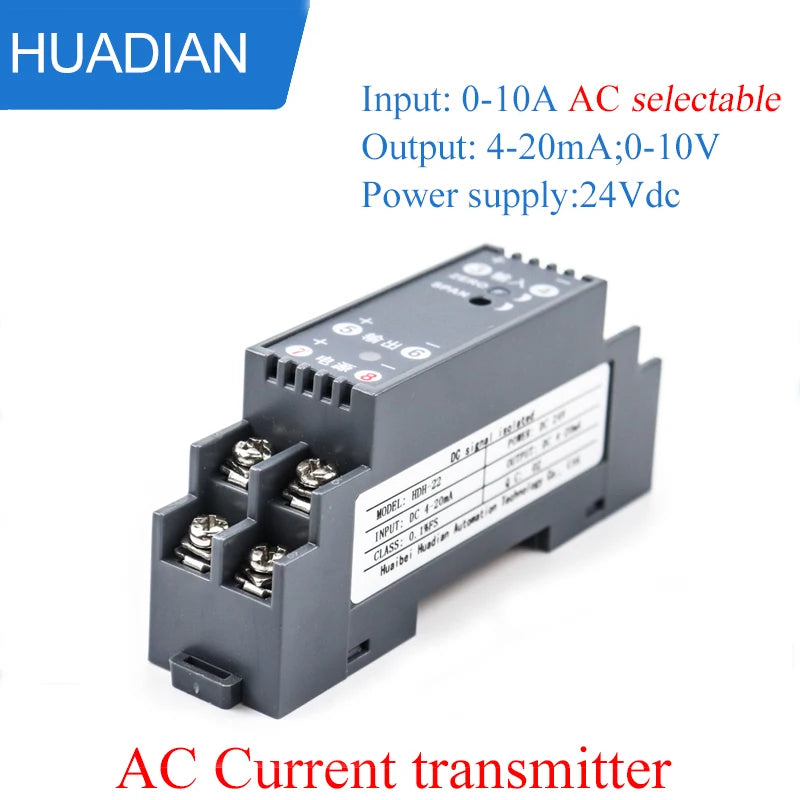

high accuracy 0.2% ac current transducer 4-20ma small hall effect current transmitter

Product description

This apparatus transmits the AC current signal （From motor or AC current transformer etc.）to isolated current or voltage signal such as 4-20mADC、0-10VDC , and the input, output, and power supply are galvanically isolated from each other.
It can be used together with modular instrumentation and DCS, PLC and other systems,to offer signal isolation, signal conversion, signal processing and otherfunctions to field instrument, thereby enhancing the immunity of automatic control system in the industrial production process, and ensuring system stability and reliability.
Compared with other similar products, this apparatus has the advantages of small volume，fast response time, low power loss and quite well temperature characteristics.

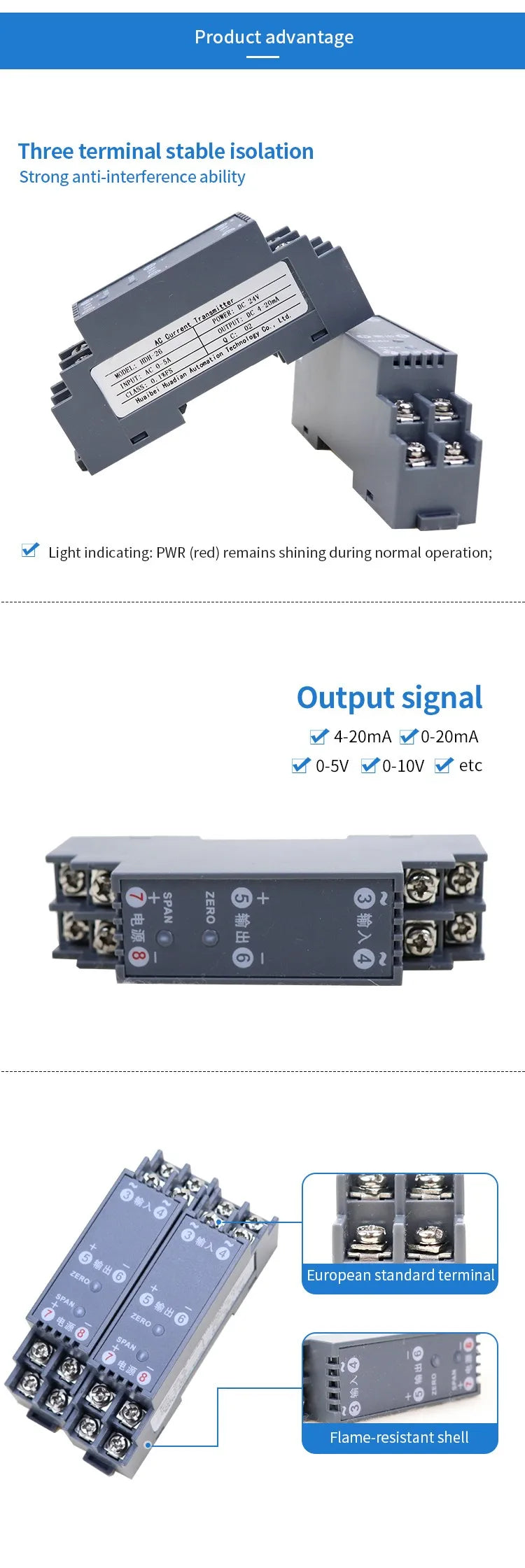

Product details

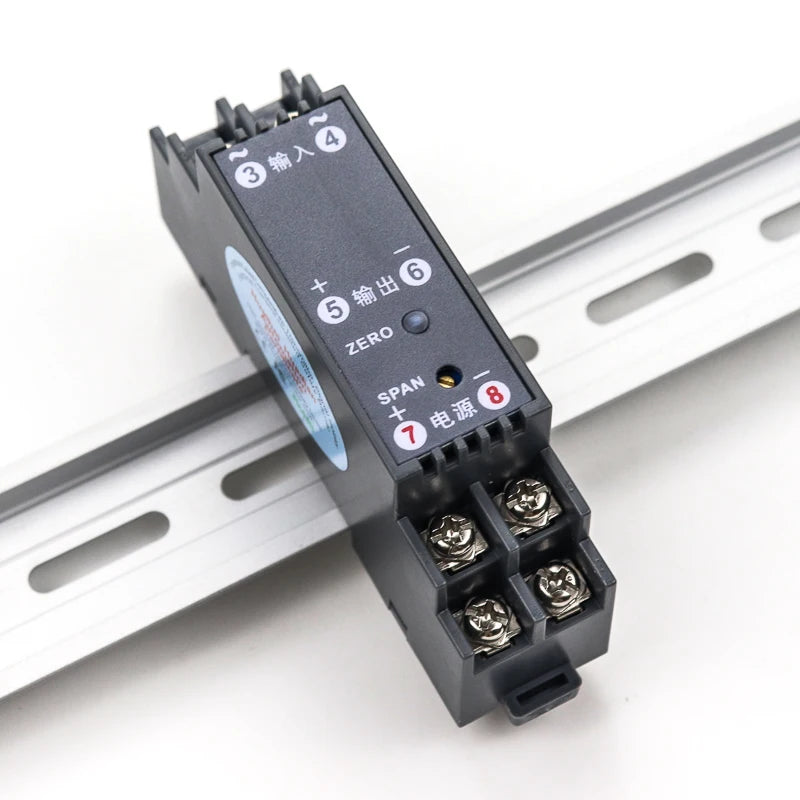

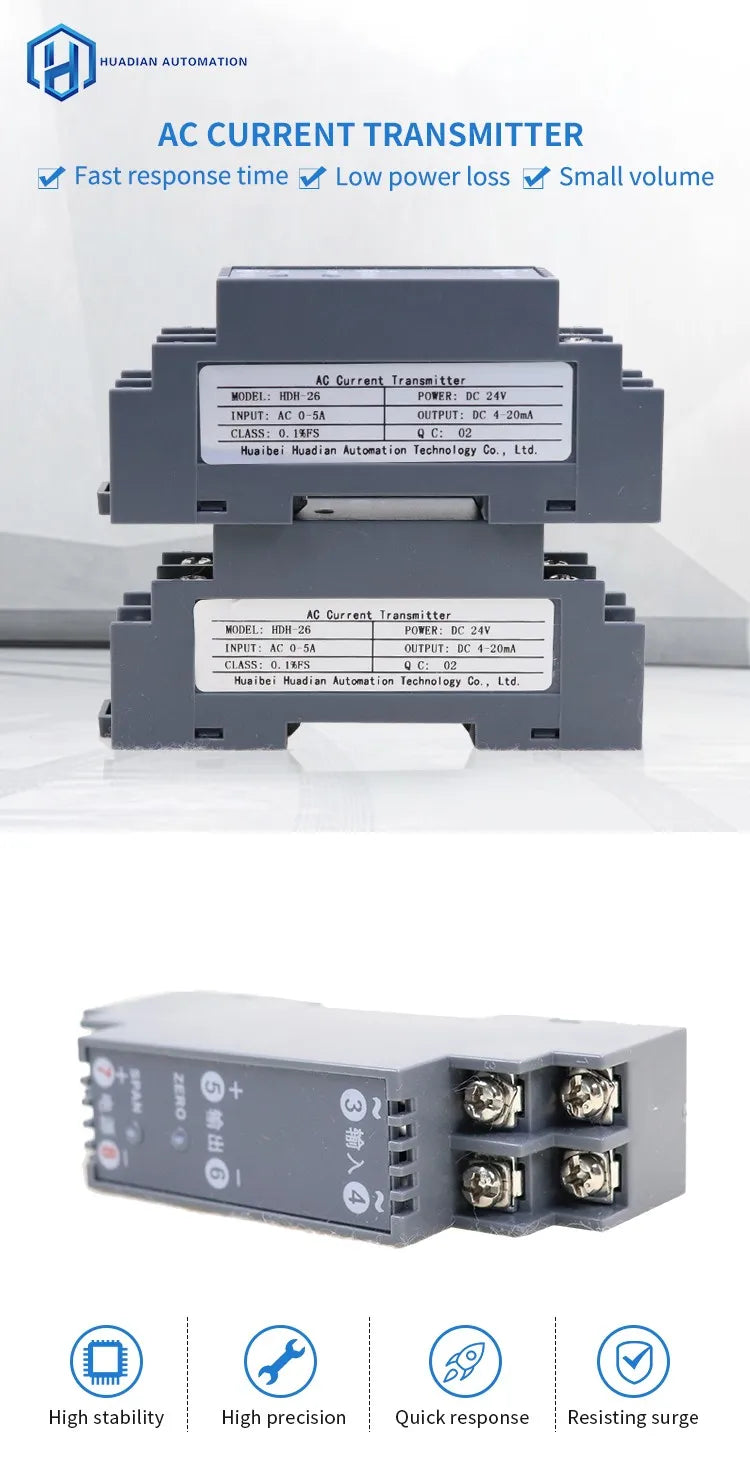

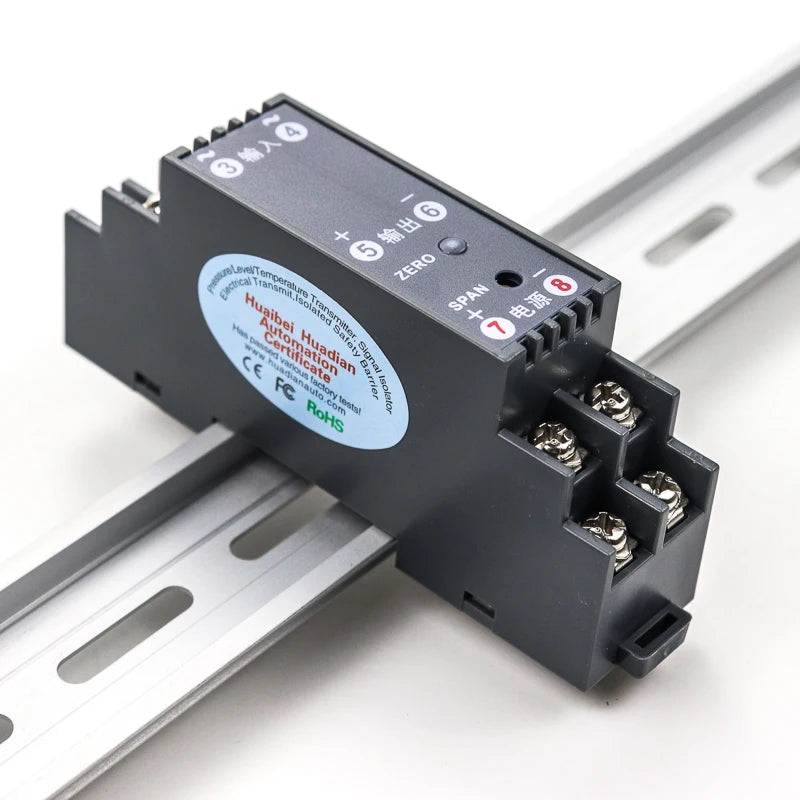

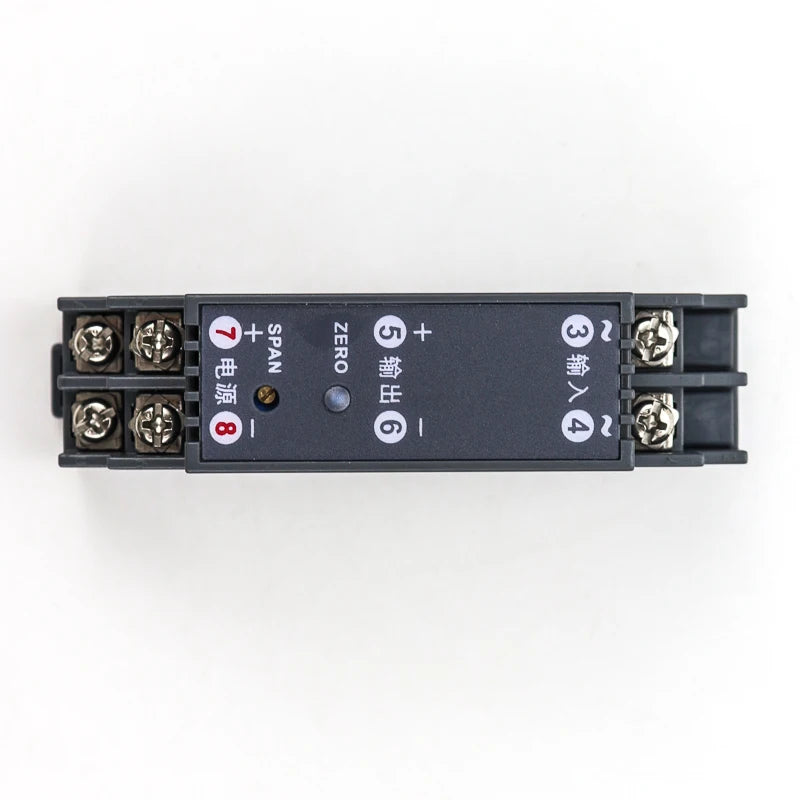

AC current transmitter

Application

Company information

Huadian specializes in High-tech R&D, focuses on selfdeveloping, manufacturing and selling of measurement and control products for pressure, temperature, liquid level and flow.
