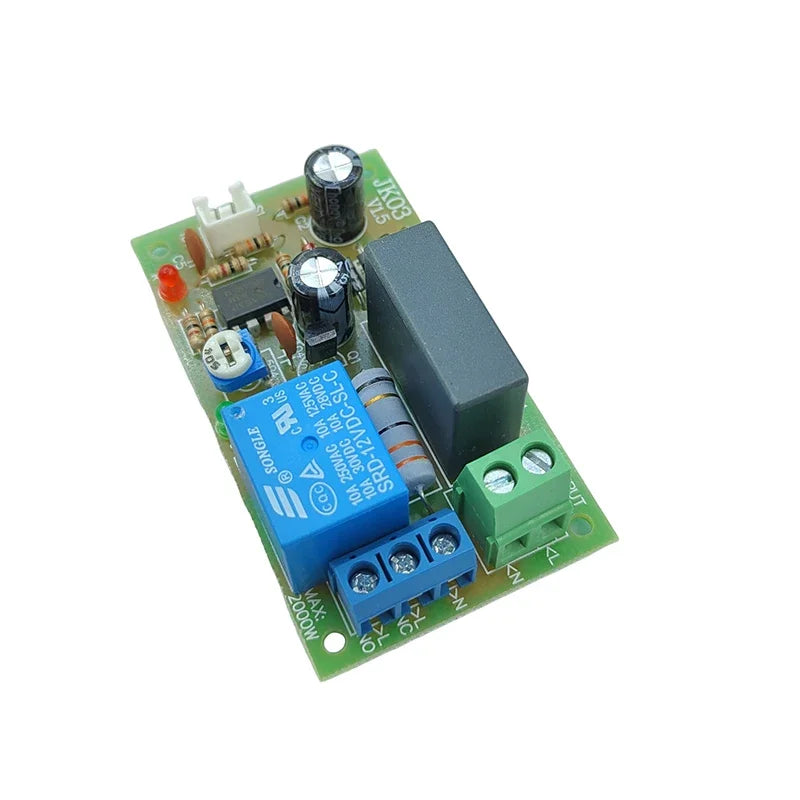

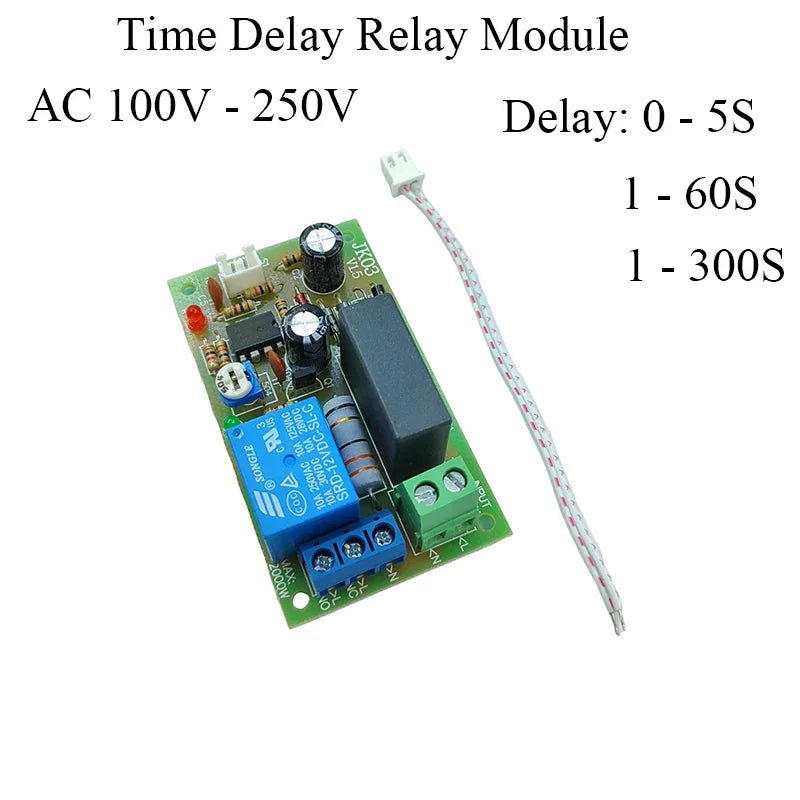

AC 110V 220V 230V 240V Time Delay Relay Module Triggle Delay Control Switch Adjustatle 5S 60S 300S Delay Timer Close Switch

AC 110V 220V 230V 240V Time Delay Relay Module Triggle Delay Control Switch Adjustatle 5S 60S 300S Delay Timer Close Switch

$23.58

$23.58 $0.00

Description

SPECIFICATIONS

Brand Name: NONE

Choice: yes

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Origin: Mainland China

Power Source: DC,DC

Theory: Time Relay

Voltage: 220V

semi_Choice: yes

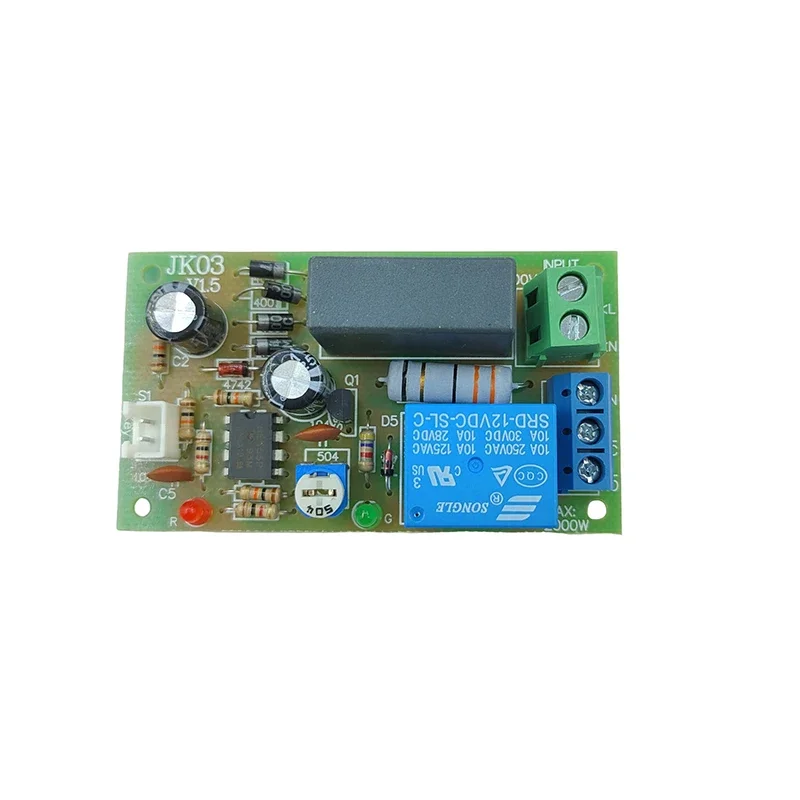

Specification:

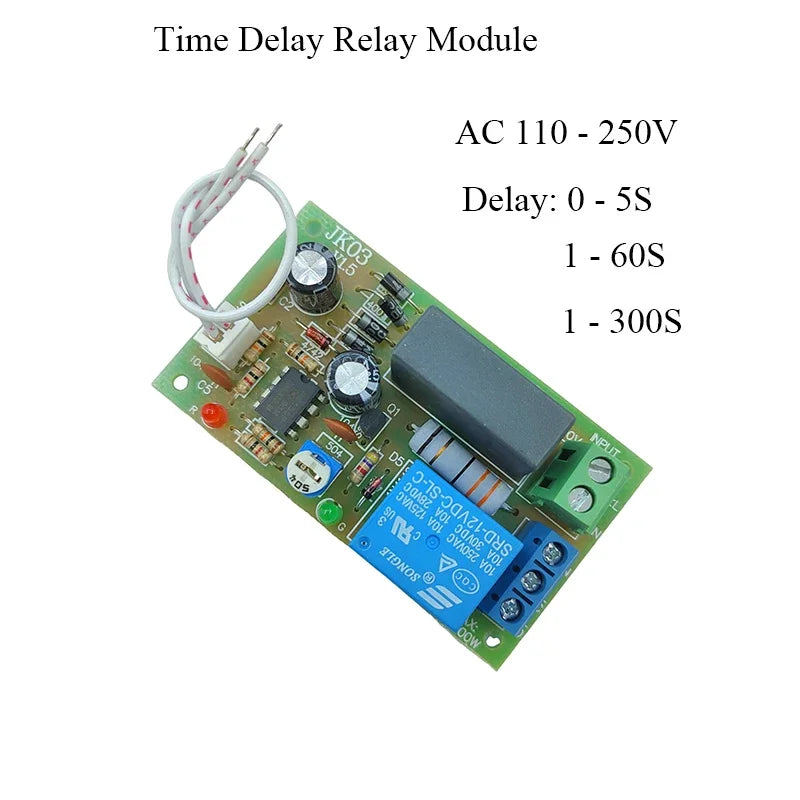

1. Voltage: AC 100V - 250V

2. Module power consumption: 1.0W (excluding load)

3. Trigger method: Passive switch trigger, response time is 5ms (a brief touch will start the module working. Re-triggering during operation, or if the trigger wire is not disconnected, does not affect anything).

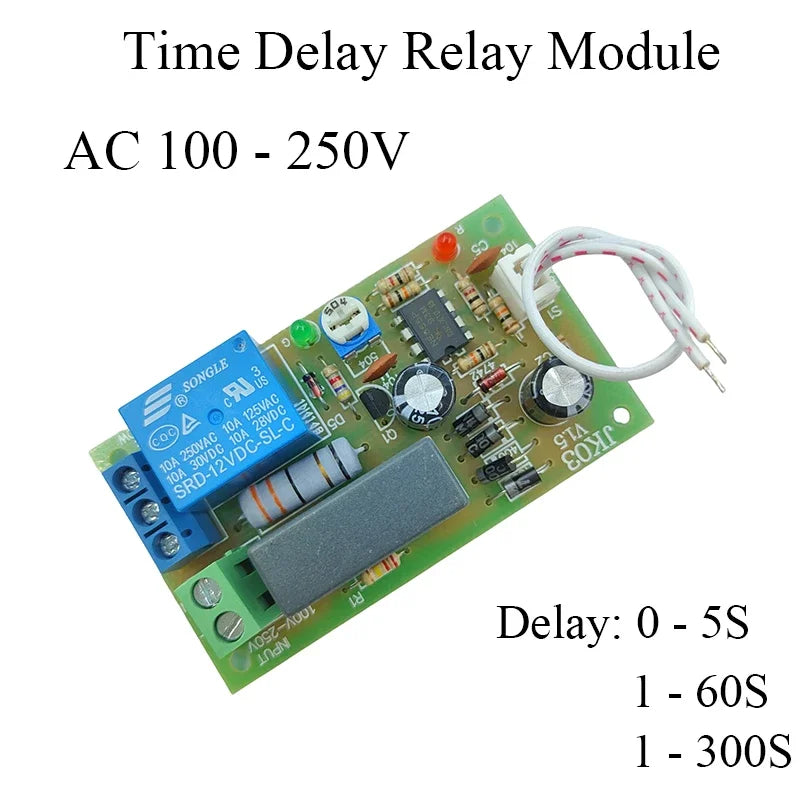

4. Time range: 0.1 - 5S (capacitance value 10uF); 0.2 - 60S (capacitance value 100uF); 0.5 - 300S (capacitance value 470uF).

5. Adjustment: Clockwise to lengthen the time, counterclockwise to shorten the time. Adjustable resistance is 500k.

6. Load capacity: 10A. 5A or less is recommended for general use.

7. Output form: a set of normally open + normally closed

8. Timing error: plus or minus 2%

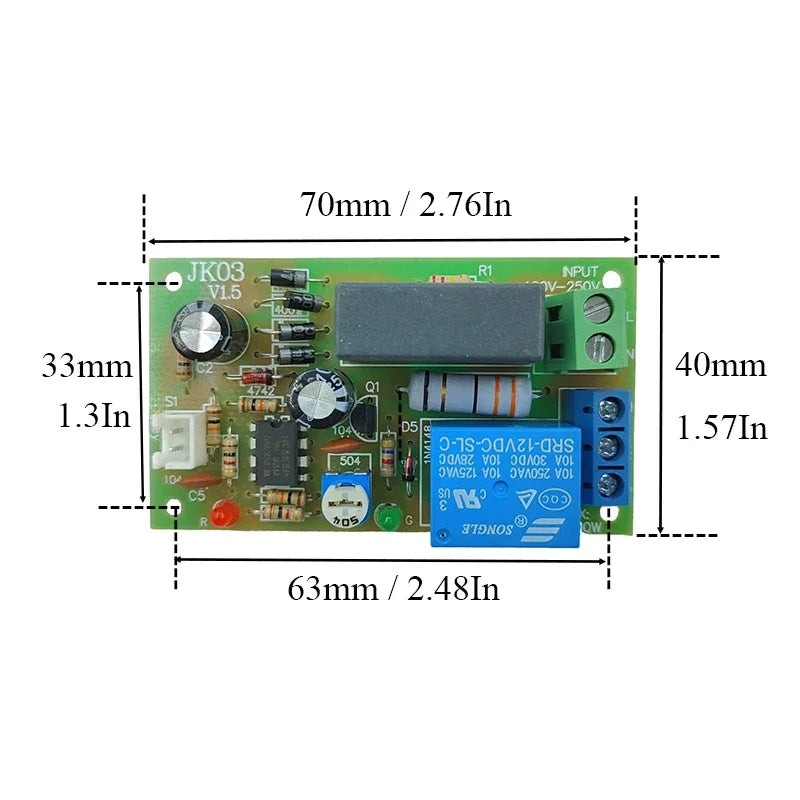

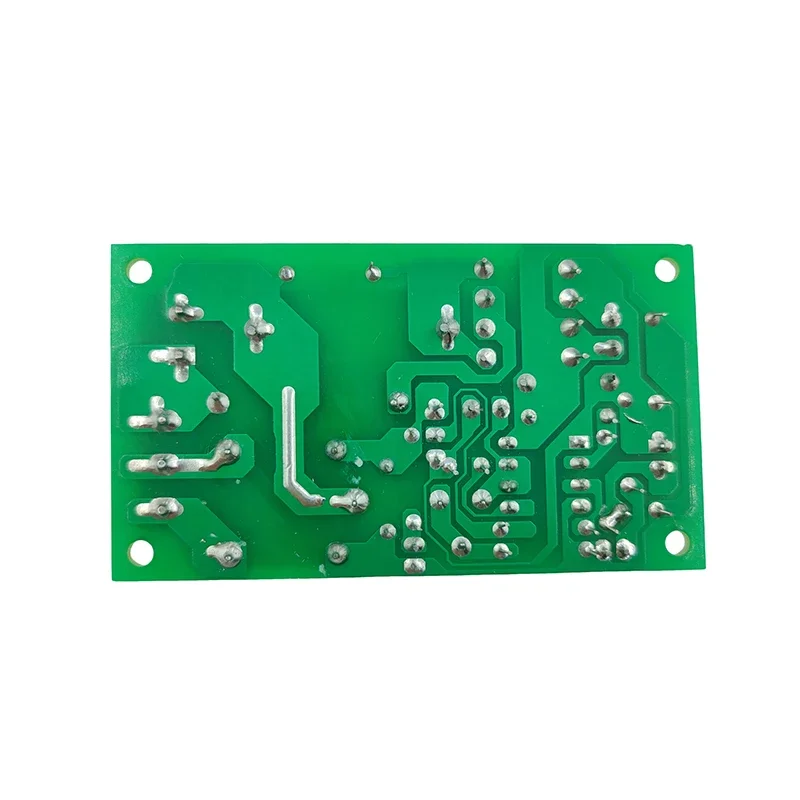

9. Module size: 70mm*40mm / 2.76*1.57In (height <22mm)

10. Hole Distance: 63mm * 33mm; Hole Diameter: 2.8mm

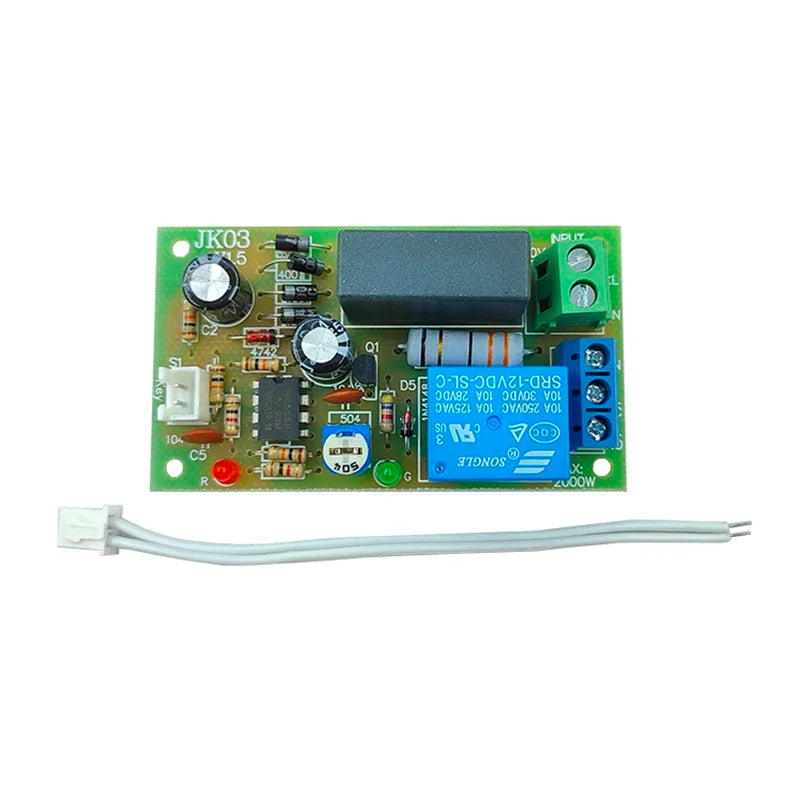

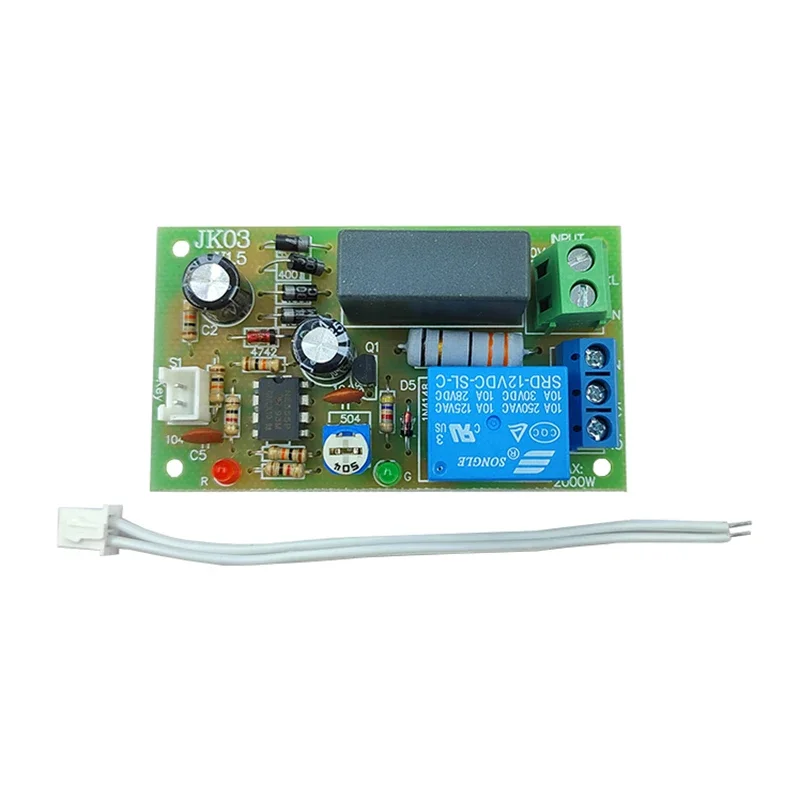

Package List: module * 1pcs

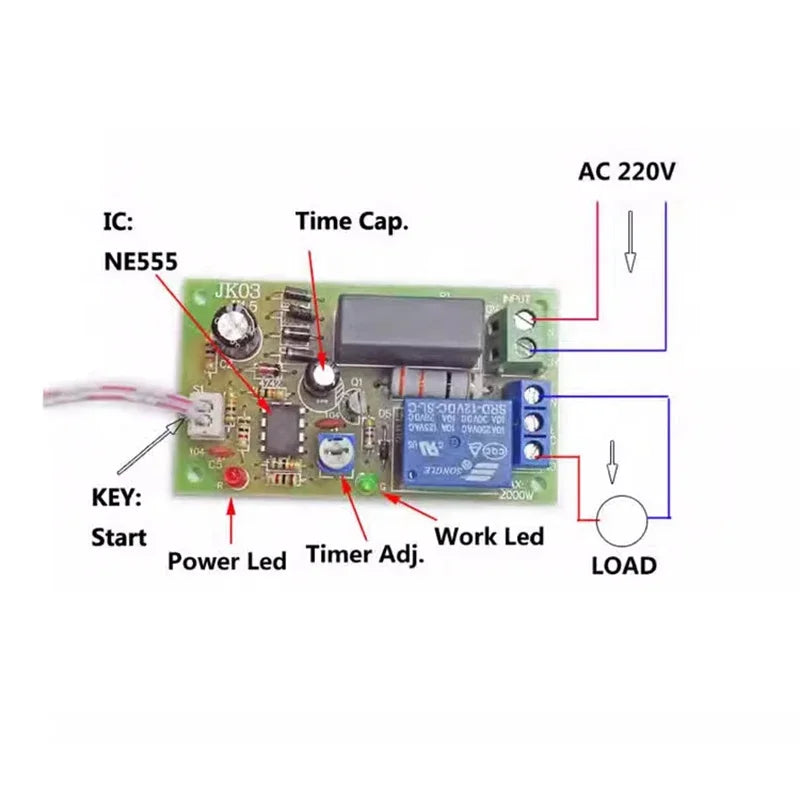

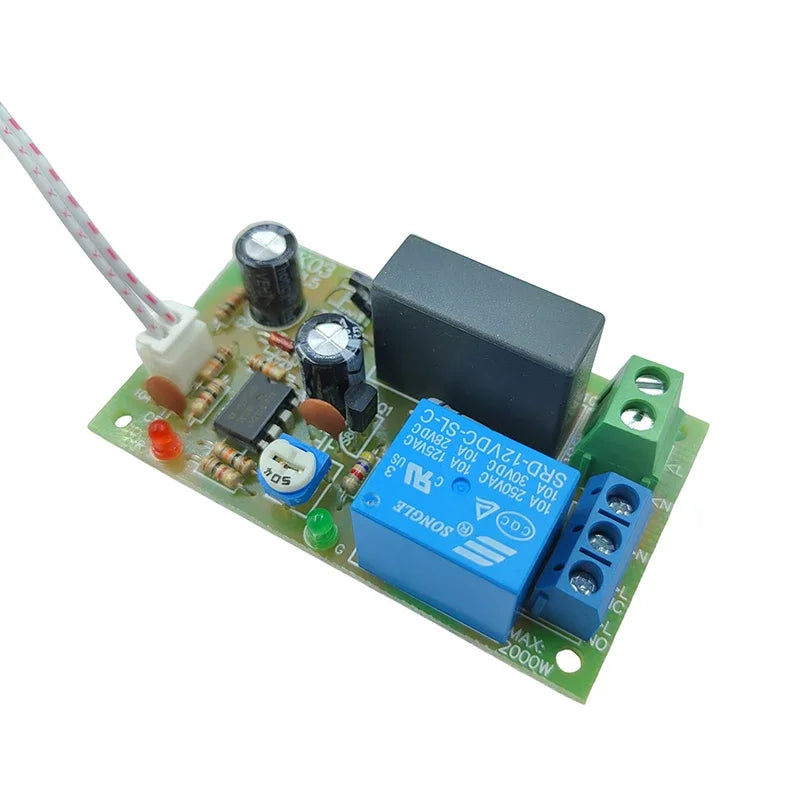

When connecting to AC220V (100V~250V), the red power indicator (PowerLed) lights up, indicating that the power access is normal. At this time, the load does not work.

When the external start button (KEY:Start) is pressed once, the load (LOAD) will start to run, and the green working indicator light is lit, at this time, the chip is running in the countdown. After the time reaches the set value, the load (LOAD) stops working, and the green work indicator light (WorkLed) goes out at the same time, and a working process ends.

Note that the start button has no effect during the countdown. However, if you keep the button pressed, the load will not stop working when the time is up, but only when you release the start button.

The time duration can be adjusted at any time by means of the potentiometer (TimerAdj.), clockwise (CW) to increase the duration and counterclockwise (CCW) to decrease it.
