AC 110V 220V 240V Time Delay Relay Module Adjustatle 10S 100S 10M 100M 10H Delay Timer Close Switch, NC NO Relay Switch Module

AC 110V 220V 240V Time Delay Relay Module Adjustatle 10S 100S 10M 100M 10H Delay Timer Close Switch, NC NO Relay Switch Module

0 - 10H / AC 100 - 250V
$24.30
$24.30 $0.00
Skip to product information
AC 110V 220V 240V Time Delay Relay Module Adjustatle 10S 100S 10M 100M 10H Delay Timer Close Switch, NC NO Relay Switch Module
  • AC 110V 220V 240V Time Delay Relay Module Adjustatle 10S 100S 10M 100M 10H Delay Timer Close Switch, NC NO Relay Switch Module
  • AC 110V 220V 240V Time Delay Relay Module Adjustatle 10S 100S 10M 100M 10H Delay Timer Close Switch, NC NO Relay Switch Module
  • AC 110V 220V 240V Time Delay Relay Module Adjustatle 10S 100S 10M 100M 10H Delay Timer Close Switch, NC NO Relay Switch Module
  • AC 110V 220V 240V Time Delay Relay Module Adjustatle 10S 100S 10M 100M 10H Delay Timer Close Switch, NC NO Relay Switch Module
  • AC 110V 220V 240V Time Delay Relay Module Adjustatle 10S 100S 10M 100M 10H Delay Timer Close Switch, NC NO Relay Switch Module
  • AC 110V 220V 240V Time Delay Relay Module Adjustatle 10S 100S 10M 100M 10H Delay Timer Close Switch, NC NO Relay Switch Module
AC 110V 220V 240V Time Delay Relay Module Adjustatle 10S 100S 10M 100M 10H Delay Timer Close Switch, NC NO Relay Switch Module
AC 110V 220V 240V Time Delay Relay Module Adjustatle 10S 100S 10M 100M 10H Delay Timer Close Switch, NC NO Relay Switch Module
$24.30
$24.30 $0.00
Size
Current RangeAC 100 - 250V
Description

SPECIFICATIONS

Brand Name: NONE

Choice: yes

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Origin: Mainland China

Power Source: DC,DC

Theory: Time Relay

Voltage: 220V

semi_Choice: yes

Specification:

1. Voltage: AC 100V - 250V

2. Module power consumption: 0.8W (excluding load)

3. Adjustment: Clockwise to lengthen the time, counterclockwise to shorten the time. Adjustable resistance is 500k.

4. Load capacity: 10A 250VAC or 10A 30VDC. 5A or less is recommended for general use.

5. Timing error: plus or minus 2%

6. Load capacity: 10A 250VAC or 10A 30VDC

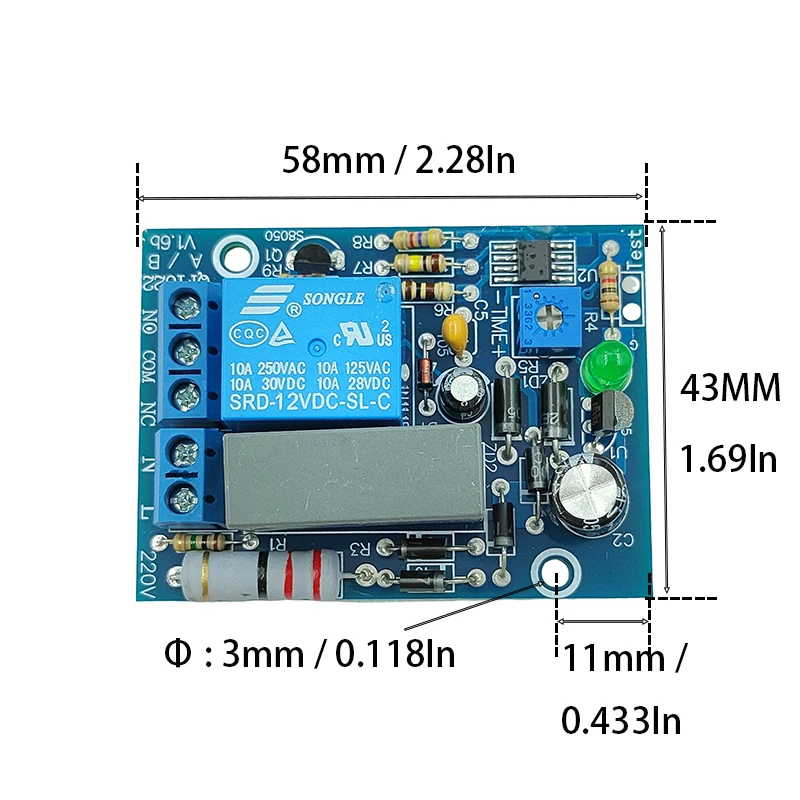

7. PCB size: 58mm * 43mm / 2.28*1.69In, height <20mm

8. Hole Distance: 11mm; Hole Diameter: 3mm



Package List: module * 1pcs

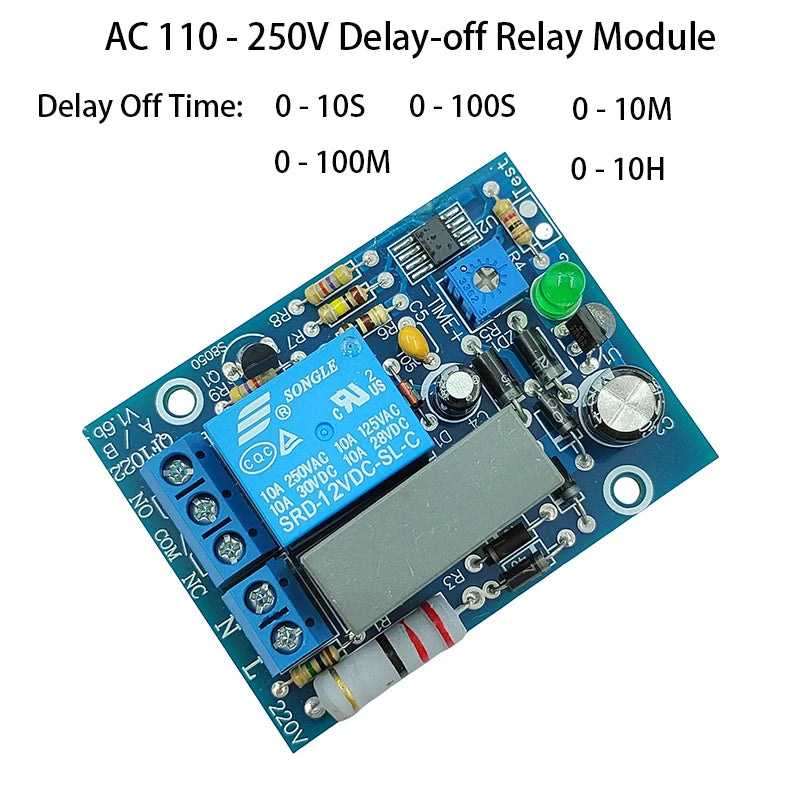

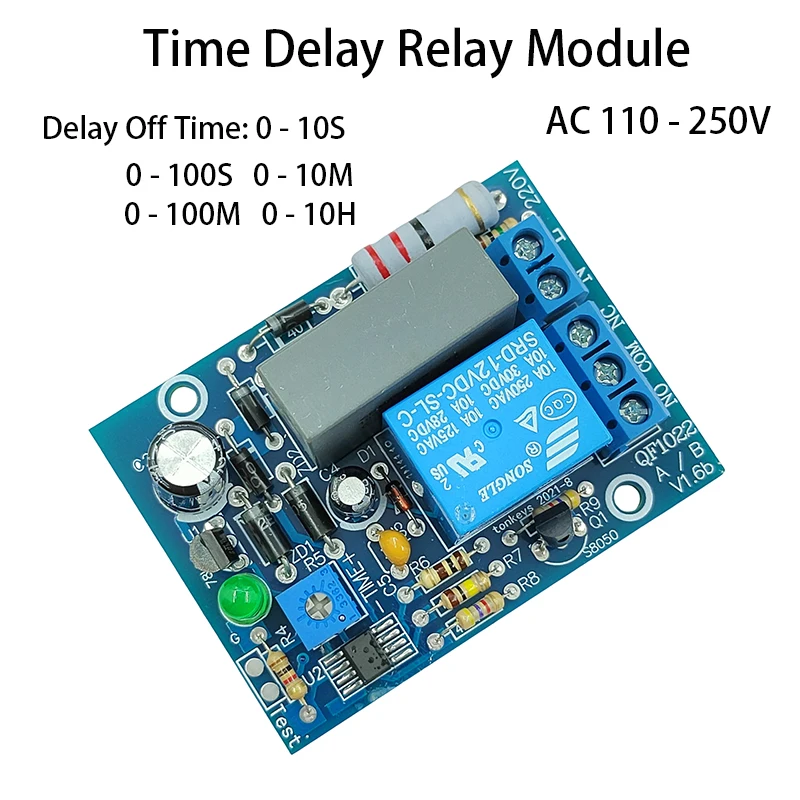

10S: Energized to turn on immediately and turn off automatically after a certain period of time, max 10 seconds

100S: Energized to turn on immediately and turn off automatically after a certain period of time, max 100 seconds

10Min: Energized to turn on immediately and turn off automatically after a certain period of time, max 10 minutes

100Min: Energized to turn on immediately and turn off automatically after a certain period of time, max 100 minutes

10H: Energized to turn on immediately and turn off automatically after a certain period of time , . Maximum 10 hours
