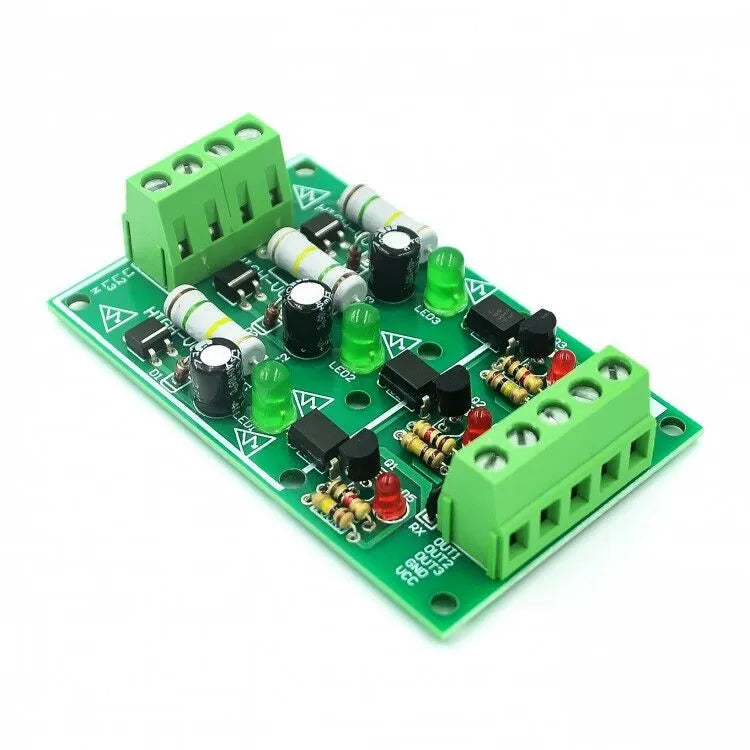

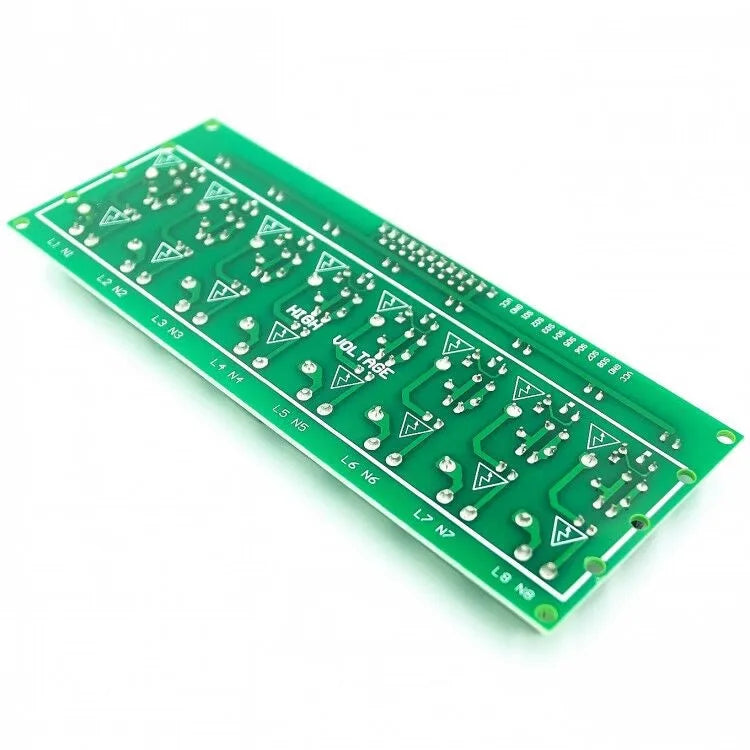

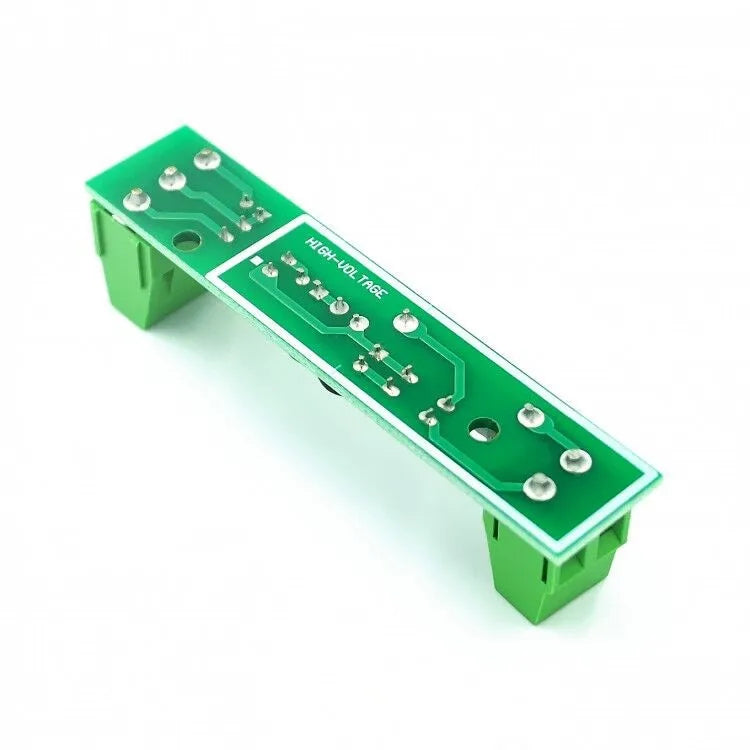

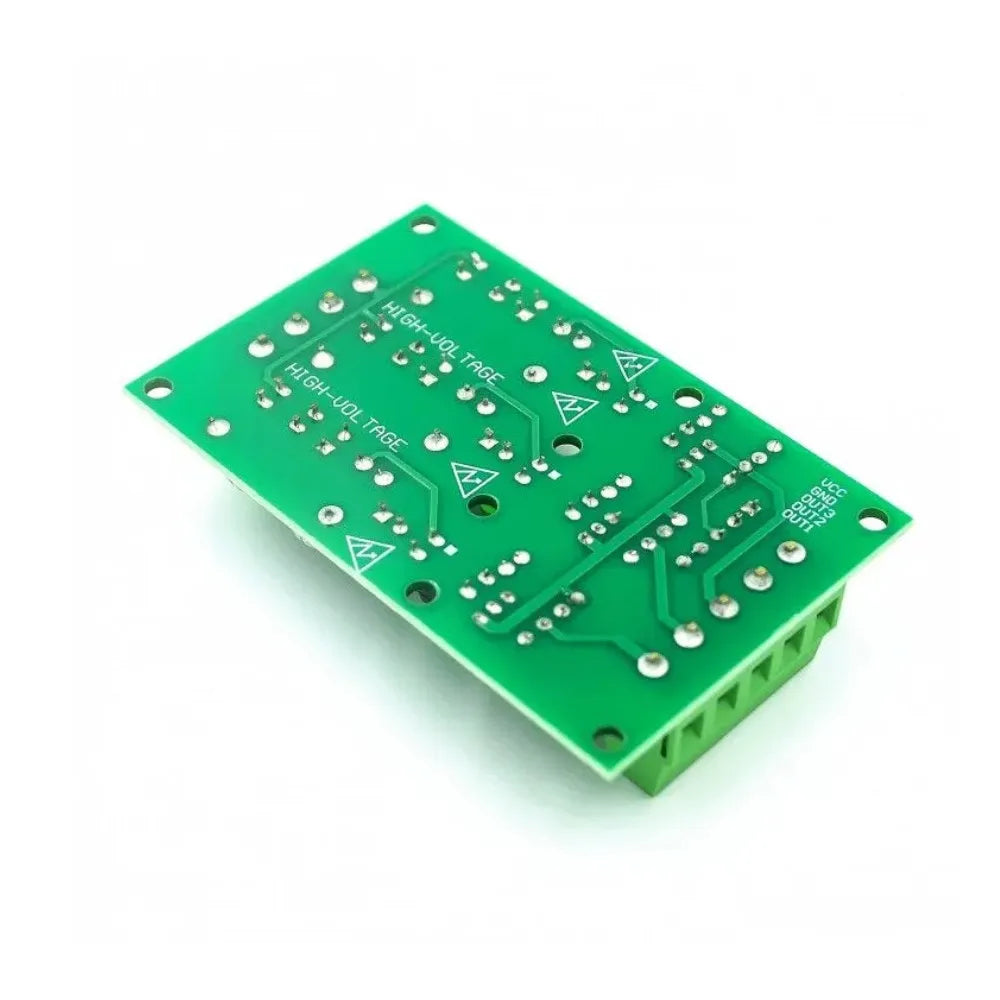

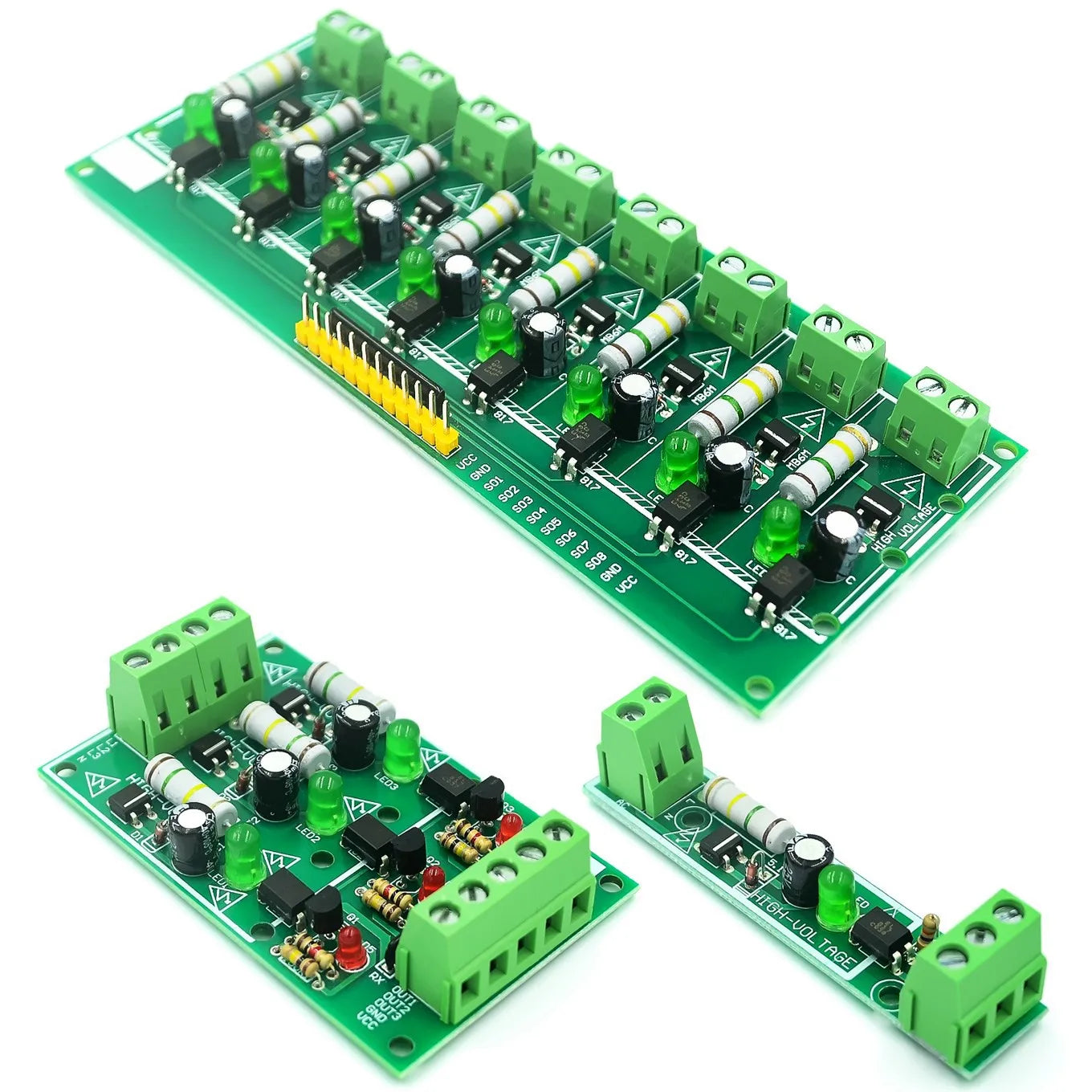

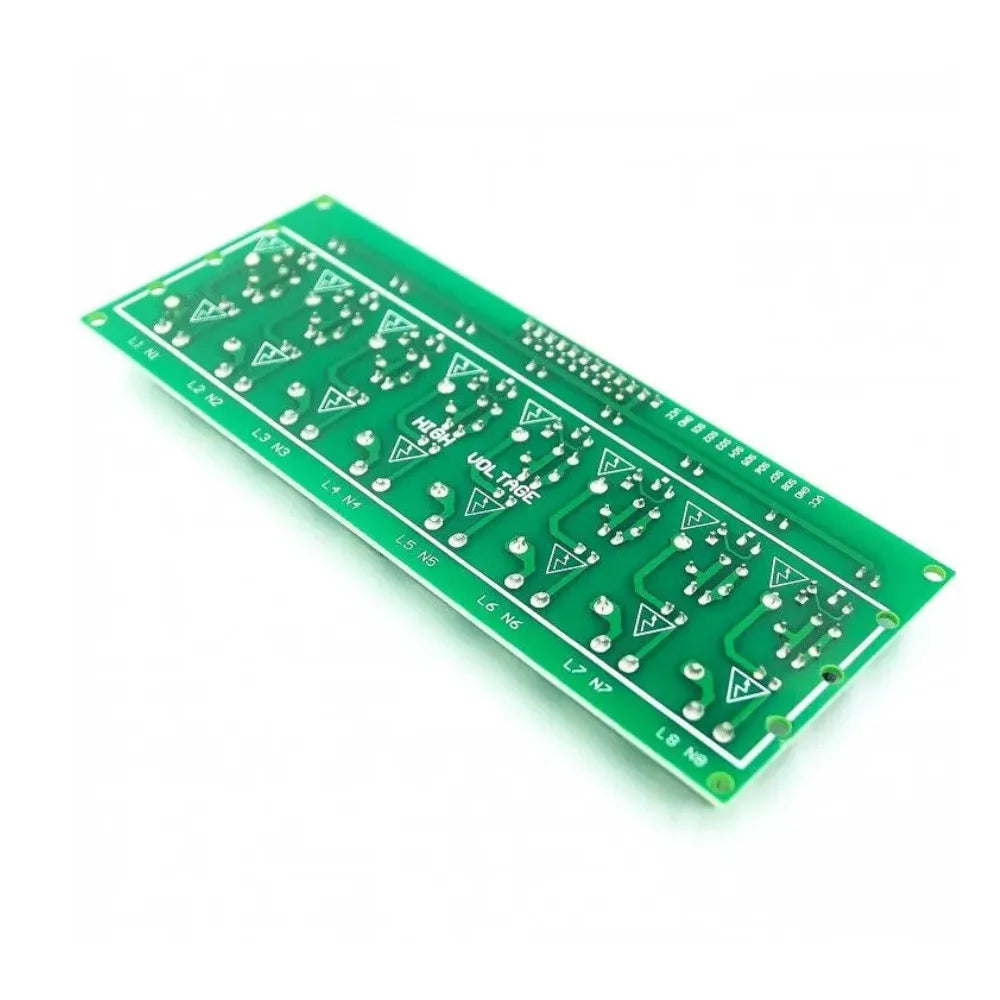

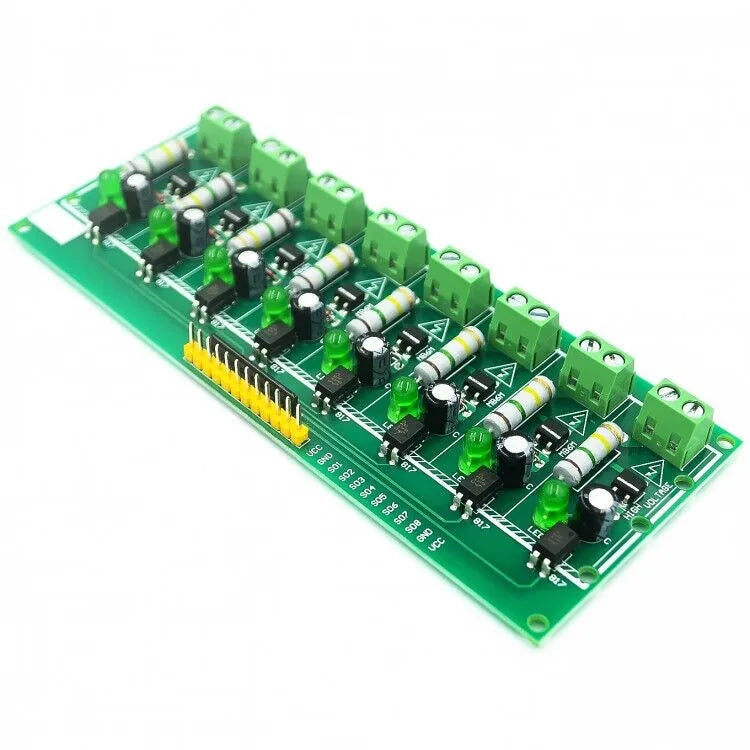

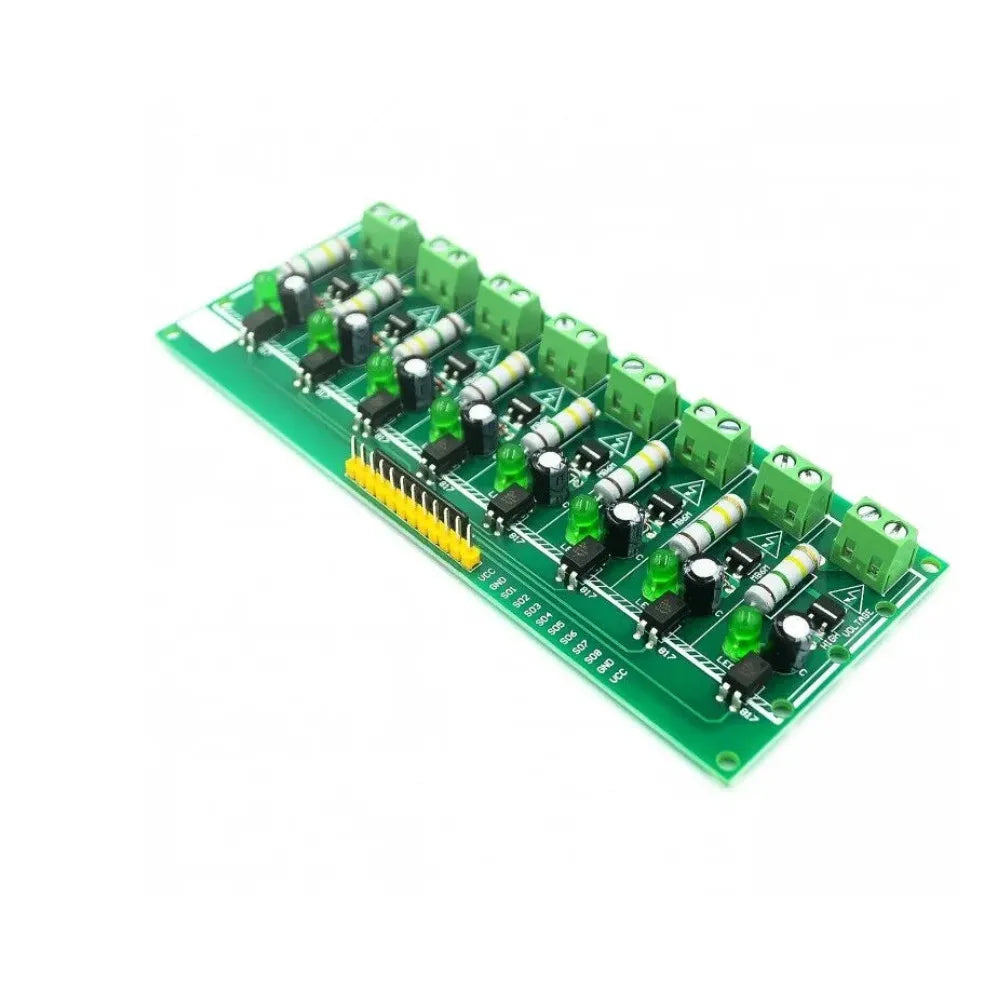

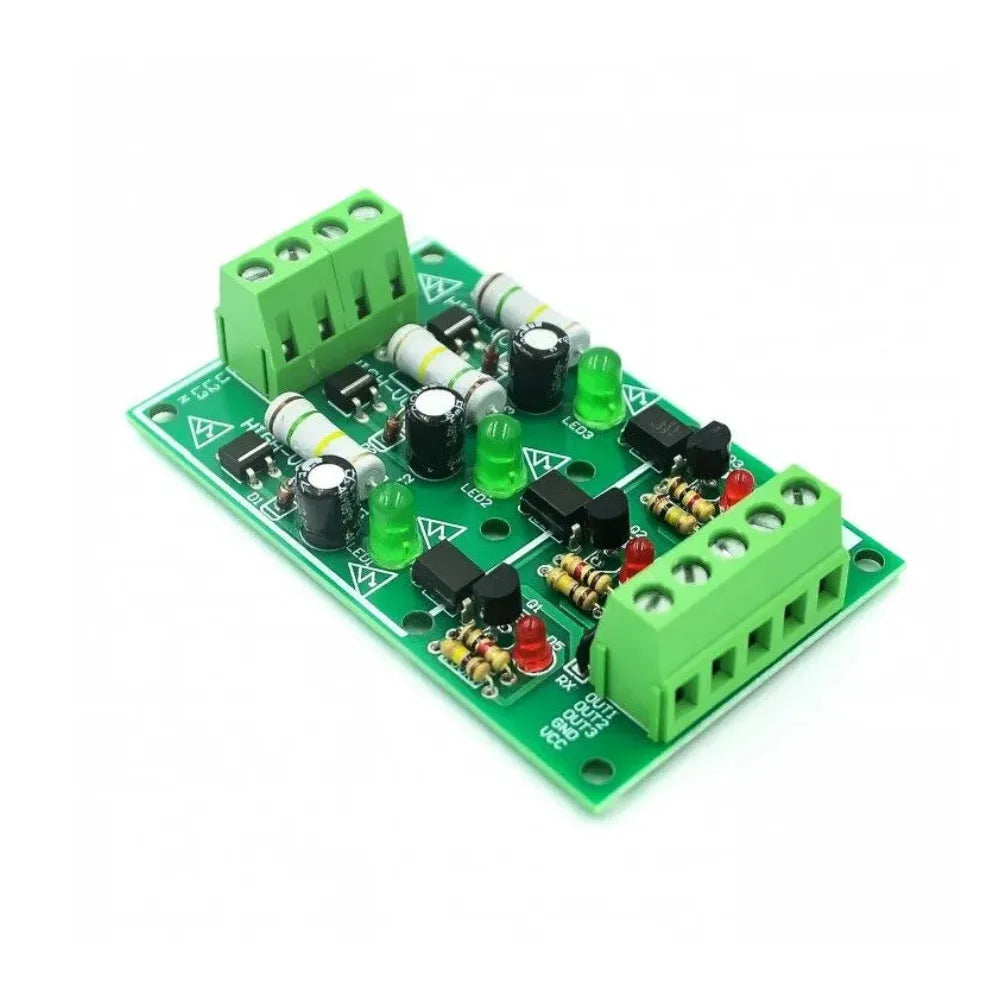

AC 220V 1/3/8 Channel MCU TTL Level 8 Ch Optocoupler Isolation Test Board Isolated Detection Tester PLC Processors Module

AC 220V 1/3/8 Channel MCU TTL Level 8 Ch Optocoupler Isolation Test Board Isolated Detection Tester PLC Processors Module

$20.79

$20.79 $0.00

Description

SPECIFICATIONS

Brand Name: NONE

Choice: yes

Condition: New

Origin: Mainland China

Type: Voltage Regulator

Specification:

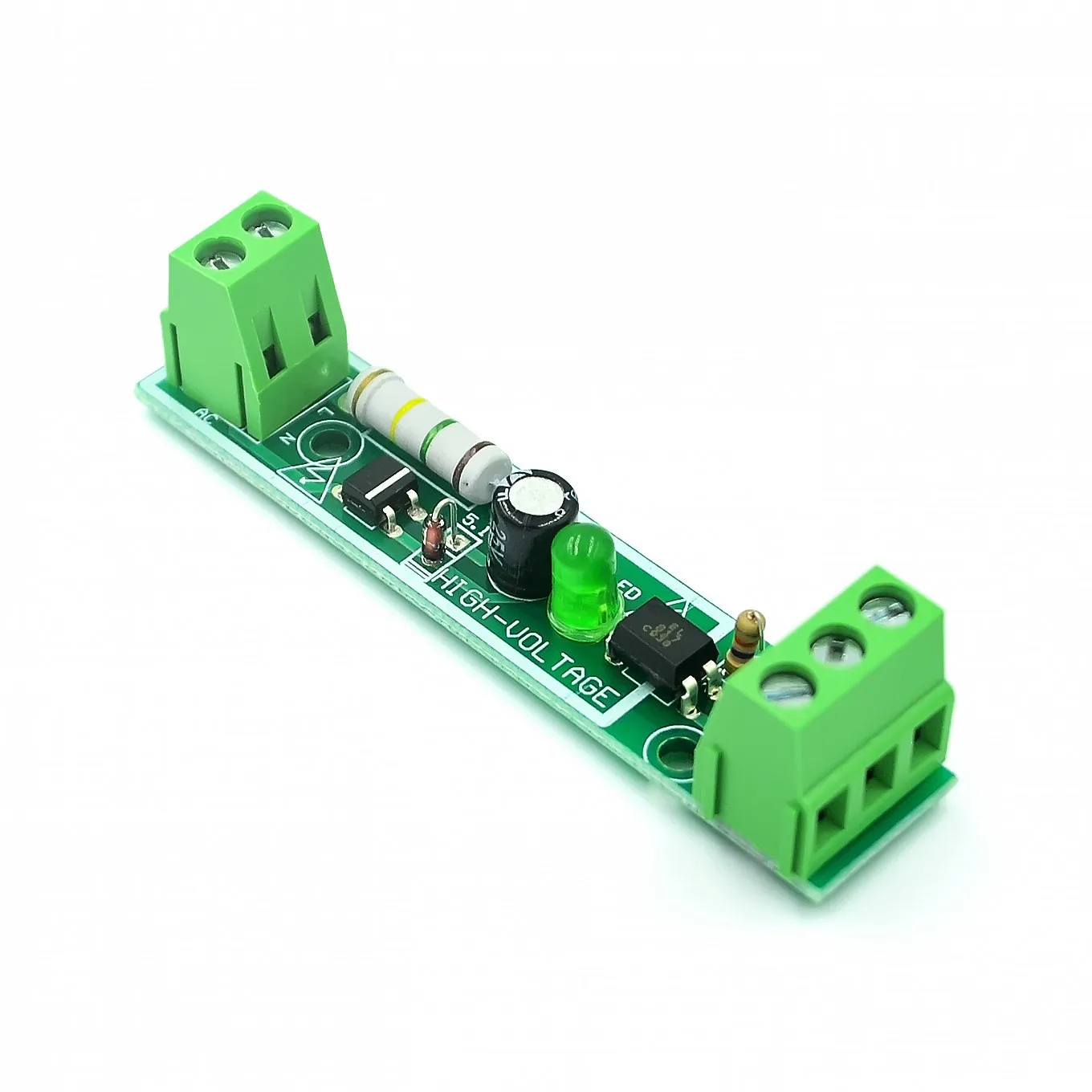

1.Board Size:73*15mm

2.Functuon:Testing whether AC 220V is existed

3.Ouput TTL Level:can use SCM to test,voltage is 3-5V

4.Adaptive to PLC 24V level

Product Introduction:

Output TTL level can be detected with the microcontroller. The power supply can be 3-5V

Can also access PLC24V level

Then the PLC input terminal of the PLC COM power supply 24V input termination of the board signal output OUT, optocoupler board GND power negative

Blue 2P 5.0 terminal connected to 220V voltage

3P terminal connected to the microcontroller input.

Safety warning:

When the power module in the power of the board after the white wire frame can not touch any device .. because it is high voltage. Note the safety of electricity.

Feature:

Functuon: Test whether AC 220V is existed

Ouput TTL Level: can use MCU to test,voltage is 3-5V

Output can connect PLC 24V

Wiring:

When connecting the PLC input, the PLC's COM terminal is connected to the 24V power supply, the input is connected to signal outputs S1-S8 of the board, optocoupler GND is connected to the power supply negative.

Blue 5.0 terminal is connected to 220V voltage, yellow pin signal output.

When the 220V voltage is normal, it output low level; when 220V is powered off, it output high level.

Note:

Do not touch any part of the white wire frame on the board after the module is powered on, because it is high voltage. Pay attention to electricity safety.
