SPECIFICATIONS

Brand Name: NONE

Certification: NONE

Choice: yes

Contact Load: Low Power

Country/Region of Manufacture: China

Delay time: 0~5minutes

Model: AC 220V Trigger Delay Timer Module

Origin: Mainland China

Theory: Time Relay

Use: General Purpose

semi_Choice: yes

Tips: If you need Large quantity, please contact us, we can wholesales.

Specification:

Features:
Household electrical appliances, lighting delay modification, factory equipment, time delay control
Specification:

1. Delay time: 0~5 minutes,0~5 seconds ,0~60 seconds ,
2. Time delay error: 2%
3. Standby power consumption: 0.8W (no standby power wiring method, please consult the owner)
4. Load capacity: 250V 10A (general motors can be connected to 2000W)

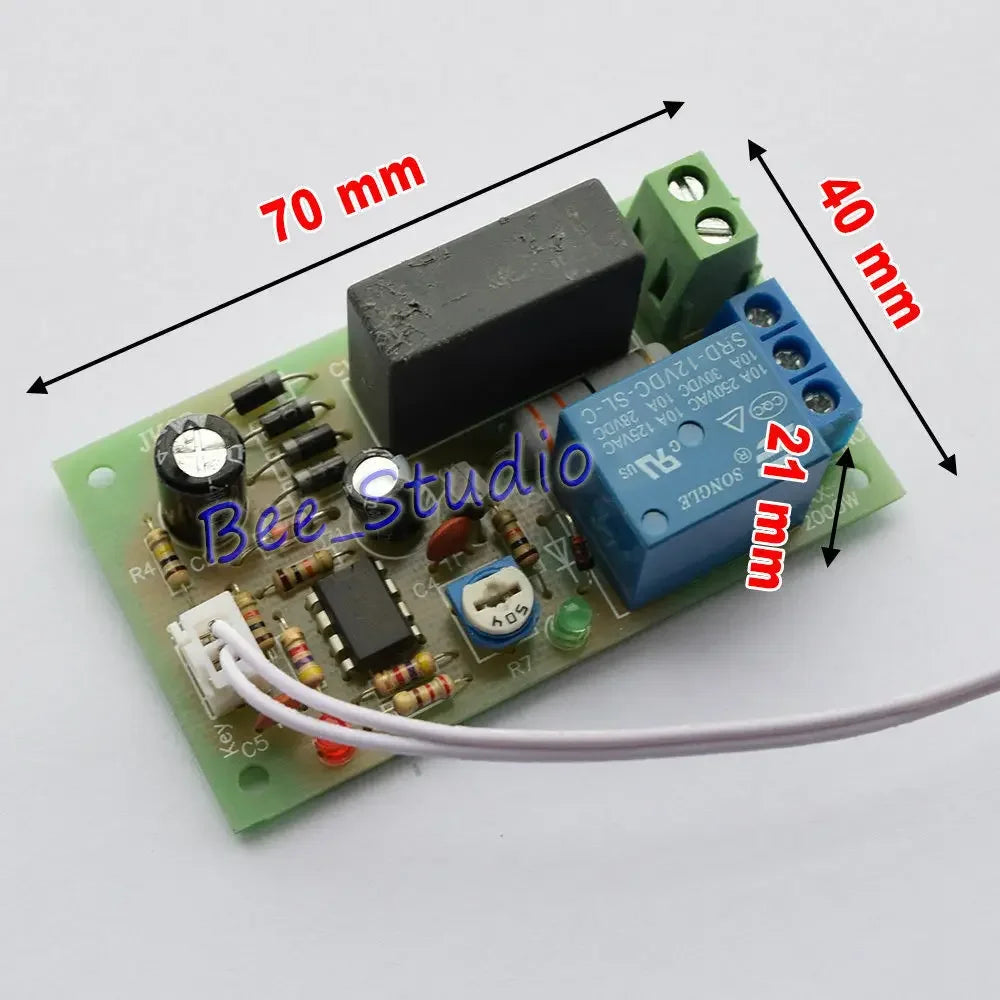

5. PCB size: 70mm * 40mm, height <24mm

Work:

1. The module Power-on, the relay is turn off, whe trigger the relay is switched on immediately , delay to the set time, the relay is turn off.
2. Trigger during the delay, no action until delay end.

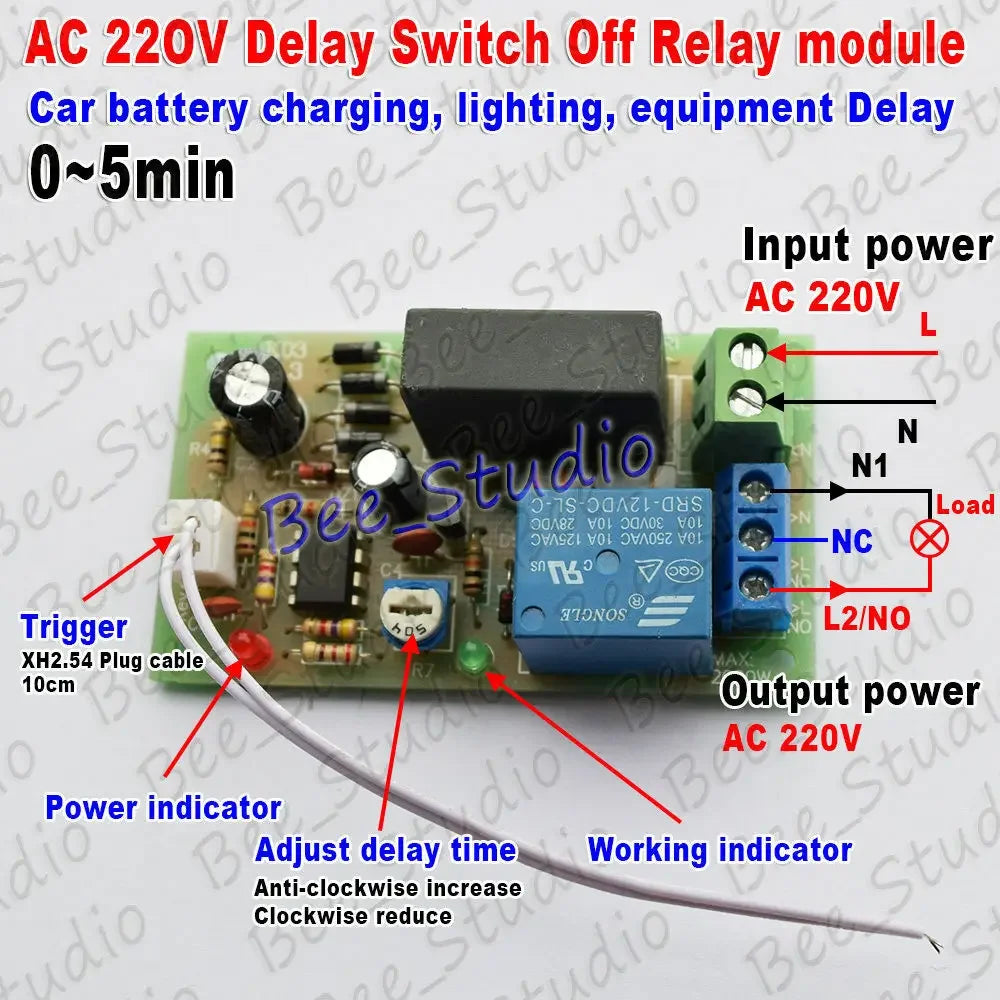

Wiring diagram:

Notice:
The whole board with 220V voltage, installation and commissioning need to pay attention to safety, to avoid the body by the shock injury.
Package Include:

0~5 minutes Relay Module x 1pcs
