SPECIFICATIONS

Brand Name: HAXNFIELEC

Choice: yes

Common mode Inductance: 4A 10mH rectangular copper wire vertical

Filter Technology: EMI

Grounding: Standard Grounding

High-concerned chemical: none

Input: 220V AC (L GND N) 6.35 terminal

Origin: Mainland China

Output: 220V AC (L N) 6.35 terminal

Size: 60x30x20mm (L*W*H)

WIFI: No

Weight: about 30g

X2 Y2 Capacitor: Imported safety capacitor

semi_Choice: yes

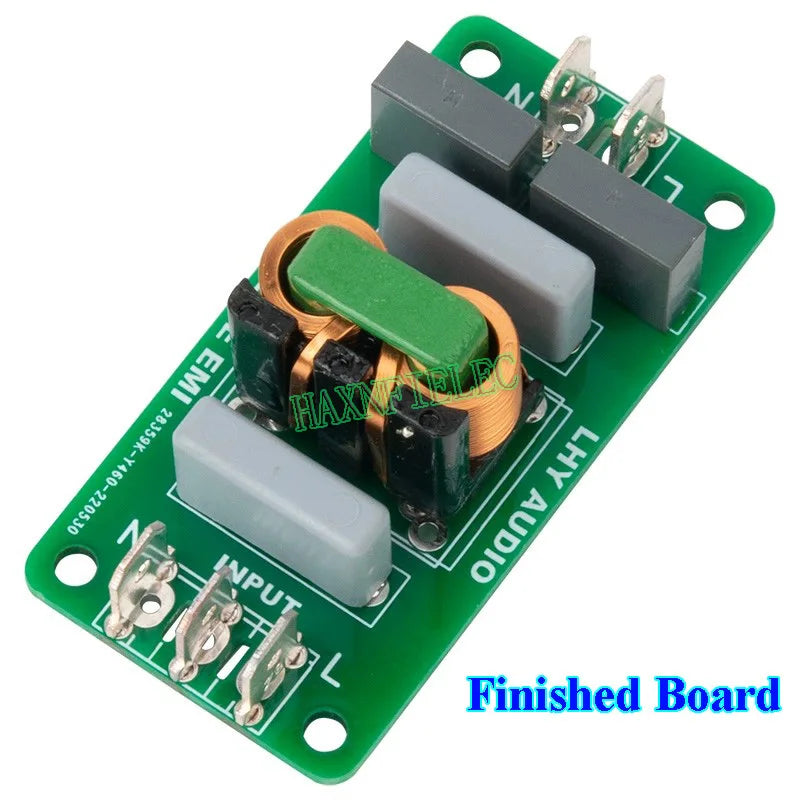

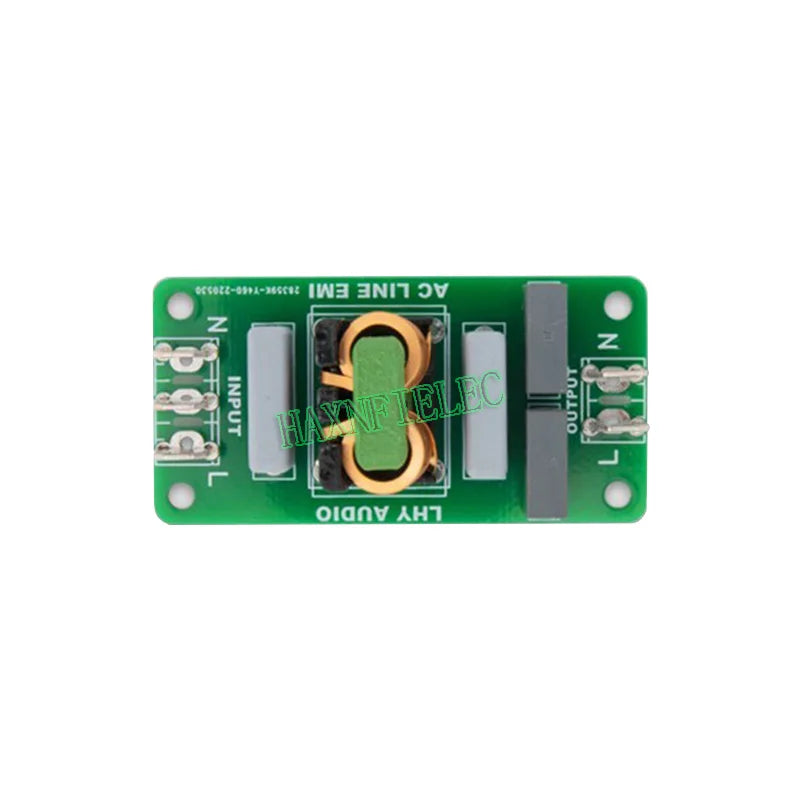

AC 220V 4A EMI Power Supply Filter Board / Kits AC Mains Purification

Description:

The filter circuit is a two-pole X common mode Y differential mode filter power supply, which can effectively suppress and eliminate the interference components of the AC circuit. When used with a decoder, the sound is soft, the resolution is improved obviously, and the background is clean;

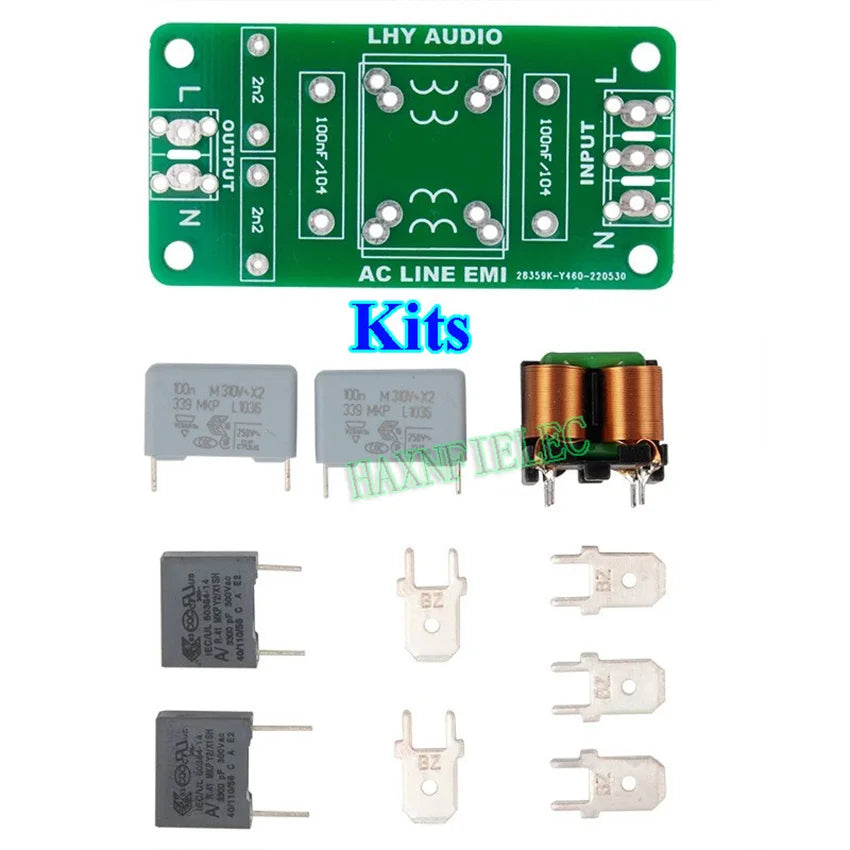

This filter board is all made of high-quality components, including brand new flat copper common mode inductors, professional X2, Y2 filter capacitors, and military-regulated FR4 PCB boards;

This EMI filter board is used to purify the city power. During use, the components on the board may have high voltage from the city power. Please be careful not to touch the circuit board and its components at will to avoid electric shock!

Suitable for headphone amplifiers, pre-amplifiers, DAC decoders, etc.

PCB is silver-plated process, lower internal resistance, better conductivity, Common mode inductance.

Large current, small size, low DC resistance, good EMI effect, very small distributed capacitance,

High insulation strength, which can extend the life of electrical appliances.

The high-frequency skin effect is good, and the unit current density is higher than that of round copper wire.

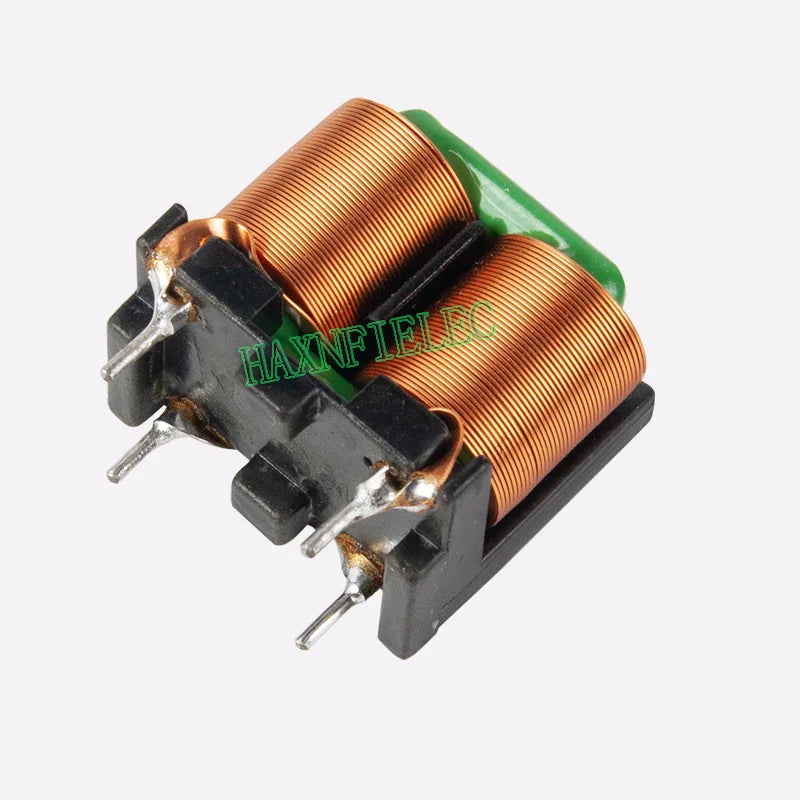

It adopts automatic machine winding, single-layer winding, no crossover and overlap, and good heat dissipation effect.

Closed magnetic circuit design, small magnetic leakage, good impedance balance and good conduction and radiation effect, and stable consistency.

Professional imported HIFI filter capacitors, the effect is better than ordinary capacitors, high-frequency internal resistance is low.

Specifications:

Input: 220V AC (L GND N) 6.35 terminal

Output: 220V AC (L N) 6.35 terminal

Common mode Inductance: 4A 10mH rectangular copper wire vertical
