SPECIFICATIONS

Parameter:
Working voltage: ue plug 220v, usa plug 110v, 50hz
Heater power: 30w
Electromagnetic power: 350w (instantaneous)
Insulation class: e class
Working mode: continuous
Material: Plastic, Metal
color: blue
Size: 245mm*30mm (length and width)
Specifications: European regulations, US regulations

Notes:
1. Ensure that the voltage is consistent, the voltage is too high or too low is not conducive to use;
2. Before use, tighten the cylinder and suction nozzle to prevent leakage. Otherwise it will affect the suction.
3. Frequently clean the welding impurities in the suction nozzle and cylinder, and add a small amount of oil to the piston;
4. After each use, push the piston 3-4 times, move the residual straw to the nozzle, and then use the straw smoothly;
5. It is strictly forbidden to install and remove some of its electrical components when the suction tank device is opened.
6. When using a new suction tin pump for the first time, it is normal to produce a small amount of smoke due to heating. It will disappear naturally within ten minutes.
7. When using, it should be equipped with a natural cooling soldering iron base, and place the suction pen on the soldering iron base.
8. Before replacing welding parts or welding tips, please turn off the power supply and wait for the temperature of the welding tip to cool before operating.
9. This product has a ground wire and should be used with a socket with contacts. Please be careful.

Package includes:

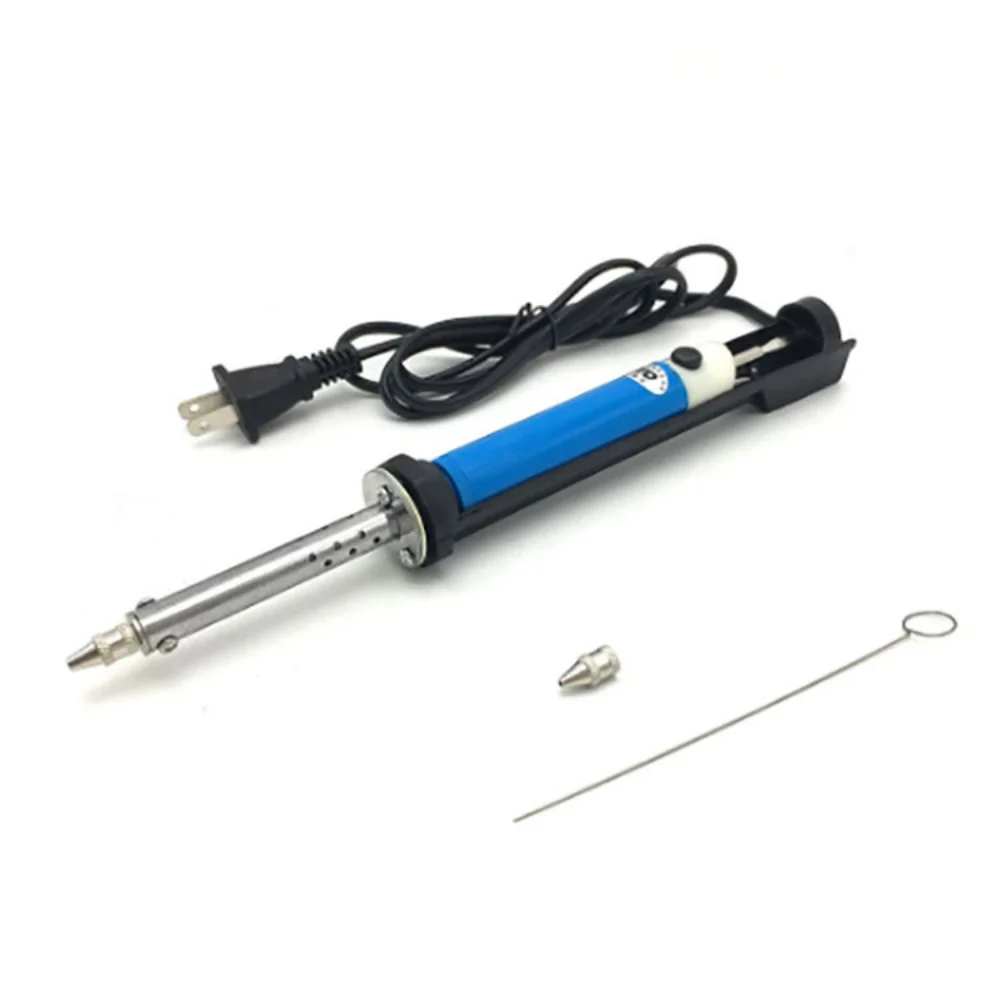

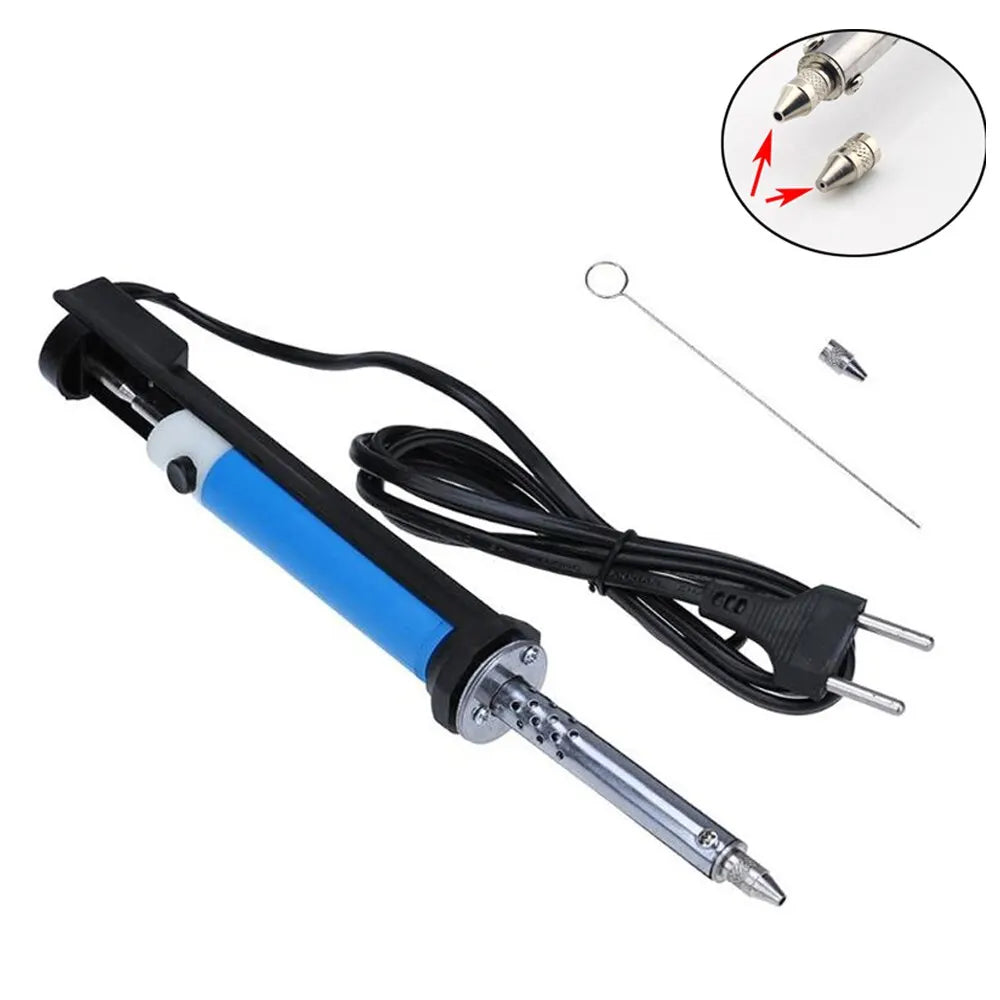

1*Vacuum soldering tin pump

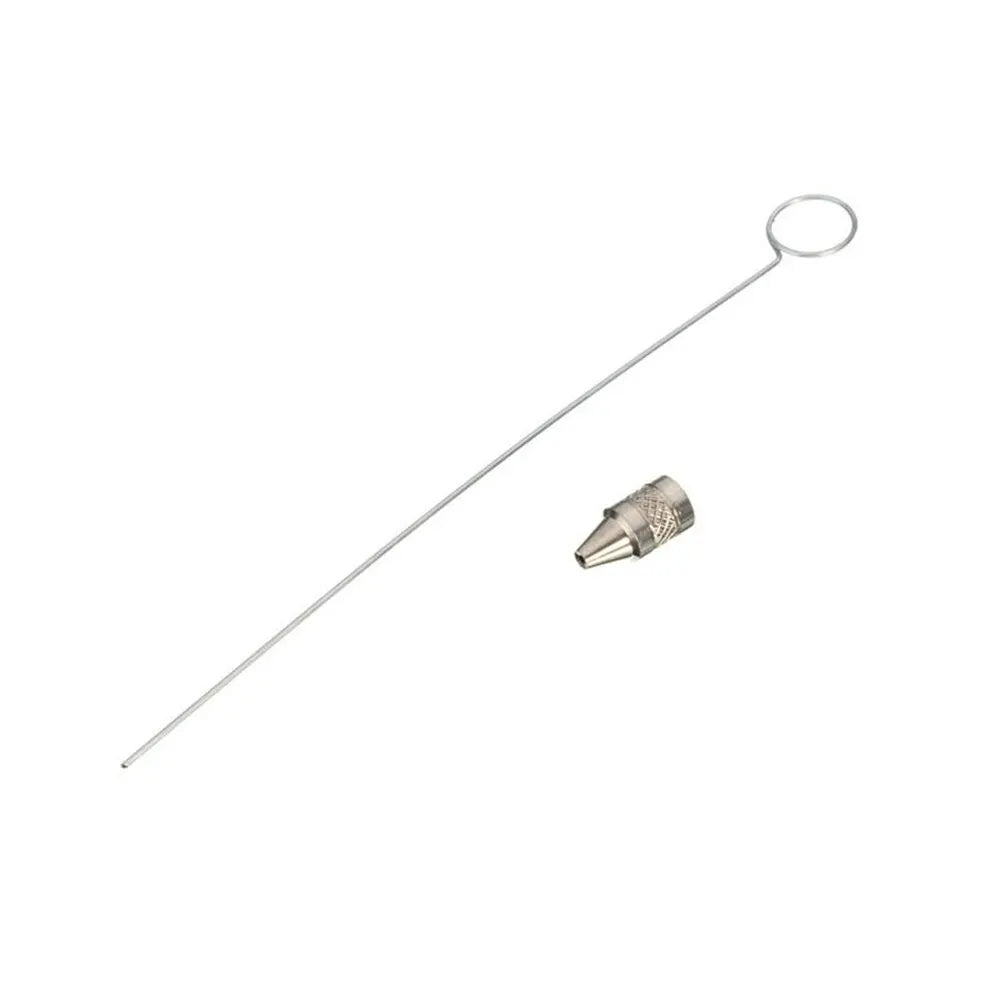

1*Extra Nozzle
1*Drill"
