SPECIFICATIONS

Brand Name: diymore

Choice: yes

Detection angle 360 °: Working temperature: -10 ° C~+40 ° C

Detection distance 6-8 meters: Working frequency: 50/60Hz

Environmental light 10-2000LUX (adjustable): Delay time: 8 seconds to 10 minutes (adjustable)

High-concerned chemical: none

Installation height 1.8-2.5M: Material: ABS+PC

Material: Mixture

Origin: Mainland China

Output: Switching Transducer

Product name Ceiling mounted mini sensor 802: Working voltage: AC85-265V

Theory: Optical Sensor

Type: Optical-Electronics Sensor

Use: Stairs, corridors, bathrooms, school communities, etc

is_customized: Yes

Product selling points

1. Stable performance, intelligent light control, delayed shutdown

2. High sensitivity, 360 ° full range detection without blind spots

3. Ceiling mounted, bottom bracket design, quick wiring for easy installation and disassembly

4. Fireproof and flame-retardant materials: effectively prevent fire hazards, do not deform, are not easy to oxidize, are safe, long-lasting, and durable

5. Wide application range: can be used for the switch control of lighting fixtures in various buildings, such as stairs, corridors, bathrooms, school communities, etc

Product parameters

Product Name: Ceiling Mini Sensor 802

Working voltage: AC85-265V

Detection angle: 360 °

Working temperature: -10 ° C~+40 ° C

Detection distance: 6-8 meters

Working frequency: 50/60Hz

Ambient light: 10-2000LUX (adjustable)

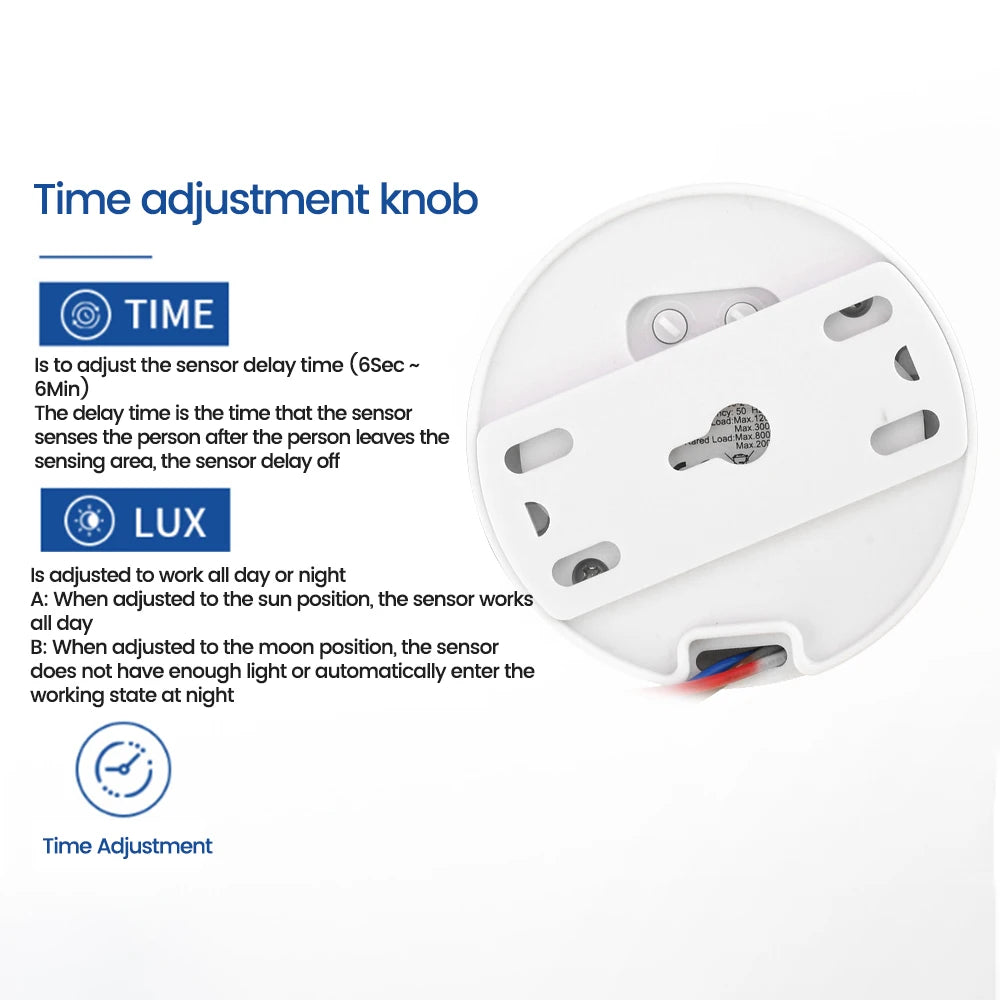

Delay time: 8 seconds to 10 minutes (adjustable)

Installation height: 1.8-2.5M

Rated load: 1000W tungsten filament lamp energy-saving lamp 200W

LED light material: ABS+PC

Check movement speed: 06. -1.5M/s

Waterproof grade: IP20

Power consumption: 0.5W (static 0.1W)

Product Description

The sensor is suitable for home lighting, indoor and outdoor lighting fixtures. It can be adjusted to be used all day or at night. When someone enters the sensing range of the switch, the sensor detects changes in the infrared spectrum of the human body, and the switch automatically turns on the load. When the person arrives, the light will turn on, and when the person leaves, the light will turn off. It is friendly, convenient, safe, and energy-saving.

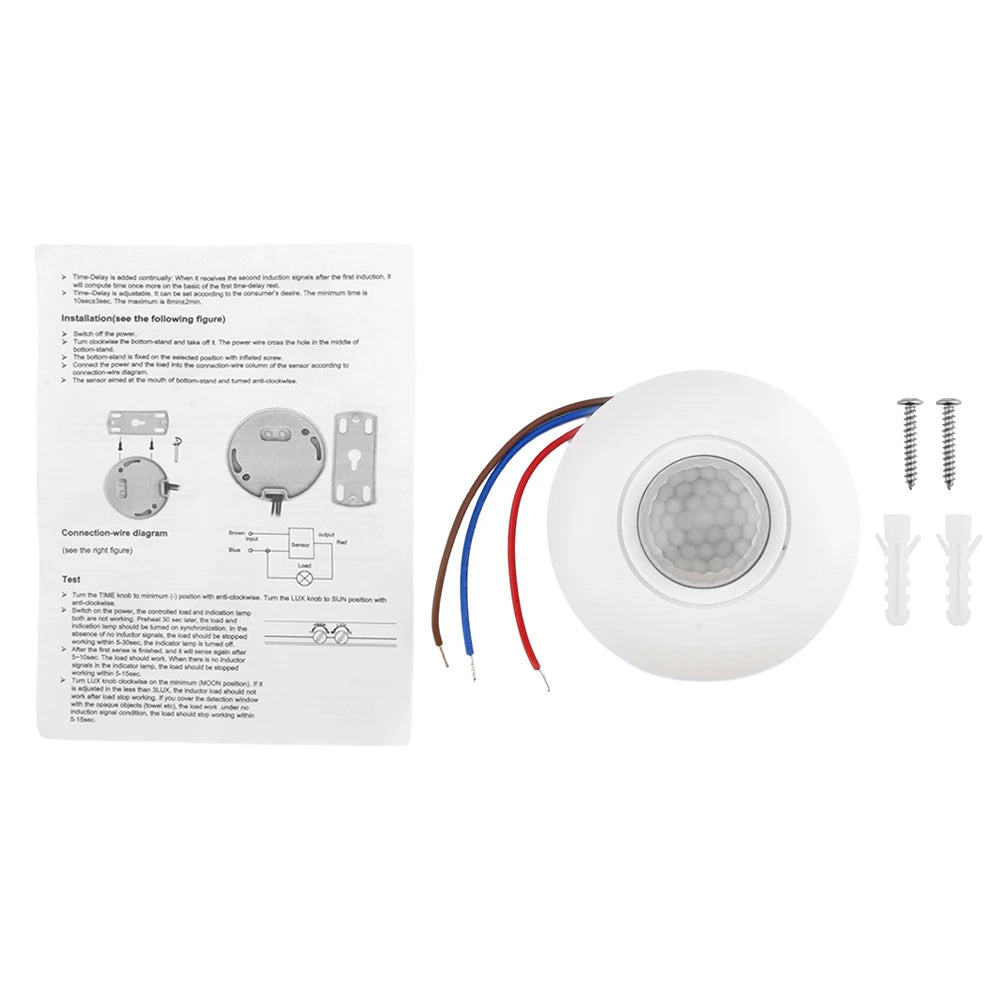

Packaging List

Sensor * 1

Screw * 2

Nut * 2
