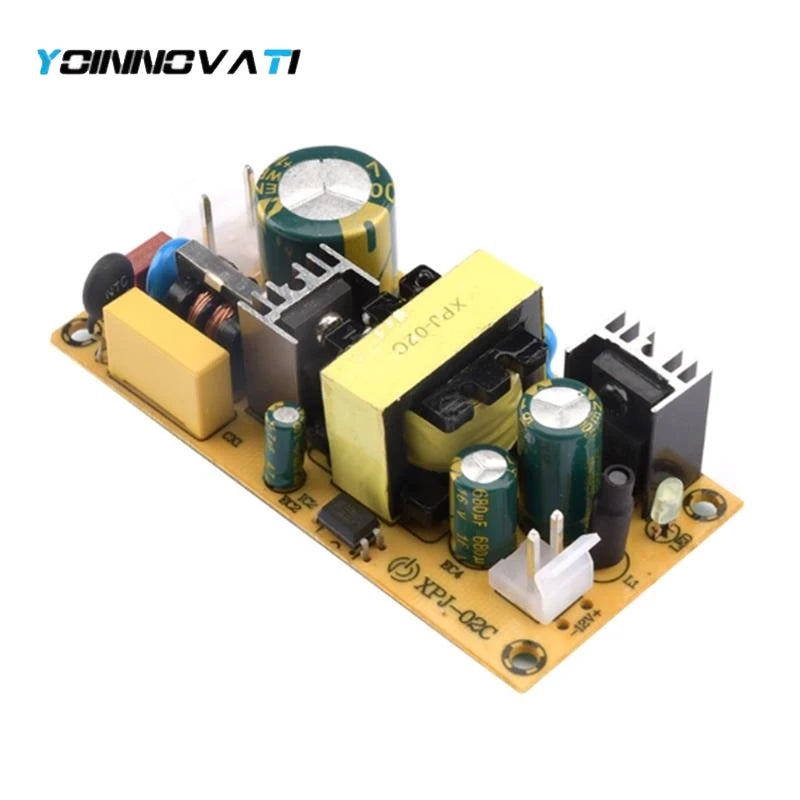

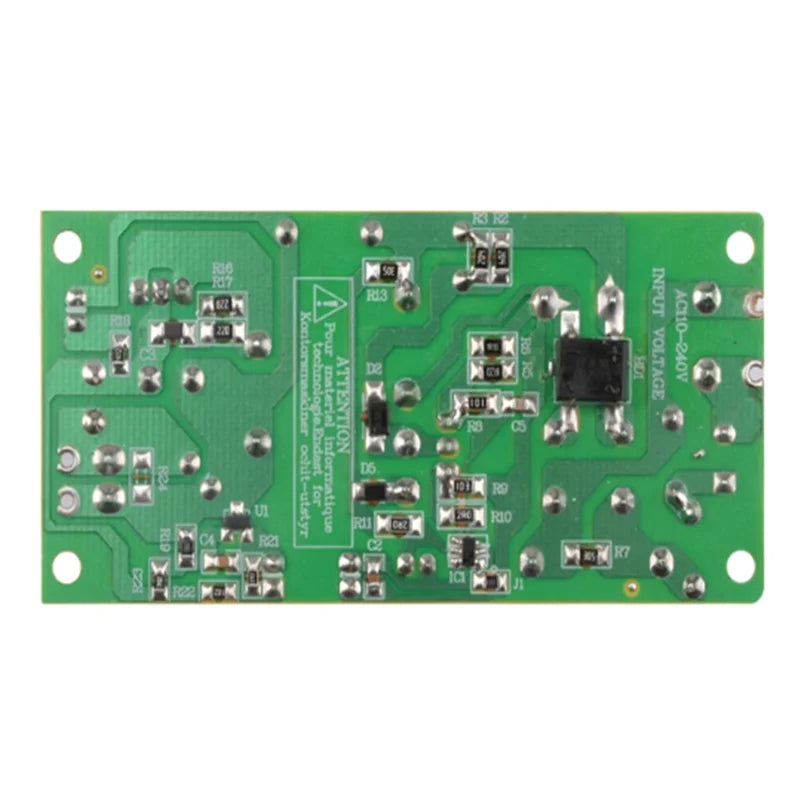

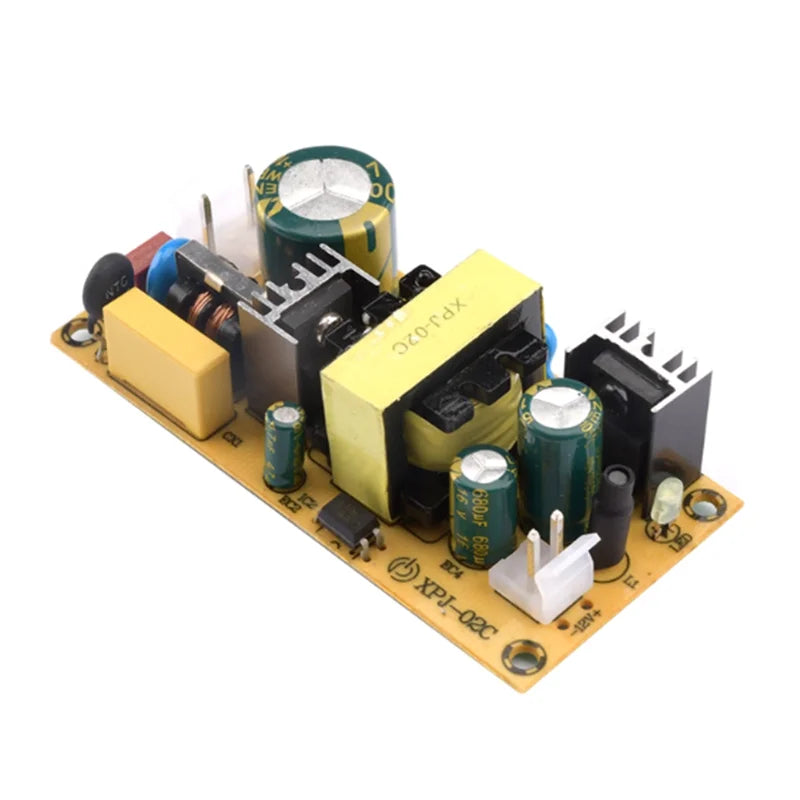

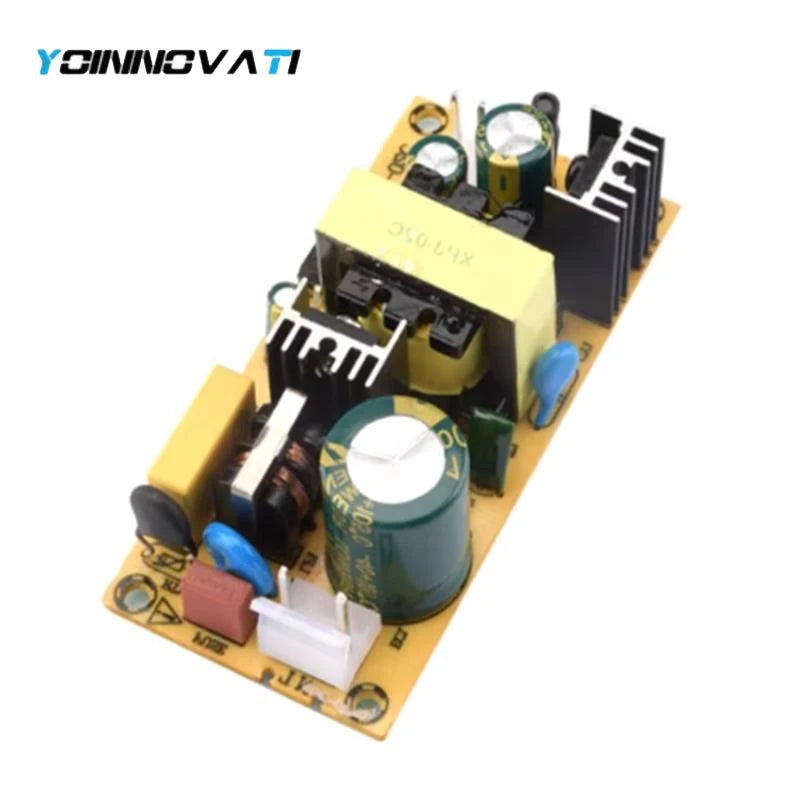

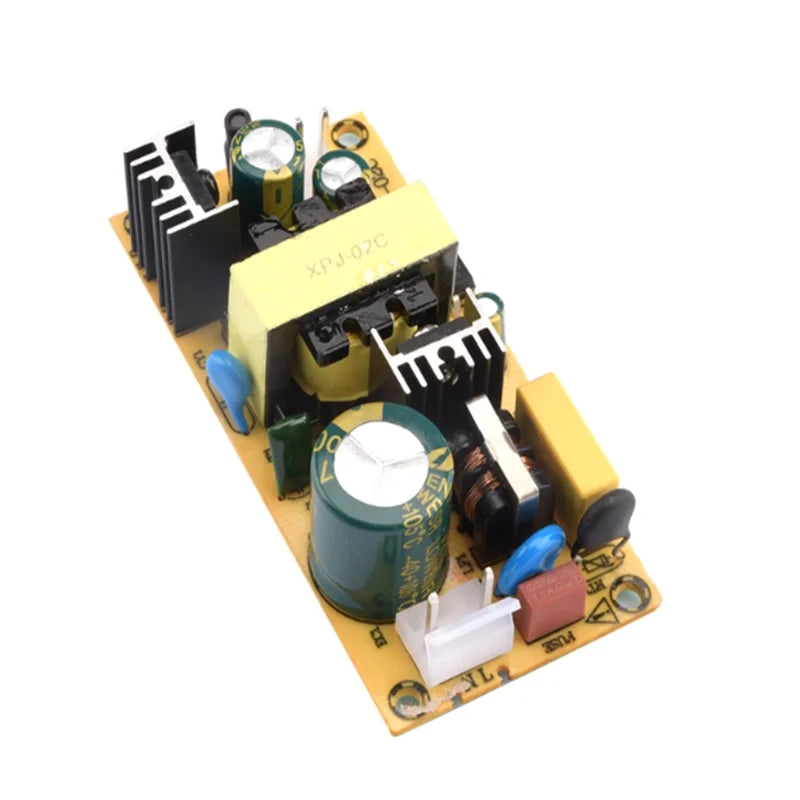

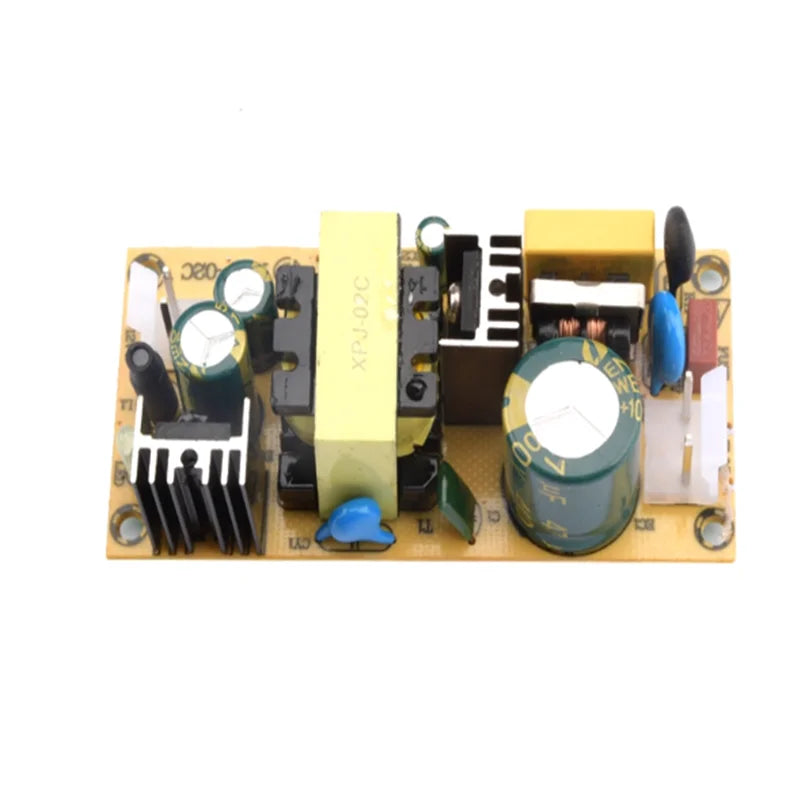

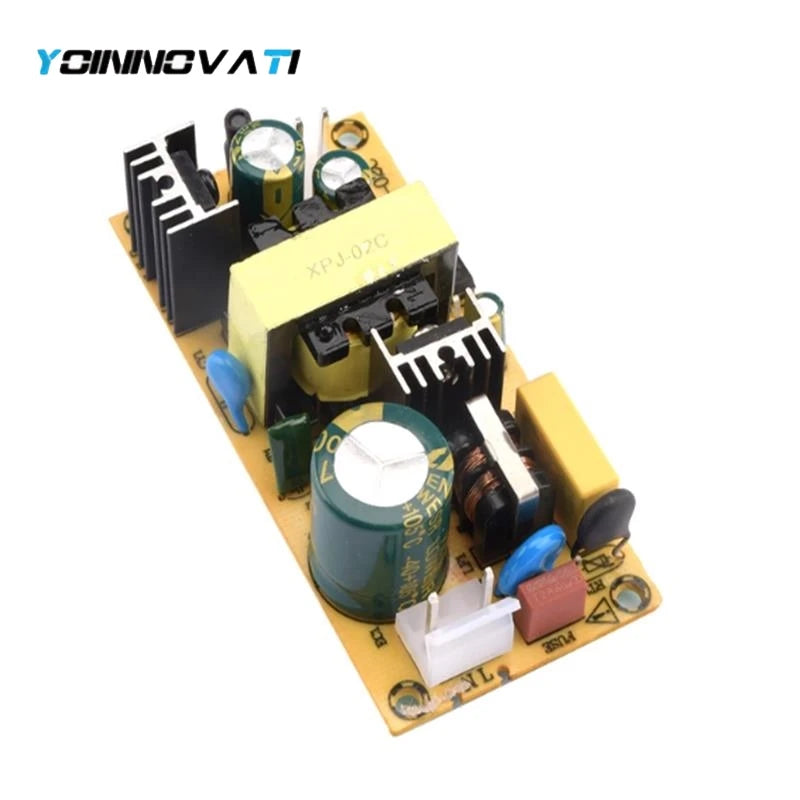

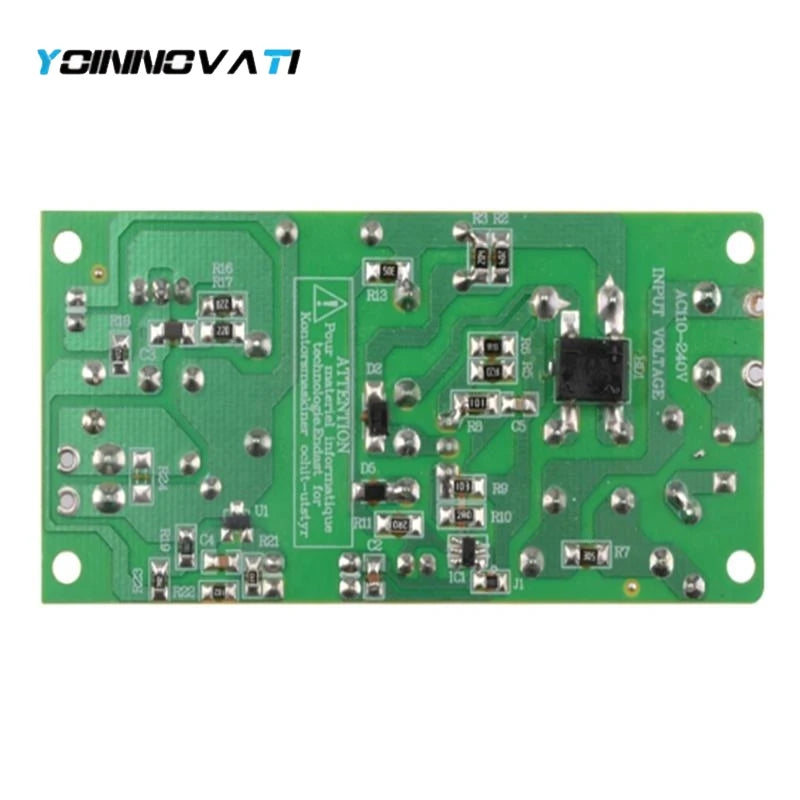

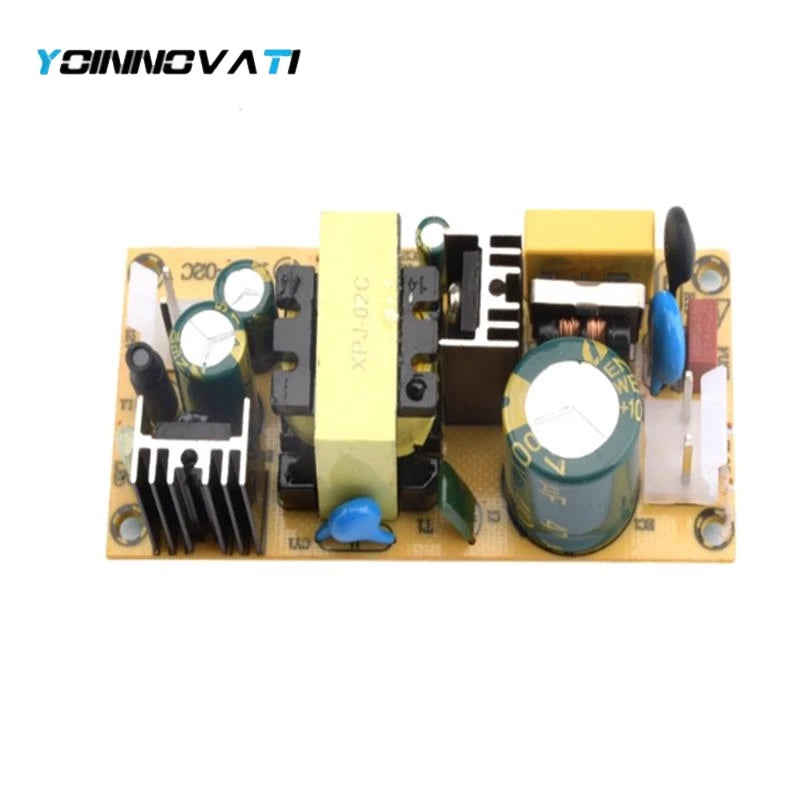

AC-DC 12V3A 24V1.5A 36W Switching Power Supply Module Bare Circuit 220V to 12V 24V Board for Replace/Repair 110V to 12V 3A

AC-DC 12V3A 24V1.5A 36W Switching Power Supply Module Bare Circuit 220V to 12V 24V Board for Replace/Repair 110V to 12V 3A

$12.08

$12.08 $0.00

Color 5V 600MA 12V 3A 24V 150MA 12V 400MA

Description

SPECIFICATIONS

Brand Name: YOINNOVATI

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

is_customized: Yes

Product details:

AC-DC 12V3A 24V1.5A 36W Switching Power Supply Module Bare Circuit 220V to 12V 24V Board for Replace/Repair 110V to 12V 3A

Usage environment:
1. Working temperature: -20~60 ℃
2. Relative humidity: 40~90% RH
Input characteristics
1. Input voltage range: 85VAC-265VAC 2. Input current: 0.0273 (AC110V) 0.014 (AC220V) 3. Input surge current: 20A (full load)
output characteristics
1. Output voltage range: 23.80~24.2V2. Output current range: 0A150mA, with a peak current of 200mA
3. Output power: 3.6 watts
4. Output efficiency: 85%
5. Exchange overshoot: 10%
6. Output rise time: 100 milliseconds

12V 400mA Description:
This is an isolated industrial grade built-in power module with temperature protection, short circuit protection power supply, AC85~265V input voltage, wide 431 precision voltage stable DC12V output, with installation holes, input and output EMI filtering circuits, small size, stable performance, high cost-effectiveness AC - input voltage 85~265V50/60HZ - output voltage DC12V (± 0.2V), output current 400mAh

5V 600mA Description:
240V wide input power supply with temperature protection, overcurrent protection and short circuit protection, AC90 voltage, high and low voltage isolation, DC5V output, compact 431 precision regulator 1: working environment
Working temperature: -20-60 ℃ C
Relative temperature: 40-90% relative humidity
2: Technical requirements
Prophecy, Execution, Houhou, Haomian Shadow, Ju 1 Input Features
Input voltage range: 90V AC to 240V AC (full load) Input current: 0.0273 (110V AC) 0.014 (220V AC) Input surge current: 20A (full load)
2.2 Output Characteristics
2.2.1 Output regulation characteristics
Output voltage range: 4.90~5.1V
Output current range: 0A to 600 meters
2.2.2 Other output characteristics
Output power: 3W
Output efficiency: 85%
Switch machine overshoot: 10%
Output rise time: 100mA
2.3 Protection Function
Output power protection: Recovery features: Lock, restart, and recovery
Short circuit protection: Recovery features: Lock, restart recovery
Temperature protection: Recovery features: Lock, restart, and restore overcurrent protection: Recovery features: Lock, restart, and restore Size: 40 * 15 * 18 millimeters
