SPECIFICATIONS

Application: AC-DC module

Brand Name: WAVGAT

Condition: New

Dissipation Power: 10W

High-concerned chemical: none

Operating Temperature: -40°-+85°

Origin: Mainland China

Package: Module

Supply Voltage: 5V 2A

Type: electronic module

is_customized: Yes

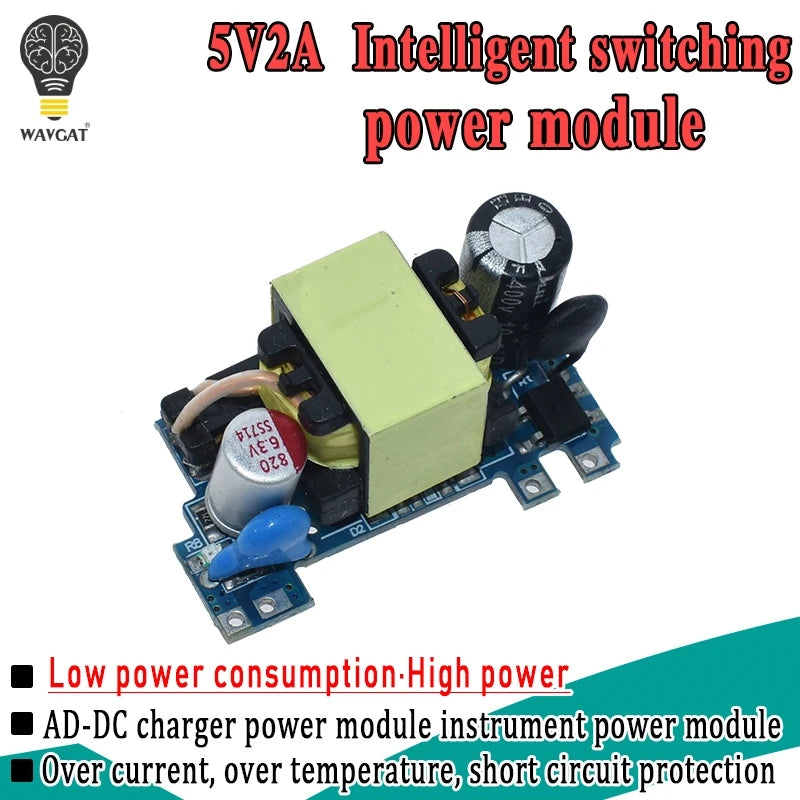

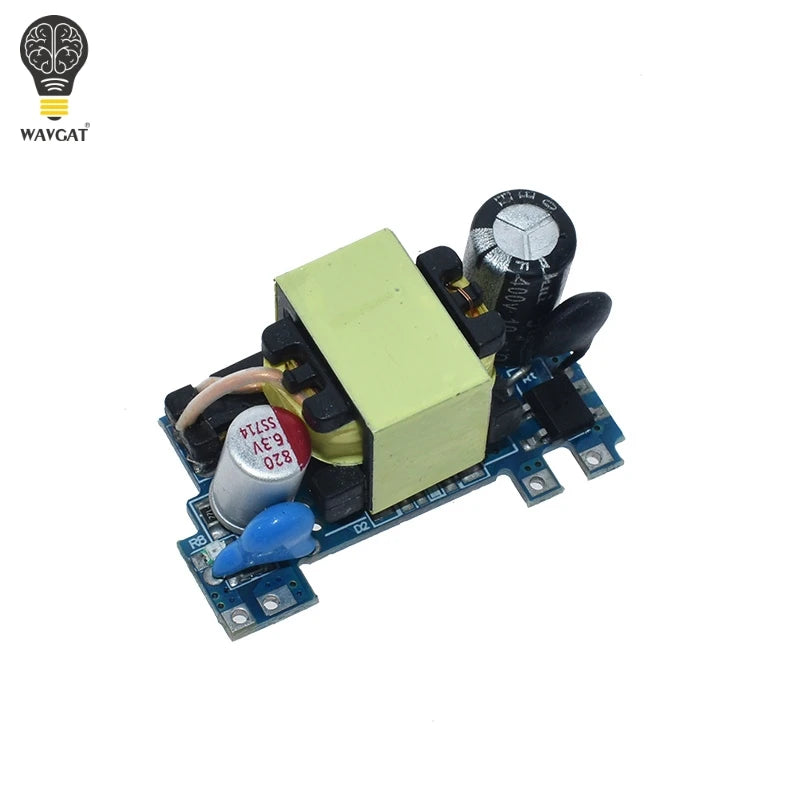

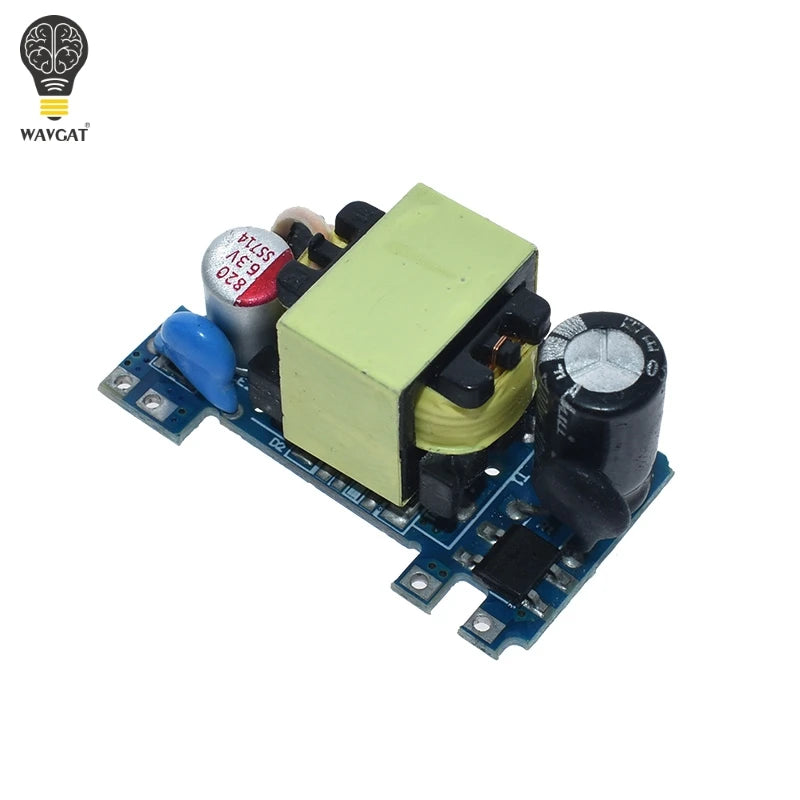

1. Intelligent switch or all kinds of electronic products are commonly used with built-in isolated voltage stabilized ACDC power module

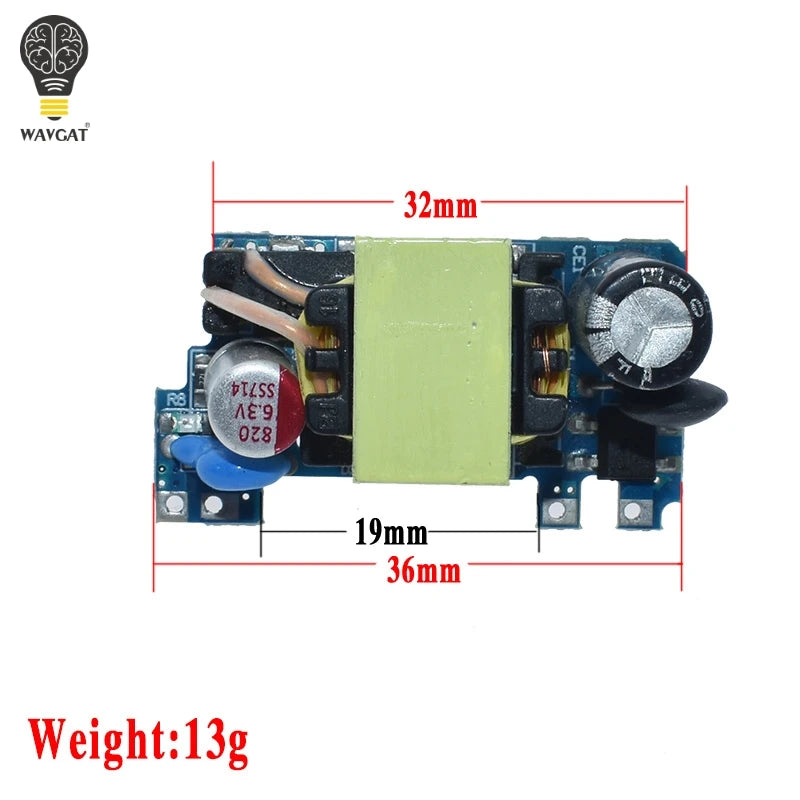

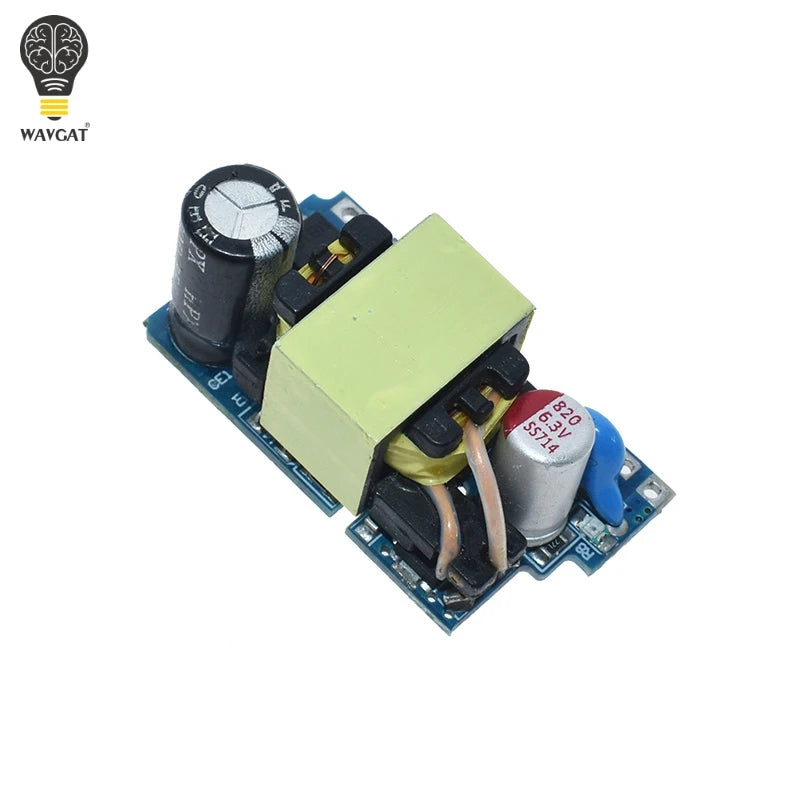

2. Super small size, flexible installation, can be embedded into PCB slot vertically or welded to PCB by dupont plug

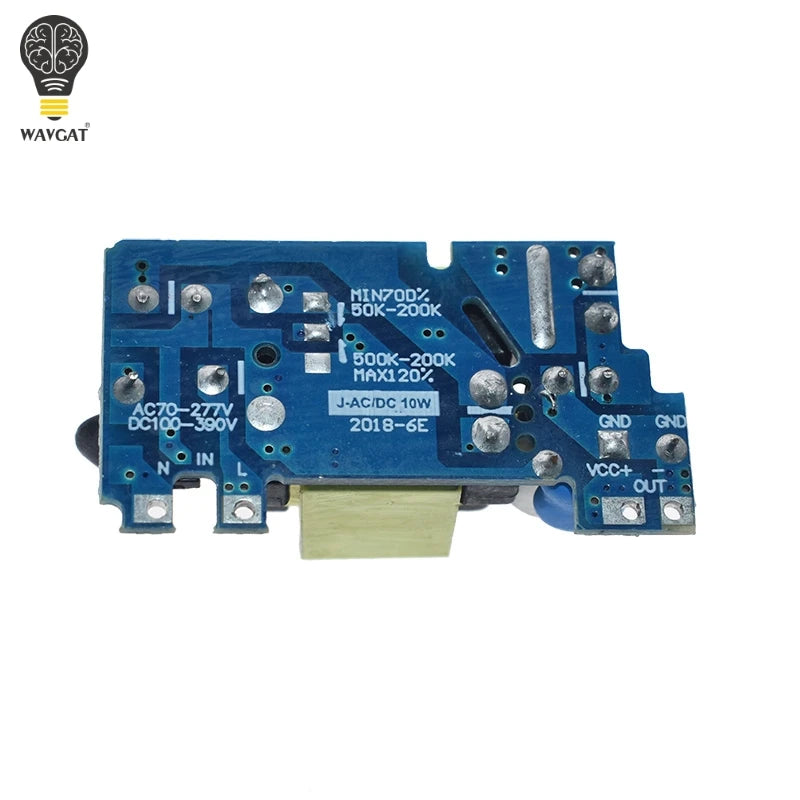

3. International universal full range input voltage :85265VAC or 110370VDC
4. It is equipped with overcurrent protection, short-circuit protection and overtemperature protection. When the abnormal load problem is removed, it will automatically return to normal
5. Accuracy range of output voltage: 48-5.3v.
6. Products are designed in accordance with safety standards.
7. The product has ultra-low power consumption, conforms to the design of six level energy efficiency standard, no load ≤ 0.1w, and the efficiency is 77-80
8. More power or double output can be used in parallel with multiple power sources.
9, 3v33v3.6v voltage, can also output voltage regulator chip use, with 5V power supply, such as 3.3V commonly used low-voltage differential micro-power regulator chip :7133(50mA)7233(300mA)7533(100mA)7833(500mA)1117(1A non-cmos high temperature and large power consumption, not recommended).

Ac input (VAC) : 85-264(recommended range
Dc input (VDC) : 110-370(recommended range)
Frequency range (Hz) : 47-63
Input current (mA) : 0.12/115vac0.06/230vac
Surge current (A) : cold start :10A230VAC
Efficiency (TYP) : ≥77%
No load standby (mW)≤100mW

Note:
1. Without special description, all the specification parameters are input in 230VAC, rated load,
Measurement at ambient temperature of 25°.
2. Ripple and noise measurement: use a 12 "twisted pair with parallel terminals
Capacitors of 01UF and 10uF, measured at 20MHz bandwidth.
3 precision: including tolerance error, linear adjustment rate and load adjustment rate.
The power supply should be considered as part of the system components, which should be combined with terminal equipment for electromagnetic compatibility
Relevant confirmation.
If the output is lower than the input voltage, please refer to the deduction curve for details.
6. External EMC components, please refer to the design for details
Products can be customized according to customer requirements
