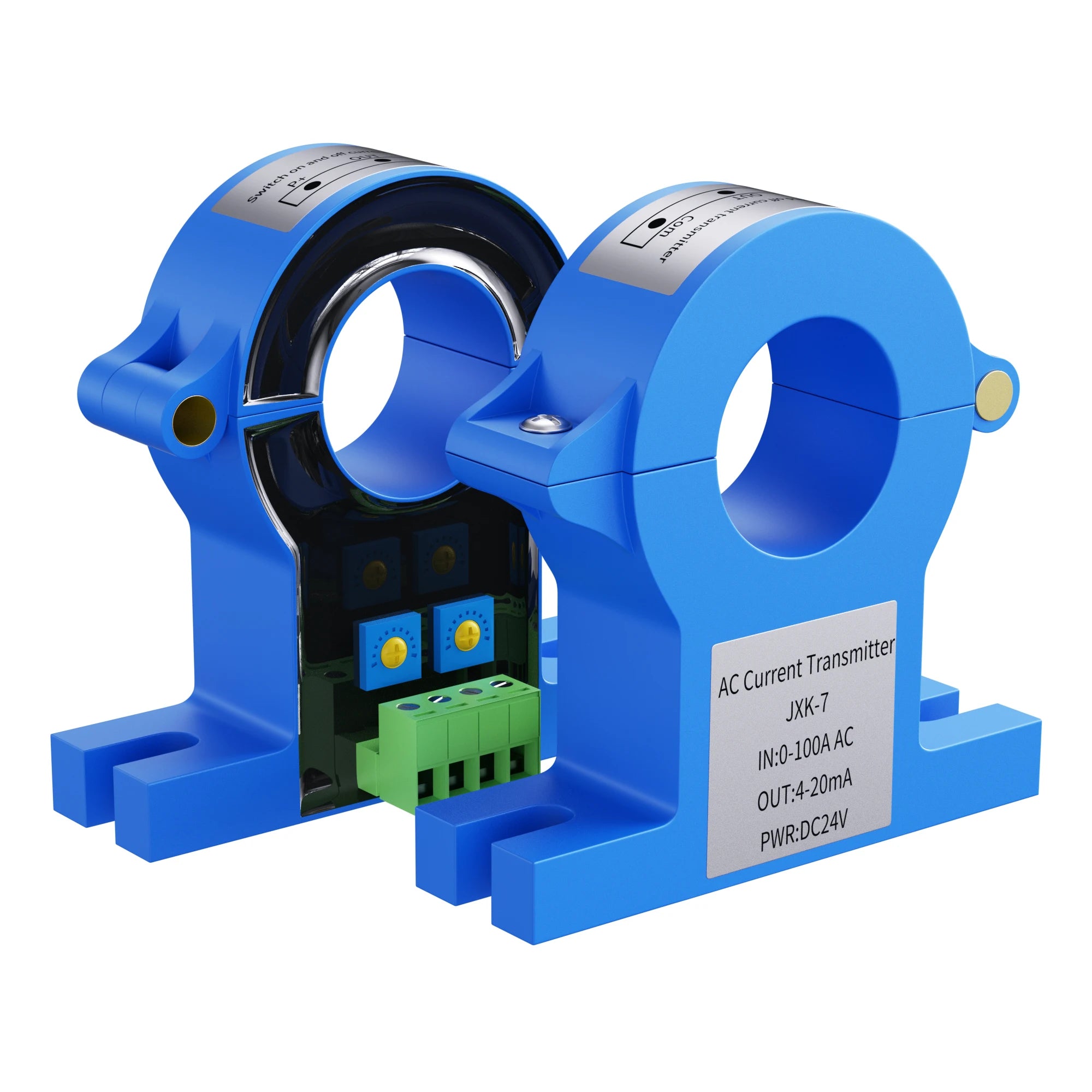

AC DC Current Transducer 0-100A 0-200A 0-300A Hall Current Transmitter Sensor 20mm 4-20mA 0-10V 0-5V RS485 AC DC Current Sensor

hole diameter 20mm / DC24V / 0-10V Output|China Mainland|DC 0-1000A

$140.94

Sale price $140.94 Regular price $0.00

Skip to product information

AC DC Current Transducer 0-100A 0-200A 0-300A Hall Current Transmitter Sensor 20mm 4-20mA 0-10V 0-5V RS485 AC DC Current Sensor

AC DC Current Transducer 0-100A 0-200A 0-300A Hall Current Transmitter Sensor 20mm 4-20mA 0-10V 0-5V RS485 AC DC Current Sensor

$140.94

Sale price $140.94 Regular price $0.00

Color hole diameter 20mm hole diameter 25mm hole diameter 38mm

SizeDC24V

Description

SPECIFICATIONS

Accuracy Class: 0.1%

Battery Included: no

Brand: Qidian

Brand Name: NoEnName_Null

Certification: CE,FCC,RoHS

DIY Supplies: Electrical

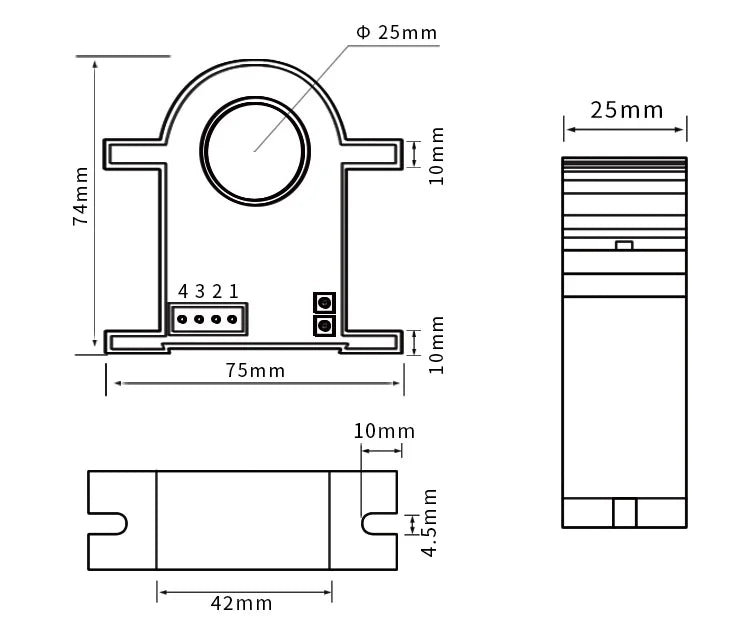

Dimensions: 24 * 99 * 65 mm

Display Type: Analog Only

High-concerned chemical: none

Input signal: AC/DC0-10A-500A

Installation method: Screw fixation

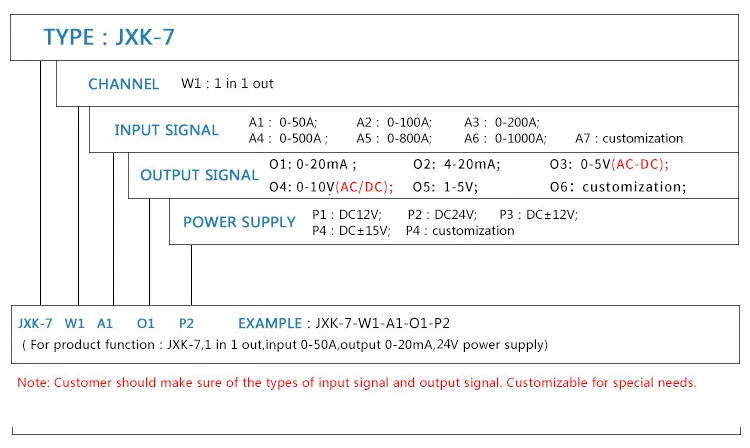

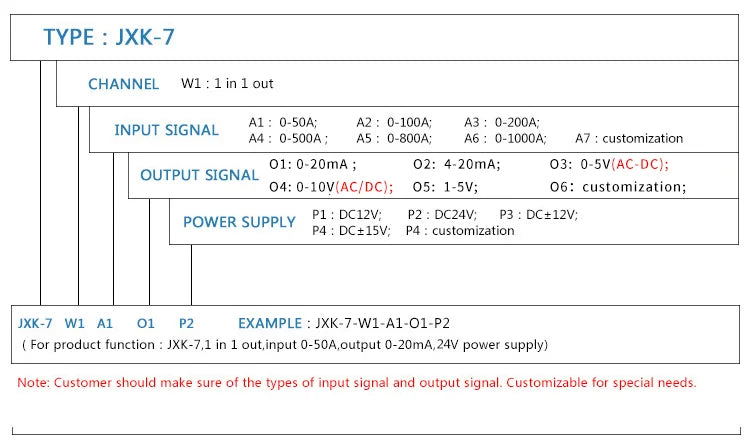

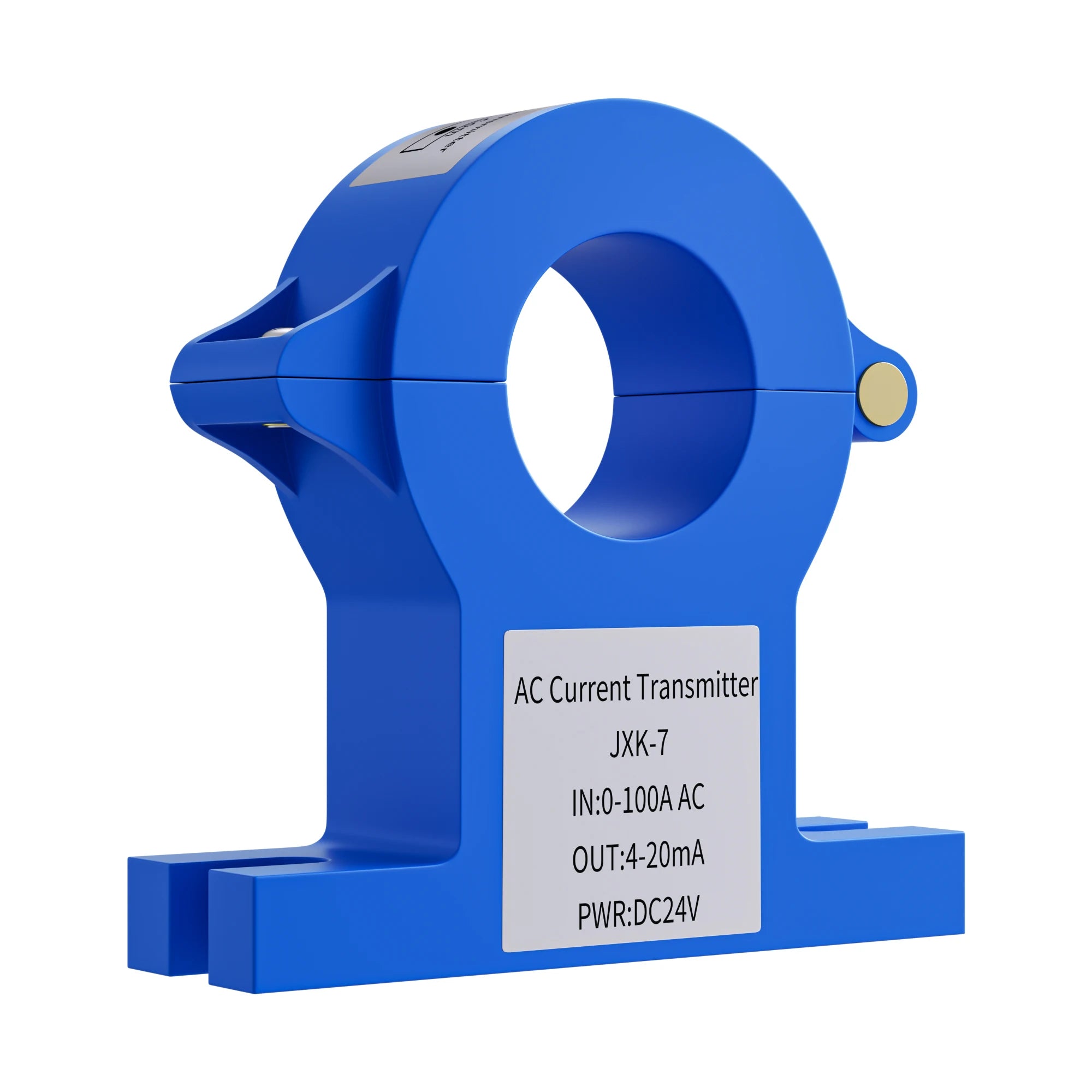

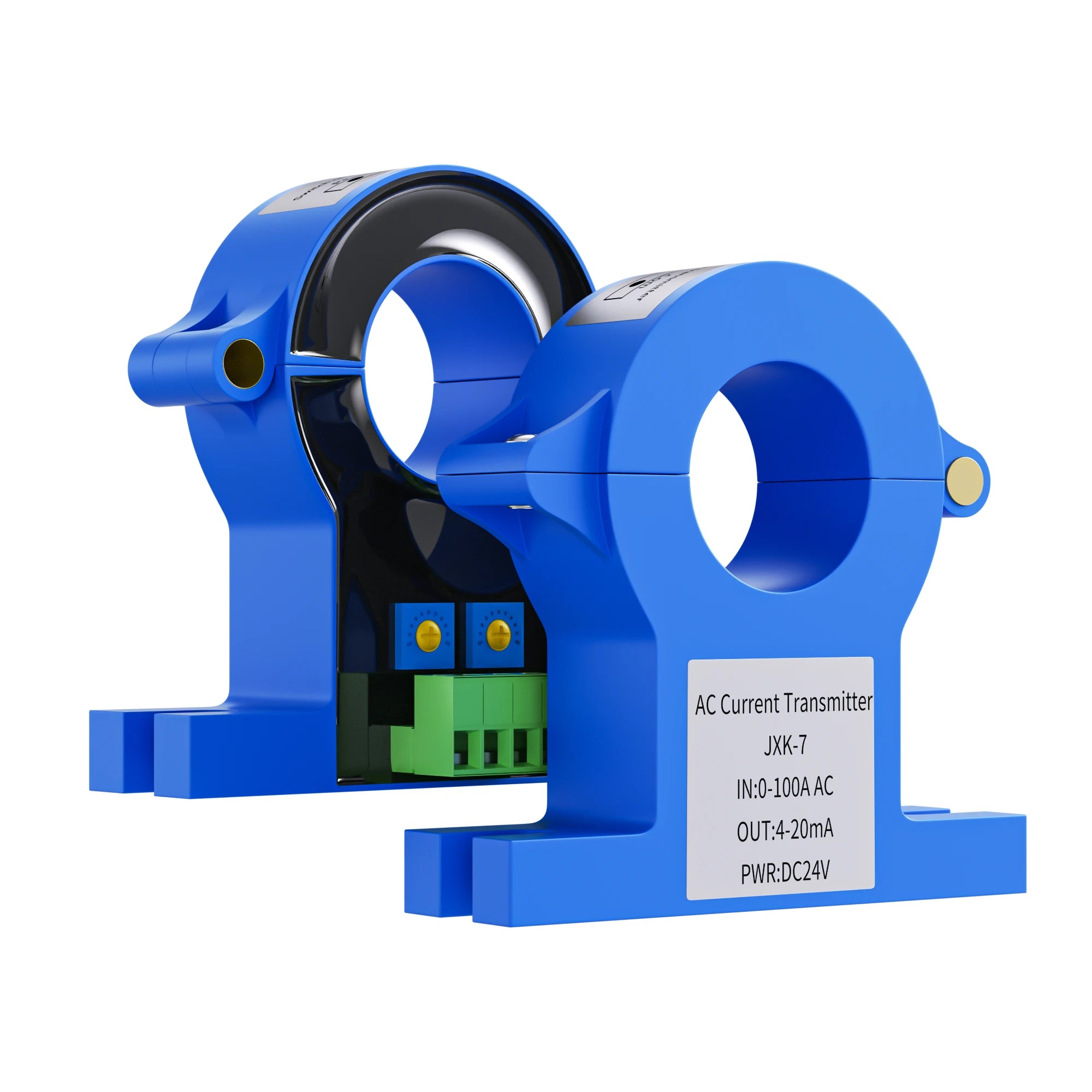

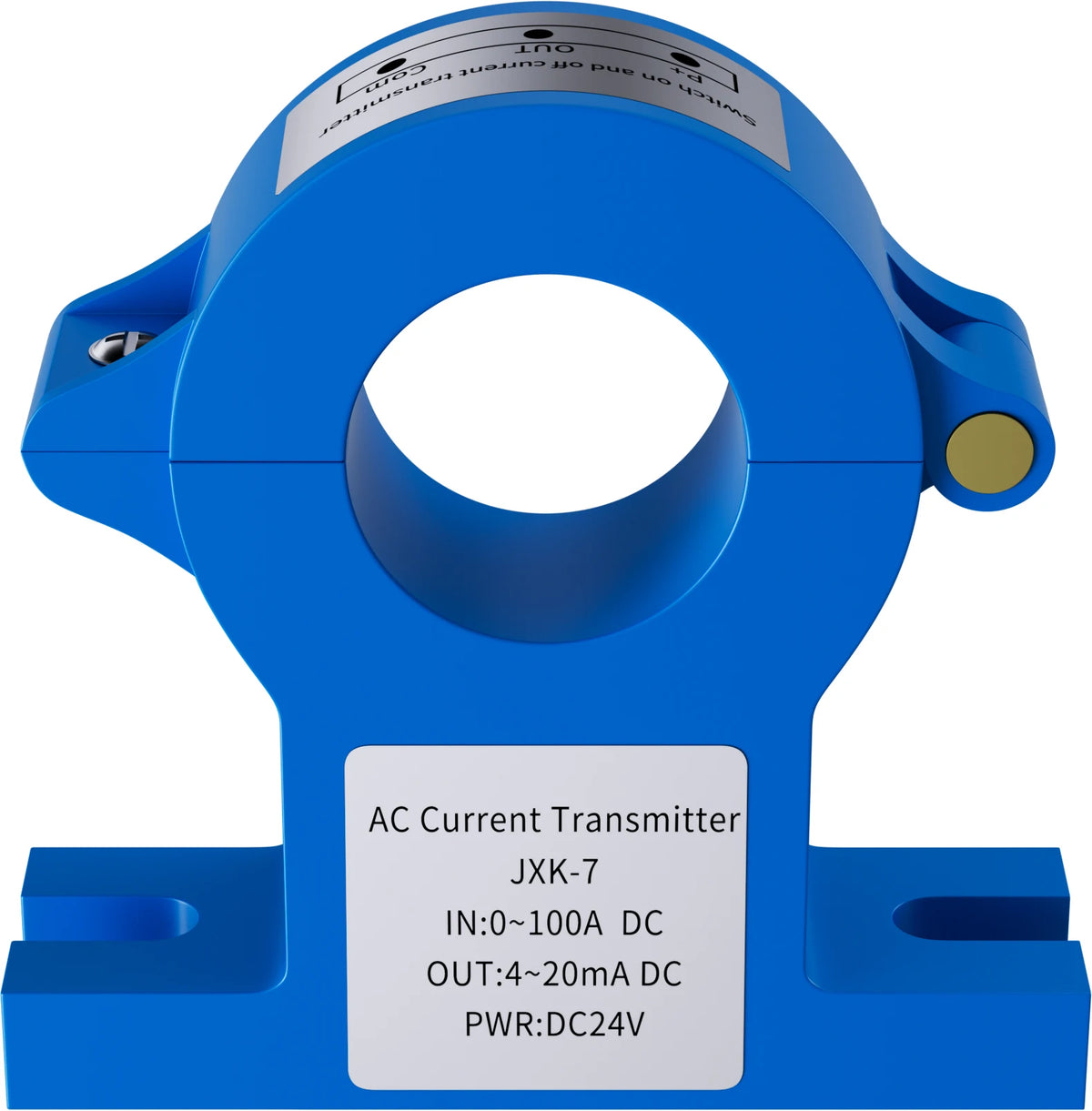

Model Number: JXK-7

Operating Temperature: -20 ° C ~ 60 ° C

Origin: Mainland China

Output signal: 4-20mA,0-10V,0-5V,1-5V

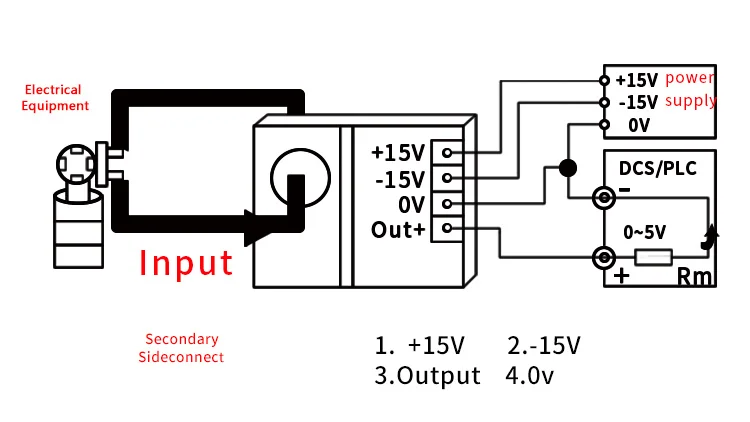

Power supply: ±12V,±15V,24VDC,12V-28VDC,DC24V,DC12V

Response time: AC:20-30ms,DC:10ms

Semi-finishedproduct: No

Supply Voltage: DC24V/AC220V

Notes:

We can make AC or DC0-10A-1500A(Min 10A,Max 1500A)

Power supply:12VDC,15VDC,24VDC,12V-28VDC

If you need other special parameters,please contact me,

or can leave a massge when placing an order.

Please let me know the input current ,output signal,hole diameter and power supply when ordering.

Technical characteristics:

★High measurement accuracy

★Stable and durable structure

★Strong anti-interference ability

★ Lightweight and easy to install

Introduction

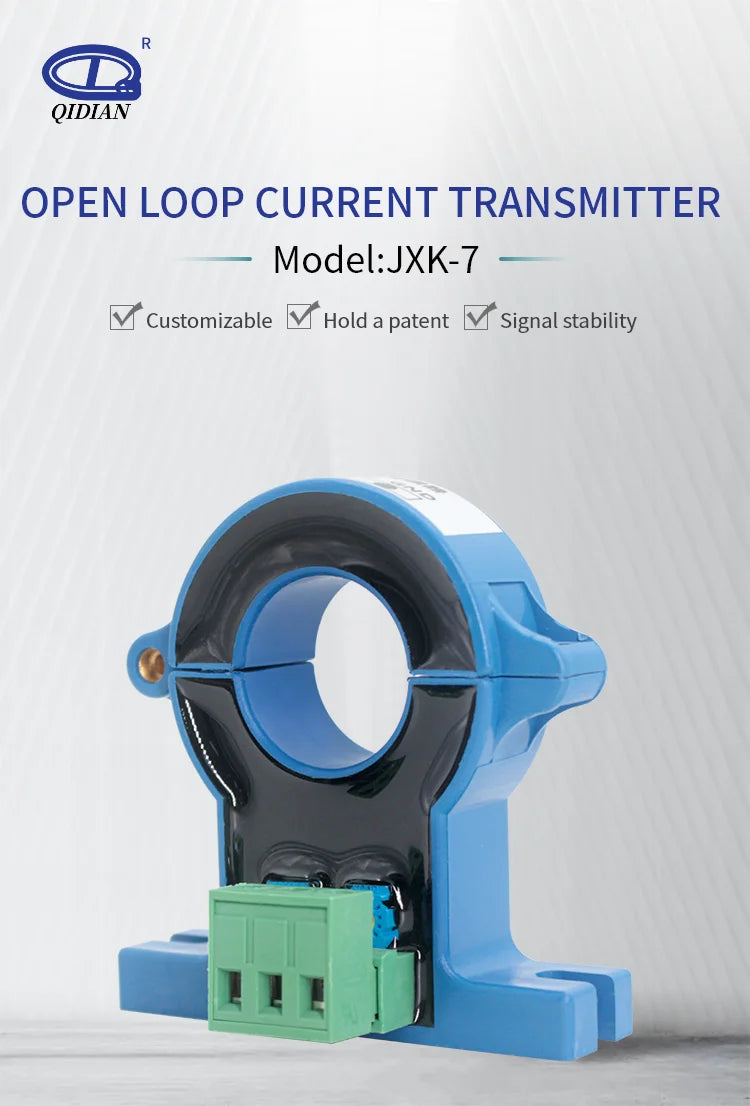

<1>. Working Principle: Open loop direct measurement.

<2>.Product Usage: Used for measuring DC, AC, pulse current and other arbitrary waveform current.
<3>.Product Advantages: Better cost performance, low power consumption, small volume, light weight, easy installation, perforation input and no insertion loss.
<4>.Product Application: Frequency conversion speed control system, electric welding machine, electrochemistry, power supply monitoring, electric locomotive, low level starting protection.
<5>.The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability.
Full channel configuration,Parameter customizable.
